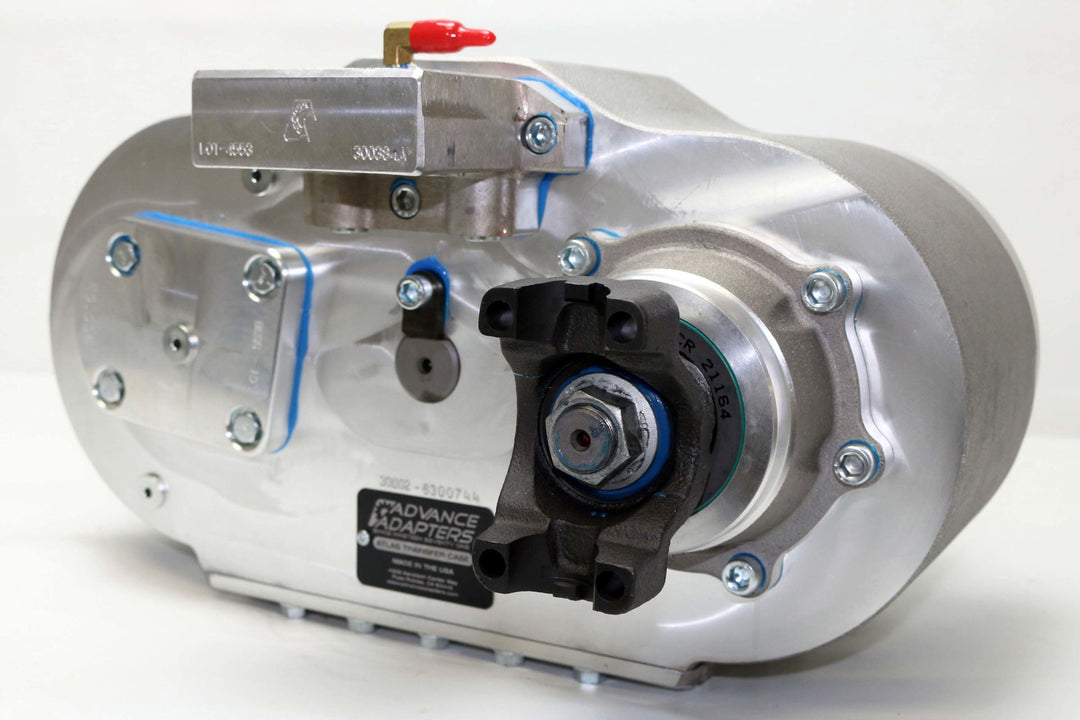

Advance Adapters Atlas 2-Speed Transfer Case — Trail Series (Universal Custom Build)
Atlas Transfer Case Builder (Trail Series)
The Advance Adapters Atlas 2-Speed Trail Series Transfer Case is the industry benchmark for gear-driven transfer case performance. With over 30,000 units sold since its introduction in 1995, the Atlas has won over the off-road world for one reason — it flat out works. Whether you are rock crawling, mudding, desert racing, or building the ultimate trail rig, the Atlas delivers the strength, reliability, and low-range control that chain-driven factory transfer cases simply cannot match.
The Trail Series features a 1.25 inch idler gear design optimized for daily drivers and weekend trail rigs. Available low-range gear ratios are 3.0:1, 3.8:1, 4.3:1, and 5.0:1. The Trail Series is recommended for most stock and mildly built vehicles running under 600 horsepower and up to 42 inch tires. For race competition vehicles, high-horsepower builds, or tires larger than 42 inches, see the Atlas G2 Pro Series sold separately, which features a larger 1.5 inch idler and 300M output shafts.
The one-piece case is manufactured from 356-T6 heat-treated aluminum alloy. Weight is 110 lbs dry. Internal gears are massive helical-cut units supported by needle bearing elements and precision-matched 8620 steel shafts for quiet, smooth operation. BorgWarner synchronizers provide reliable shift-on-the-fly capability. Large taper roller bearing sets support the output shafts for long-term durability.
Every Atlas Trail Series transfer case is custom built to order by Advance Adapters in Paso Robles, California. Use the options on this page to configure your exact build — select your low-range gear ratio, input shaft spline count, output shaft drop (driver or passenger side), tail housing length, speedometer output type, and shifter style. Your price will be calculated based on your selected configuration.
Case dimensions are 11.8 inches with the short tailhousing and 13.8 inches with the long tail. Normal operating temperature is 160 to 175°F. Oil capacity is 2.0 quarts of Amsoil GL4 gear lubricant. The standard output shaft is 32 spline HD. Eleven input shaft options are available from 10 to 35 spline to cover most popular transmission applications. Typical build time is approximately 8 weeks. The Atlas carries a lifetime warranty on gear sets and castings, and a limited 1-year warranty on shafts, bearings, gaskets, and hardware from the date of shipment.
Please note — taxes are charged separately.
SKU: Atlas Transfer Case Builder (Trail Series) | Built in USA — Advance Adapters, Paso Robles, CA | Skinny Pedal Racing is an Authorized Advance Adapters Dealer
