JK Add On Switch Panel For 8 Circuit SE System 07-08 Wrangler JK Amber. The system utilizes automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity!
The sPOD SourceSE is a fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100 percent manufactured in the United States.
This is an Add On Only be added to SE Touchscreen system 8-700-TS-JK to allow Touchscreen and hard switch panel option. Not designed to be used without SE 8 Circuit Source. Fits 2007-2008 Jeep JK.
Switch Panel Features:

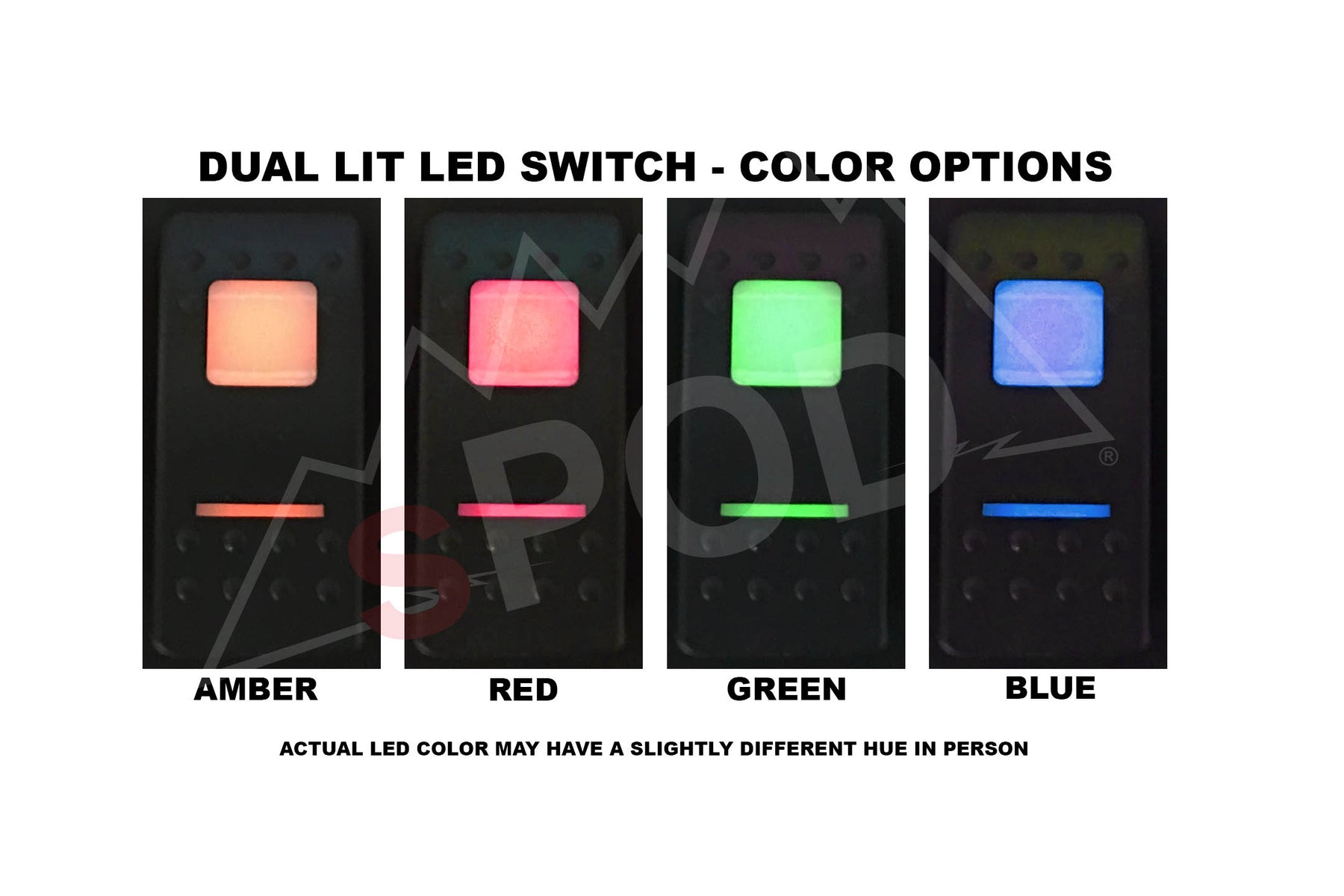

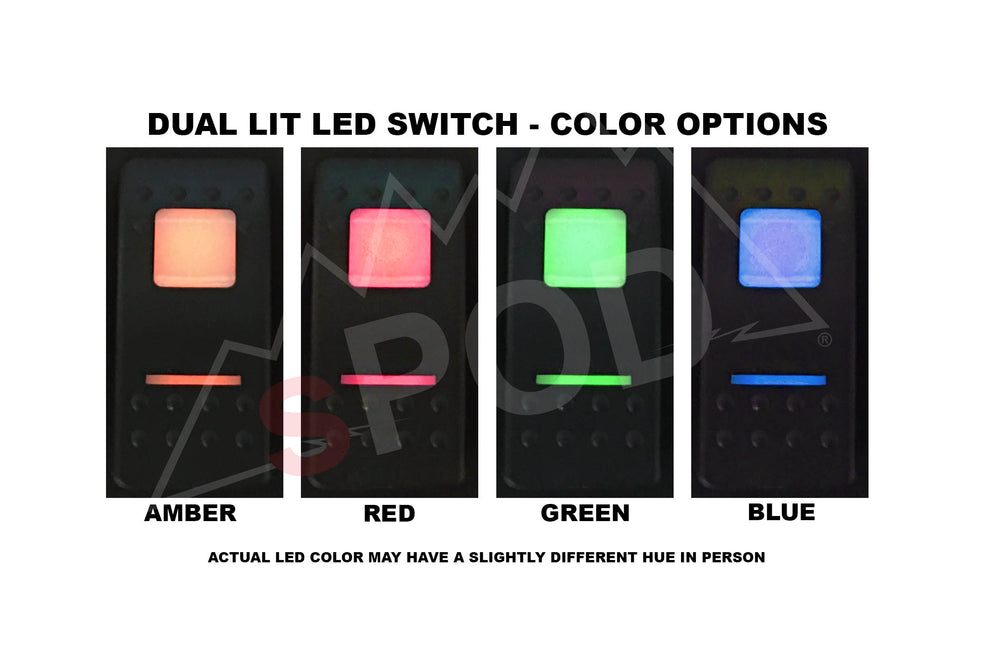

- Dual lit (LED indicator lights, on position and pilot light) in Amber (All switches will be one color)

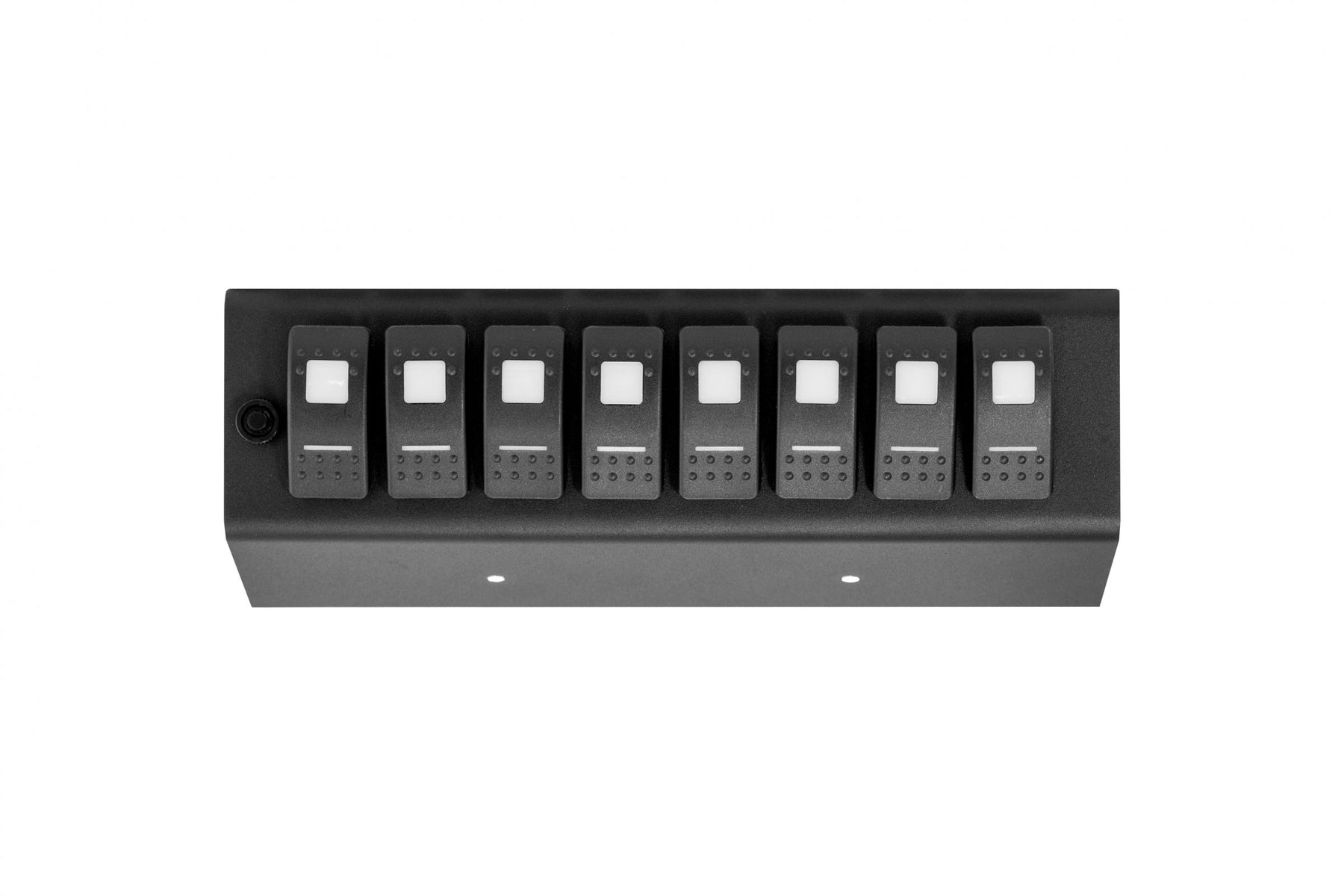

- The new switch panel has 8 switches. This panel uses an Ethernet cable that interfaces with the Source with a RJ-45 plug on both ends. Standard cable length will be 10 feet.
- Each switch is programmable for Strobe or Flash (by a sequence of On/Off/On quickly )
- Automatic system shut down when panel is unplugged
- Lower pilot light has an independent power control push button for full operator control
- Switches are Carling Technologies Contura series with an IP67 rating (marine/heavy equipment)
- Switch Panel housing is Not plastic but rather, an aluminum formed and welded design to match the interior of the Jeep JK (2009-2015) with specific mounting hardware
- Switch panel can be daisy chained for remote operations (EG: one panel in cab and one panel in far back of truck) can easily add up to 10 switch panels.
- Options to mix and match with the Touchscreen panels as well.
- Two ports available integrated into the CAN-Bus controller.
Specifications:
- Sold as: Kit
- Number of switches: 8
- Switch color options: Amber
- Switch illumination: Dual LED
- Mount location: Between visors on windshied frame
- System capacity: 100 AMP
- Single circuit capacity: 30 AMP
- Circuit breaker included: 50 AMP
- Battery cable length: 84 Inch
- Built-in Bluetooth: No
- Legends included: No
- Material: Aluminum Formed
- Color: Black
- Finish: Powdercoat
- Country of origin: US
- Warranty: 1 Year Limited
- Dimensions: 13 x 6 x 8 in
- Weight: 3 lb
