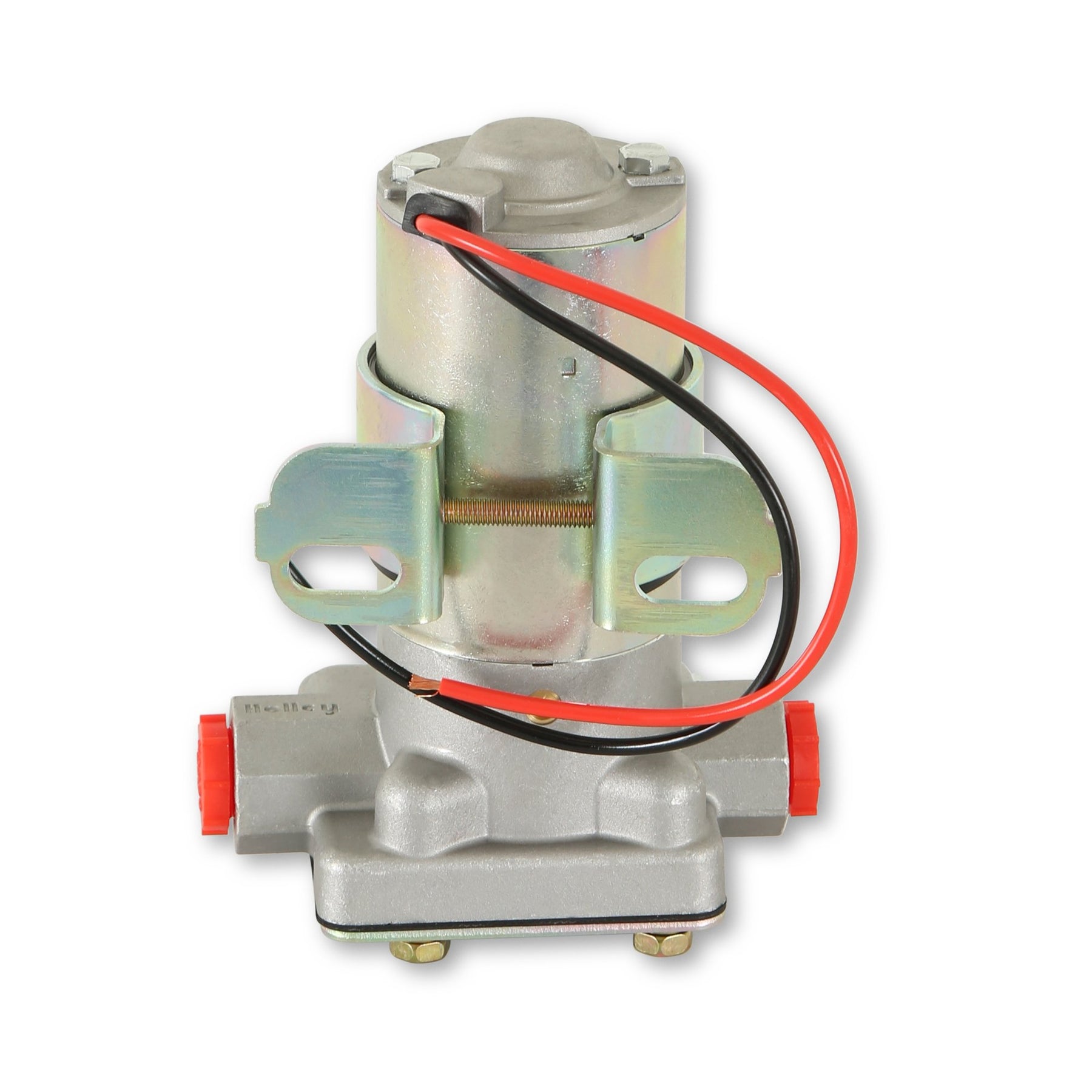

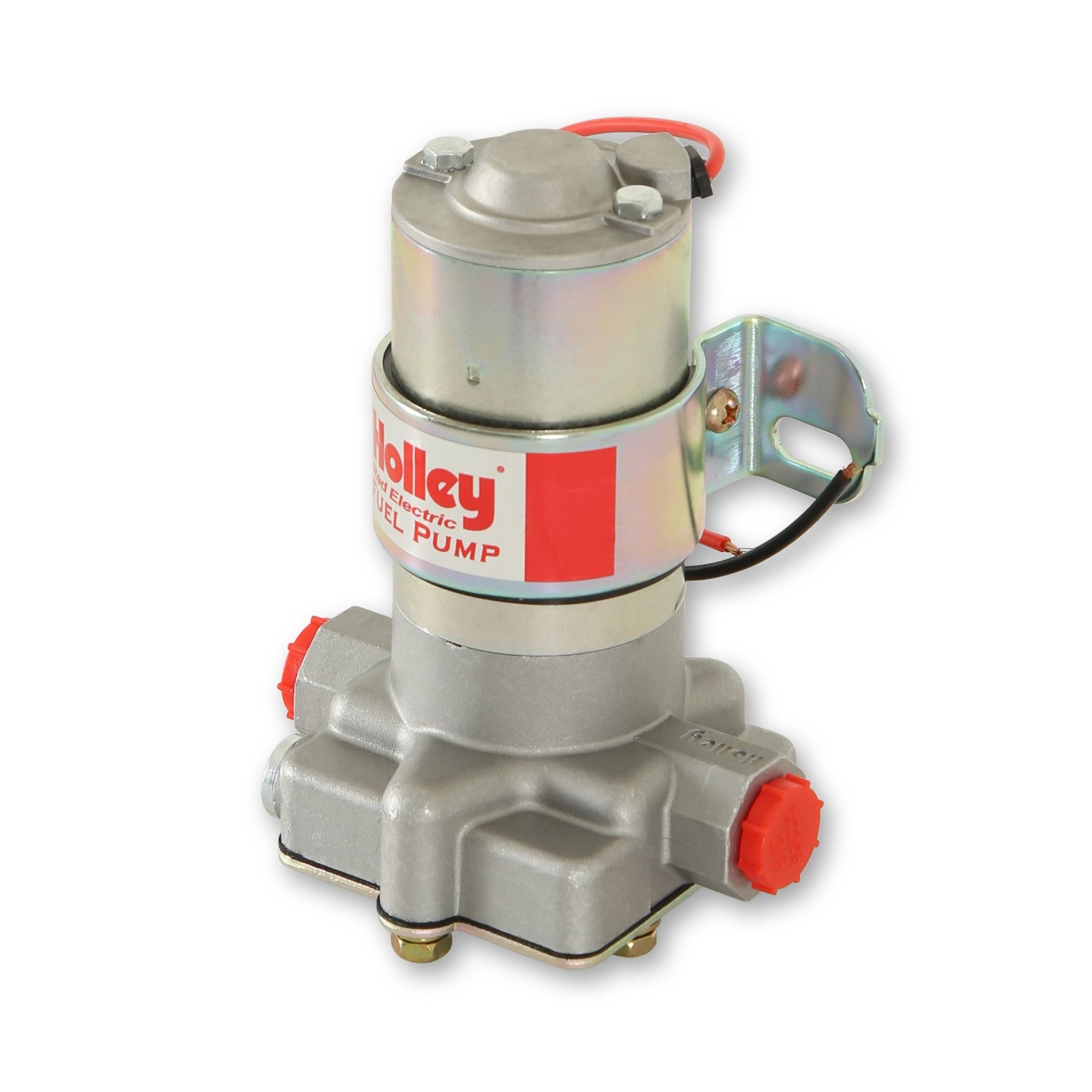

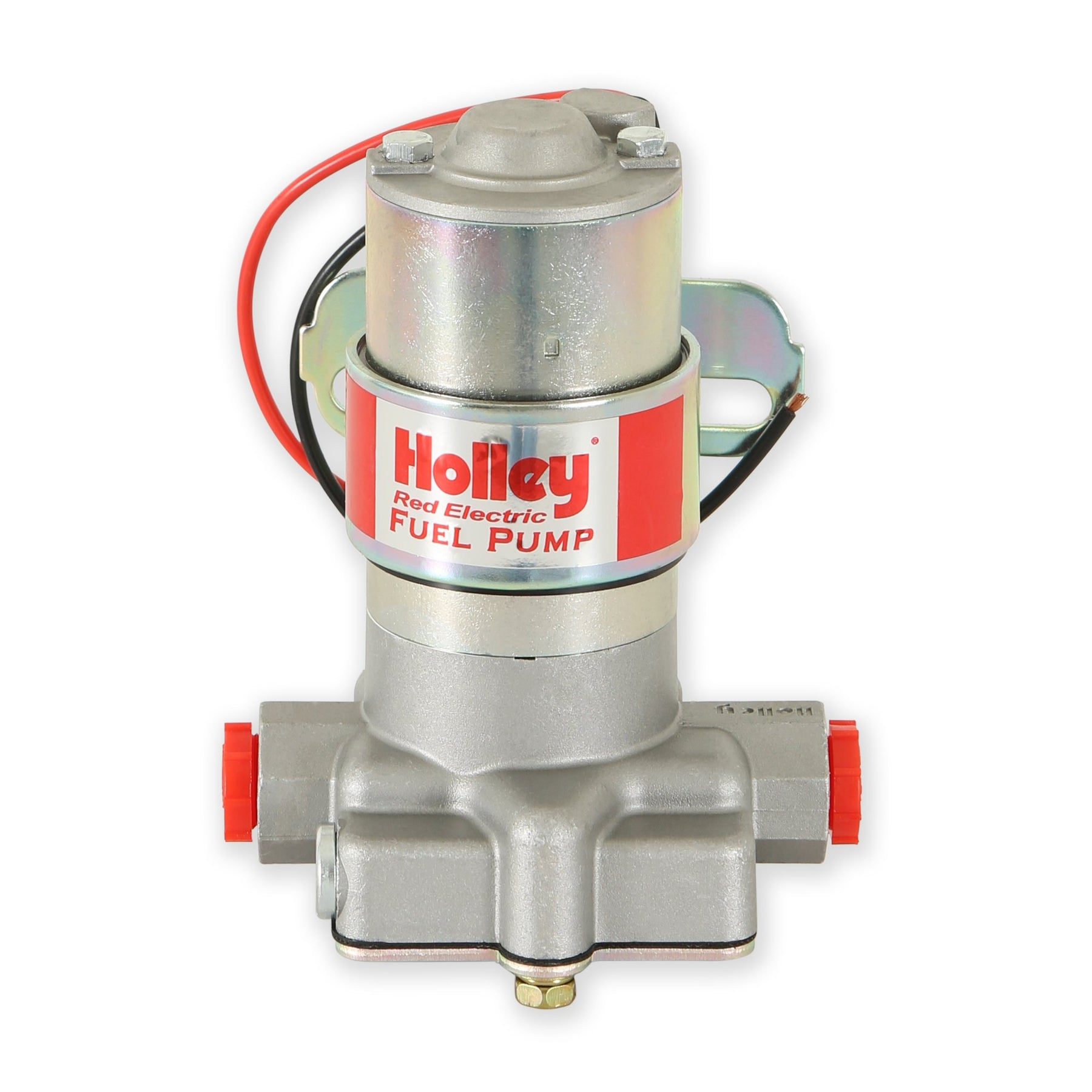

97 GPH RED® Electric Fuel Pump

The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all time. They have been powering racing legends and street enthusiasts alike since the early 70s. Their time proven rotor/vane design is known to get the job done in an affordable package.

• Tumble polished billet look
• Lower housing casting designed for enhanced fuel flow
• Maximum pressure is 7 psi
• Motor draws 2 amps current
• Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
• Constant fuel flow with no pulsation
• Improved design for street/strip applications
• Not designed to be used on aircraft of any type
• Distinctive “Red” logo
• Flows 97 GPH (free flow)

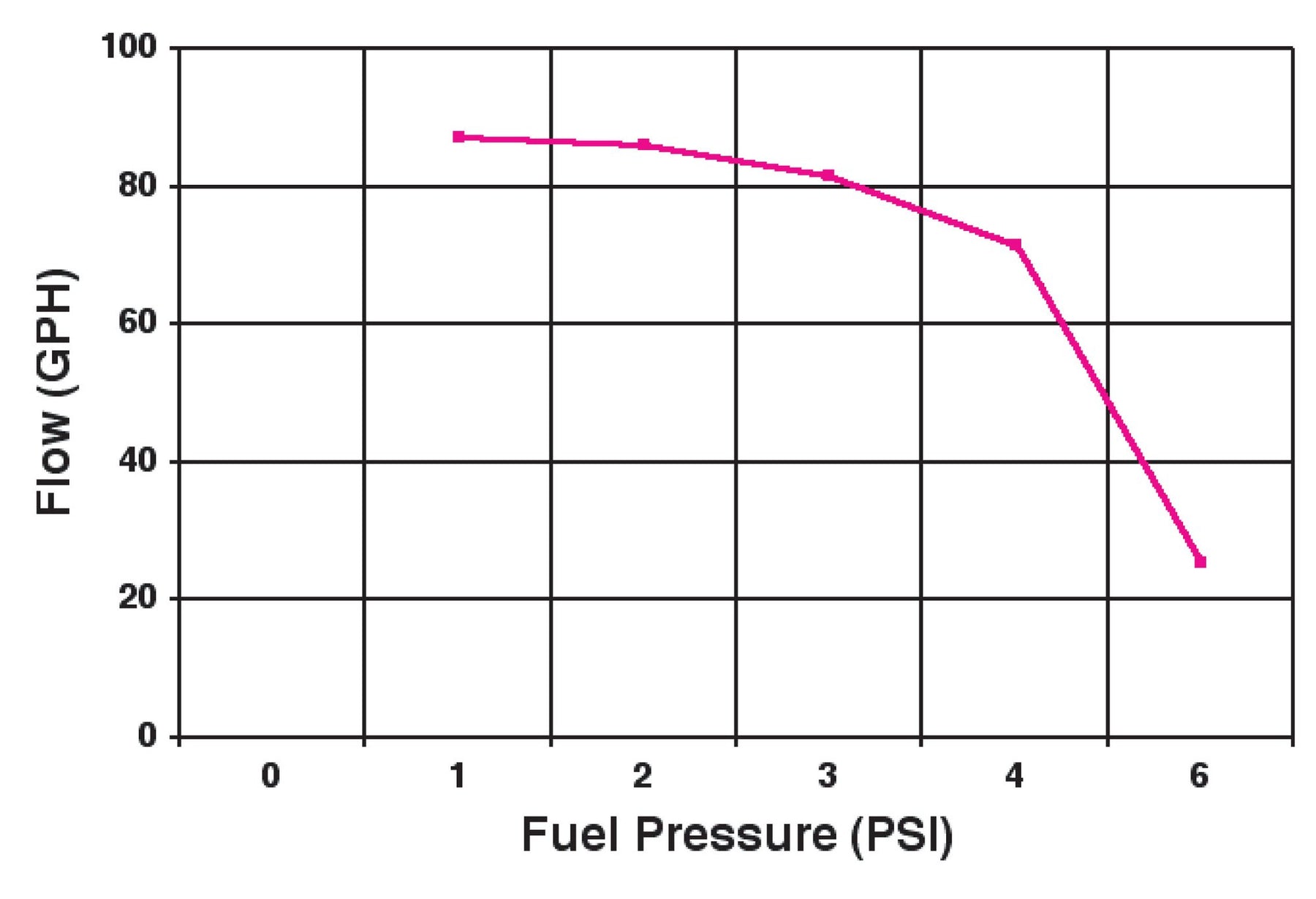

• Flows 71 GPH at 4 psi
• regulator is not required
• Has externally accessible pressure relief valve (max 7 psi)
• Rotor/vane pump design is more tolerant of contaminated fuels
• Weighs only 2.88 lbs
• Not designed or recommended for use with fuel injection systems

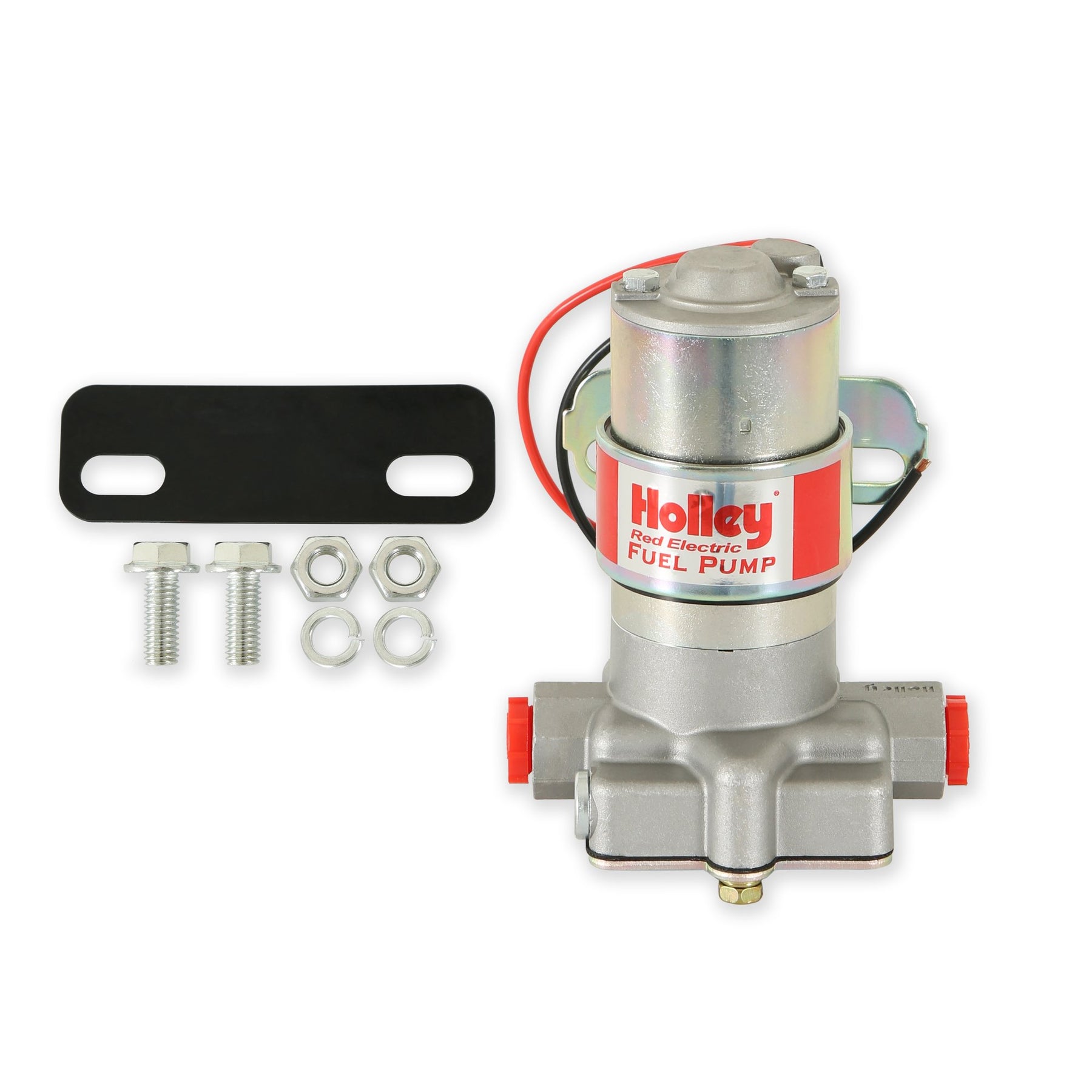

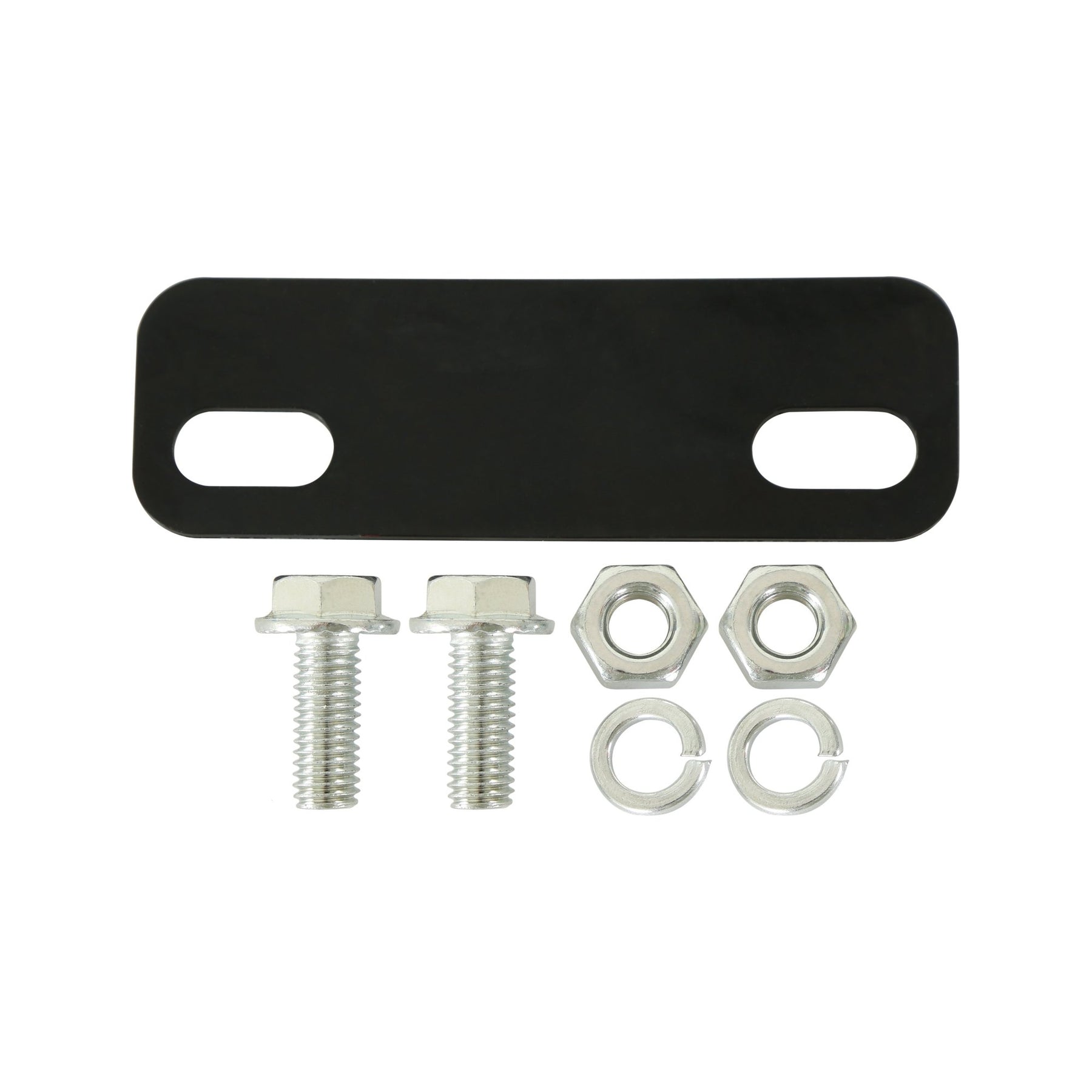

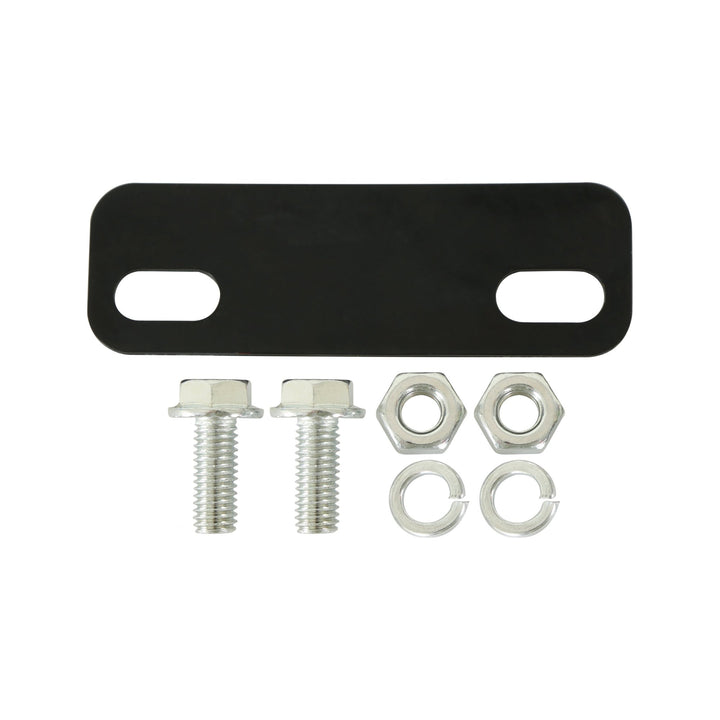

• Includes mounting bracket
• Repair kits are readily available
• Can be serviced from the pump end
• Not compatible with alcohol or methanol fuels
• Use of safety shut-off switch, P/N 12-810, strongly recommended

Specifications

• Application: Automotive
• Average Flow Rating: 97 GPH
• Bracket Color: Silver
• Brand: Holley
• Category: Air and Fuel Delivery
• Color: Silver
• Emission Code: 5
• Finish: Zinc
• Free Flow GPH: 97
• Free Flow LPH: 367
• Fuel Delivery Type: Carburetor
• Fuel Sending Unit Included: No
• Fuel System: Carbureted
• Fuel Type: Gasoline
• Gasket Or Seal Included: No
• Grade Type: Performance
• Inlet Fitting Thread Size: 3/8" IN
• Inlet Type: NPT
• Internal Or External: External
• Material: Aluminum
• Maximum Amperage Draw: 2
• Maximum Flow Rating: 97
• Maximum Pressure: 7 PS
• Motor Finish: Silver
• Mounting Hardware Included: Yes
• Negative Ground: Yes
• Outlet Fitting Thread Size: 3/8" IN
• Outlet Quantity: 1
• Outlet Type: NPT
• Part Type: Electric Fuel Pump
• Product Type: Fuel Pump
• Pump Body Color: Silver
• Regulator Included: No
• Strainer Included: No
• Sub Category: Fuel Pumps and Related Components
• Terminal Quantity: 2
• Universal Or Specific Fit: Universal
• Voltage: 12 2H
• Warranty: Manufacturer's Limited 90 Day Warranty
• Wire Quantity: 2
• Wiring Harness Included: No
• Part Number: 12-801-1
