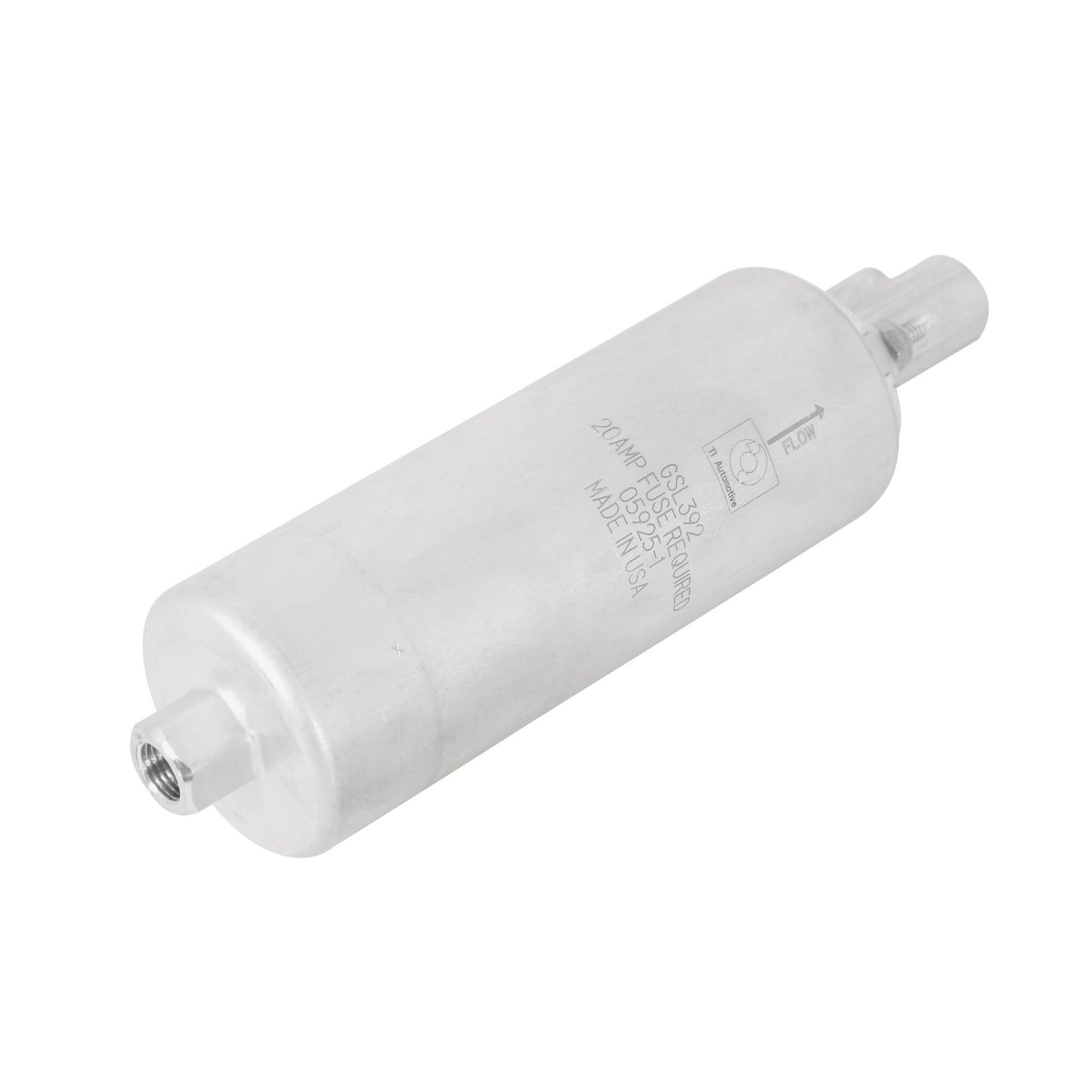

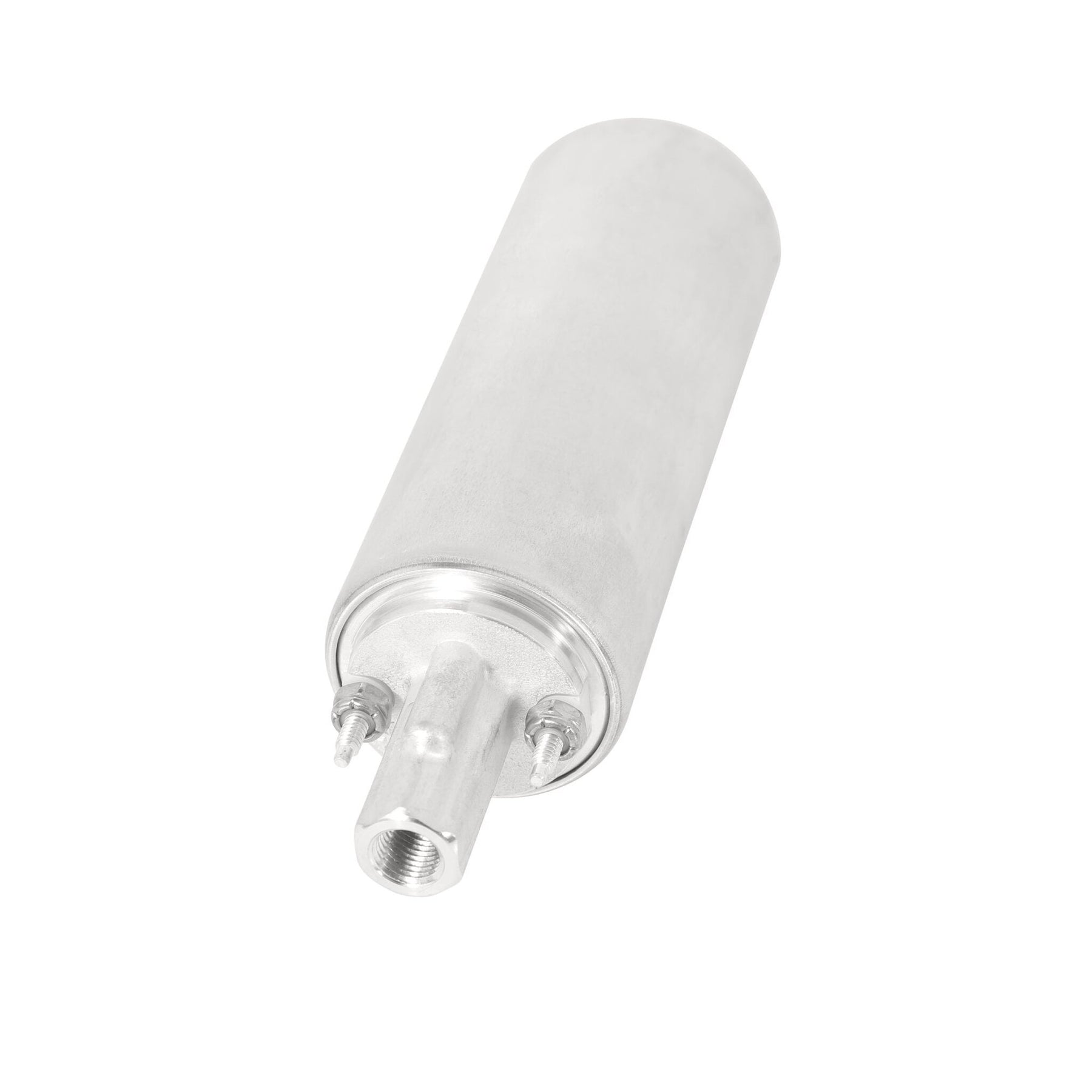

80 GPH In-line Universal Electric Fuel Pump

The 12-920 universal in-line fuel pump is intended for Throttle Body EFI, Multipoint EFI and Forced Induction Multipoint EFI systems. It is designed to work in-line, not inside the tank, so installation is a snap. The 12-920 is rated for continuous duty service and have been tested up to 2,500 hours.

• Draws 5 amps at 15 psi
• Will feed up to 800 horsepower throttle body EFI units
• Will feed up to 700 horsepower multipoint units
• Will feed up to 600 horsepower forced induction multipoint units
• OE proven design
• Lightweight and compact

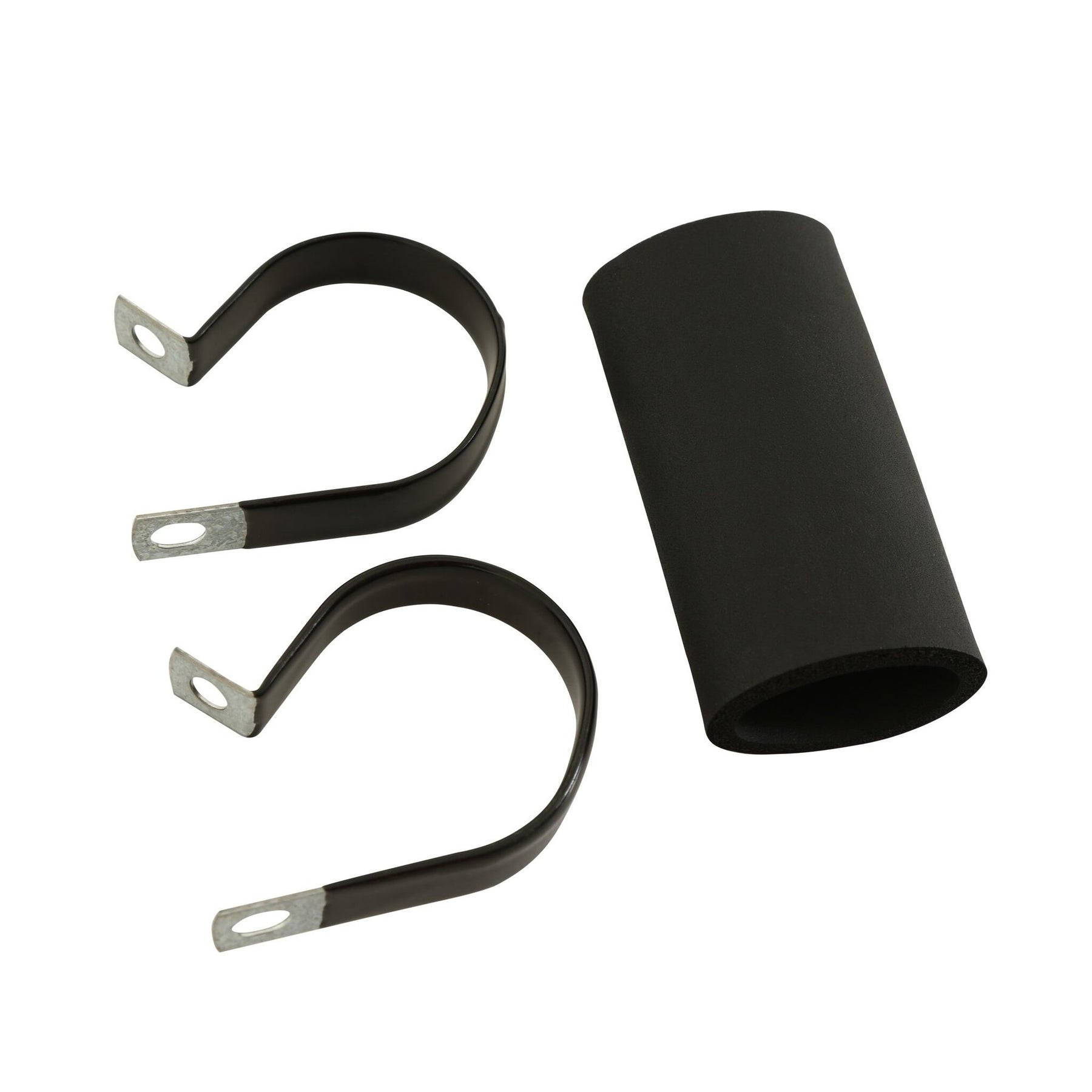

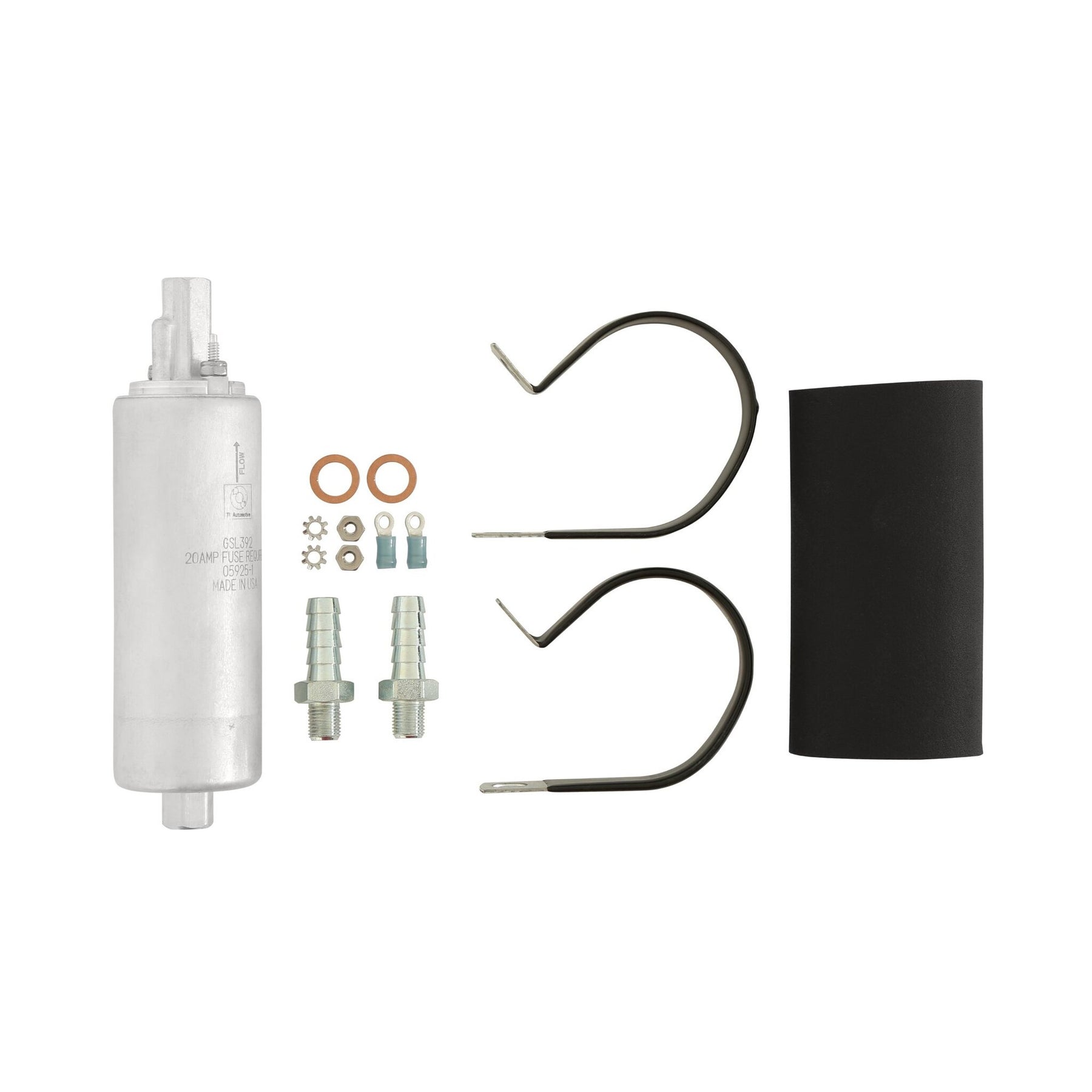

• Rubber isolator, mounting clamps and electrical hardware included

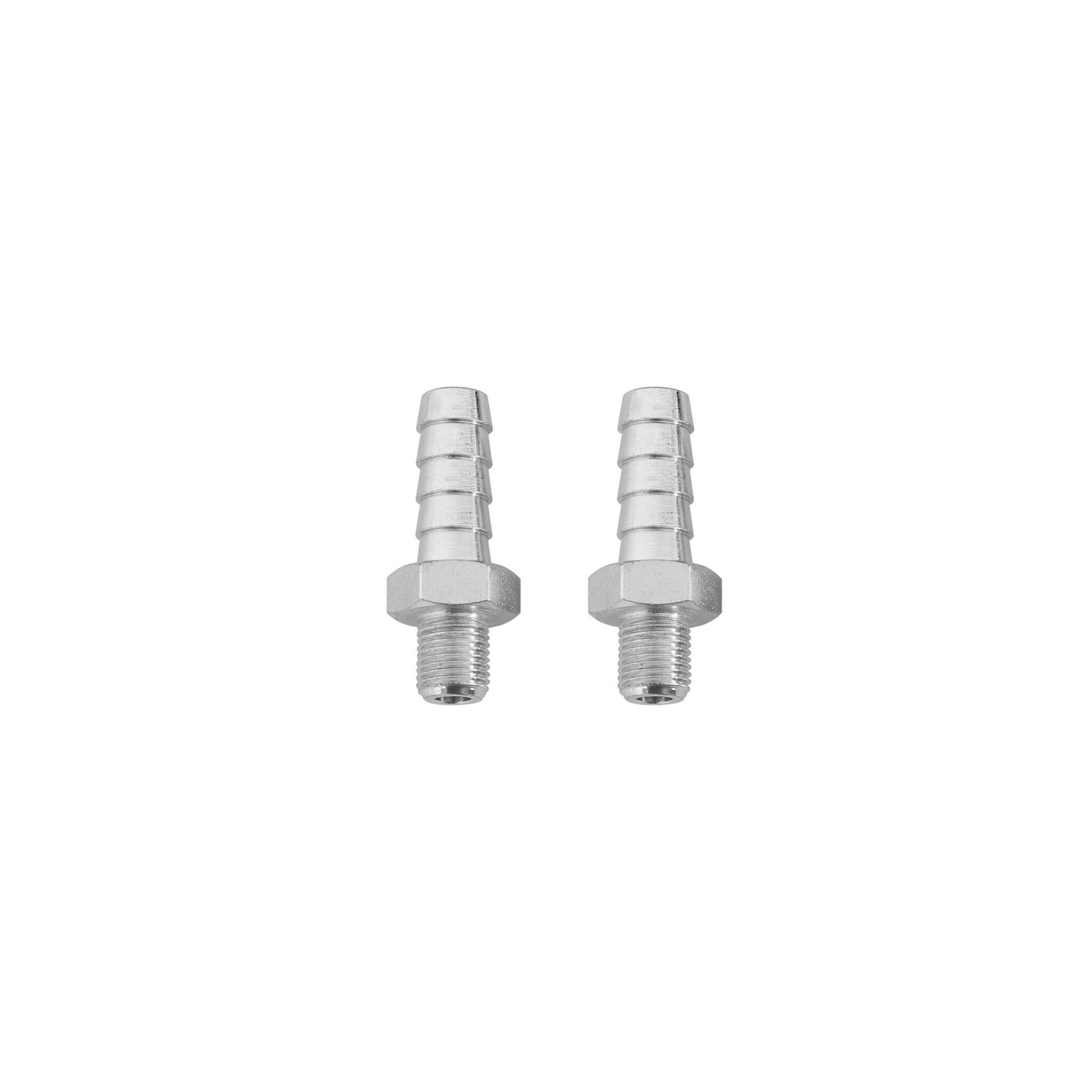

• 3/8" barbed fittings included
• Not designed for use on aircraft of any type.

Specifications

• Application: Automotive
• Average Flow Rating: 80 GPH
• Bracket Color: Black
• Brand: Holley
• Category: Air and Fuel Delivery
• Coast Guard Approved: Yes
• Color: Silver
• Emission Code: 3
• Finish: Zinc
• Forced Induction HP@43PSI: 600
• Free Flow GPH: 80
• Free Flow LPH: 302
• Fuel Delivery Type: Fuel Injection | Carburetor
• Fuel Sending Unit Included: No
• Fuel System: Carbureted
• Fuel Type: Gasoline
• Gasket Or Seal Included: No
• GPH@15PSI: 80
• GPH@43PSI: 67
• GPH@60PSI: 62
• GPH@8PSI: 85
• Grade Type: Performance
• Inlet Fitting Thread Size: M10 x 1.0 3/8"
• Inlet Type: Metric Barb
• Internal Or External: External
• LPH@15PSI: 302
• LPH@43PSI: 254
• LPH@60PSI: 235
• LPH@8PSI: 322
• Material: Steel
• Maximum Flow Rating: 85
• Maximum Pressure: 60 PS
• Mounting Hardware Included: Yes
• Naturally Aspirated HP@15PSI: 800
• Naturally Aspirated HP@43PSI: 700
• Naturally Aspirated HP@8PSI: 850
• Negative Ground: Yes
• Outlet Fitting Thread Size: M10 x 1.0 3/8"
• Outlet Quantity: 1
• Outlet Type: Metric Barb
• Part Type: Electric Fuel Pump
• Product Type: Fuel Pump
• Pump Body Color: Silver
• Regulator Included: No
• Strainer Included: No
• Sub Category: Fuel Pumps and Related Components
• Terminal Quantity: 2
• Universal Or Specific Fit: Universal
• Voltage: 12 2H
• Warranty: Manufacturer's Limited 90 Day Warranty
• Wire Quantity: 2
• Wiring Harness Included: No
• Part Number: 12-920
