Late model 4L60E transmissions use a six bolt hex pattern, which makes them a poor fit for most transfer case adapters. This kit converts that hex pattern to the 4-bolt tailshaft pattern used by Advance Adapters 700R4 adapters, and it includes the VSS hardware you need to keep your speed signal.
Features
- Machined from 356 T-6 heat treated aluminum alloy
- 1.50 inch long adapter; the 4L60E measures 23.375 inches overall with the adapter installed
- Clamp-on reluctor ring fits the stock GM 4L60E / 4L65E / 4L70E 4WD output shaft
- Includes a GM VSS sensor and 22mm sensor plug

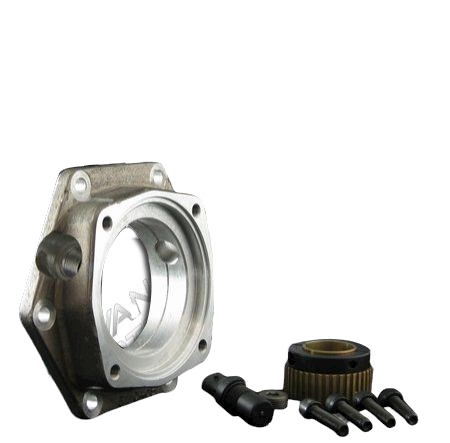

What is included
- Adapter housing (51-0405)
- GM VSS sensor (300619)
- Clamp-on reluctor ring (716074)
- 22mm reluctor sensor plug (716079)
- 10mm hardware and installation instructions
Fitment
- GM 4L60E (M30), 1996-2006, 2WD and 4WD
- GM 4L65E / 4L70 (M32), 2001-2006, 2WD and 4WD
- Designed for late model 4L60E transmissions with a removable bellhousing
Good to know
- If you are using an Advance Adapters 700R output shaft, you need kit 50-0405 instead
Not sure this fits your build? Send us your vehicle, engine and transmission and we will confirm fit before you order.
