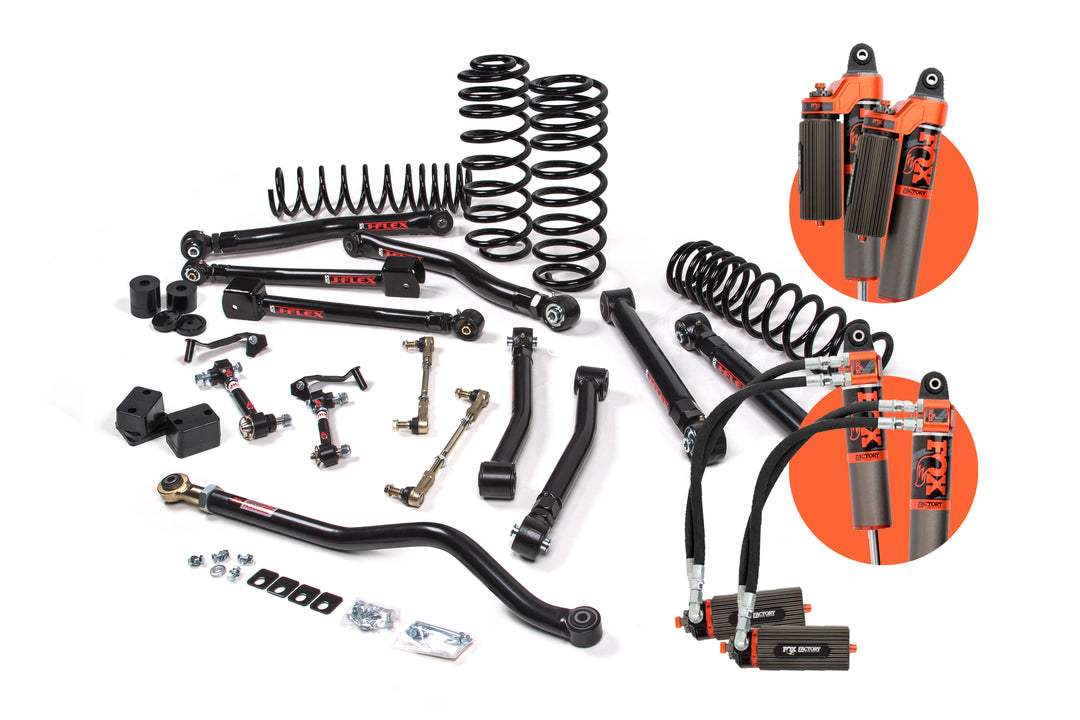

2018-2026 Jeep Wrangler JL J-Krawl 3 Inch Lift Kit 2 Door with FOX 3.0 Factory Race Series IBP Shocks Standard Rate Coils JKS Manufacturing
JSPEC147FRS
2018-2026 Jeep Wrangler JL J-Krawl 3 Inch Lift Kit 2 Door with FOX 3.0 Factory Race Series IBP Shocks Standard Rate Coils – JKS Manufacturing part number JSPEC147FRS.
This JKS J-Krawl suspension lift kit is built for the 2018-2026 Jeep Wrangler JL 2 Door. It combines 3 inches of lift, FOX 3.0 Factory Race shocks and standard-rate coils. Backed by JKS's 5 Year, 100,000-mile PLUS Protection warranty.
Designed for improved damper performance in rough terrain and all around comfort and control, these shocks take advantage of FOX's racing pedigree and offering an affordable option that packs true race proven capability.
Shock Details:
- FOX 3.0 Factory Race Series
- Standard Rate Coils
- Flex End Control Arm Bushing
Tire Specs
- Rubicon Models (all kits)
- Tire: 37x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
- Non-Rubicon Models (all kits)
- Tire: 35x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
Other tire/wheel sizes can be used, however may require additional modifications.
Important Notes
- Diesel models may achieve up to 1 inch less lift height.
- Factory wheels cannot be reinstalled without wheel spacers.
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire.
- Front aftermarket driveshaft strongly recommended due to additional travel capability.
- Will not fit Rubicon 392 models
What's included in the kit
- 1 x FOX88326057 – Kit: 2018-2024 Jeep JL, Front, Internal Bypass, 3.0 Series, R/R, 8.8 inch, 2-3 inch Lift, DSC
- 1 x FOX88326058 – Kit: 2018-2024 Jeep JL, Rear, Internal Bypass, 3.0 Series, P/B, 9.8 inch, 2-3 inch Lift, DSC
- 1 x JKS1616 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Adjustable Front UCA
- 1 x JKS1625 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Front Lower J-Flex Control Arm Kit
- 1 x JKS1661 – 2018-2024 Jeep Wrangler JL Rear Adjustable LCA
- 1 x JKS1666 – 2018-2024 Jeep Wrangler JL/2007-2024 Jeep Wrangler JK Rear Adjustable UCA
- 1 x JSPEC1251 – 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spring Kit - STD
- 1 x JSPEC1259 – 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spring Kit - STD
- 1 x JSPEC1312 – 2018-2024 Jeep Wrangler (JL) J-Krawl Main Box Kit
Specifications
- JKS part number: JSPEC147FRS
- Lift height: 3 Inch
- Doors: 2 Door
- Shocks: FOX 3.0 Factory Race
- Coil springs: Standard Rate
- Sold as: Kit
- Warranty: 5 Year, 100,000-mile PLUS Protection
- Country of origin: USA
