2018-2026 Jeep Wrangler JL J-Krawl 3.5 Inch Lift Kit 4 Door with FOX Adventure Series Shocks HD Rate Coils JKS Manufacturing
JSPEC128KFA
2018-2026 Jeep Wrangler JL J-Krawl 3.5 Inch Lift Kit 4 Door with FOX Adventure Series Shocks HD Rate Coils – JKS Manufacturing part number JSPEC128KFA.
This JKS J-Krawl suspension lift kit is built for the 2018-2026 Jeep Wrangler JL 4 Door. It combines 3.5 inches of lift, FOX Adventure shocks and HD-rate coils. Backed by JKS's 5 Year, 100,000-mile PLUS Protection warranty.
JKS Mfg adds specially tuned FOX 2.0 Adventure Series IFP Gas Shocks to lineup for Jeep Wrangler JL. Designed for improved damper performance in rough terrain and all around comfort and control, these shocks take advantage of FOX's racing pedigree and offering an affordable option that packs true race proven capability.
They feature a monotube design and an internal floating piston (IFP) to separate the shock oil from the high-pressure, nitrogen-charged gas chamber, preventing oil aeration for fade-free performance in rough terrain. Lengths and shock tuning have been specially designed for the JKS lift kits to optimize performance.
Get more out of your lifted Jeep JL FOX Adventure Series 2.0 shocks.
Features & Benefits
- FOX Adventure Series Shocks
- F/R Dual Rate Coil Springs (Heavy Duty) designed to great ride quality across any terrain.
- F/R FOX 2.0 Shocks specifically valved for this suspension system for improved performance on and off-road.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
- F/R Bump Stop Extensions to properly limit suspension up travel.
- F/R J-Flex Upper Control Arms to add strength and adjustability.
- F/R J-Flex Lower Control Arms to add strength and adjustability.
Tire Specs
- Rubicon Models (all kits)
- Tire: 37x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
- Non-Rubicon Models (all kits)
- Tire: 35x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
Other tire/wheel sizes can be used, however may require additional modifications.
Important Notes
- Factory wheels cannot be reinstalled without wheel spacers
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire
- Front aftermarket driveshaft strongly recommended due to additional travel capability
- Will not fit 4xe models
- Will not fit Rubicon 392 models
- Shock extension brackets can be used on Rubicon models with stock FOX 2.5 shocks, however this will limit suspension down travel slightly.

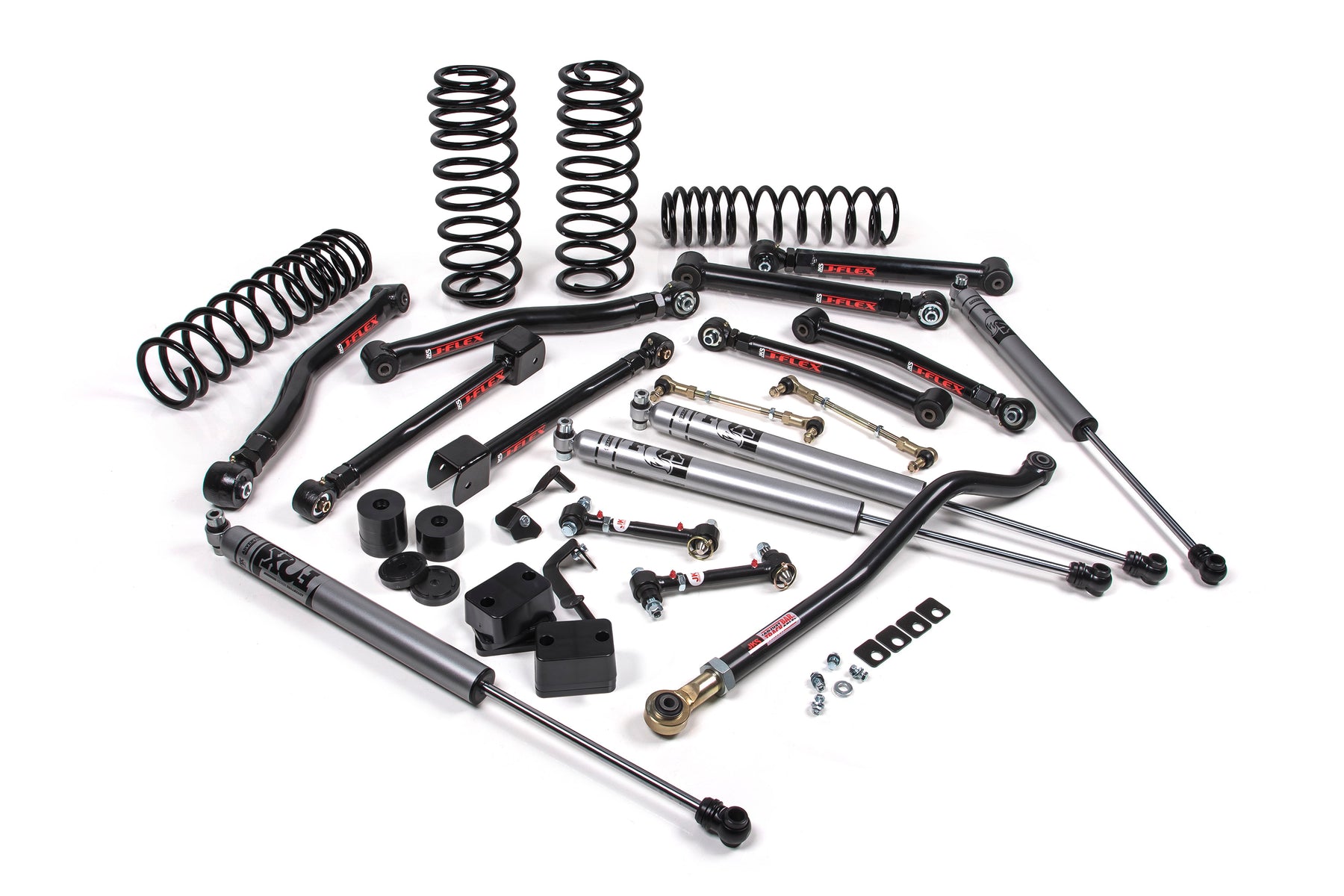

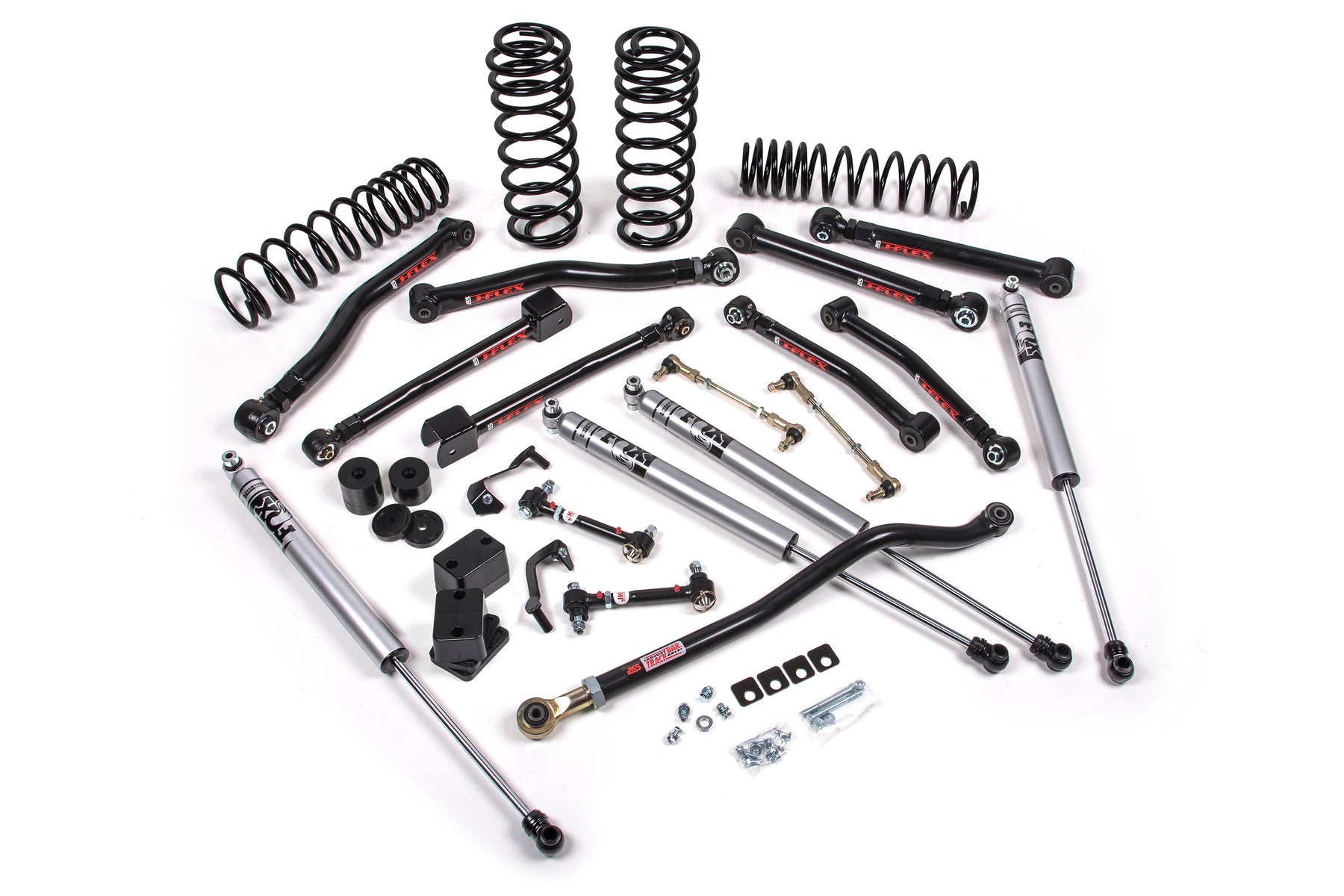

What's included in the kit
- 2 x FOX98450323 – 2018-2024 FOX Adv Shock 26.86 x 16.76 x 2 EB1/EB1
- 2 x FOX98450328 – 2018-2024 FOX Adv Shock 31.06 x 18.96 x 2 EB1/EB1
- 1 x JKS1616 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Adjustable Front UCA
- 1 x JKS1625 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Front Lower J-Flex Control Arm Kit
- 1 x JKS1661 – 2018-2024 Jeep Wrangler JL Rear Adjustable LCA
- 1 x JKS1666 – 2018-2024 Jeep Wrangler JL/2007-2024 Jeep Wrangler JK Rear Adjustable UCA
- 1 x JSPEC1312 – 2018-2024 Jeep Wrangler (JL) J-Krawl Main Box Kit
- 1 x JSPEC1352 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) 3.5 inch Front Coil Spring Kit - HD
- 1 x JSPEC1358 – 2018-2024 Jeep Wrangler (JL) 3.5 inch Rear Coil Spring Kit - HD
Specifications
- JKS part number: JSPEC128KFA
- Lift height: 3.5 Inch
- Doors: 4 Door
- Shocks: FOX Adventure
- Coil springs: HD Rate
- Sold as: Kit
- Estimated installation time: 6-8 Hours
- Warranty: 5 Year, 100,000-mile PLUS Protection
- Country of origin: USA
Resources
