2018-2026 Jeep Wrangler JL J-Krawl 3.5 Inch Lift Kit 4 Door with FOX 3.0 Factory Race Series IBP Shocks HD Rate Coils JKS Manufacturing
JSPEC128FRS
2018-2026 Jeep Wrangler JL J-Krawl 3.5 Inch Lift Kit 4 Door with FOX 3.0 Factory Race Series IBP Shocks HD Rate Coils – JKS Manufacturing part number JSPEC128FRS.
This JKS J-Krawl suspension lift kit is built for the 2018-2026 Jeep Wrangler JL 4 Door. It combines 3.5 inches of lift, FOX 3.0 Factory Race shocks and HD-rate coils. Backed by JKS's 5 Year, 100,000-mile PLUS Protection warranty.
Features & Benefits
- FOX 3.0 Factory Race Series
- F/R Dual Rate Coil Springs (Heavy Duty) designed to great ride quality across any terrain.
- F/R FOX 2.0 Shocks specifically valved for this suspension system for improved performance on and off-road.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
- F/R Bump Stop Extensions to properly limit suspension up travel.
- F/R J-Flex Upper Control Arms to add strength and adjustability.
- F/R J-Flex Lower Control Arms to add strength and adjustability.
Tire Specs
- Rubicon Models (all kits)
- Tire: 37x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
- Non-Rubicon Models (all kits)
- Tire: 35x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
Other tire/wheel sizes can be used, however may require additional modifications.
Important Notes
- Factory wheels cannot be reinstalled without wheel spacers
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire
- Front aftermarket driveshaft strongly recommended due to additional travel capability
- Will not fit 4xe models
- Will not fit Rubicon 392 models
- Shock extension brackets can be used on Rubicon models with stock FOX 2.5 shocks, however this will limit suspension down travel slightly.

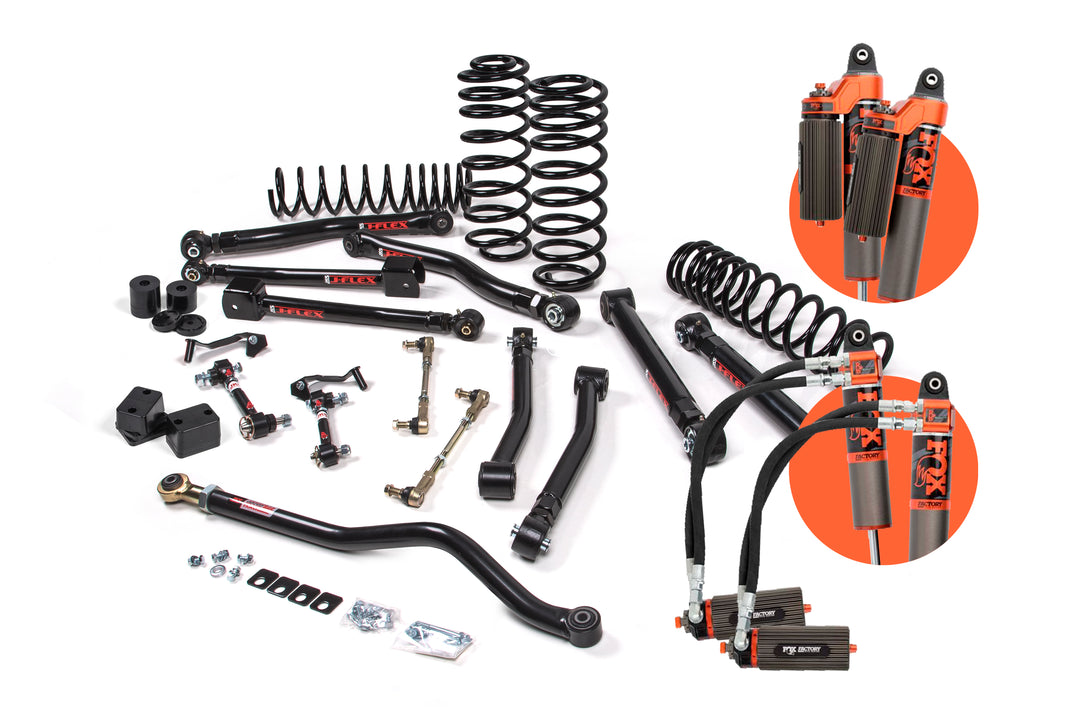

What's included in the kit
- 1 x FOX88326057 – Kit: 2018-2024 Jeep JL, Front, Internal Bypass, 3.0 Series, R/R, 8.8 inch, 2-3 inch Lift, DSC
- 1 x FOX88326058 – Kit: 2018-2024 Jeep JL, Rear, Internal Bypass, 3.0 Series, P/B, 9.8 inch, 2-3 inch Lift, DSC
- 1 x JKS1616 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Adjustable Front UCA
- 1 x JKS1625 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Front Lower J-Flex Control Arm Kit
- 1 x JKS1661 – 2018-2024 Jeep Wrangler JL Rear Adjustable LCA
- 1 x JKS1666 – 2018-2024 Jeep Wrangler JL/2007-2024 Jeep Wrangler JK Rear Adjustable UCA
- 1 x JSPEC1312 – 2018-2024 Jeep Wrangler (JL) J-Krawl Main Box Kit
- 1 x JSPEC1352 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) 3.5 inch Front Coil Spring Kit - HD
- 1 x JSPEC1358 – 2018-2024 Jeep Wrangler (JL) 3.5 inch Rear Coil Spring Kit - HD
Specifications
- JKS part number: JSPEC128FRS
- Lift height: 3.5 Inch
- Doors: 4 Door
- Shocks: FOX 3.0 Factory Race
- Coil springs: HD Rate
- Sold as: Kit
- Estimated installation time: 6-8 Hours
- Warranty: 5 Year, 100,000-mile PLUS Protection
- Country of origin: USA
