2018-2026 Jeep Wrangler JL J-Krawl 2.5 Inch Lift Kit 4 Door with FOX 2.0 Performance Shocks Standard Rate Coils JKS Manufacturing
JSPEC125KFP
2018-2026 Jeep Wrangler JL J-Krawl 2.5 Inch Lift Kit 4 Door with FOX 2.0 Performance Shocks Standard Rate Coils – JKS Manufacturing part number JSPEC125KFP.
This JKS J-Krawl suspension lift kit is built for the 2018-2026 Jeep Wrangler JL 4 Door. It combines 2.5 inches of lift, FOX 2.0 Performance shocks and standard-rate coils. Backed by JKS's 5 Year, 100,000-mile PLUS Protection warranty.
Features & Benefits
- FOX 2.0 Performance Series Shocks
- Front/Rear Dual Rate Coil Springs (standard) designed to great ride quality across any terrain.
- HD springs offer additional load capacity for vehicles equipped with winch bumper, fullsize spare, roof rack, etc.
- Front/Rear FOX Shocks specifically valved for this suspension system for improved performance on and off-road.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased off-road articulation.
- Front/Rear Bump Stop Extensions to properly limit suspension up travel.
- Front/Rear J-Flex Upper Control Arms to add strength and adjustability.
- Front/Rear J-Flex Lower Control Arms to add strength and adjustability.
Tire Specs
Rubicon Models (all kits)
- Tire: 37x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
Non-Rubicon Models (all kits)
- Tire: 35x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
Other tire/wheel sizes can be used, however may require additional modification.
Important Notes
- Factory wheels cannot be reinstalled without wheel spacers
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire
- Front aftermarket driveshaft strongly recommended due to additional travel capability
- Will not fit 4xe models
- Will not fit Rubicon 392 mode

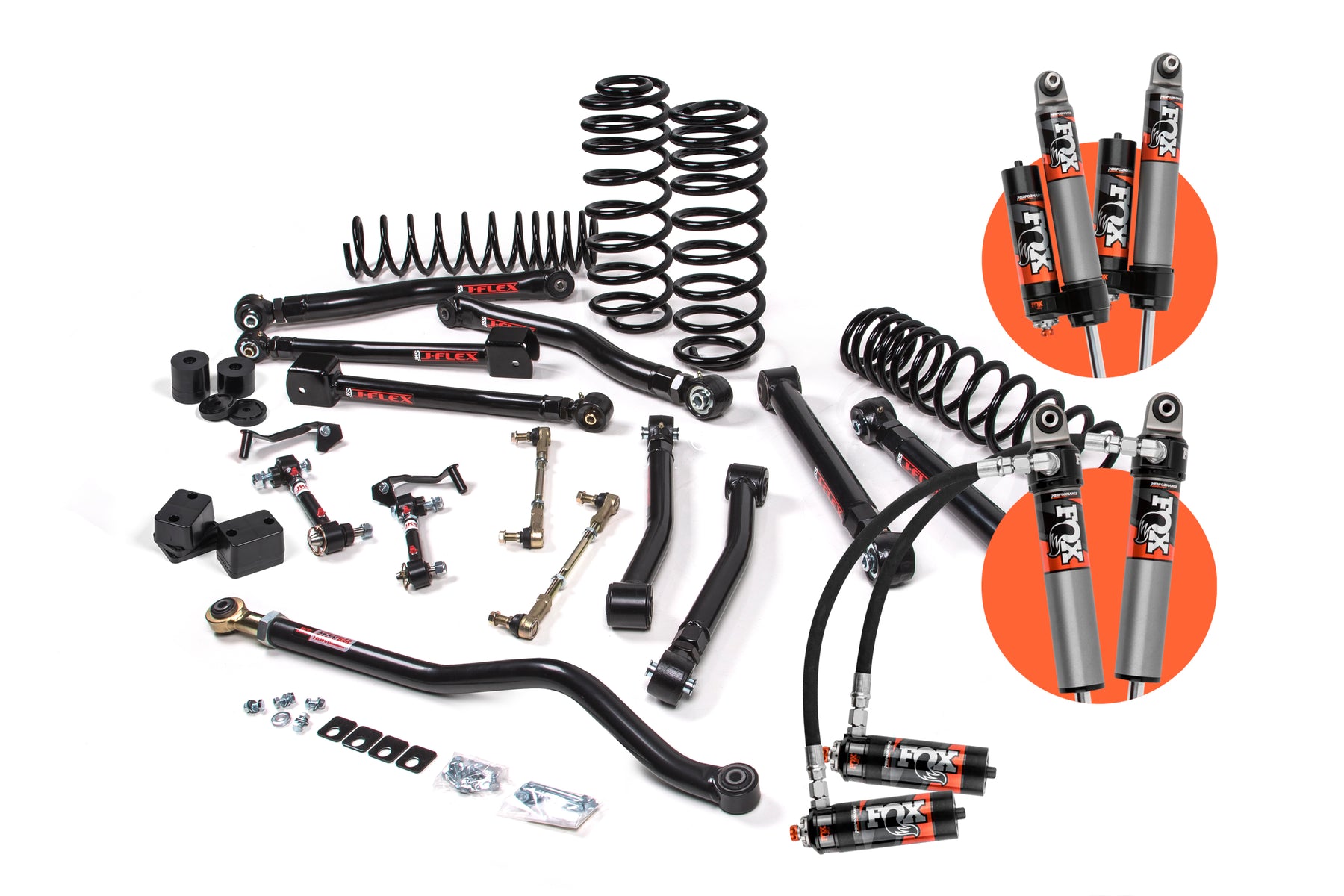

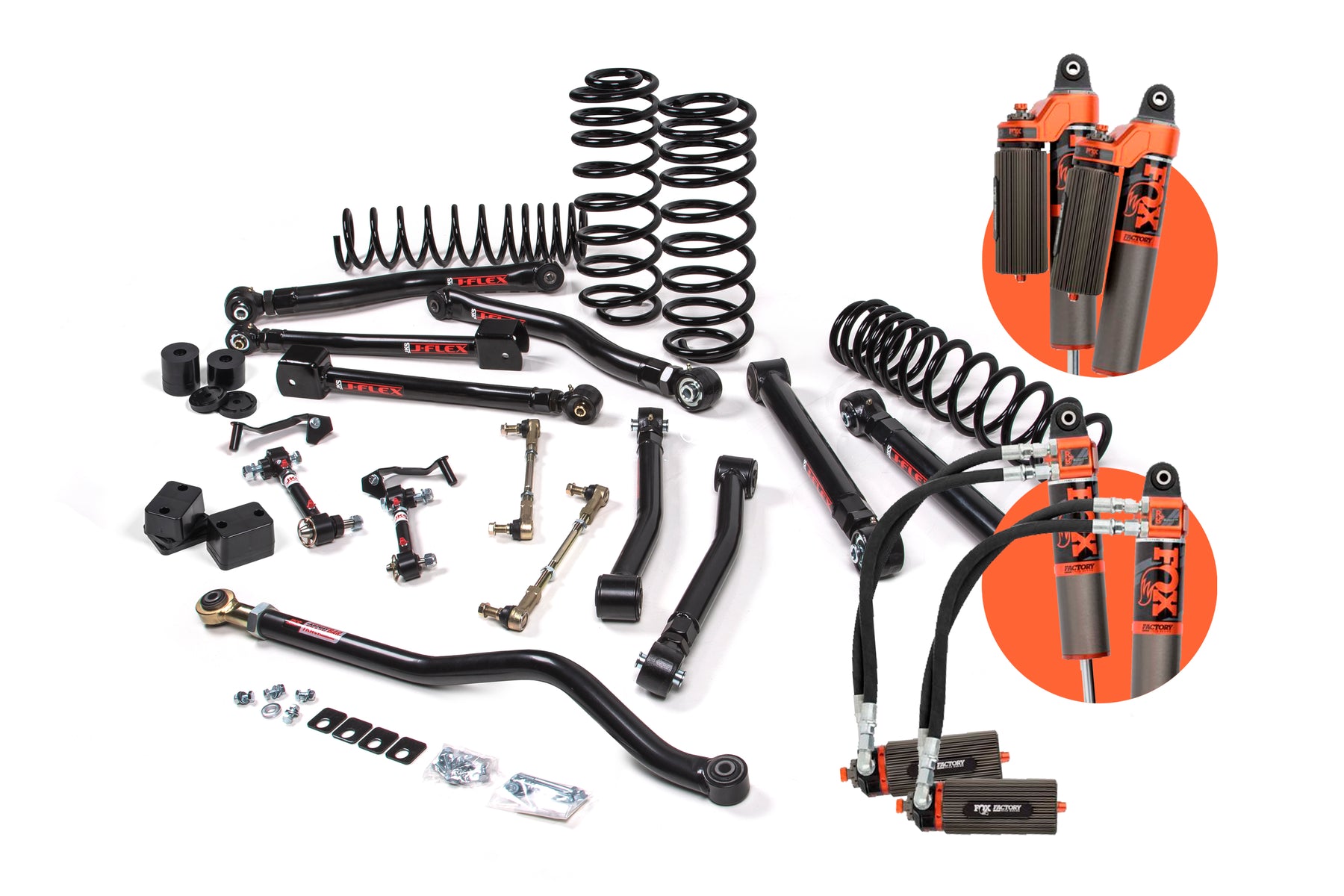

What's included in the kit
- 2 x FOX98524179 – 2018-2024 Jeep JL Front, PS, 2.0, IFP, 10.6 inch, 3.5-4 inch Lift
- 2 x FOX98524180 – 2018-2024 Jeep JL Rear, PS, 2.0, IFP, 11.6 inch, 3.5-4 inch Lift
- 1 x JKS1616 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Adjustable Front UCA
- 1 x JKS1625 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Front Lower J-Flex Control Arm Kit
- 1 x JKS1661 – 2018-2024 Jeep Wrangler JL Rear Adjustable LCA
- 1 x JKS1666 – 2018-2024 Jeep Wrangler JL/2007-2024 Jeep Wrangler JK Rear Adjustable UCA
- 1 x JSPEC1251 – 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spring Kit - STD
- 1 x JSPEC1259 – 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spring Kit - STD
- 1 x JSPEC1312 – 2018-2024 Jeep Wrangler (JL) J-Krawl Main Box Kit
Specifications
- JKS part number: JSPEC125KFP
- Lift height: 2.5 Inch
- Doors: 4 Door
- Shocks: FOX 2.0 Performance
- Coil springs: Standard Rate
- Sold as: Kit
- Estimated installation time: 6-8 Hours
- Warranty: 5 Year, 100,000-mile PLUS Protection
- Country of origin: USA
