2018-2026 Jeep Wrangler JL J-Kontrol 2.5 Inch Lift Kit 4 Door with FOX 2.5 Adventure Series Shocks HD Rate Coils JKS Manufacturing
JSPEC138KFA
2018-2026 Jeep Wrangler JL J-Kontrol 2.5 Inch Lift Kit 4 Door with FOX 2.5 Adventure Series Shocks HD Rate Coils – JKS Manufacturing part number JSPEC138KFA.
This JKS J-Kontrol suspension lift kit is built for the 2018-2026 Jeep Wrangler JL 4 Door. It combines 2.5 inches of lift, FOX Adventure shocks and HD-rate coils. Backed by JKS's 5 Year, 100,000-mile PLUS Protection warranty.
Increase the clearance and performance of your 4-Door Jeep Wrangler JL with a 2.5 inch lift J-Kontrol suspension system. It delivers exceptional stability on and off road. A step up from JKS J-Venture systems, J-Kontrol is a true bolt-on system that adds in front control arm correction brackets to the J-Venture Kit's long list of upgrade components including JSPEC dual-rate coil springs, custom-valved FOX 2.5 Performance Elite Series shocks equipped with Dual Speed Compression adjusters, a front adjustable Track Bar and rear Track Bar Bracket (to correct axle positioning under vehicle), Quicker-Disconnect sway bar end links, front/rear Bump Stop Extensions and front Control Arm Correction Brackets to flatten upper/lower control arm angles. The supplied control arm brackets work with your Jeep's stock control arms to correct caster and improve handling. J-Kontrol offers enhanced performance for daily driving, beach cruising, or regular trail use.
Features & Benefits
- FOX Adventure Series Shocks
- Front/Rear Dual Rate Coil Springs (Heavy Duty) designed to great ride quality across any terrain.
- Front/Rear Gas Shocks (Jspec, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite) specifically valved for this suspension system for improved performance on and off-road.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
- Front/Rear Bump Stop Extensions to properly limit suspension up travel.
- Front Control Arm Correction Brackets to flatten upper/lower control arm angles to correct caster and improve handling.
Tire Specs
- Rubicon Models (all kits)
- Tire: 37x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
- Non-Rubicon Models (all kits)
- Tire: 35x12.50
- Wheel:17x9, 18x9, 20x9
- Backspacing: 5 inch BS
Other tire/wheel sizes can be used, however may require additional modification.
Important Notes
Factory wheels cannot be reinstalled without wheel spacers
HD front springs recommended for applications with aftermarket winch/bumper combo
HD rear springs recommended for applications with rear mounted full size spare tire
Will not fit 4xe models
Will not fit Rubicon 392 models

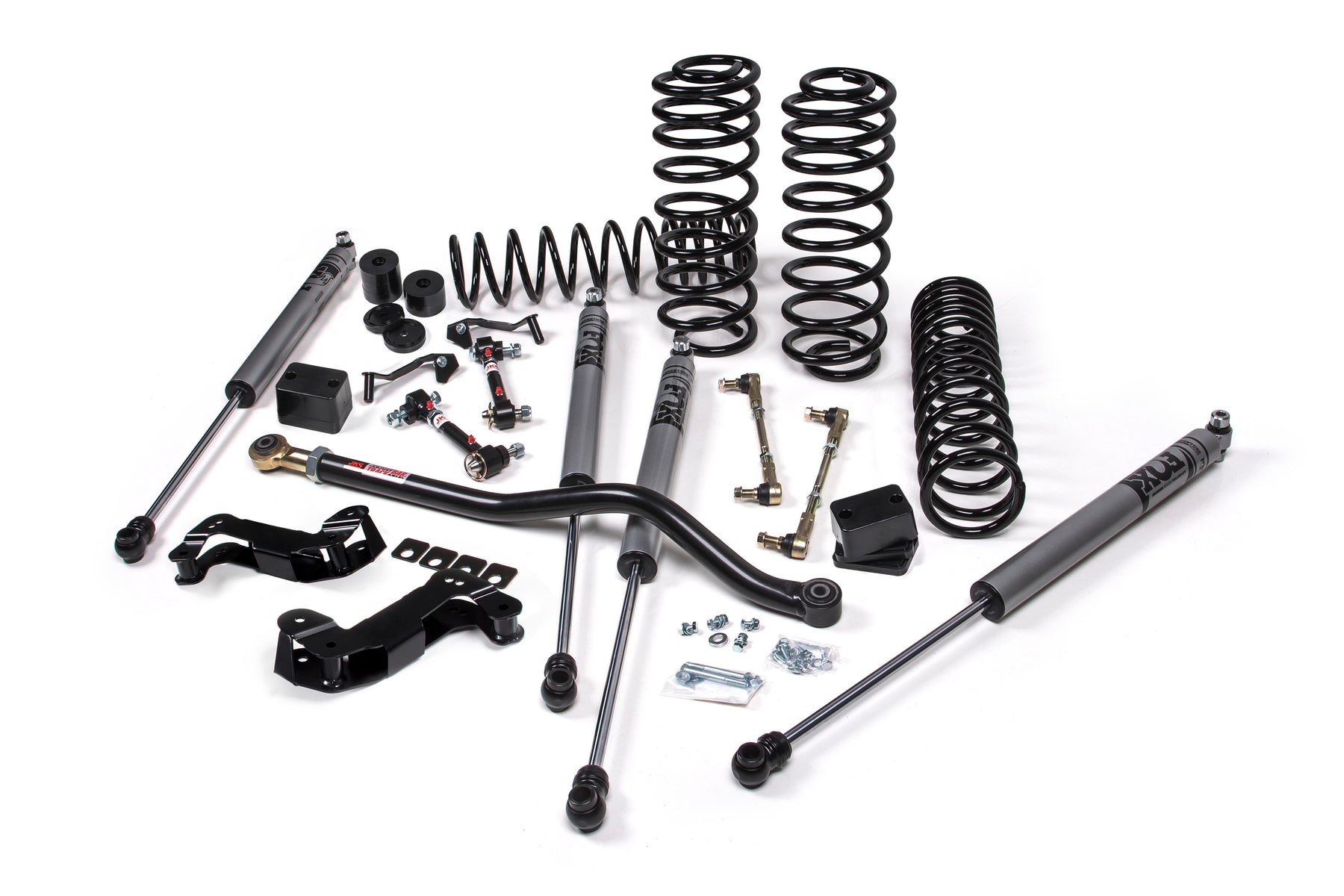

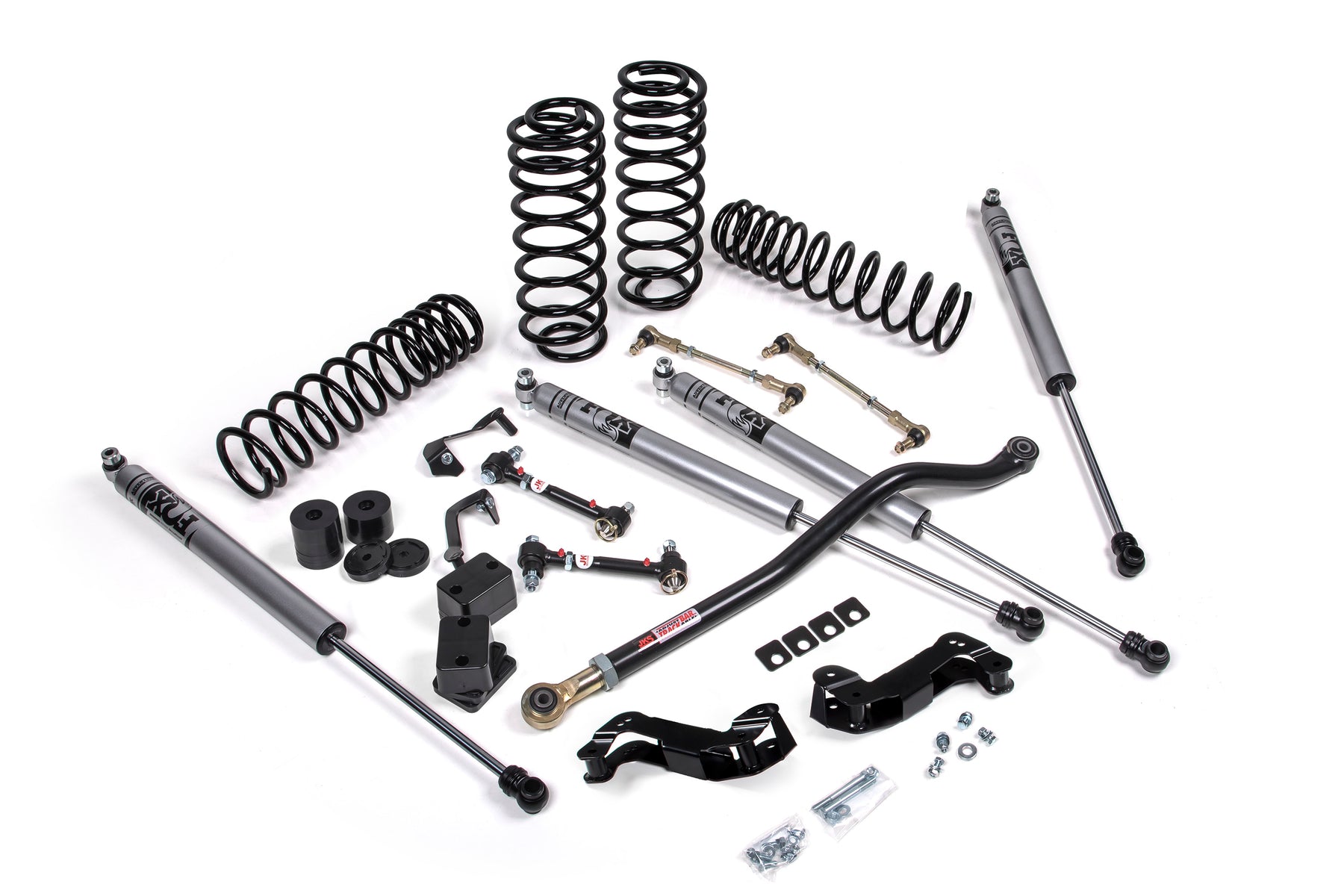

What's included in the kit
- 2 x FOX98450323 – 2018-2024 FOX Adv Shock 26.86 x 16.76 x 2 EB1/EB1
- 2 x FOX98450327 – 2018-2024 FOX Adv Shock 30.06 x 18.46 x 2 EB1/EB1
- 1 x JKS6201 – 2018-2024 Jeep Wrangler JL Control Arm Correction Brackets
- 1 x JSPEC1252 – 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spring Kit - HD
- 1 x JSPEC1258 – 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spring Kit - HD
- 1 x JSPEC1310 – 2018-2024 Jeep Wrangler (JL) J-Kontrol Main Box Kit
Specifications
- JKS part number: JSPEC138KFA
- Lift height: 2.5 Inch
- Doors: 4 Door
- Shocks: FOX Adventure
- Coil springs: HD Rate
- Sold as: Kit
- Estimated installation time: 7 Hours
- Warranty: 5 Year, 100,000-mile PLUS Protection
- Country of origin: USA
