2018-2026 Jeep Wrangler JL J-Konnect 3.5 Inch Lift Kit 4 Door with FOX Adventure Series Shocks Standard Rate Coils JKS Manufacturing
JSPEC123KFA
2018-2026 Jeep Wrangler JL J-Konnect 3.5 Inch Lift Kit 4 Door with FOX Adventure Series Shocks Standard Rate Coils – JKS Manufacturing part number JSPEC123KFA.
This JKS J-Konnect suspension lift kit is built for the 2018-2026 Jeep Wrangler JL 4 Door. It combines 3.5 inches of lift, FOX Adventure shocks and standard-rate coils. Backed by JKS's 5 Year, 100,000-mile PLUS Protection warranty.
Raise up your Jeep Wrangler JL 4 Door with a J-Konnect 3.5 Inch Lift kit to fit larger tires and increase off road capabilities.

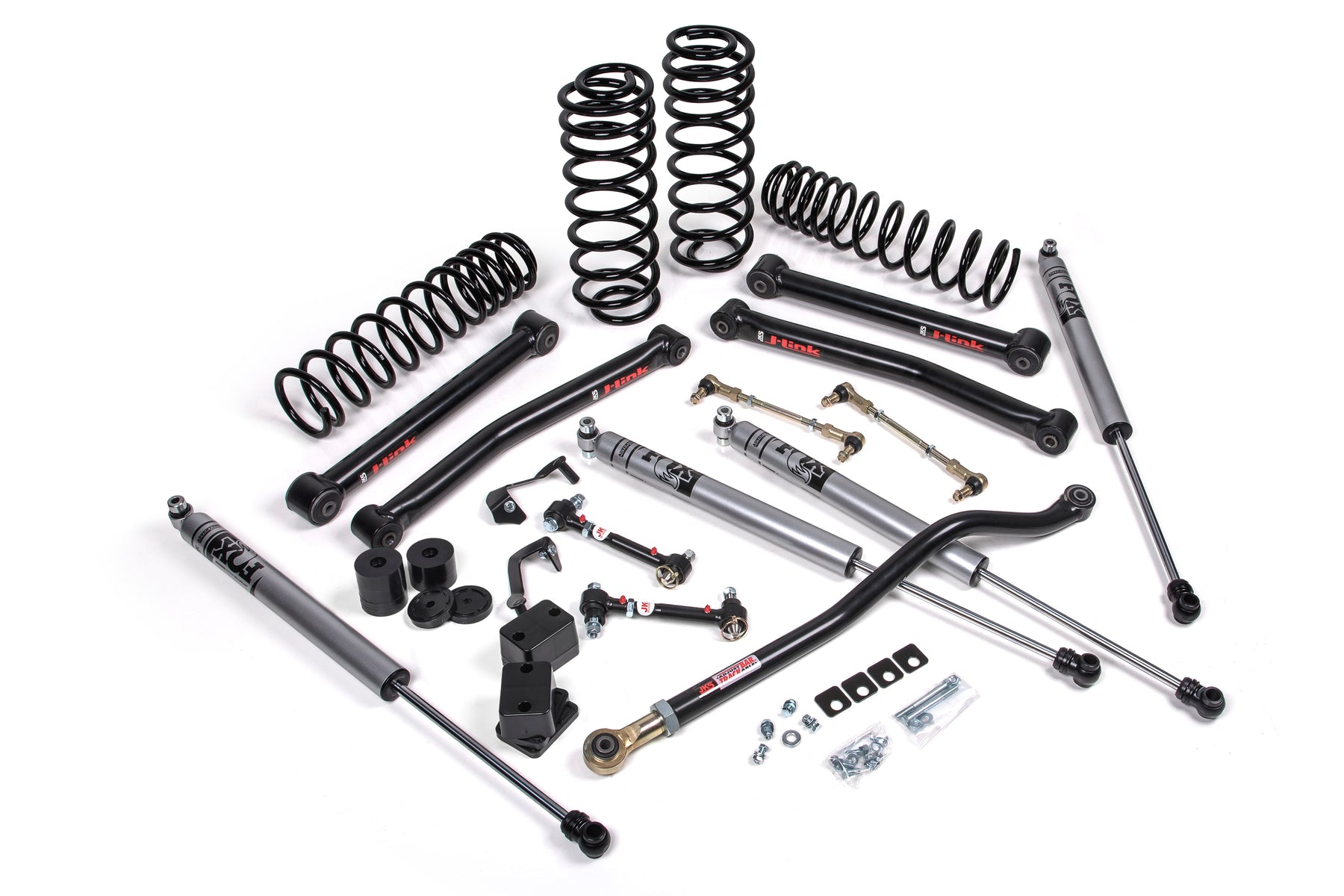

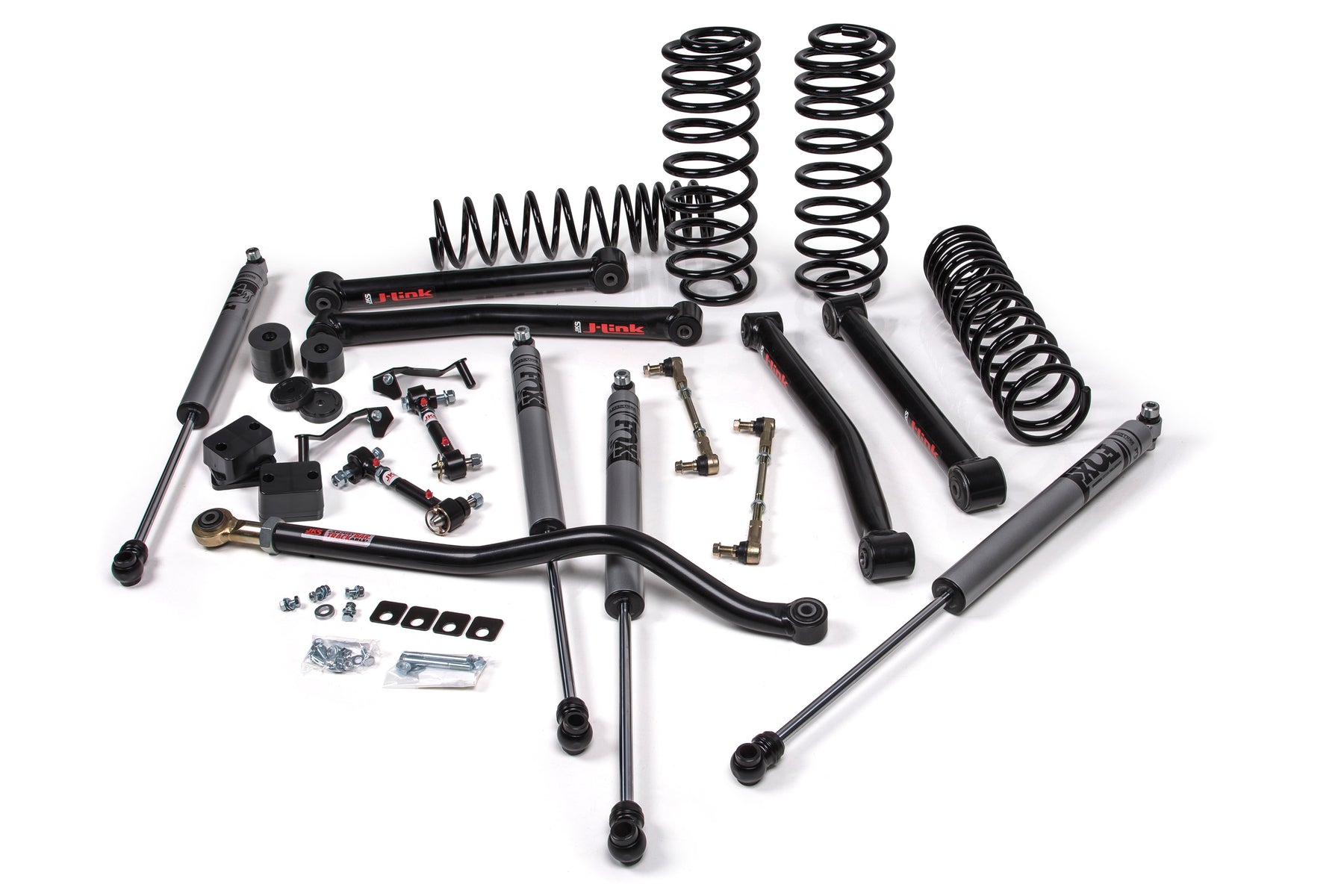

The J-Konnect kit includes dual rate coil springs, tuned gas shocks, adjustable front track bar, J-Link lower control arms, and sway bar Quicker Disconnects as well as all other hardware required for a complete 3.5 Inch lift.
While the entry level J-Venture systems is designed for equal parts on-road handling and off-road capability, J-Konnect takes strength and performance a step further by adding front and rear fixed length J-Link lower control arms.
These lower control arms not only add front caster and rear wheelbase, they are a serious upgrade to the strength over the factory control arms.
Built 2 inch x .250-wall DOM tubing while offering better NVH isolation with large factory style rubber bushings at both ends. The end result is aggressive off-road performance and strength while maintaining excellent on-road manners. Get connected with J-Konnect
Features & Benefits
- FOX Adventure Series Shocks
- Front/Rear Dual Rate Coil Springs (Standard) designed to great ride quality across any terrain.
- HD springs offer additional load capacity for vehicles equipped with winch bumper, fullsize spare, roof rack, etc.
- Front/Rear Gas Shocks (JPSEC or FOX) specifically valved for this suspension system for improved performance on and off-road.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
- Front/Rear Bump Stop Extensions to properly limit suspension up travel.
- Front/Rear J-Link Lower Control Arms to add strength and correct caster.
Tire Specs
- Rubicon Models (all kits)
- Tire: 37x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
- Non-Rubicon Models (all kits)
- Tire: 35x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
Other tire/wheel sizes can be used, however may require additional modifications.
Important Notes
- Factory wheels cannot be reinstalled without wheel spacers
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire
- Will not fit 4xe models
- Will not fit Rubicon 392 models
What's included in the kit
- 2 x FOX98450323 – 2018-2024 FOX Adv Shock 26.86 x 16.76 x 2 EB1/EB1
- 2 x FOX98450327 – 2018-2024 FOX Adv Shock 30.06 x 18.46 x 2 EB1/EB1
- 1 x JKS1621 – 2018-2024 Jeep Wrangler JL Fixed Front LCA - J-L k
- 1 x JKS1671 – 2018-2024 Jeep Wrangler JL Fixed Rear LCA - J-L k
- 1 x JSPEC1311 – 2018-2024 Jeep Wrangler (JL) J-Konnect Main Box Kit
- 1 x JSPEC1351 – 2018-2024 Jeep Wrangler (JL) 3.5 inch Front Coil Spring Kit - STD
- 1 x JSPEC1359 – 2018-2024 Jeep Wrangler (JL) 3.5 inch Rear Coil Spring Kit - STD
Specifications
- JKS part number: JSPEC123KFA
- Lift height: 3.5 Inch
- Doors: 4 Door
- Shocks: FOX Adventure
- Coil springs: Standard Rate
- Sold as: Kit
- Estimated installation time: 7 Hours
- Warranty: 5 Year, 100,000-mile PLUS Protection
- Country of origin: USA
