2018-2026 Jeep Wrangler JL J-Konnect 3.5 Inch 4 Door with FOX Adventure Series Shocks Diesel JKS Manufacturing
JSPEC159KFA
2018-2026 Jeep Wrangler JL J-Konnect 3.5 Inch 4 Door with FOX Adventure Series Shocks Diesel – JKS Manufacturing part number JSPEC159KFA.
This JKS J-Konnect suspension lift kit is built for the 2018-2026 Jeep Wrangler JL 4 Door Diesel. It combines 3.5 inches of lift and FOX Adventure shocks. Backed by JKS's 5 Year, 100,000-mile PLUS Protection warranty.
Upgrade your Diesel Jeep Wrangler JL 4 Door with a J-Konnect 3.5 inch suspension system to fit larger tires and increase off road capabilities. The J-Konnect kit includes dual rate coil springs, tuned gas shocks, adjustable front track bar, J-Link lower control arms, and sway bar Quicker Disconnects.
While the entry level J-Venture systems is designed for equal parts on-road handling and off-road capability, J-Konnect takes strength and performance a step further by adding front and rear fixed length J-Link lower control arms.
These lower control arms not only add front caster and rear wheelbase, they are a serious upgrade to the strength over the factory control arms.
Built 2 inch x .250-wall DOM tubing while offering better NVH isolation with large factory style rubber bushings at both ends.
The end result is aggressive off-road performance and strength while maintaining excellent on-road manners. Get connected with J-Konnect.
Features & Benefits
- FOX 3.0 Factory Race Series
- Front/Rear Dual Rate Coil Springs designed to great ride quality across any terrain.
- Front/Rear Gas Shocks (JPSEC or FOX Shocks) specifically valved for this suspension system for improved performance on and off-road.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
- Front/Rear Bump Stop Extensions to properly limit suspension up travel.
- Front/Rear J-Link Lower Control Arms to add strength and correct caster.
Tire Specs
- Rubicon Models (all kits)
- Tire: 37x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
- Non-Rubicon Models (all kits)
- Tire: 35x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 5 inch
Important Notes
- 392 models may achieve up to 1.5 inch less lift depending on factory equipped package

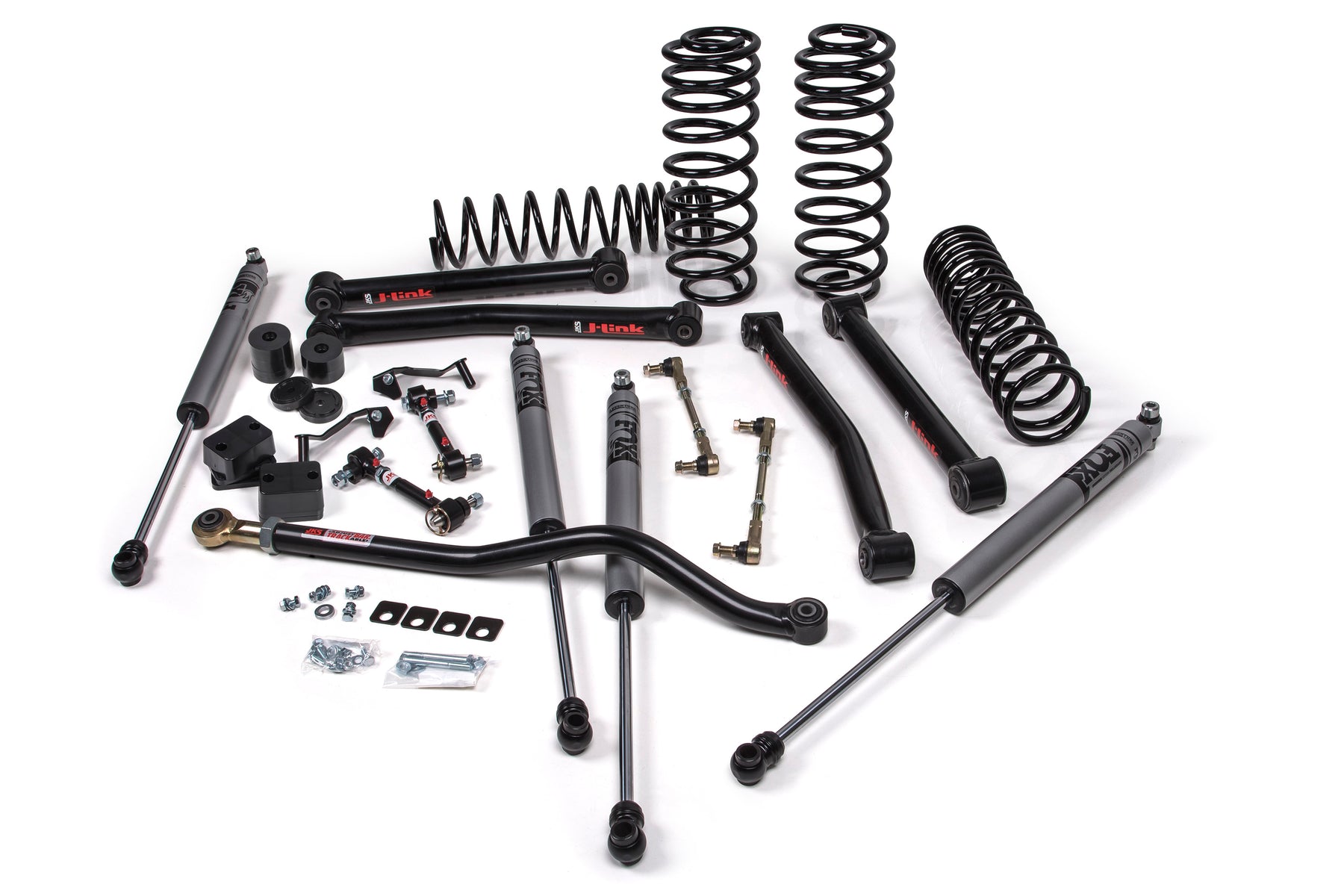

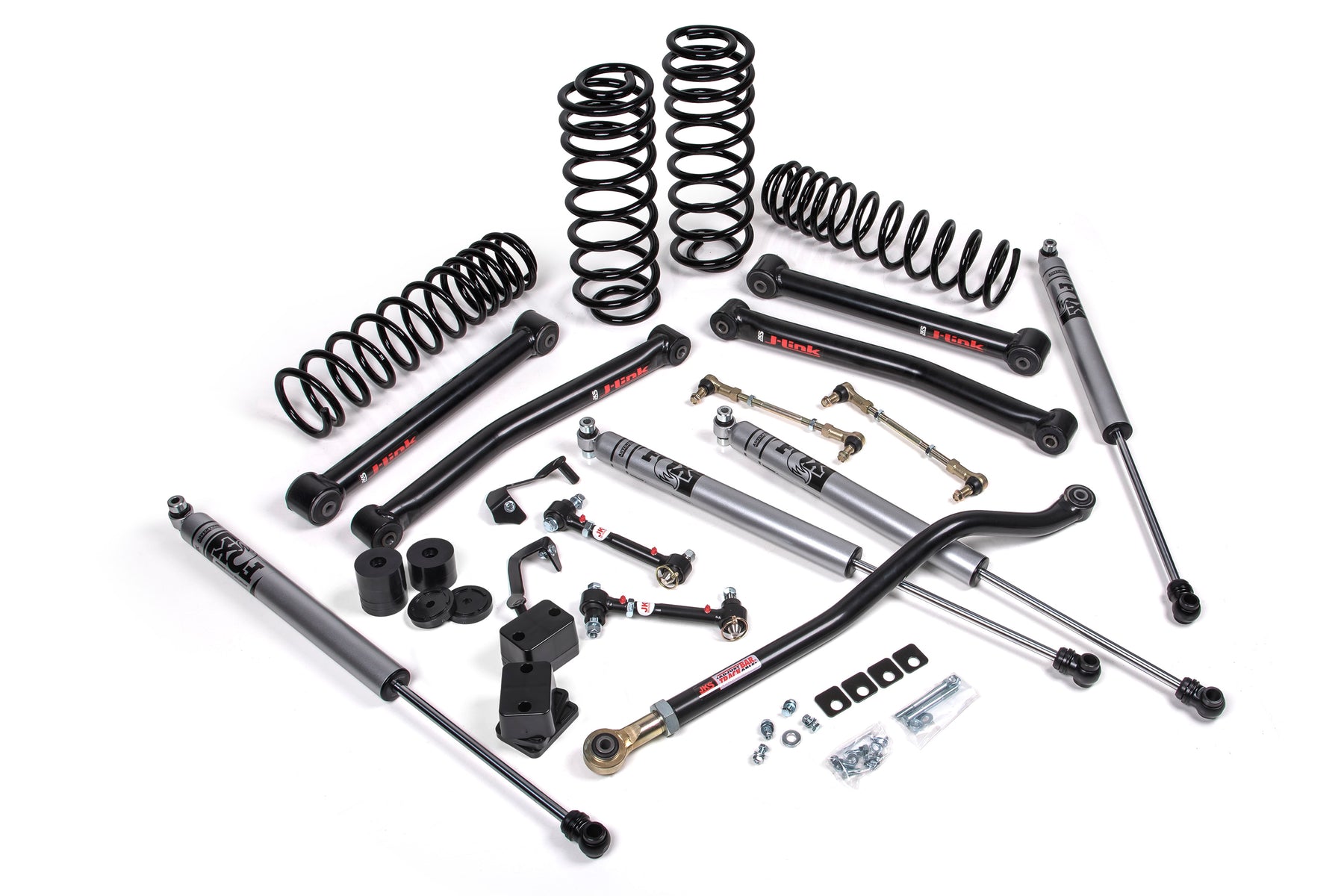

What's included in the kit
- 2 x FOX98450323 – 2018-2024 FOX Adv Shock 26.86 x 16.76 x 2 EB1/EB1
- 2 x FOX98450327 – 2018-2024 FOX Adv Shock 30.06 x 18.46 x 2 EB1/EB1
- 1 x JKS1621 – 2018-2024 Jeep Wrangler JL Fixed Front LCA - J-L k
- 1 x JKS1671 – 2018-2024 Jeep Wrangler JL Fixed Rear LCA - J-L k
- 1 x JSPEC1311 – 2018-2024 Jeep Wrangler (JL) J-Konnect Main Box Kit
- 1 x JSPEC1352 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) 3.5 inch Front Coil Spring Kit - HD
- 1 x JSPEC1359 – 2018-2024 Jeep Wrangler (JL) 3.5 inch Rear Coil Spring Kit - STD
Specifications
- JKS part number: JSPEC159KFA
- Lift height: 3.5 Inch
- Doors: 4 Door
- Shocks: FOX Adventure
- Fuel type: Diesel
- Sold as: Kit
- Estimated installation time: 6 Hours
- Warranty: 5 Year, 100,000-mile PLUS Protection
- Country of origin: USA
