2018-2026 Jeep Wrangler JL 2 Door 3 Inch J-Krawl System Rubber FOX 2.0 Adv Series Front/Rear Standard Rate Coils JKS Manufacturing

2018-2026 Jeep Wrangler JL 2 Door 3 Inch J-Krawl System Rubber FOX 2.0 Adv Series Front/Rear Standard Rate Coils – JKS Manufacturing part number JSPEC189KFA.

This JKS J-Krawl suspension lift kit is built for the 2018-2026 Jeep Wrangler JL 2 Door. It combines 3 inches of lift, FOX Adventure shocks and standard-rate coils. Backed by JKS's 5 Year, 100,000-mile PLUS Protection warranty.

JKS Mfg adds specially tuned FOX 2.0 Adventure Series IFP Gas Shocks to lineup for Jeep Wrangler JL.

Designed for improved damper performance in rough terrain and all around comfort and control, these shocks take advantage of FOX's racing pedigree and offering an affordable option that packs true race proven capability.

They feature a monotube design and an internal floating piston (IFP) to separate the shock oil from the high-pressure, nitrogen-charged gas chamber, preventing oil aeration for fade-free performance in rough terrain. Lengths and shock tuning have been specially designed for the JKS lift kits to optimize performance.

Get more out of your lifted Jeep JL FOX Adventure Series 2.0 shocks.

Shock Details:

• FOX Adventure Series Shocks
• Standard Rate Coils
• Rubber Bushing

Tire Specs

• Rubicon Models (all kits)
• Tire: 37x12.50
• Wheel: 17x9, 18x9, 20x9
• Backspacing: 5 inch
• Non-Rubicon Models (all kits)
• Tire: 35x12.50
• Wheel: 17x9, 18x9, 20x9
• Backspacing: 5 inch

Other tire/wheel sizes can be used, however may require additional modifications.

Important Notes

• Diesel models may achieve up to 1 inch less lift height.
• Factory wheels cannot be reinstalled without wheel spacers.
• HD front springs recommended for applications with aftermarket winch/bumper combo
• HD rear springs recommended for applications with rear mounted full size spare tire.
• Front aftermarket driveshaft strongly recommended due to additional travel capability.
• Will not fit Rubicon 392 models

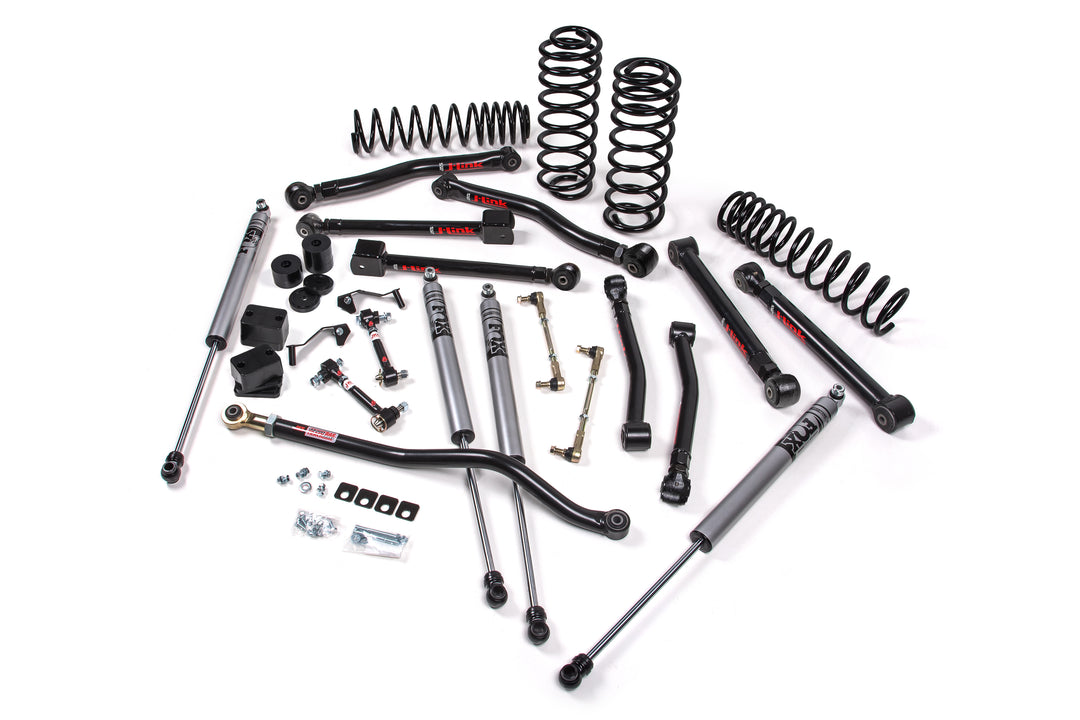

What's included in the kit

• 2 x FOX98450323 – 2018-2024 FOX Adv Shock 26.86 x 16.76 x 2 EB1/EB1
• 2 x FOX98450328 – 2018-2024 FOX Adv Shock 31.06 x 18.96 x 2 EB1/EB1
• 1 x JKS1632 – 2018-2024 Jeep Wrangler JL Front Adjustable Lower Control Arm Kit
• 1 x JKS1634 – 2018-2024 Jeep Wrangler JL / 2020-2024 Jeep Gladiator JT Adjustable Front Upper Control Arm - Rubber
• 1 x JKS1636 – 2007-2018 Jeep Wrangler JK, 2018-2024 Jeep Wrangler JL Rear Adjustable Lower Control Arm - Rubber
• 1 x JKS1639 – 2007-2018 Jeep Wrangler JK 2018-2024 Jeep Wrangler JL Rear Adjustable Upper Control Arm - Rubber
• 1 x JSPEC1251 – 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spring Kit - STD
• 1 x JSPEC1259 – 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spring Kit - STD
• 1 x JSPEC1312 – 2018-2024 Jeep Wrangler (JL) J-Krawl Main Box Kit

Specifications

• JKS part number: JSPEC189KFA
• Lift height: 3 Inch
• Doors: 2 Door
• Shocks: FOX Adventure
• Coil springs: Standard Rate
• Sold as: Kit
• Warranty: 5 Year, 100,000-mile PLUS Protection
• Country of origin: USA

Resources

• Installation instructions (PDF)
• Product video
