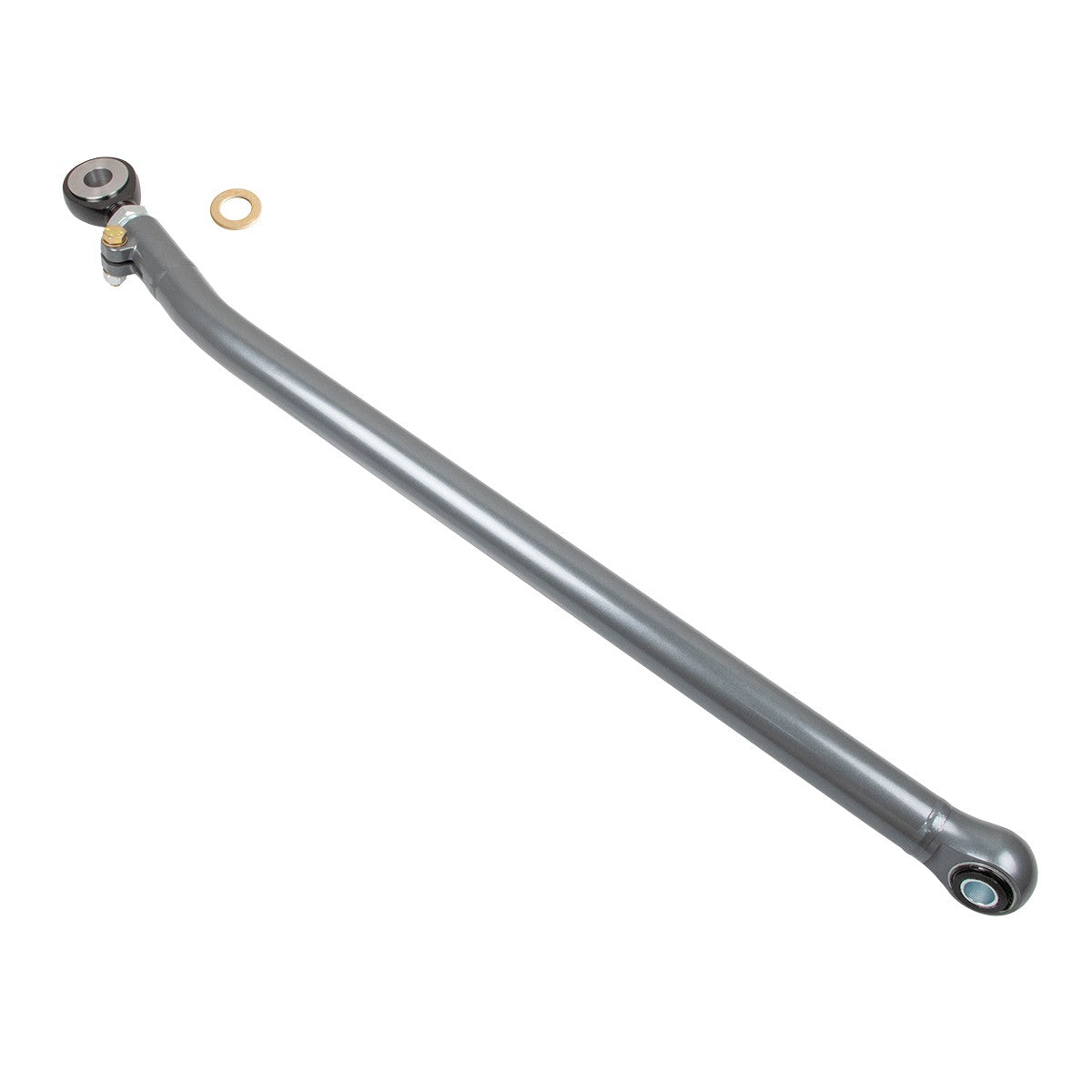

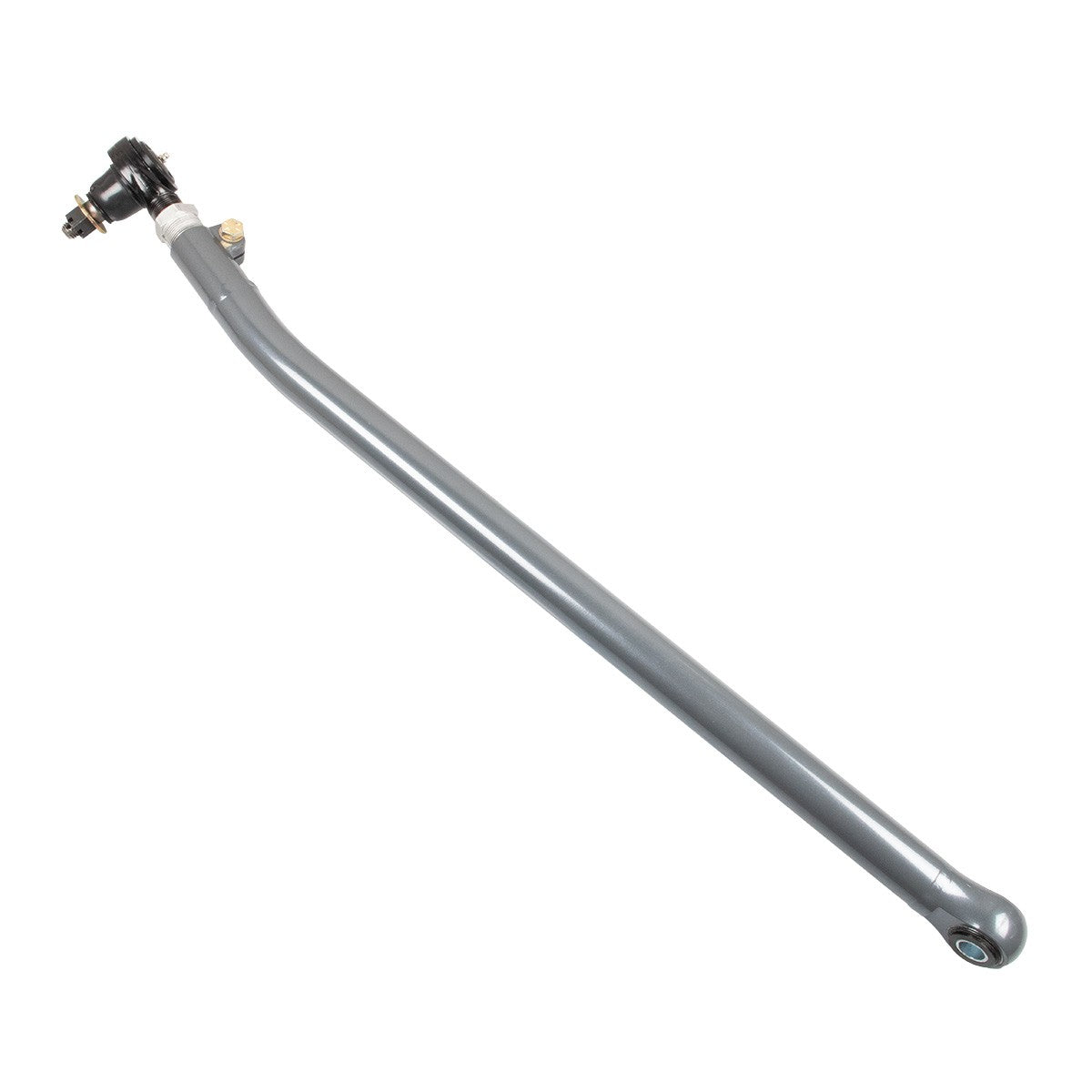

Synergy's adjustable front track bar represents "a critical final component to your new suspension lift and steering upgrade." Manufactured from "1.75" USA made DOM steel," it "significantly improves lateral stiffness over stock" and is "considerably stronger to hold up to the abuse of large tires and aggressive off road driving."

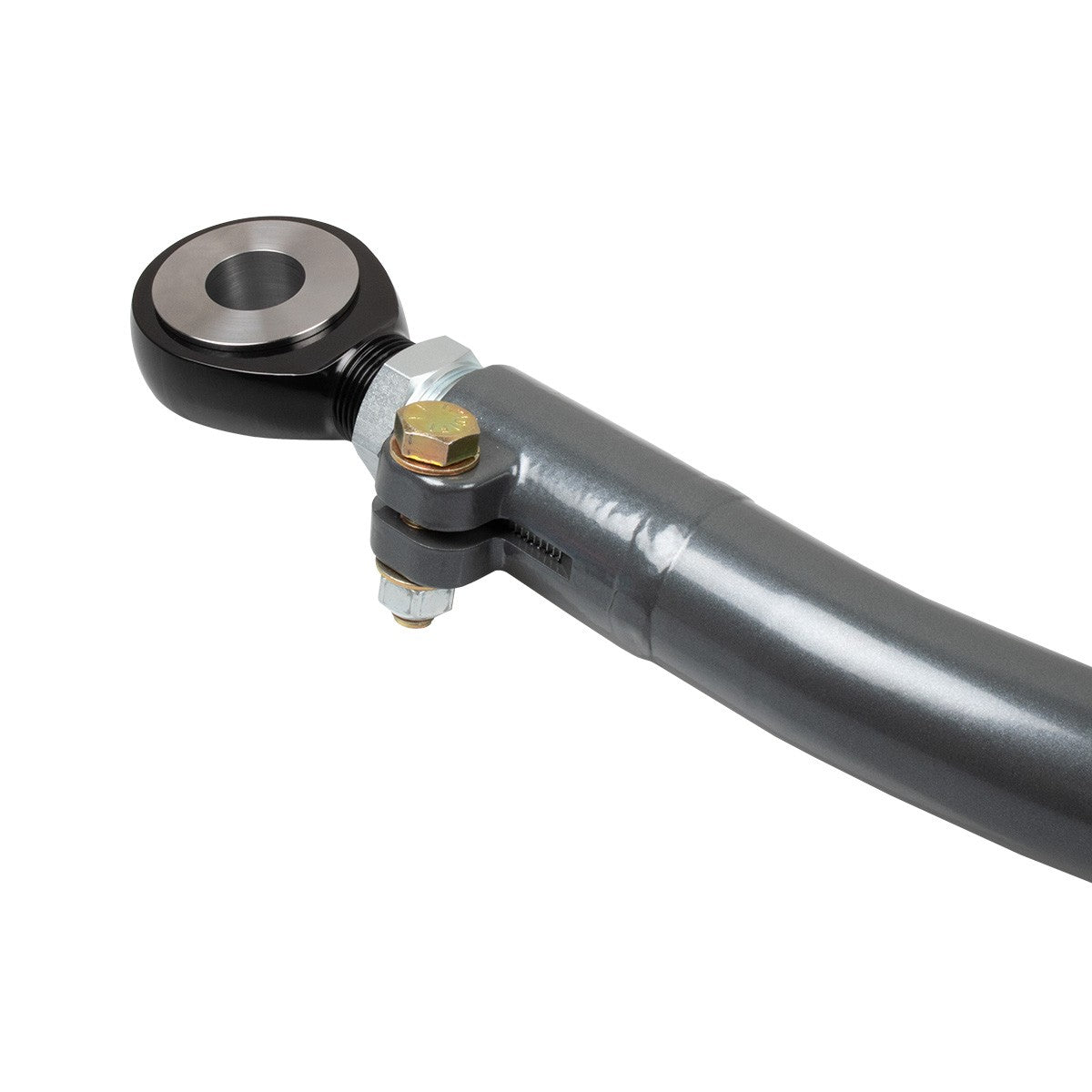

The component features a "Double Adjuster Sleeve and Pinch Bolt Assembly," enabling "fully adjustable while installed" operation for fine-tuning. Centering the axle after suspension installation "is critical to correcting your suspension and steering geometry."
Fitments: 7675-01 = 2005-2016 F-250/F-350; 2005+ F-450/F-550/F-600. 7675-02 = 2017+ F-250/F-350.
Benefits:
- Heavy duty 1.75" x 0.188 wall USA made DOM offers improved strength

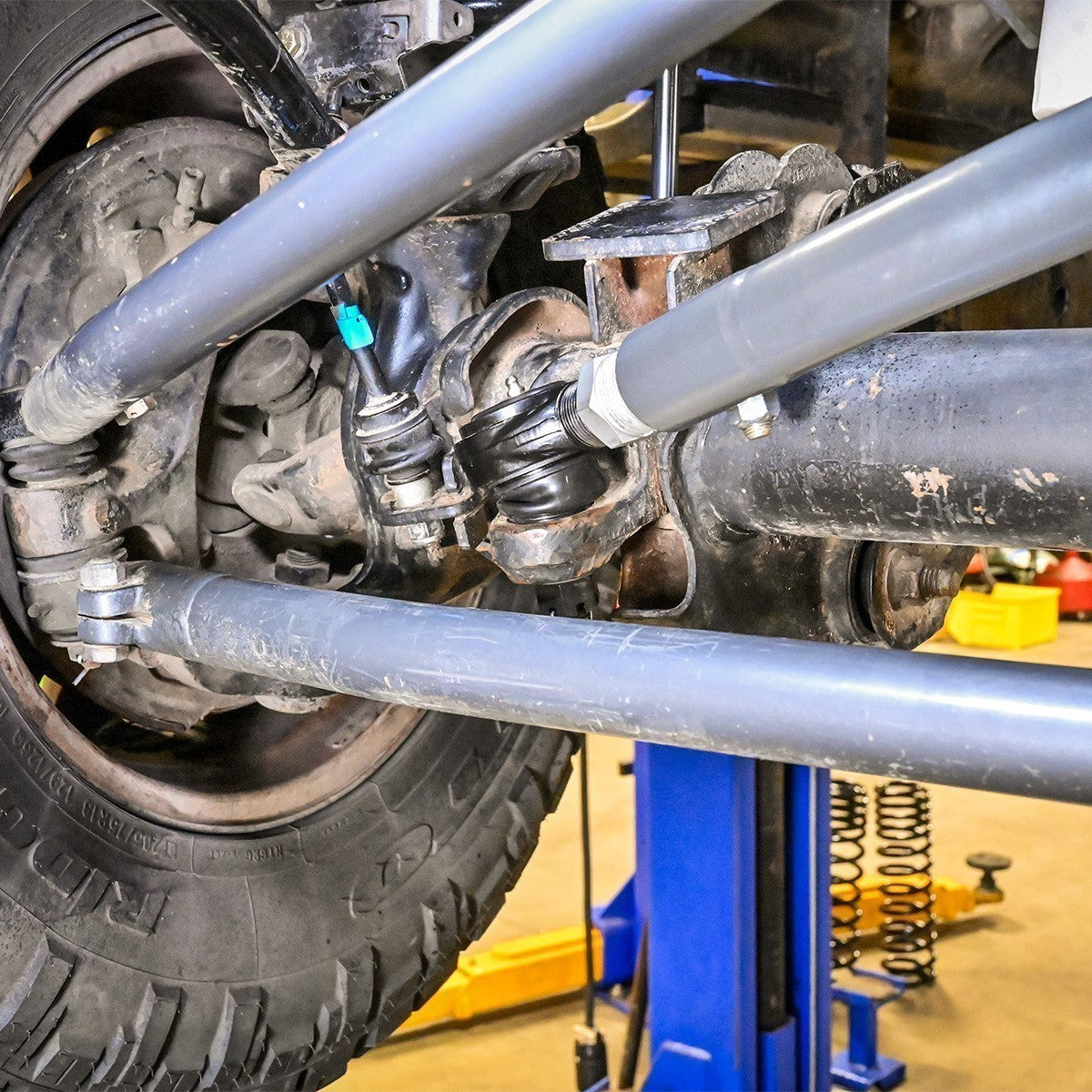

- Centers axle post-lift installation
- Maintenance-free dual durometer bushings isolate noise/vibrations
- Fully adjustable without vehicle removal
- Metal-on-metal HD ball joint (2017+ models)
- No jam nuts
- Compatible with stock components
- Bolts to factory locations
Features:
- 1.75" x 0.188 wall DOM tubing
- Two-stage abrasion-resistant powder coat
- Factory mounting retention

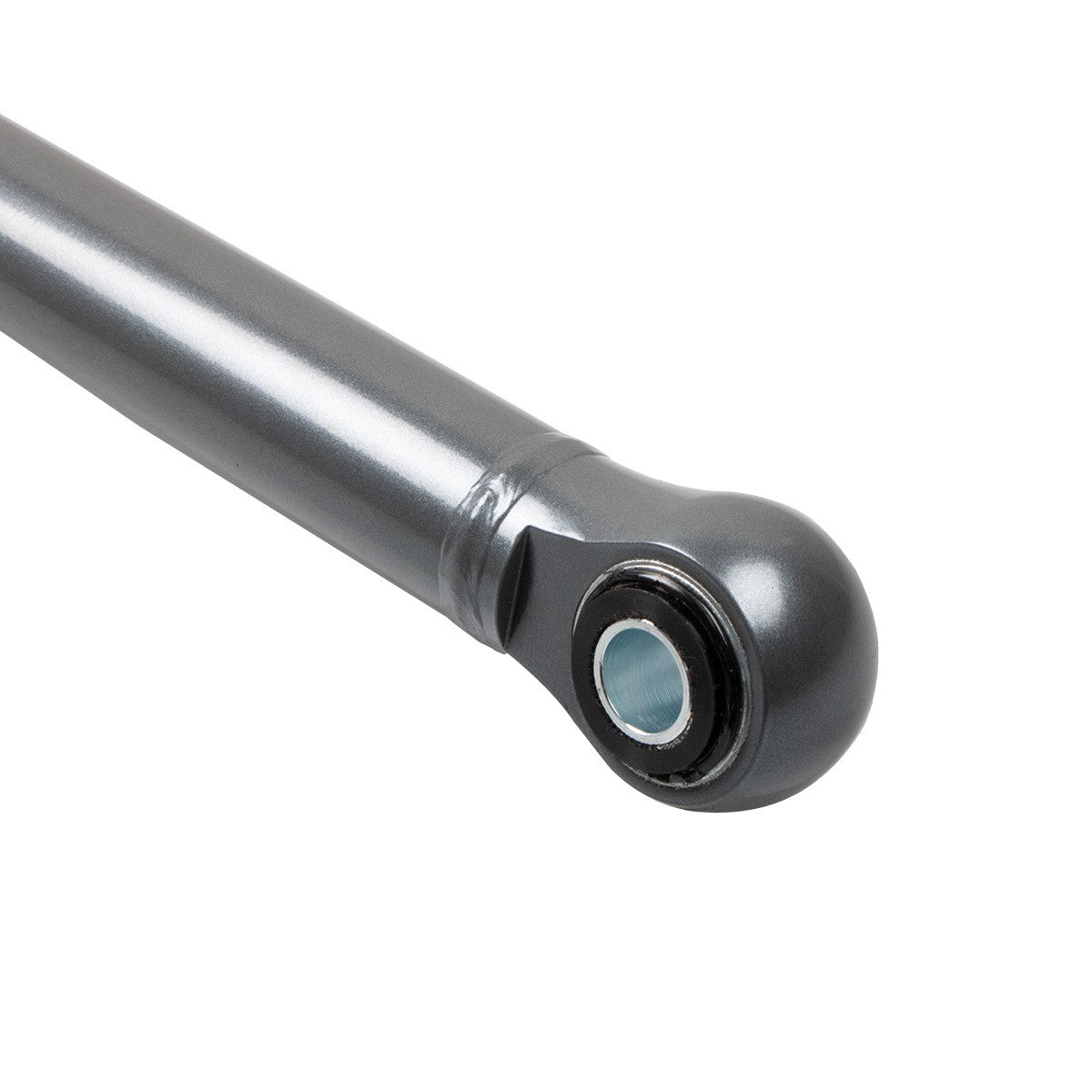

- Dual durometer bushings with Teflon bearing surface

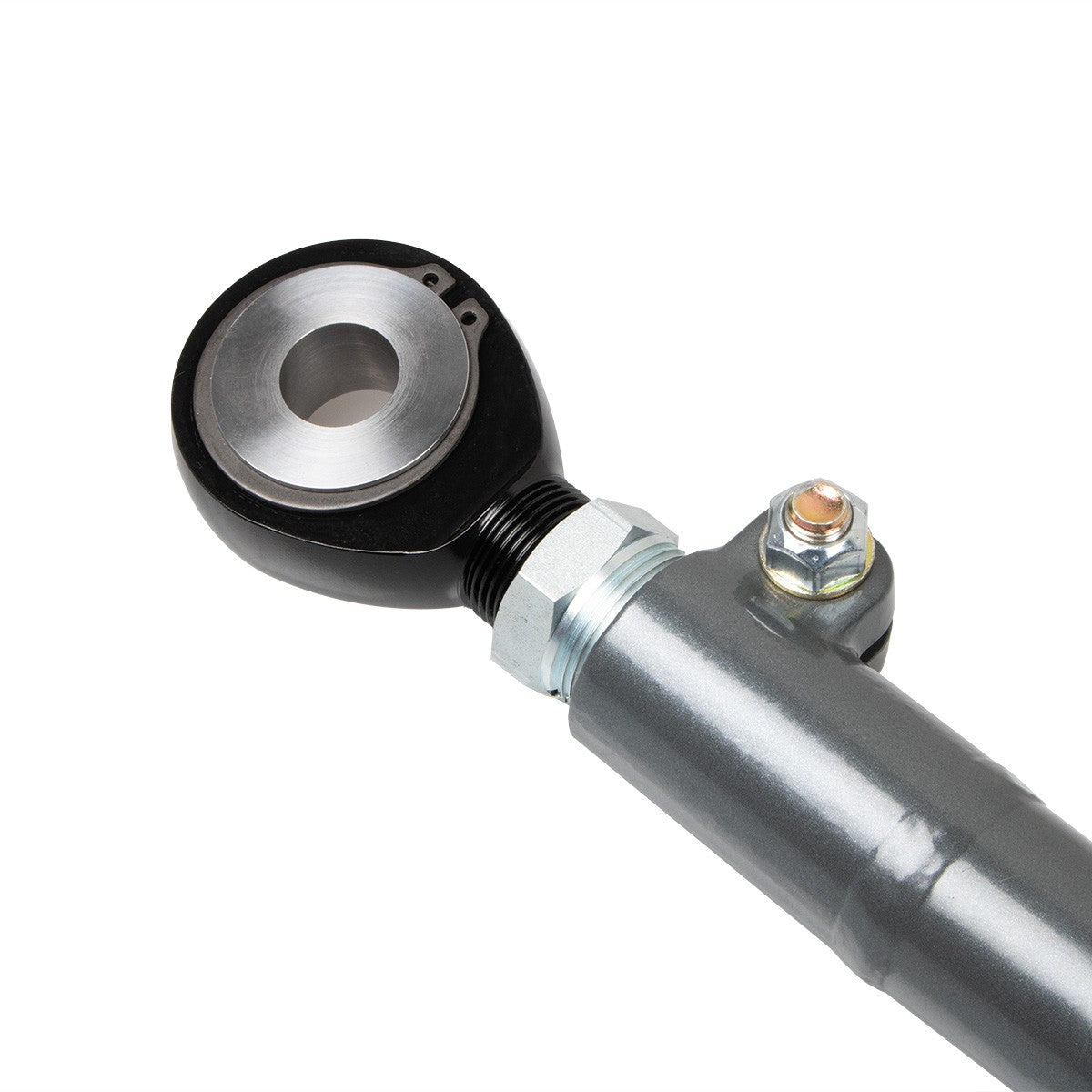

- Double adjuster sleeve eliminates jam nuts

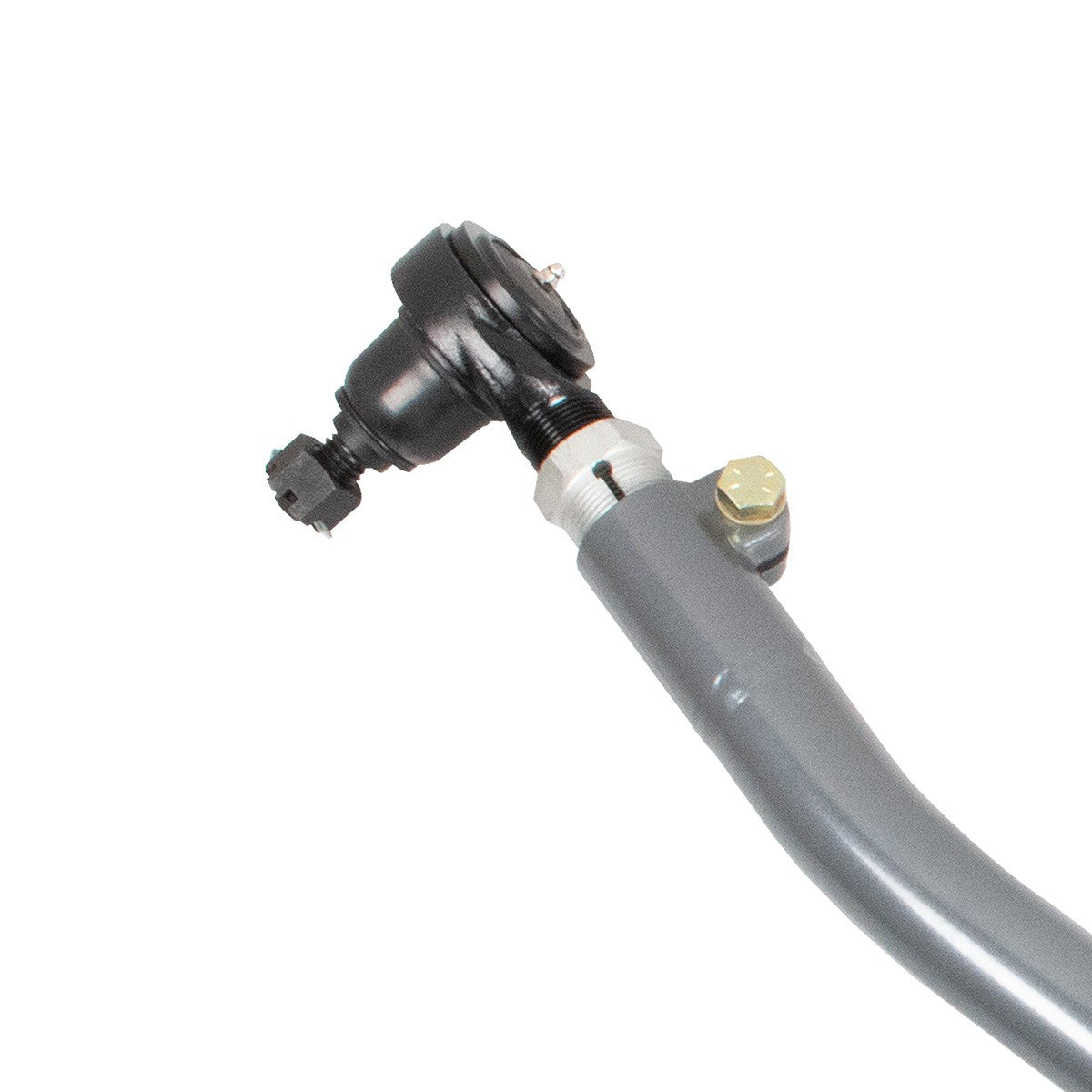

- Heavy-duty metal-on-metal ball joint (2017+)
- Bolt-in installation
Min/Max Length: Collapsed 36.375"; Extended 37.75".
Includes (7675-01): Heavy duty track bar, double adjuster sleeve, dual durometer bushing, super duty slug adapter. Includes (7675-02): Heavy duty track bar, double adjuster sleeve, dual durometer bushing, heavy duty ball joint.
Notes:
- Compatible on vehicles up to 4" ride height
- Works with Synergy steering kit or stock components
- Synergy High Performance Grease part number 4119 recommended
- Cannot confirm aftermarket differential cover compatibility
- Pre-10/2024 models (8675-01) use replacement part 4154-L
Fits: 2017+ Ford Super Duty F-250/F-350
Includes:
- 7675-01: heavy duty track bar, double adjuster sleeve, dual durometer bushing, super duty slug adapter. 7675-02: heavy duty track bar, double adjuster sleeve, dual durometer bushing, heavy duty ball joint.
Specifications:
- Synergy MFG part number: 7675-02
- Option: 2017
- Dimensions / size: Length collapsed 36.375 in; extended 37.75 in. Shipping dimensions not shown.
