2014+ Ram 2500 Rear Track Bar Relocation Bracket Synergy MFG

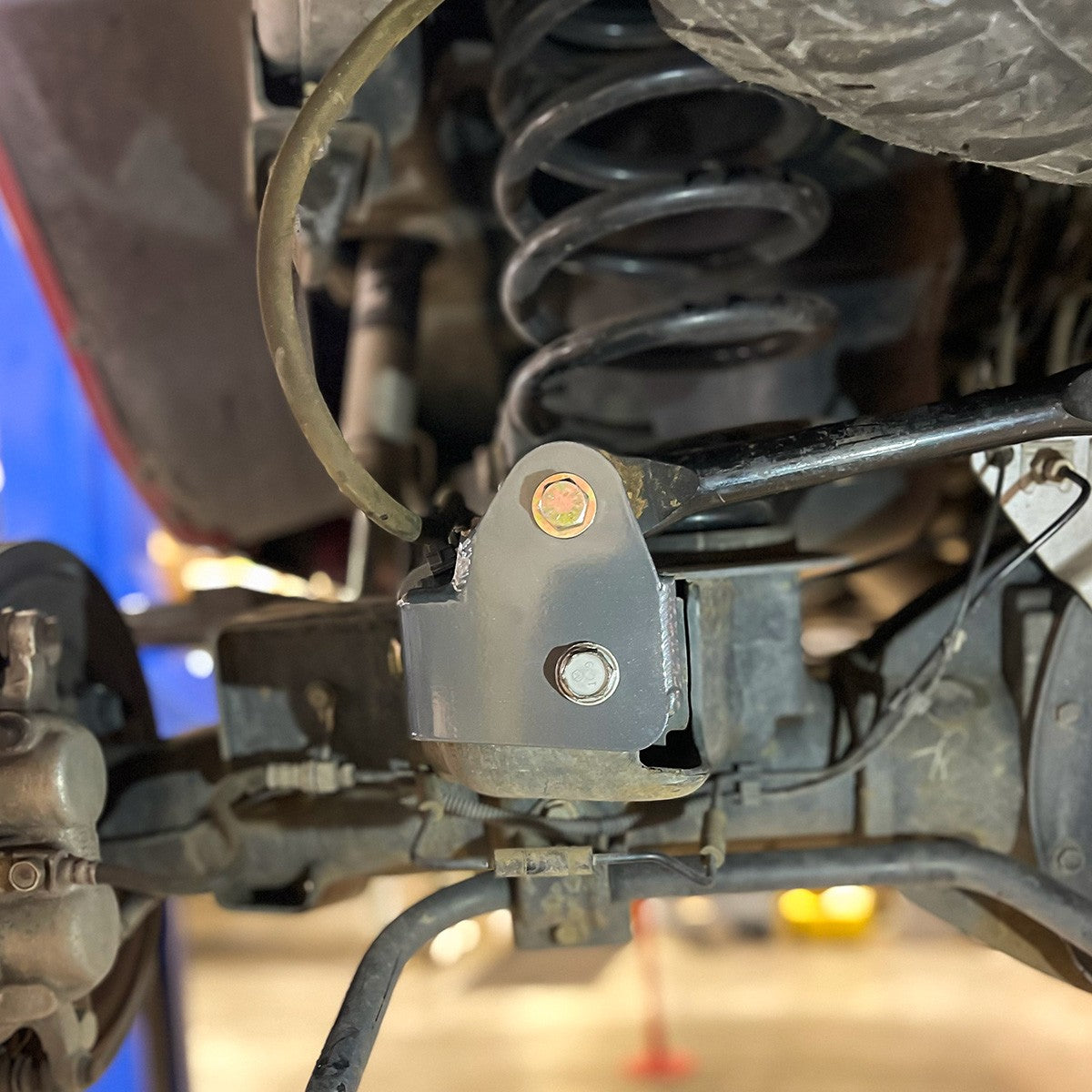

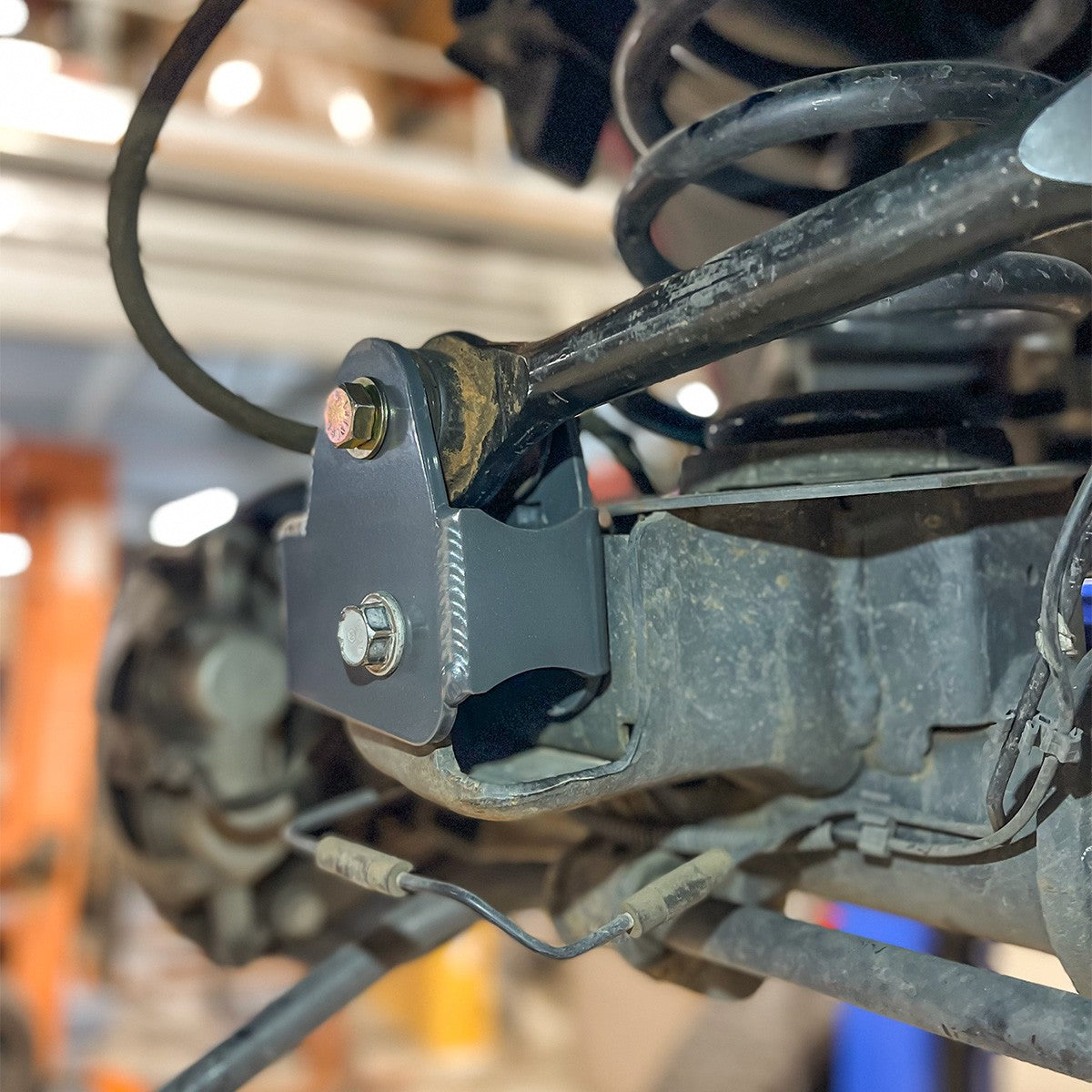

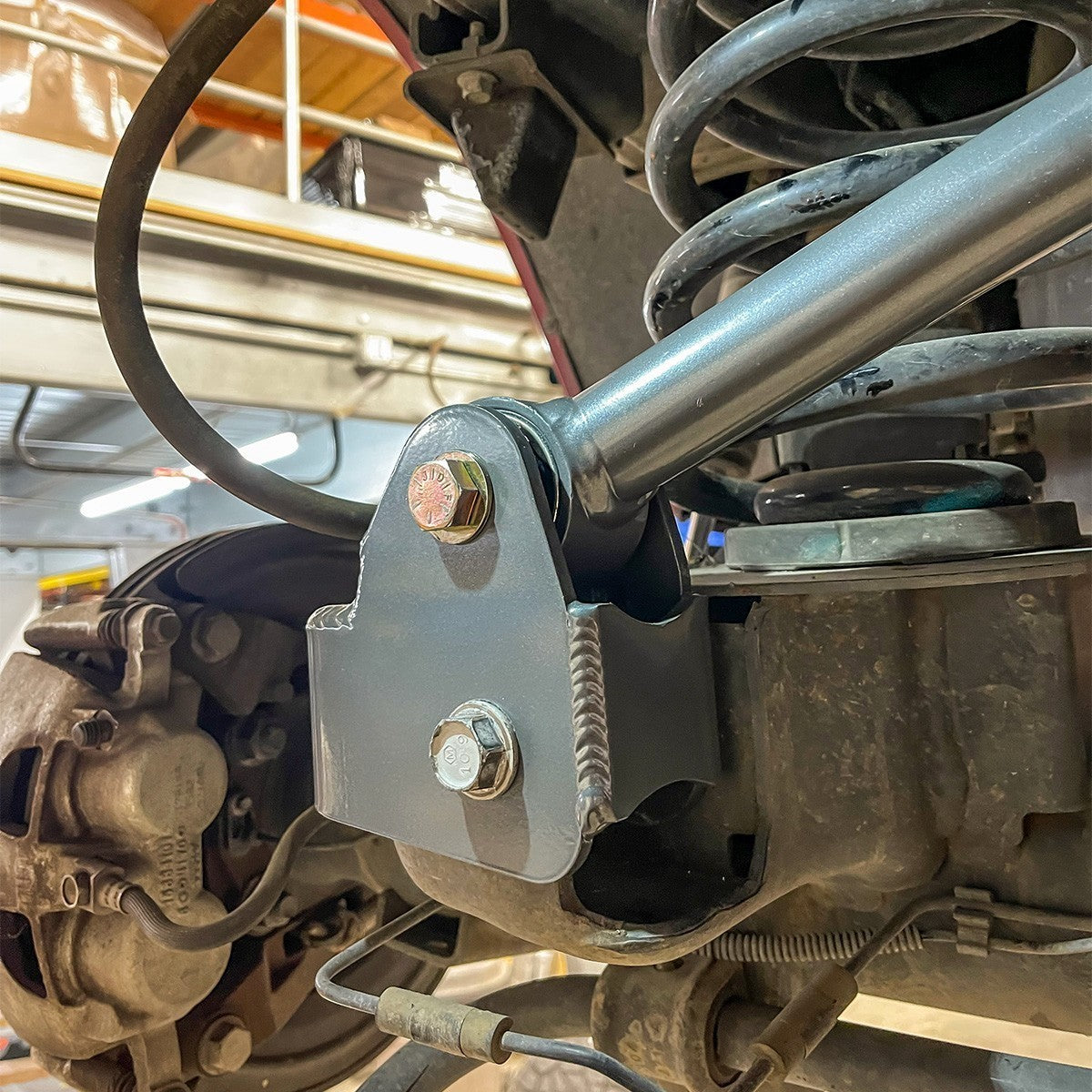

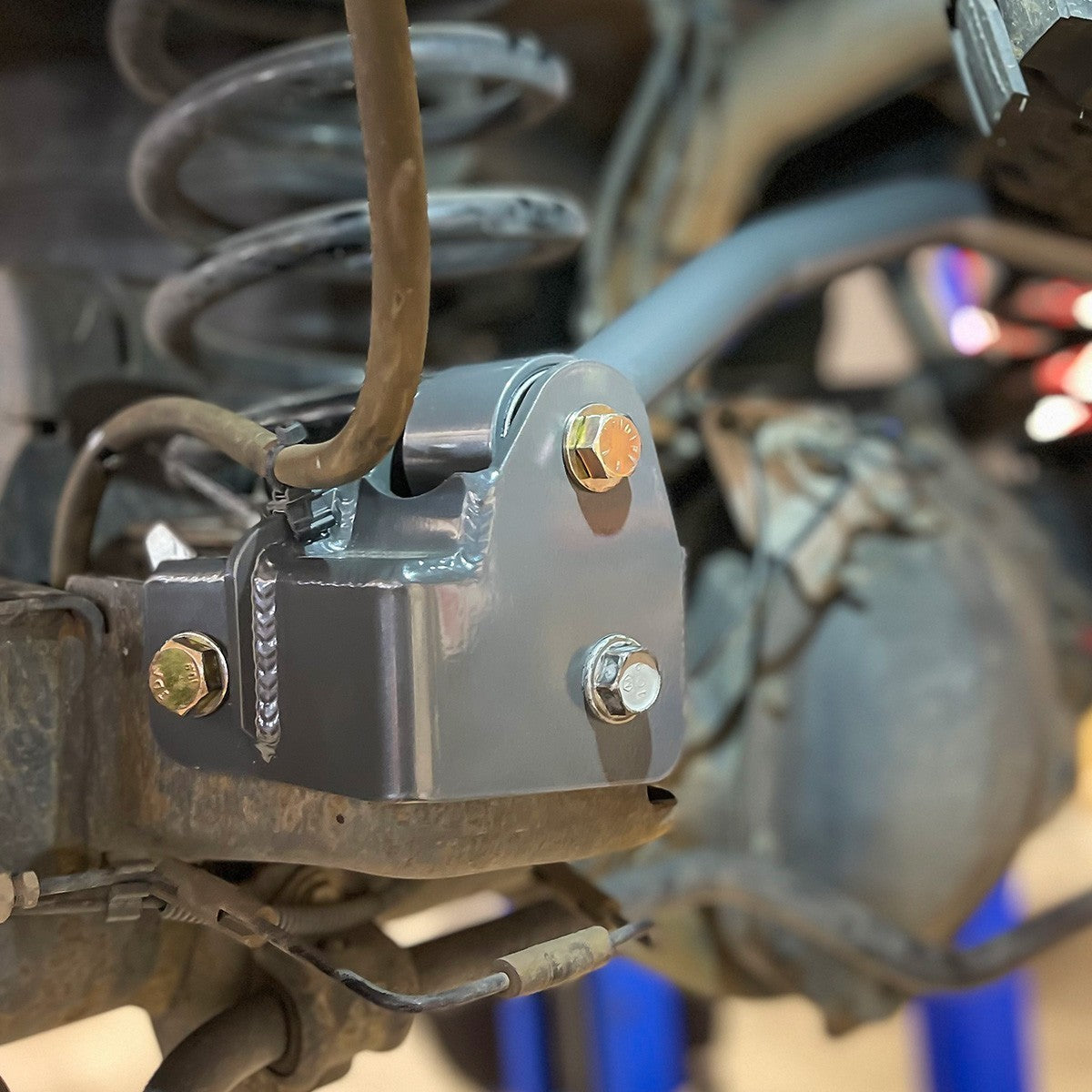

Synergy 2014+ Ram 2500 Rear Track Bar Relocation Bracket is an integral part of the suspension system and contributes to improved handling and reduced body roll. This is accomplished by increasing the height of the rear suspension roll center. This Bracket helps reduce lateral movement of the rear end of the vehicle while the suspension is cycling. This is a perfect part for people running 1+ inches of lift in the rear of their Ram.

Fitments: 2014+ Ram 2500.

Benefits:

• Centers rear axle without requiring a new track bar for 1-2.5 inches of lift
• Improves rear track bar geometry to reduce the rear end wag experienced with a steep track bar angle
• Reduces body roll and improves handling

Features:

• Raises rear track bar mounting location on the axle by 3 inches to raise the vehicle's roll center

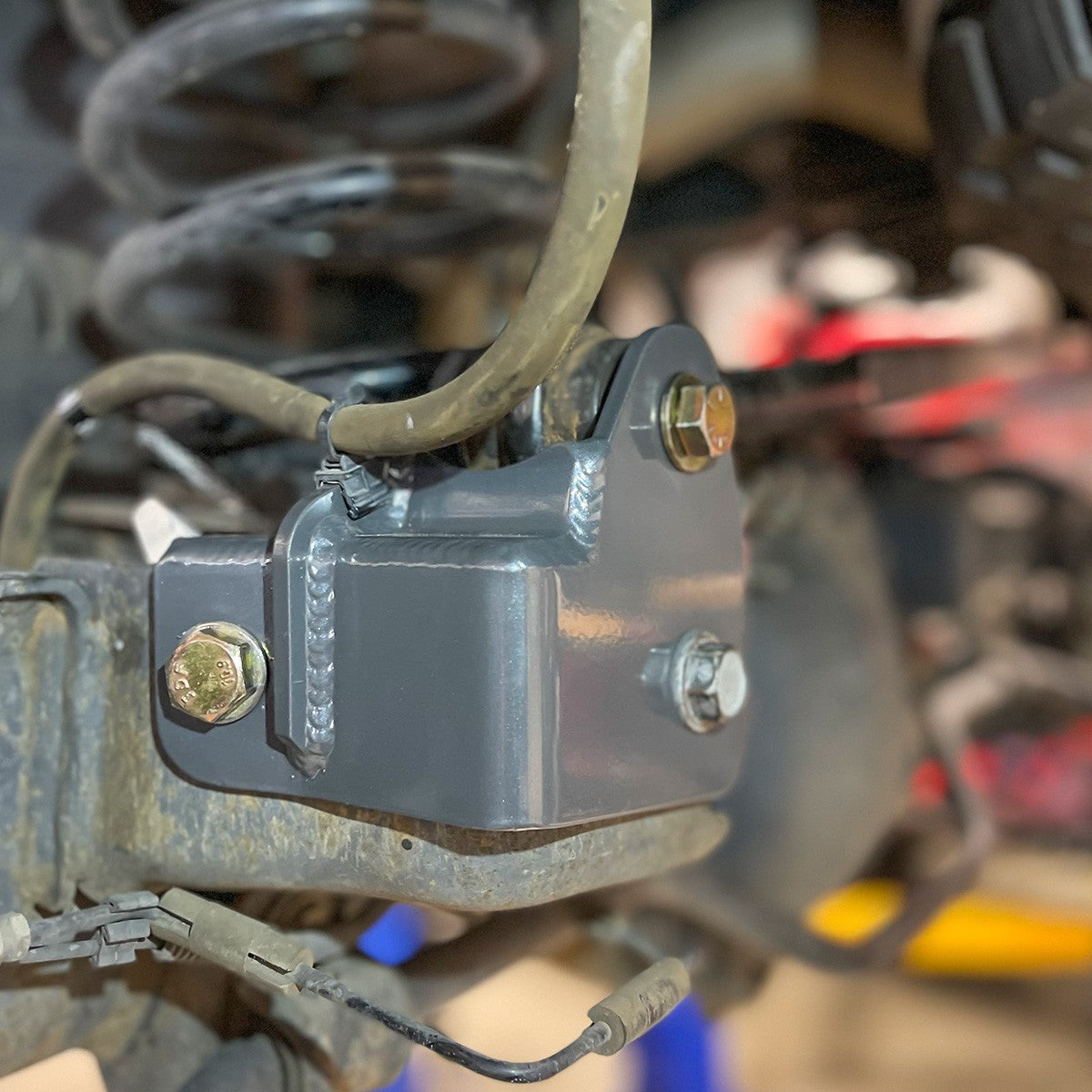

• Ties into stock track bar bracket in multiple locations for improved strength and durability

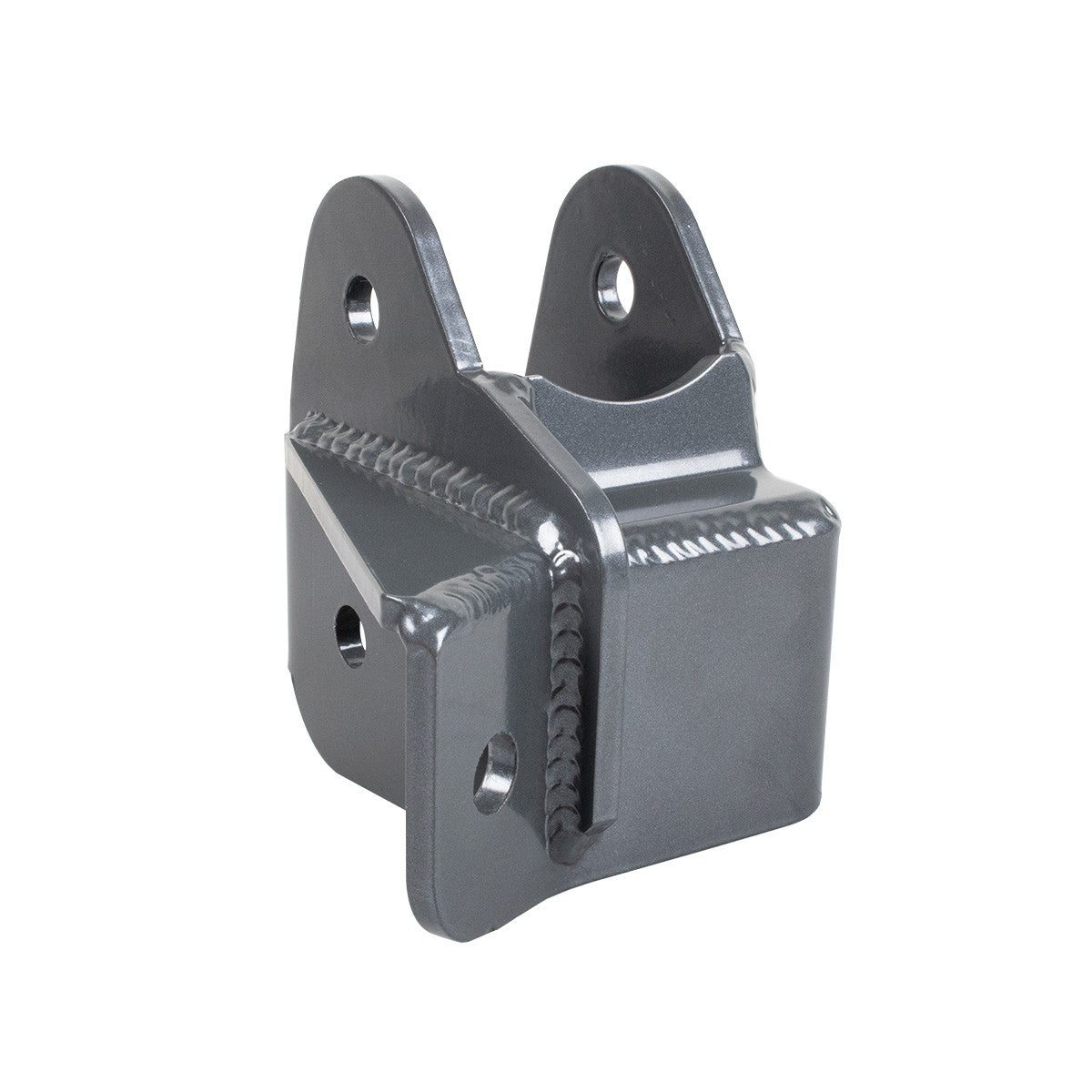

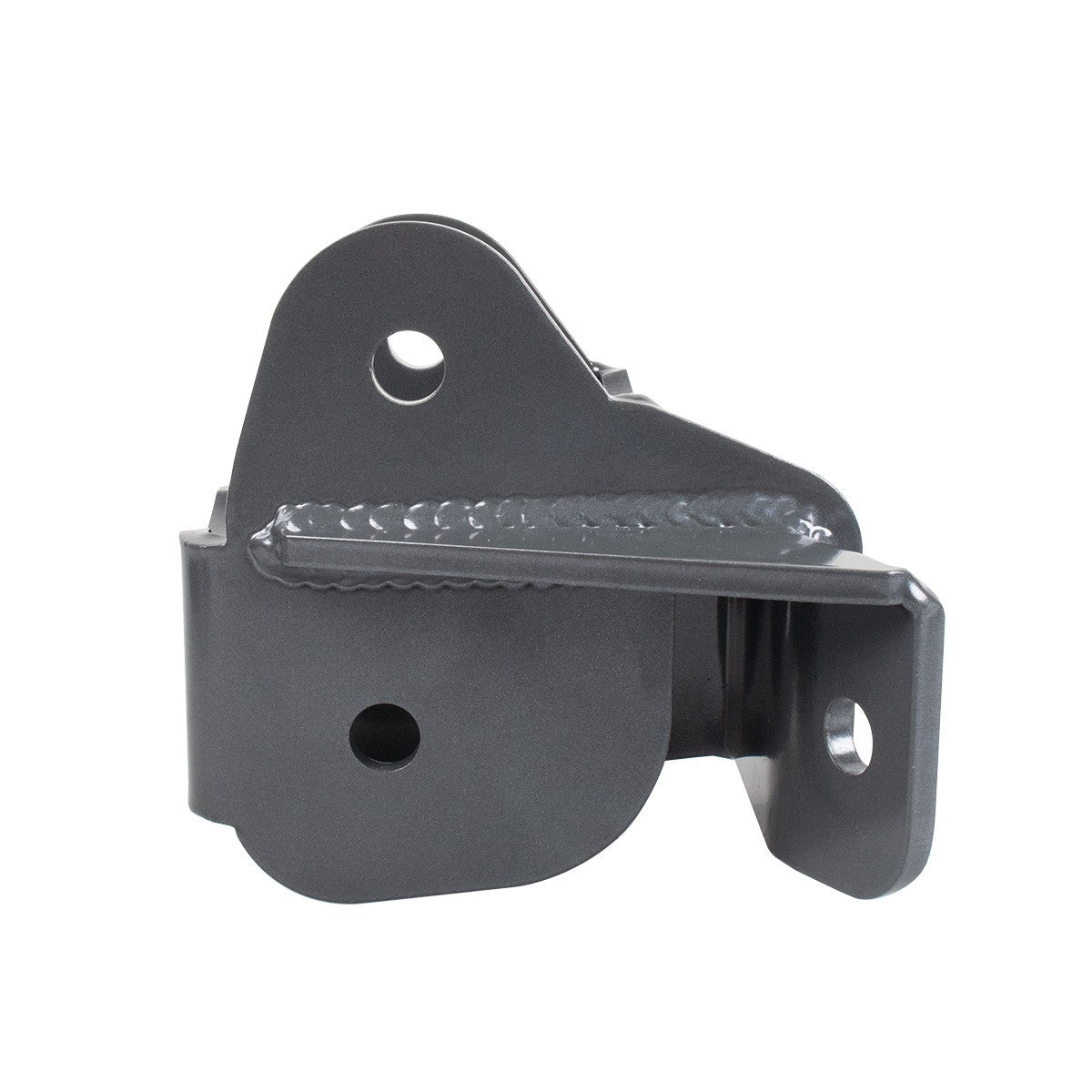

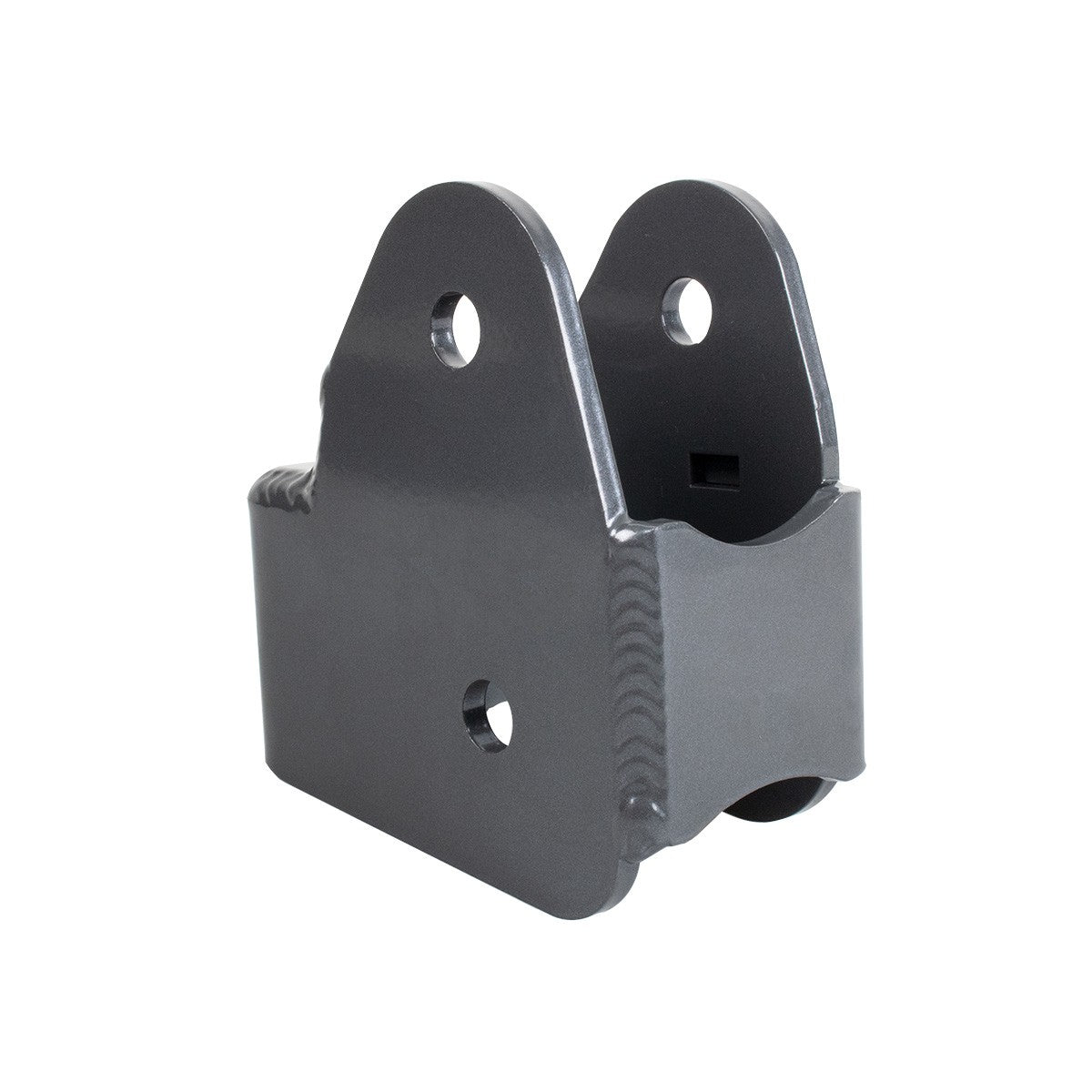

• Laser cut and CNC formed from 1/4 inch steel for the optimum combination of strength, durability, and performance
• No cutting or drilling required
• Features an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• 100 percent bolt-on components assures an easy, trouble free installation with the use of basic hand tools

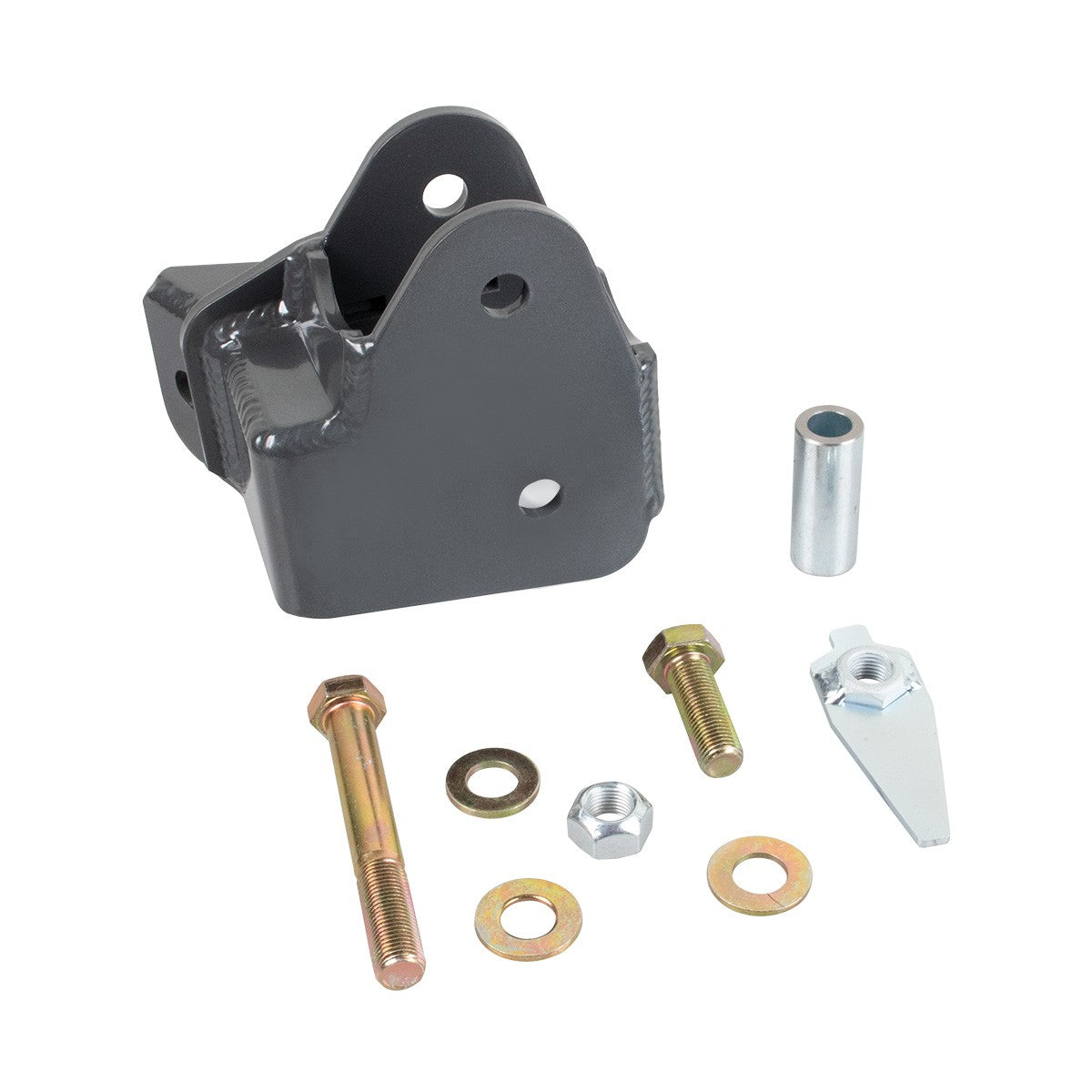

Includes:

• (1) Track bar relocation bracket
• (1) Plated Spacer
• (1) Track bar relocation hardware kit

Notes:

• Must run a minimum 1 inch of bump stop spacing
• When running more than 2.5 inches of lift, use this part with Synergy Adjustable Track Bar [8765-01] (for up to 7" of lift)
• This part does not fit 2014+ Ram 2500 Power Wagons

Fits: 2014+ Ram 2500 (does not fit Power Wagon)

Includes:

• (1) Track bar relocation bracket; (1) Plated Spacer; (1) Track bar relocation hardware kit

Specifications:

• Synergy MFG part number: 8740-01
