2011+ Ford Super Duty F-250/F-350 4x4 Brake Line Relocation Bracket Synergy MFG

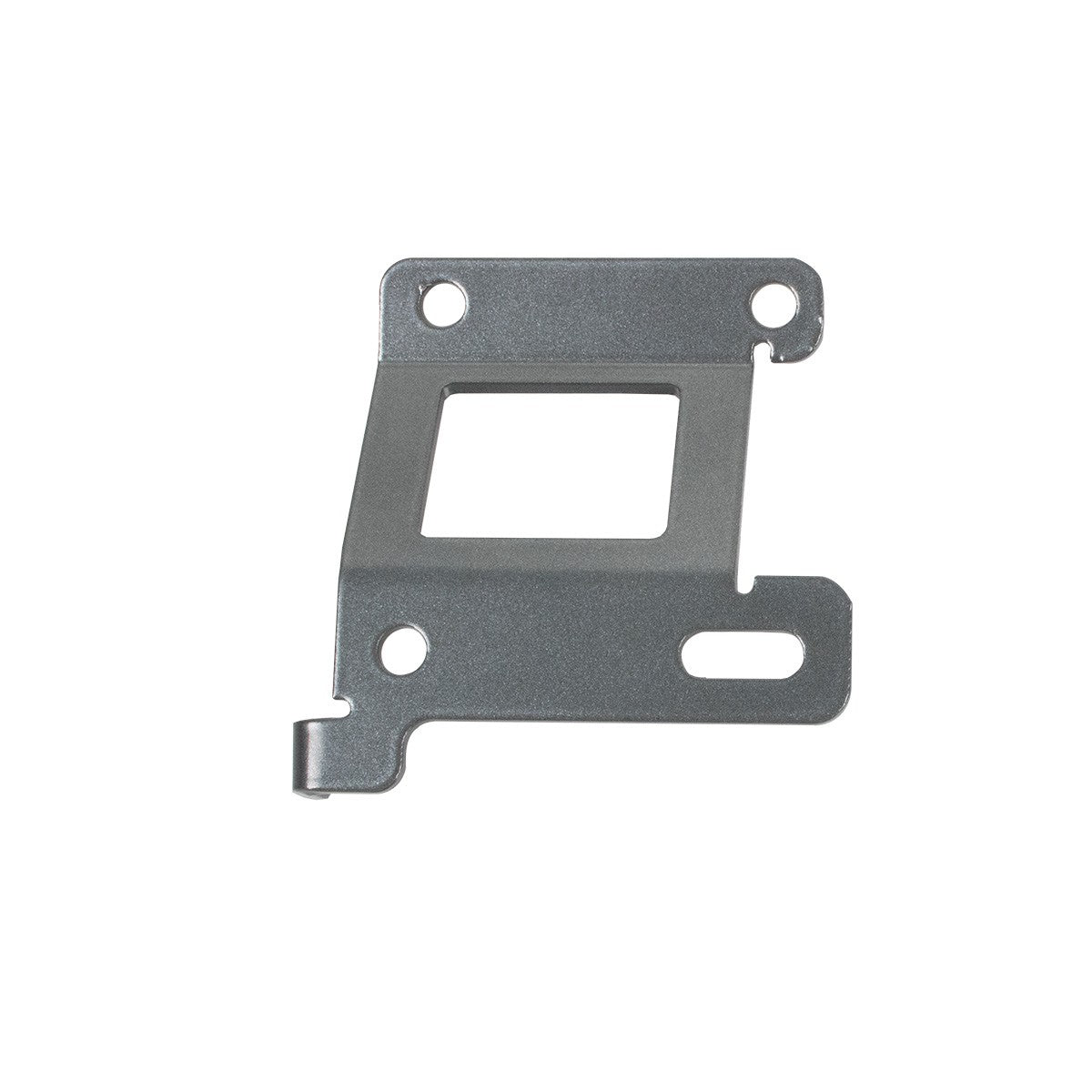

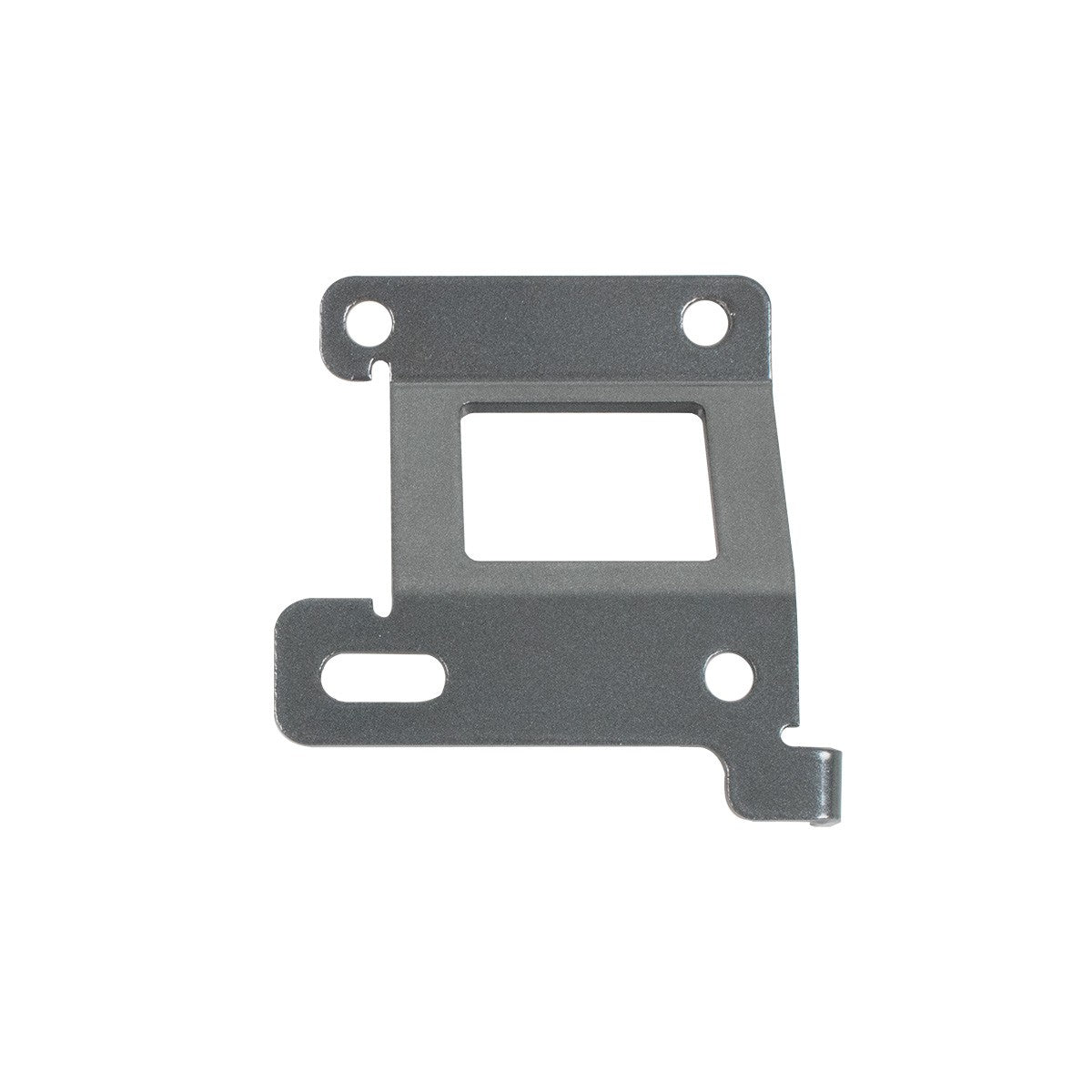

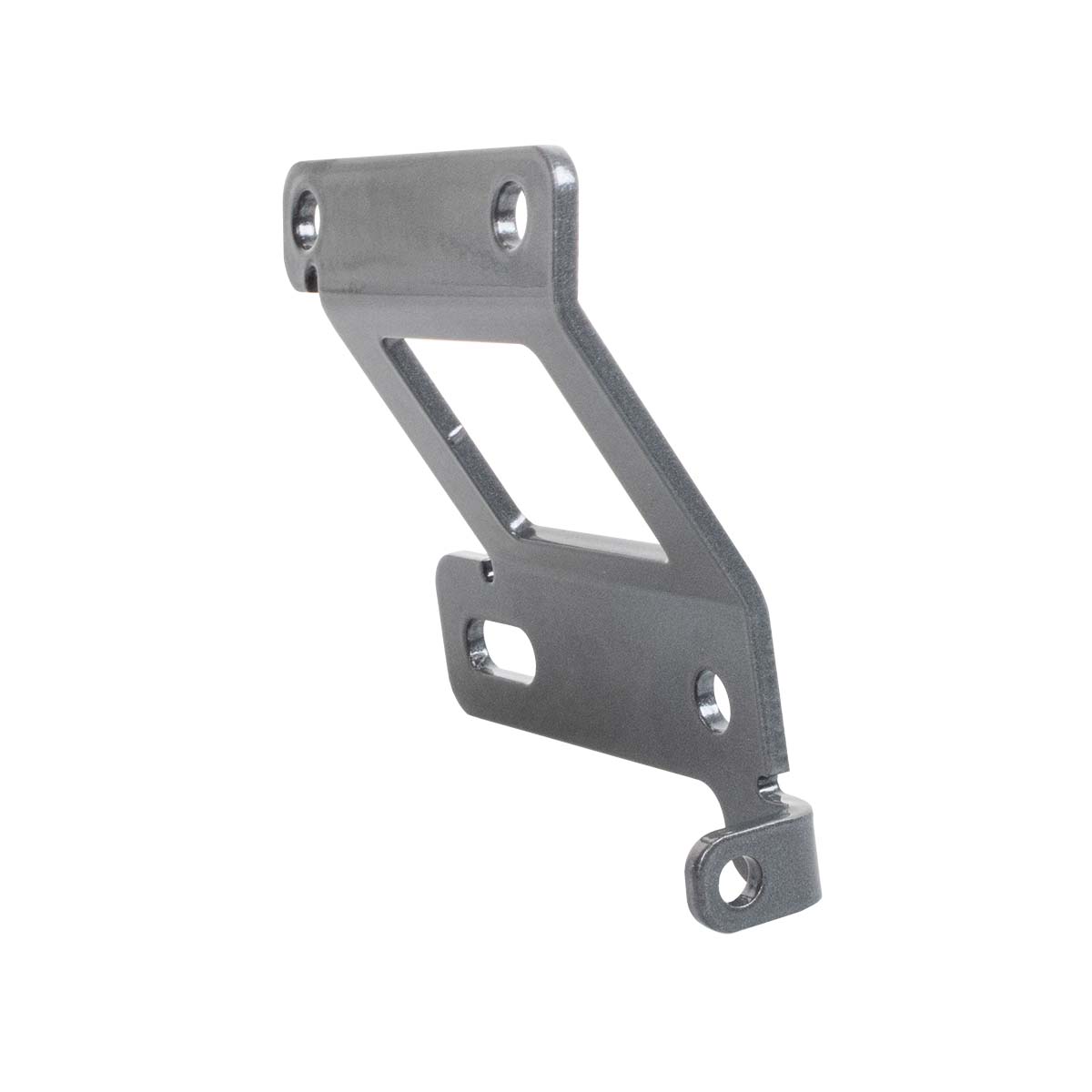

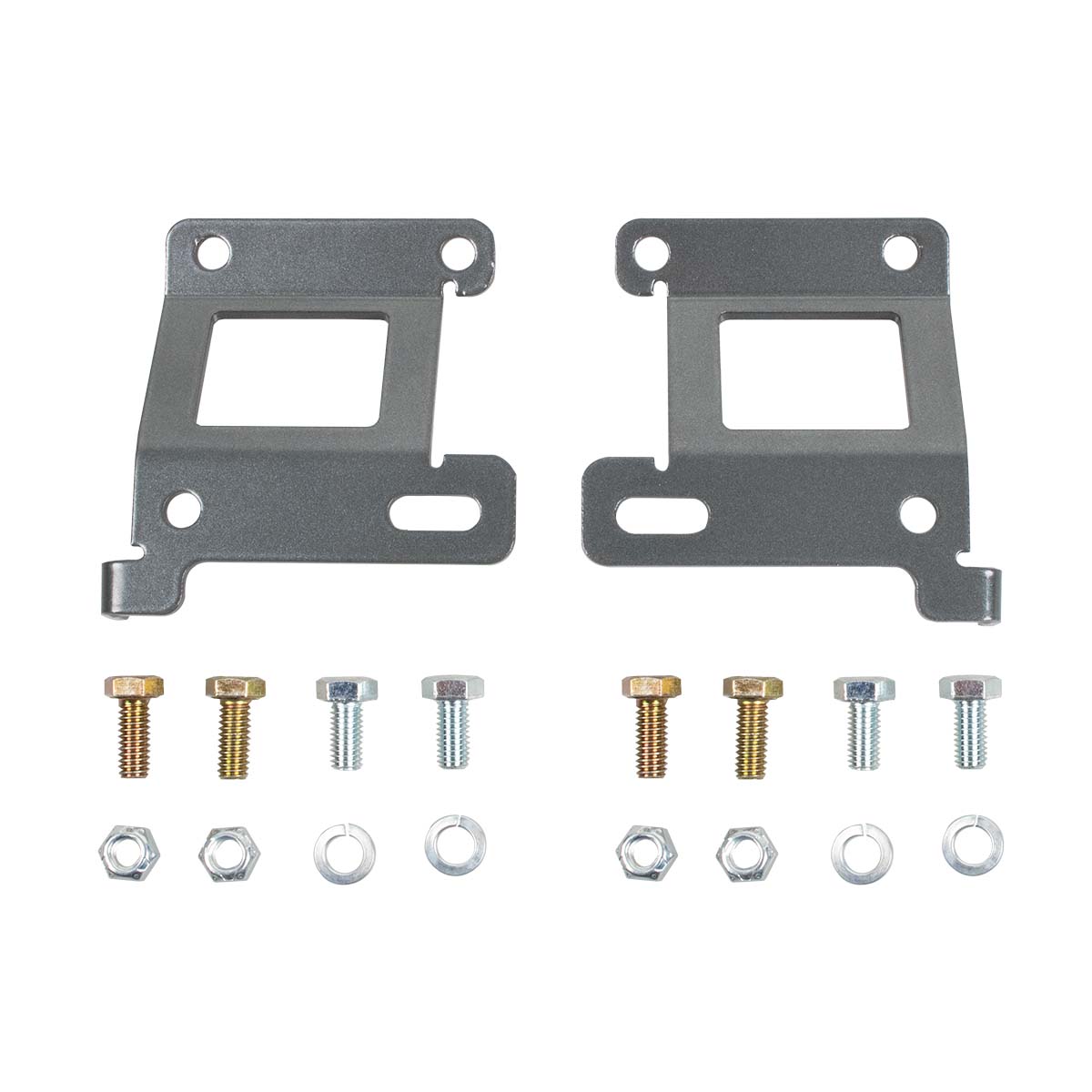

The Synergy Ford Super Duty F-250 / F-350 brake line relocation brackets are highly recommended when lifting or leveling your truck up to 2.5". This relocation bracket raises the stock brake line bracket 2.5". This bracket allows you to keep your factory brake line when used in conjunction with the Synergy Leveling Kit. When leveling your Super Duty, the increased height and down travel will over extend the stock brake line, leading to possible damage and brake system failure.

Fitments: 2011+ Ford Super Duty F-250 4x4; 2011+ Ford Super Duty F-350 4x4.

Benefits: Allows for increased suspension droop. Raises factory brake line bracket 2.5". Provisions for factory vacuum lines. No modifications required to install. No need to bleed brakes or open brake system.

Features: Laser cut and CNC bent. Zinc plated for corrosion protection.

Notes:

• Compatible with 2.5" Leveling Kit
• Cannot be used above 2.5" lift
• Only 4x4 compatible
• Shock extended length max 24"

Specifications:

• Synergy MFG part number: 8682-01
