2007-2018 Jeep Wrangler JK J-Lander 3.5 Inch 4 Door with FOX 2.0 Performance Series Shocks JKS Manufacturing
JSPEC154KFP
2007-2018 Jeep Wrangler JK J-Lander 3.5 Inch 4 Door with FOX 2.0 Performance Series Shocks – JKS Manufacturing part number JSPEC154KFP.
This JKS J-Lander suspension lift kit is built for the 2007-2018 Jeep Wrangler JK 4 Door. It combines 3.5 inches of lift and FOX 2.0 Performance shocks. Backed by JKS's 5 Year, 100,000-mile PLUS Protection warranty.
Create the ultimate go-anywhere overland Jeep Wrangler JK 4-Door with a JKS 3.5 inch J-Lander suspension system.
The JKS J-Lander kit includes dual rate coil springs, rear ACOS adjustable coil spacers, FOX 2.0 Performance Series remote reservoir shocks, front adjustable track bar, rear track bar bracket, front sway bar Quicker Disconnects, front and rear lower J-Link control arms and bump stop extensions.
Whether you call it Overlanding or Camping, adding weight to a Jeep can cause unforeseen handling and setup issues. With thousands of backcountry miles, the JKS R&D team has developed the J-Lander system for added strength and reliability along with low maintenance and adjustability.
Built for on-road comfort along with off-road capability. HD dual rate coil springs are used 3.5 inch up front with the rear receiving 2.5 inch springs in addition to ACOS spacers to dial in ride height based load.
Specially designed FOX 2.0 Remote reservoir shocks are added for improved performance. Get off the grid with J-Lander.
Features & Benefits
- FOX 2.0 Performance Series Shocks
- Front+Rear Dual Rate Coil Springs designed to great ride and improved performance across any terrain.
- Rear ACOS Adjustable Coil Spacers to allow you ride height to be dialed in based on vehicle setup.
- Front+Rear FOX 2.0 Adventure Series IFP Gas Shocks specifically valved for this suspension system for improved performance on and off-road.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Brake Line Brackets to allow for increased offroad articulation.
- Front+Rear J-Link Lower Control Arms for improved strength and caster correction.
- Front+Rear Bump Stop Extensions to properly limit suspension up travel.
Tire Specs
- Tire: 35x12.50
- Wheel: 17x9, 18x9, 20x9
- Backspacing: 4.5 inch
Other tire/wheel sizes can be used, however may require additional modifications.
Important Notes
- 2012-2018 Models with 3.6L Pentastar motor will require exhaust modification for driveshaft clearance at full suspension droop, use JKS8150 exhaust extensions
- Rubicon sway bar link hardware included in kit.

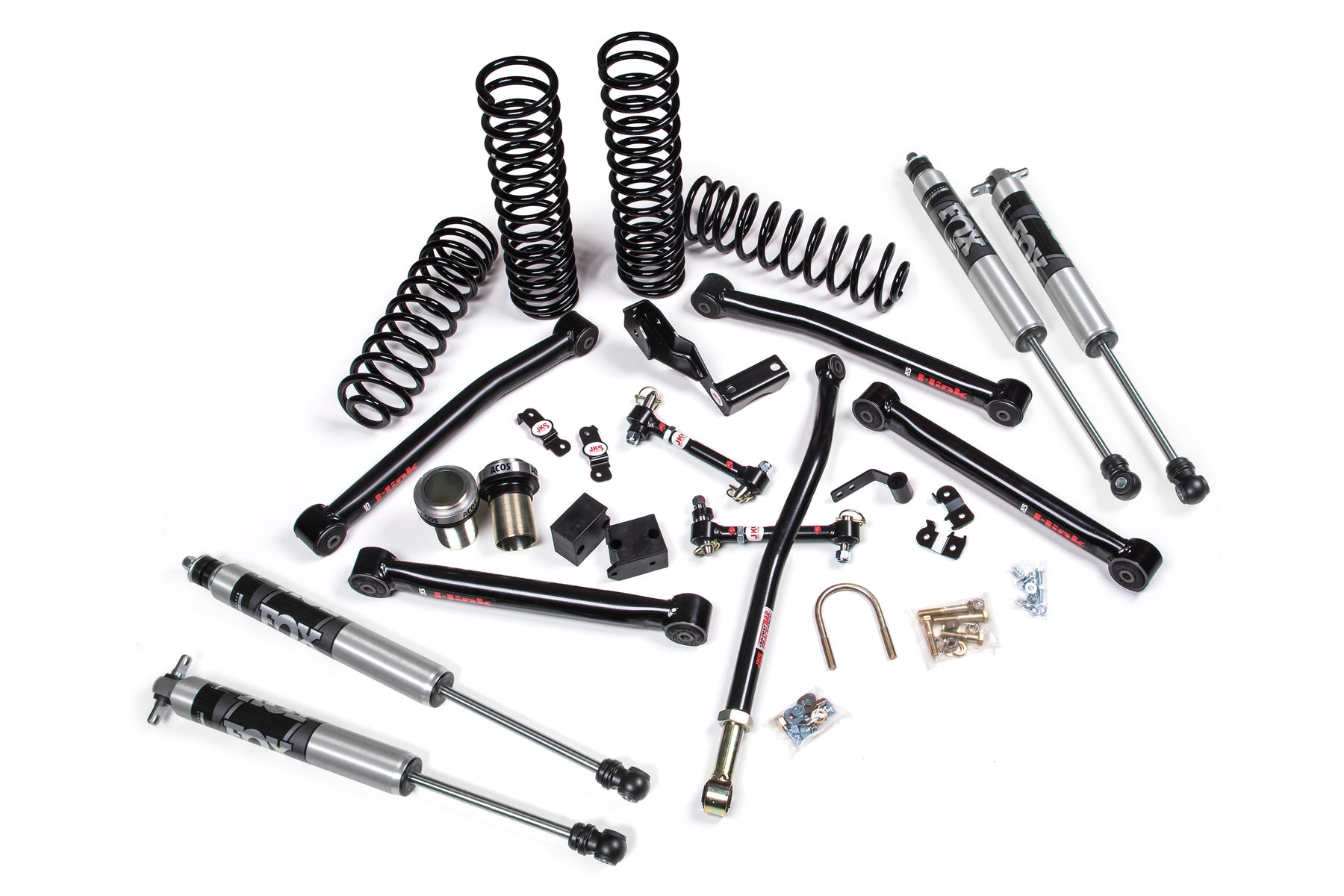

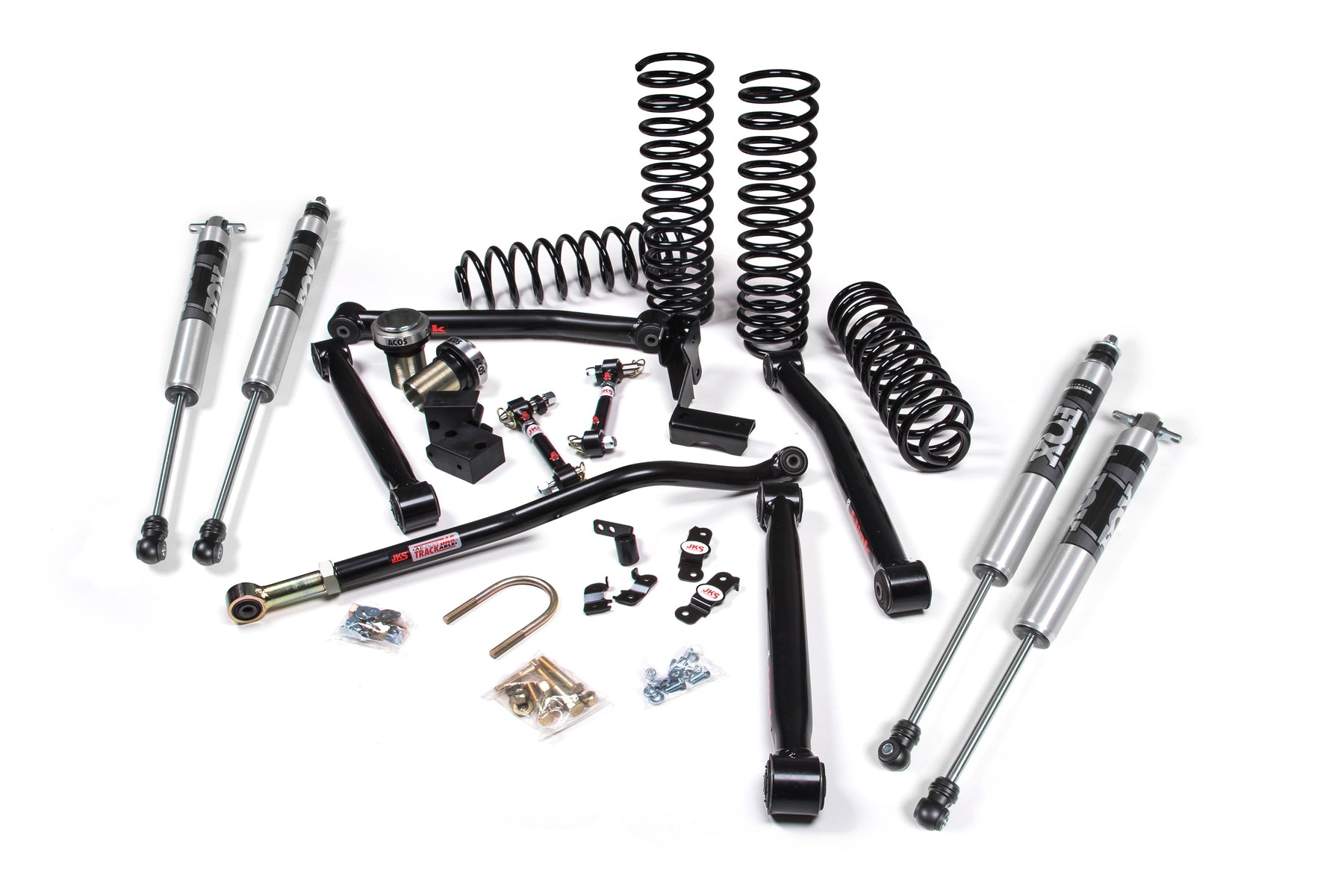

What's included in the kit
- 2 x FOX98024887 – 07-ON Jeep JK Front, PS, 2.0, IFP, 9.6 inch, 1.5-3.5 inch Lift
- 2 x FOX98024888 – 07-ON Jeep JK Rear, PS, 2.0, IFP, 9.1 inch, 1.5-3.5 inch Lift
- 1 x JKS1620 – JK Fixed Frt LCA
- 1 x JKS1670 – JK Fixed Rear LCA
- 1 x JKS2570 – 07-18 JK Rear Adj Coilover Spacers
- 1 x JSPEC2252 – 2007-2018 Jeep Wrangler JK 4 Door J-Lander Main Box Kit
- 1 x JSPEC2300 – 07-18 Jeep Wrangler JK 4Dr 3.5 inch J-Lander Coil Spring Kit
Specifications
- JKS part number: JSPEC154KFP
- Lift height: 3.5 Inch
- Doors: 4 Door
- Shocks: FOX 2.0 Performance
- Sold as: Kit
- Estimated installation time: 6-8 Hours
- Warranty: 5 Year, 100,000-mile PLUS Protection
- Country of origin: USA
