2007-2018 Jeep Wrangler JK 2 Door 3.5 Inch J Kontrol Lift Kit With FOX Remote Reservoir JKS Manufacturing
JSPEC109KFR
2007-2018 Jeep Wrangler JK 2 Door 3.5 Inch J Kontrol Lift Kit With FOX Remote Reservoir – JKS Manufacturing part number JSPEC109KFR.
This JKS J-Kontrol suspension lift kit is built for the 2007-2018 Jeep Wrangler JK 2 Door. It combines 3.5 inches of lift and FOX Remote Reservoir shocks. Backed by JKS's 5 Year, 100,000-mile PLUS Protection warranty.
Improve the ground clearance and off road capability of your 2 Door Jeep Wrangler JK with the JKS J-Kontrol 3.5 inch suspension system.
The J-Kontrol system retains your OE control arms, but steps up the rest of your suspension. J-Kontrol kits feature dual rate coil springs, adjustable front track bar, specially-valved gas shocks, sway bar Quicker Disconnects, and front control arm correction brackets as well as all other necessary hardware for a complete bolt-on installation.
J-Kontrol system's front control arm correction brackets further enhance the on-road handling by flattening out the control arm to more closely mimic factory angles while correcting caster. With a matched combination of parts, J-Kontrol systems offer very solid performance without compromising daily-driver comfort.
If you spend a good amount of time on the trails, take control with J-Kontrol.
Features & Benefits
- FOX Remote Reservoir
- Front+Rear Dual Rate Coil Springs designed to great ride and improved performance across any terrain.
- Front+Rear Gas Shocks (Jspec or FOX 2.0 Adventure Series IFP) specifically valved for this suspension system for improved performance on and off-road.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Brake Line Brackets to allow for increased offroad articulation.
- Front Control Arm Relocation Brackets to improve suspension geometry for improved handling.
- HD Drag Link Flip Kit with Track Bar Bracket to improve steering angles for better handling.
- Front+Rear Bump Stop Extensions to properly limit suspension up travel.
Tire Specs
- Tire: 35x12.50
- Wheel: 16x8, 17x9, 20x9
- Backspacing: 4.5 inch
Other tire/wheel sizes can be used, however may require additional modifications.
Important Notes
2012-2018 Models with 3.6L Pentastar motor will require exhaust modification for driveshaft clearance at full suspension droop, use JKS8150 exhaust extensions.
Rubicon sway bar link hardware included in kit.

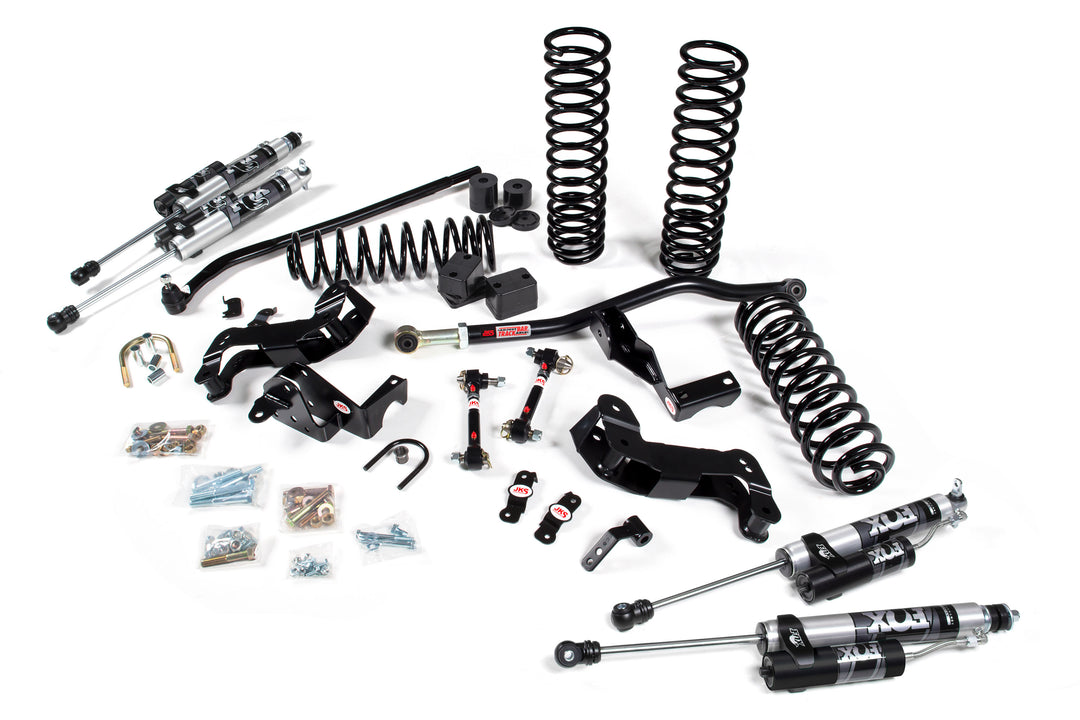

What's included in the kit
- 2 x FOX98524036 – 07-ON Jeep JK Rear, PS, 2.0, R/R, 10.1 inch, 2.5-4 inch Lift
- 2 x FOX98524039 – 07-ON Jeep JK Front, PS, 2.0, R/R, 10.1 inch, 2.5-4 inch Lift
- 1 x JSPEC2351 – 07-18 JK 2Dr 3.5 inch Coil Box Kit
- 1 x JSPEC2353 – 07-18 Jeep JK J Kontrol Box Kit
- 1 x JSPEC2450 – JK Advanced Geometry Upgrade Kit
Specifications
- JKS part number: JSPEC109KFR
- Lift height: 3.5 Inch
- Doors: 2 Door
- Shocks: FOX Remote Reservoir
- Sold as: Kit
- Estimated installation time: 6 Hours
- Warranty: 5 Year, 100,000-mile PLUS Protection
- Country of origin: USA
