2005+ Ford Super Duty F-450/F-550/F-600 Heavy Duty Tie Rod Synergy MFG

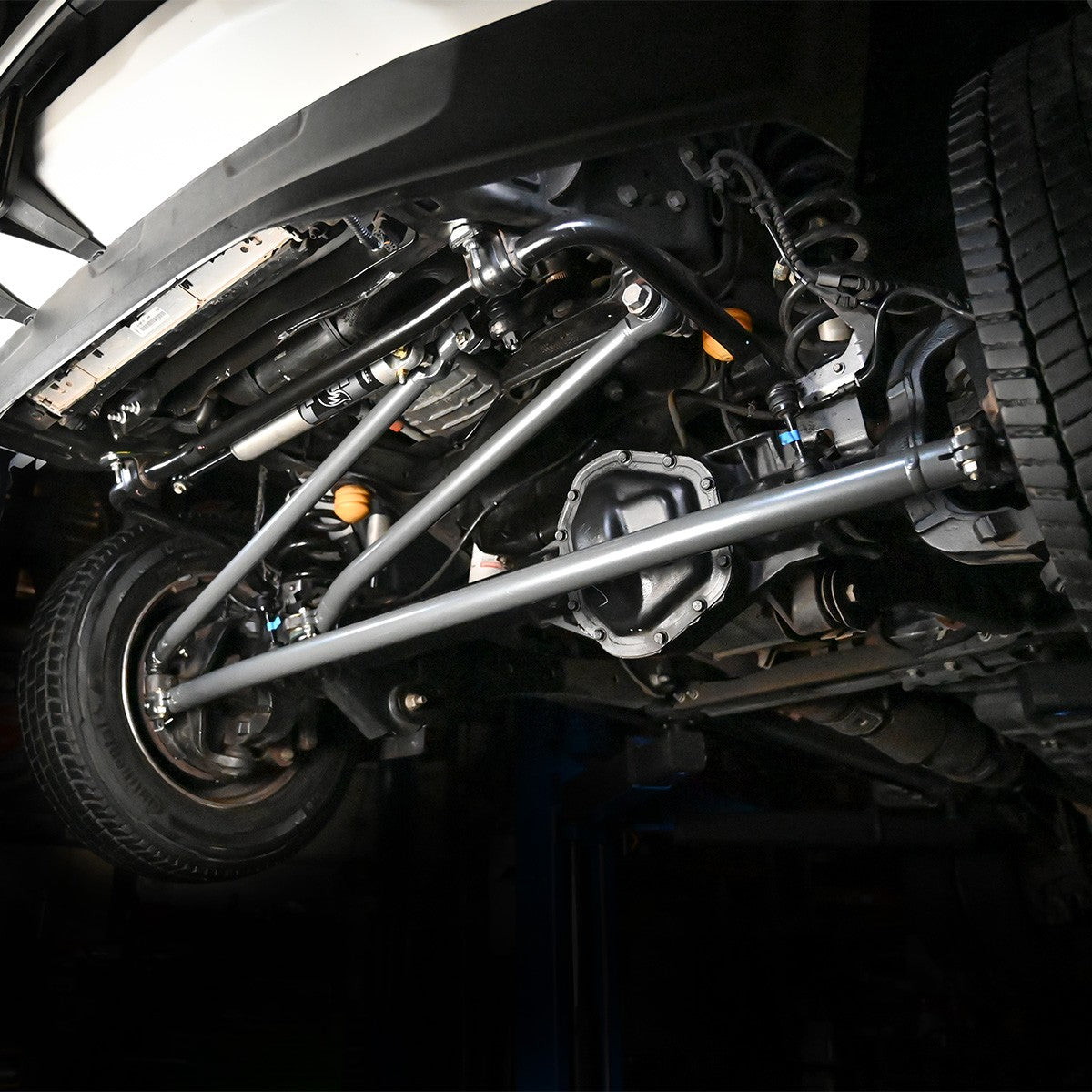

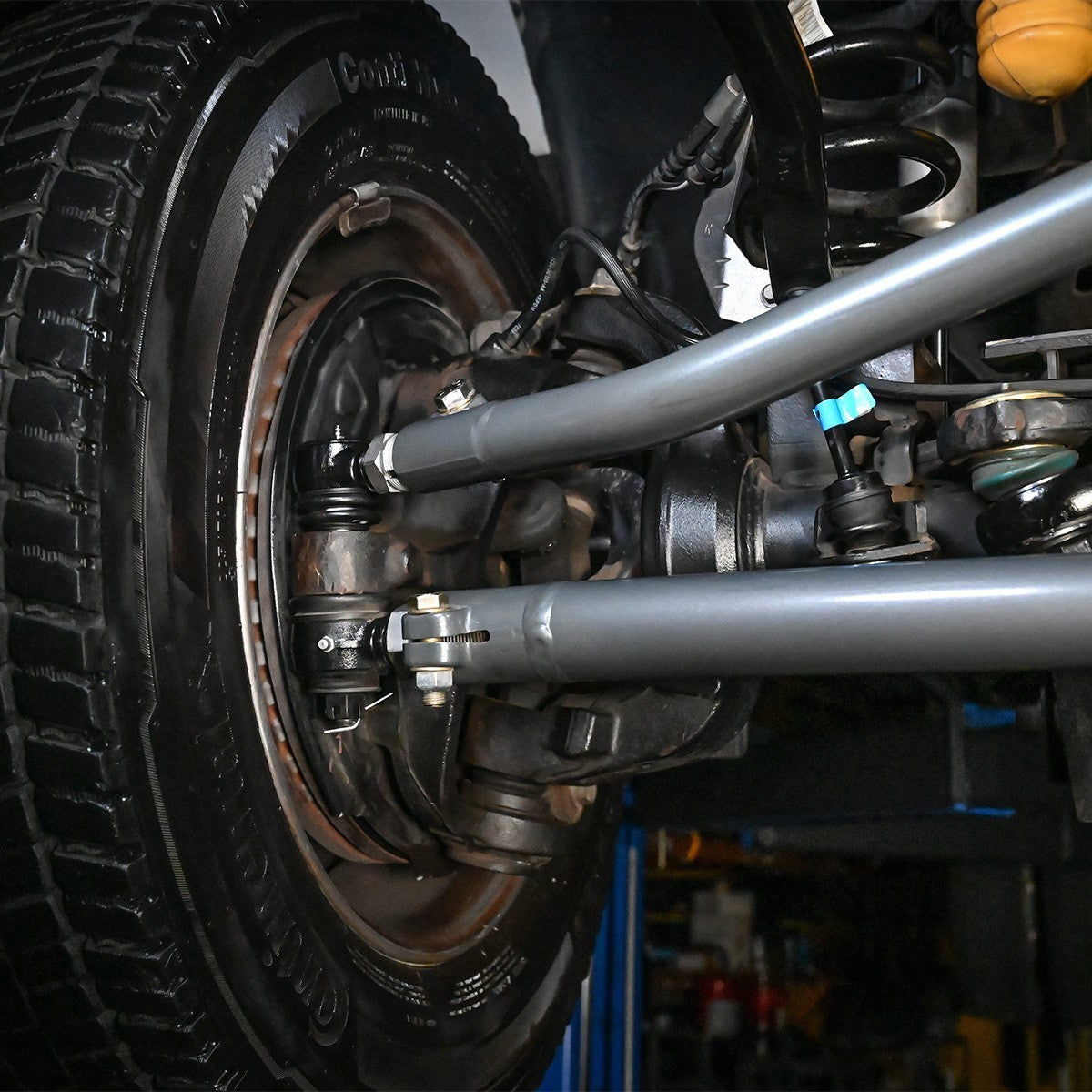

The tie rod features "all new, bolt in design with components specific to the Ford Truck Platform." Manufactured from "2" x 0.25" wall USA made DOM steel for maximum strength" with "Synergy Heavy Duty Metal on Metal Tie Rod Ends." Installation works with stock wheels and tires, and pairs with the factory stabilizer or optional Synergy Tuned Fox Steering Stabilizer.

Benefits:

• Heavy duty steel rated "over 40% stronger than stock"
• Improved steering feel eliminating bent tie rods
• Metal-on-metal tie rod ends with grease fittings
• Single plane design eliminates tie rod flop
• Double adjuster sleeve allows length adjustment without removal
• Compatible with stock components

Features:

• 1 1/4 inch shank tie rod ends
• CNC formed from 2.0" x 0.250 wall USA DOM tubing
• Powder coat finish

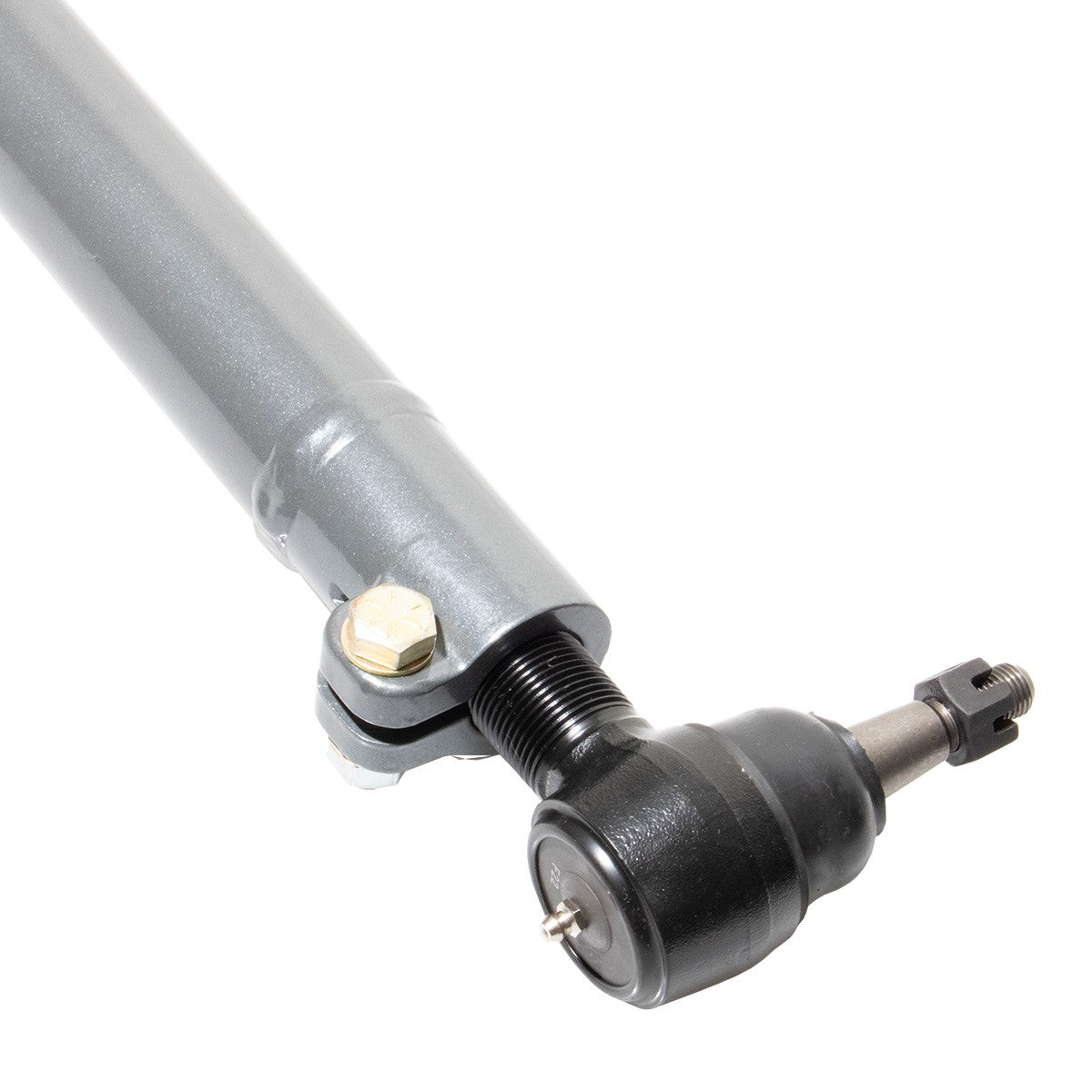

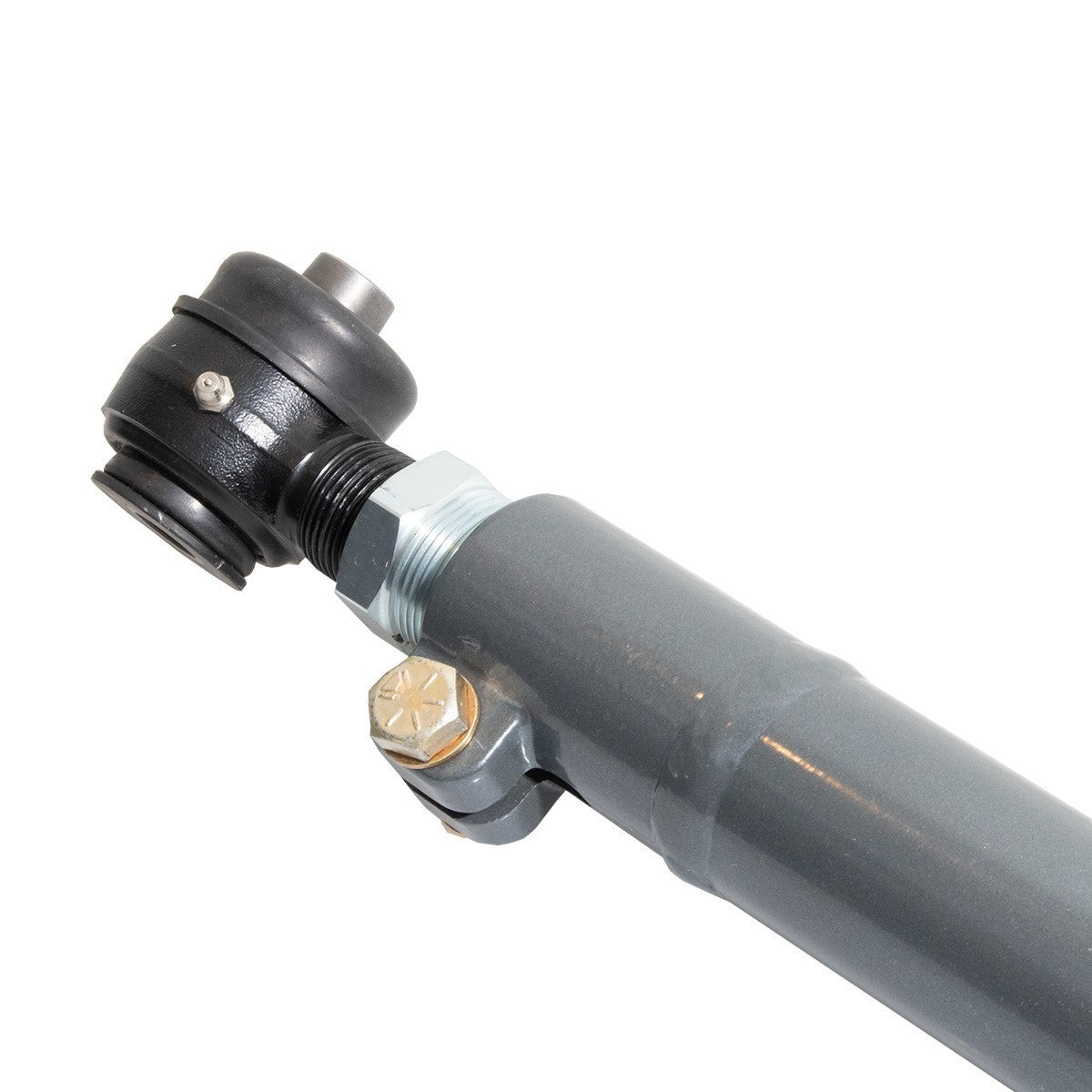

• Pinch bolt assemblies instead of jam nuts
• 100% bolt-on installation

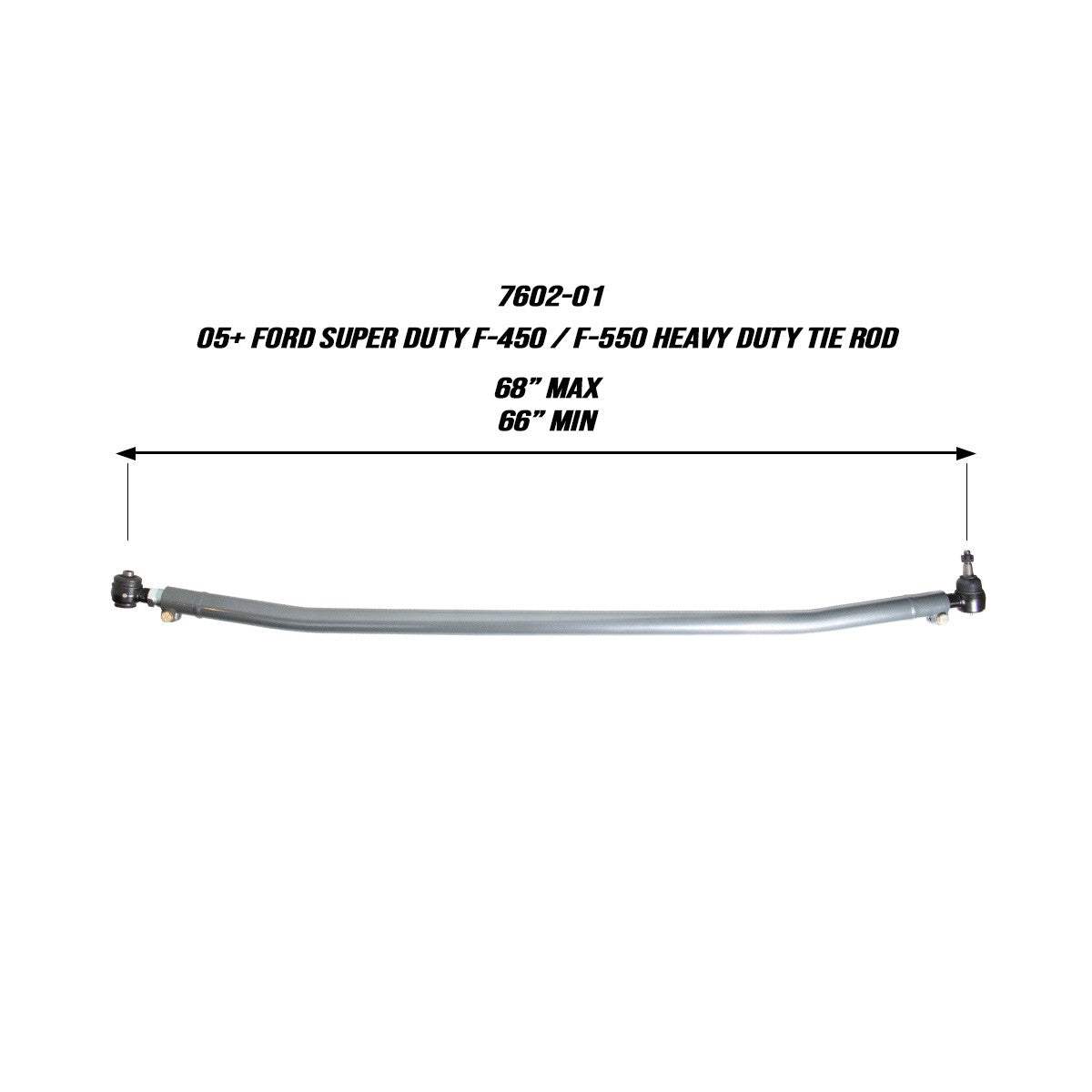

Min/Max Length (center to center): Minimum 66.0"; Maximum 68.0".

Includes:

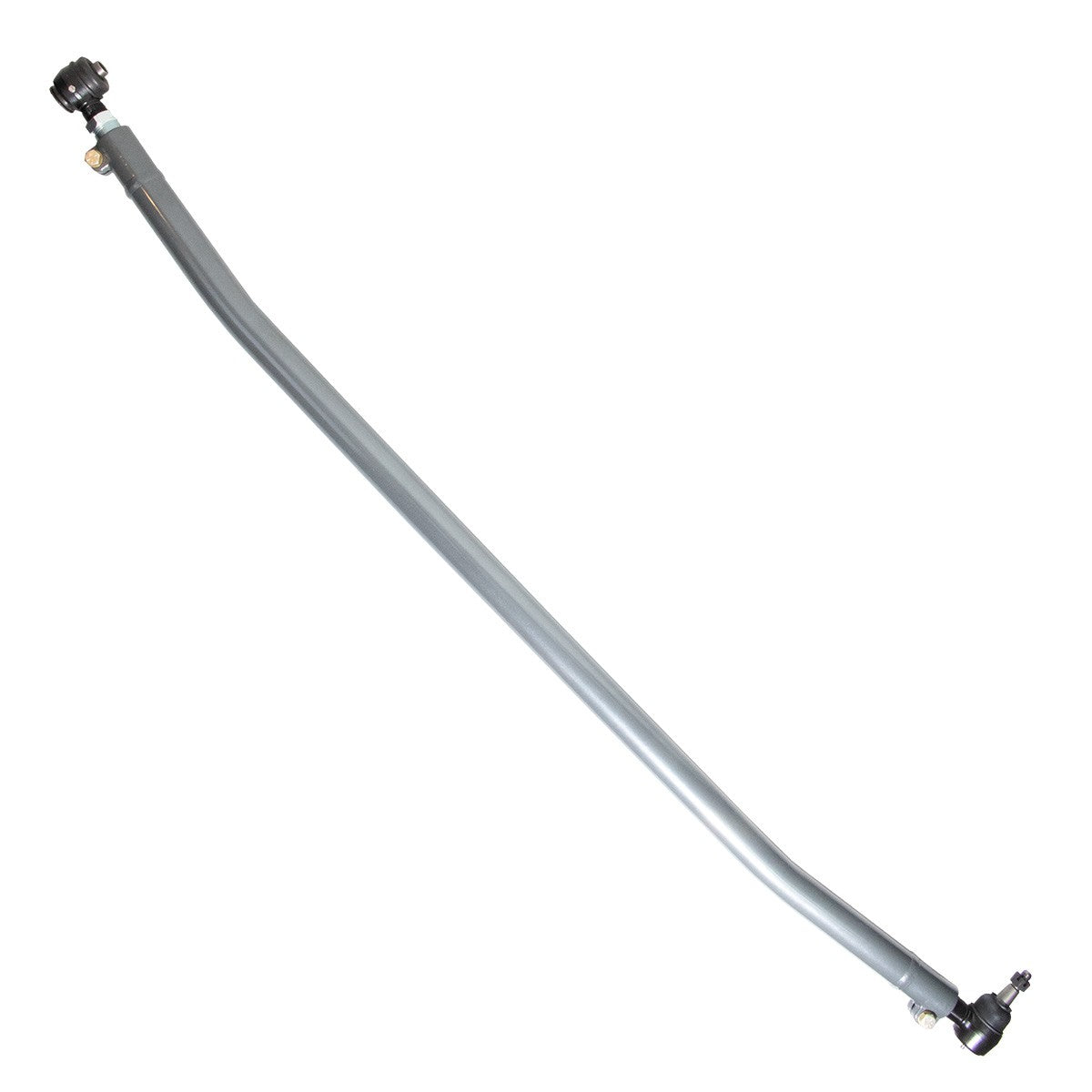

• (1) Heavy Duty Tie Rod
• (1) Single Plane Tie Rod End
• (1) Multi Plane Standard Tie Rod End
• (2) Pinch Bolt Assemblies
• (1) Double Adjuster Sleeve

Notes: Replacement ends available (4151-L, 4150-L). Recommended pairing with part 7600-01 drag link but backwards compatible with factory. Under knuckle configuration for Ford Super Duty. Synergy High Performance Grease (4119) and Premium Copper Anti-Seize (4118) recommended.

Fits: 2005+ Ford Super Duty F-450 / F-550 / F-600 (per page title)

Includes:

• (1) Heavy Duty Tie Rod; (1) Single Plane Tie Rod End; (1) Multi Plane Standard Tie Rod End; (2) Pinch Bolt Assemblies; (1) Double Adjuster Sleeve

Specifications:

• Synergy MFG part number: 7602-01
• Dimensions / size: Length min 66.0 in; max 68.0 in (center to center)
