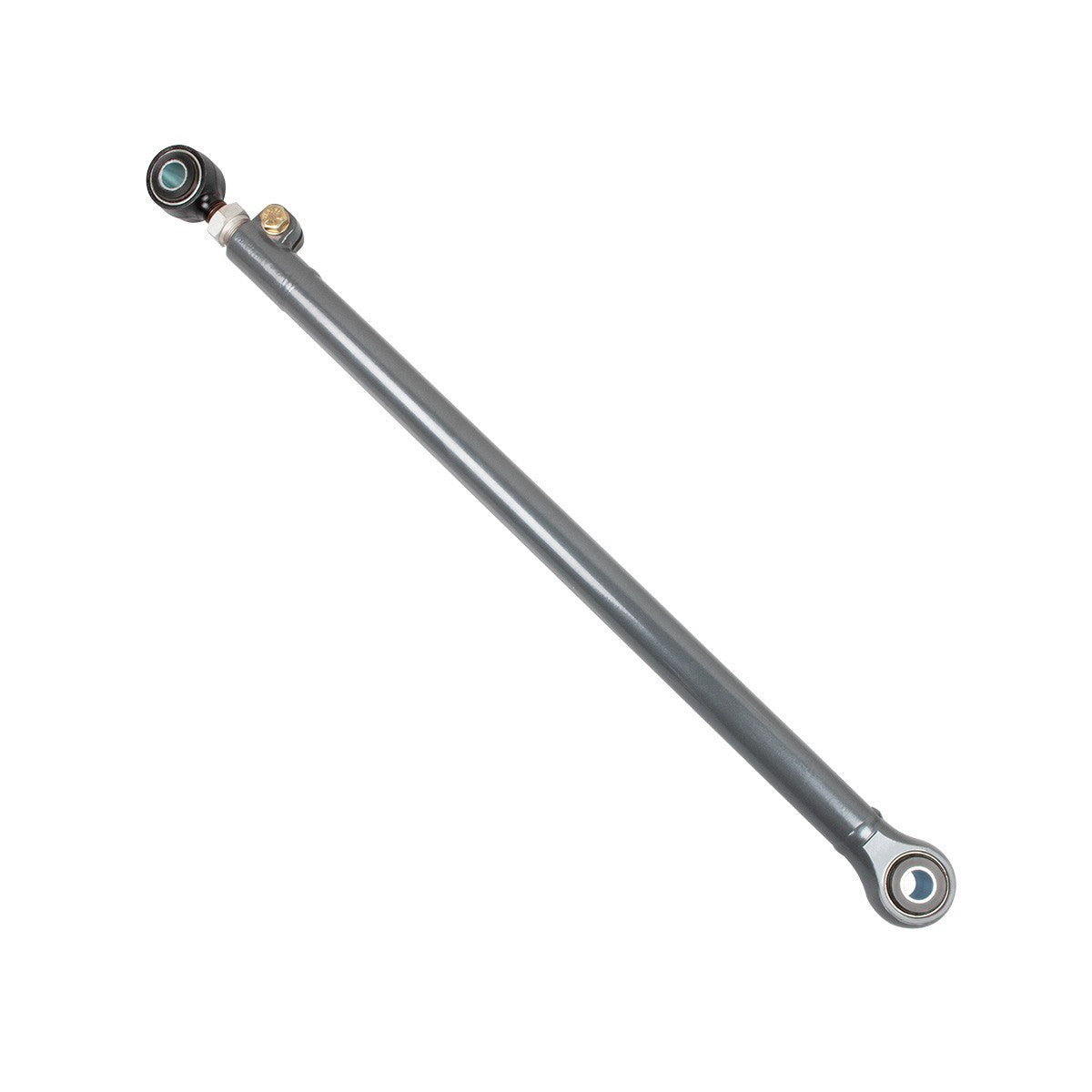

1999-2004 Ford Super Duty F-250/F-350 Heavy Duty Adjustable Front Track Bar Synergy MFG

Take your suspension and steering performance to the next level with the Synergy 1999 - 2004 Ford Super Duty F-250 / F-350 Heavy Duty Adjustable Front Track Bar - the final piece to completing your suspension and steering upgrade. Re-centers the front axle after lift installation and restores suspension geometry. Improved lateral stiffness compared to stock; suitable for large tires and aggressive off-road use. Features a Double Adjuster Sleeve and Pinch Bolt Assembly enabling on-vehicle adjustability without removal.

Benefits:

• Heavy duty 1.50" x 0.250 wall USA-made DOM
• Centers axle post-lift for proper geometry and consistent tire wear
• Maintenance-free Synergy Dual Durometer Bushings isolate noise and vibration
• Fully adjustable without removal using Double Adjuster Sleeve
• No jam nuts, clears factory and most aftermarket diff covers
• Compatible with stock steering, wheels, tires, usable in lowered trucks
• Bolts to factory mounting locations without modification

Features:

• 1.50" x 0.250 wall USA-made DOM steel tube
• Factory track bar mounting hardware retained
• Abrasion-resistant powder coat finish

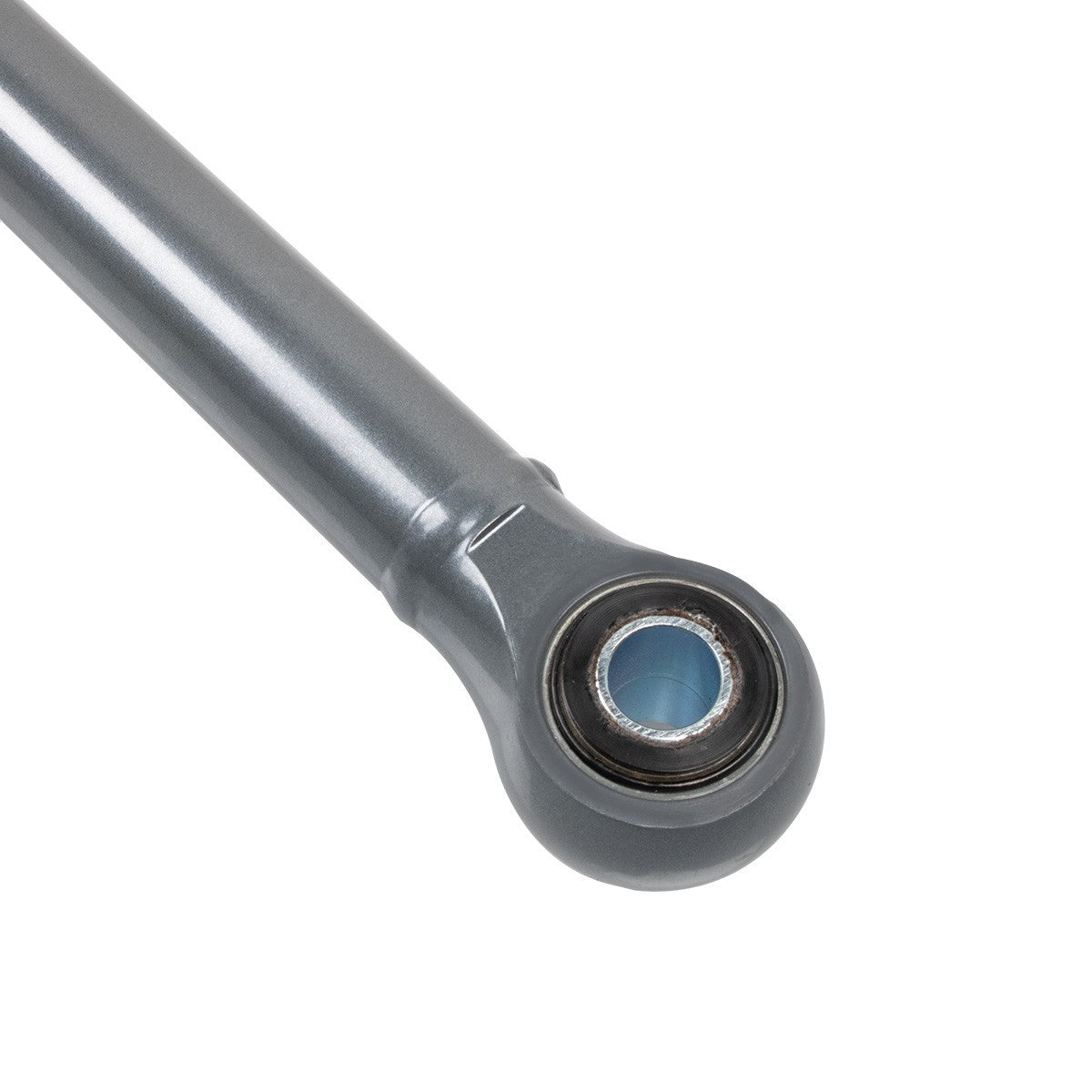

• Synergy Dual Durometer Bushing with Teflon bearing surface
• Greaseable metal-on-metal heavy-duty ball joint

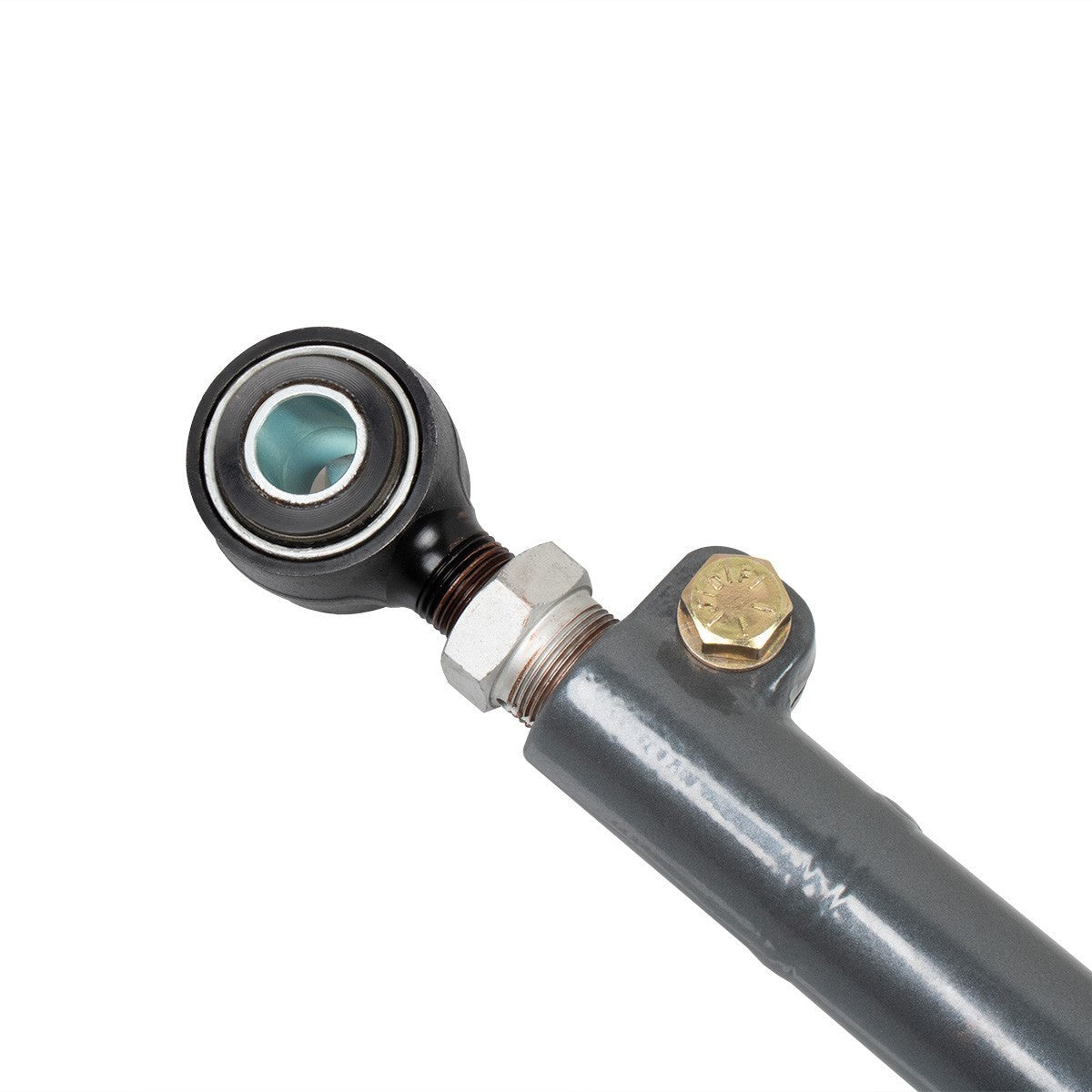

• Double Adjuster Sleeve and Pinch Bolt Assembly
• 100% bolt-on design

Min/Max length (center bolt hole to center bolt hole): minimum collapsed 29-3/8", maximum extended 30-1/4".

Notes:

• Compatible on vehicles up to 4" ride height
• Over 4" lift requires track bar relocation bracket. Compatible with Synergy Heavy Duty Steering Kit and stock Super Duty steering. Early 1999 models may require drilling out track bar mount to 20mm with new hardware. Replacement parts: Forged Rod End 4811-02
• Dual Durometer Bushing 4327-02. Synergy High Performance Grease part number 4119 recommended. Compatibility not guaranteed on all aftermarket diff covers

Fits: 1999 - 2004 Ford Super Duty F-250 / F-350 (7575-01)

Includes:

• (1) Synergy Heavy Duty Track Bar; (1) Grade 8 Pinch Bolt Hardware

Specifications:

• Synergy MFG part number: 7575-01
• Dimensions / size: Min collapsed 29-3/8"; max extended 30-1/4" (center to center)
