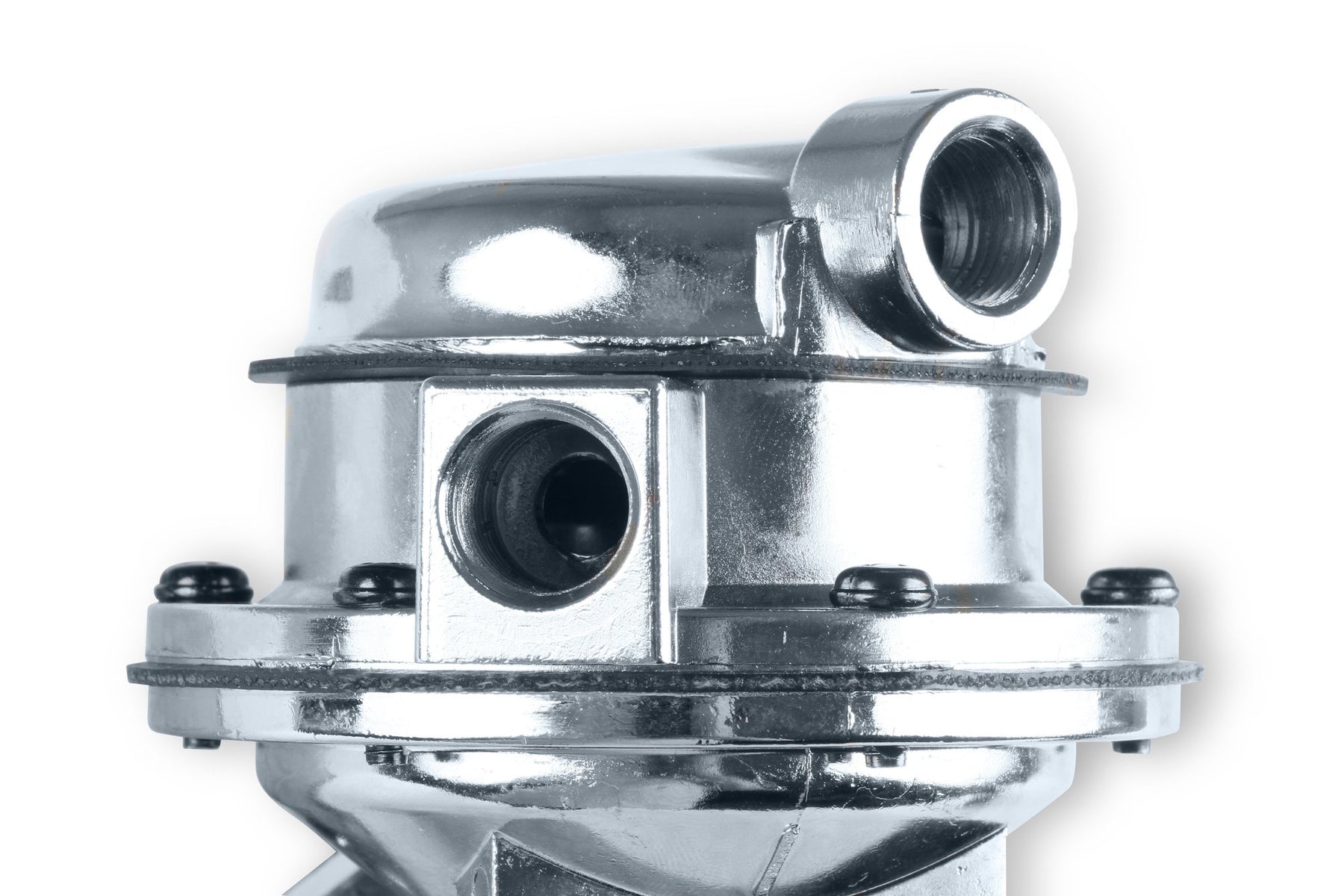

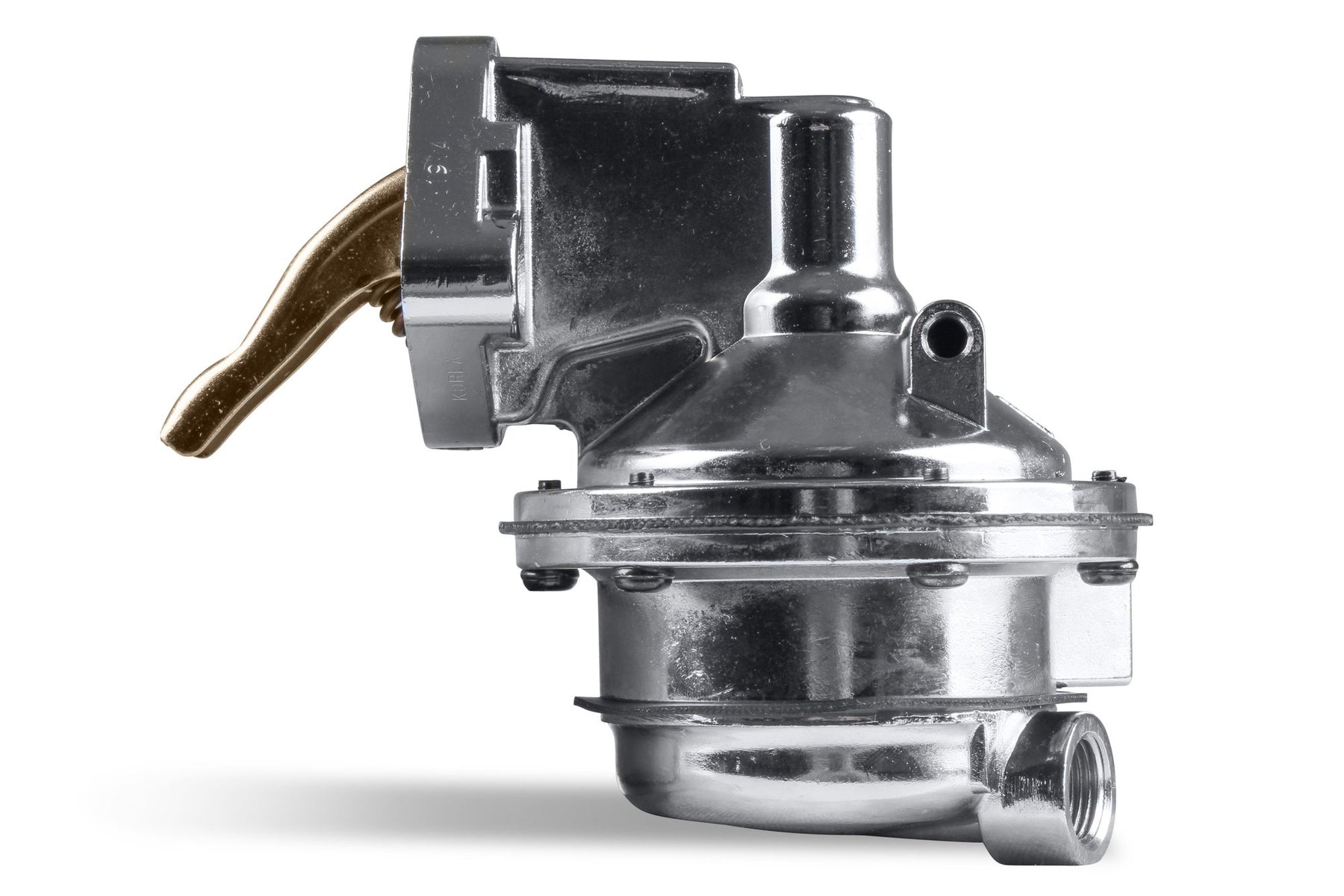

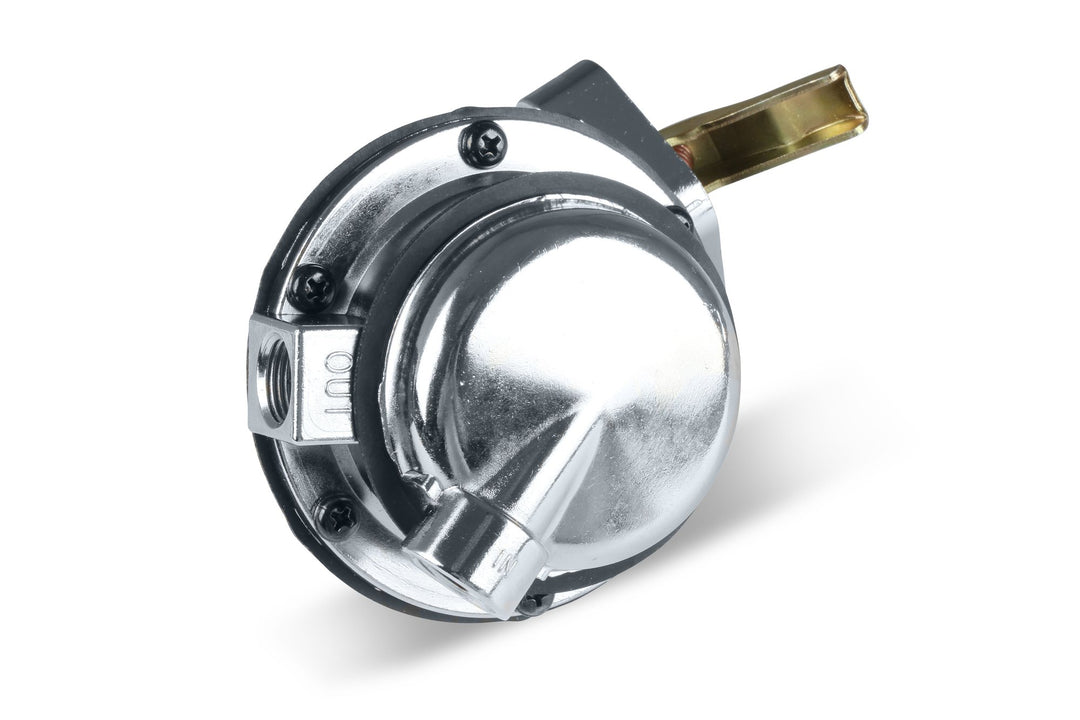

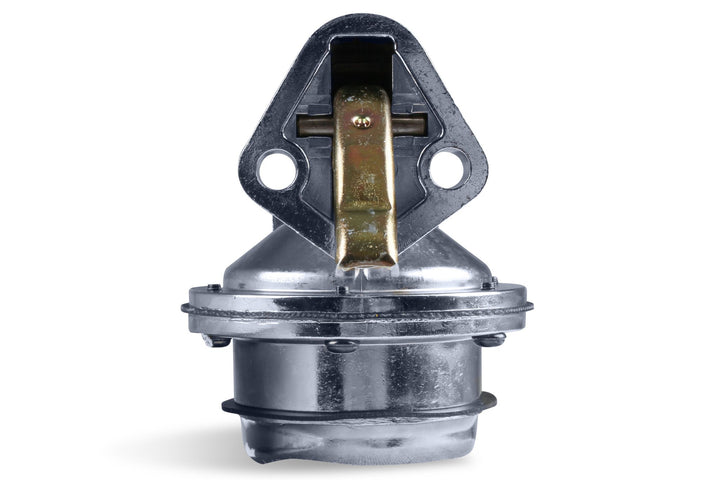

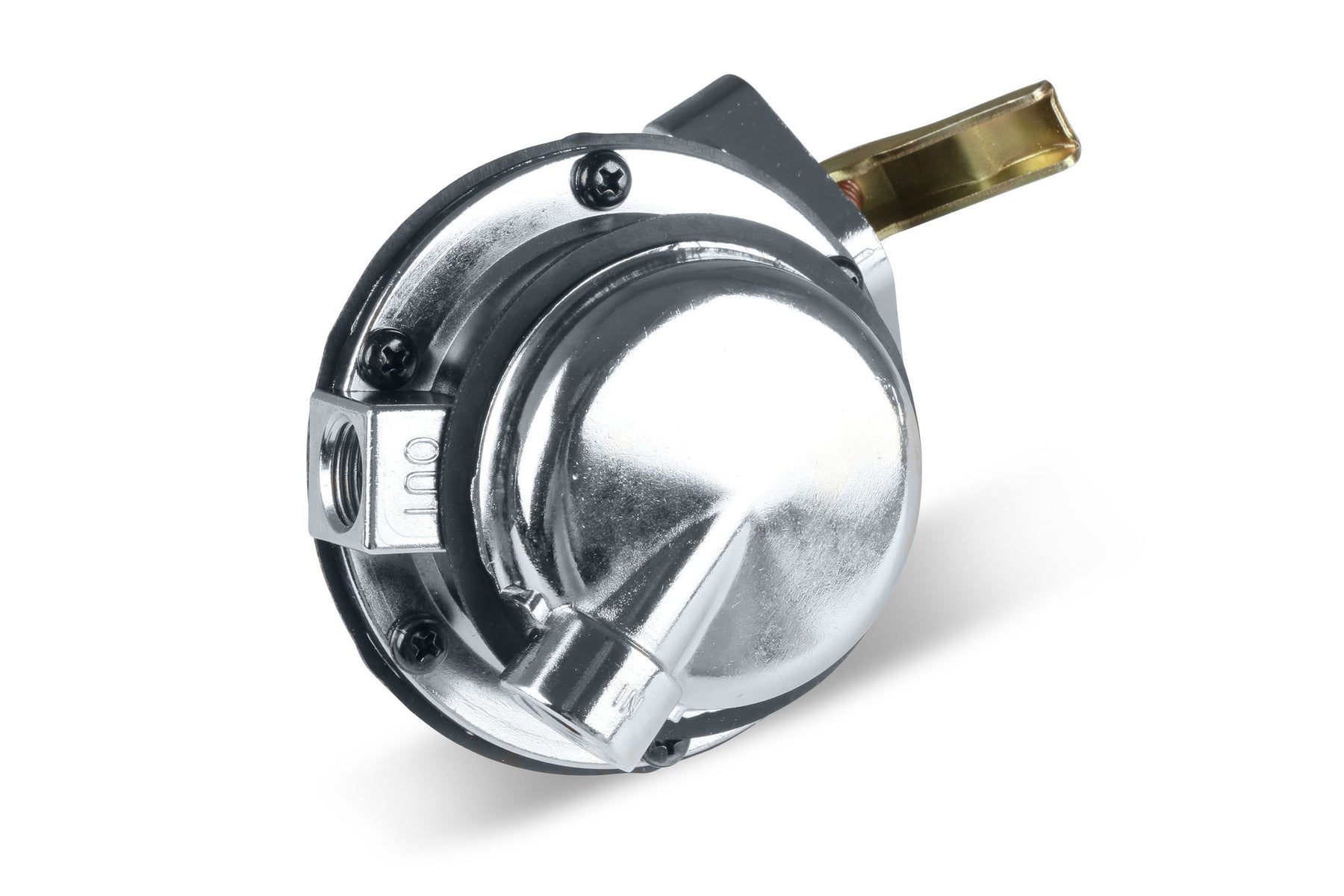

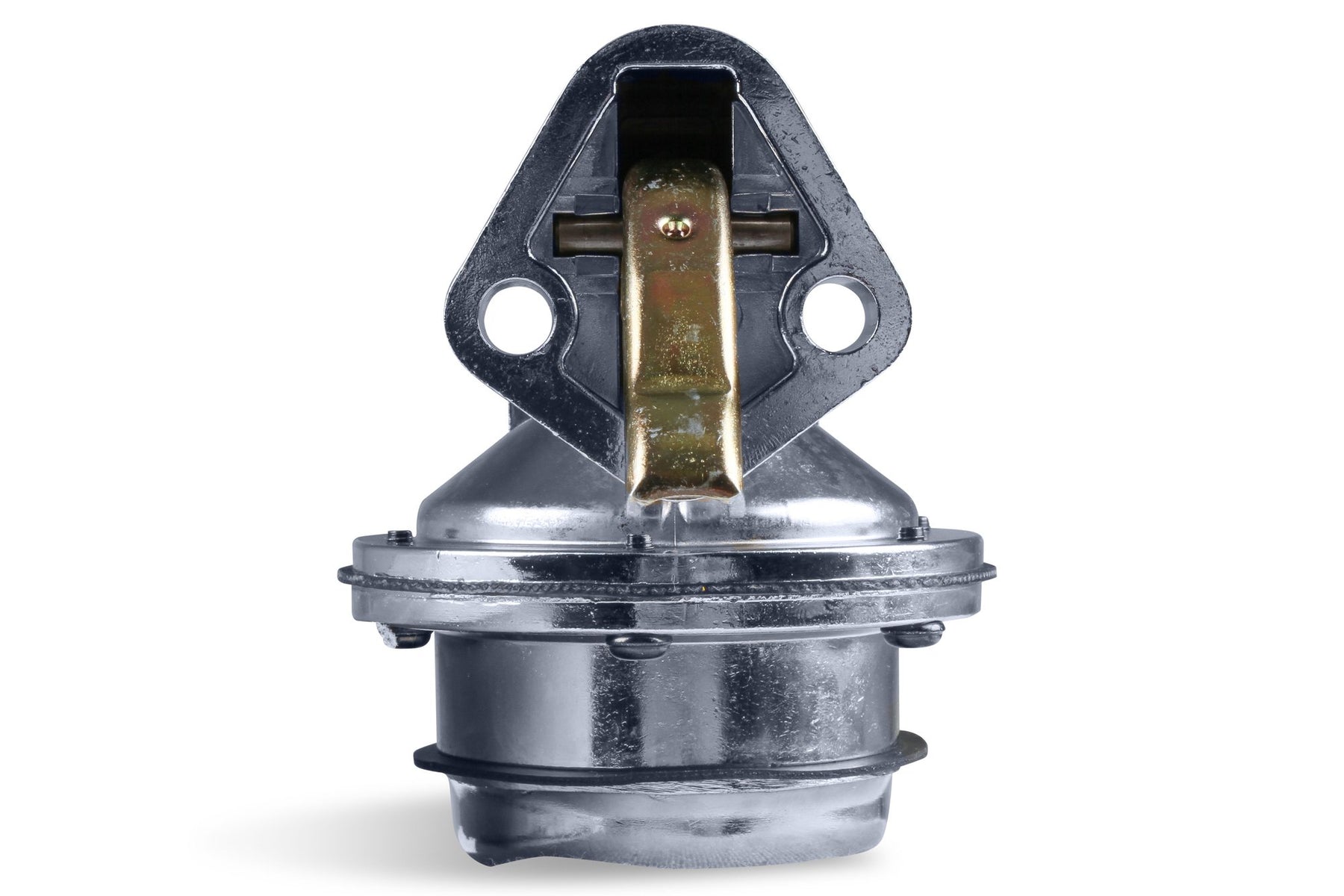

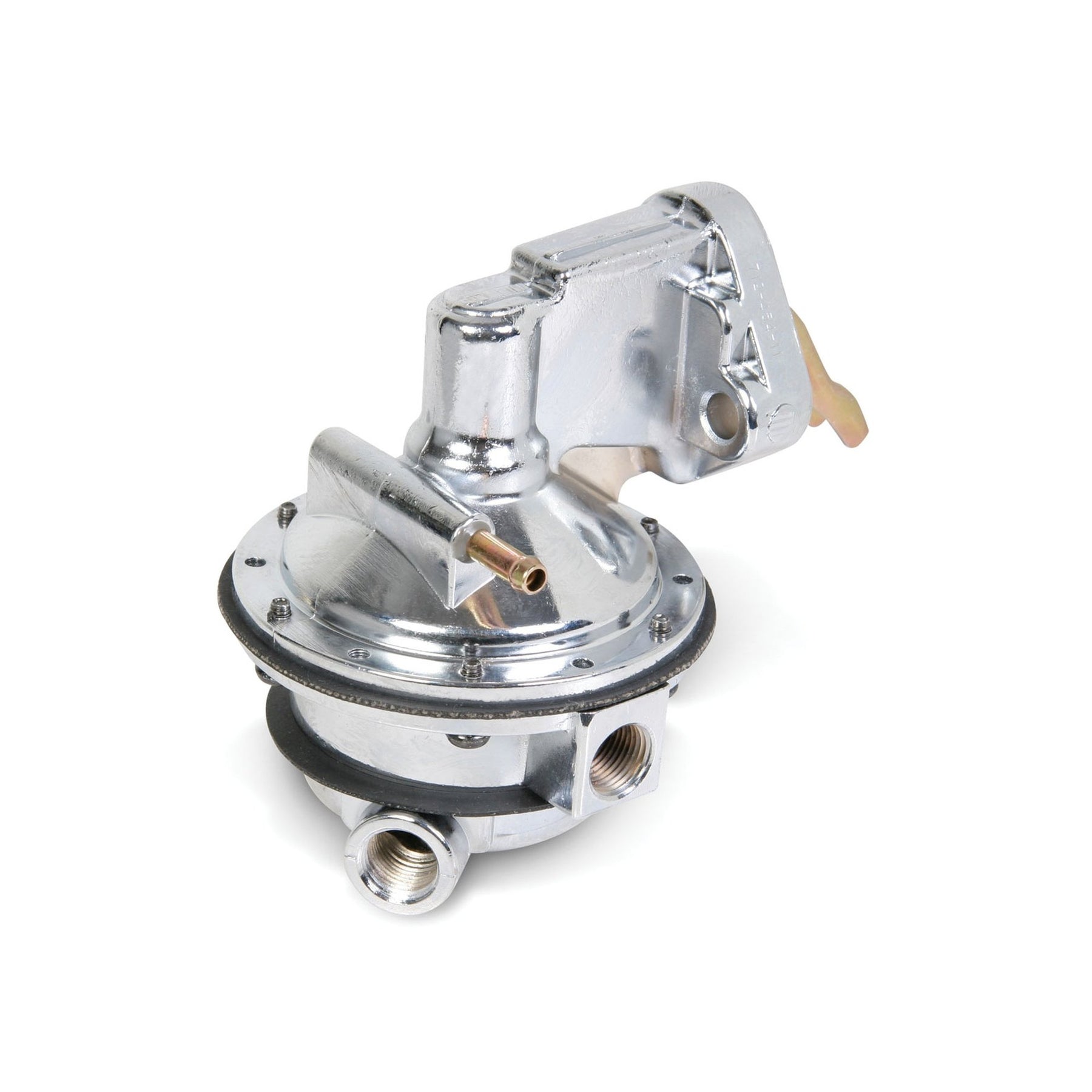

130+ GPH Mechanical Fuel Pump - Marine

Holley marine mechanical fuel pumps range from 110 GPH to 200 GPH for small and big block Chevy applications to meet the fuel demands of most engines.

Holley Marine mechanical pumps are designed with a fuel/fume tube to provide a safe fuel exit in the unlikely event of a diaphragm rupture.

• Flows 130+ GPH free flow
• Fuel body casting can be rotated to accommodate various plumbing situations
• Fuel pressure regulator is required (recommend Holley P/N 12-704)
• Heavy duty construction for continuous high rpm operation
• High output fuel flow
• Includes Fuel/vapor tube
• Inlet & outlet tapped for 3/8" NPT
• Redesigned high flow valves always ensure adequate fuel delivery
• Shutoff pressure pre-set from 7.5 to 9 psi

Specifications

• Application: Marine BBC
• Average Flow Rating: 130 GPH
• Brand: Holley
• Category: Air and Fuel Delivery
• Color: Silver
• Emission Code: 5
• Free Flow GPH: 130
• Free Flow LPH: 416
• Fuel Pump Type: Mechanical
• Fuel Type: Gasoline
• Gasket Or Seal Included: Yes
• Grade Type: Performance
• Housing Material: Aluminum
• Inlet Fitting Thread Size: 3/8 IN
• Inlet Quantity: 1
• Inlet Size: 3/8 inch NPT
• Inlet Type: NPT
• Material: Aluminum
• Mounting Hardware Included: No
• Mounting Hole Quantity: 2
• Outlet Fitting Thread Size: 3/8 IN
• Outlet Quantity: 1
• Outlet Size: 3/8 inch NPT
• Outlet Type: NPT
• Part Type: Mechanical Fuel Pump
• Product Type: Fuel Pump
• Sub Category: Fuel Pumps and Related Components
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Number: 712-454-13
