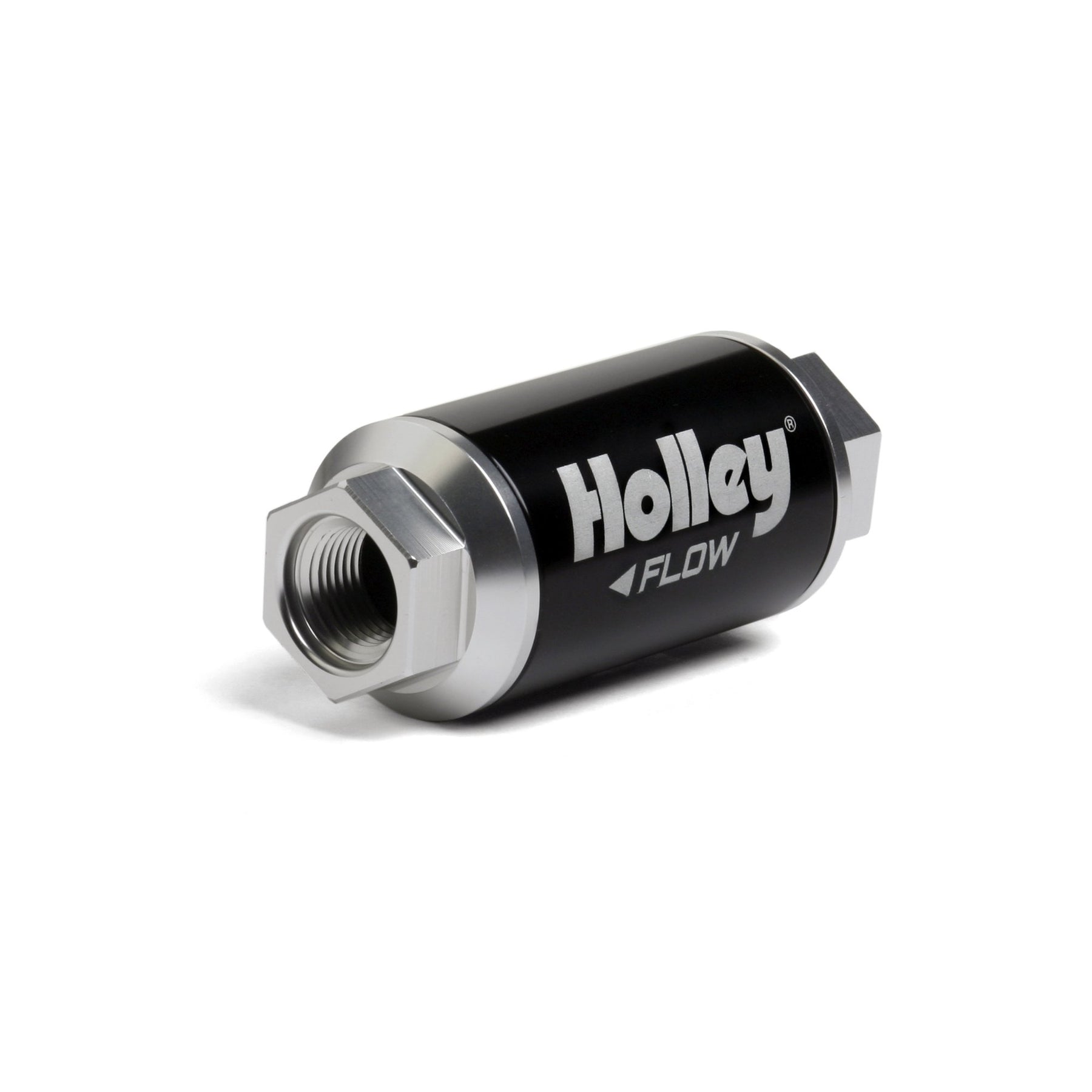

100 GPH HP Billet Fuel Filter

Holley's new HP Billet Fuel Filters are part of the complete HP Fuel Systems product line. HP Billet fuel filters are precision CNC machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and clear bright dip anodized ends for superior corrosion resistance and good looks. The Holley 162-562 fuel filter features 3/8" NPT inlet and outlet ports. Replacement elements are also available.

• Black anodized body and clear anodized end caps for corrosion resistance and good looks

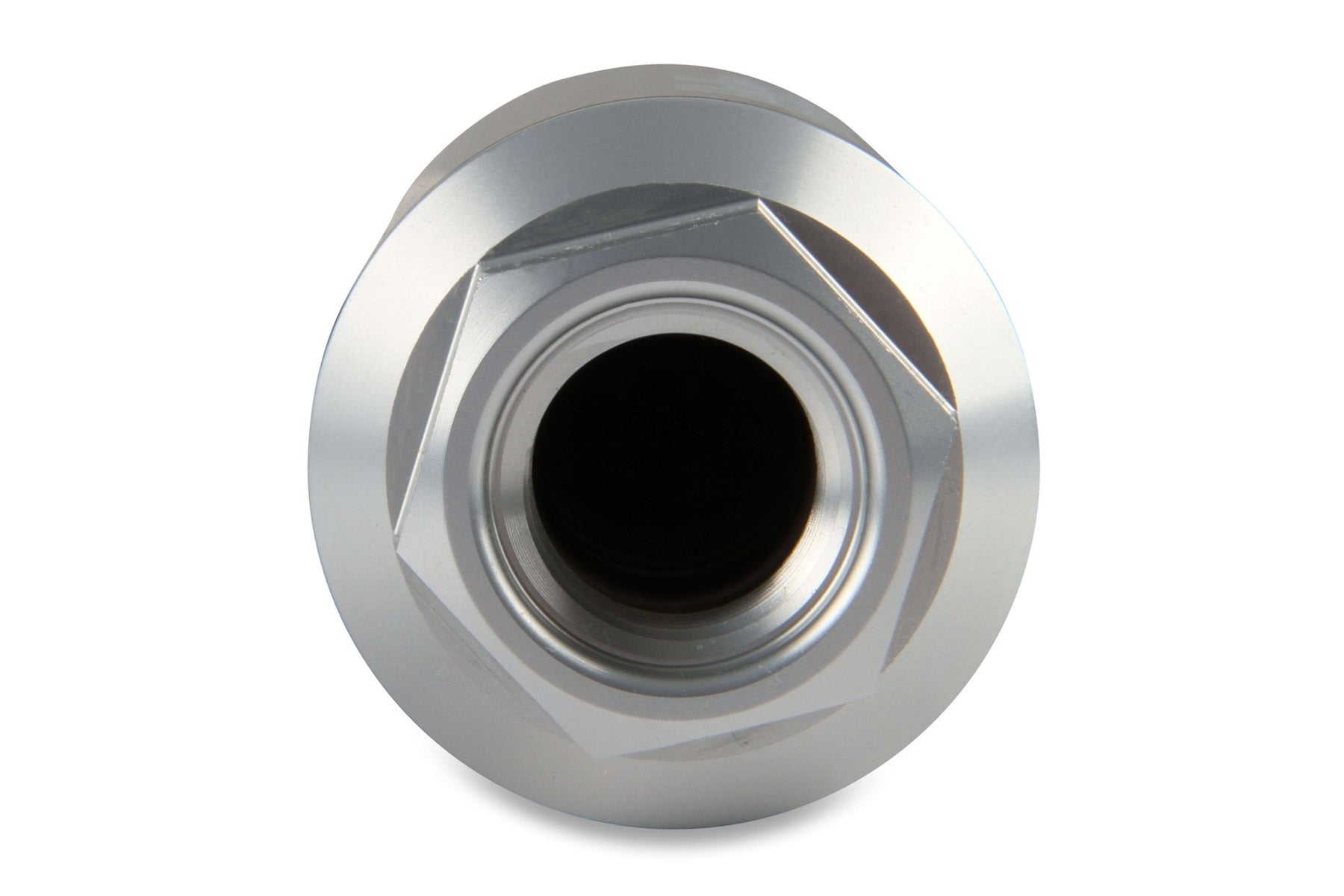

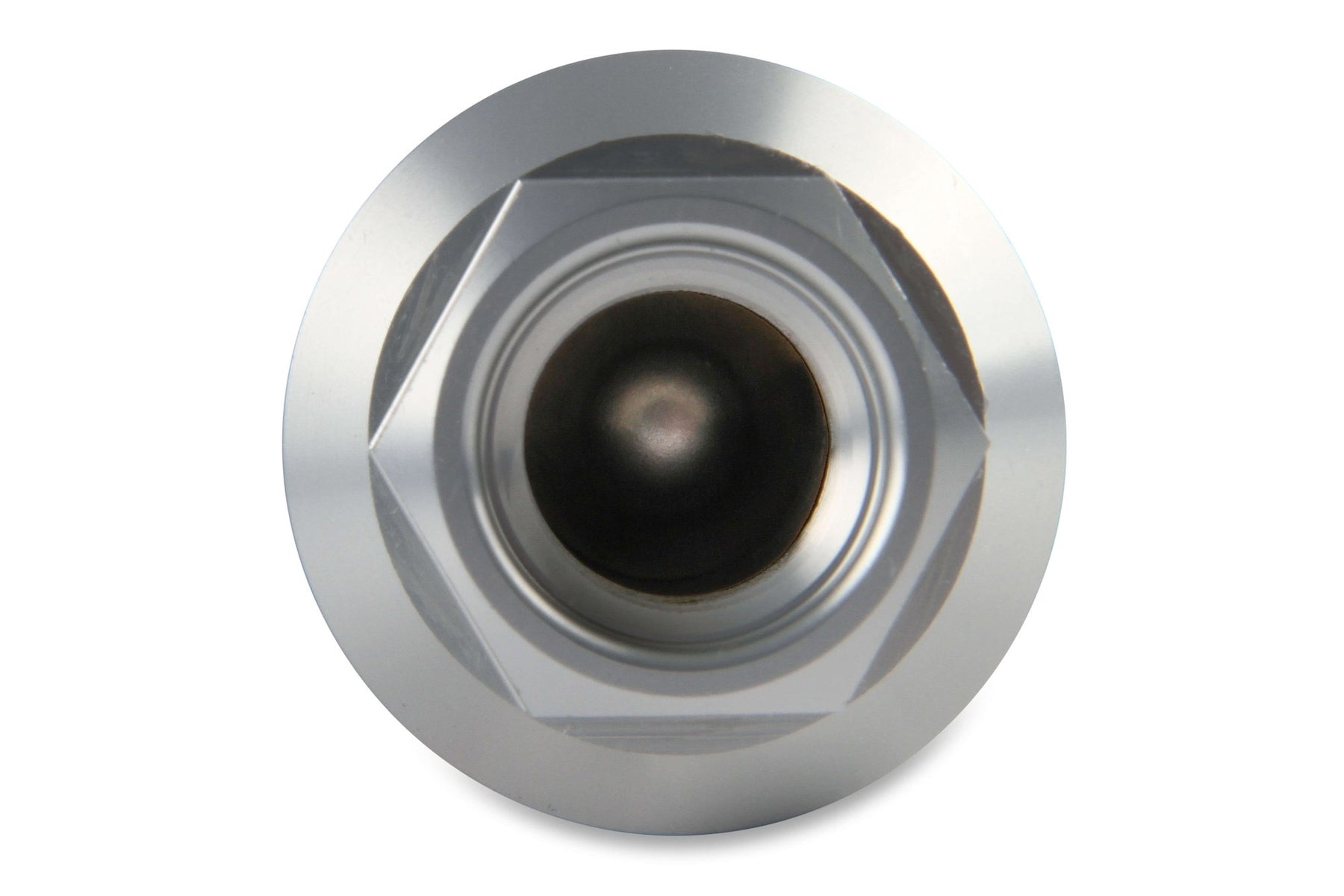

• Female 3/8” NPT inlet and outlet
• 40 micron stainless steel woven mesh element
• Measures 3.5” long and 1.5” diameter
• Recommended as a post filter (after the pump) in carbureted applications

Specifications

• Brand: Holley
• Category: Air and Fuel Delivery
• Color: Black Anodized
• Diameter: 1.5 inch
• Element Material: Stainless Steel Woven Mesh
• Emission Code: 5
• End 1 Gender: Female
• End 2 Gender: Female
• Filter Type: Post Filter
• Flow Rate: 100 GPH
• Fuel Type: E85
• : Gasoline
• Gasket Or Seal Included: No
• Grade Type: Performance
• Housing Material: Aluminum
• Inlet Outside Diameter: 3/8 IN
• Inlet Size: 3/8 inch NPT
• Inlet Thread Type: NPT
• Inlet Type: NPT
• Length: 3.5 inch
• Material: Aluminum
• Micron: 40 Micron
• Micron Rating: 40
• Mounting Type: Inline
• Outlet Outside Diameter: 3/8 IN
• Outlet Size: 3/8 inch NPT
• Outlet Thread Type: NPT
• Outlet Type: NPT
• Part Type: Fuel Filter
• Product Type: Fuel Filter
• Quantity: Sold individually.
• Shape: Round
• Sub Category: Filters
• Universal Or Specific Fit: Universal
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Number: 162-562
