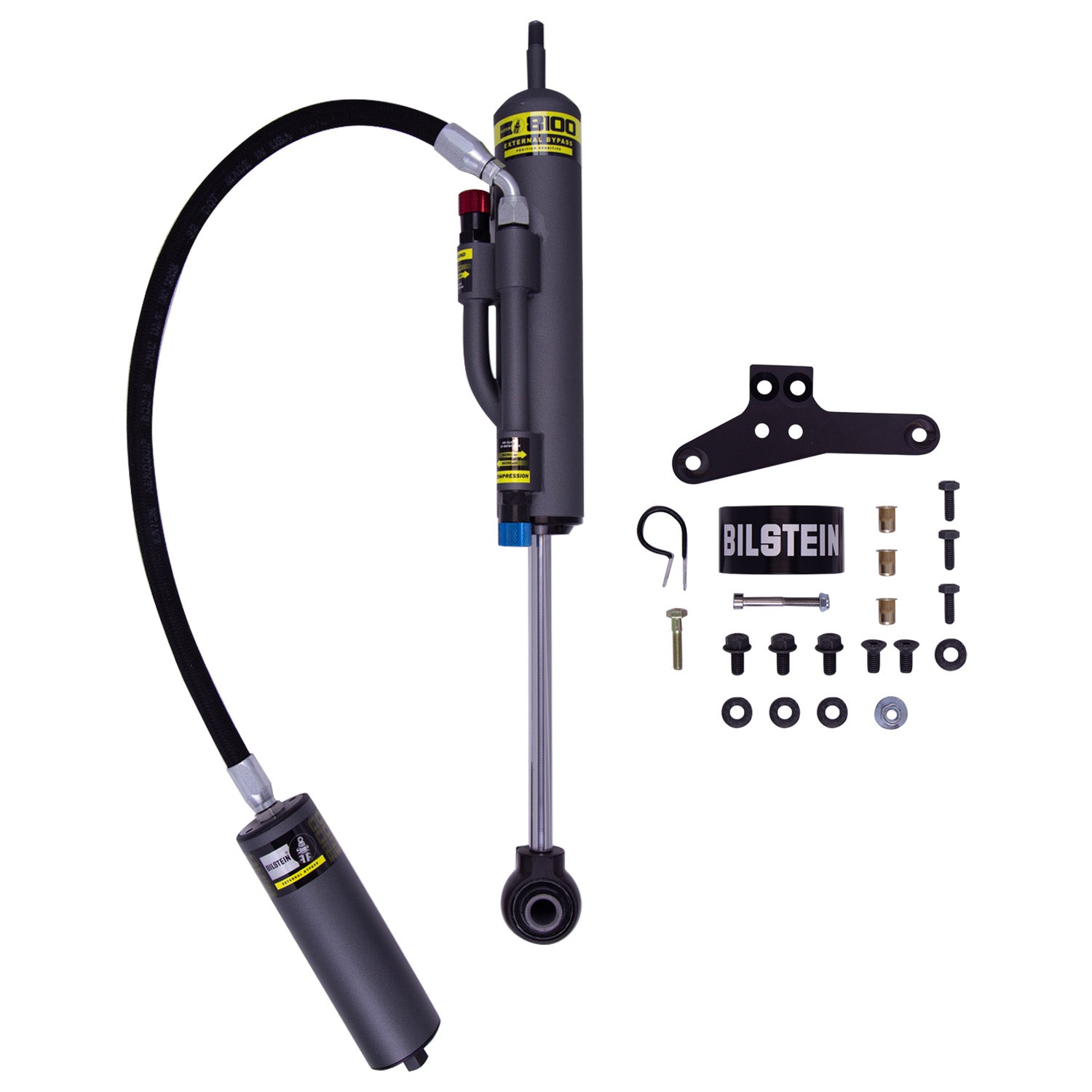

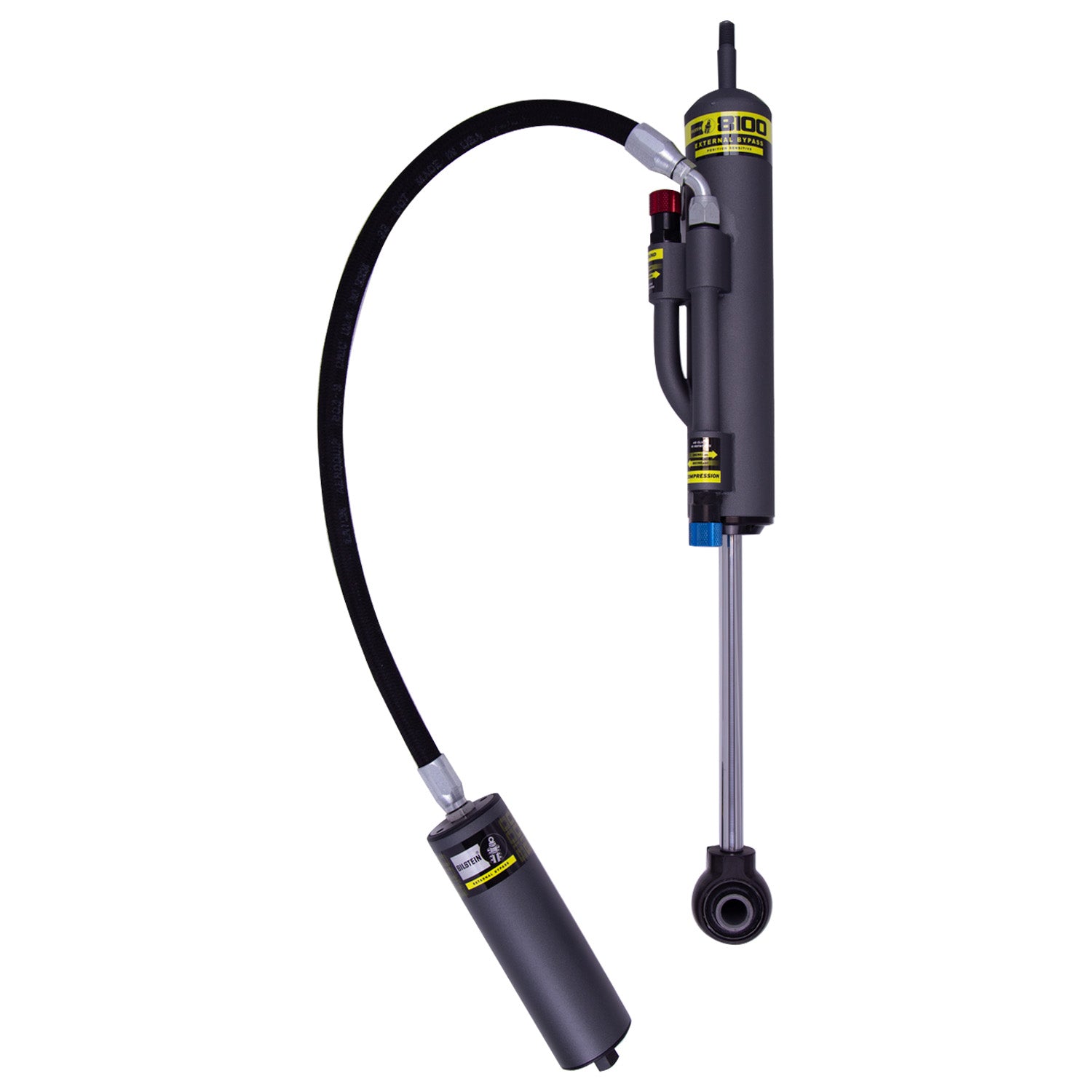

Bilstein B8 8100 Bypass Rear Right Shock 2003-2024 Toyota 4Runner 25-326376

Bilstein B8 8100 Bypass Rear Right Shock 2003-2024 Toyota 4Runner 25-326376 – Bilstein part number 25-326376.

This Bilstein B8 8100 Bypass rear right shock is made for the 2003-2024 Toyota 4Runner. Specs: 9.37 in of travel, 14.72 in collapsed, 24.09 in extended.

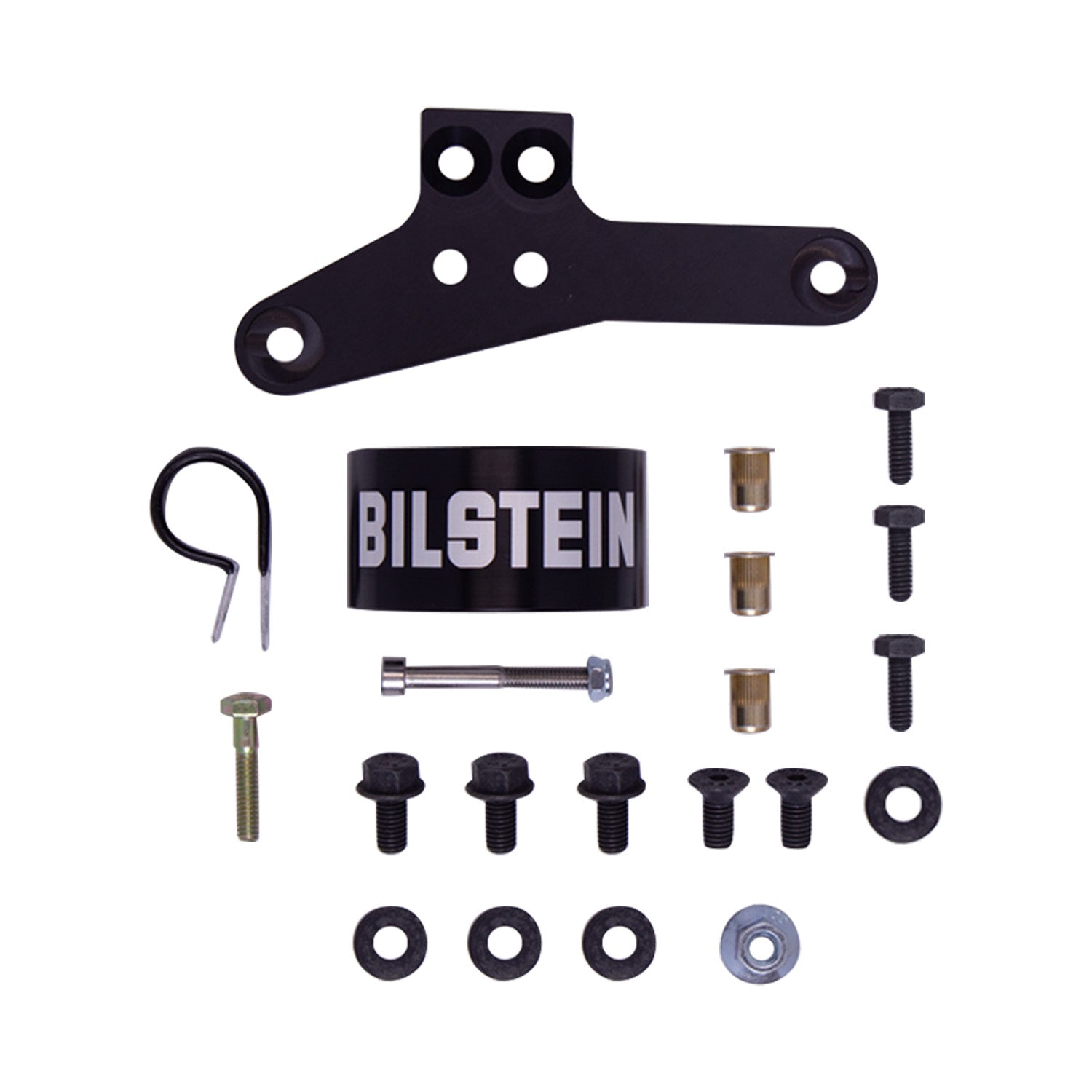

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

Details:

• Position: Rear Right
• Travel: 9.37 in
• Extended length: 24.09 in
• Collapsed length: 14.72 in
• Upper mount: Stem
• Lower mount: Eye 19.2mm
• Body diameter: 2.65 in
• Piston diameter: 60mm
• Shaft diameter: 18mm
• Reservoir: Yes
• Damping: Double Adjustable Compression and Rebound with Click Adjuster Knobs
• Internal design: Monotube
• Finish: EVO Grey
• Country of origin: USA

Fitment:

• Lexus GX460 2010-2023, GX470 2003-2009, Toyota 4Runner 2003-2024
• Note: Fits Vehicles With 0.5-1.5" Rear Lift
• Note: Fits Vehicles With 0.5-1.5" Rear Lift;Requires Rear Coil Spring Conversion
• Note: Fits Vehicles With 0-2" Rear Lift;Requires Rear Coil Spring Conversion
• Note: Fits Vehicles With 0.9-2.3" Re

Always confirm fitment for your exact year, drivetrain and lift height before ordering.

Product information

• Bilstein part number: 25-326376
• Sold individually (price is for one shock)
• Shipping weight: 20.5 lb

Resources

• Installation instructions (PDF)
