Bilstein B8 6112 Leveling Kit 2021+ Ford Bronco 47-313996

Bilstein B8 6112 Leveling Kit 2021+ Ford Bronco 47-313996 – Bilstein part number 47-313996.

This Bilstein B8 6112 front leveling kit is made for the 2021+ Ford Bronco. Specs: 16.62 in collapsed, 22.80 in extended.

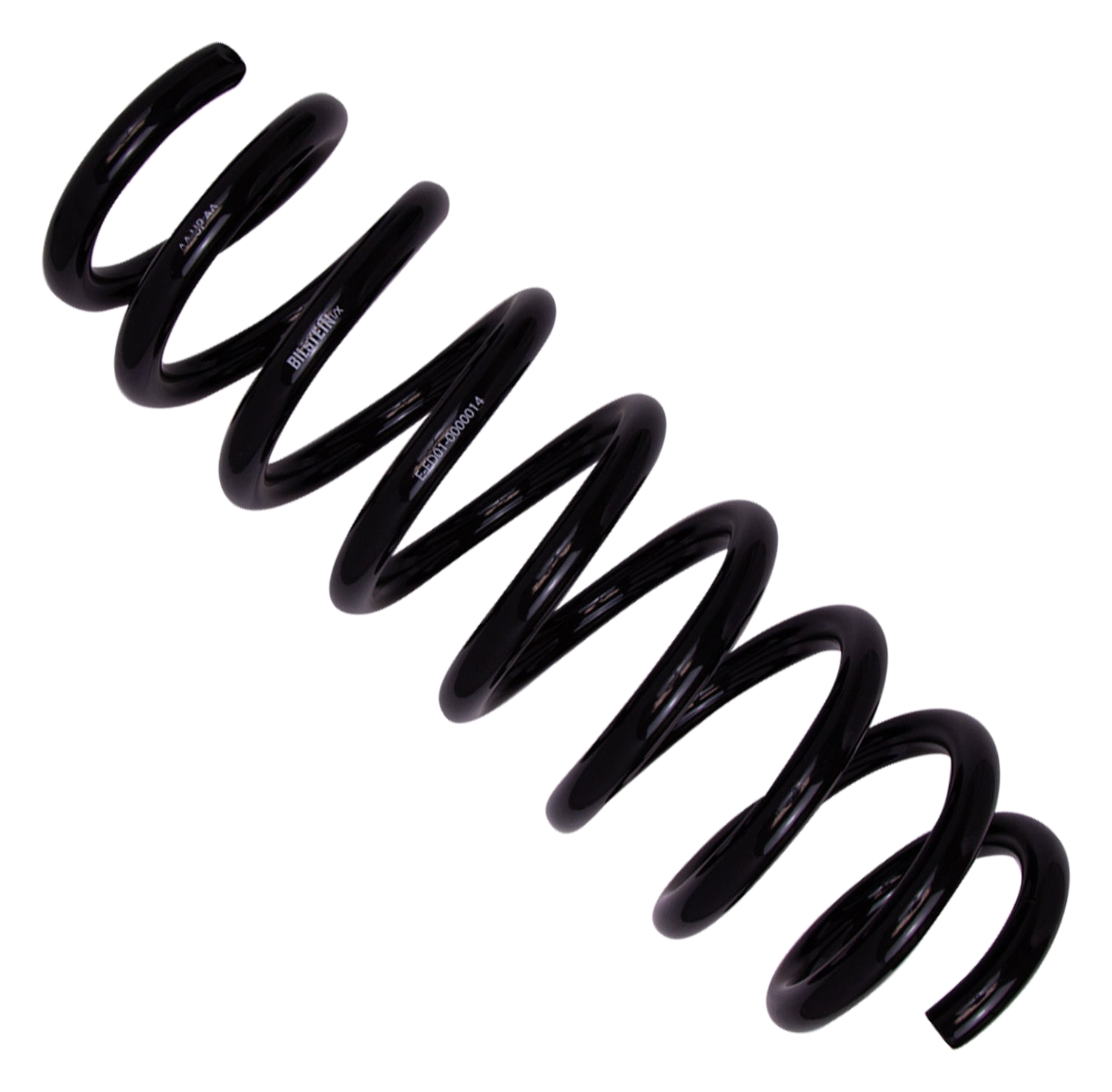

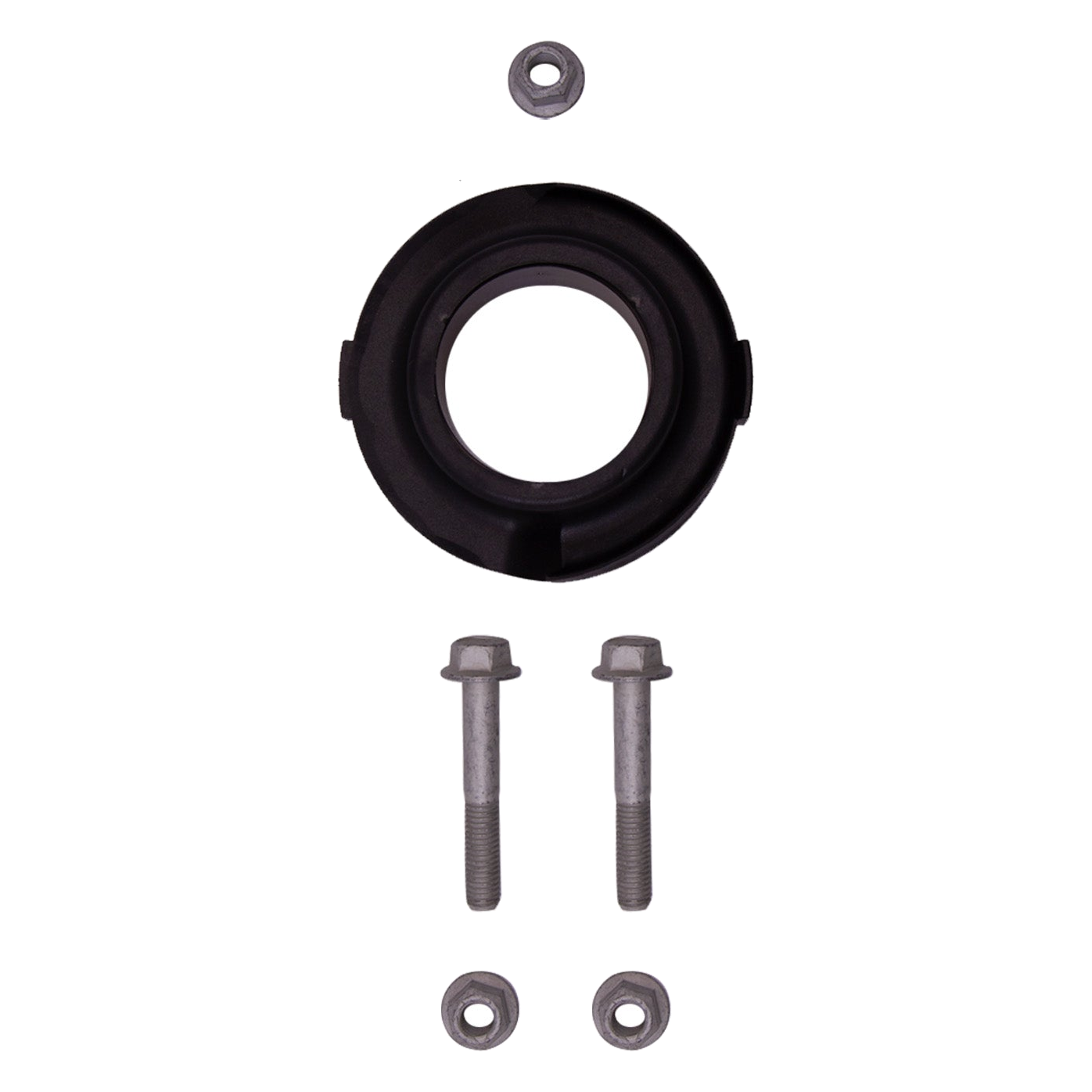

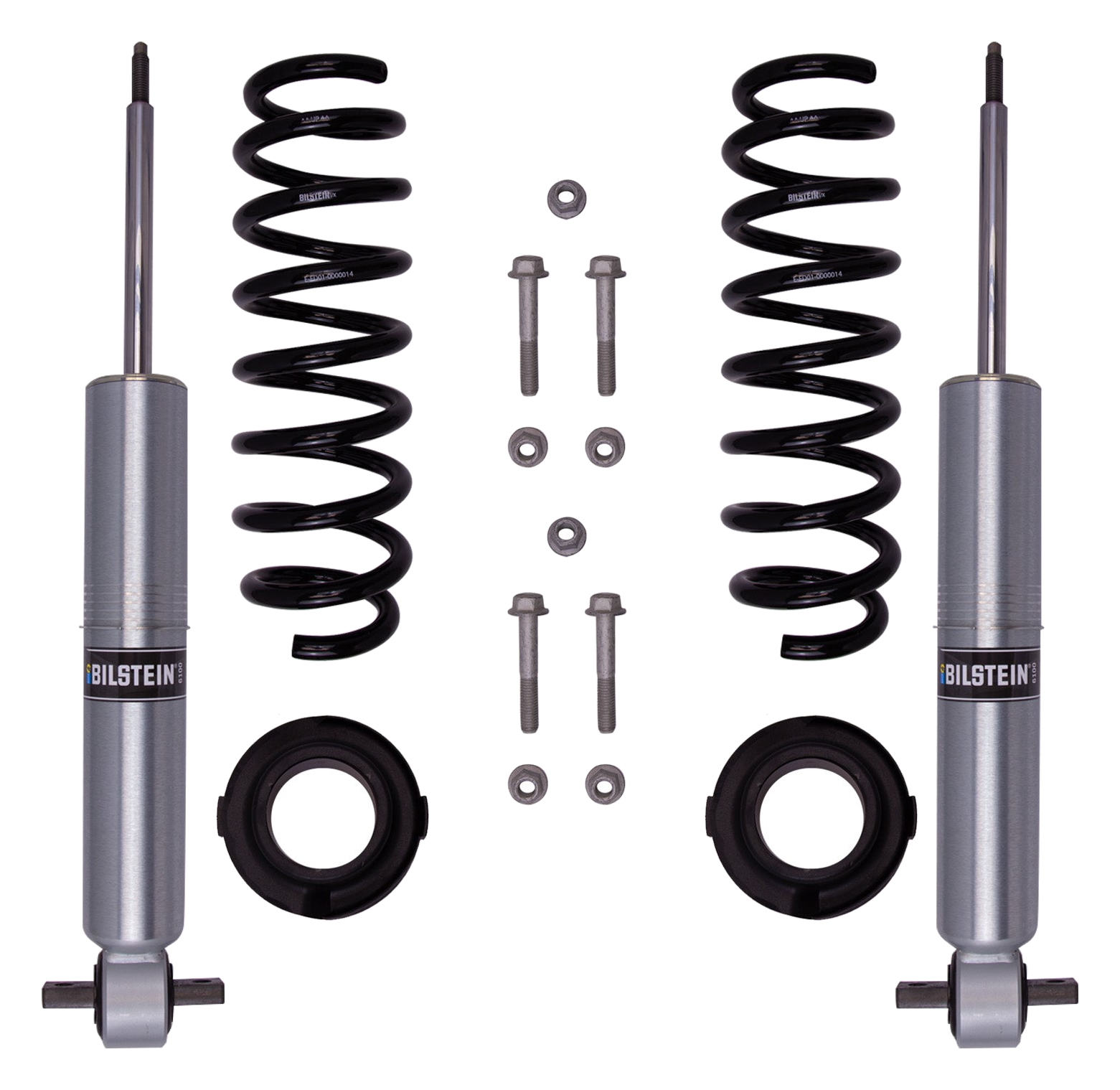

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Details:

• Position: Front
• Travel: 6.18 in
• Extended length: 22.80 in
• Collapsed length: 16.62 in
• Body diameter: 2.65 in
• Piston diameter: 60mm
• Shaft diameter: 18mm
• Reservoir: No
• Damping: Non-Adjustable
• Internal design: Monotube
• Finish: Dampers: Zinc Plated/Springs: Black
• Front Main Spring Rate (lbs/in): 374
• Country of origin: USA

Fitment:

• Ford Bronco 2021-2026
• Note: Provides 1.4-3.0" Front Lift Without Sasquatch Package;0-1.7" Front Lift With Sasquatch Package;Aftermarket upper control arms recommended for lift heights greater than 2.5"
• Note: Provides 1.9-3.4" Front Lift Without Sasquat

Always confirm fitment for your exact year, drivetrain and lift height before ordering.

Product information

• Bilstein part number: 47-313996
• Shipping weight: 50.7 lb

Resources

• Installation instructions (PDF)
