Bilstein B8 5112 Leveling Kit 2013+ Ram 3500 46-241634

Bilstein B8 5112 Leveling Kit 2013+ Ram 3500 46-241634 – Bilstein part number 46-241634.

This Bilstein B8 5112 front leveling kit is made for the 2013+ Ram 3500. Intended lift height: 2 in.

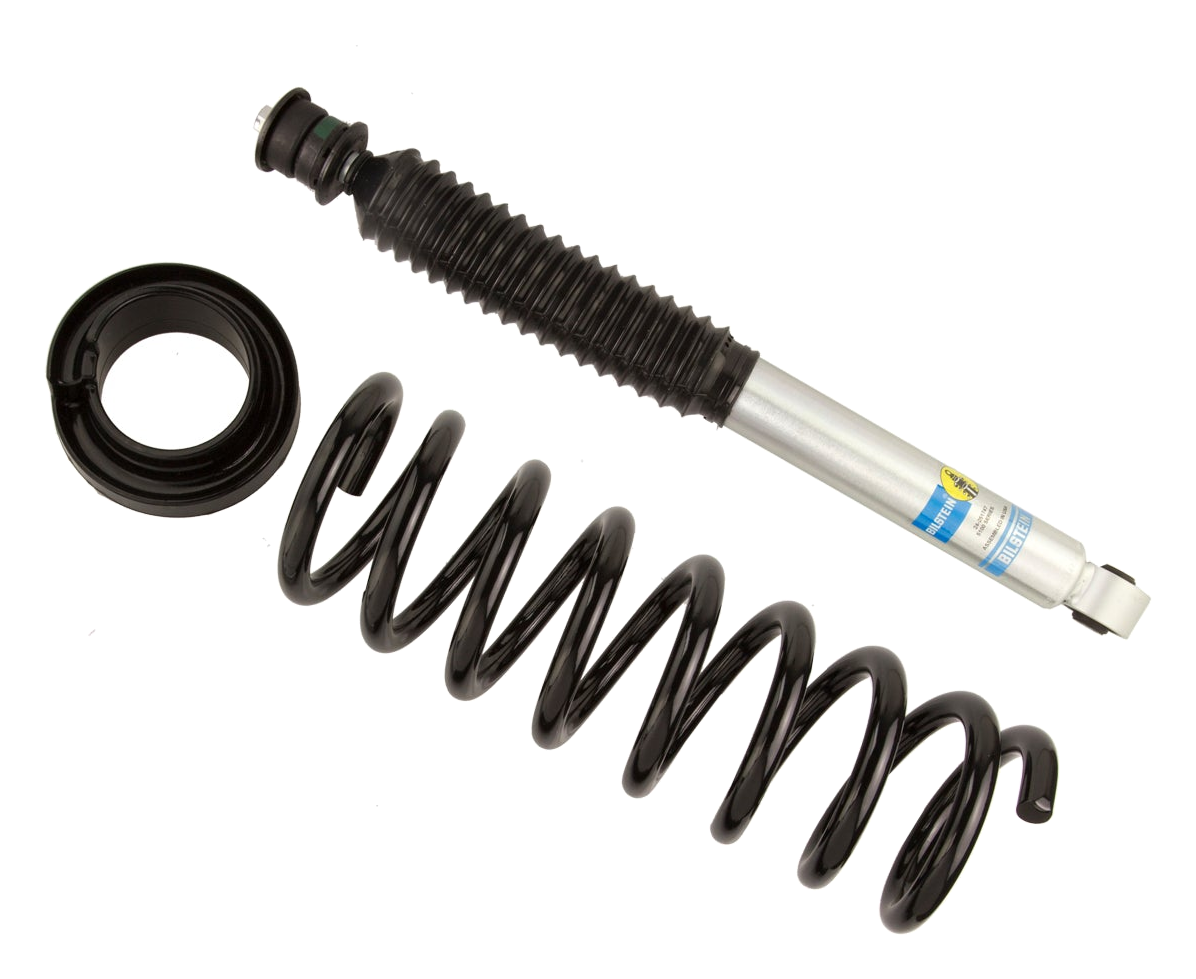

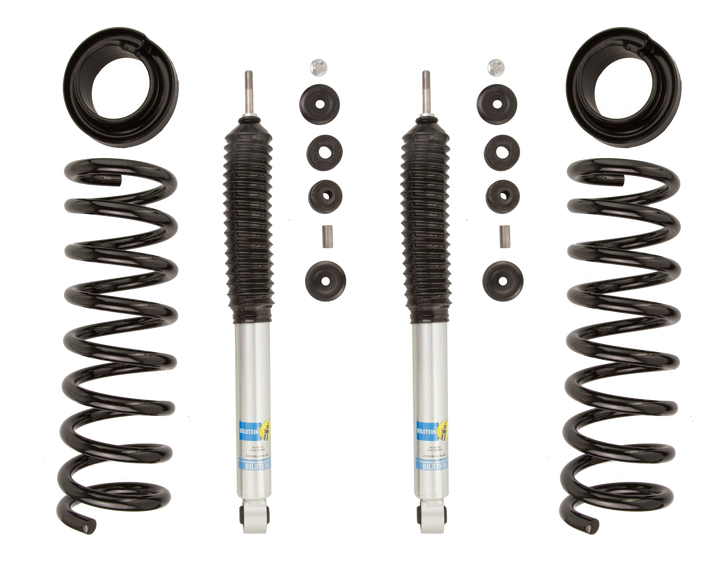

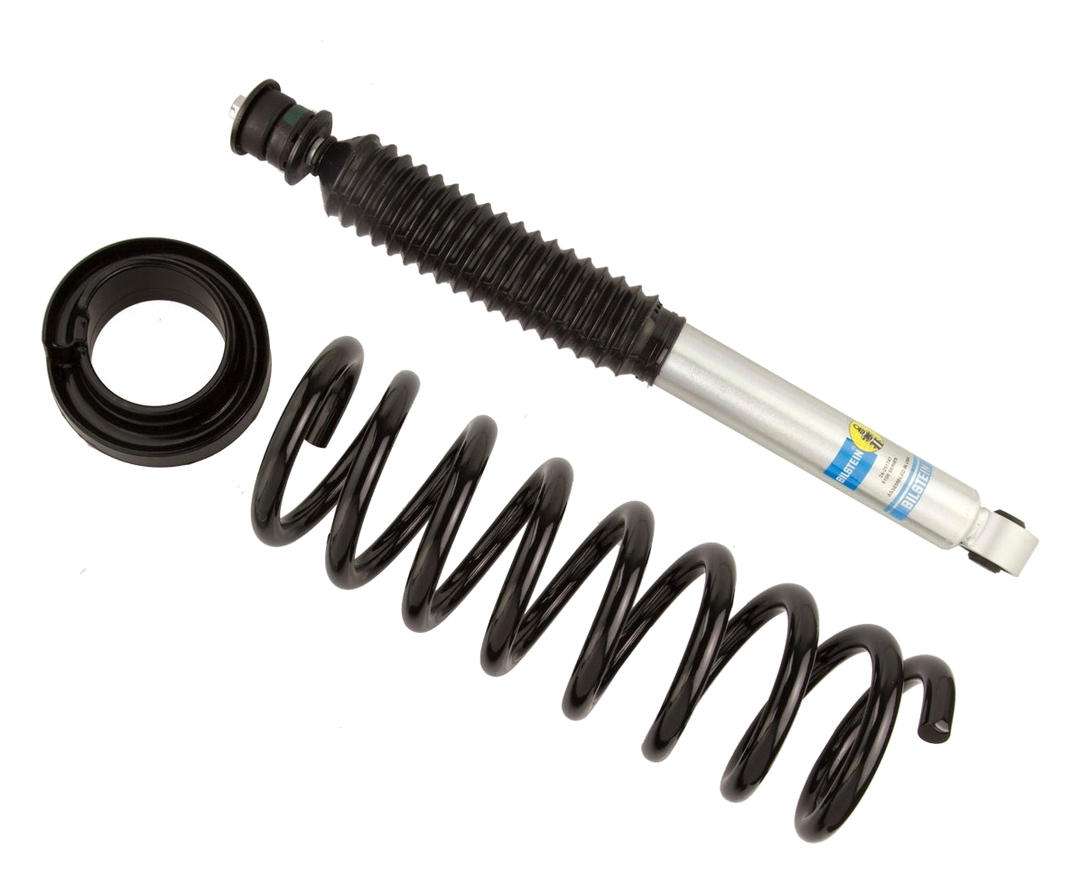

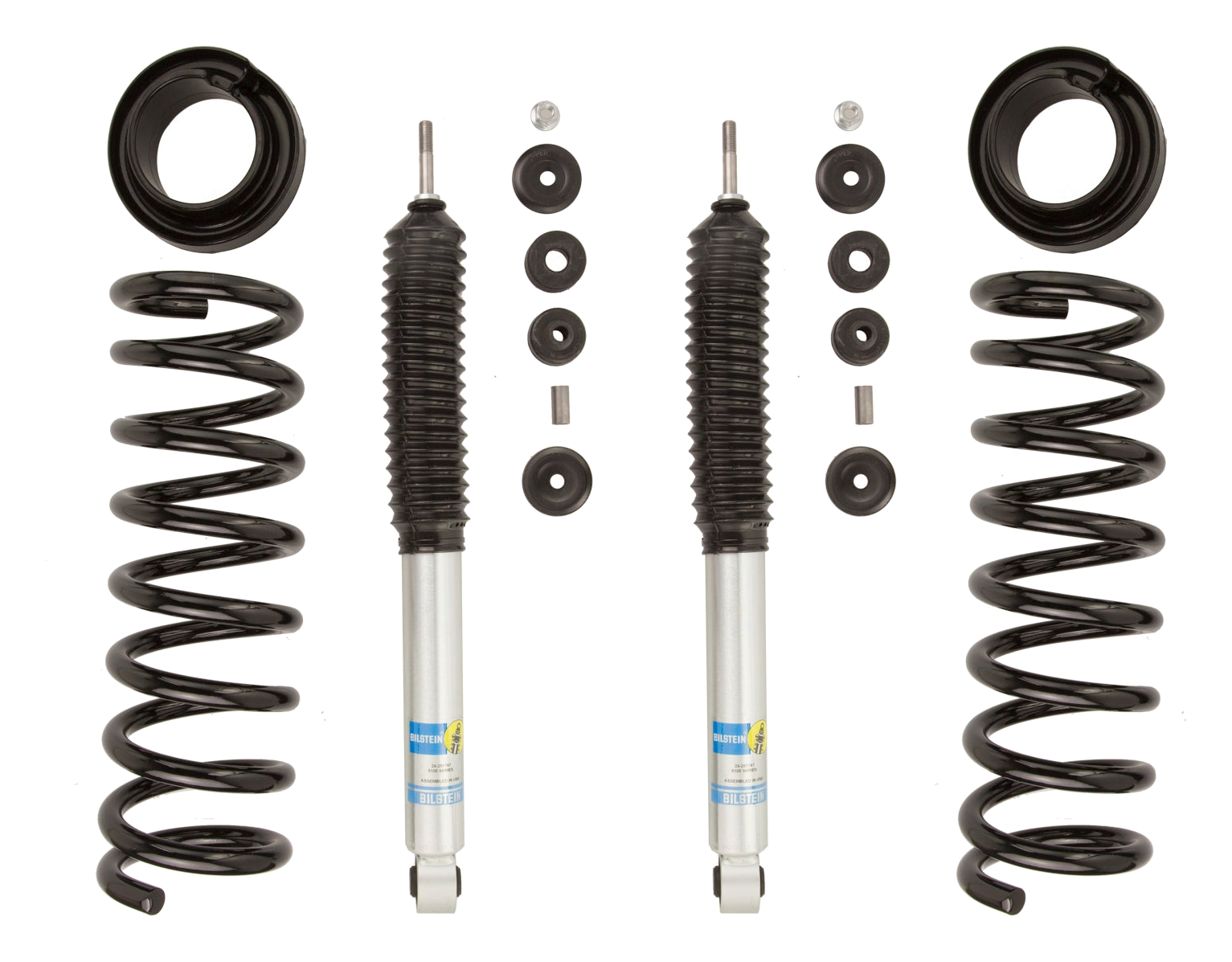

Bilstein B8 5112 suspension kit is a high performance leveling kit which provides more ground clearance, allows for larger tires, and increases wheel travel. The Bilstein B8 5112 suspension kit is for front applications and consists of (2) B8 5100 shock absorbers combined with (2) matched coil springs. This simple yet effective kit will bolt into the factory locations with no modifications. The Bilstein B8 5112 suspension kit provides a smooth and stable ride both on and off-road.

Details:

• Position: Front
• Lift height: 2" lift
• Upper mount: N/A
• Body diameter: 2.0 in
• Piston diameter: 46mm
• Shaft diameter: 14mm
• Reservoir: No
• Damping: Non-Adjustable
• Internal design: Monotube
• Boot: Black Bellows
• Finish: Dampers: Zinc Plated/Springs: Black
• Front Main Spring Rate (lbs/in): 472
• Country of origin: USA

Fitment:

• Ram 3500 2013-2026
• Note: Provides 2" Front Lift;Adjustable track bar recommended

Always confirm fitment for your exact year, drivetrain and lift height before ordering.

Product information

• Bilstein part number: 46-241634
• Shipping weight: 61 lb

Resources

• Installation instructions (PDF)
