Bilstein B8 5100 Front Shock 2014+ Ram 2500 4" Lift 24-285674

Bilstein B8 5100 Front Shock 2014+ Ram 2500 4" Lift 24-285674 – Bilstein part number 24-285674.

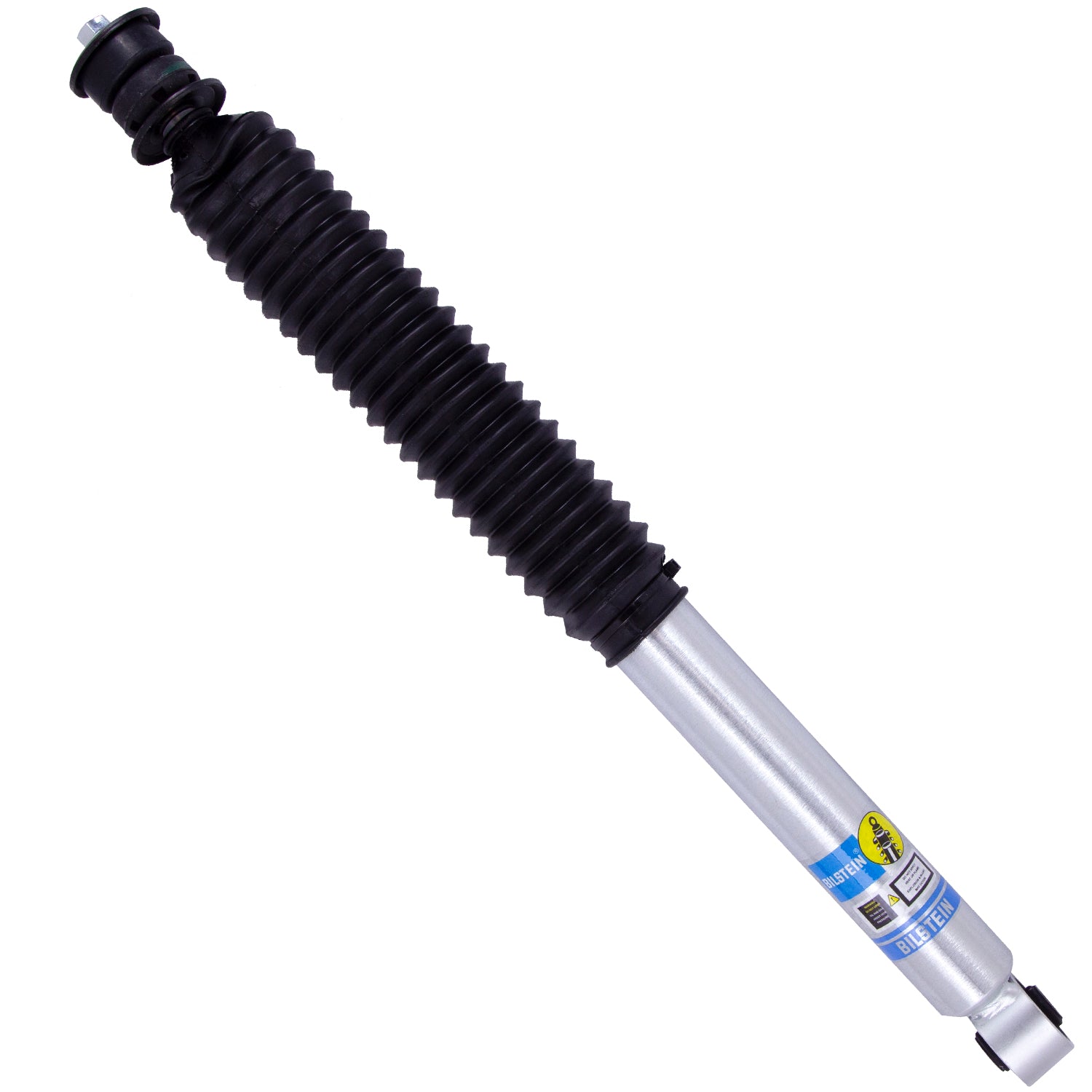

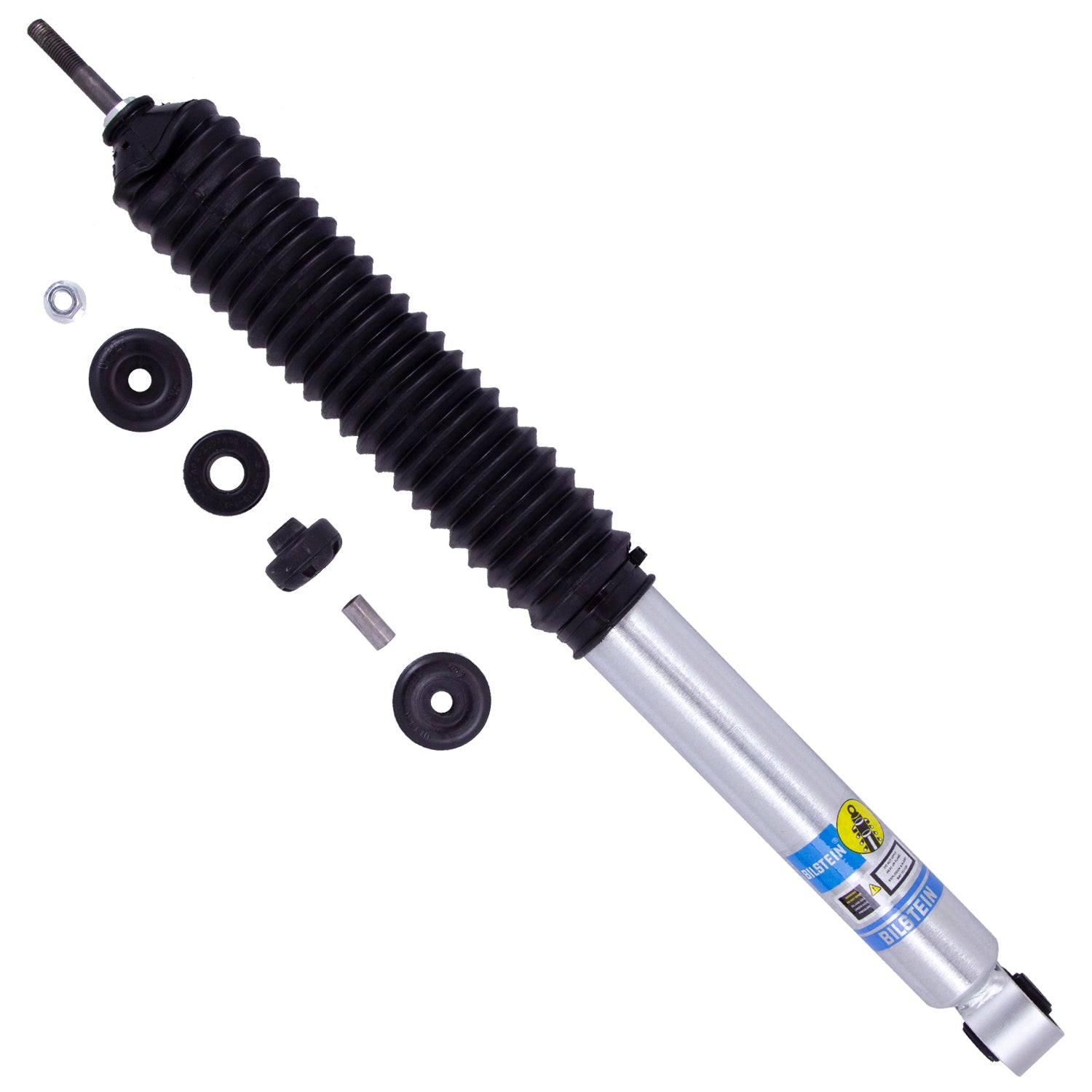

This Bilstein B8 5100 front shock is made for the 2014+ Ram 2500. Intended lift height: 4 in. Specs: 8.90 in of travel, 16.57 in collapsed, 25.47 in extended.

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Details:

• Position: Front
• Lift height: 4" lift
• Travel: 8.90 in
• Extended length: 25.47 in
• Collapsed length: 16.57 in

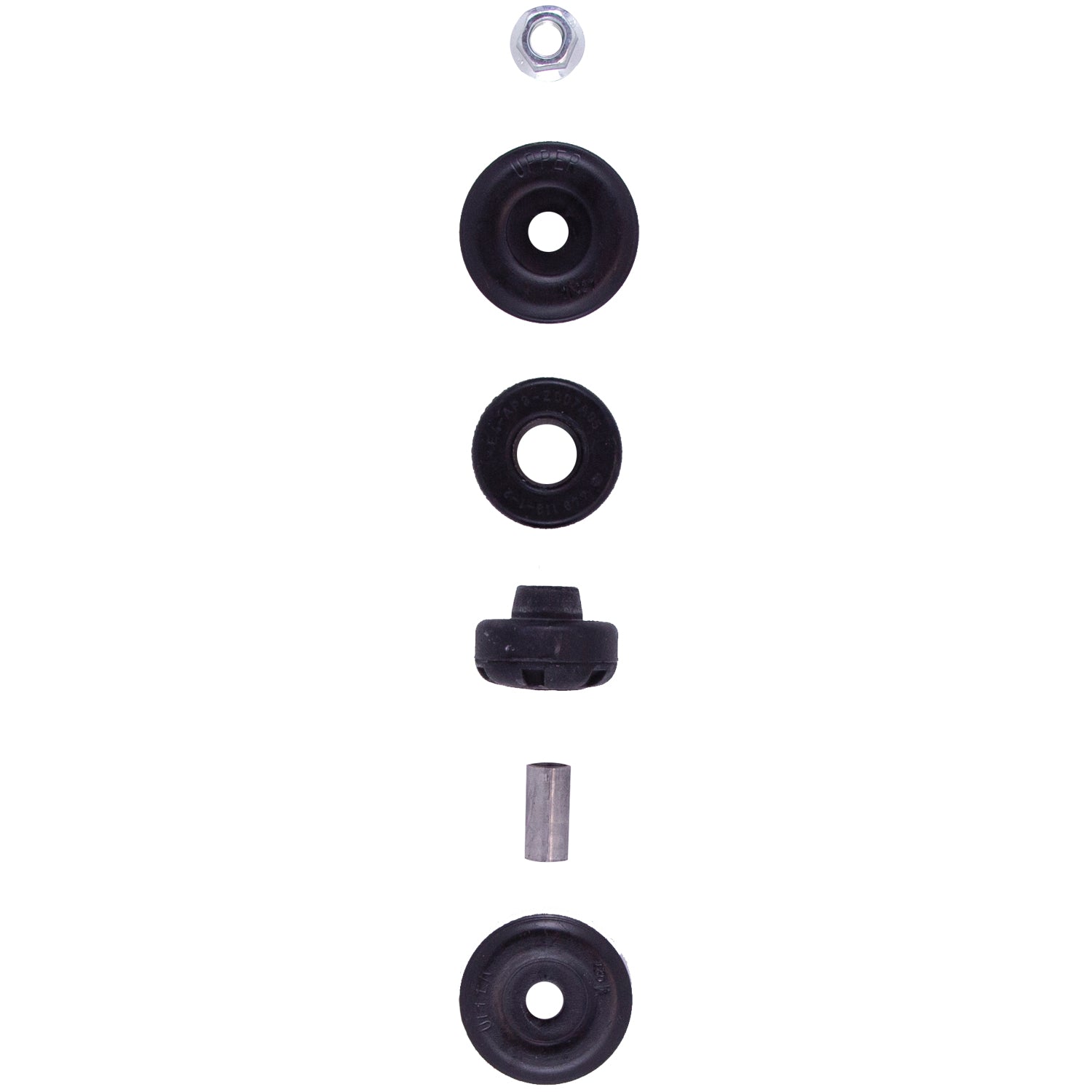

• Upper mount: Stem
• Lower mount: Eye 14.1mm
• Body diameter: 2.0 in
• Piston diameter: 46mm
• Shaft diameter: 14mm
• Reservoir: No
• Damping: Non-Adjustable
• Internal design: Monotube
• Boot: Black Bellows
• Finish: Zinc Plated
• Country of origin: USA

Fitment:

• Ram 2500 2014-2026, 3500 2013-2026
• Note: Fits Vehicles With 4" Front Lift

Always confirm fitment for your exact year, drivetrain and lift height before ordering.

Product information

• Bilstein part number: 24-285674
• Sold individually (price is for one shock)
• Shipping weight: 6.2 lb

Resources

• Installation instructions (PDF)
