Bilstein B8 5100 Adjustable Height Front Shock 2009-2013 Ford F-150 0-2.5" Lift 24-317832

Bilstein B8 5100 Adjustable Height Front Shock 2009-2013 Ford F-150 0-2.5" Lift 24-317832 – Bilstein part number 24-317832.

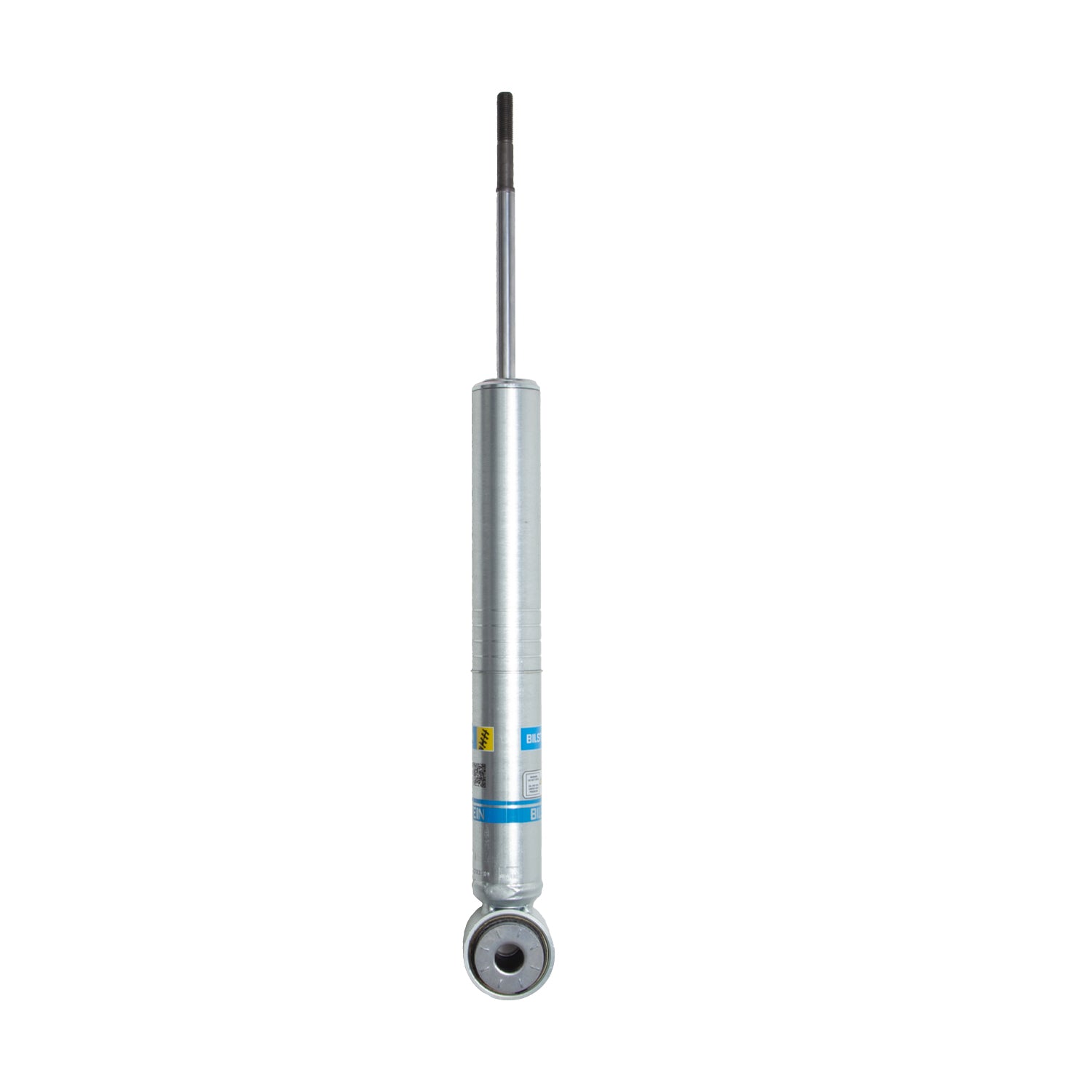

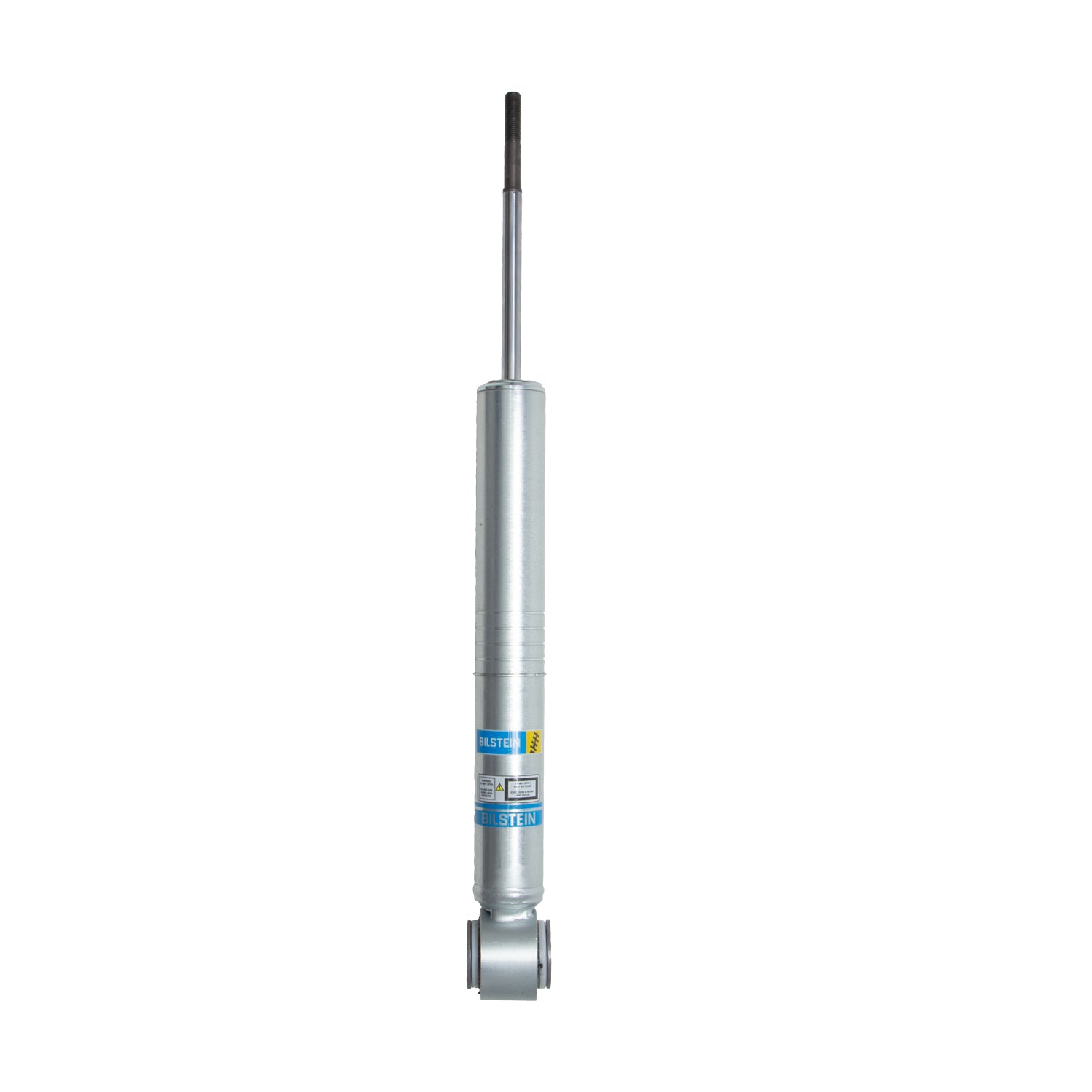

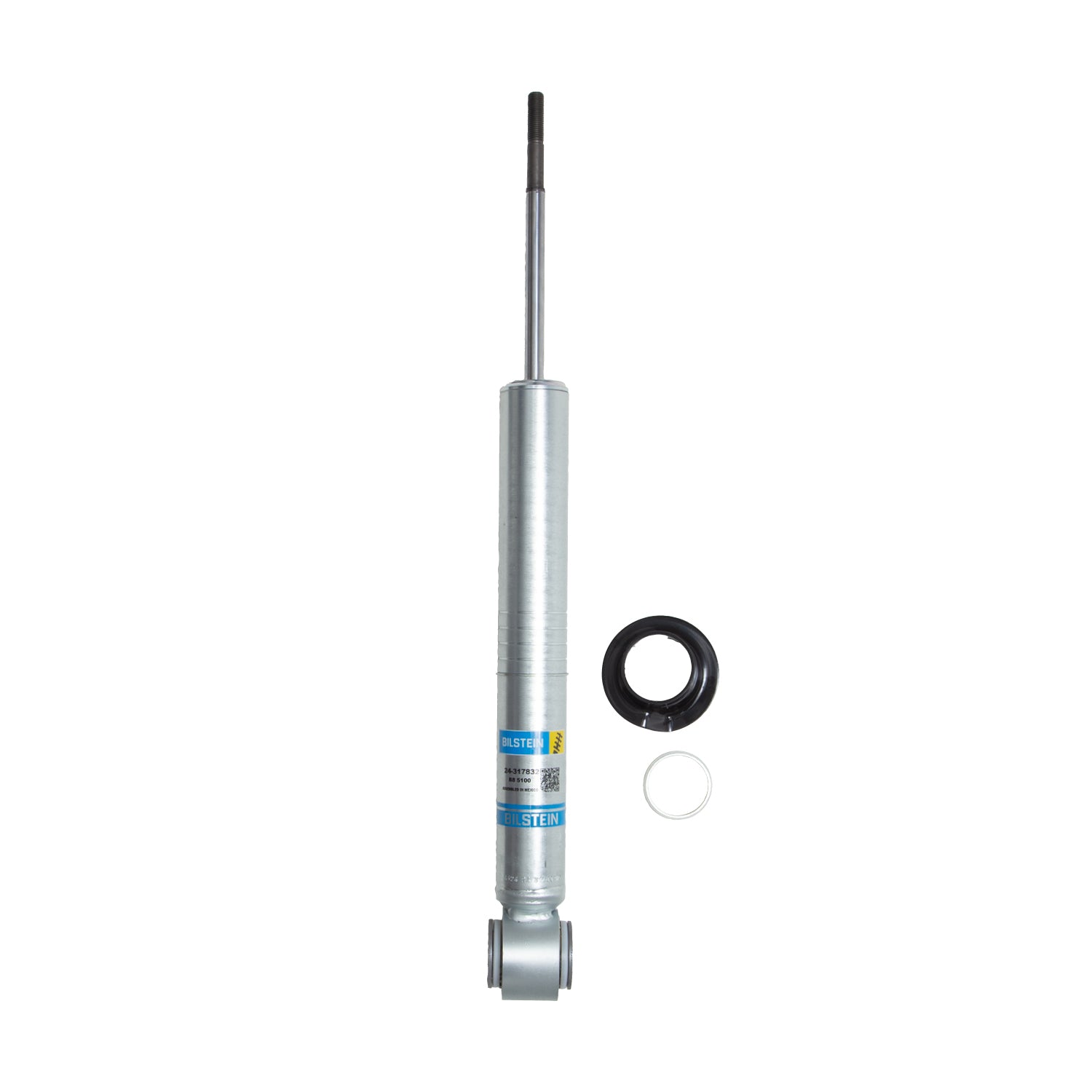

This Bilstein B8 5100 Ride Height Adjustable front shock is made for the 2009-2013 Ford F-150. Intended lift height: 0-2.5 in. Specs: 5.52 in of travel, 16.22 in collapsed, 21.74 in extended.

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Details:

• Position: Front
• Lift height: 0-2.5" lift
• Travel: 5.52 in
• Extended length: 21.74 in
• Collapsed length: 16.22 in
• Upper mount: Stem
• Lower mount: Eye 20.3mm
• Body diameter: 2.0 in
• Piston diameter: 46mm
• Shaft diameter: 14mm
• Reservoir: No
• Damping: Non-Adjustable
• Internal design: Monotube
• Finish: Zinc Plated
• Country of origin: Mexico

Fitment:

• Ford F-150 2009-2013
• Note: Provides 0-2.5" Front Lift

Always confirm fitment for your exact year, drivetrain and lift height before ordering.

Product information

• Bilstein part number: 24-317832
• Sold individually (price is for one shock)
• Shipping weight: 7.24 lb

Resources

• Installation instructions (PDF)
