Bilstein B8 6112 Leveling Kit 2010-2024 Toyota 4Runner 47-310025

Bilstein B8 6112 Leveling Kit 2010-2024 Toyota 4Runner 47-310025 – Bilstein part number 47-310025.

This Bilstein B8 6112 front leveling kit is made for the 2010-2024 Toyota 4Runner. Specs: 16.86 in collapsed, 21.65 in extended.

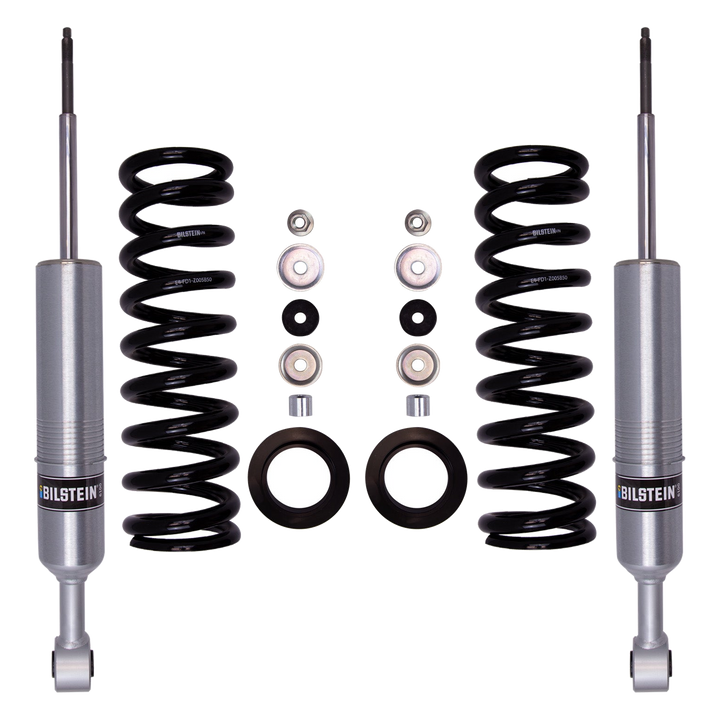

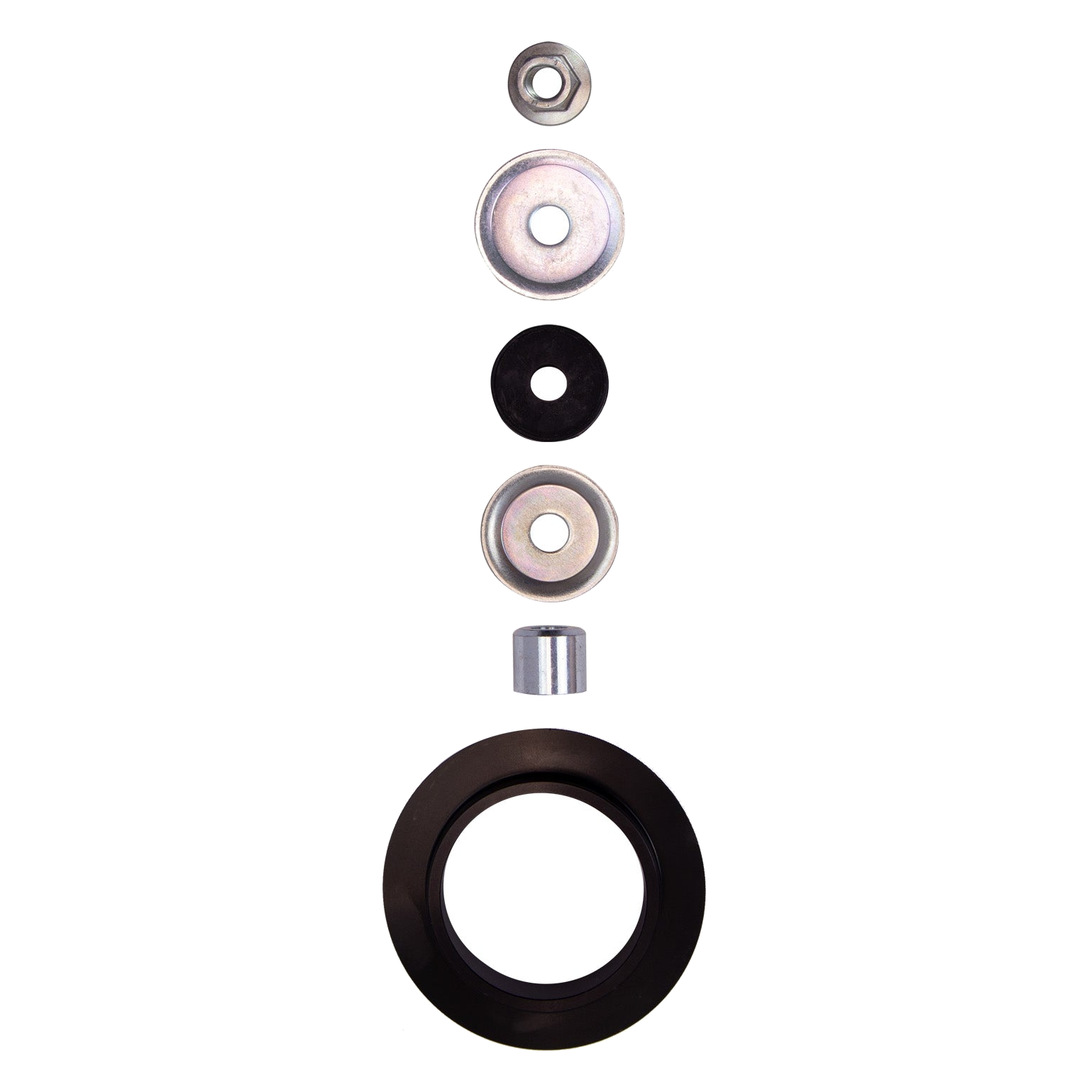

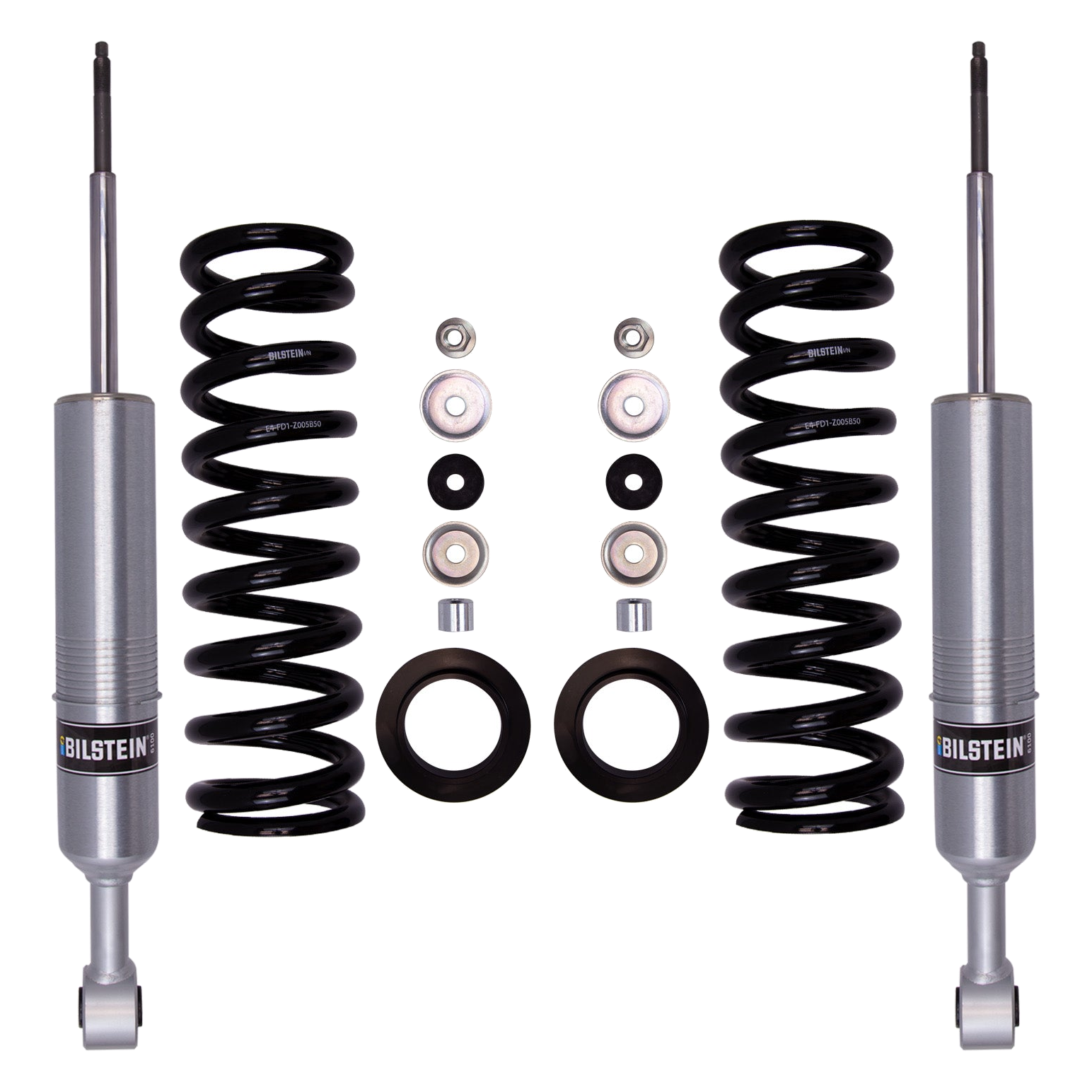

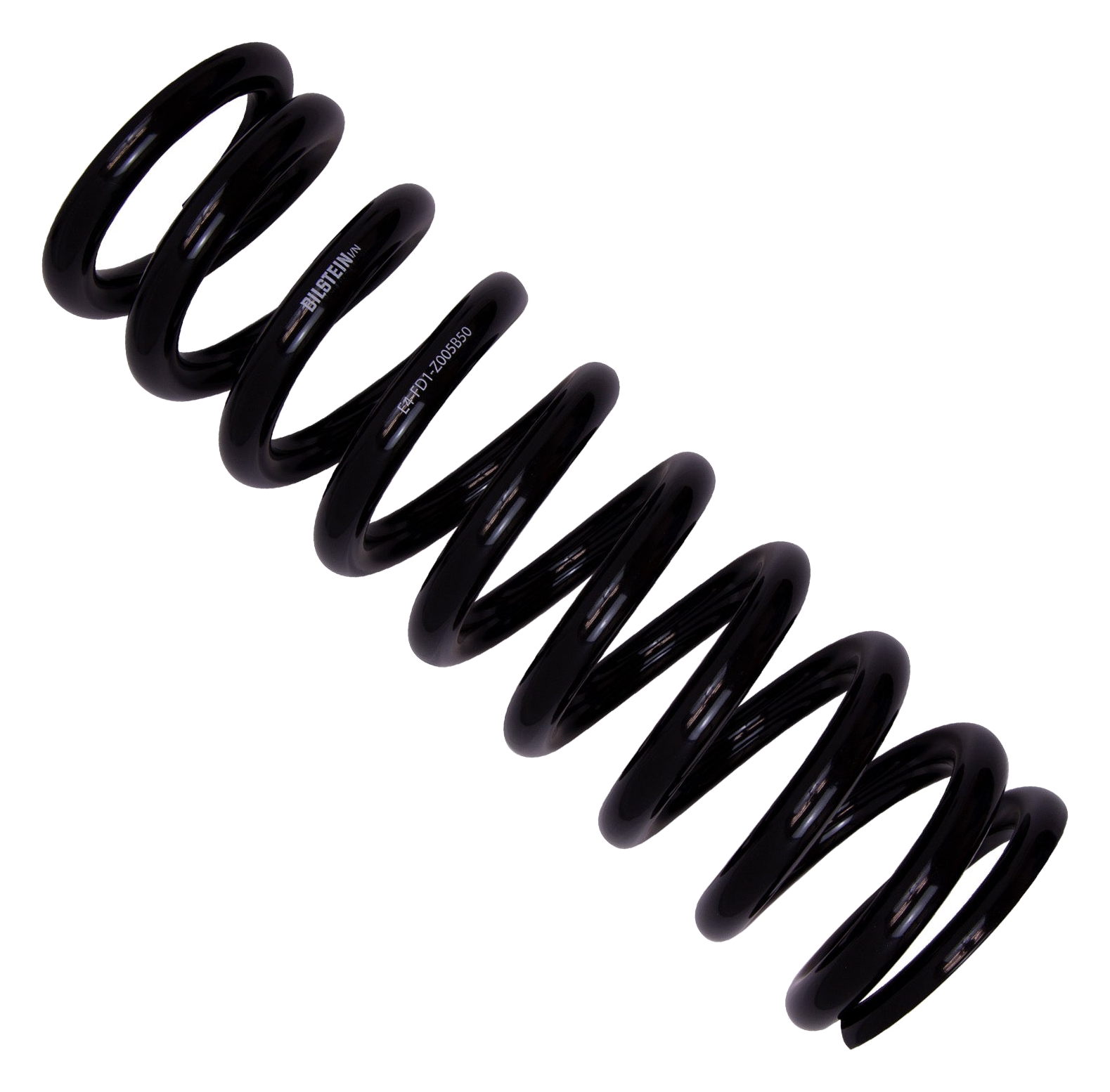

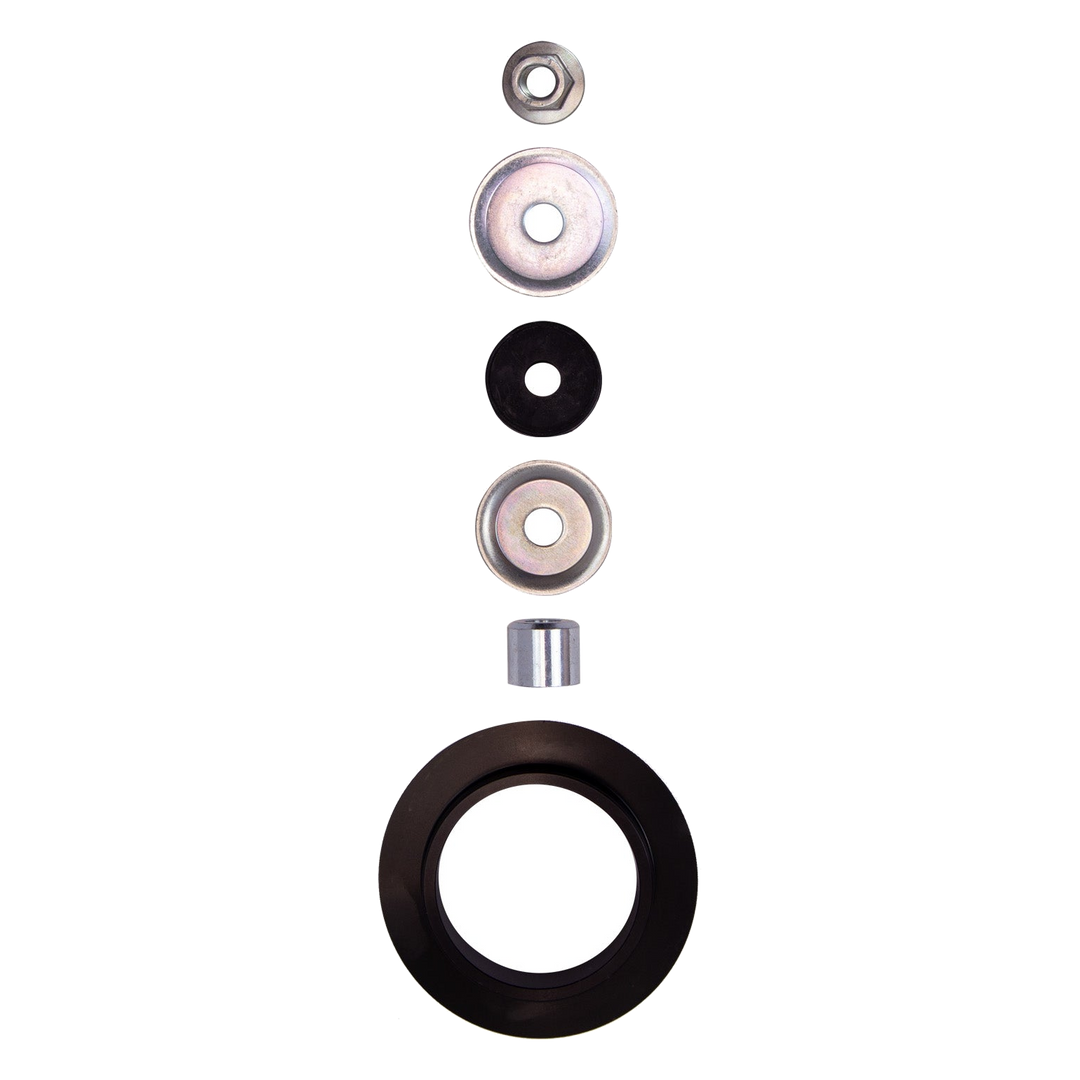

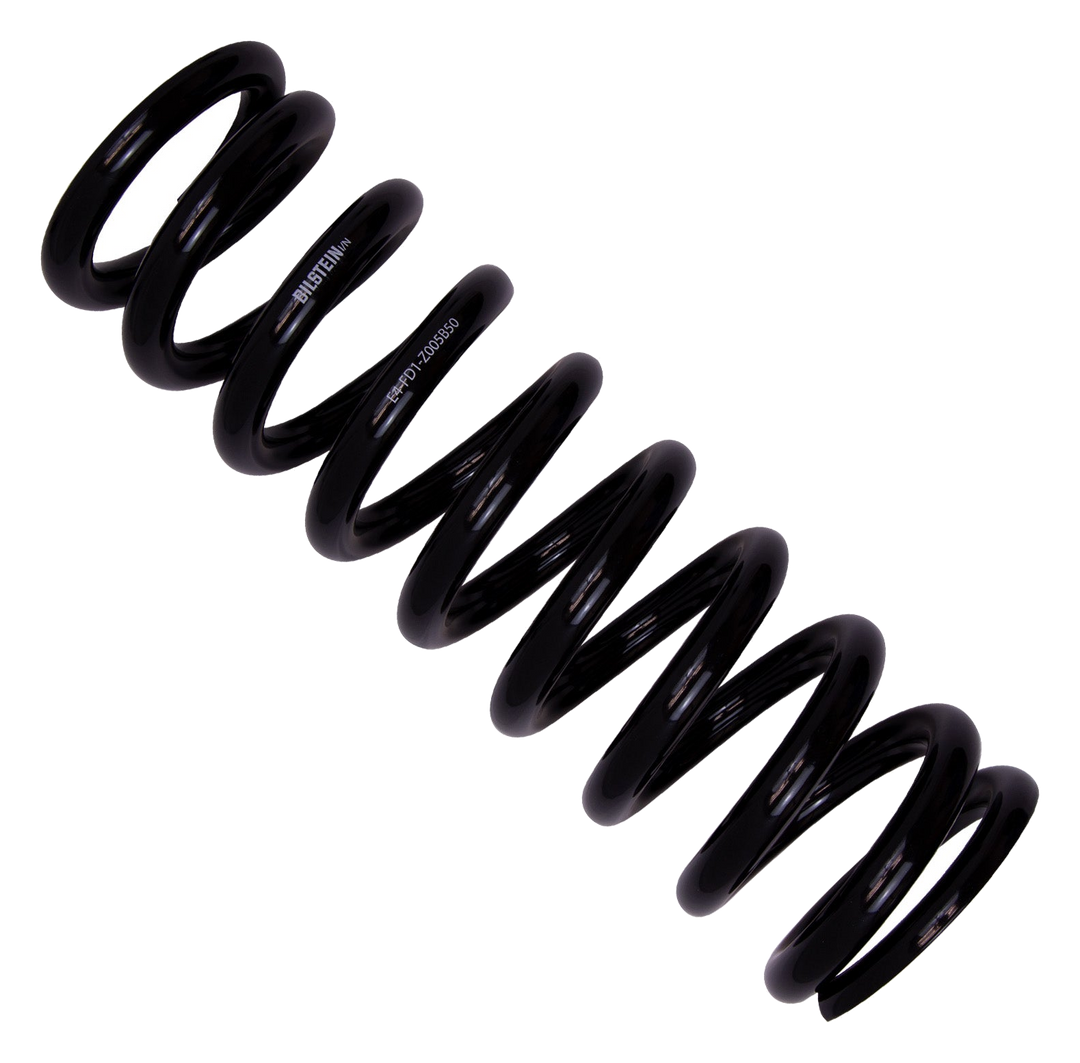

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Details:

• Position: Front
• Travel: 4.79 in
• Extended length: 21.65 in
• Collapsed length: 16.86 in
• Body diameter: 2.65 in
• Piston diameter: 60mm
• Shaft diameter: 18mm
• Reservoir: No
• Internal design: Monotube
• Finish: Dampers: Zinc Plated/Springs: Black
• Front Main Spring Rate (lbs/in): 600
• Country of origin: USA

Fitment:

• Lexus GX460 2010-2023, Toyota 4Runner 2010-2024, FJ Cruiser 2010-2014
• Note: Provides 0-2.8" Front Lift
• Note: Provides 0.7-3" Front Lift
• Note: Provides 2.6-3" Front Lift
• Note: Provides 0.7-3" Front Lift Without KDSS;1-3.5" Front Lift With KDSS
• Note: Provides 0.4-2.1" Front Lift
• Note: Provides 0.6-3.2" Front Lift

Always confirm fitment for your exact year, drivetrain and lift height before ordering.

Product information

• Bilstein part number: 47-310025
• Shipping weight: 41.8 lb

Resources

• Installation instructions (PDF)
