Anti Wrap Bar - DIY Builder Kit

Anti Wrap Bar - DIY Traction Bar Kit - TMR Customs

TMR Customs anti wrap bar DIY traction bar kit is the perfect upgrade to any leaf sprung rear suspension. Eliminate spring wrap, pinion angle change and put the power to the ground where it belongs!

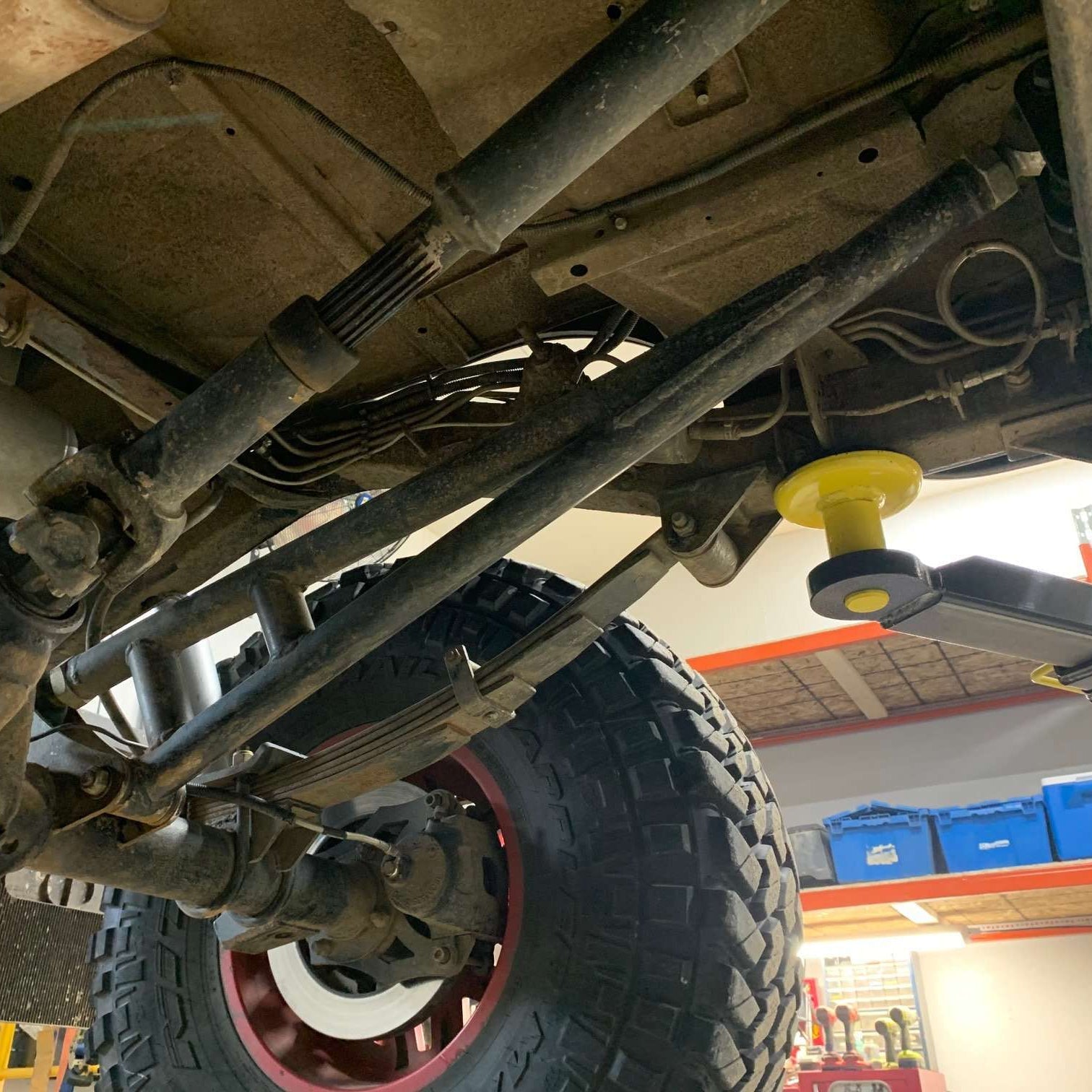

Kit can be mounted with the shackle down off the bottom of your frame, or with the shackle mounted up for increased ground clearance.

Our polyurethane bushings provide a smooth ride, while the high misalignment spacers included with our chromoly rod end provide tons of flex and will not limit suspension travel!

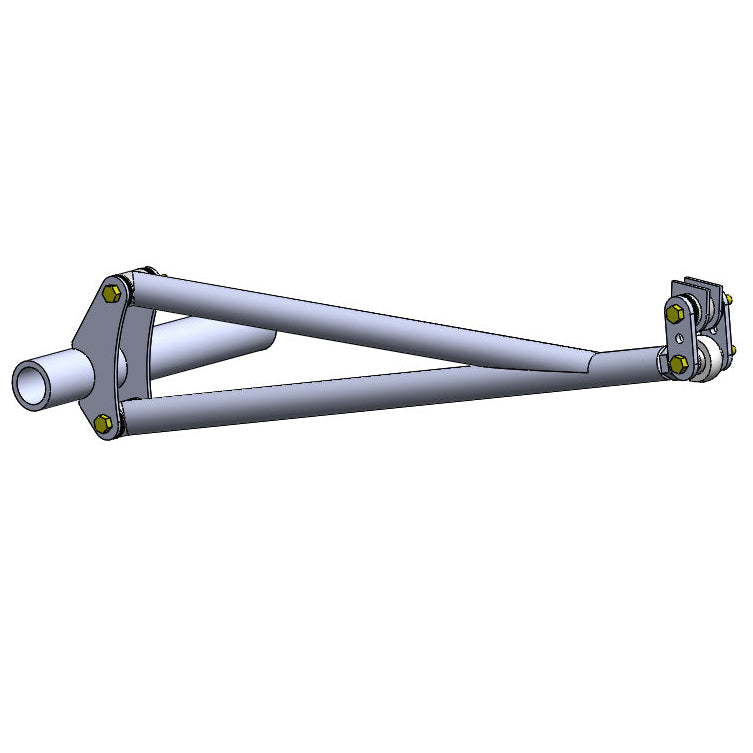

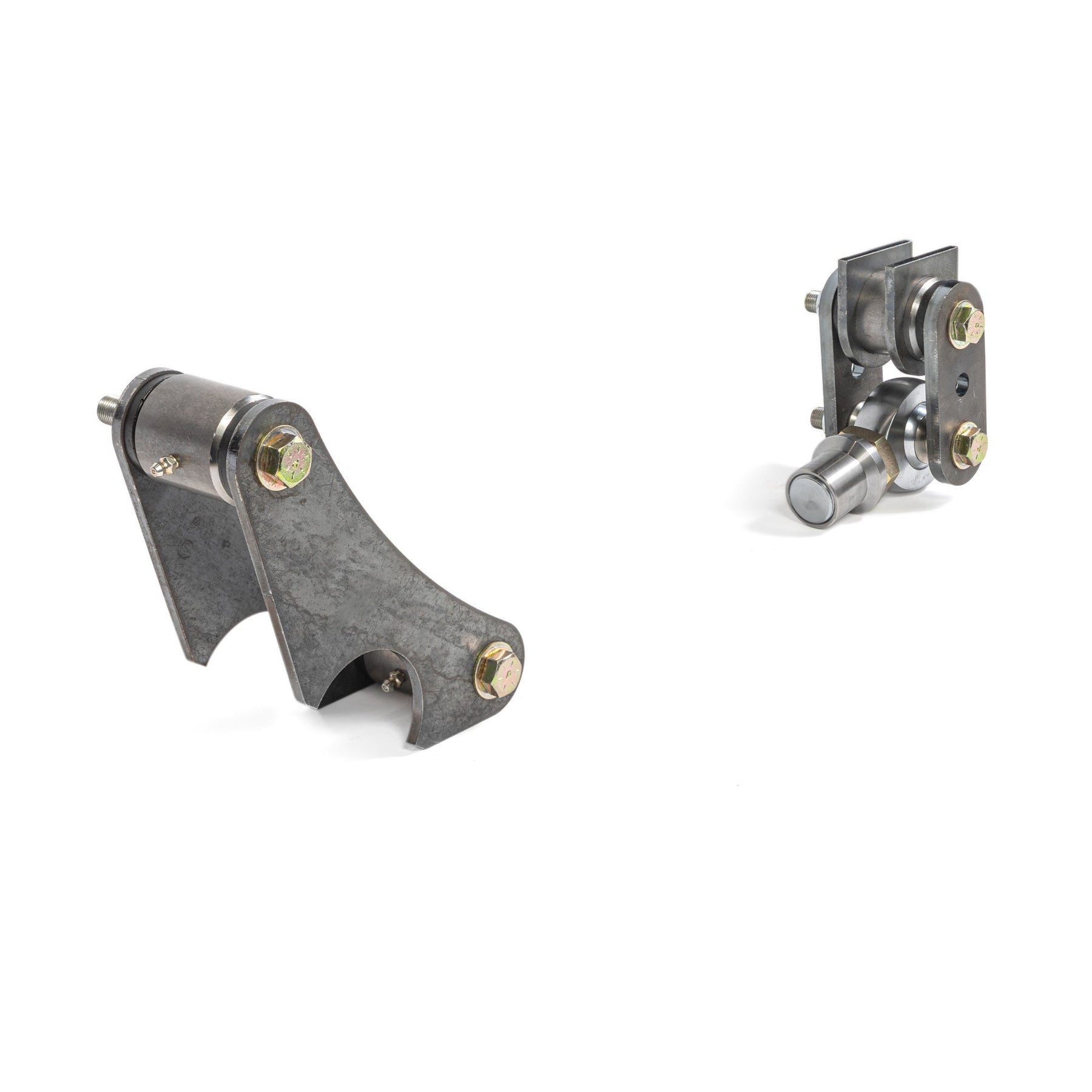

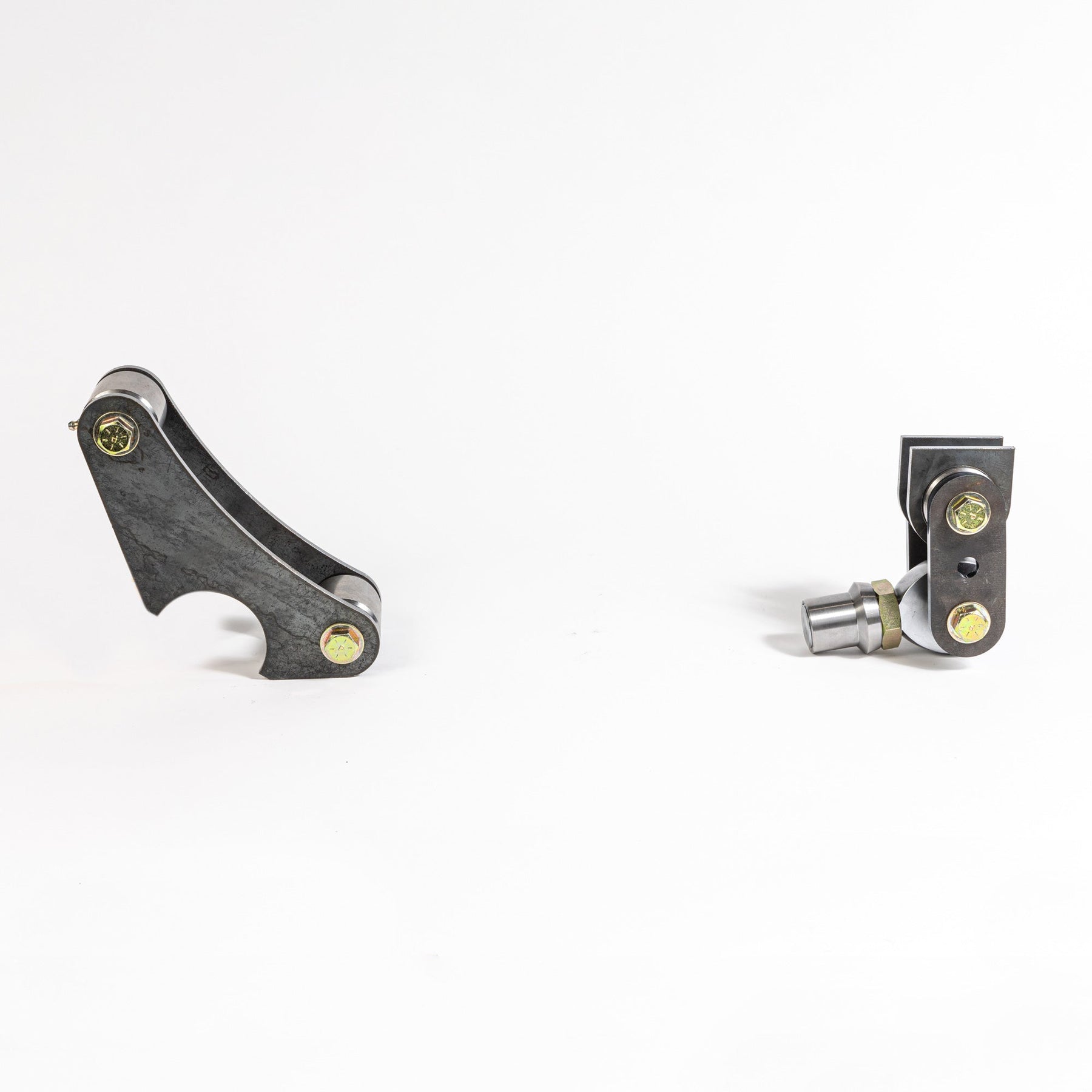

Includes the following to build 1 kit (as pictured!):

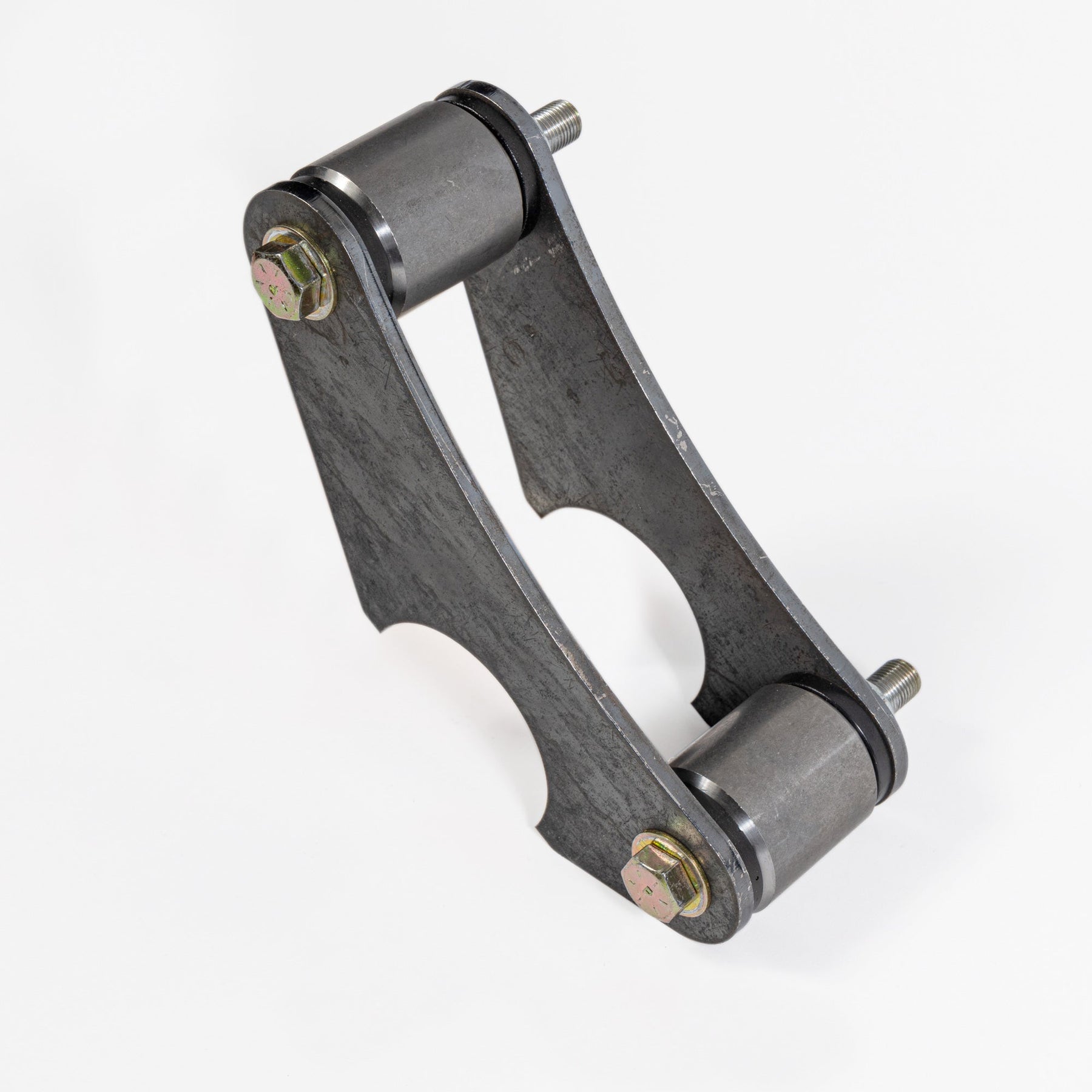

• Axle brackets & bushings (Fits 3.5" Axle Tube, can be modified to fit others sizes)
• Frame brackets & bushing
• Heavy duty shackle

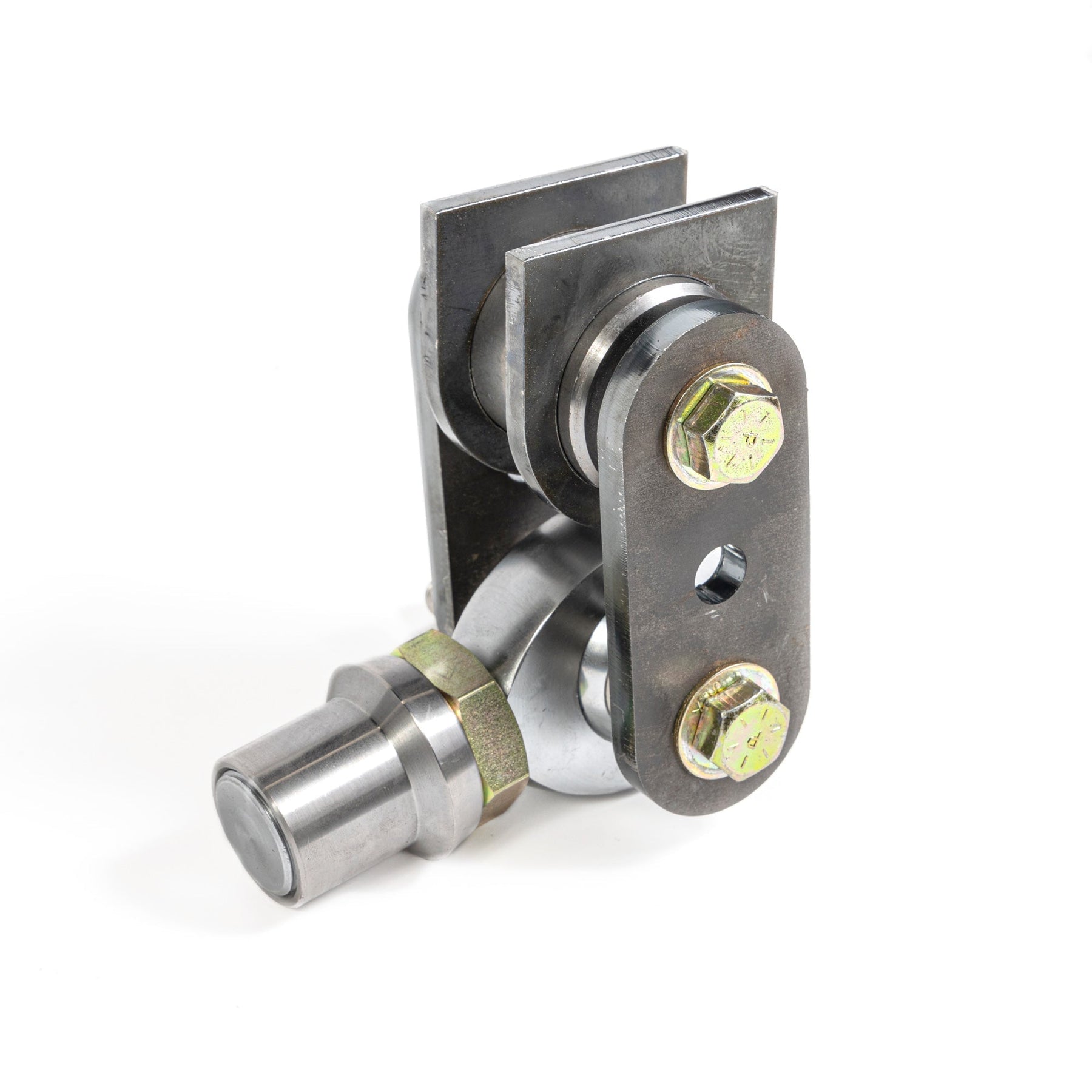

• Massive 1-1/4" chromoly rod end package
• All required grade 8 fasteners (9/16" x 4.5" grade 8 bolt package)
• Mounting width of all bushing/rod end assembly's measures 2-5/8"

Does not include tubing, requires welding!

Recommended tubing size is 2" x 1/4" Wall DOM Tubing for off road applications, or 1-3/4" x .120" Wall DOM Tubing for street applications.
