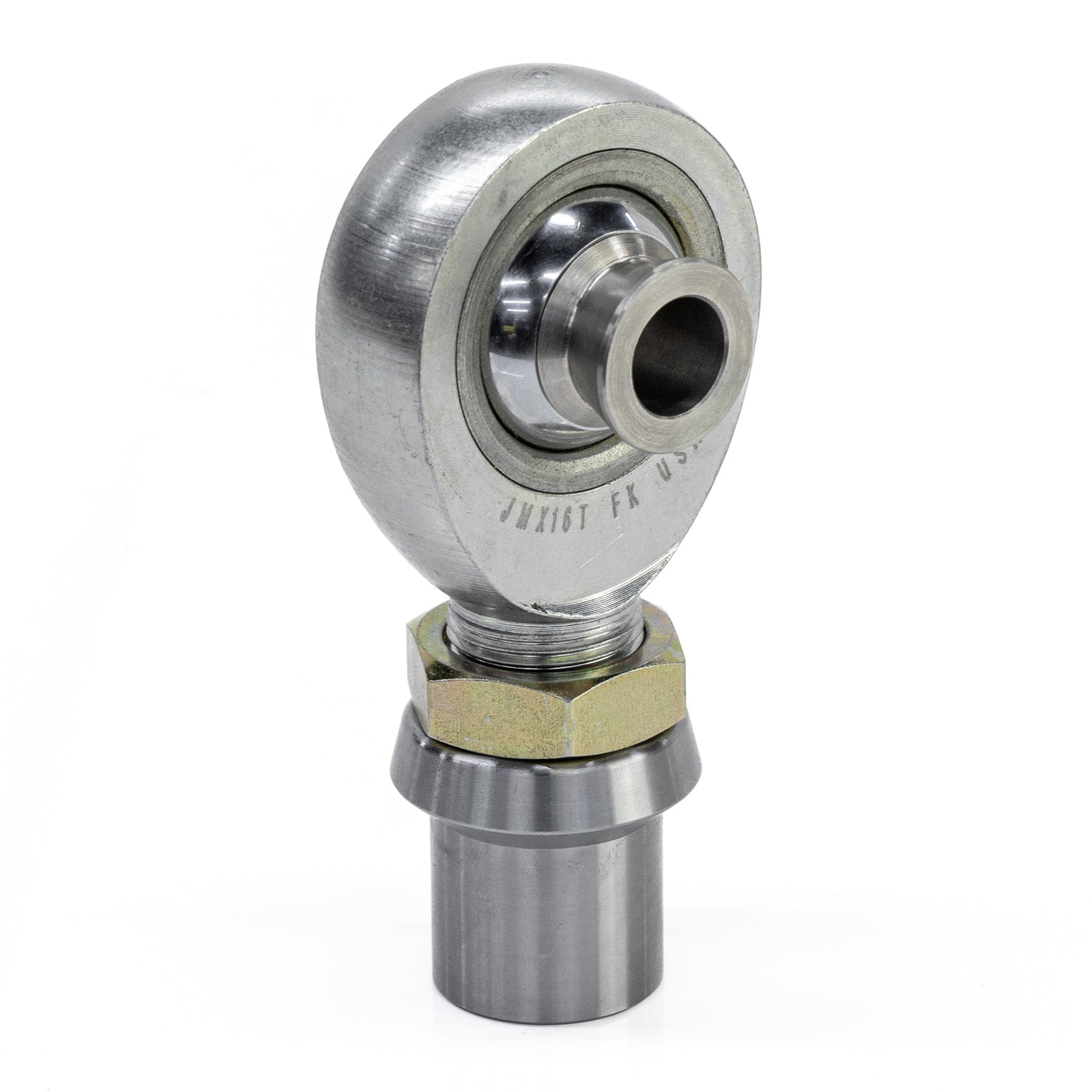

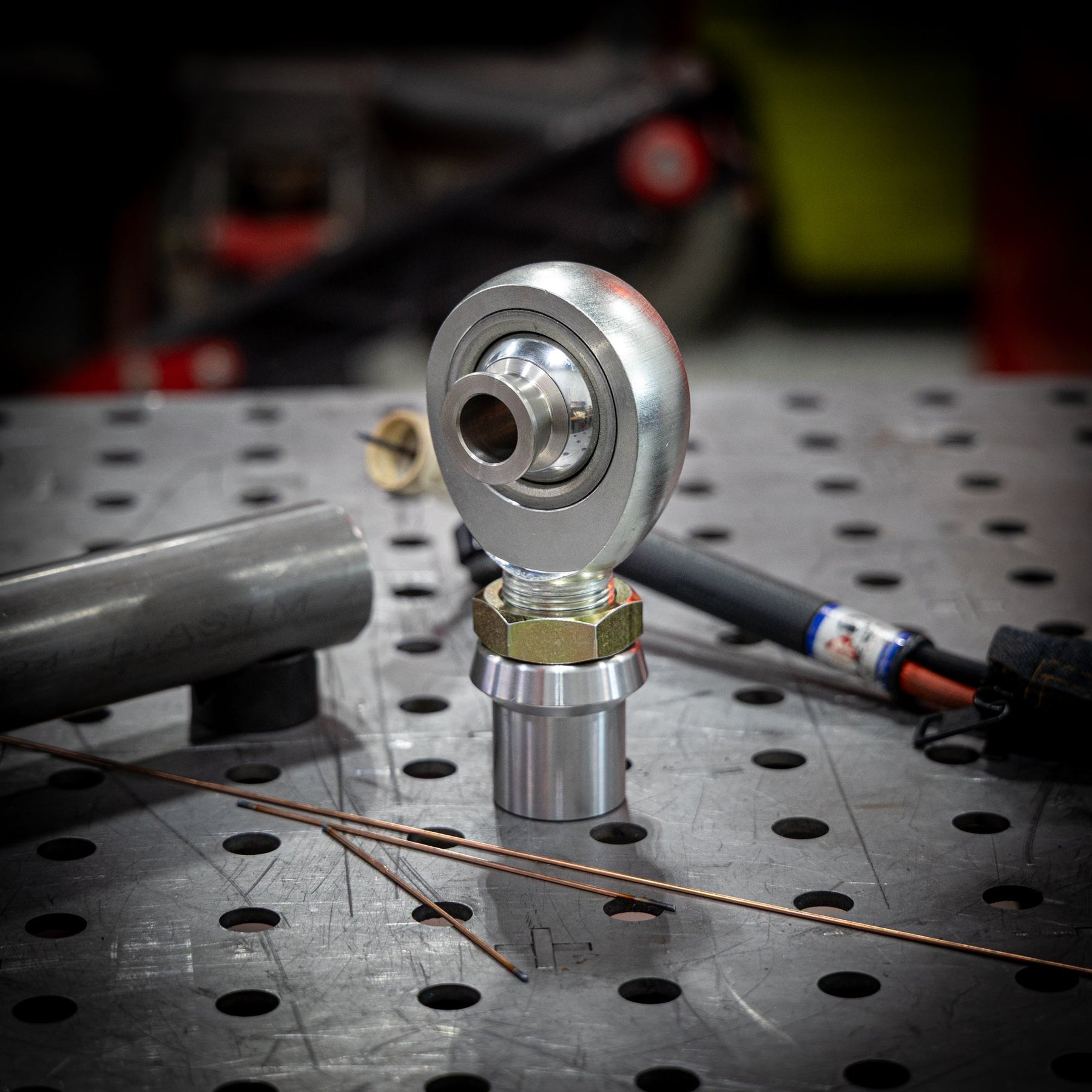

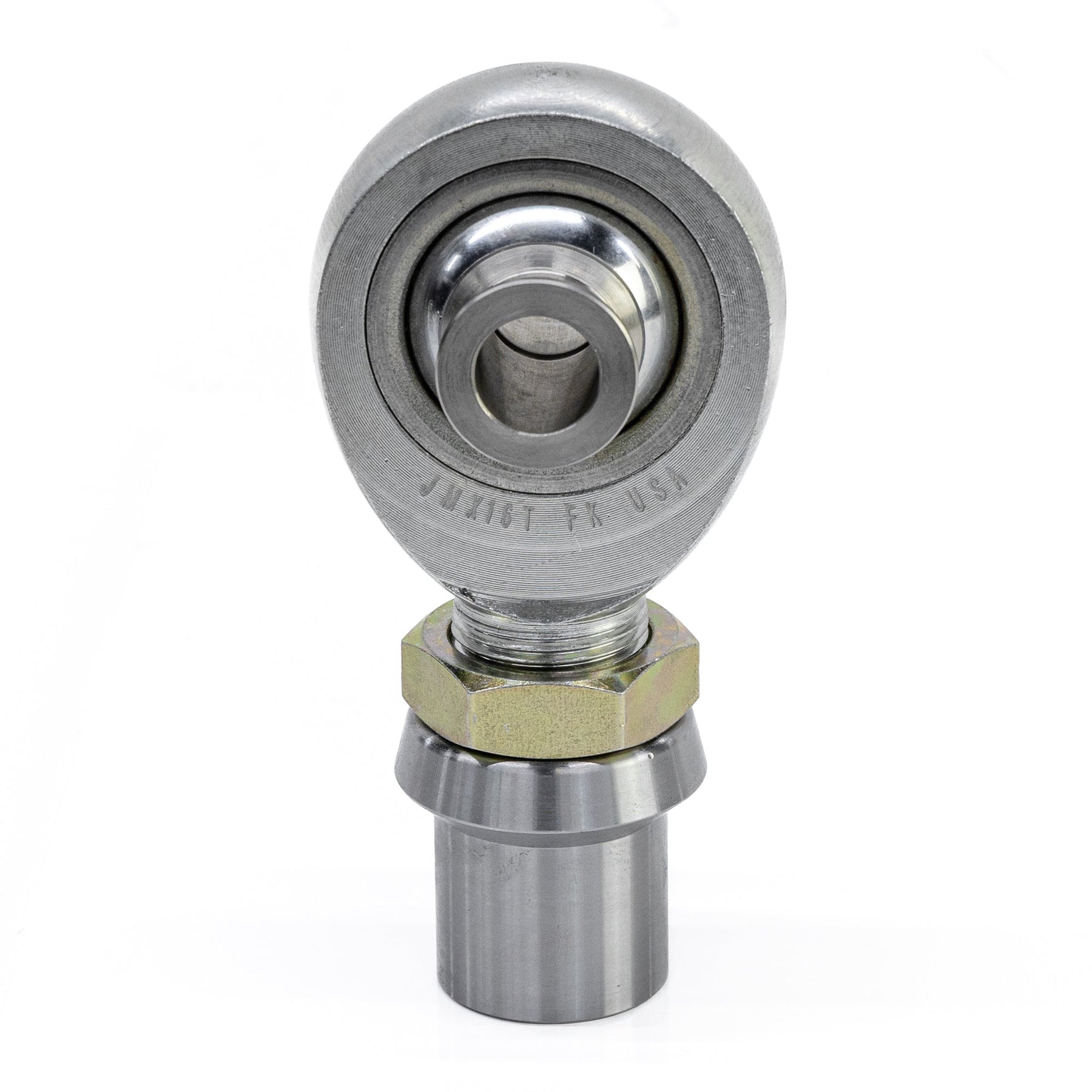

Name: 1-1/4” FK Rod End (Heim Joint) Package with Round Tube Adapter
Brand: TMR Customs
SKU: JMXL16T-F1 + 1411 + 1589 + 2 x 1401
Price: 137.99 USD
Availability: InStock

TMR Customs 1-1/4” FK Rod End (Heim Joint) Package with Round Tube Adapter JMXL16T-F1 + 1411 + 1589 + 2 x 1401

TMR Customs 1-1/4” FK Rod End (Heim Joint) Package with Round Tube Adapter

$137.99

Shipping calculated at checkout.

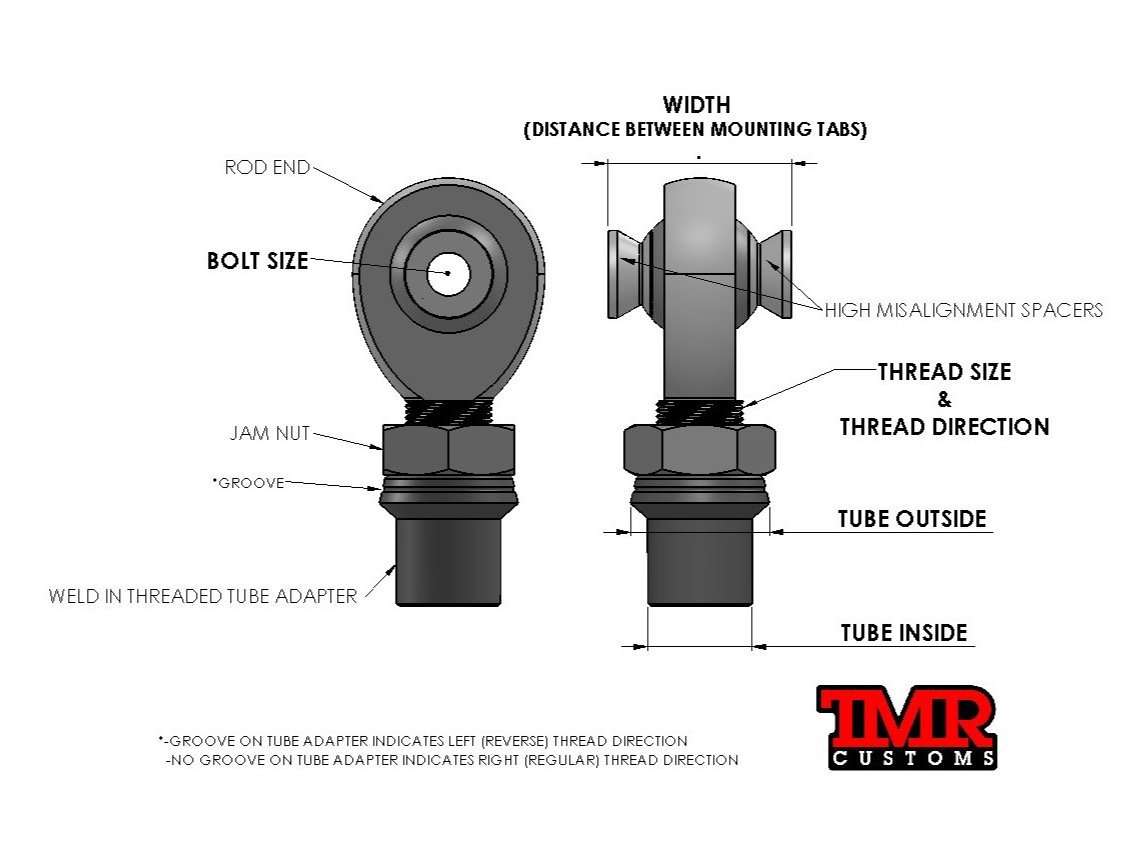

Thread Size & Thread Direction

1-1/4” - LEFT (REVERSE)

1-1/4” - RIGHT (REGULAR)

Bolt Size & Width (Distance Between Mounting Tabs)

9/16” BOLT - 2-5/8” WIDTH

5/8" BOLT - 2-5/8" WIDTH

3/4" BOLT - 2-5/8" WIDTH

5/8" BOLT - 3" WIDTH

3/4" BOLT - 3" WIDTH

Tube Size (To Fit Weld In Threaded Tube Adapter)

2” x 1/4” Wall (2” outside/1.5” inside)

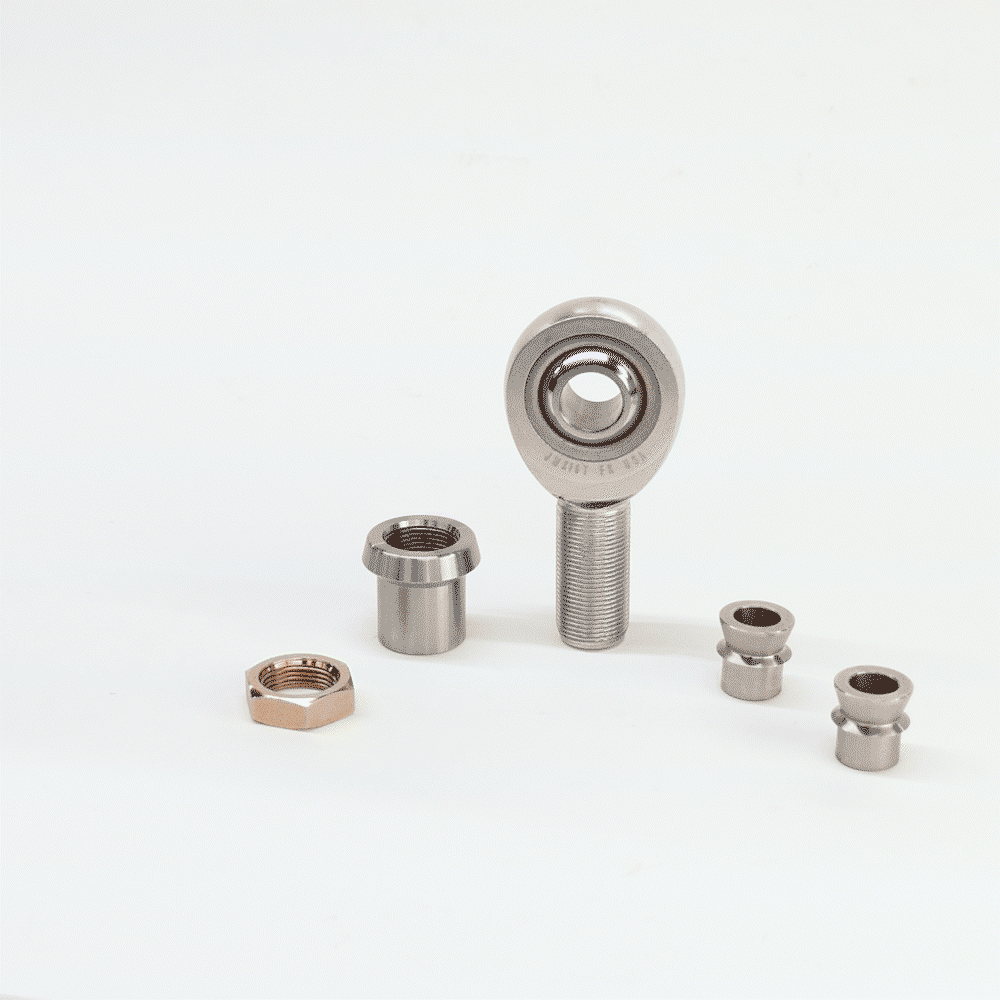

Includes the following:

• 1 x 1-1/4"-12 FK JMX Series rod end/heim joint
• 1 x jam nut
• 1 x weld in mild steel tube adapter (fits 1.5" inner diameter tubing)
• 2 x stainless steel high misalignment spacers

Please configure your rod end packages using the menu below.
