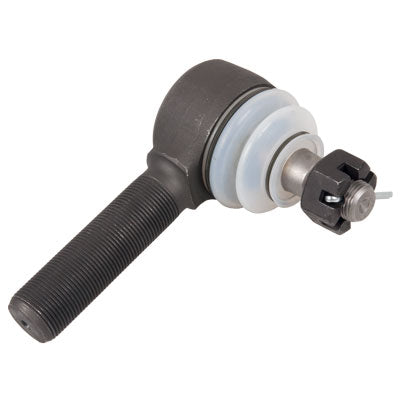

Ram HD Tie Rod End For Drag Link Metal On Metal 94-13 Dodge Ram 1500/2500/3500 LH Thread Shank Synergy MFG
4133-L
Synergy Dodge Drag Link Heavy Duty Metal-on-Metal Tie Rod End 1-14 LH Thread Shank
Fits:
- 06-08 Dodge Ram 1500 Mega Cab 4x4
- 94-13 Dodge Ram 2500 4x4
- 94-12 Dodge Ram 3500 4x4
Details:
- Synergy Dodge Heavy Duty Metal-on-Metal Tie Rod Ends
- Fully greasable sintered metal on metal bushing design has high wear resistance
- Specially designed grease grooves in the OD of the ball to allow for maximum lubrication
- Spring loaded bearing design keeps pressure on bearings and keeps the joint tight as it wears
- Forged bearing housing made from 1018 steel for a strong, smooth, bearing surface
- Tie Rod End stud made from 4140 steel with an induction heat treated bearing surface for smooth operation and maximum life
- Outperforms the factory and all other aftermarket style tie rod ends by offering: A larger shank with no stress riser (doesn't neck down at base), Elimination of the nylon ball race
- Boots are made from tear/wear resistant black NBR and come with retaining springs. 4133-L/4136-L only/4134-L does not include a dust boot/4134-L low misalignment boot available separately 4134-02
- Includes all necessary hardware for installation
- 1-14 UNF LH Thread
- Synergy High Performance Grease (4119) is the recommended grease for this product
- Fits: 94-13 Dodge Ram trucks with Synergy 8525 Steering
