Synergy Manufacturing 1.25" Hub Centric Wheel Spacers — 5x4.5 Lug Pattern | 1/2-20 UNF | Jeep YJ / TJ / XJ / ZJ | 4111-5-45-H

The Synergy Manufacturing Hub Centric Wheel Spacers (part number 4111-5-45-H) are precision CNC machined 1.25-inch billet spacers designed to increase wheel offset and add clearance behind the wheel. Additional clearance makes it easier to run larger tires or aftermarket high steer arms. These spacers also help restore caster angle after upgrading to larger tires. Sold as a pair.

Hub Centric Design: Hub centric spacers keep the spacer centered on the hub and prevent excessive load on the lug nuts — a critical advantage over non-hub-centric spacers that rely on lug nut tension alone for centering.

Construction: Precision CNC machined from billet 6061-T6 aluminum with red anodizing for corrosion resistance and longevity. High grade wheel studs and lug nuts are included.

Specifications:

• Width: 1.25"
• Lug Pattern: 5 x 4.5
• Wheel Stud Size: 1/2-20 UNF
• Weight: 6.44 lbs

Fitment:

• Jeep YJ, TJ, ZJ, XJ, Comanche, 2002–2004 Liberty
• Dodge 1987–1990 Dakota
• Dodge 1974–1984 Ram 1500 2WD
• Dodge 1974–1980 Ram 4WD without hubs

What's in the Box:

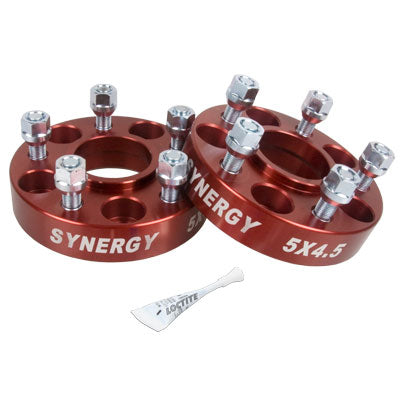

• (2) 1.25" hub centric billet wheel spacers
• (10) 1/2"-20 wheel studs with lug nuts
• (1) Blue Loctite thread locker

Part Number: 4111-5-45-H
