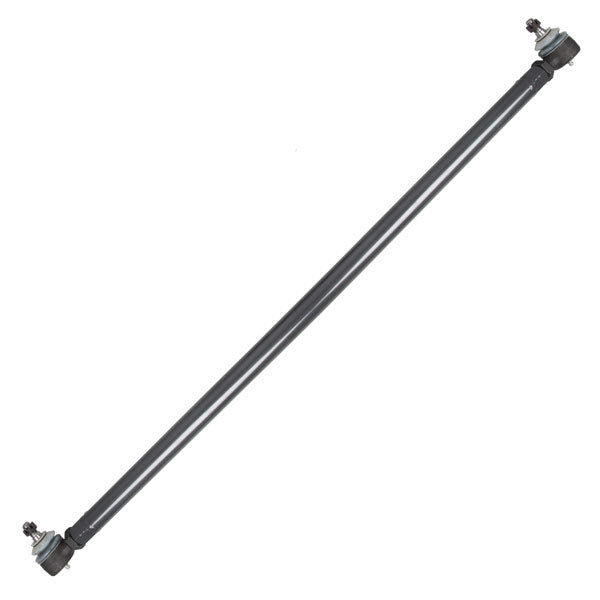

Synergy Jeep TJ/LJ/XJ/ZJ, MJ Heavy Duty Tie Rod made from 1-3/8 inch Heat Treated Chromoly with metal on metal tie rod ends with LH and RH opposing threads to allow adjustment without removing it from vehicle.
Fits:
- 1997-2006 Jeep Wrangler TJ
- 2004-2006 Jeep Wrangler LJ
- 1987-2001 Jeep Cherokee XJ
- 1993-1998 Jeep Grand Cherokee ZJ
- 1987-1992 Jeep Comanche MJ
Details:
- Tie Rod is made from 1-3/8 inch 4130 Chromoly and Heat Treated for maximum strength
- Comes with Synergy HD metal on metal tie rod ends, 4135-L and 4135-R
- Features LH and RH opposing threads to allow adjustment of tie rod length without removal from vehicle
- abrasion-resistant Powdercoat finish for maximum durability and corrosion resistance
- Designed to be used with 8121-02 Drag Link only
Wheel Back Spacing Requirements:
- 15 inch wheel - max 3.75 inch
- 16 inch wheel - max 4.00 inch
- 17 inch wheel - max 4.50 inch
Requirements:
- Minimum of 2 inch front bump stop spacers required
- Fits vehicles with 2-6 inch of lift
- 2-4 inch of Lift must use stock pitman arm
- 4.5 inch-6 inch of Lift must use drop pitman arm
