X Factor pairs the Adventure X 4 link front end with a different rear: mini spring packs that turn the stock leaf springs into better off-road performing ones. On a 2013-present Ram 3500 HD that means a smoother ride and more capability than blocks alone, in exchange for a small loss in payload. It lifts 3.5 inches and fits 37 inch tires.

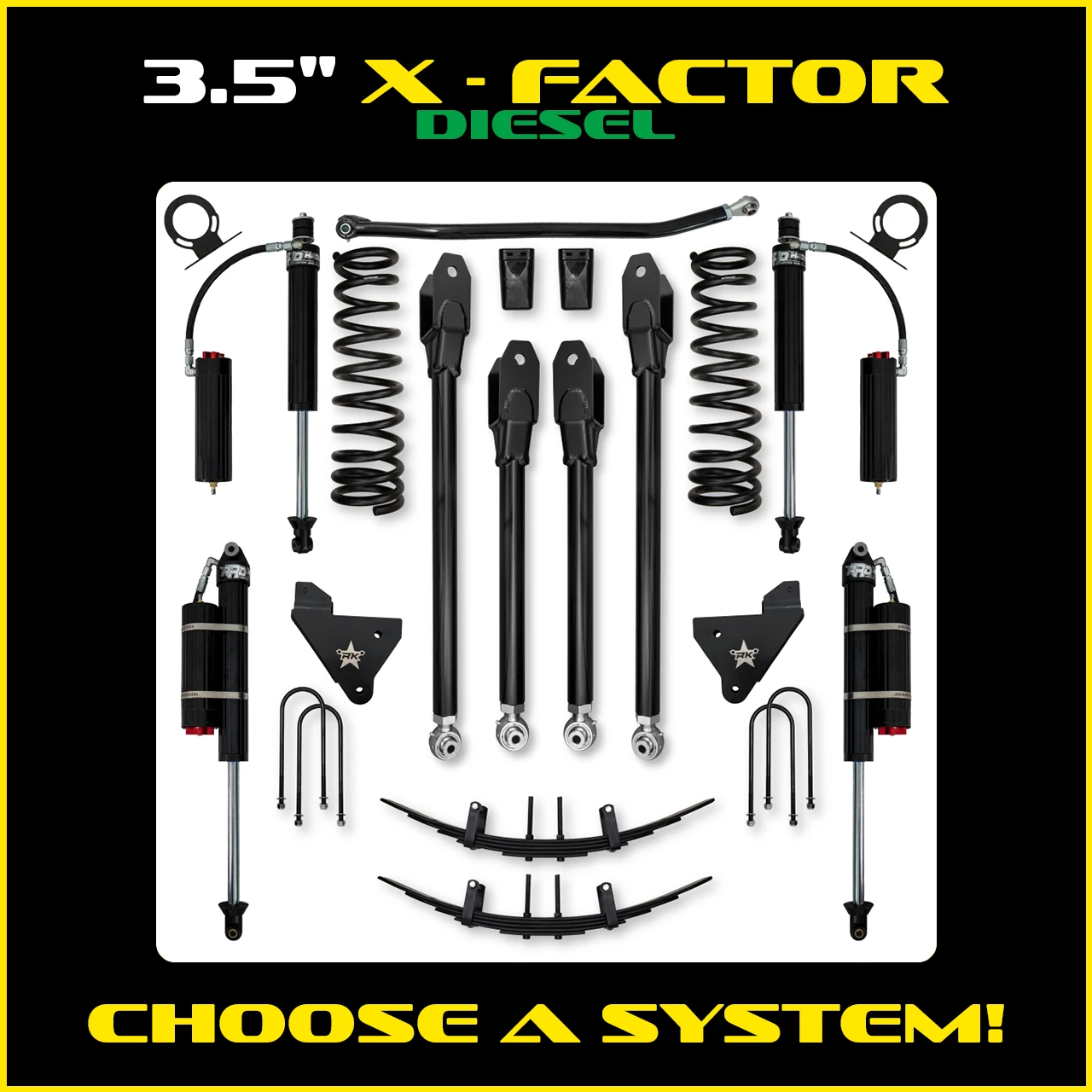

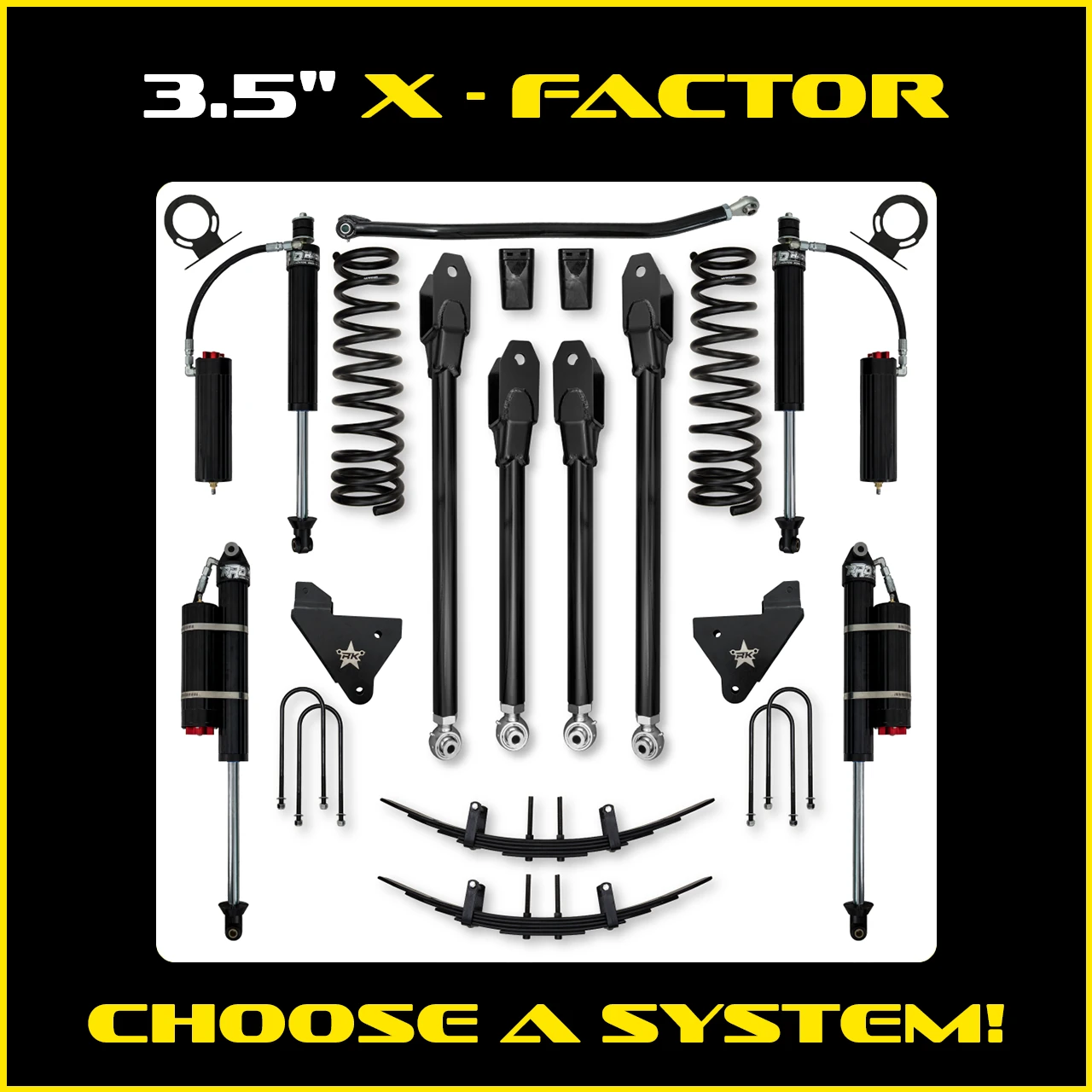

What's in the kit
- (1) HD adjustable front track bar made from 1.5 inch O.D. solid chromoly steel, with an adjustable, rebuildable anti-wobble joint at the frame and a custom 1 inch shank FK rod end at the axle
- (2) sport tuned multi-rate coil springs
- (4) heavy duty adjustable 4 link front control arms made from 2 inch solid alloy steel with heavy duty forks
- (2) fabricated 4 link brackets with skids, laser cut from 1/4 inch steel
- (2) mini spring packs
- (4) U-bolts
Shocks are the choice you make under Pick your package. Rock Krawler lists four shocks as part of the system when they are configured.
Why this system
- Mini pack rear lift. Rock Krawler says they turn your OEM leaf springs into true off-road performing leaf springs.
- 4 link front conversion with adjustable arms, for smoother highway ride and better articulation.
- Multi-rate front coils with an adjustable front track bar.
- Payload drops about 10 to 15 percent, depending on the truck. Rock Krawler says you can add air bags to get back to stock capacity or more.
- Room for 37 x 13.5 inch tires. Rock Krawler sizes this system for 37 inch tall tires.
- Complete bolt-in system with the geometry corrections you need already in the box.
- Lifetime warranty coverage on the system, per Rock Krawler.
Pick your package
Same coils, 4 link and mini packs in every box. Package only picks the shocks.
- Base System: Coils, 4 link arms and brackets, track bar, mini spring packs and U-bolts. No shocks come in the box.
- Bilstein 5100 Shocks: Bilstein 5100 shocks for all four corners. Rock Krawler calls them a great pairing with its multi-rate coil springs, and they are maintenance free.
- 2.625 RR Shocks: Four RRD 2.625 inch remote reservoir shocks built by Rock Krawler. The body and reservoir are fluted, military-grade hard anodized aluminum, the shaft is 1 inch 17-4 PH stainless, and the shock is serviceable, rebuildable and revalveable.
- Fast CD Adjusters: The same RRD 2.625 inch remote reservoir shocks with Fast CD adjusters and 3.25 inch reservoirs. The adjuster lets you change compression damping in seconds, up to 30 percent more with infinite settings, so you can tune for empty, loaded or towing.
Configuration is the engine, Diesel or Gas. Rock Krawler does not list a rear air ride version of the X Factor.
Fitment and what else you'll need
Fits the 2013-present Ram 3500 HD 4x4, diesel or gas. Rock Krawler notes the OEM payload capacity is reduced by 10 to 15 percent depending on the factory leaf spring configuration, and that air bags can bring it back to stock or higher. Tire size listed is 37 x 13.5 inch.
Rock Krawler lists a 3 to 4 week lead time on 2.625 inch RRD shocks and coilovers, counted in business days from the order date.
Rock Krawler lists lifetime warranty coverage on this system. Its warranty page covers hard parts such as control arms, track bars and mounting brackets for life, joint housings for 10 years and coil springs for 5 years against fracture. Shocks, joints and other wear items carry shorter terms, and the full terms are on Rock Krawler's warranty page.
