Adventure X Pro Elite on the 2014-present Ram 2500 HD gives you the 4 link front end with PB+J (Pure Beef and Jealousy) billet aluminum arms. They are machined from 2 x 3 inch 7075 aluminum, and they are the dressed-up, stronger-looking answer to the steel arms in the regular Adventure X. You get 3.5 inches of lift, quad-rate rear coils on coil-spring trucks, and room for 37 inch tires.

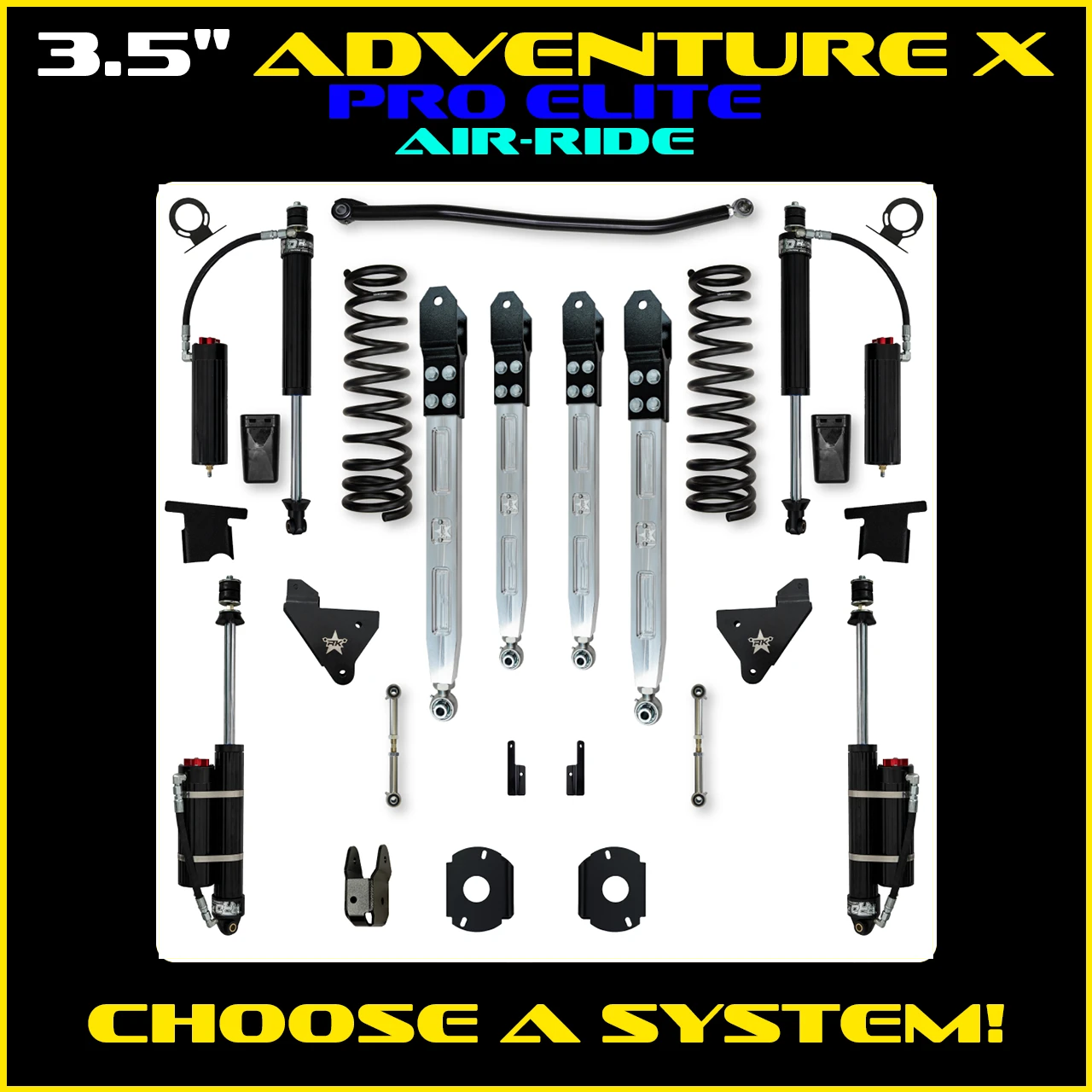

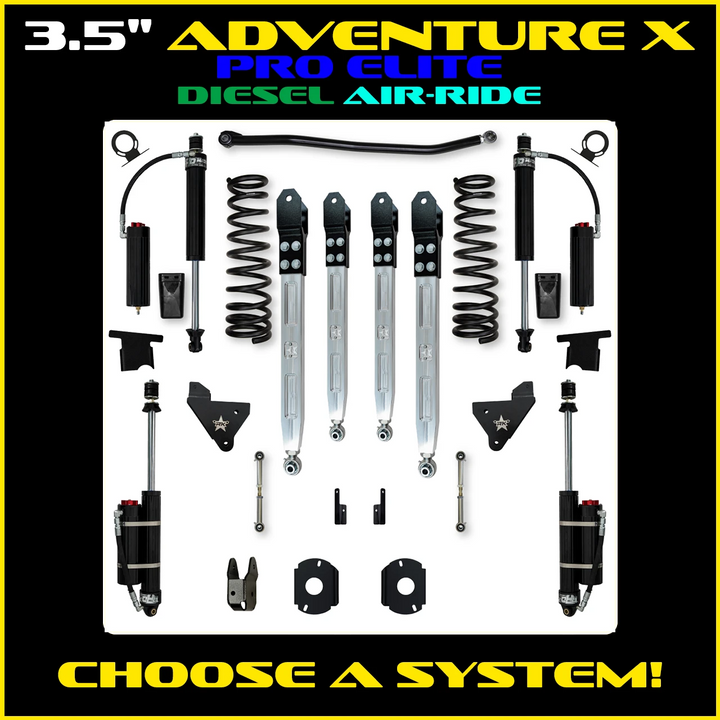

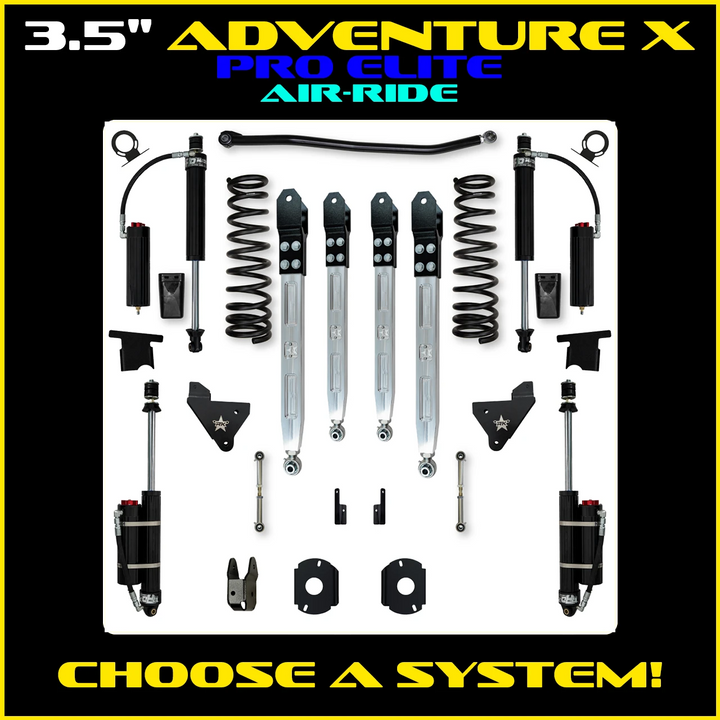

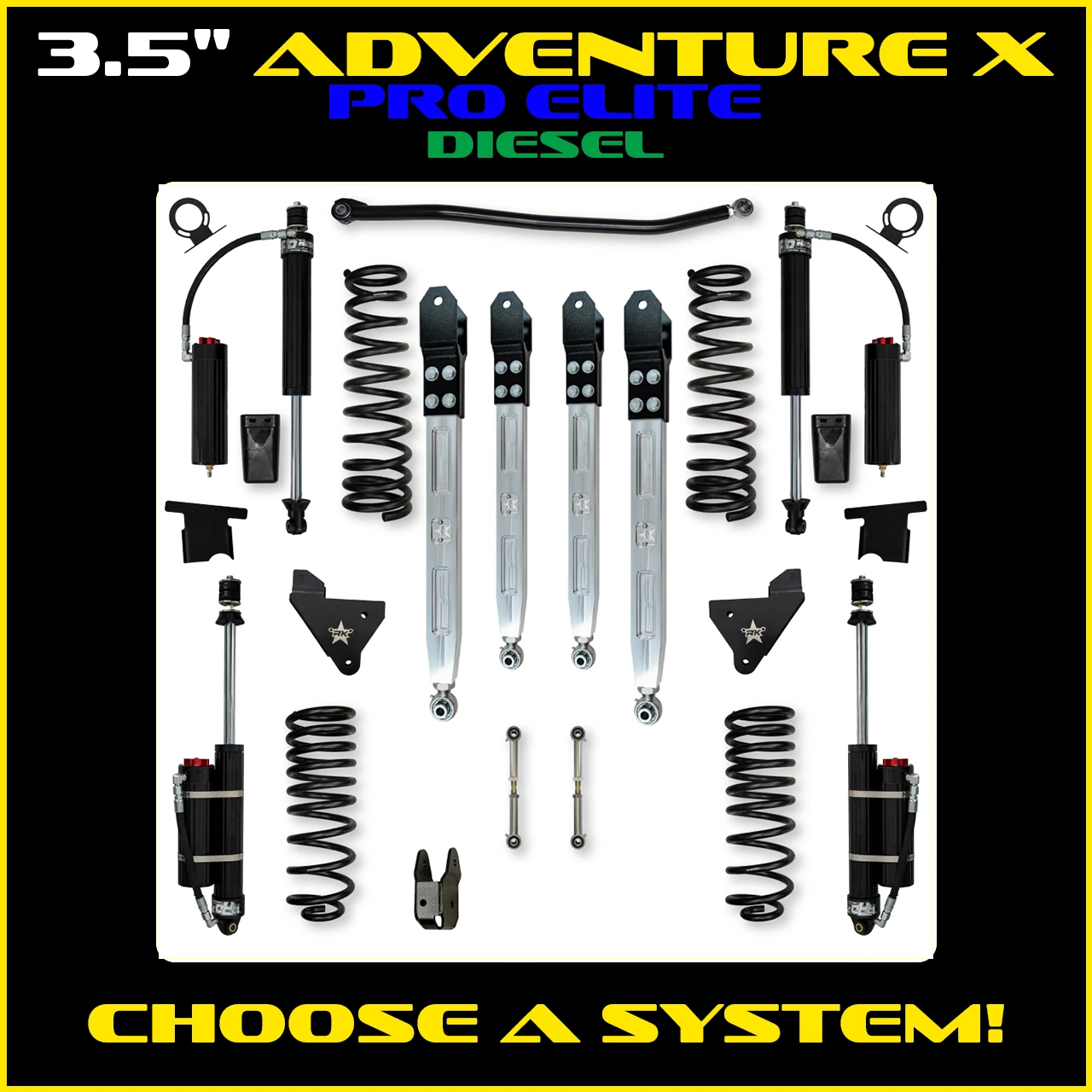

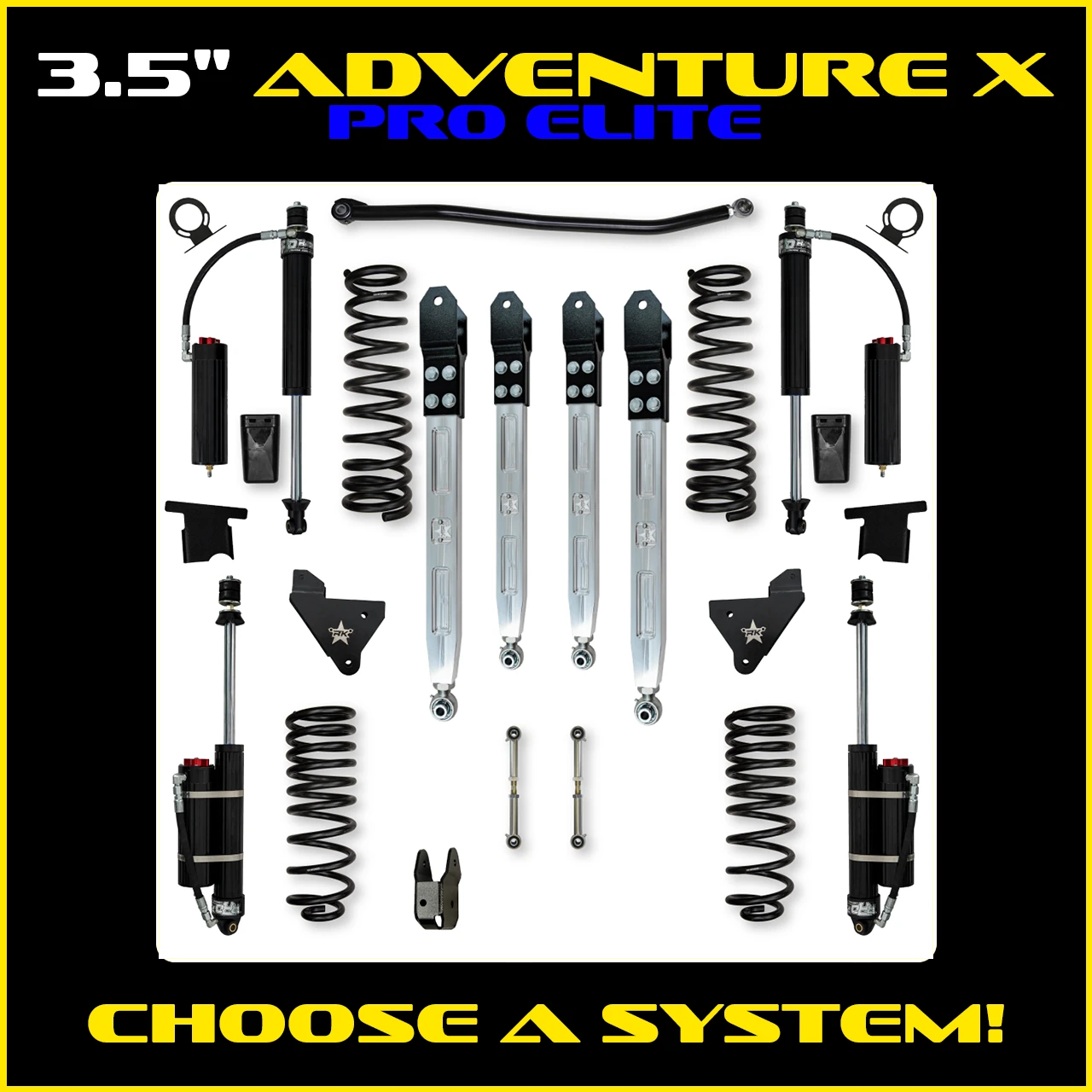

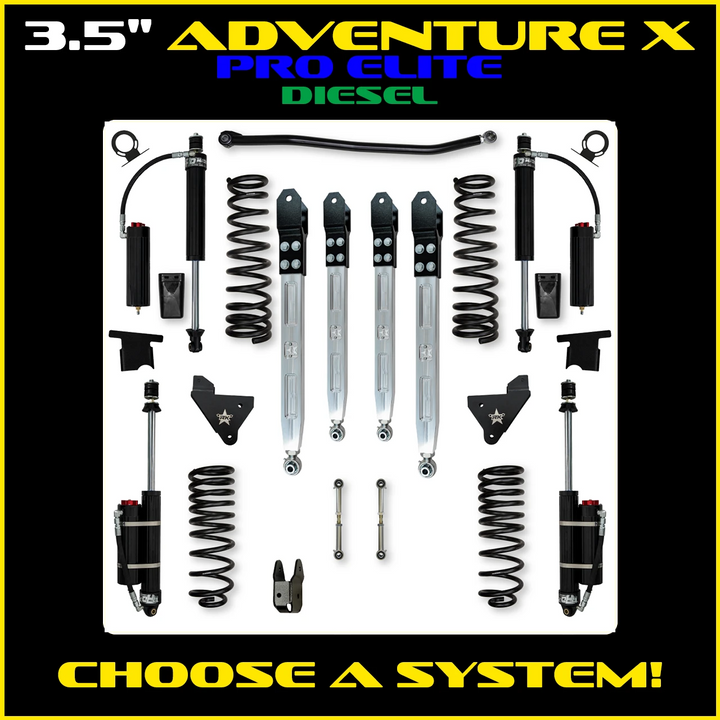

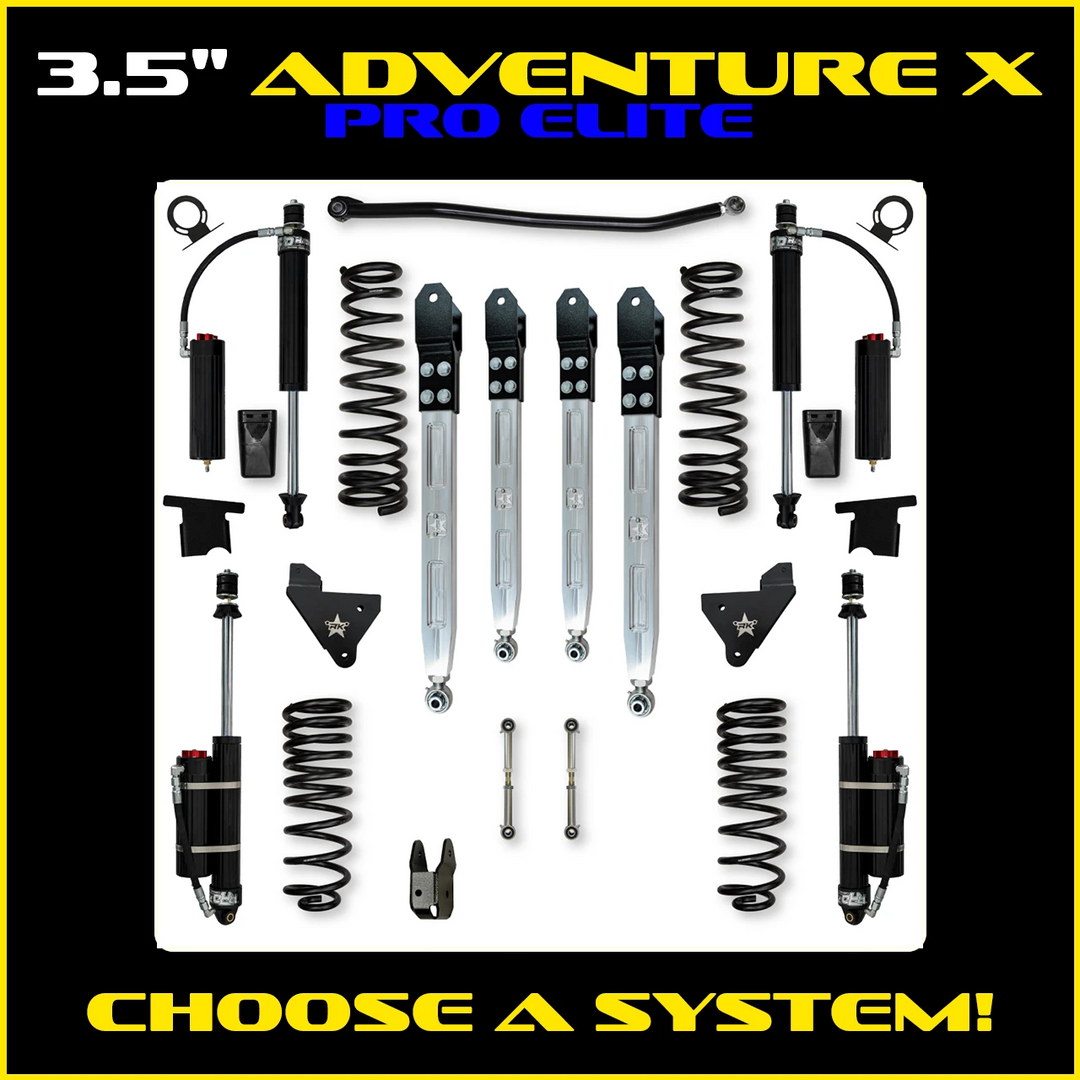

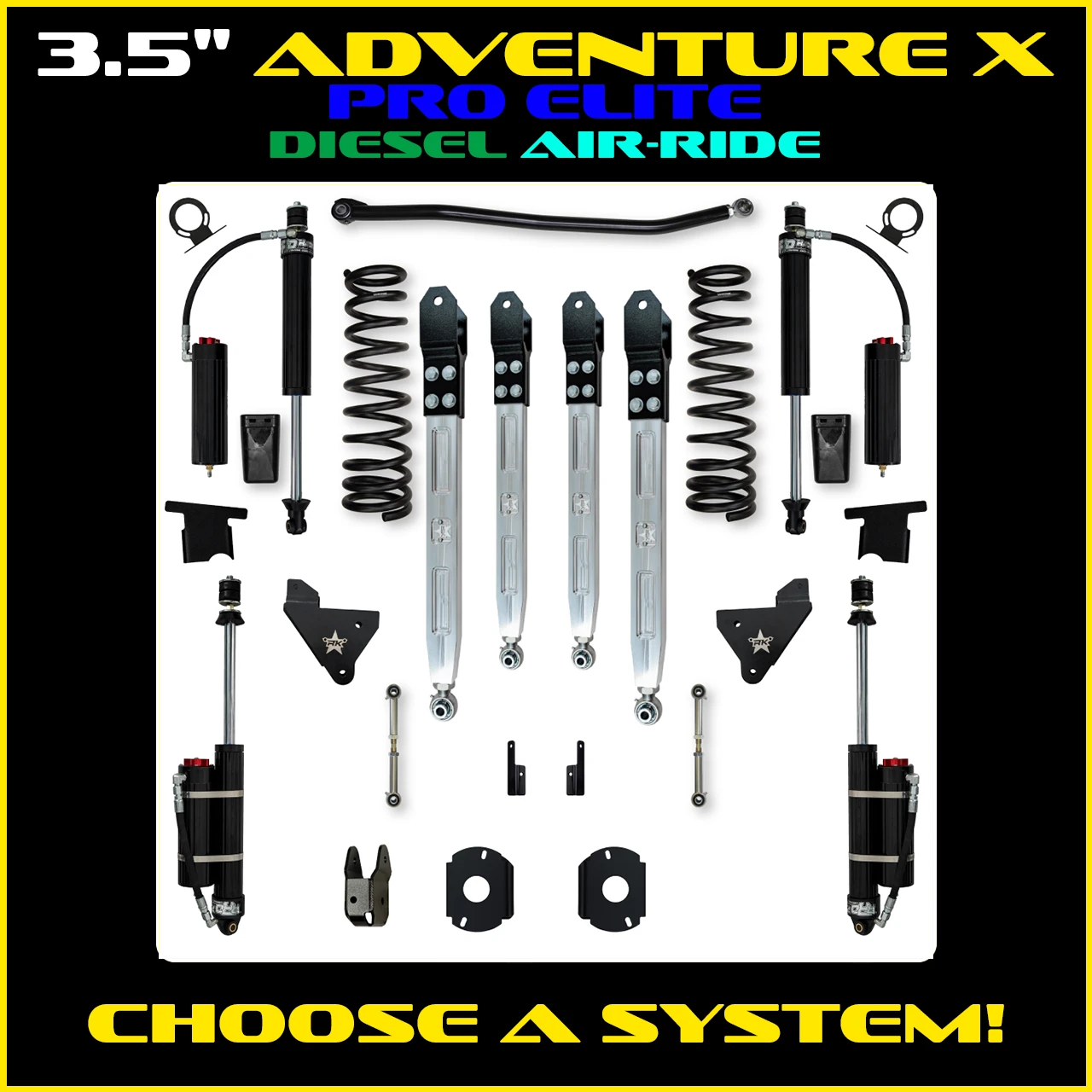

What's in the kit
- (1) HD adjustable front track bar made from 1.5 inch O.D. solid chromoly steel, with an adjustable, rebuildable anti-wobble joint at the frame and a custom 1 inch shank FK rod end at the axle
- (2) sport tuned multi-rate front coil springs
- (2) sport tuned rear quad-rate coil springs
- (4) heavy duty adjustable 4 link front control arms billet machined from 2 x 3 inch 7075 aluminum with heavy duty forks
- (2) fabricated 4 link brackets with skids, laser cut from 1/4 inch steel
- (1) heavy duty rear track bar relocation bracket
- (2) adjustable rear sway bar end links
Air ride trucks swap the rear coils for (2) heavy duty fabricated air bag riser plates. The rear track bar bracket and sway bar end links are in both versions.
Why this system
- PB+J billet arms machined from 2 x 3 inch 7075 aluminum.
- 4 link front conversion for better axle control and smoother articulation.
- Front multi-rate and rear quad-rate coils tuned for the 2500.
- Heavy duty rear track bar bracket and adjustable rear sway bar end links are part of the kit.
- Raw aluminum finish. Rock Krawler recommends a finish or clear coat so the arms do not oxidize.
- Room for 37 x 13.5 inch tires, the size Rock Krawler lists for this kit.
- Complete bolt-in system.
- Lifetime warranty coverage, per Rock Krawler.
Pick your package
Package is only the shocks. The suspension is identical in each box.
- Base System: Coils, billet 4 link arms and brackets, front and rear track bar hardware and sway bar end links. No shocks come in the box.
- Bilstein 5100 Shocks: Bilstein 5100 shocks for all four corners. Rock Krawler calls them a great pairing with its multi-rate coil springs, and they are maintenance free.
- 2.625 RR Shocks: Four RRD 2.625 inch remote reservoir shocks built by Rock Krawler. The body and reservoir are fluted, military-grade hard anodized aluminum, the shaft is 1 inch 17-4 PH stainless, and the shock is serviceable, rebuildable and revalveable.
- Fast CD Adjusters: The same RRD 2.625 inch remote reservoir shocks with Fast CD adjusters and 3.25 inch reservoirs. The adjuster lets you change compression damping in seconds, up to 30 percent more with infinite settings, so you can tune for empty, loaded or towing.
Configuration tells us which truck you have. Diesel and Gas are the engine, and the Rear Air Ride choices are for trucks that left the factory with rear air ride, so the air bags keep working after the lift.
Fitment and what else you'll need
Fits the 2014-present Ram 2500 HD 4x4, diesel or gas, with or without factory rear air ride. The billet PB+J arms are raw aluminum, and Rock Krawler recommends adding a finish or clear coat. Tire size listed: 37 x 13.5 inch.
Rock Krawler lists a 3 to 4 week lead time on 2.625 inch RRD shocks and coilovers, counted in business days from the order date.
Rock Krawler lists lifetime warranty coverage on this system. Its warranty page covers hard parts such as control arms, track bars and mounting brackets for life, joint housings for 10 years and coil springs for 5 years against fracture. Shocks, joints and other wear items carry shorter terms, and the full terms are on Rock Krawler's warranty page.
