Pro Elite keeps everything good about the Adventure X 4 link and swaps the steel arms for PB+J (Pure Beef and Jealousy) arms, machined from 2 x 3 inch billet 7075 aluminum. If you want the same 4 link ride and billet arms under the truck, this is the Ram 3500 HD kit. It lifts 3.5 inches, fits 37 inch tires and holds on to factory towing and payload capacity.

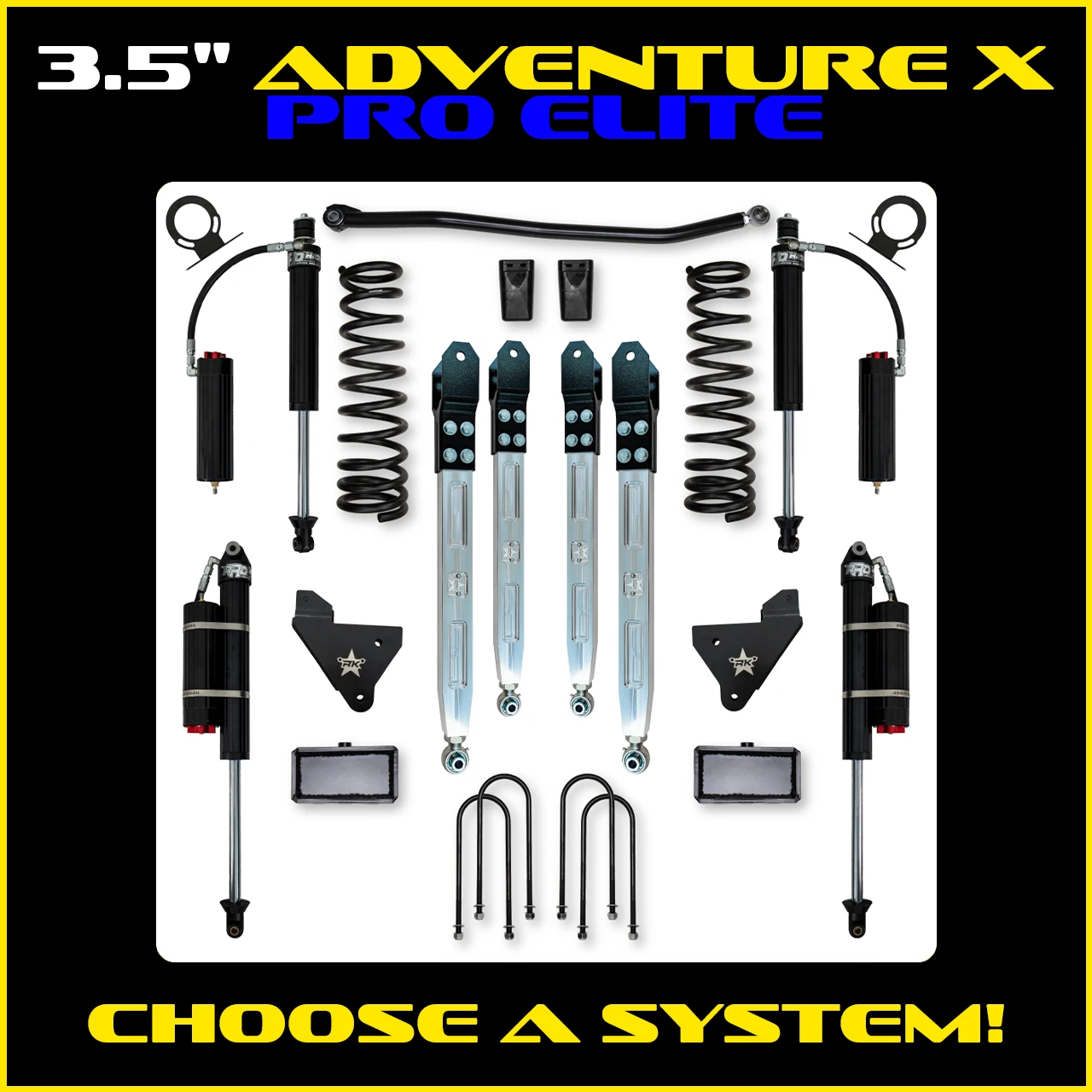

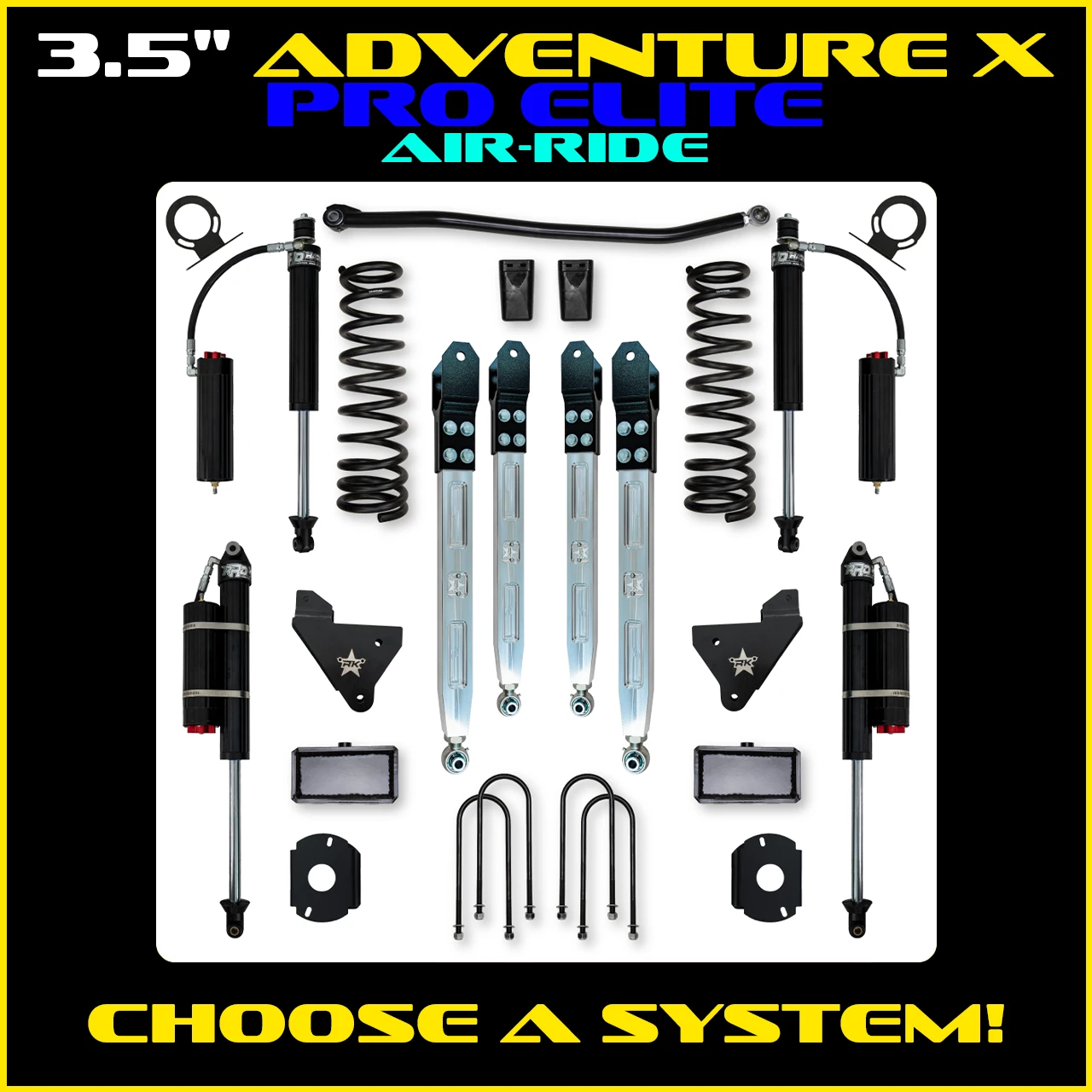

What's in the kit
- (1) HD adjustable front track bar made from 1.5 inch O.D. solid chromoly steel, with an adjustable, rebuildable anti-wobble joint at the frame and a custom 1 inch shank FK rod end at the axle
- (2) sport tuned multi-rate coil springs
- (4) heavy duty adjustable 4 link front control arms billet machined from 2 x 3 inch 7075 aluminum with heavy duty forks
- (2) fabricated 4 link brackets with skids, laser cut from 1/4 inch steel
- (2) fabricated lift blocks
- (4) U-bolts
Shocks are the choice you make under Pick your package. Rock Krawler lists four shocks as part of the system when they are configured.
Why this system
- PB+J billet 4 link arms. Machined from 2 x 3 inch 7075 aluminum, Rock Krawler describes them as amazingly strong with an awesome look.
- 4 link front conversion for smoother highway ride and better off-road articulation than radius arms.
- Multi-rate front coils in the sport tuned Rock Krawler rates.
- Heavy duty adjustable track bar to recenter the front axle.
- Towing and payload stay at OEM levels.
- Room for 37 x 13.5 inch tires. Rock Krawler sizes this system for 37 inch tall tires.
- Complete bolt-in system with the geometry corrections you need already in the box.
- Lifetime warranty coverage on the system, per Rock Krawler.
Pick your package
The kit is the same in every box, so Package is only about shocks.
- Base System: Coils, billet 4 link arms and brackets, track bar, lift blocks and U-bolts. No shocks come in the box.
- Bilstein 5100 Shocks: Bilstein 5100 shocks for all four corners. Rock Krawler calls them a great pairing with its multi-rate coil springs, and they are maintenance free.
- 2.625 RR Shocks: Four RRD 2.625 inch remote reservoir shocks built by Rock Krawler. The body and reservoir are fluted, military-grade hard anodized aluminum, the shaft is 1 inch 17-4 PH stainless, and the shock is serviceable, rebuildable and revalveable.
- Fast CD Adjusters: The same RRD 2.625 inch remote reservoir shocks with Fast CD adjusters and 3.25 inch reservoirs. The adjuster lets you change compression damping in seconds, up to 30 percent more with infinite settings, so you can tune for empty, loaded or towing.

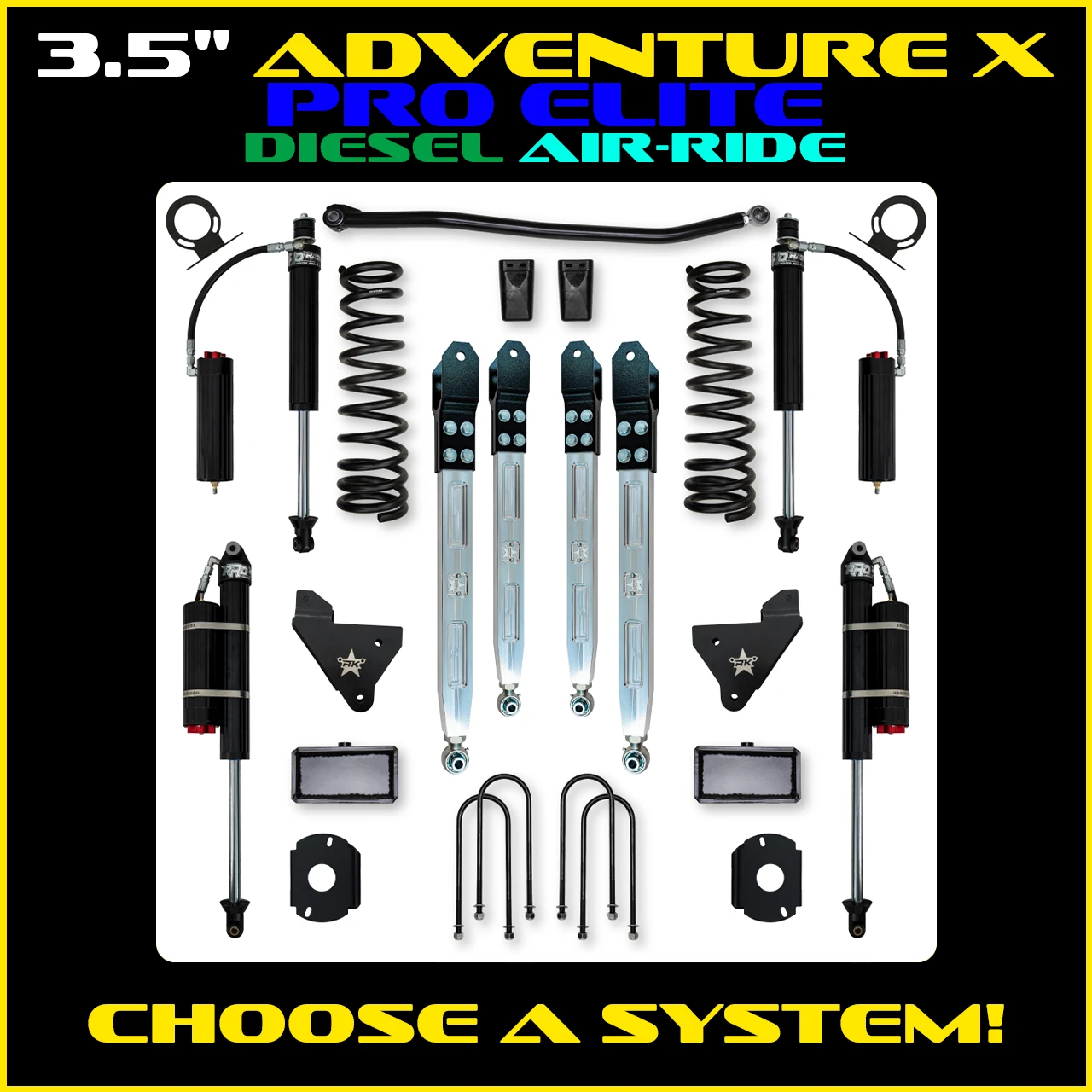

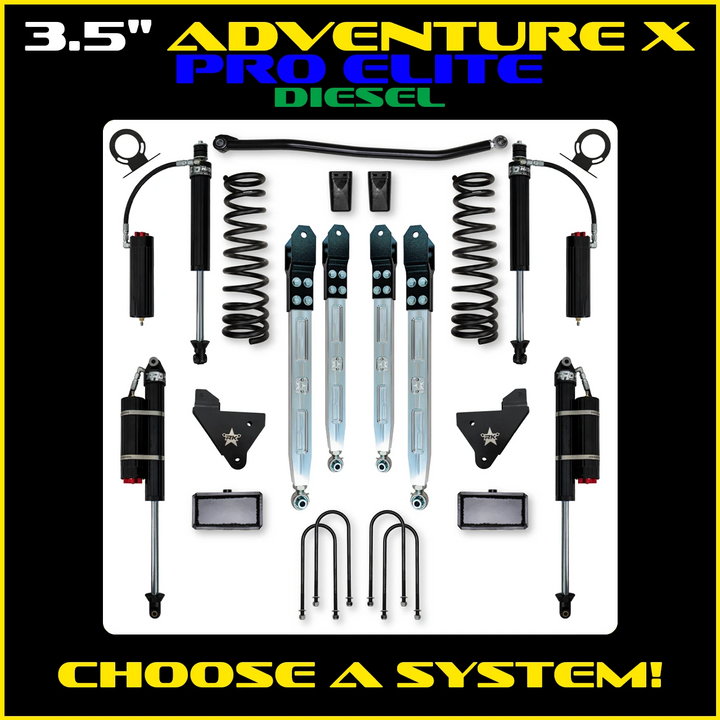

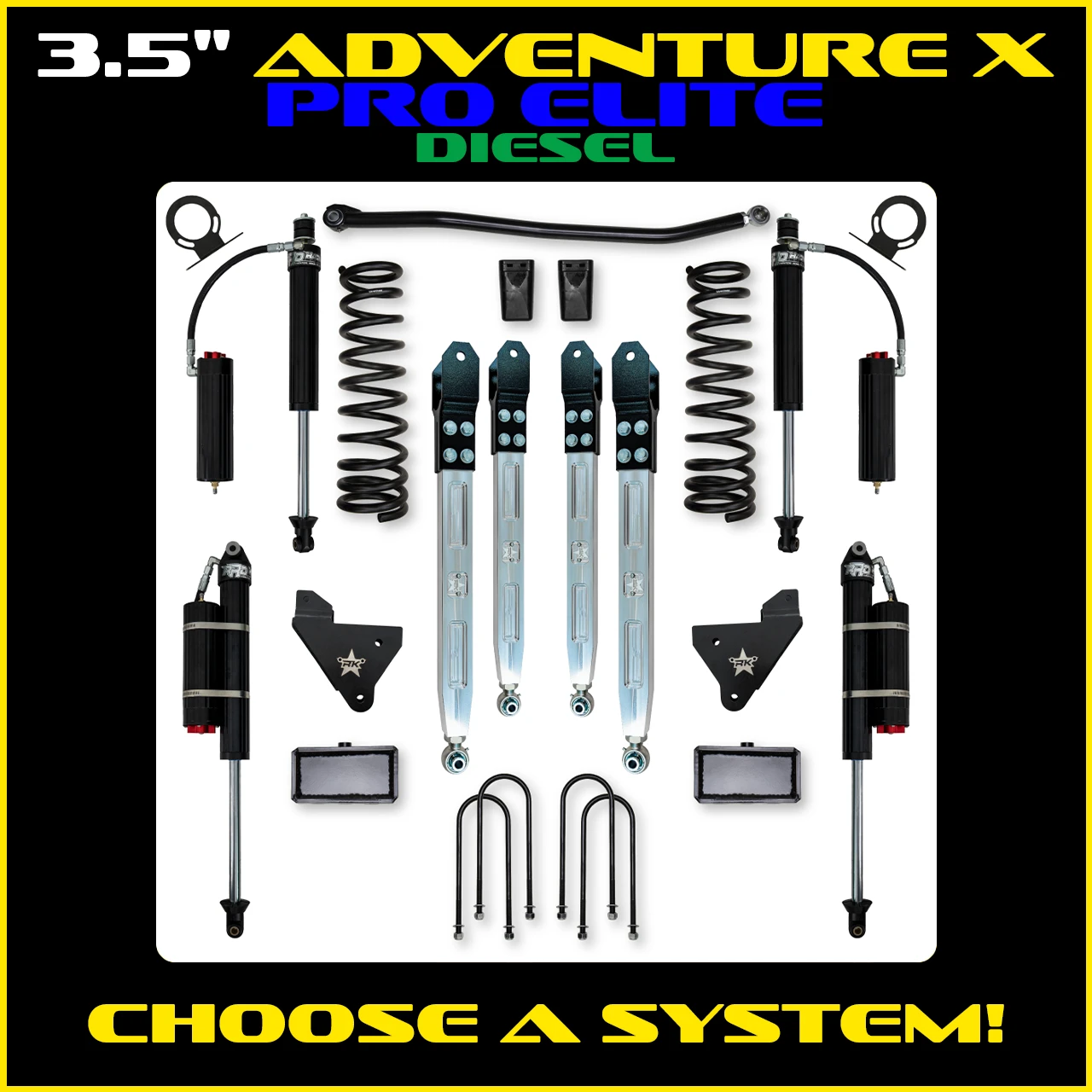

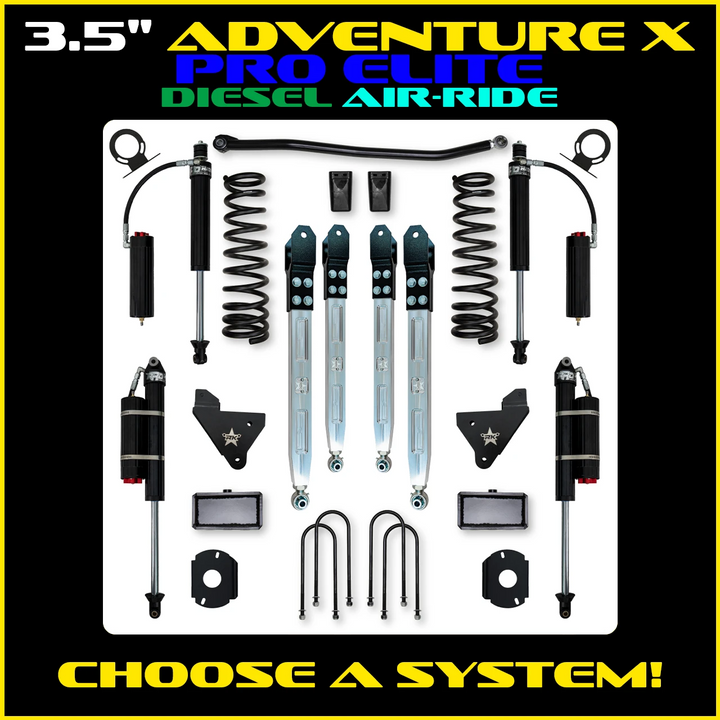

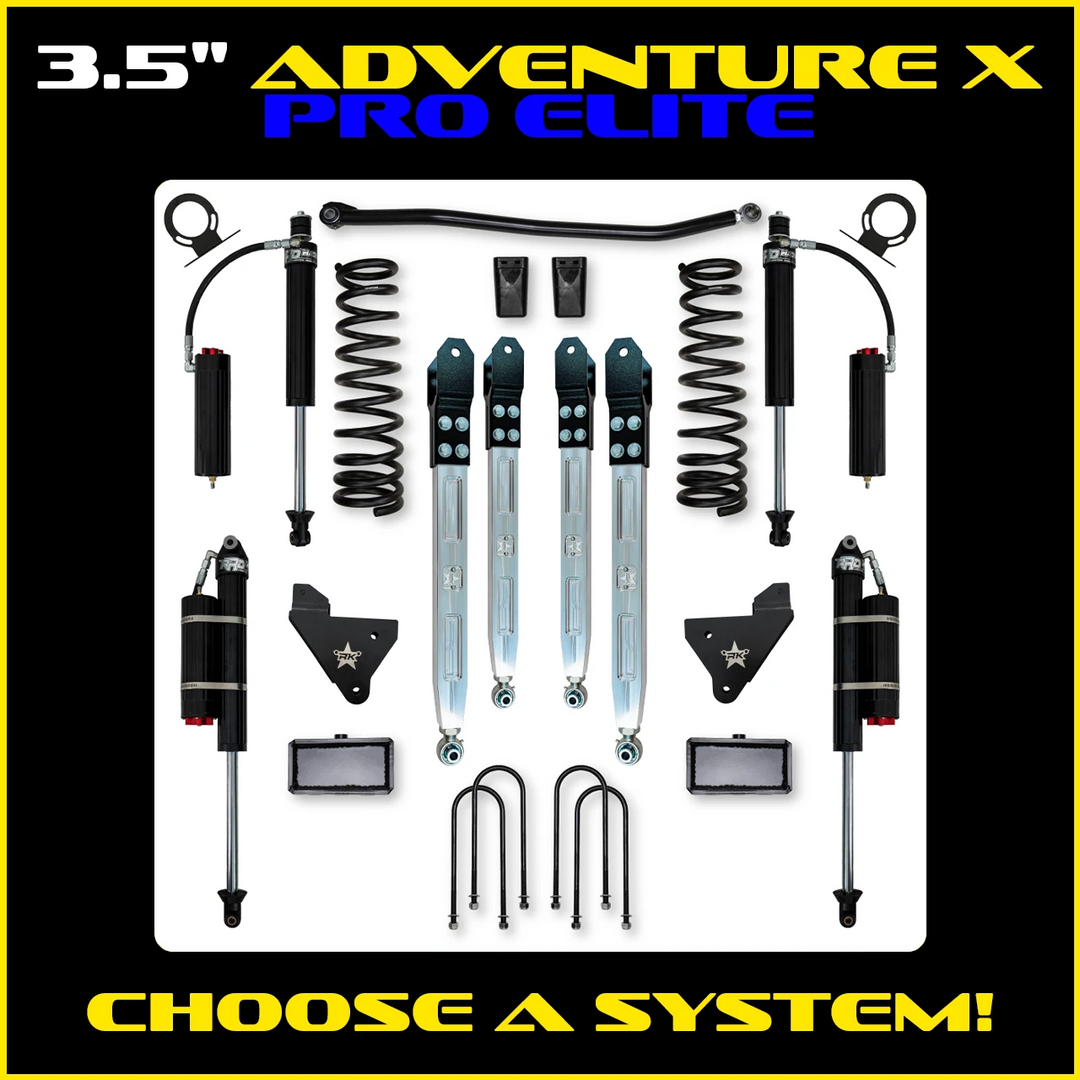

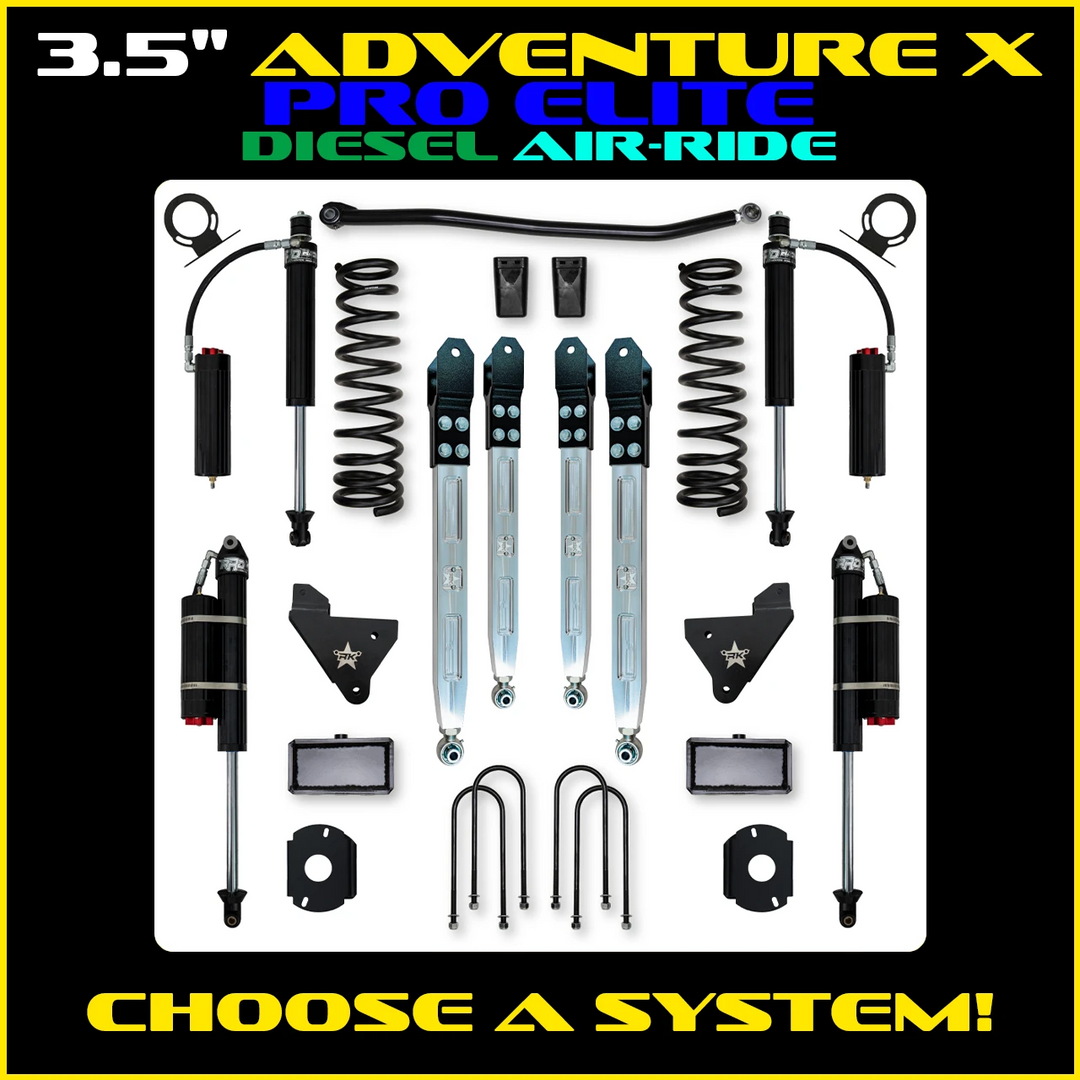

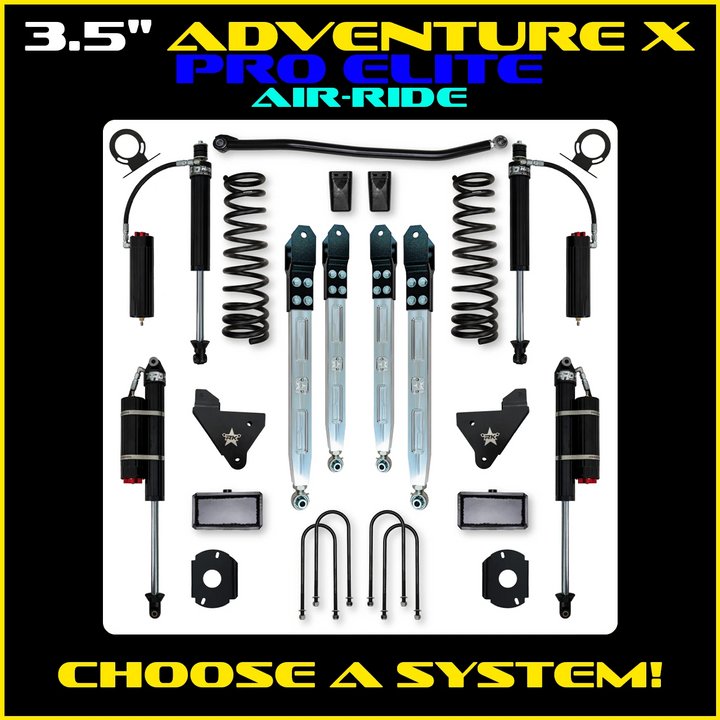

Configuration tells us which truck you have. Diesel and Gas are the engine, and the Rear Air Ride choices are for trucks that left the factory with rear air ride, so the air bags keep working after the lift. The billet arms are raw aluminum. Rock Krawler recommends adding a finish or clear coat to keep them from oxidizing.
Fitment and what else you'll need
Fits the 2013-present Ram 3500 HD 4x4 in diesel or gas, with or without factory rear air ride. The PB+J arms are raw billet aluminum, and Rock Krawler recommends some kind of finish or clear coat so they do not oxidize. Tire size listed is 37 x 13.5 inch.
Rock Krawler lists a 3 to 4 week lead time on 2.625 inch RRD shocks and coilovers, counted in business days from the order date.
Rock Krawler lists lifetime warranty coverage on this system. Its warranty page covers hard parts such as control arms, track bars and mounting brackets for life, joint housings for 10 years and coil springs for 5 years against fracture. Shocks, joints and other wear items carry shorter terms, and the full terms are on Rock Krawler's warranty page.
