This is the gentle one. 1.5 inches of lift on triple-rate coils, with the geometry fixes a plain spacer lift skips and a street ride that is meant to beat the factory springs. Rock Krawler says it clears up to 38 inch tires depending on the model, and it keeps 0.5 inch of the factory rake. It bolts in, and the lower arms use the same service-free Adventure Series joints as the bigger systems.

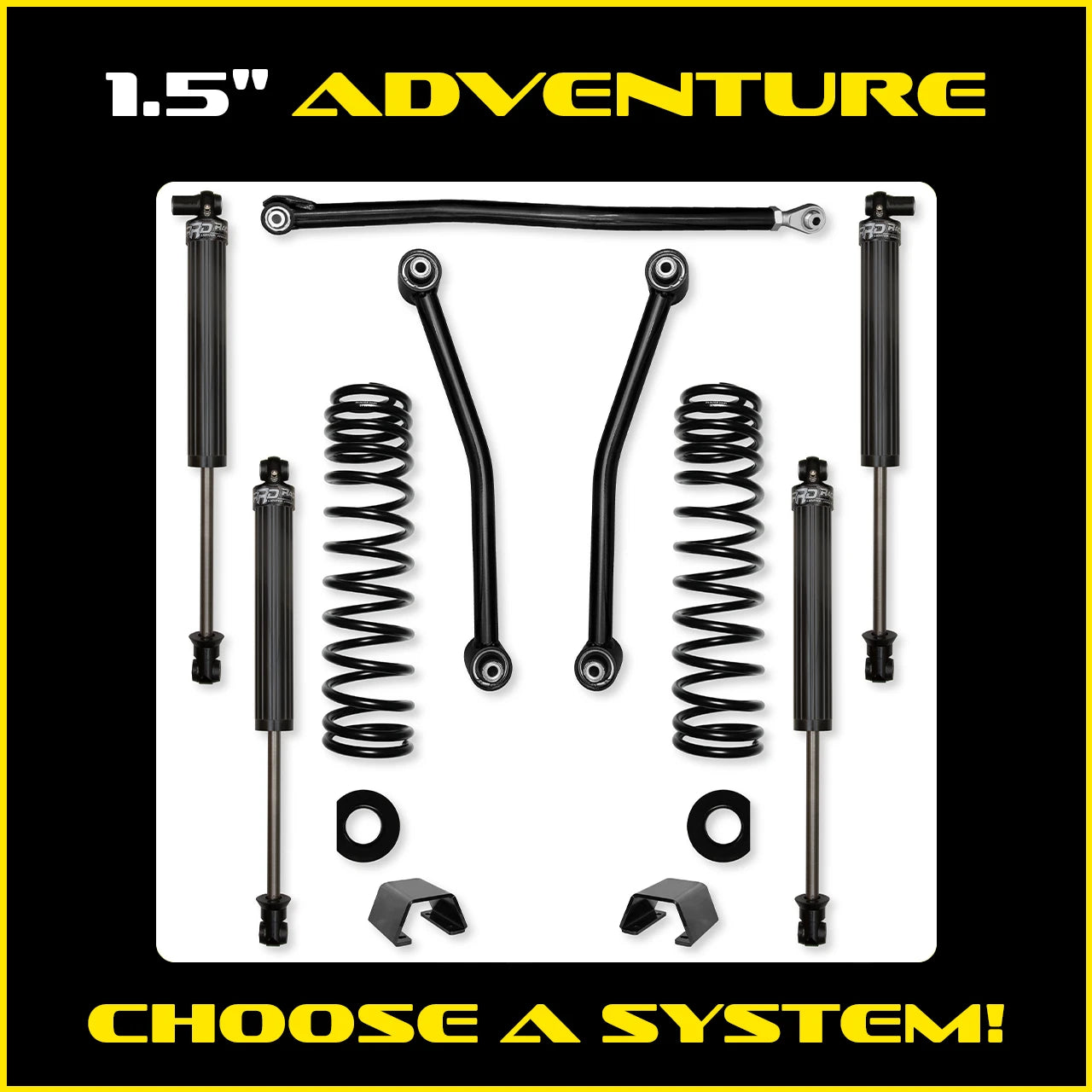

What's in the kit
- (2) Triple rate coil springs
- (2) Front lower control arms
- (2) Front spring pads
- (1) Adjustable front track bar
Shocks depend on the package you pick below. Bump stops come with every shock package; if you go with no shocks they are ordered separately (Rock Krawler part RK07464).
Why this system
- 1.5 inches of lift with clearance for up to 38 inch tires, depending on the model, per Rock Krawler.
- Keeps 0.5 inch of the factory rake.
- Triple-rate front coils and quad-rate rear coils, tuned for the Gladiator. Rock Krawler says they ride better than the factory springs on the street, and they have the free length to stay seated and flex off-road.
- Coil spring correction seats take out the spring bow built into the factory setup and correct vehicle lean, so the Jeep sits level on all four corners.
- An adjustable front track bar centers the front axle at the new ride height, so there is no compromise in handling.
- Service-free Adventure Series joints in the lower control arms. Rock Krawler quotes 70 degrees of total misalignment when they are paired at the frame and axle ends, which greatly reduces the bind of the factory JT lowers.
- Rock Krawler lists this kit as upgradable to its long arm system.
- Lifetime warranty coverage, as listed by Rock Krawler.
Pick your package
- Base System (No Shocks). The kit as listed above with no shocks, for the builder who already has shocks picked out. Bump stops come with every shock package; if you go with no shocks they are ordered separately (Rock Krawler part RK07464).
- Bilstein 5100 Shocks. The kit plus a set of Bilstein 5100 shocks. Rock Krawler calls them maintenance free and a great pairing with its multi-rate coil springs. Rock Krawler's Bilstein package number for the 1.5 inch lift is RRD04055-B51.
- Stage 1 (RRD 2.25 IFP Shocks). Rock Krawler's in-house shock: a 2.25 inch O.D. military grade hard anodized fluted aluminum body with the cooling surface area of a 2.5 inch shock, a 3/4 inch 17-4 PH stainless steel hard chrome plated and polished shaft, a billet aluminum valve circuit, dual DU shaft bearings and double redundant sealing. Serviceable, rebuildable and revalveable.
Fitment and what else you'll need
Fits the 2020 and newer Jeep Gladiator JT (4-door) in Sport, Overland, High Altitude, Mojave and Rubicon trims. Listed for the 3.6L Pentastar V6 gas Gladiator.
Rock Krawler bases its lift heights on Rubicon models in a standard build (front bumper and winch, rear bumper and full-size spare). If you delete the spare, drop 1 inch of rear coil lift height; for an overland style or heavily up-fitted rear end, go up 1 inch.
- Sport and Overland wheel fitment recommendations: 37/38 inch tall tires - recommend 3.5 inches of back spacing
- Mojave fitment recommendations: 37 inch tall tires - recommend 4.5 inches of back spacing; 40 inch tall tires - recommend 3.5 inches of back spacing
- Sport and Overland with full OEM fenders: 37 inch tall tires (3 inch bump stop height recommended)
- Sport and Overland with trimmed or high lined OEM fenders: 38 inch tall tires (3 inch bump stop height recommended)
- Mojave with full OEM fenders: 37/38 inch tall tires (3 inch bump stop height recommended)
- Mojave with trimmed or high lined OEM fenders: 40 inch tall tires (3 inch bump stop height recommended)
- If you source your own shocks, Rock Krawler's generic lengths are 17.5 inches collapsed to 29.5 inches extended up front and 17 inches collapsed to 28 inches extended in the rear.
- Rock Krawler recommends a new front driveshaft if you plan to off-road routinely (Adam's Driveshaft, Tom Woods, J.E. Reel).
Rock Krawler lists lifetime warranty coverage on this system. Its RRD shocks carry a 6-month warranty against defects in materials and workmanship.
