X-Factor X2 is the hard-core rock crawling long-arm kit for the Gladiator. It uses an independent 3-link design front and rear, with double adjustable upper arms built from chromoly solid steel, 1 inch Pro Krawler joints at each end and X2 rear geometry that gives you adjustable anti-squat. This 4.5 inch version fits Sport, Overland and Mojave Gladiators, and Rock Krawler calls it the toughest 3-link setup on the market.

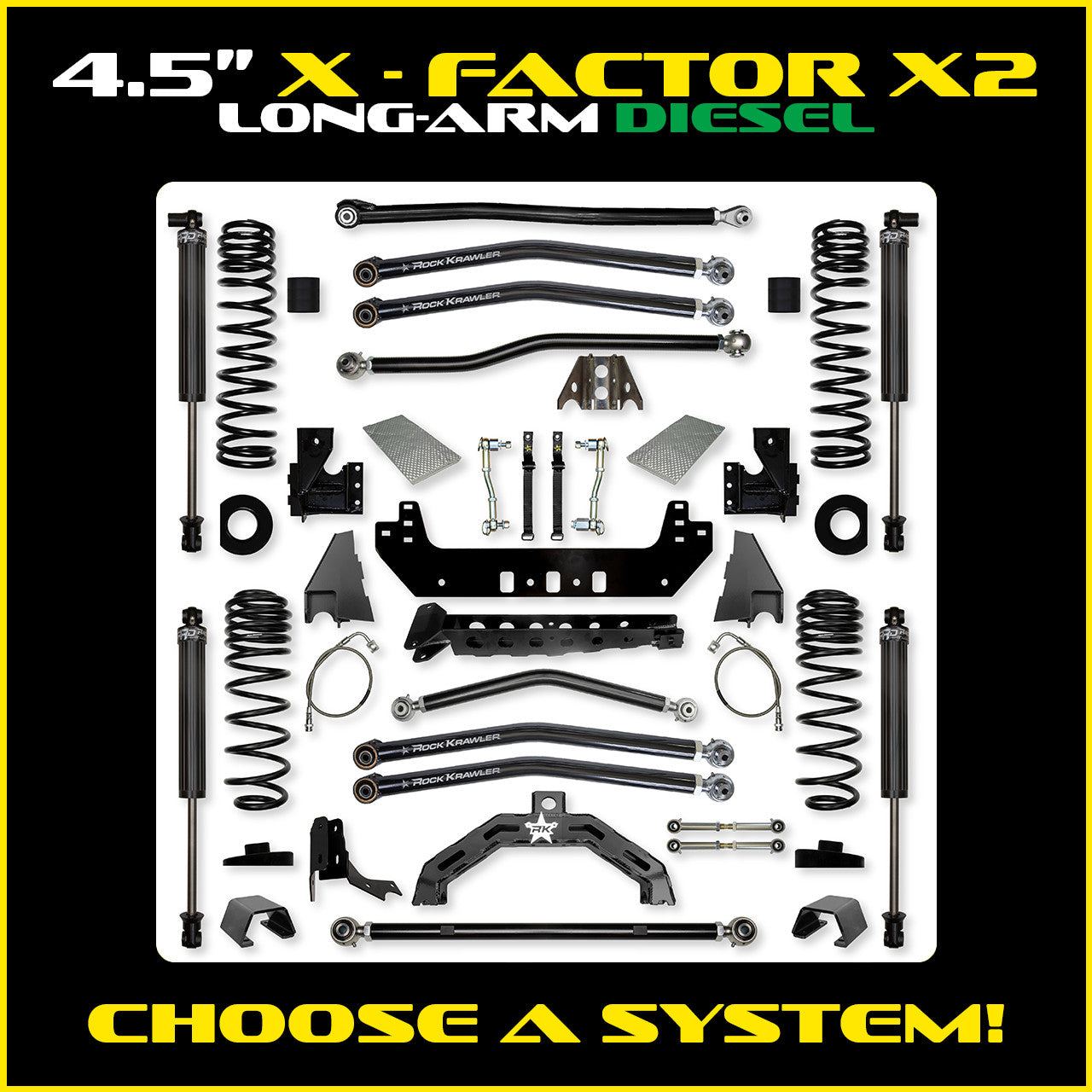

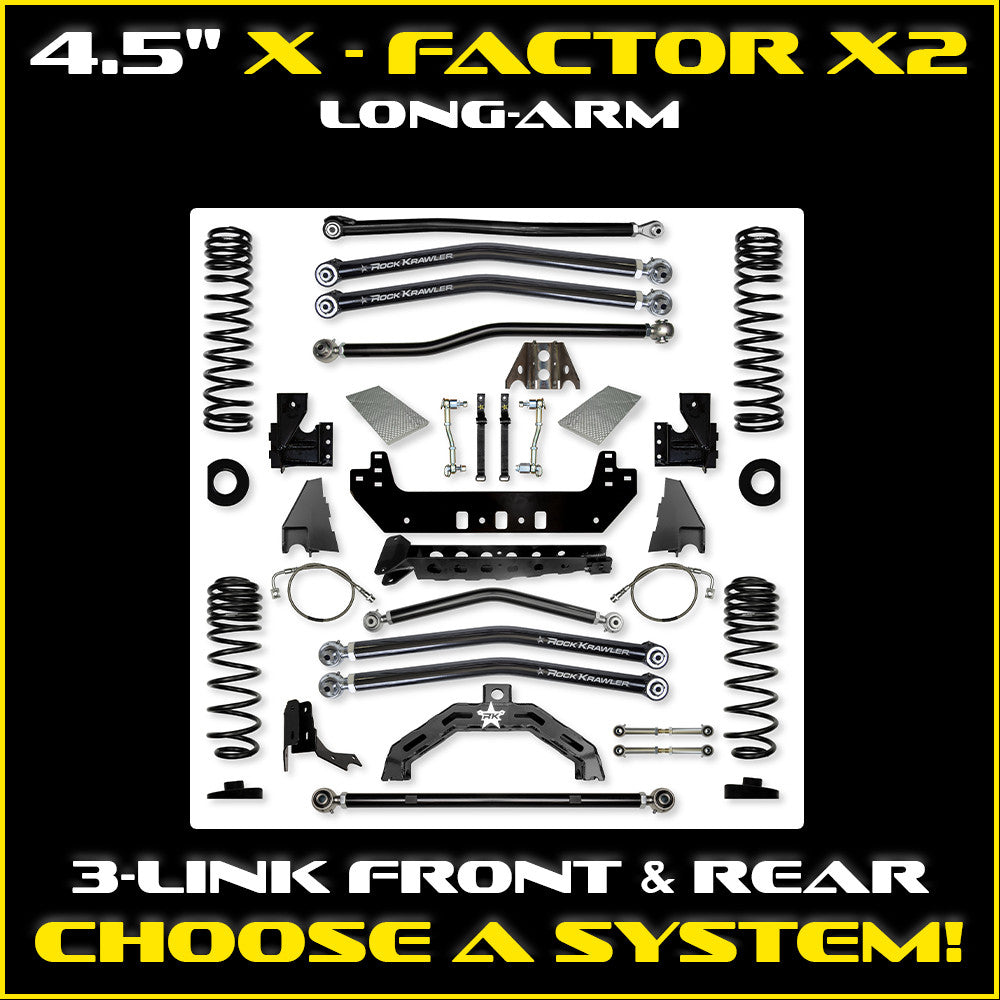

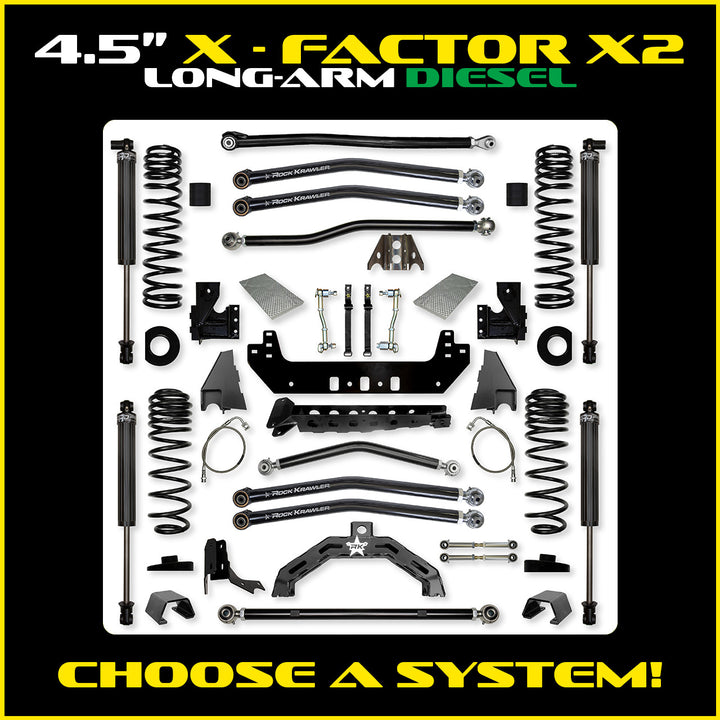

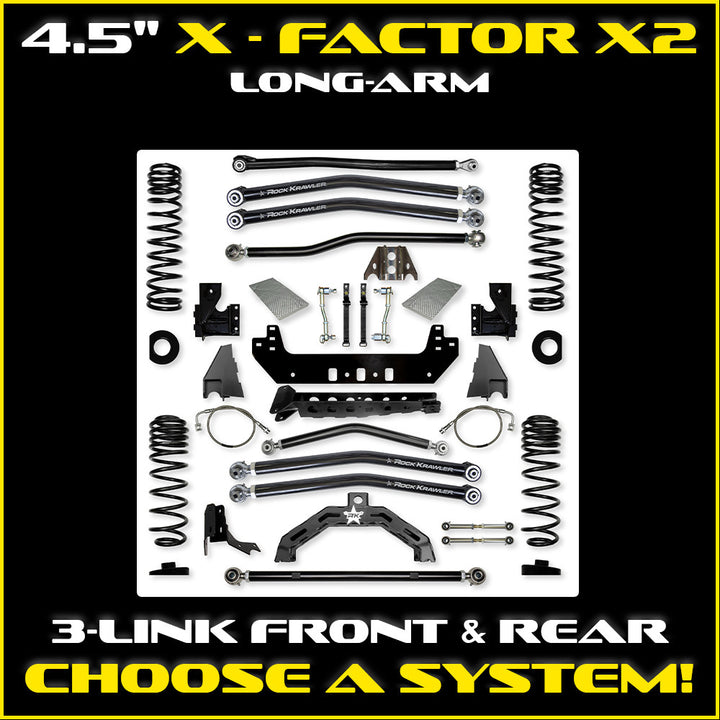

What's in the kit
- 1 weld-on front long-arm mounting system
- 1 Heat Shield Products Sticky Shield kit
- 1 front adjustable anti-wobble track bar
- 2 high clearance front lower control arms
- 1 adjustable front upper control arm
- 1 Gen-II quick-disconnect front sway bar link set
- 4 triple-rate coil springs
- 4 JL/JT front coil spring correction seats
- 2 weld-on rear frame side long-arm mounts
- 2 high clearance rear lower control arms
- 1 rear upper control arm
- 1 rear frame side upper control arm mount
- 2 rear extended sway bar links
- 1 rear adjustable anti-wobble track bar
- 1 weld-on rear track bar mount
- 1 weld-on rear 3-link cradle
- 1 carrier bearing drop bracket
- 1 brake line kit
Shocks depend on the package you pick. Bump stops come with every shock option. Coilover packages add the shock towers and brackets they need.
Why this system
- Independent 3-link design front and rear for maximum articulation
- Double adjustable front and rear upper control arms: chromoly solid steel, 14mm hardware, 2 3/8 inch mounting width, 1 inch Pro Krawler joints at each end
- Adjustable anti-squat and enhanced rear instant and roll centers from the X2 rear geometry
- Adventure Series maintenance-free joints at the lower arm frame connections cut down on grease points
- Stable with the stock drivetrain or with high horsepower pushed through the chassis, per Rock Krawler
- Weld-on rear 3-link cradle, with the optional Pro-X cradle available for Dynatrac and Ultimate Dana 60 rear axles
Pick your package
- Base System (No Shocks): arms, coils and hardware with no shocks, for builds where the shocks are already sorted. Bump stops come with every shock package; if you skip shocks entirely, Rock Krawler sells the bump stops separately as RK07464.
- Bilstein 5100 Shocks: a maintenance-free shock package that Rock Krawler calls a great pairing with its multi-rate coil springs. Bump stops included.
- Stage 1 (RRD 2.25 IFP Shocks): Rock Krawler's RRD 2.25 inch IFP shocks, designed and built in house. Hard anodized fluted aluminum body with the cooling surface of a 2.5 inch shock, 3/4 inch 17-4 PH stainless hard chrome shaft, billet valve circuit, dual DU shaft bearings and double redundant sealing. Serviceable, rebuildable and revalveable. Bump stops included.
- Comp System Stage 1: coilovers up front, coil springs in the rear. 2.625 inch RRD racing coilovers with remote reservoirs up front (13 inches of travel, 14.44 inches of front axle travel per Rock Krawler) and matching 2.625 inch RRD remote reservoir shocks in the rear (12 inches of travel, 15 inches of rear axle travel). Rock Krawler pitches it at people who still carry small loads or tow a small trailer. Rear quad-rate coils and spring correction seats come with it.
- Comp System Stage 2 (Fast CD): the Comp System with Fast CD (compression damping) adjusters on the front coilovers and rear shocks. Fast CD lets you add up to 30% more compression damping with infinite settings.

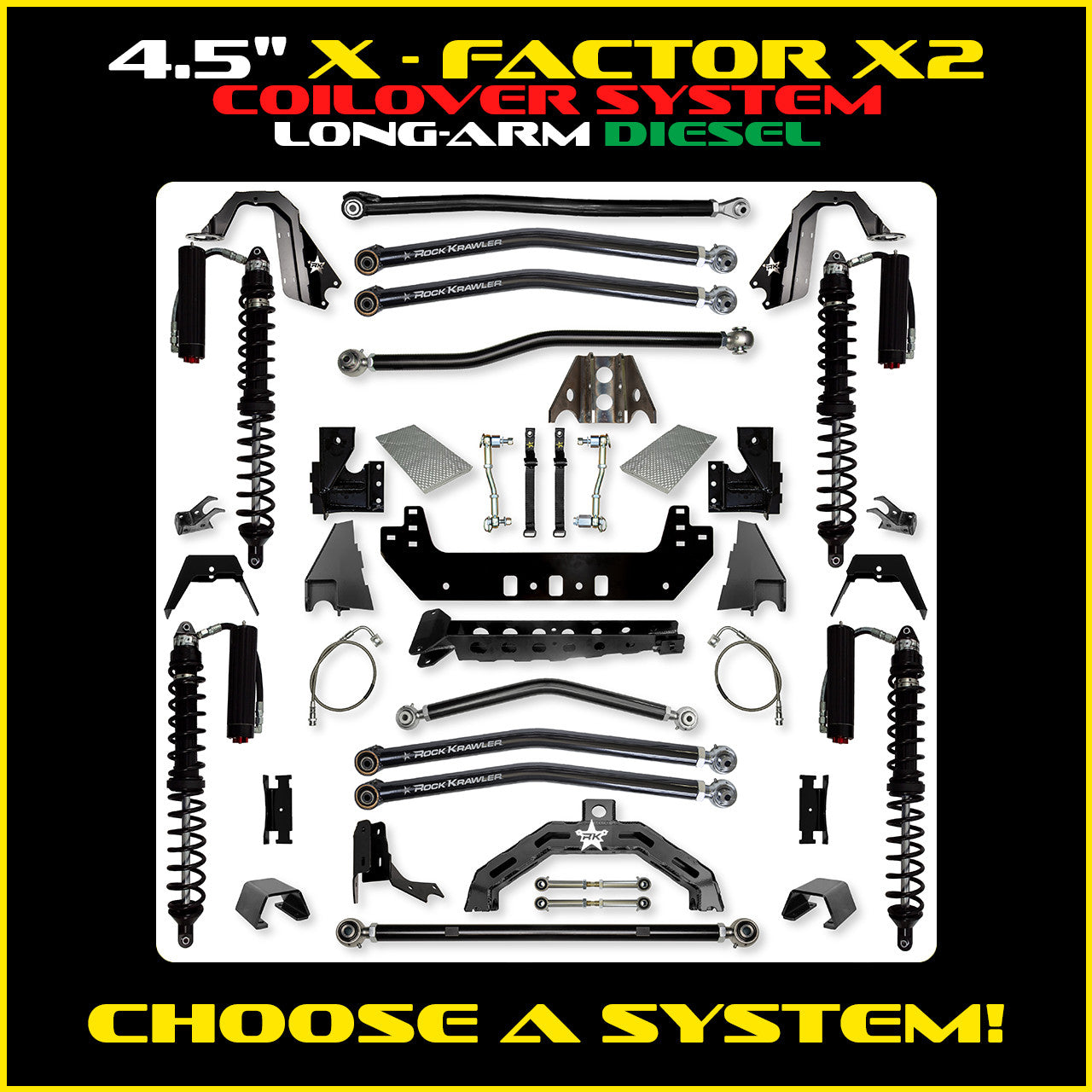

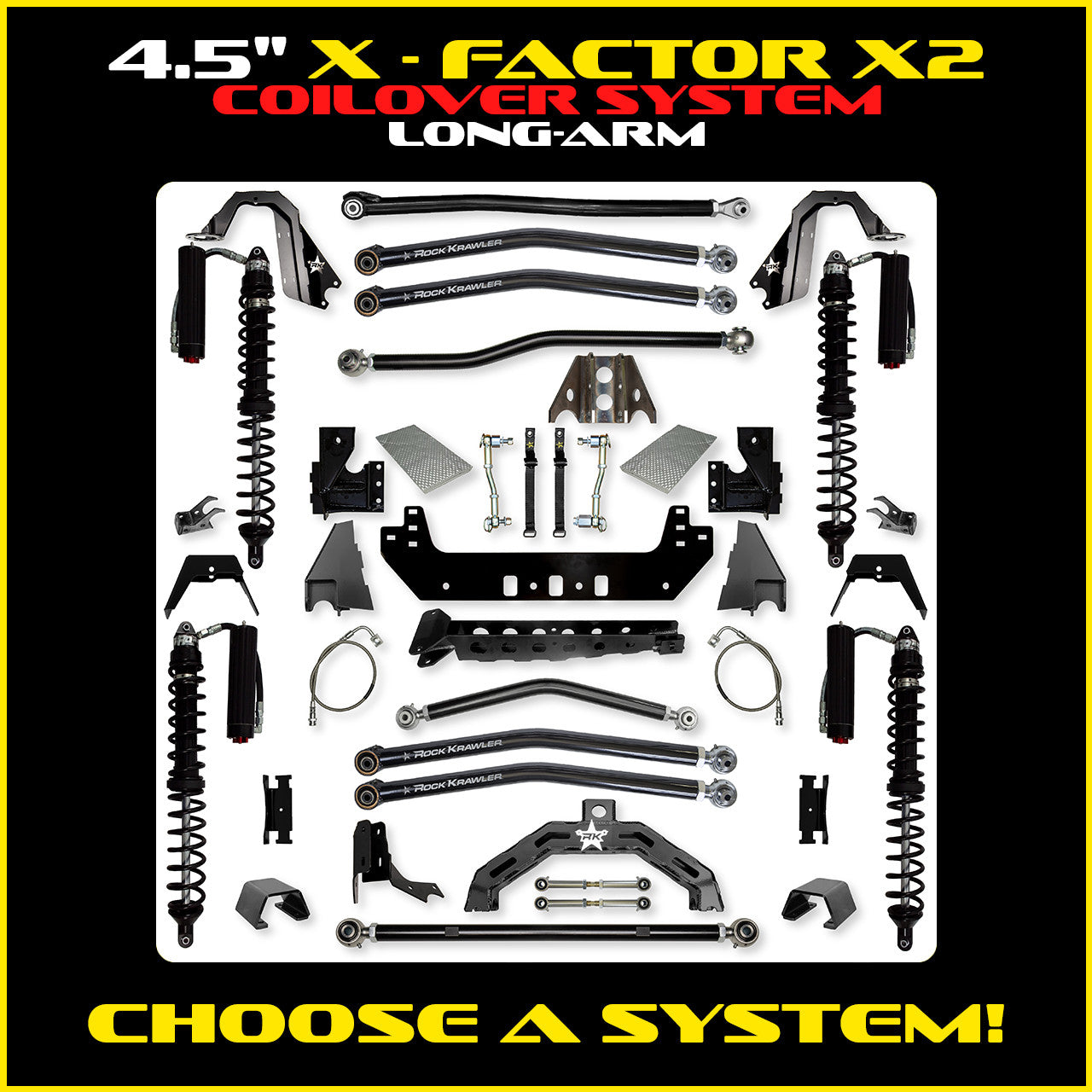

- Trail Runner Stage 1: coilovers at all four corners, built on 2.625 inch RRD remote reservoir coilovers. Rock Krawler says it maximizes off-road ability and still comes well tuned for the street, but rear coilovers handle changes in load less well, so towing or hauling a lot of weight in the bed is not ideal.
- Trail Runner Stage 2 (Fast CD): Trail Runner with Fast CD adjusters on the coilovers for added tuneability.
Pick Gas for the 3.6L Pentastar V6 or Diesel for the 3.0L Eco-Diesel. Rock Krawler lists the diesel as its own diesel-specific version of this kit, so choose the one that matches your engine.
Fitment and what else you'll need
- Fits the 2020+ Jeep Gladiator JT, 4 door, 4WD, Sport, Overland and Mojave trim levels. Engine: 3.6L Pentastar V6 (gas) and 3.0L Eco-Diesel (diesel option)
- Rock Krawler wheel guidance: Sport and Overland, 3.5 inches of backspacing with 37/38 inch tires; Mojave, 4.5 inches with 37 inch tires or 3.5 inches with 40 inch tires
- Tire guidance (3 inch bump stop height recommended): Sport and Overland, 37 inch tall with full OEM fenders or 38 inch with trimmed or high-lined fenders; Mojave, 37/38 inch tall with full fenders or 40 inch with trimmed or high-lined fenders
- Lift height is figured on a Rubicon with a standard build (front bumper and winch, rear bumper, full size spare). Delete the spare and Rock Krawler suggests dropping 1 inch in rear coil lift height; load up the rear overland-style and they suggest going up 1 inch
- Rock Krawler recommends a new front driveshaft if you plan to off-road routinely (they name Adam's Driveshaft, Tom Woods and J.E. Reel)
- Running a Dynatrac XD60 or Ultimate Dana 60 rear axle? Rock Krawler offers the optional Pro-X cradle: RK08078 for the Dynatrac XD60, RK08068 for the Ultimate Dana 60
- Front 3-link systems require aftermarket front axles that don't have F.A.D.
- Long arm install requires welding of the front and rear long arm frame side mounts; removal of the OEM frame side lower front control arm mounts; removal of the OEM frame side front and rear upper control arm mounts; removal of the OEM axle side track bar mount
- Coilover packages (Comp System and Trail Runner) require removal of the OEM frame shock mount and the OEM shock and spring mount on the axle, plus welding of the new coilover mount to the axle only
Rock Krawler's posted lead time when we listed this kit: 3-4 weeks for long arm kits, counted in business days from order. Coilover packages are posted at 3-4 weeks.
Rock Krawler lists lifetime warranty coverage on its Gladiator JT systems. The RRD shocks carry their own 6-month warranty against defects in materials and workmanship.
