Silverback No Limits is the long-arm upgrade built around the Rubicon Gladiator. Up front sits a high clearance 4-link, out back a triangulated 4-link that deletes the rear track bar, and the "No Limits" front sway bar is made to work with the factory electronic disconnect. The system blends off-road clearance with daily-driver manners, which is the point of a Silverback.

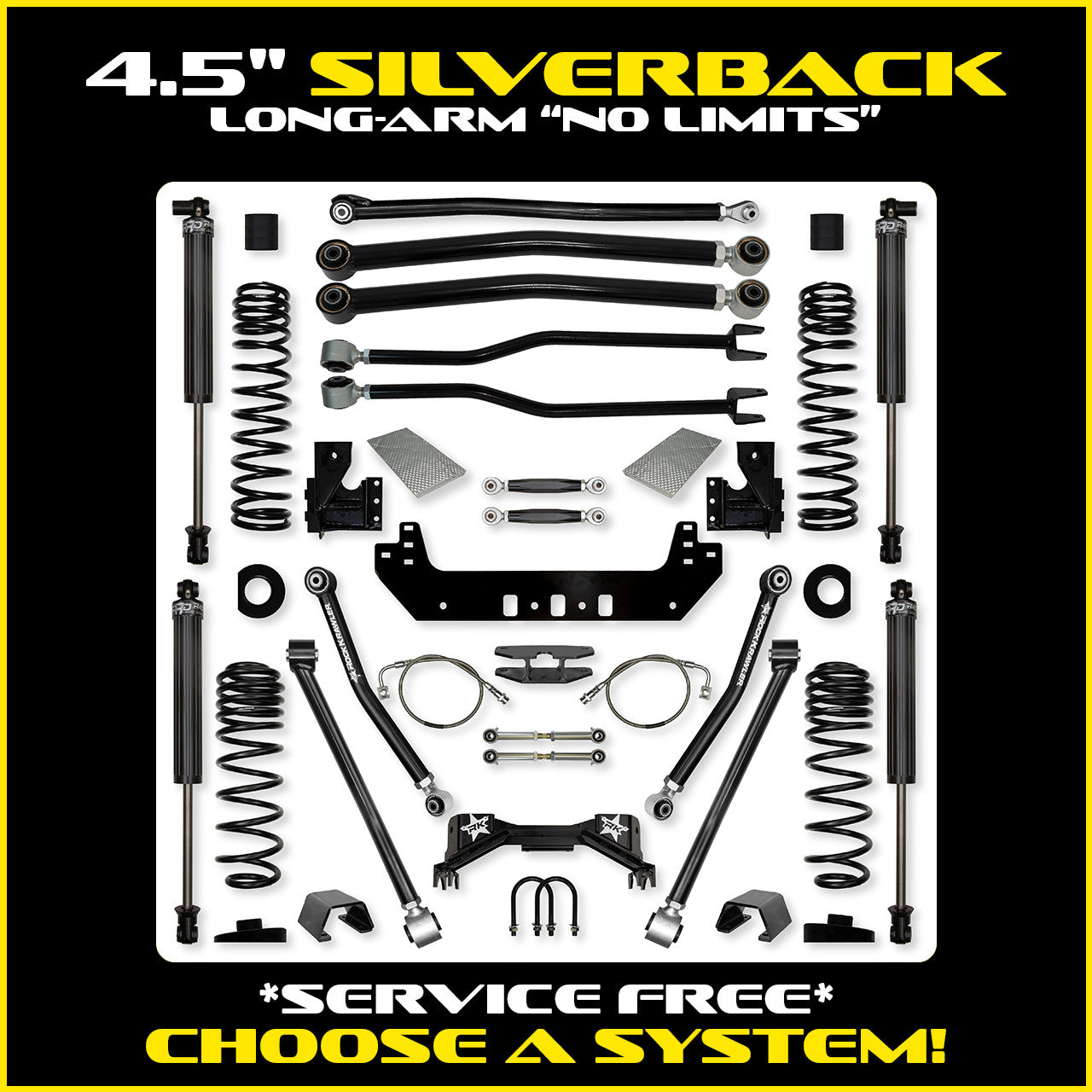

What's in the kit
- 1 weld-on front long-arm mounting system
- 1 Heat Shield Products Sticky Shield kit
- 1 front adjustable anti-wobble track bar
- 2 high clearance adjustable front lower control arms
- 2 adjustable front upper control arms
- 1 "No Limits" front sway bar
- 2 triple-rate front coil springs
- 2 quad-rate rear coil springs
- 4 JT coil spring correction seats
- 2 weld-on rear frame side long-arm mounts
- 2 rear high clearance adjustable lower control arms
- 2 rear adjustable upper control arms
- 2 rear spring pads
- 2 adjustable rear sway bar links
- 1 rear bolt-on Pro-X cradle (welding optional)
Shocks depend on the package you pick. Bump stops come with every shock option. Coilover packages add the shock towers and brackets they need.
Why this system
- "No Limits" front sway bar with CNC-machined billet aluminum centers and Made in USA FK heims, built for the Rubicon's electronic disconnect
- High clearance 4-link front and triangulated 4-link rear: maximum articulation without the bind of a rear track bar
- Service-free long arms with Adventure Series joints
- Triple-rate front and quad-rate rear coils, JT coil correction seats
- Heat Shield Products Sticky Shield kit and weld-on front long-arm mounting system
- Bolt-on Pro-X rear cradle, welding optional (recommended for 37 inch tires and above)
Pick your package
- Base System (No Shocks): arms, coils and hardware with no shocks, for builds where the shocks are already sorted. Bump stops come with every shock package; if you skip shocks entirely, Rock Krawler sells the bump stops separately as RK07464.
- Bilstein 5100 Shocks: a maintenance-free shock package that Rock Krawler calls a great pairing with its multi-rate coil springs. Bump stops included.
- Stage 1 (RRD 2.25 IFP Shocks): Rock Krawler's RRD 2.25 inch IFP shocks, designed and built in house. Hard anodized fluted aluminum body with the cooling surface of a 2.5 inch shock, 3/4 inch 17-4 PH stainless hard chrome shaft, billet valve circuit, dual DU shaft bearings and double redundant sealing. Serviceable, rebuildable and revalveable. Bump stops included.
- Comp System Stage 1: coilovers up front, coil springs in the rear. 2.625 inch RRD racing coilovers with remote reservoirs up front (13 inches of travel, 14.44 inches of front axle travel per Rock Krawler) and matching 2.625 inch RRD remote reservoir shocks in the rear (12 inches of travel, 15 inches of rear axle travel). Rock Krawler pitches it at people who still carry small loads or tow a small trailer. Rear quad-rate coils and spring correction seats come with it.
- Comp System Stage 2 (Fast CD): the Comp System with Fast CD (compression damping) adjusters on the front coilovers and rear shocks. Fast CD lets you add up to 30% more compression damping with infinite settings.

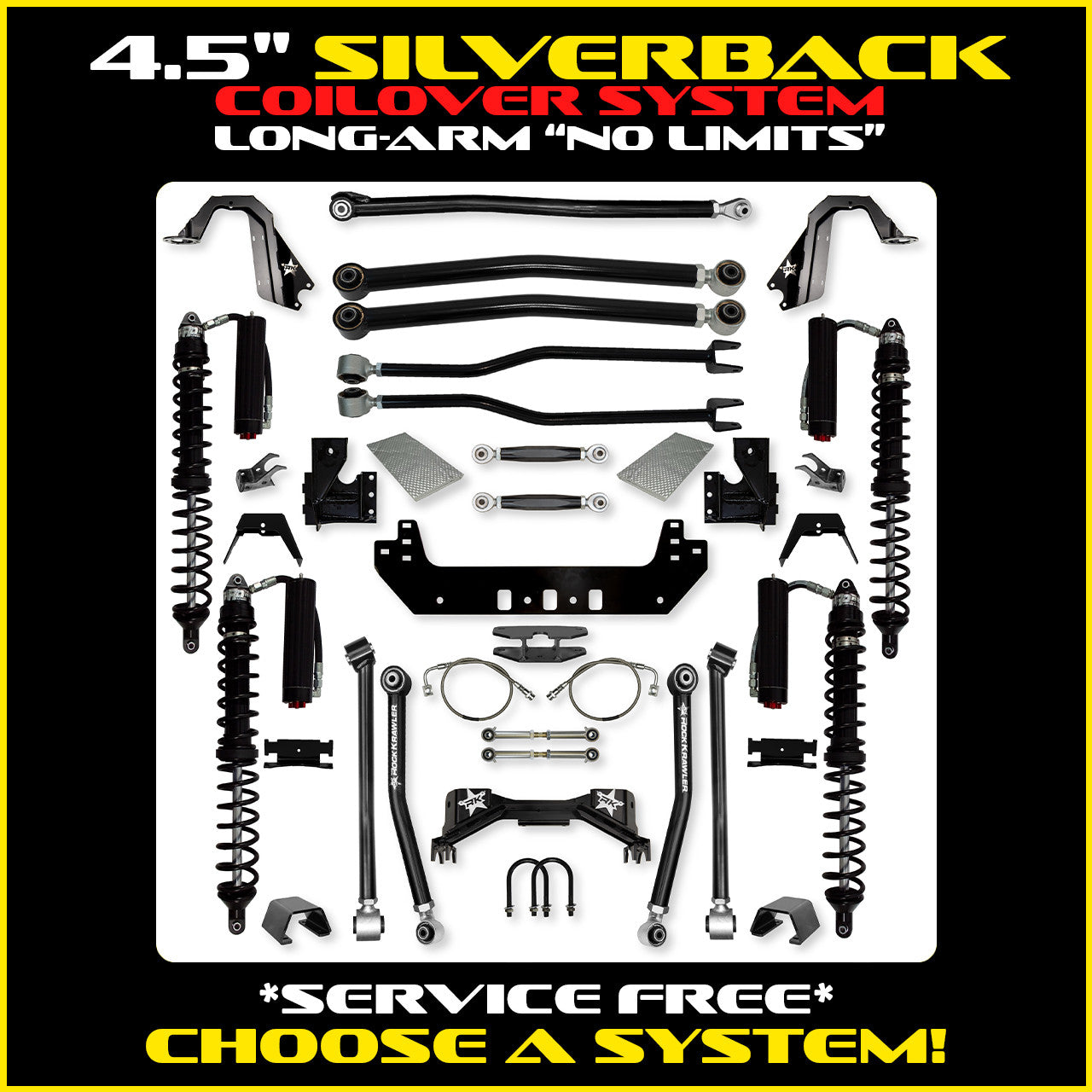

- Trail Runner Stage 1: coilovers at all four corners, built on 2.625 inch RRD remote reservoir coilovers. Rock Krawler says it maximizes off-road ability and still comes well tuned for the street, but rear coilovers handle changes in load less well, so towing or hauling a lot of weight in the bed is not ideal.
- Trail Runner Stage 2 (Fast CD): Trail Runner with Fast CD adjusters on the coilovers for added tuneability.
Fitment and what else you'll need
- Fits the 2020+ Jeep Gladiator JT, 4 door, 4WD, Rubicon trim level. Engine: 3.6L Pentastar V6 (gas models)
- Rock Krawler wheel guidance: 4.5 inches of backspacing with 37 inch tall tires, 3.5 inches with 40 inch tall tires
- Tire guidance on a Rubicon (3 inch bump stop height recommended): 37/38 inch tall with full OEM fenders, 40 inch tall with trimmed or high-lined fenders
- Lift height is figured on a Rubicon with a standard build (front bumper and winch, rear bumper, full size spare). Delete the spare and Rock Krawler suggests dropping 1 inch in rear coil lift height; load up the rear overland-style and they suggest going up 1 inch
- Rock Krawler recommends a new front driveshaft if you plan to off-road routinely (they name Adam's Driveshaft, Tom Woods and J.E. Reel)
- Welding the rear cradle is recommended for 37 inch tires and larger
- Long arm install requires welding of the front long arm mounting system; removal of the OEM frame side lower front control arm mounts; removal of the OEM frame side front upper control arm mounts; removal of the OEM axle side track bar mount
- Coilover packages (Comp System and Trail Runner) require removal of the OEM frame shock mount and the OEM shock and spring mount on the axle, plus welding of the new coilover mount to the axle only
Rock Krawler's posted lead time when we listed this kit: 3-4 weeks for long arm kits, counted in business days from order. Coilover packages are posted at 3-4 weeks.
Rock Krawler lists lifetime warranty coverage on its Gladiator JT systems. The RRD shocks carry their own 6-month warranty against defects in materials and workmanship.
