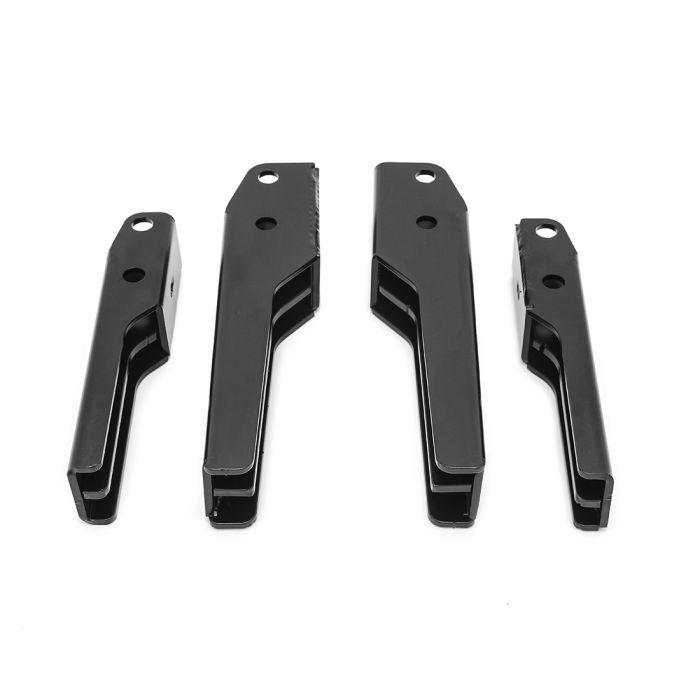

ReadyLIFT High-Clearance Anti-Intrusion Beams - 2019-2023 Ford Ranger (67-2900)

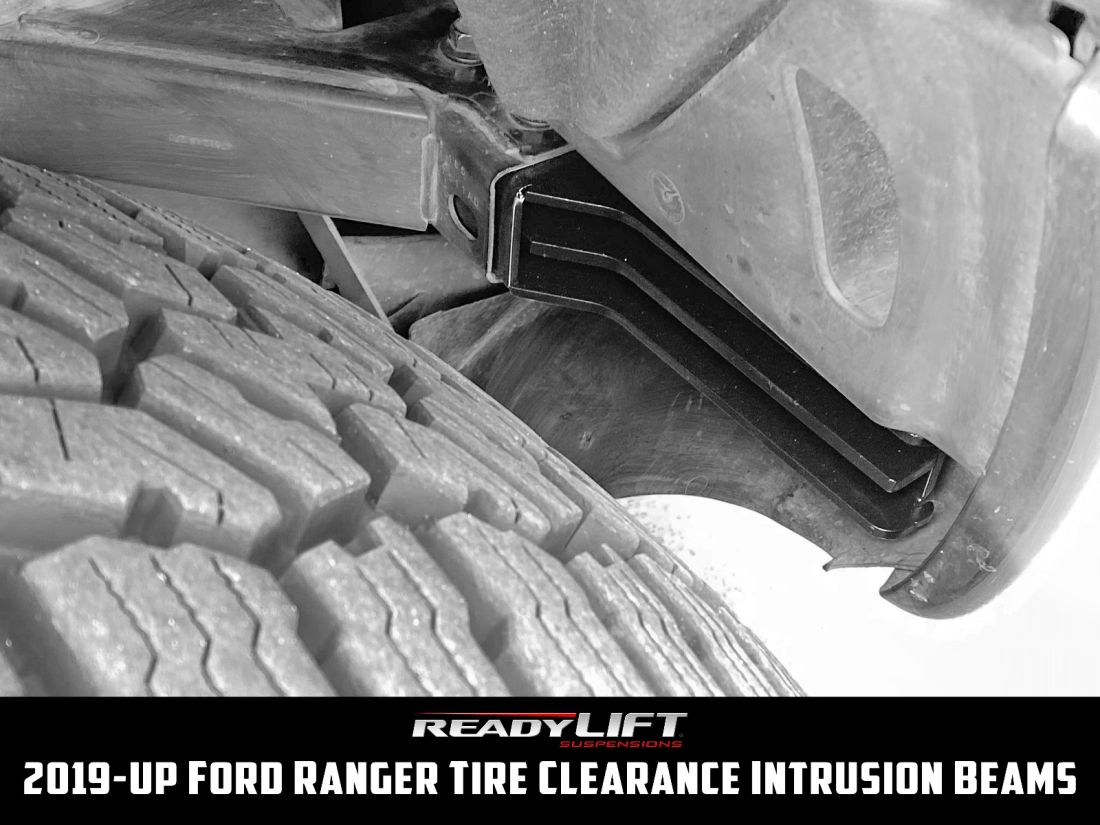

These ReadyLIFT high-clearance anti-intrusion beams replace the factory beams on the 2019-2023 Ford Ranger 2WD and 4WD. They are laser-cut, robot-welded steel verified with finite element analysis against factory beam specs. The notched design adds tire turning clearance and allows up to a 285/70-17 (33 inch) tire with ReadyLIFT's 3 inch SST lift kit.

Key features

• Laser-cut, robot-welded steel construction
• Verified with finite element analysis against factory beam specs
• Notched design increases tire turning clearance

What's included

• 4 replacement beams (2 forward, 2 rearward)

Fitment and compatibility

• Fits the 2019-2023 Ford Ranger 2WD and 4WD
• Up to a 285/70-17 (33 inch) tire with ReadyLIFT's 3 inch SST lift kit

Specifications

• Brand: ReadyLIFT
• Part number: 67-2900
• Material: Laser-cut, robot-welded steel
• Max tire: 285/70-17 (33 inch) with ReadyLIFT 3 inch SST lift kit
• Sold as: Set of 4 beams
• Estimated install time: About 2 hours
• Shipping weight: 13.2 lb
• Package size: 12 x 12 x 4 inch

Installation

Allow about 2 hours. Minor disassembly and plastic trimming are required.
