ReadyLIFT 2.5 Inch Front Lift Kit with Falcon 3.3 Shocks - 2017-2026 Ford Super Duty Diesel (46-20255)

This ReadyLIFT kit is a 2.5 inch coil spring front leveling system for 2017-2026 Ford Super Duty diesel 4WD trucks, with Falcon 3.3 Fast Adjust monotube shocks at the front and rear. The shocks have a 3-position main compression control and an 8-position micro adjust dial. Tire fitment is up to 35 inch, or 37 inch with minor trimming. On 2017-2019 trucks the front lift is 2 inch.

Key features

• Heavy-duty front coil springs
• Falcon 3.3 Fast Adjust shocks with 3-position main compression control and 8-position micro adjust dial
• Bolt-on install with sway bar drops, bump stop extensions and brake line brackets

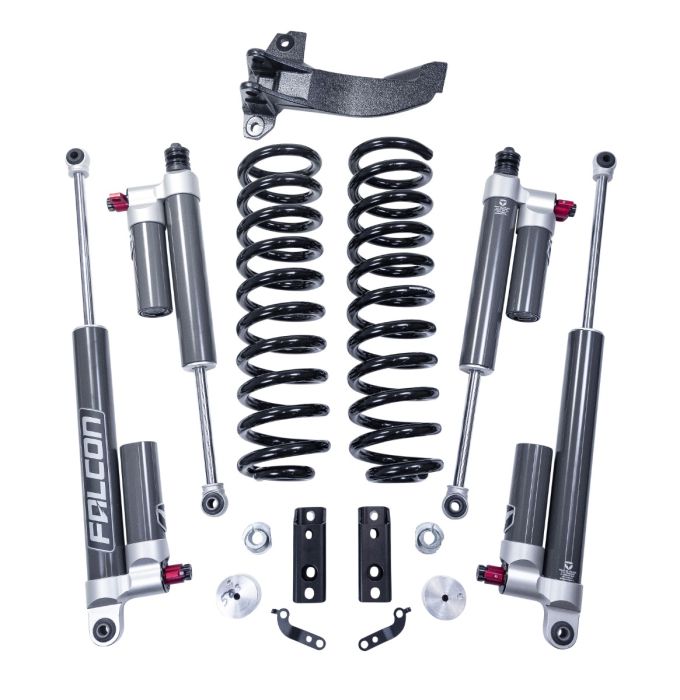

What's included

• 2.5 inch front coil springs
• Sway bar spacers
• Brake line extensions
• Front track bar relocation bracket
• Front Falcon 3.3 adjustable shocks
• Rear Falcon 3.3 adjustable shocks

Fitment and compatibility

• Fits 2017-2026 Ford Super Duty diesel 4WD
• 2017-2019 trucks get a 2 inch front lift
• ReadyLIFT lists a 1.125 inch gain for Tremor models
• Trucks with Onboard Scale: pair with the 67-23210 headlight bracket
• Caster bushings do not work on 10-lug trucks

Specifications

• Brand: ReadyLIFT
• Part number: 46-20255
• Front lift: 2.5 inch (2 inch on 2017-2019)
• Max tire: 35 inch, or 37 inch with minor trimming
• Shocks included: Yes, front and rear Falcon 3.3 Fast Adjust
• Estimated install time: 5 hours, plus or minus 1 hour
• Shipping weight: 98 lb
• Package size: 30 x 12.5 x 11.5 inch

Installation

Allow about 5 hours, plus or minus 1, not counting alignment or wheel and tire assembly.
