Motobilt Dana 60 Lower Link Mount Kit for 4 Link System MB4006

Motobilt Dana 60 Lower Link Mount Kit for 4 Link System MB4006 – Motobilt part number MB4006.

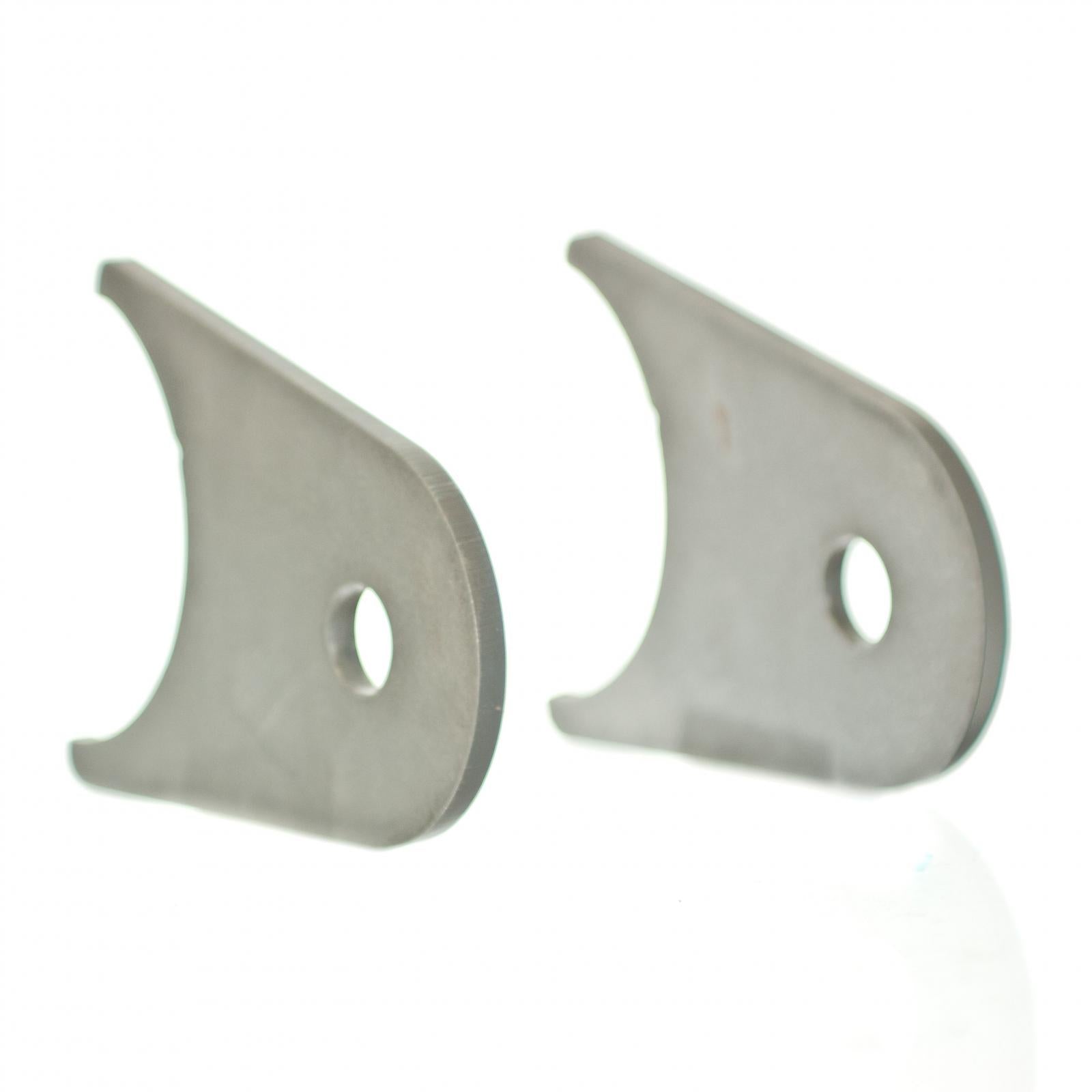

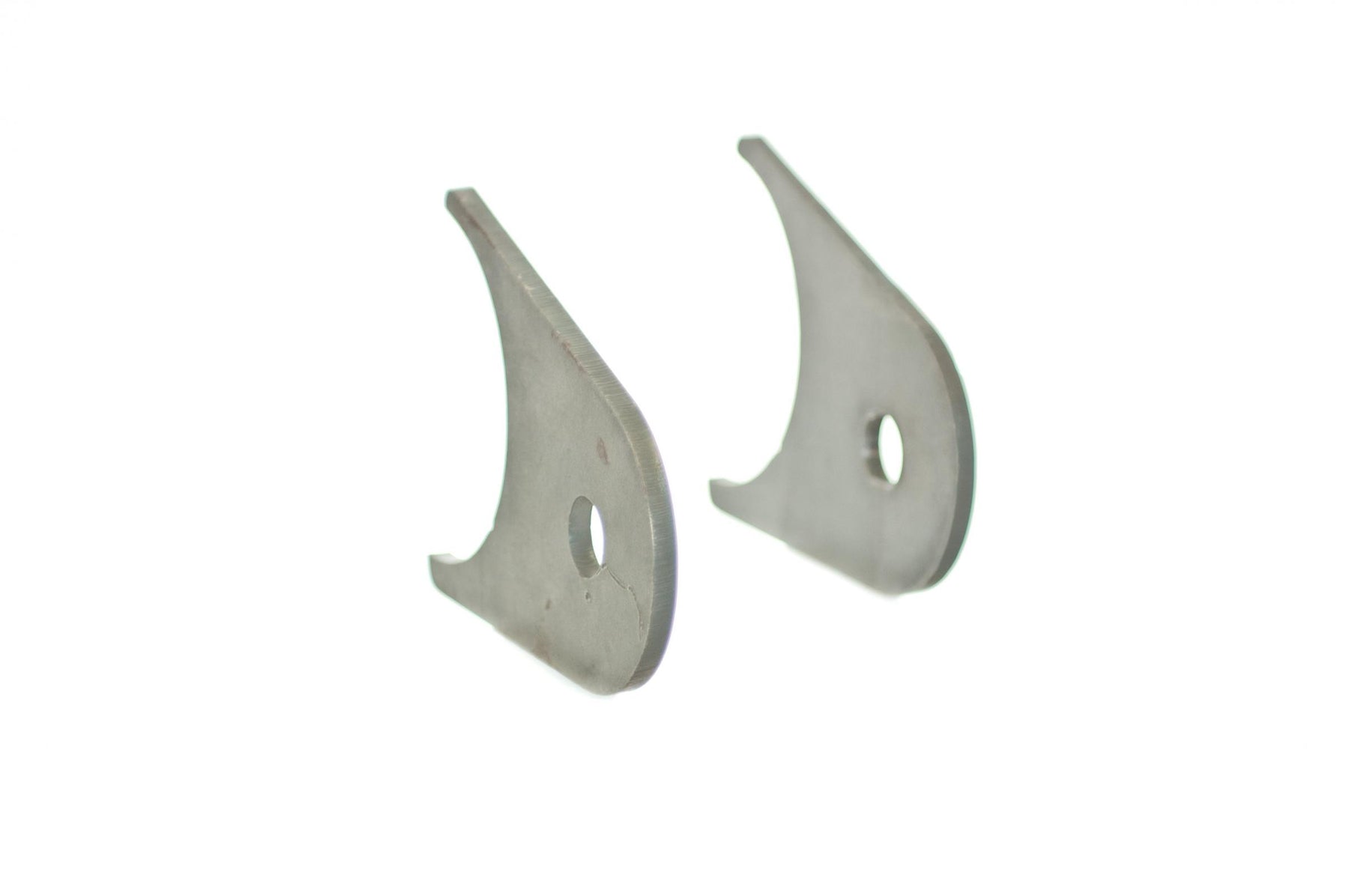

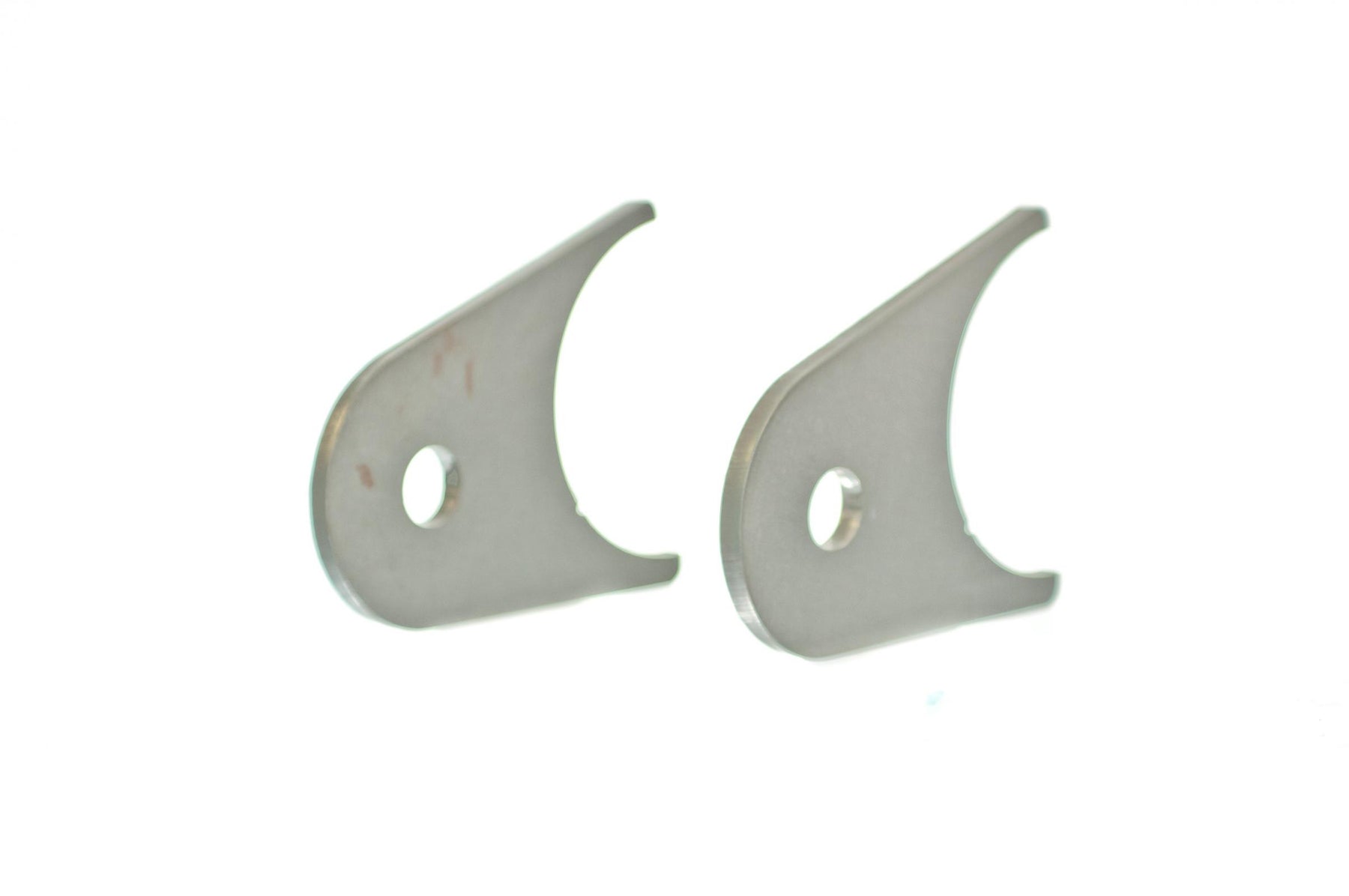

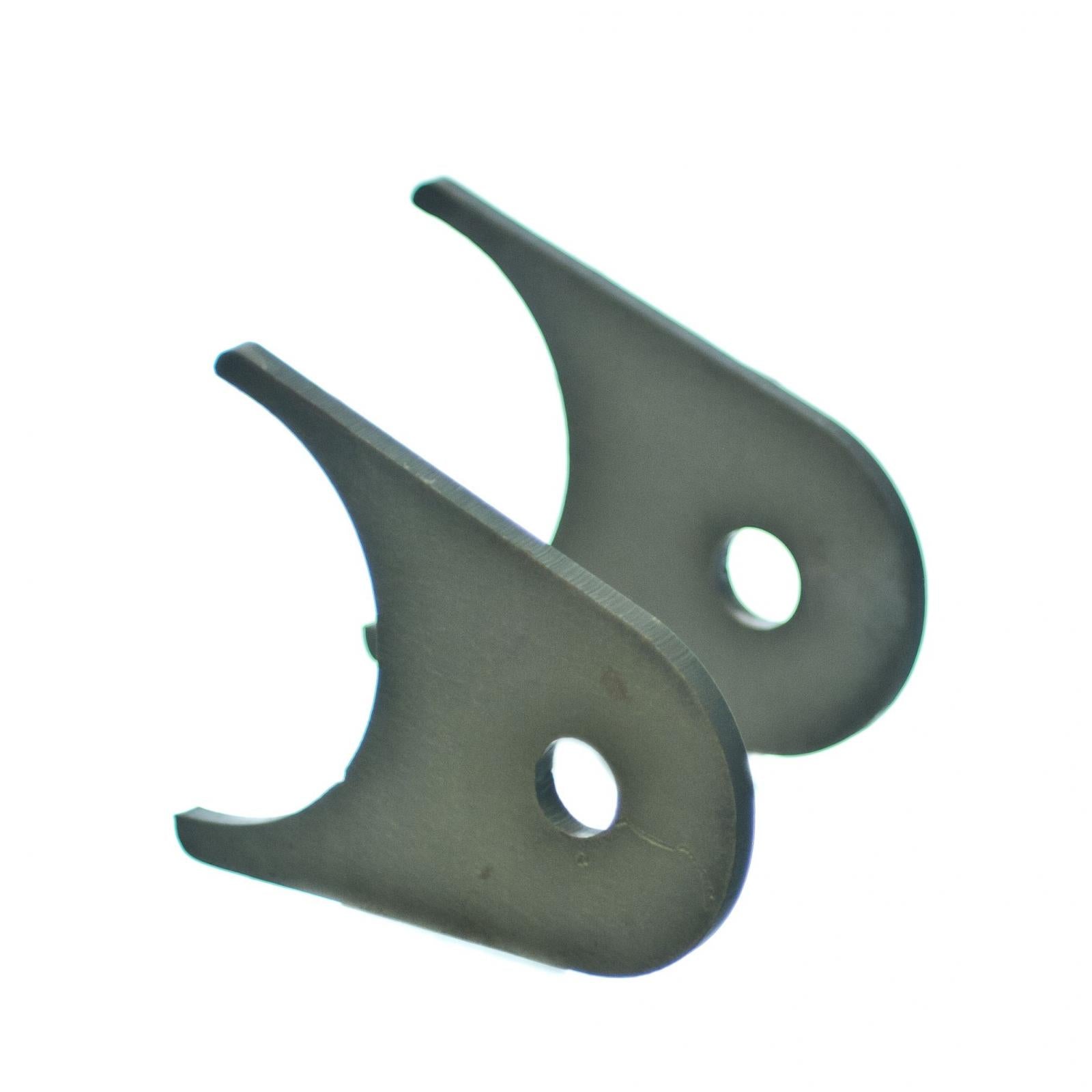

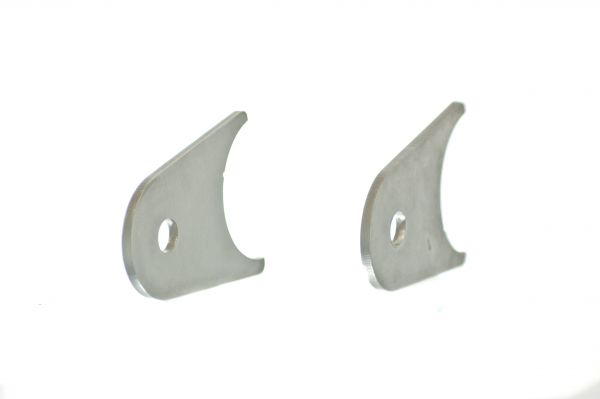

The Motobilt Dana 60 lower link mounts are cnc laser cut out of 5/16 inch thick P and O steel plate. The Motobilt lower axle link brackets are made out of thick 5/16 inch P and O steel plate. The mounts are CNC laser cut to fit the Dana 60 axle housing tubes. They are offset to allow the rod end and to achieve maximum articulation. They are made with a 3/4 inch bolt hole.

They can be used in other applications but were designed to be used with the Motobilt Jeep YJ and TJ 4 link bracket system on the lower front links. These are sold in a complete set of 2 Pairs or enough to do one axle.

• Dana 60 lower link mounts
• 5/16 inch P and O thick steel plate
• 3/4 inch bolt hole
• Sold as kit

Note:

• Can be used in other applications but were designed to be used with the Motobilt Jeep YJ and TJ 4 link bracket system on the lower front links

Specifications

• Material: Steel
• Thickness: 5/16 Inch
• Location: Rear
• Differential: Dana 60
• Hole diameter: 3/4 Inch
• Sold as: Kit

Product information

• Motobilt part number: MB4006
• Country of origin: USA
• Package size: 6 x 6 x 6 in
• Shipping weight: 5 lb
