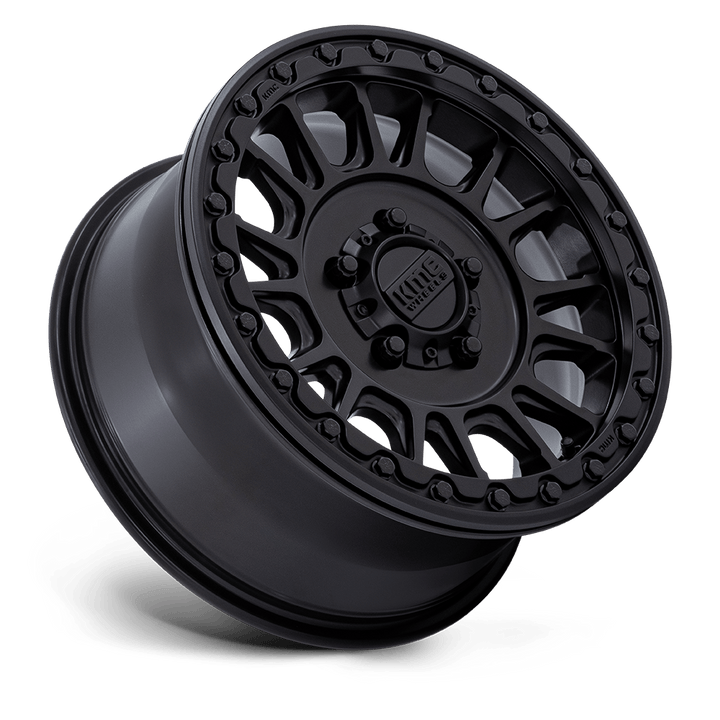

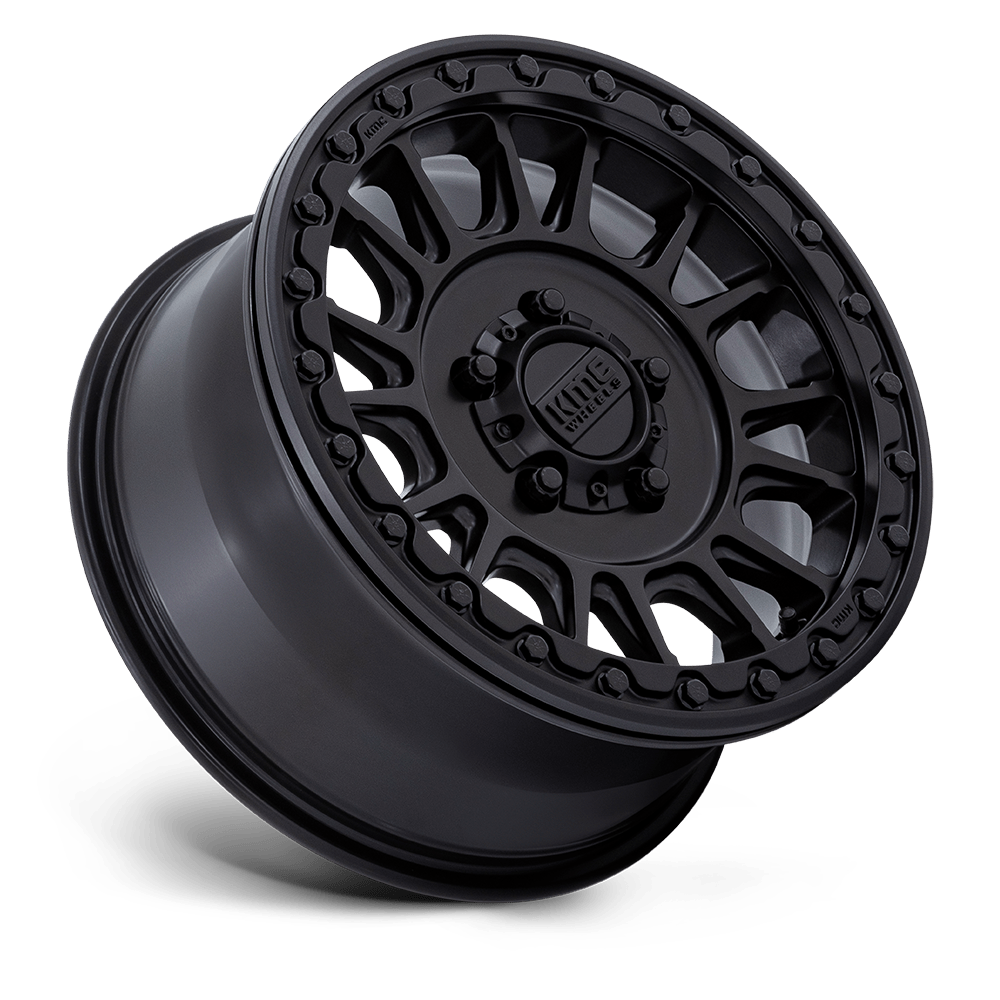

KMC KS239 Impact UTV Beadlock Wheel

The Impact UTV Beadlock is a true beadlock with a deep multi-spoke face, debris ports and a deep lip. KMC points it at the Polaris RZR, Can-Am Maverick, Honda Talon and Kawasaki KRX, in 4-lug, 5-lug and 6-lug patterns.

What you get

• Construction: cast aluminum (UTV line).
• True beadlock: a clamped ring locks the tire bead so you can air down without losing the bead. Sold for off-road use only.
• Bead Retention System: machined grooves in the bead seat help hold the tire bead at low pressure without a true beadlock.
• Load rating: 1250 lbs per wheel, depending on size.
• Weight: 17.4 to 19.6 lbs each, depending on size.
• Center bore: varies by bolt pattern, 72.56 to 115.10 mm.

Sizes and fitment

• Sizes: 15x7, 15x8, 15x10.
• Bolt patterns: 4x137, 4x156, 5x114.3, 6x139.7.
• Offsets: 0mm, +10mm, +38mm.

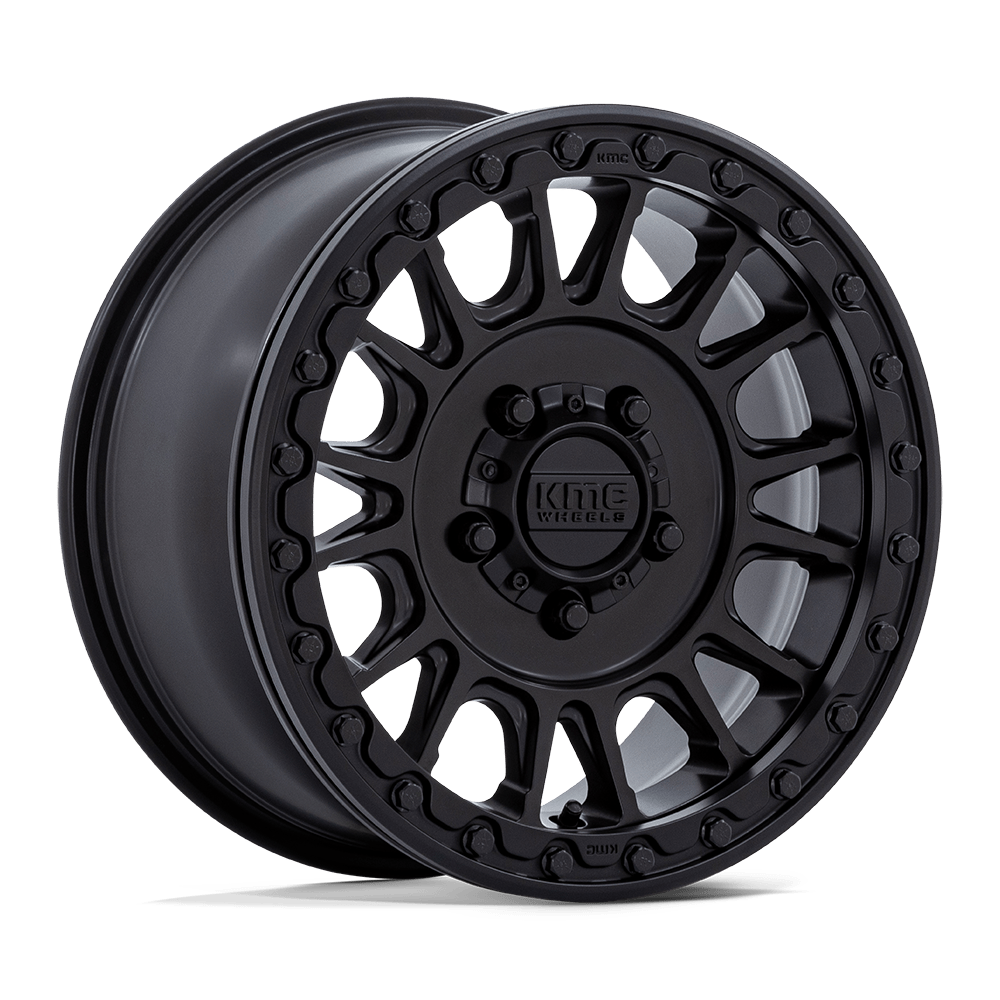

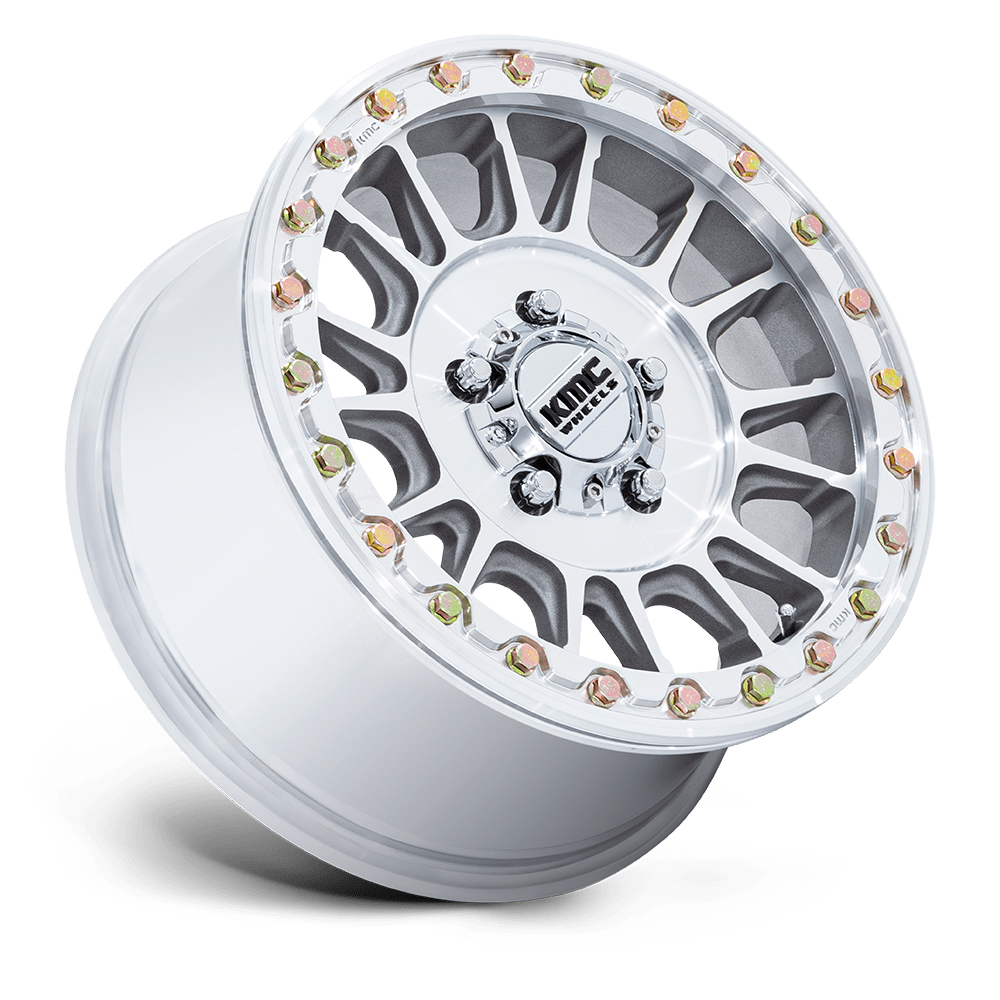

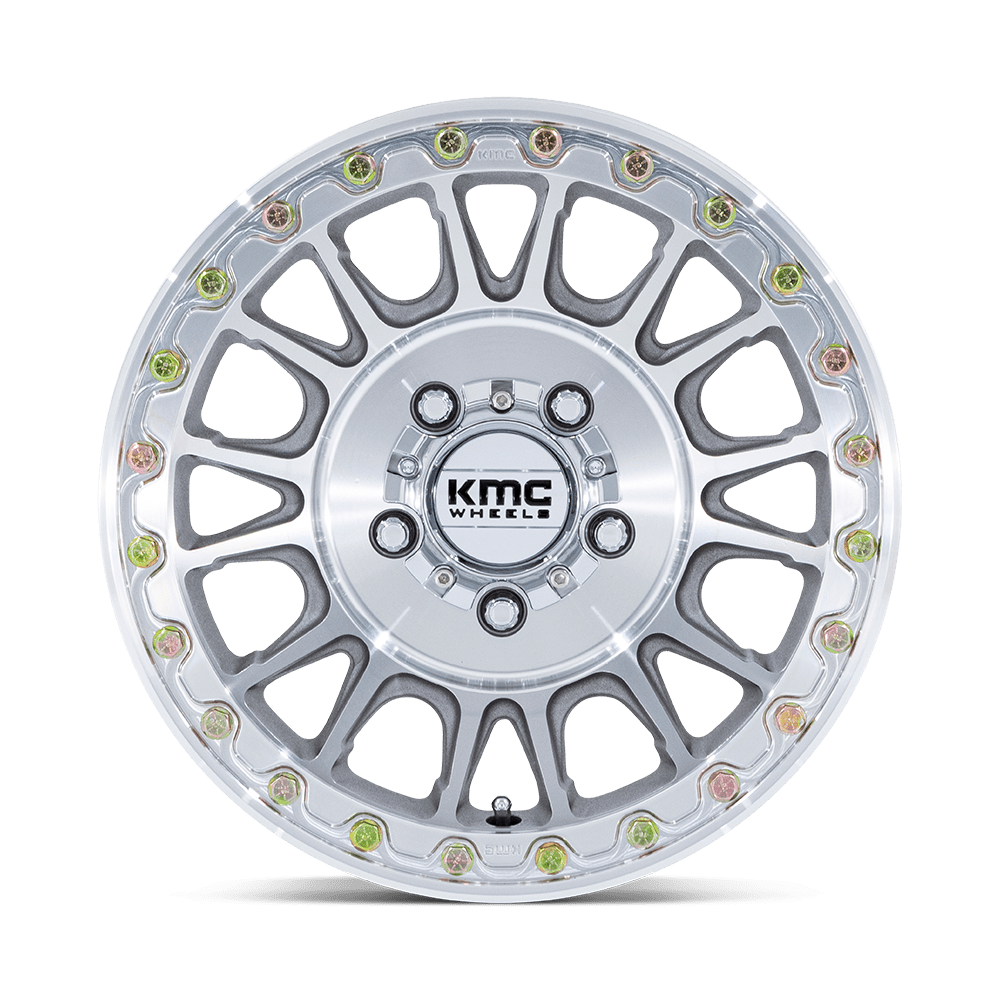

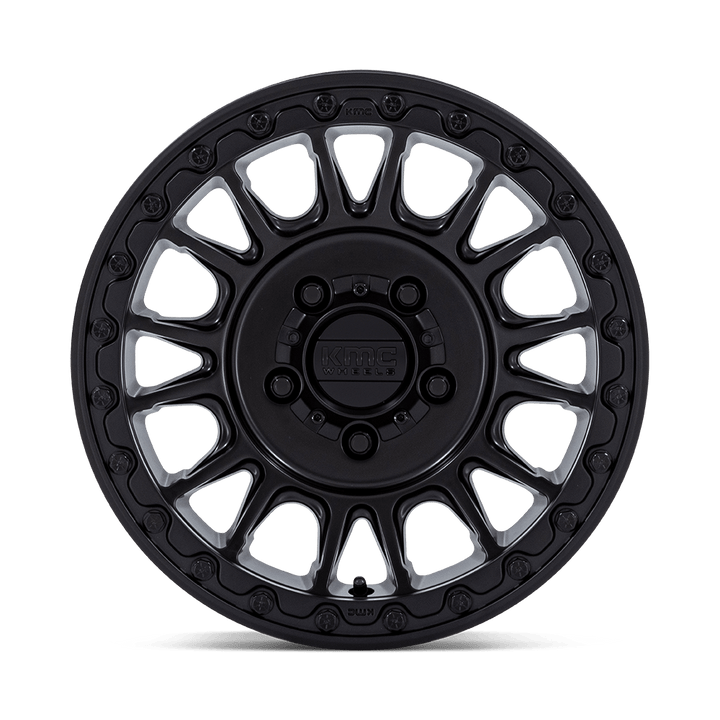

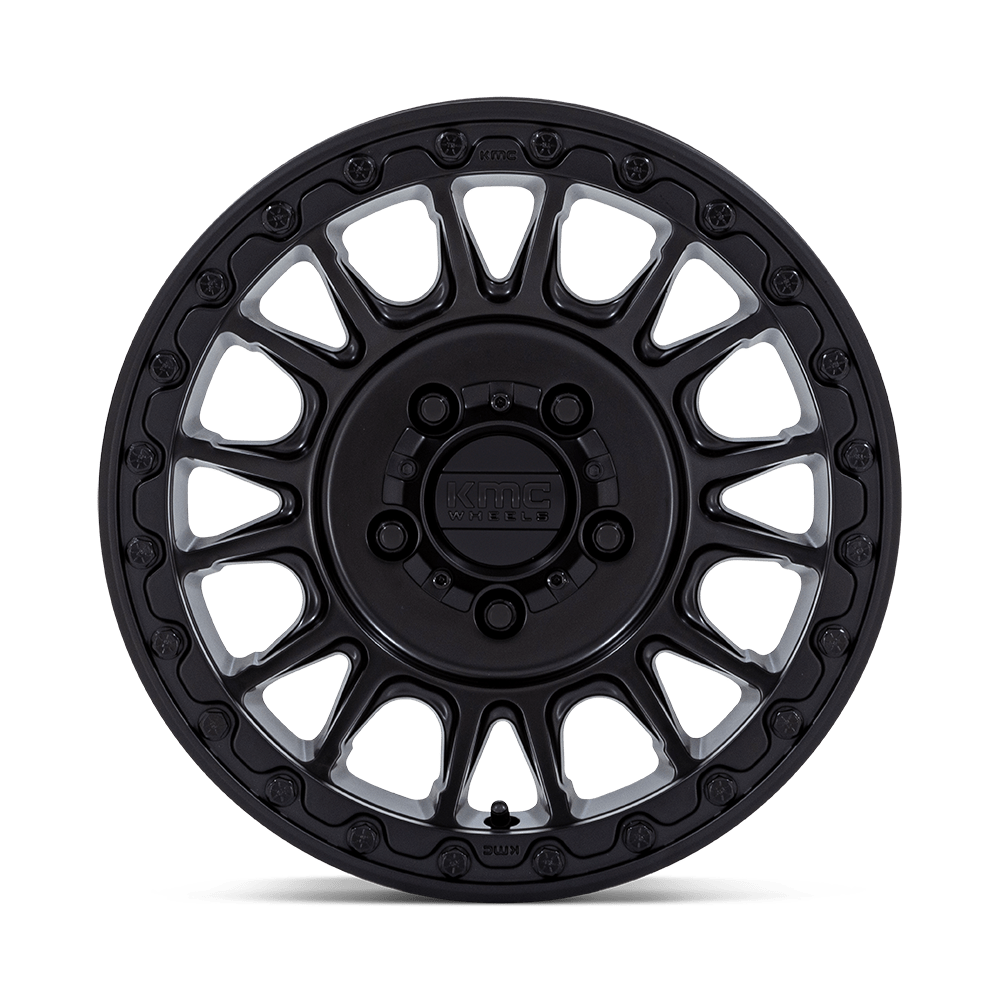

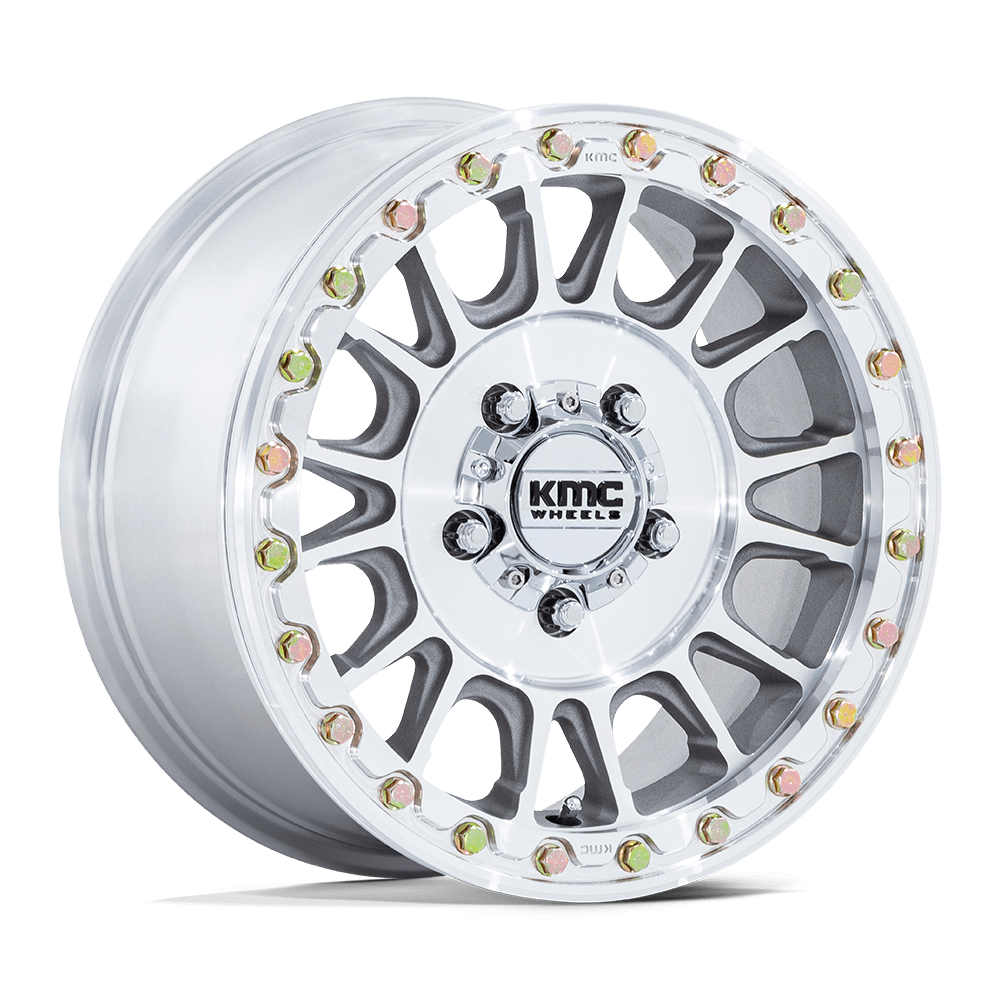

• Finishes: Machined, Satin Black.

Pick your wheel

• Finish: pick the color. The photo changes with the finish.
• Size and Bolt Pattern: diameter x width, then the bolt pattern. Match the bolt pattern to your UTV exactly.
• Offset: more negative pushes the wheel out toward the fender, more positive tucks it in. Each offset is a different part number.

Beadlock wheels are sold for off-road use only. They can be illegal on public roads in many states and provinces, so check your local laws before you buy.

Each wheel is sold individually. Not sure which bolt pattern or offset fits your rig? Send us your year, make and model and we will point you to the right part number.
