KMC KM730 Hatchet Wheel

The Hatchet is a flow-formed Adventure-line wheel in 17x8.5 with a bead retention system, offered across 5-lug and 6-lug bolt patterns.

What you get

• Construction: flow formed aluminum (KMC Adventure line).
• Bead Retention System: machined grooves in the bead seat help hold the tire bead at low pressure without a true beadlock.
• Flow formed: the barrel is flow formed to cut weight while keeping strength.
• Load rating: 2650 lbs per wheel, depending on size.
• Weight: 25.2 to 27.6 lbs each, depending on size.
• Center bore: varies by bolt pattern, 66.06 to 106.10 mm.

Sizes and fitment

• Sizes: 17x8.5.
• Bolt patterns: 5x127, 6x114.3, 6x120, 6x135, 6x139.7.
• Offsets: -10mm, 0mm, +25mm.

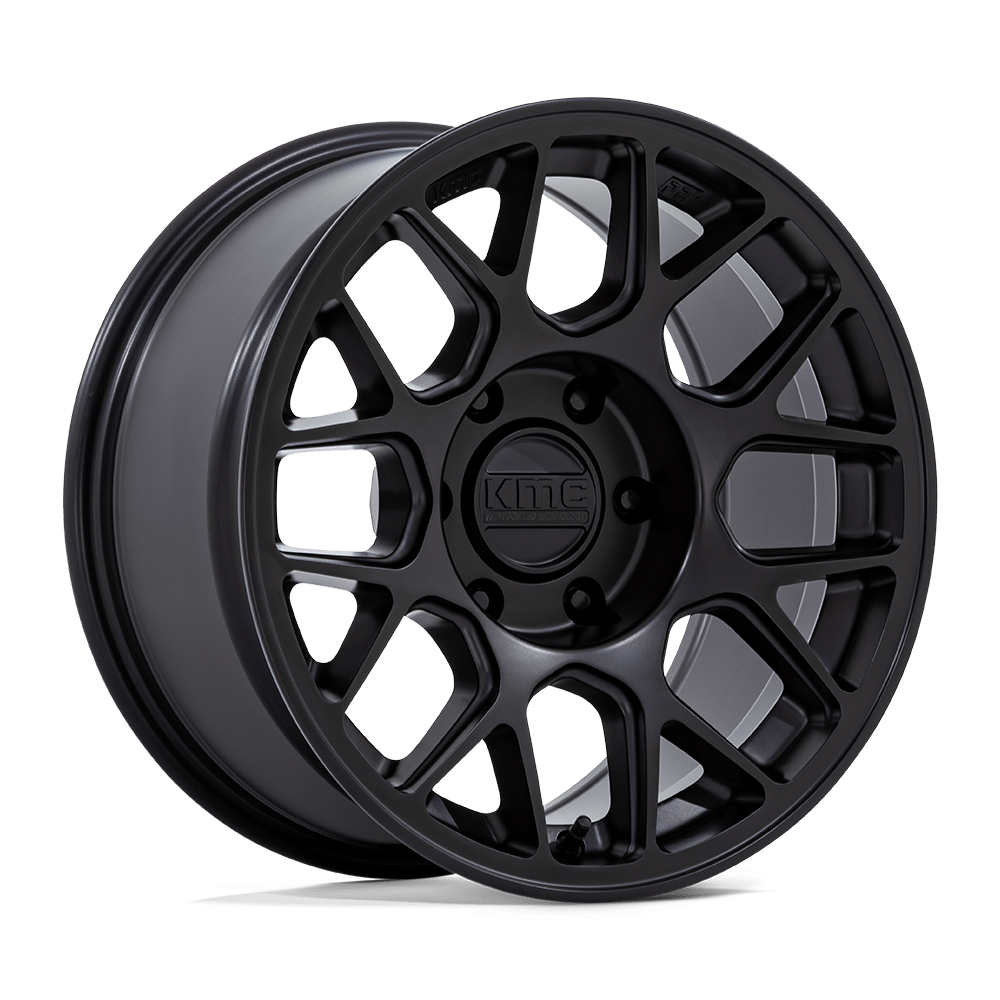

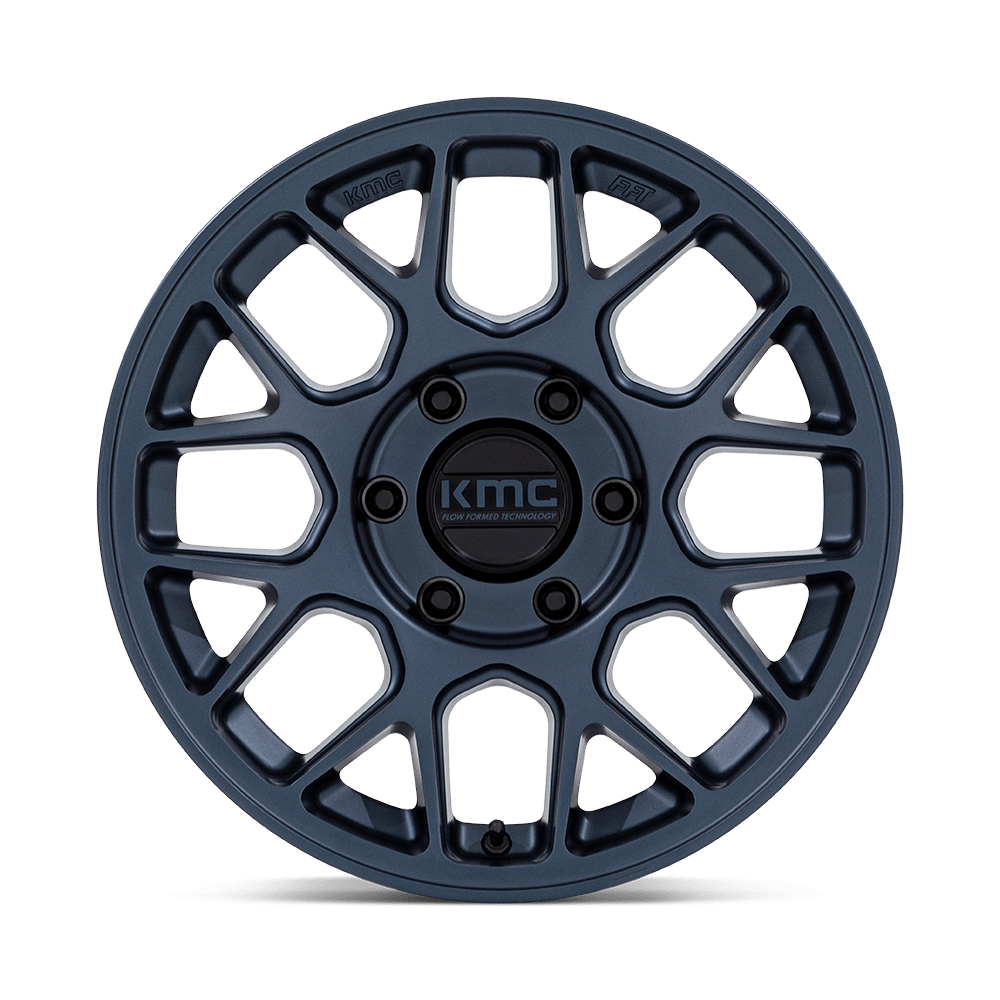

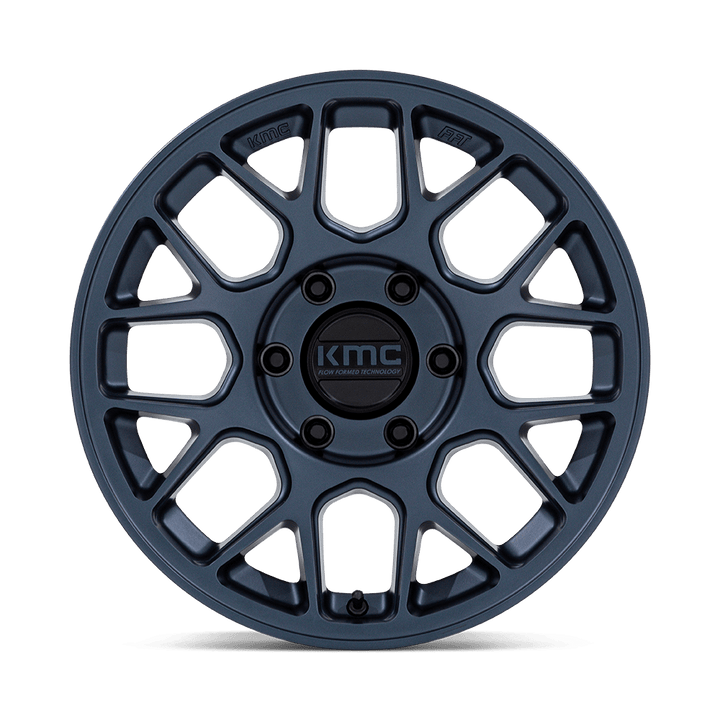

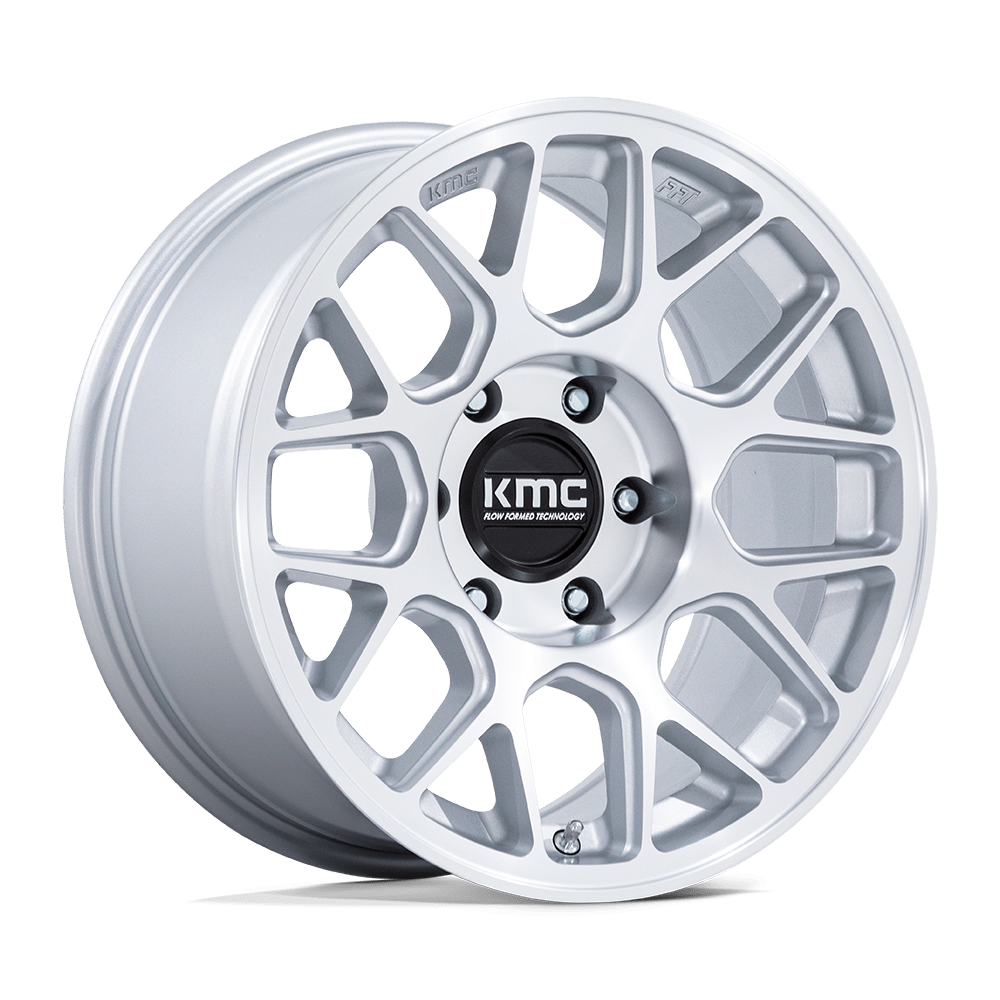

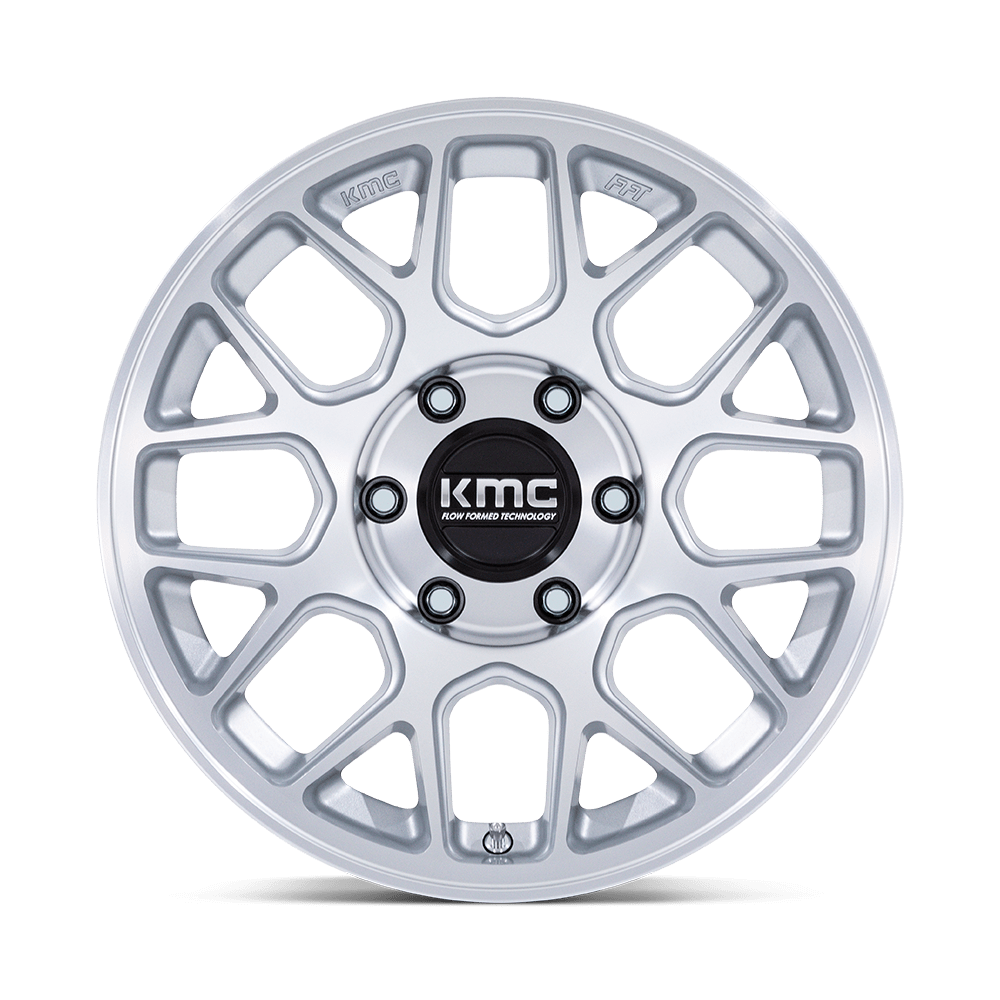

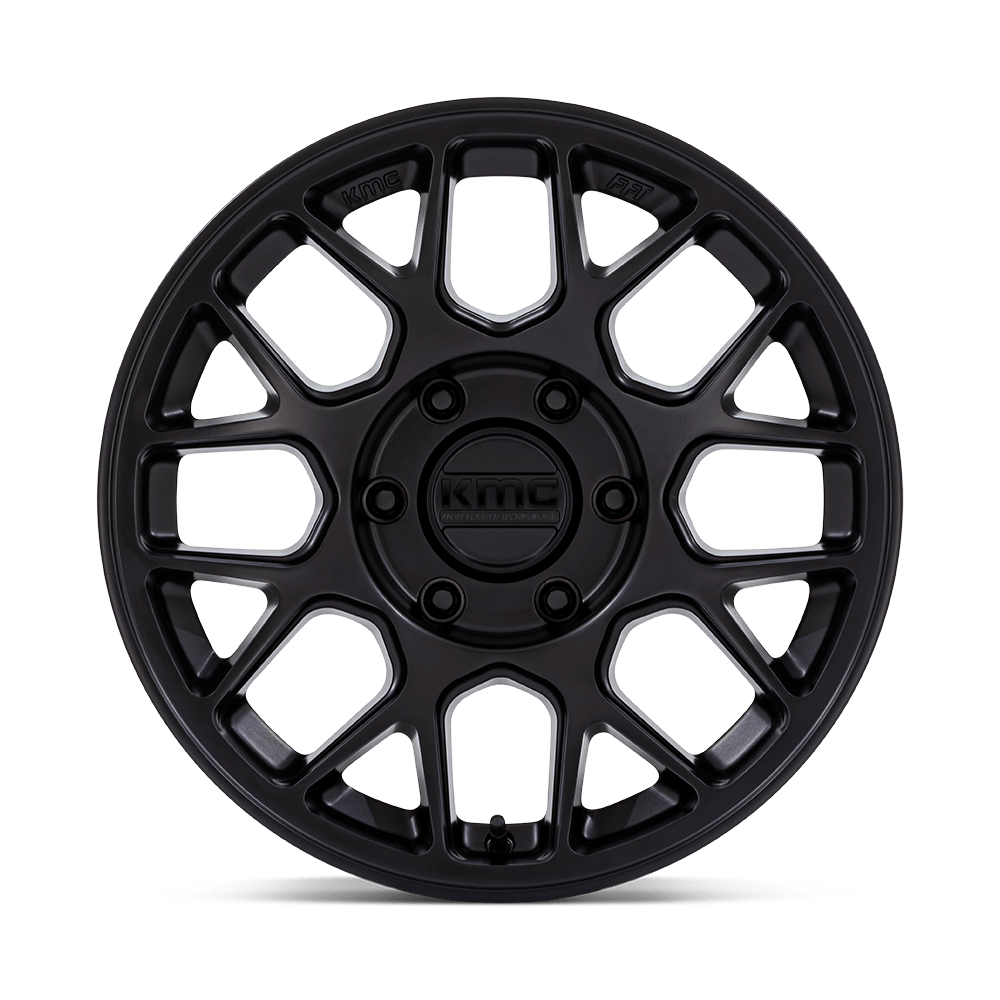

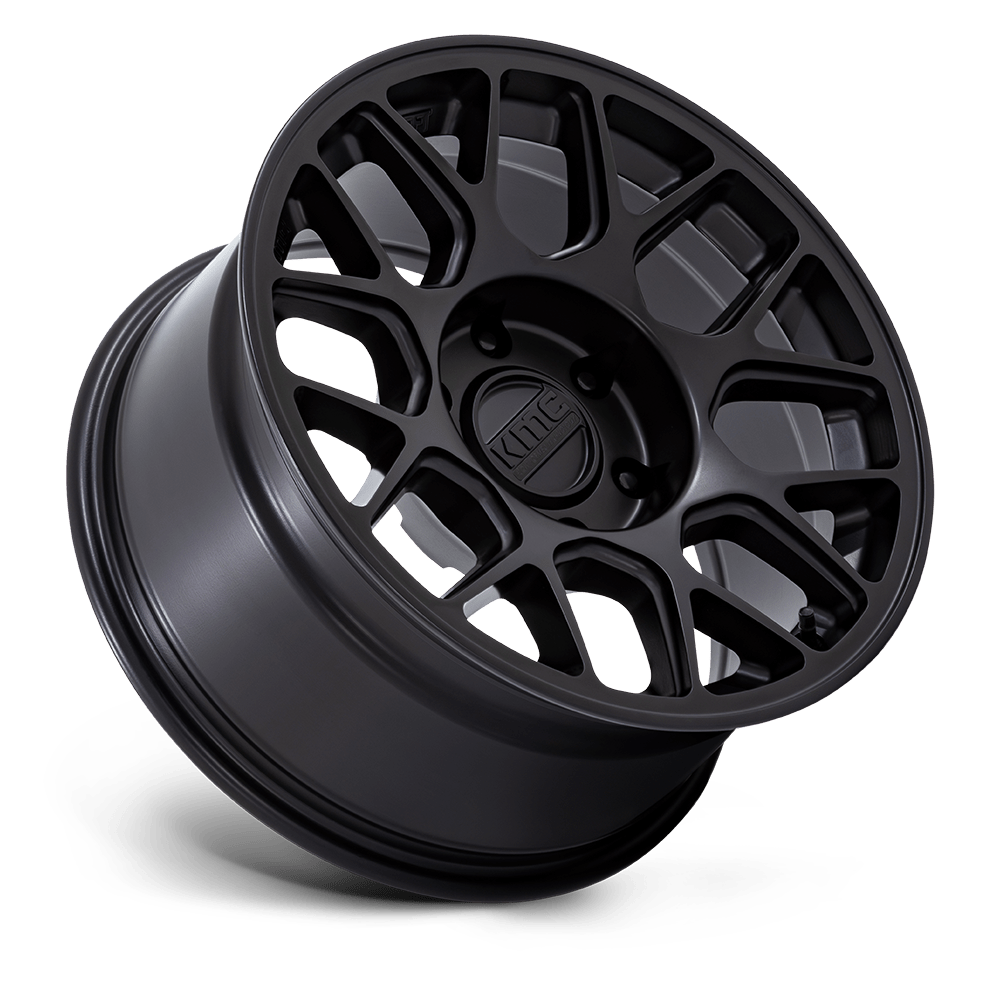

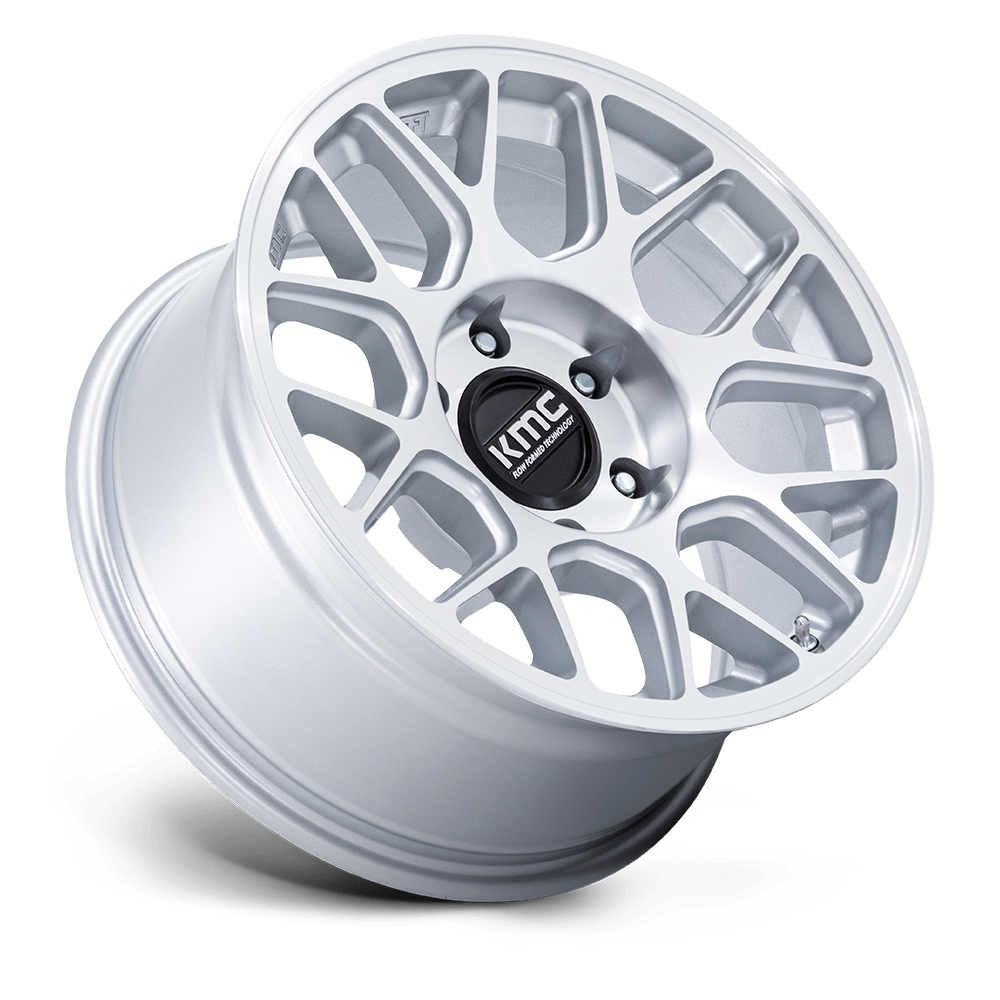

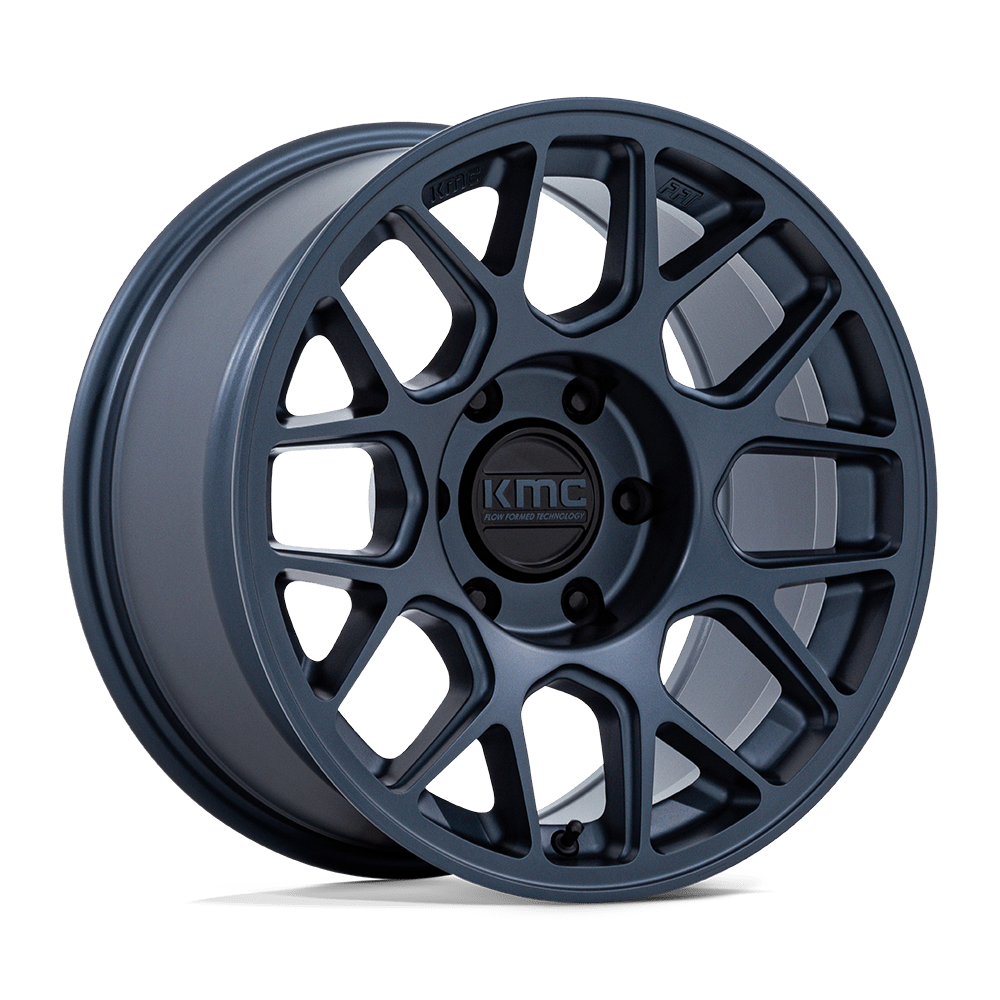

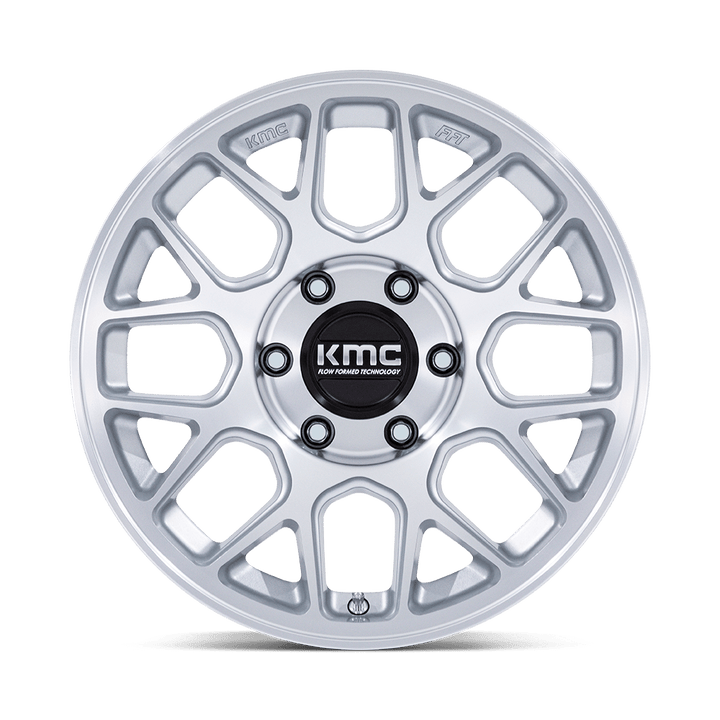

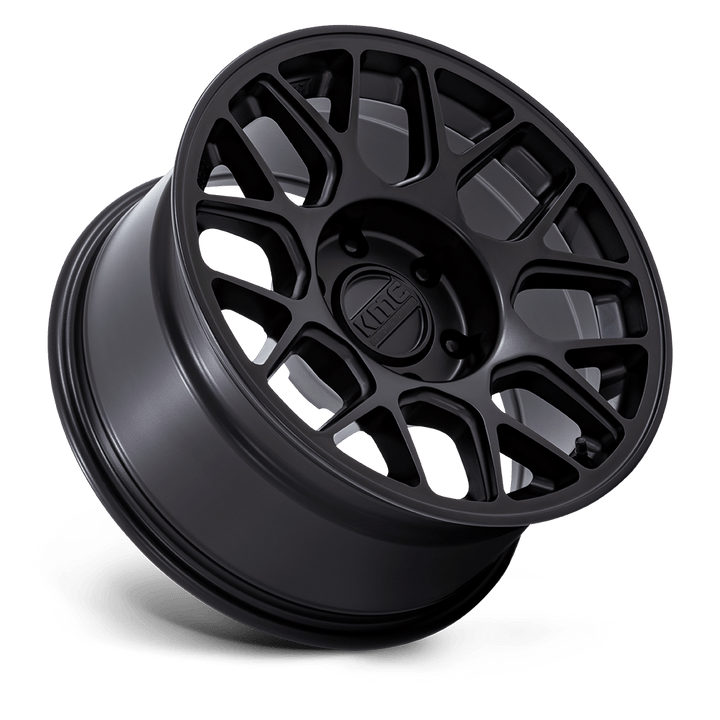

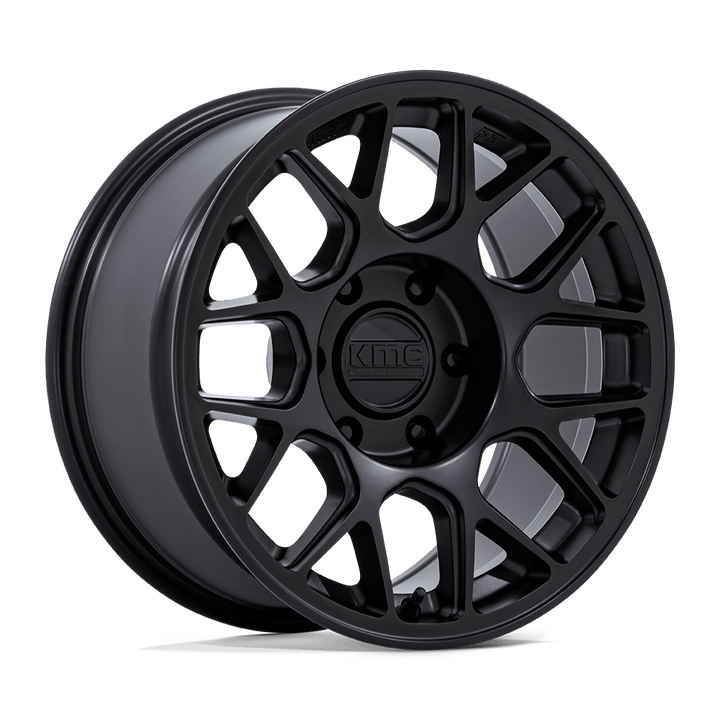

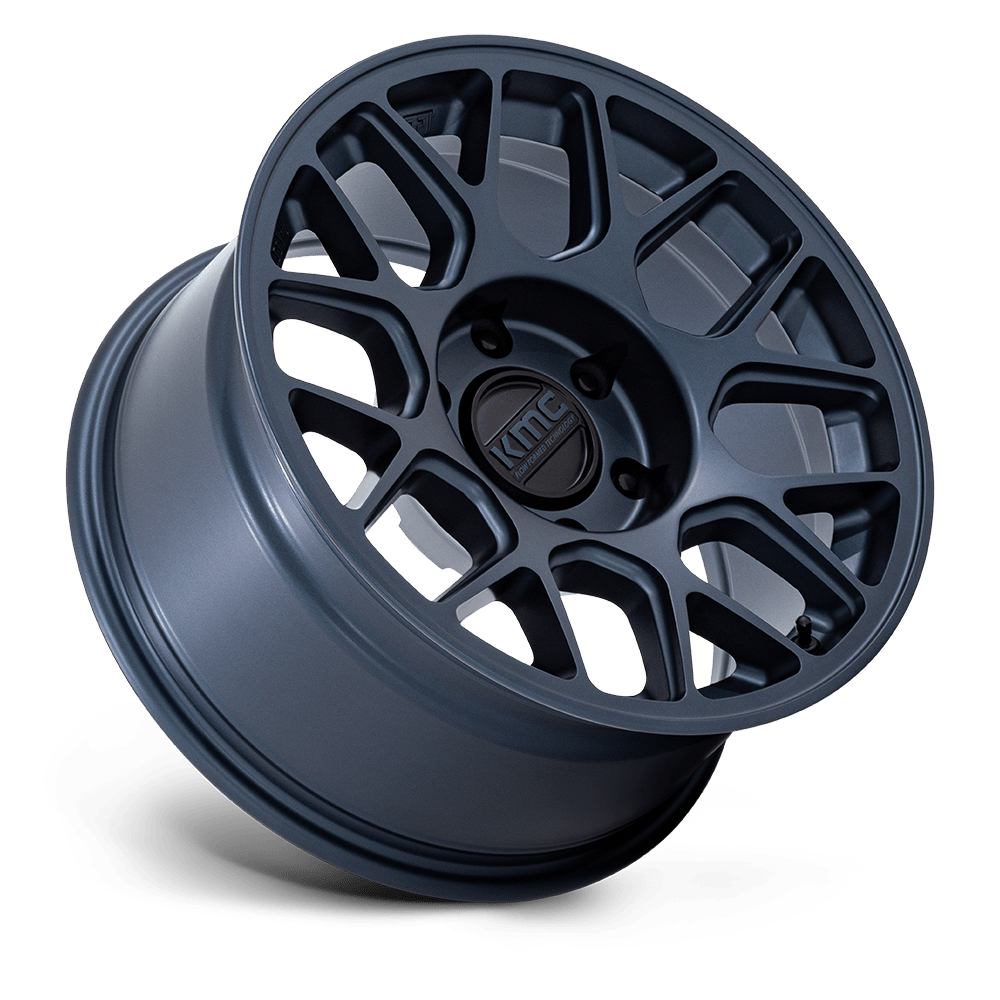

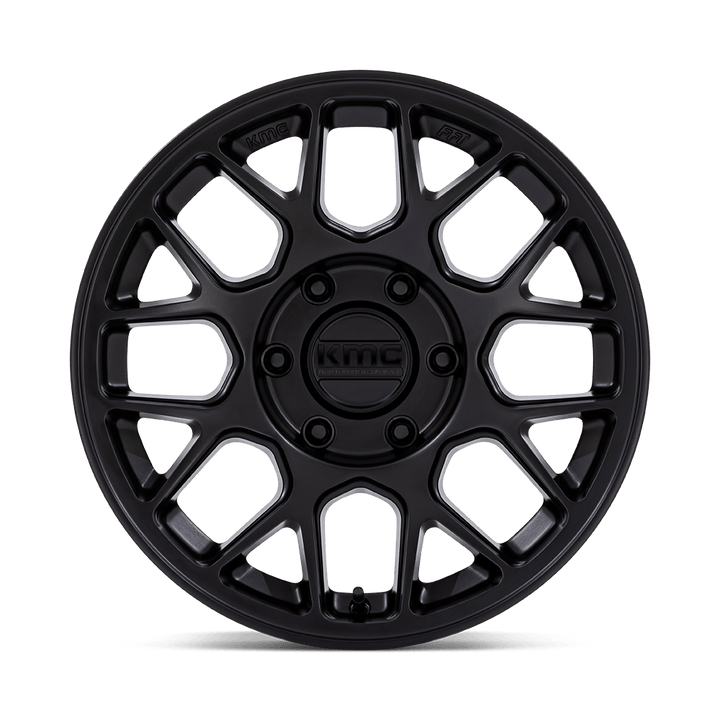

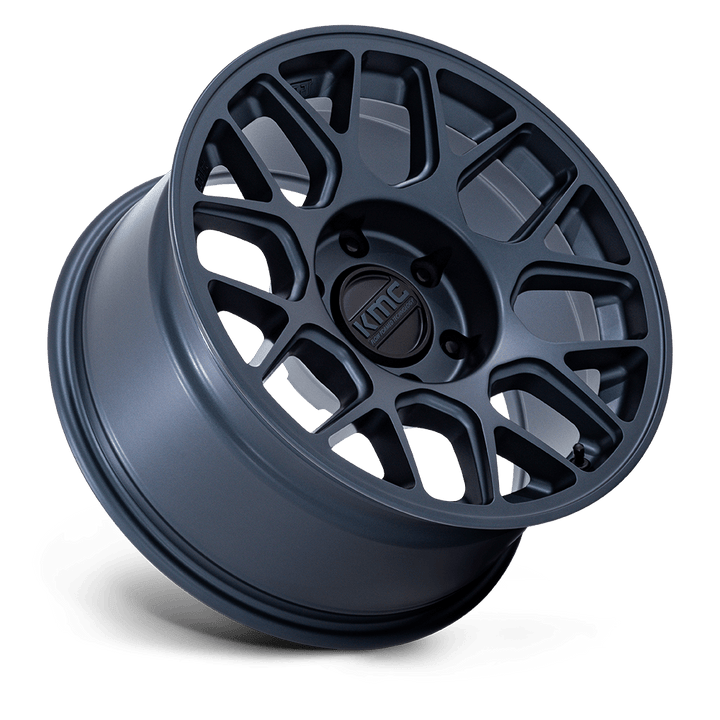

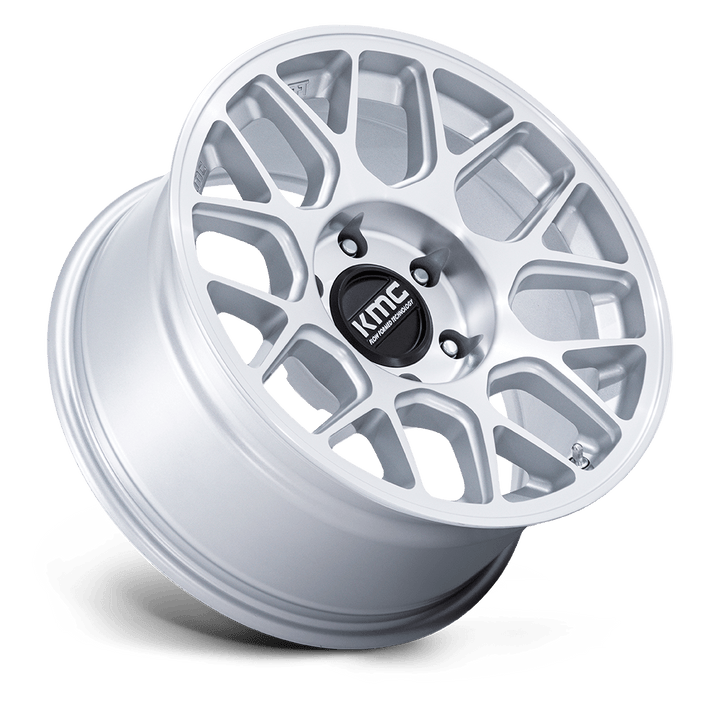

• Finishes: Gloss Silver w/ Machined Face, Matte Black, Metallic Blue.

Pick your wheel

• Finish: pick the color. The photo changes with the finish.
• Size and Bolt Pattern: diameter x width, then the bolt pattern. Match the bolt pattern to your hubs exactly.
• Offset: more negative pushes the wheel out toward the fender, more positive tucks it in. Each offset is a different part number.

Each wheel is sold individually. Not sure which bolt pattern or offset fits your rig? Send us your year, make and model and we will point you to the right part number.
