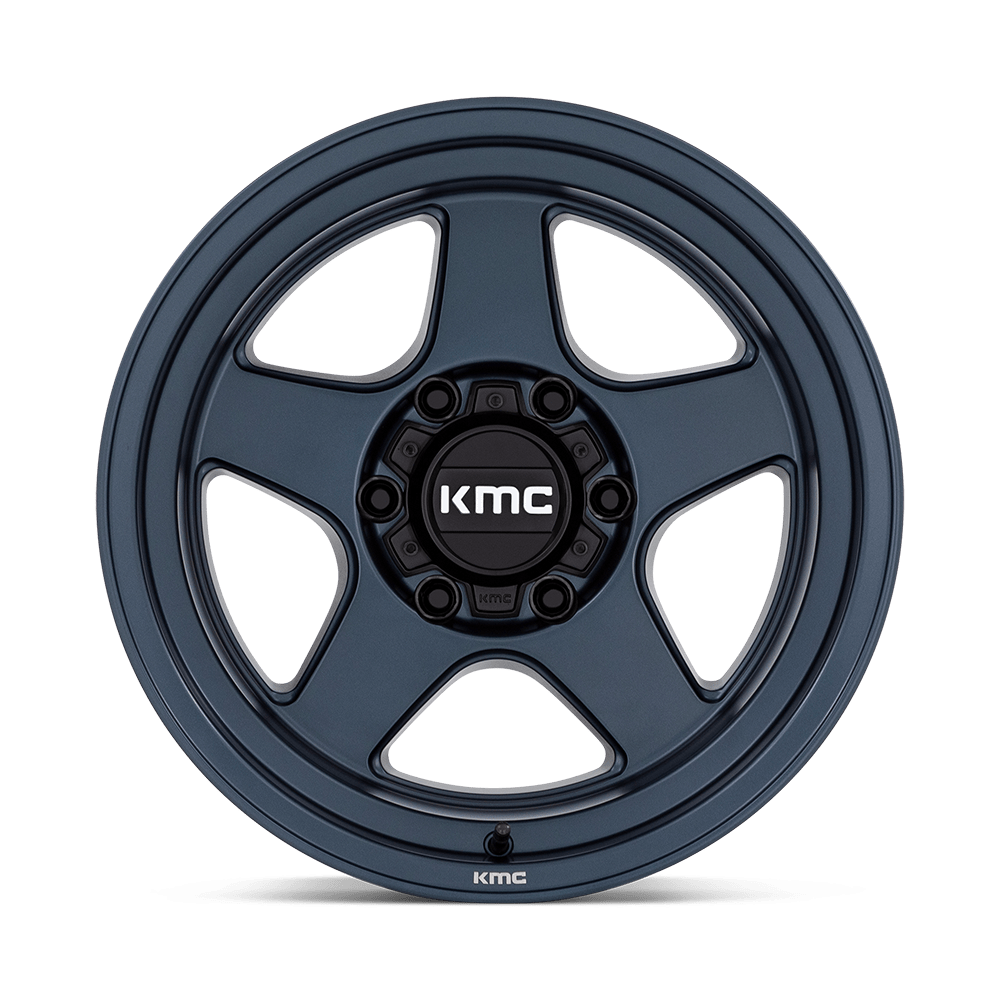

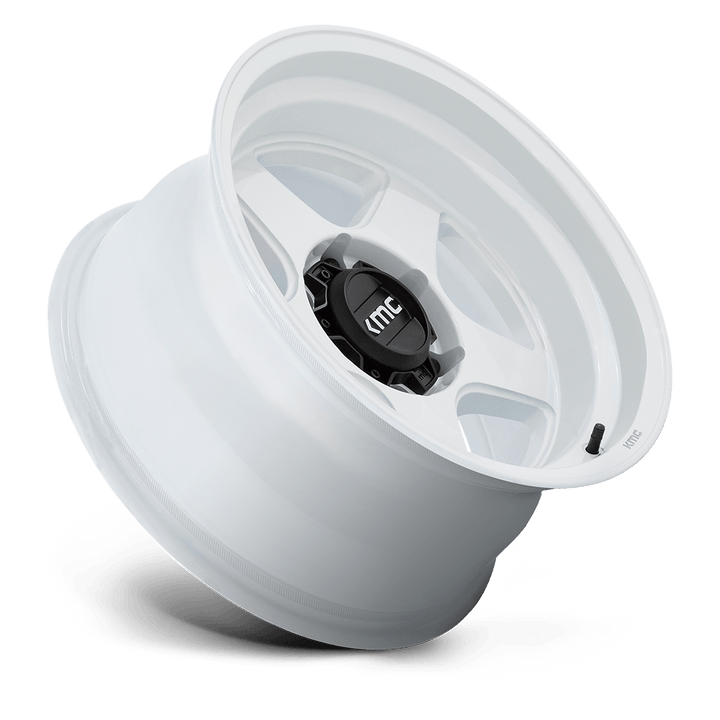

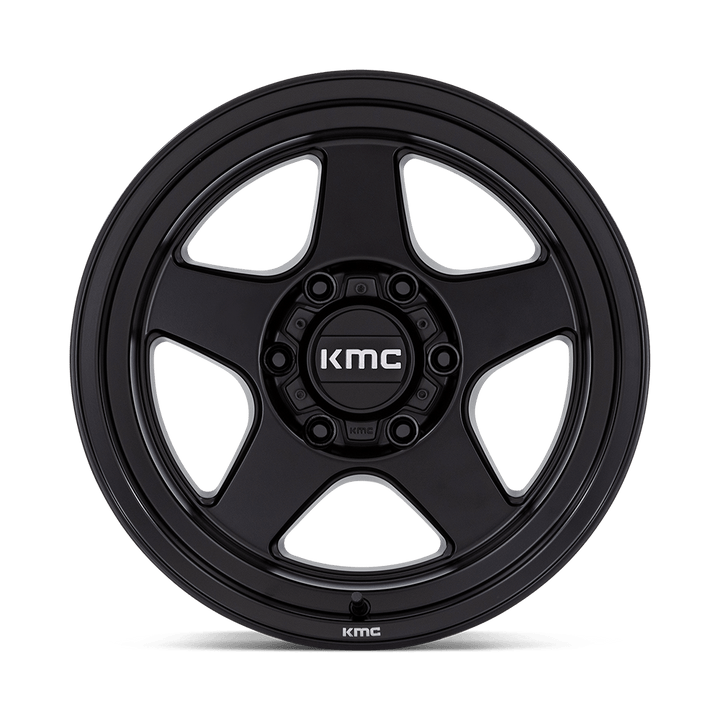

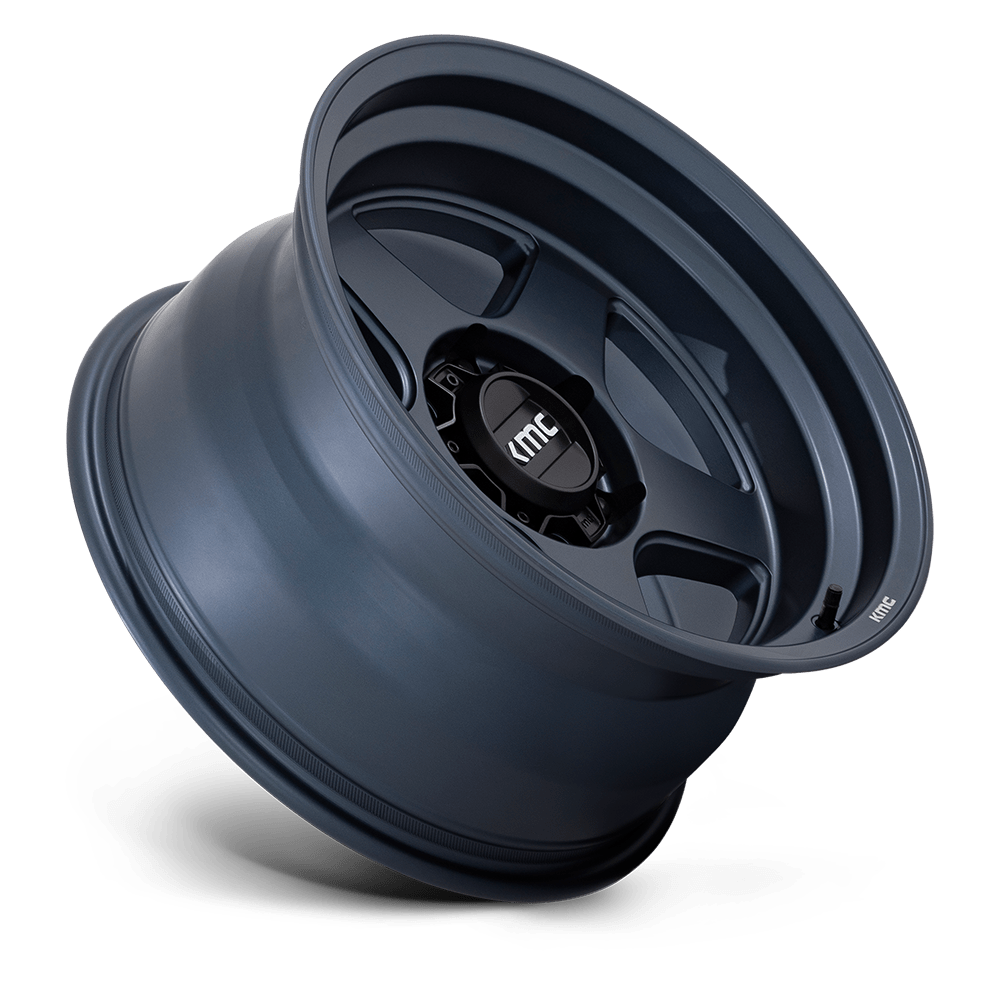

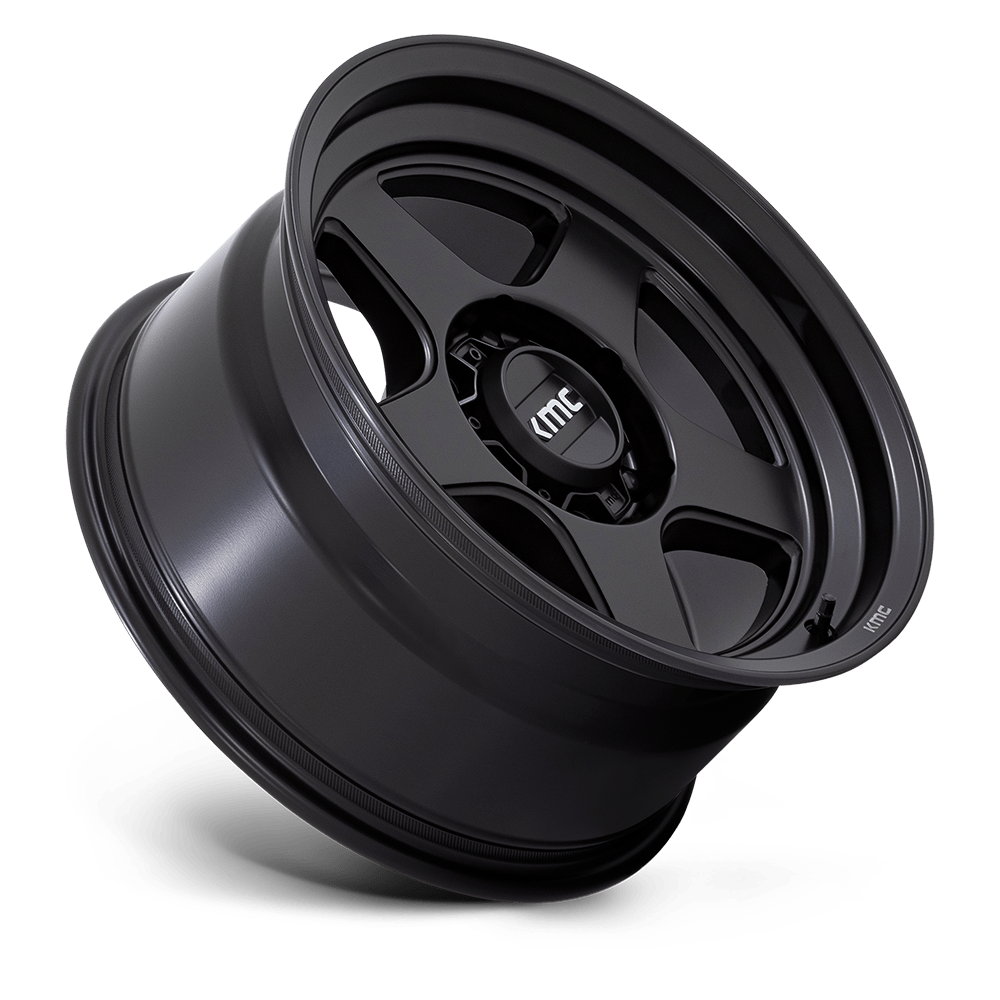

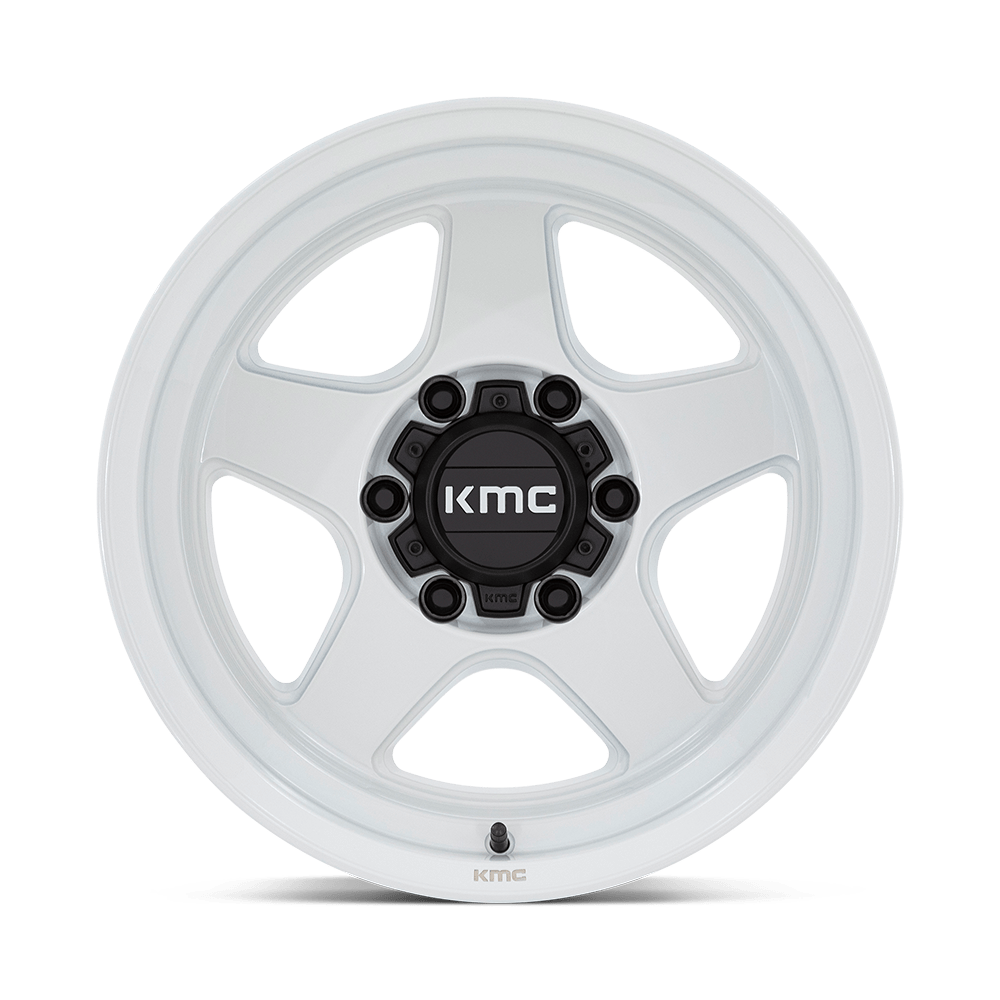

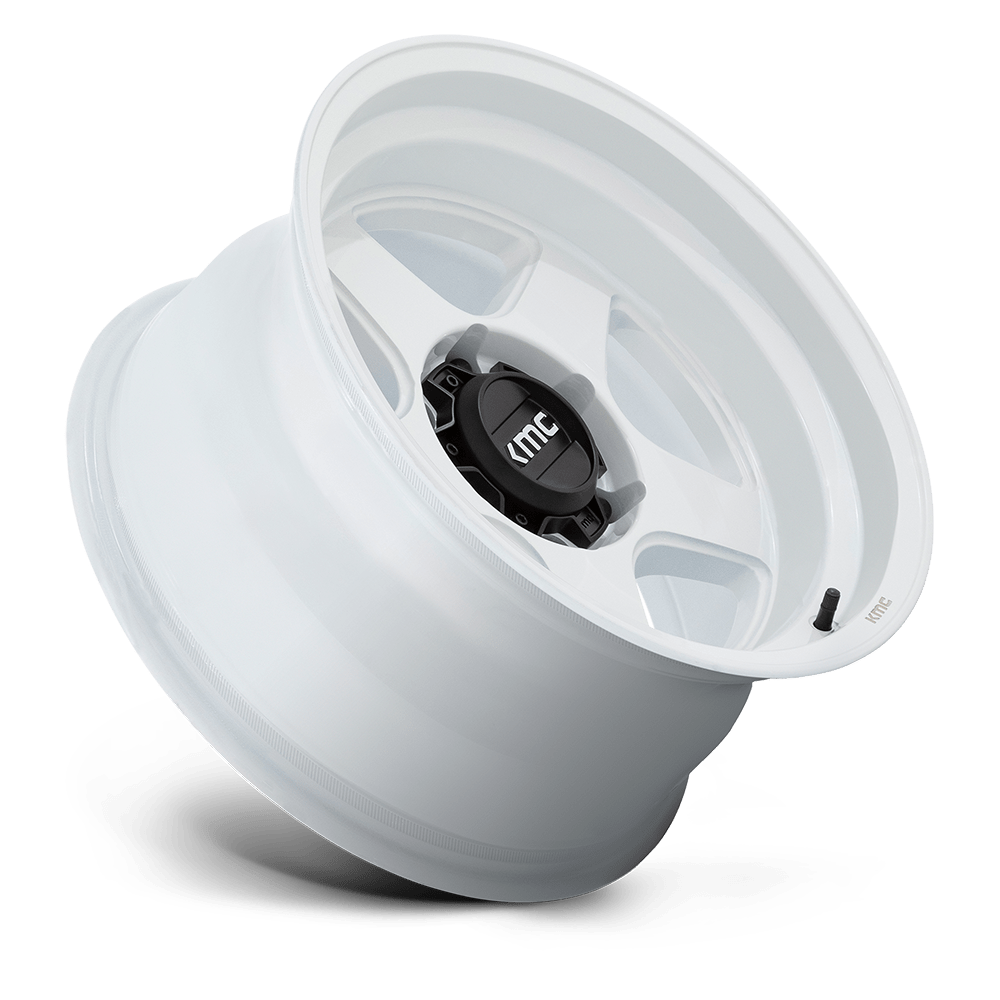

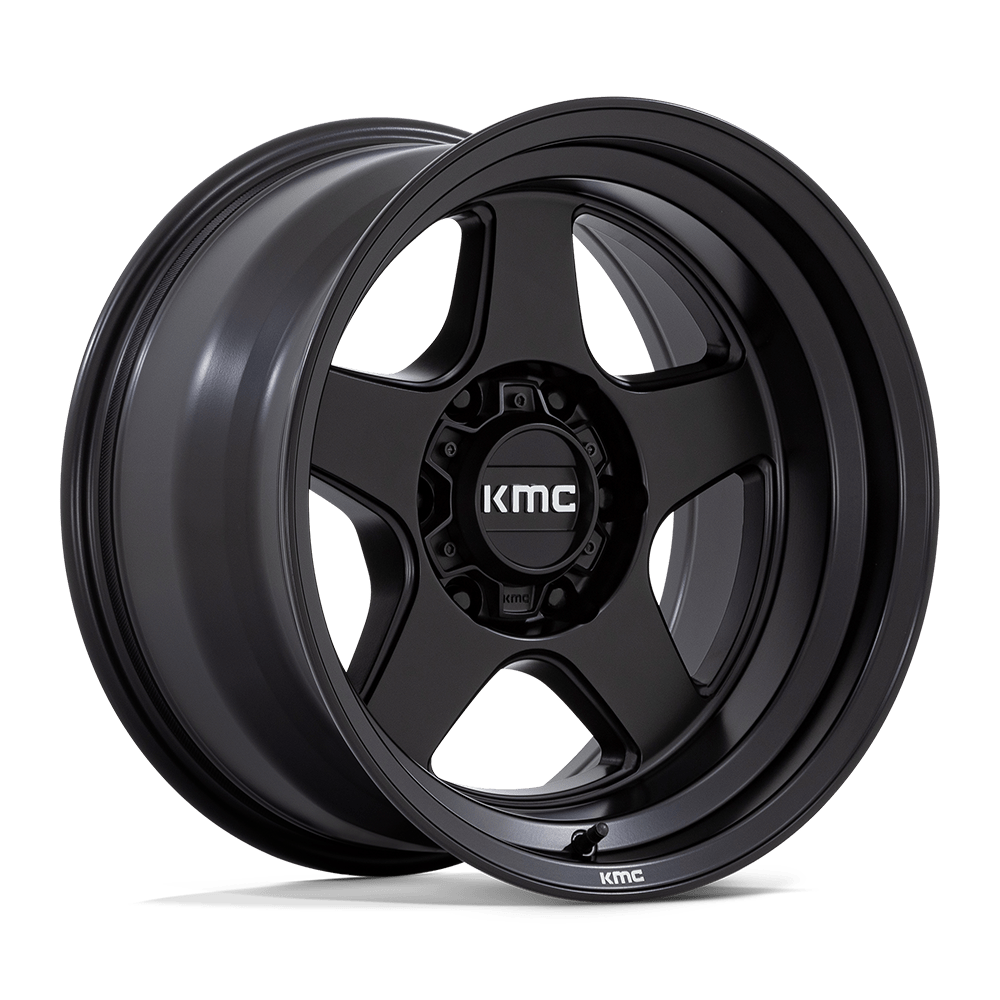

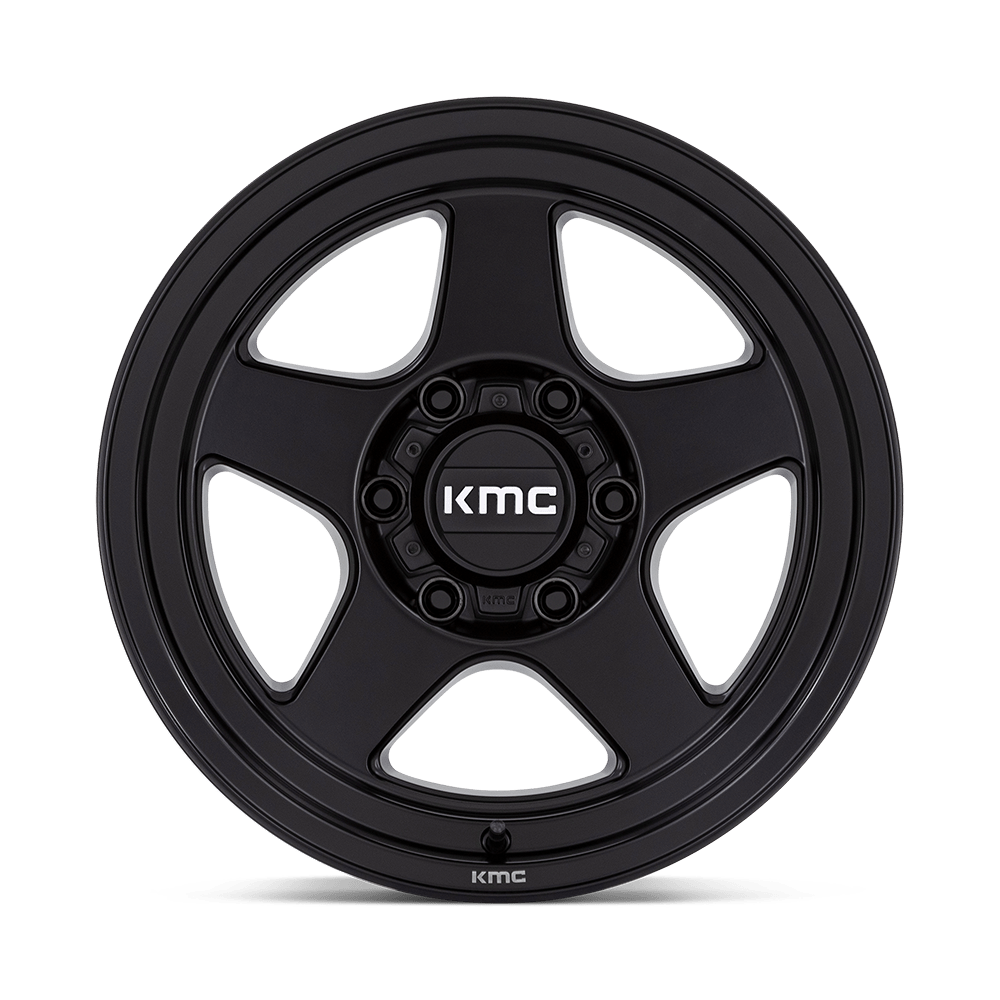

KMC KM728 Lobo Wheel

The Lobo is a one-piece cast wheel with a retro motorsport-style five-spoke design and a classic stepped lip. KMC calls it the newest addition to its Adventure Series, and it comes with a bead retention system.

What you get

• Construction: cast aluminum (KMC Adventure line).
• Bead Retention System: machined grooves in the bead seat help hold the tire bead at low pressure without a true beadlock.
• Load rating: 2500 lbs per wheel, depending on size.
• Weight: 26.4 to 28.9 lbs each, depending on size.
• Center bore: varies by bolt pattern, 66.06 to 106.10 mm.
• Center cap part number: T164H120-5-H30-S7, T164H120-6-H30-S7, T164H145-6-H30-S7.

Sizes and fitment

• Sizes: 17x8.5, 17x9.
• Bolt patterns: 5x127, 6x114.3, 6x120, 6x139.7.
• Offsets: -38mm, -10mm, +18mm.

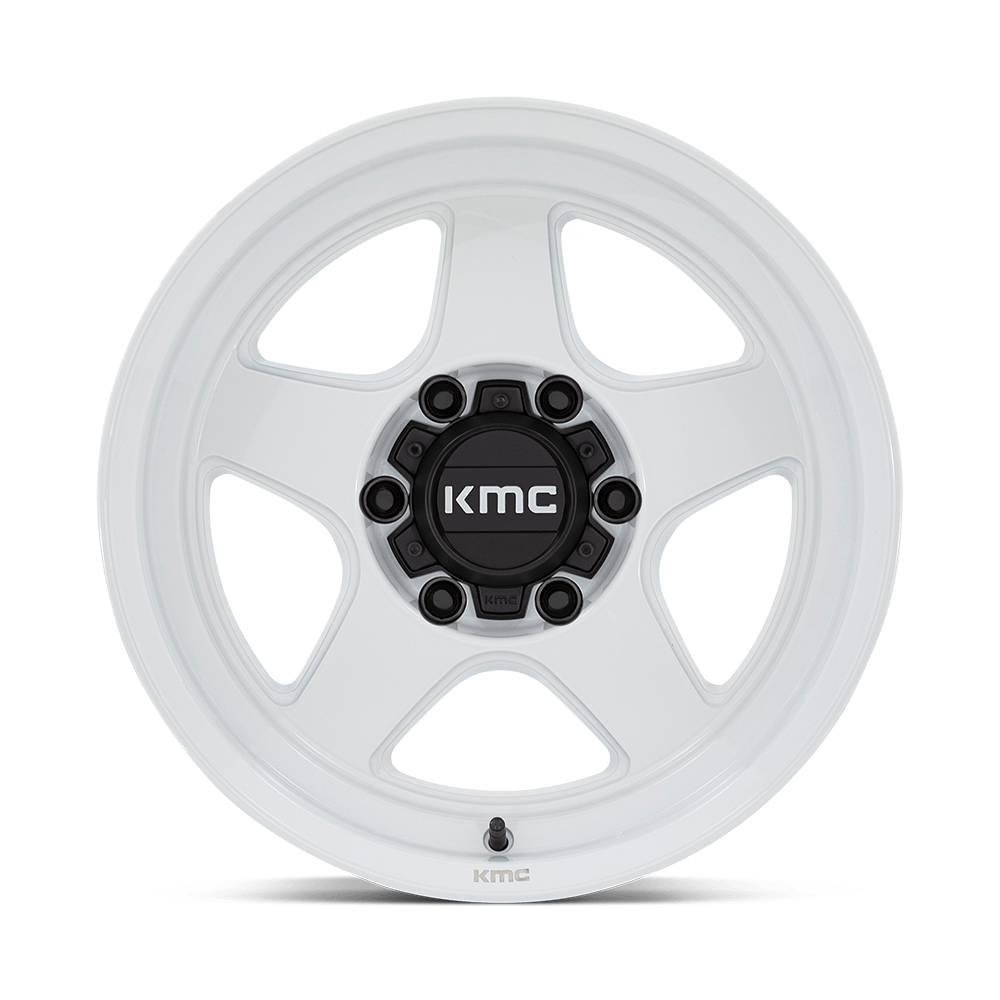

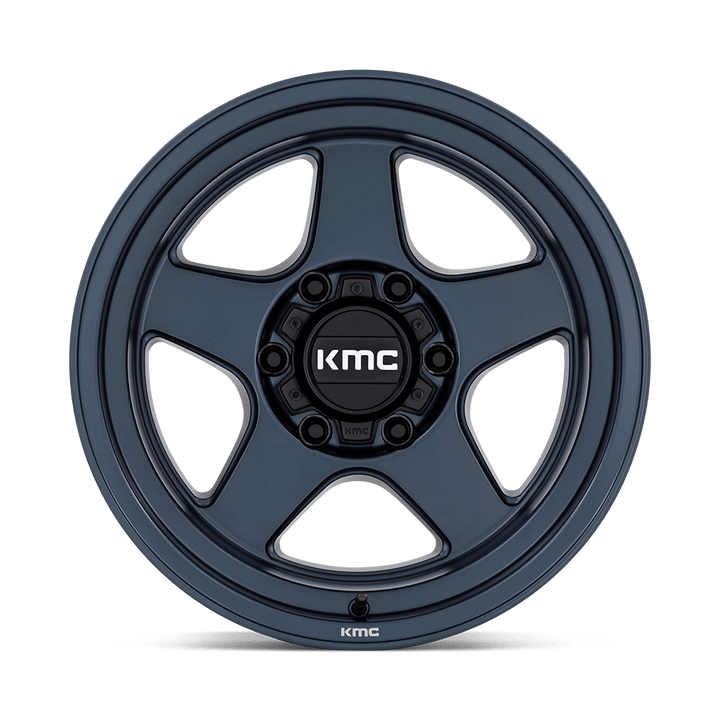

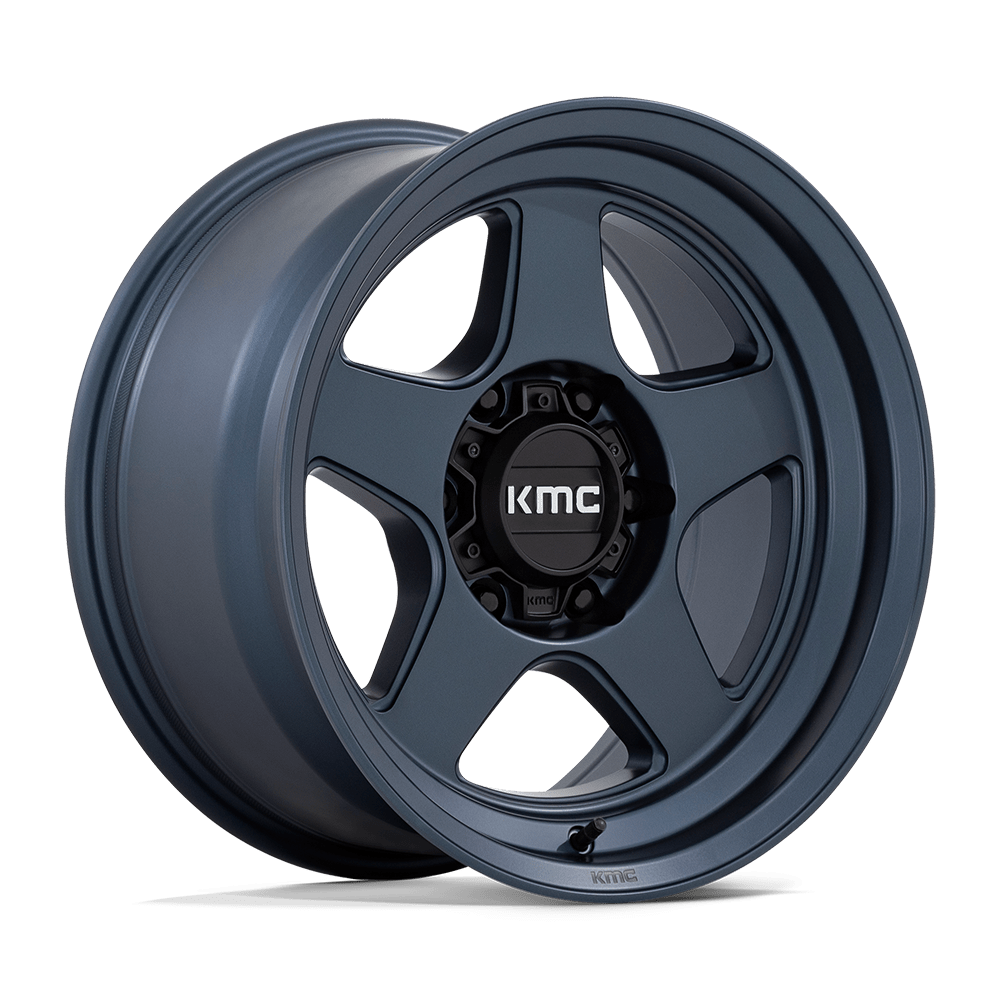

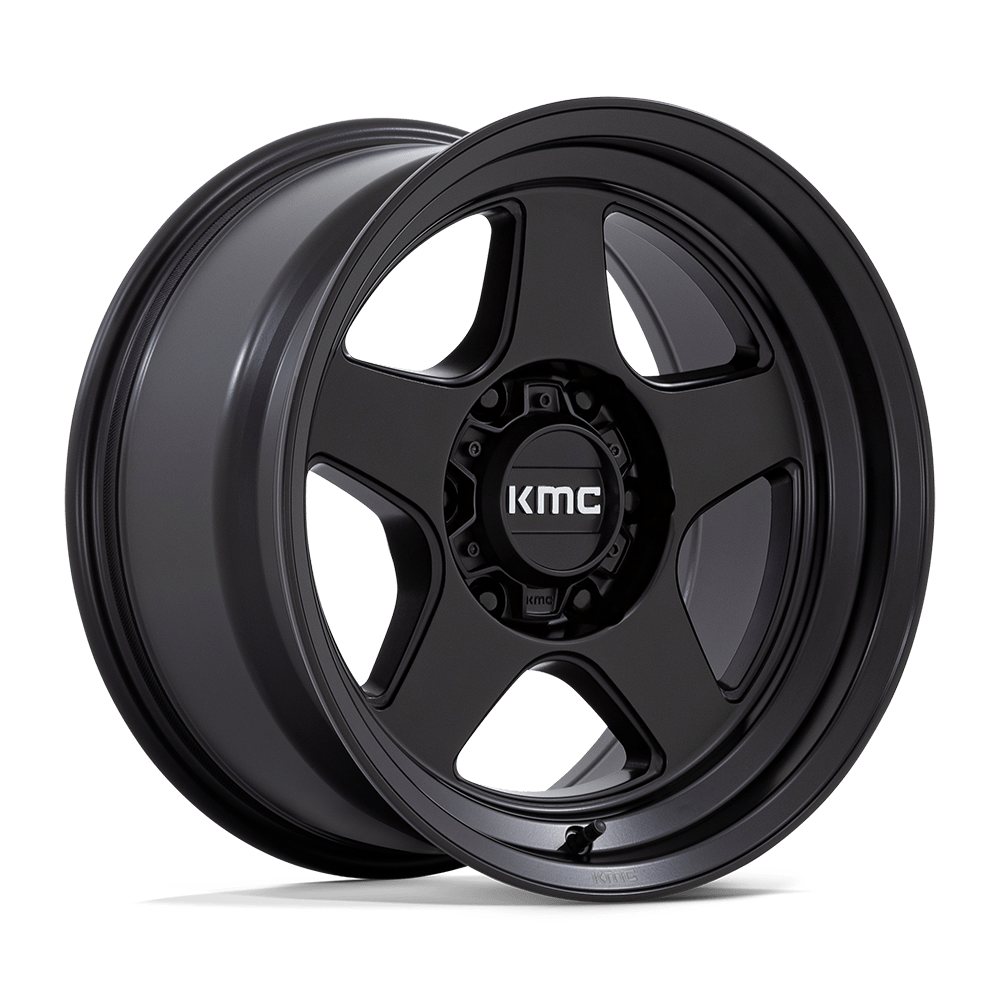

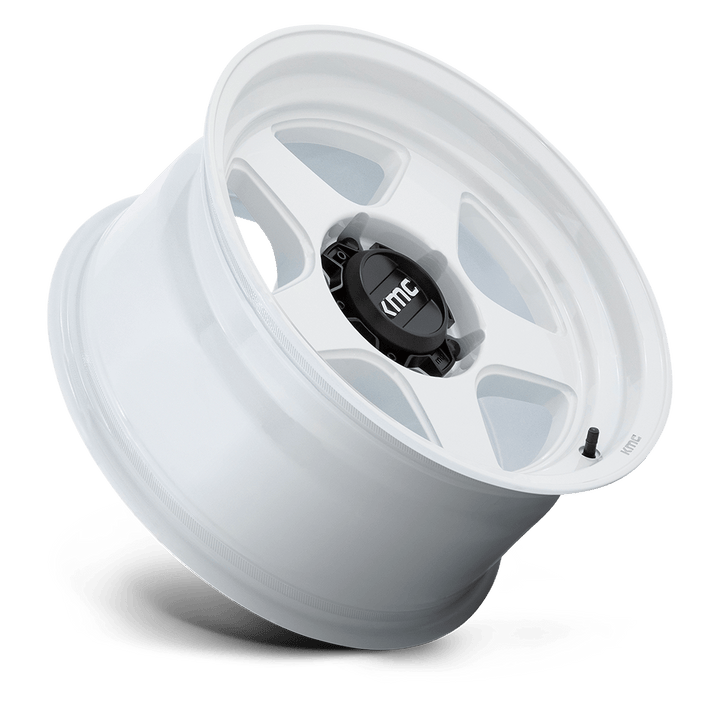

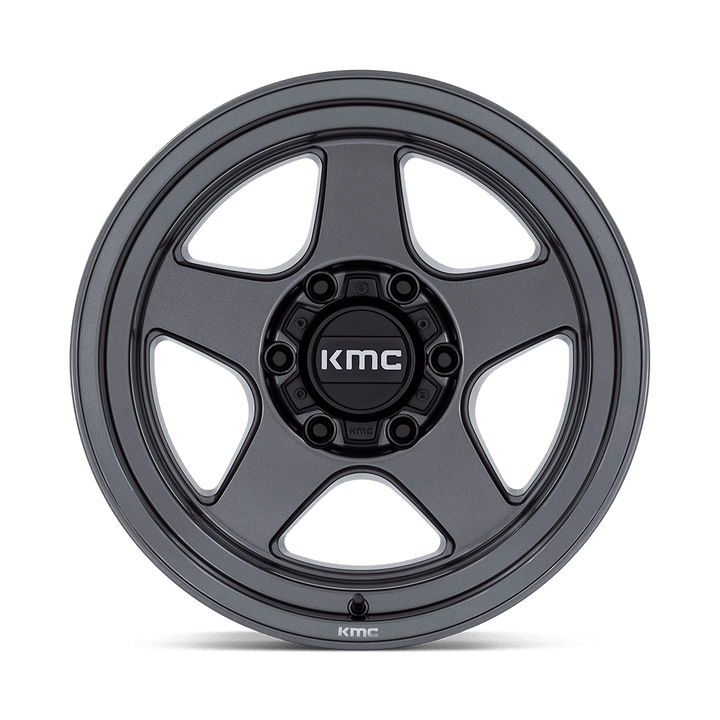

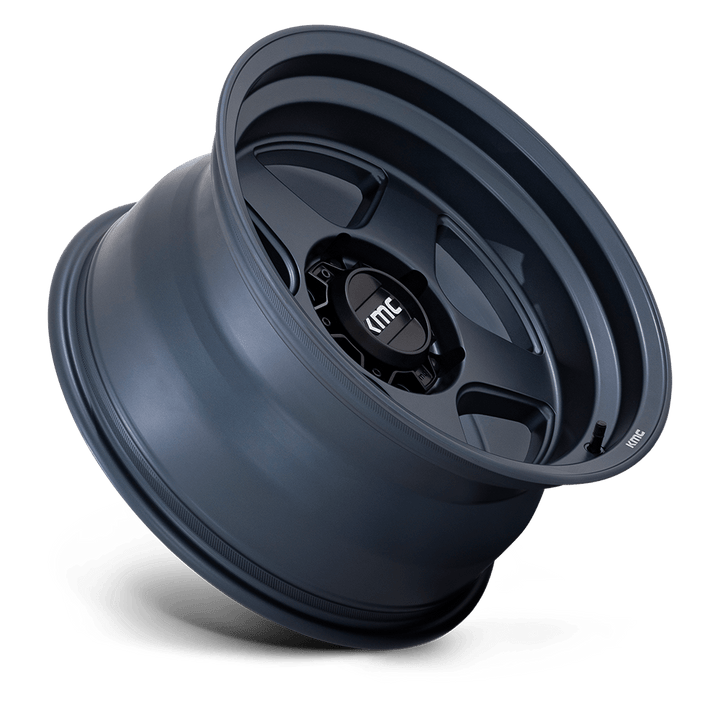

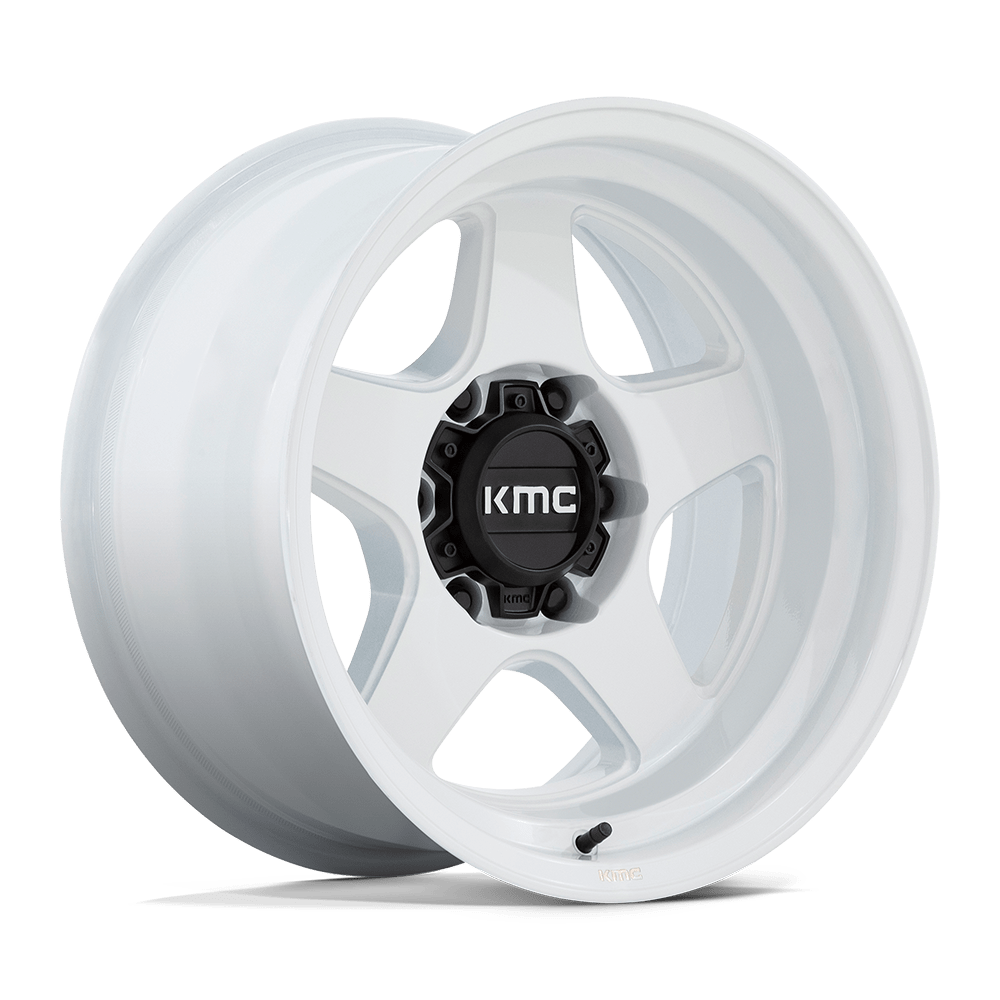

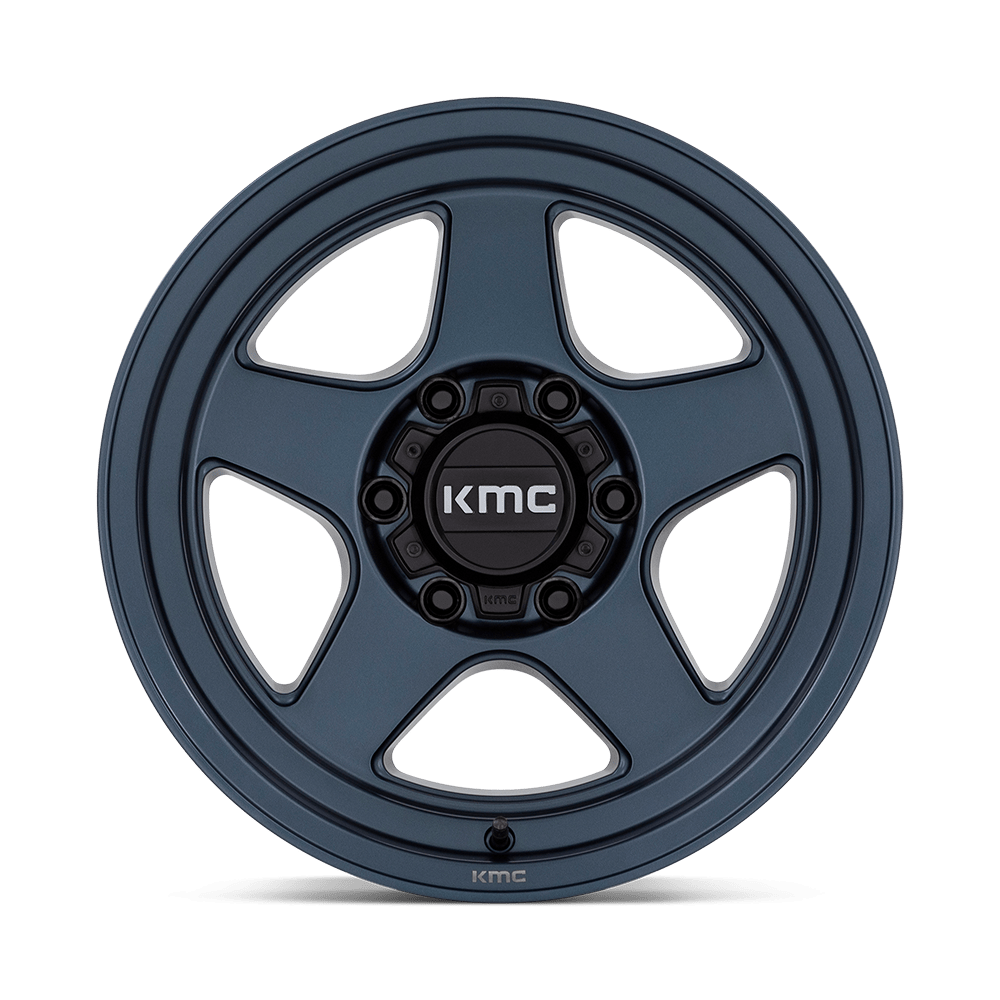

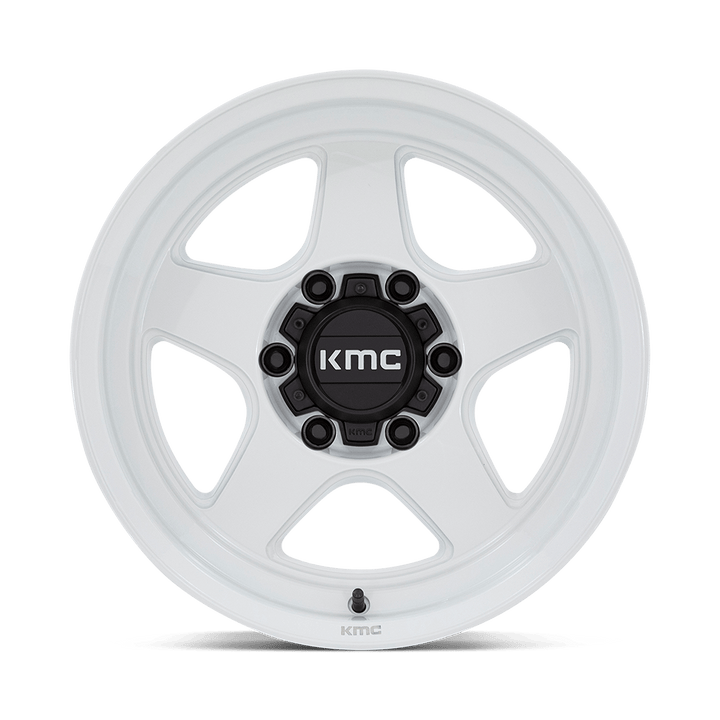

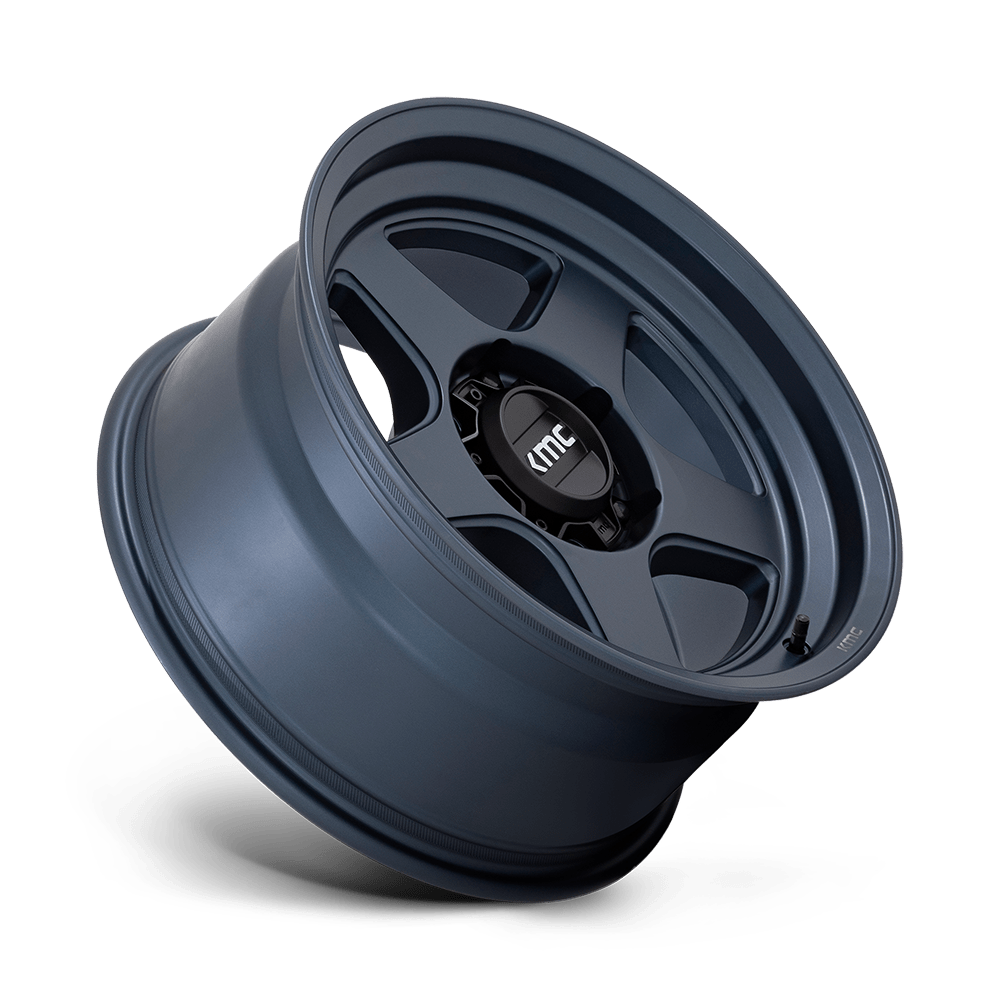

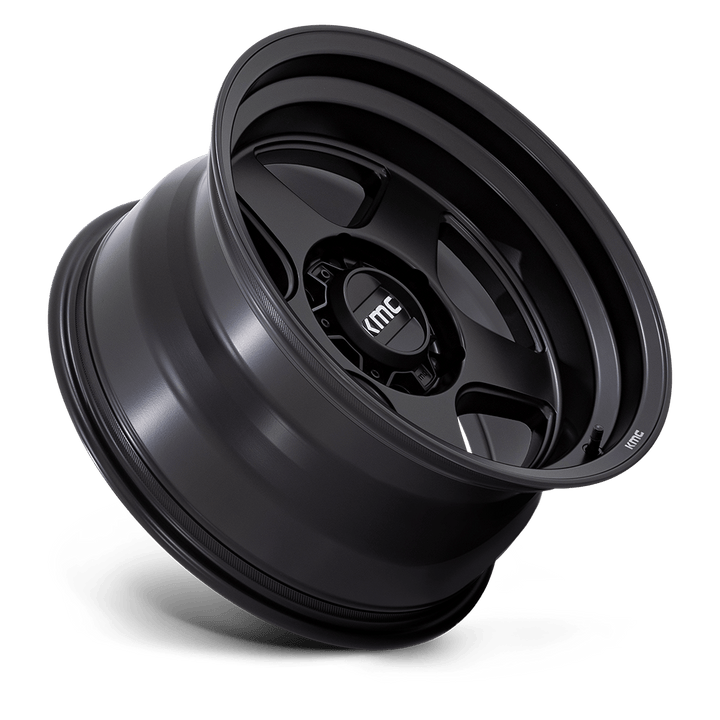

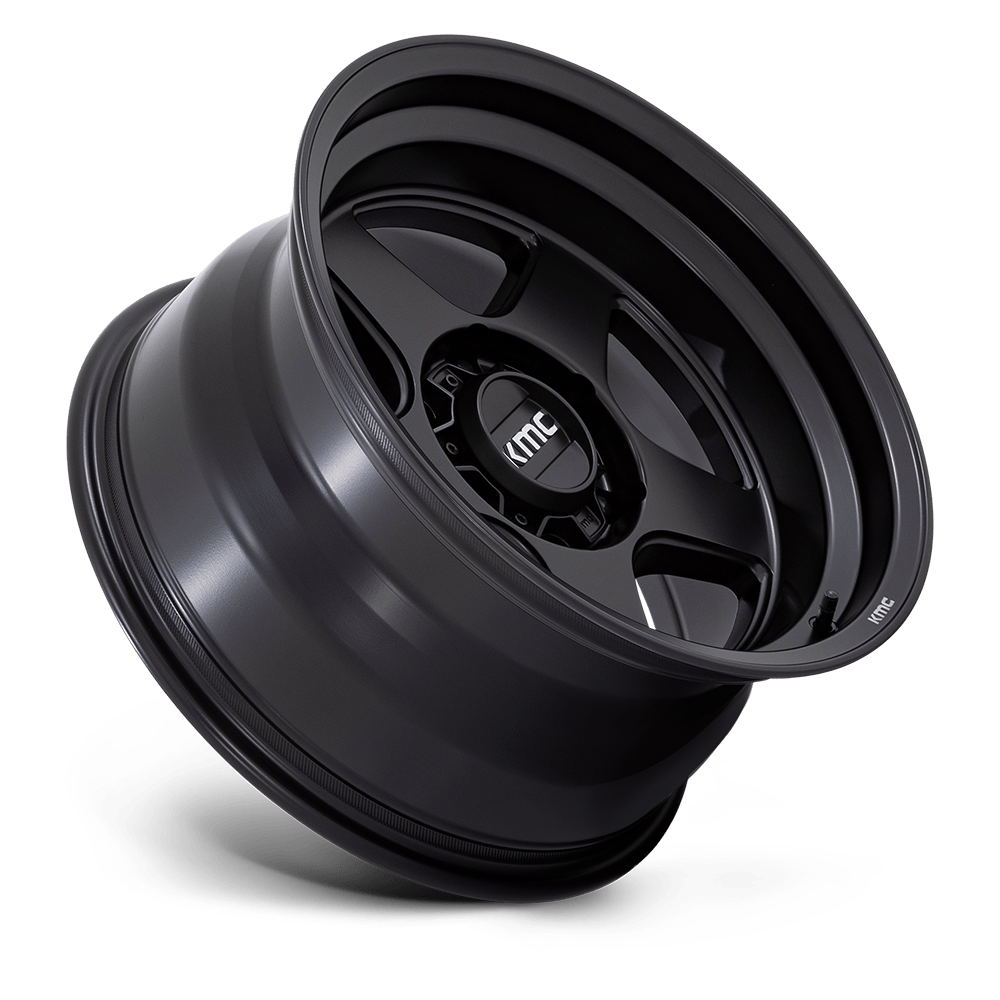

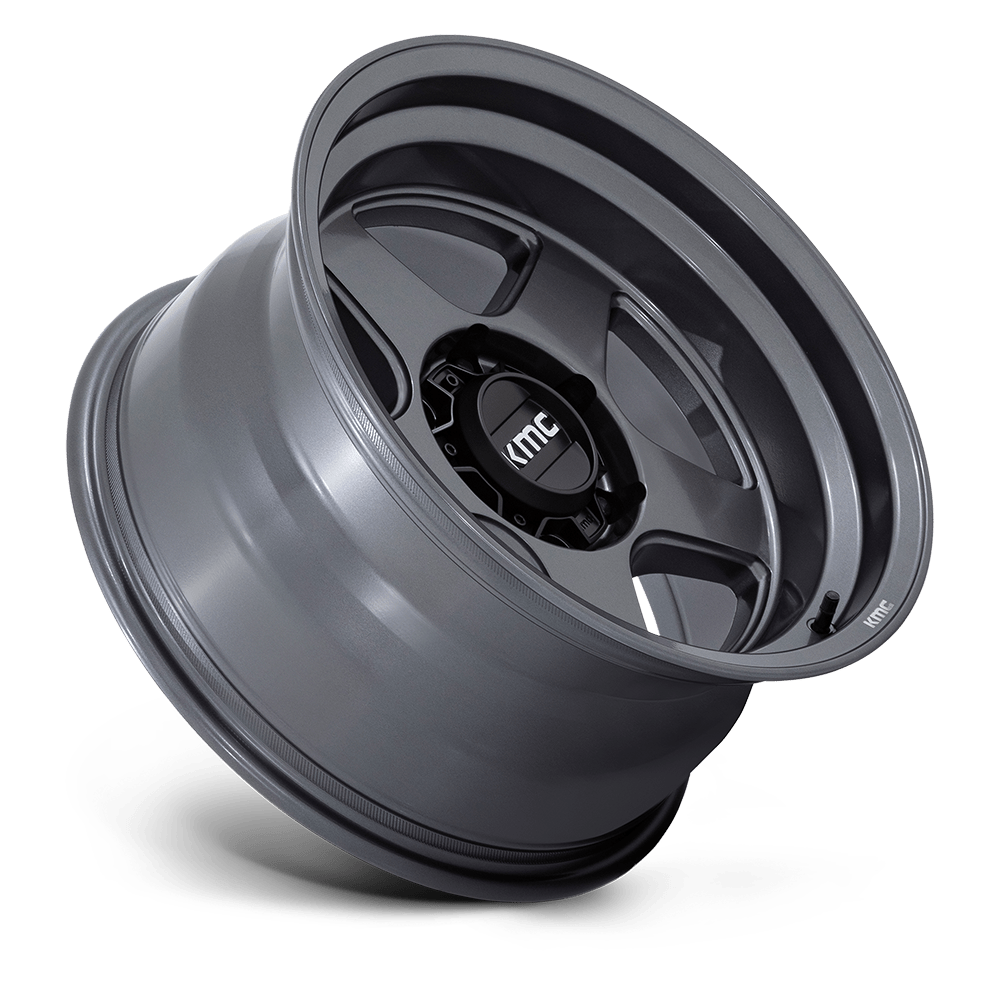

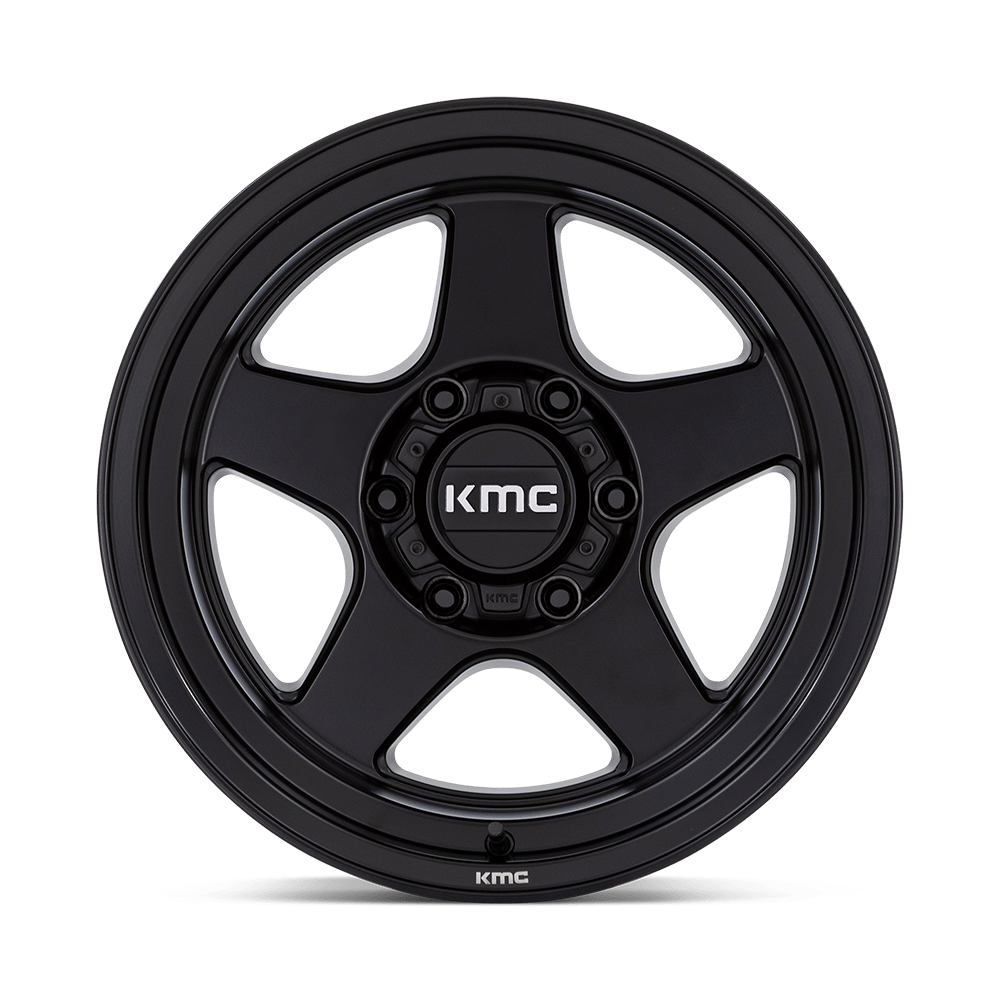

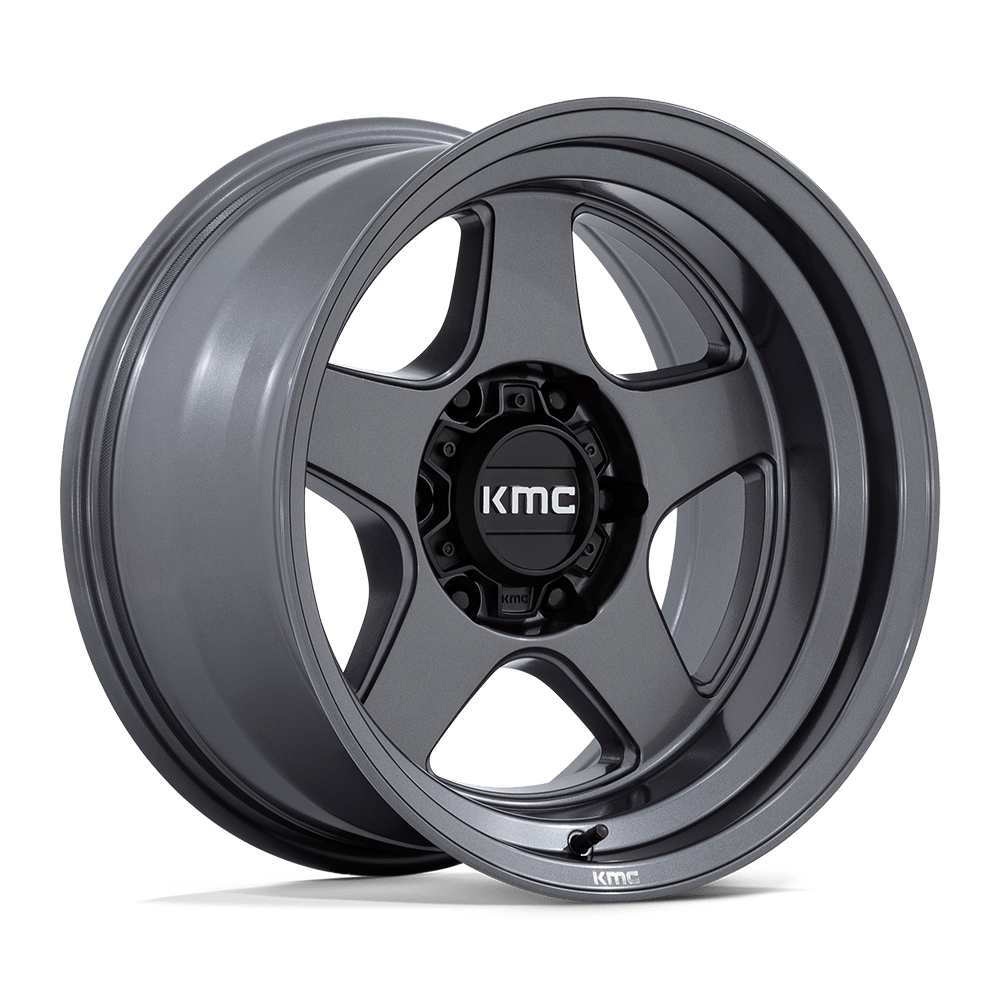

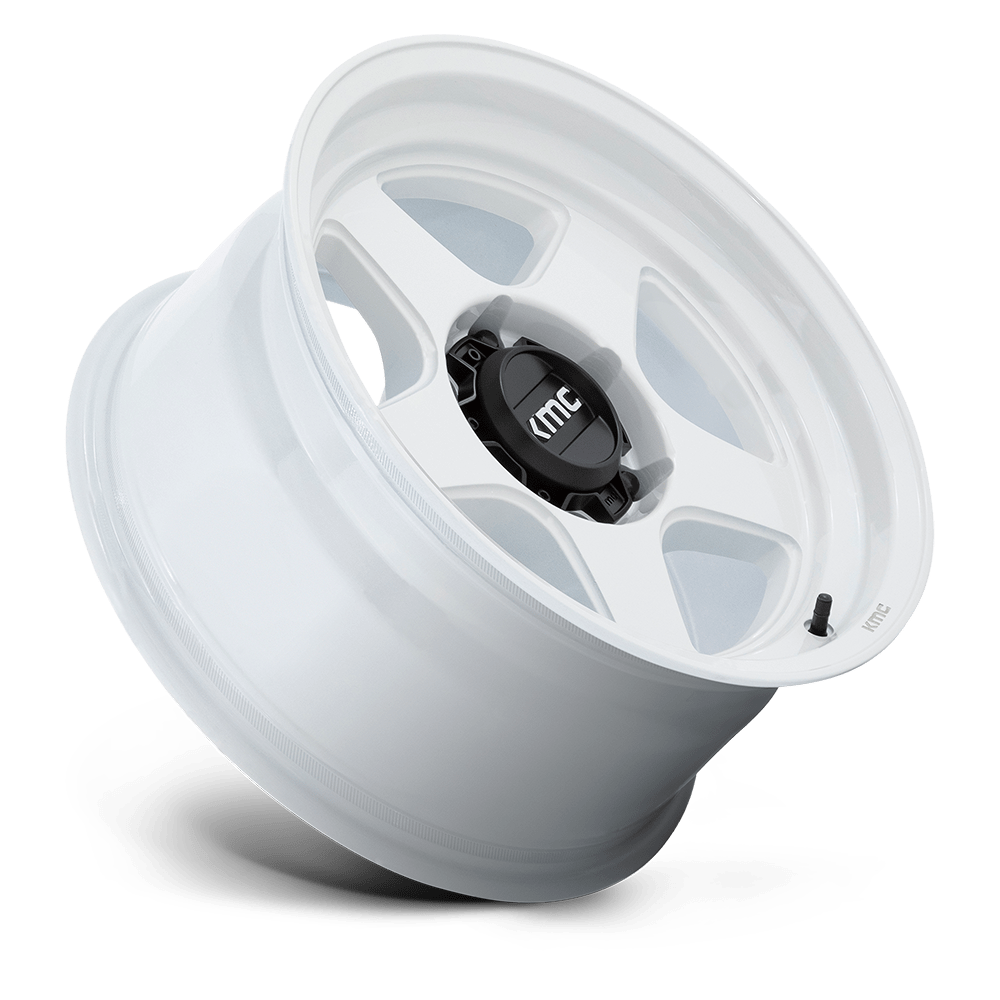

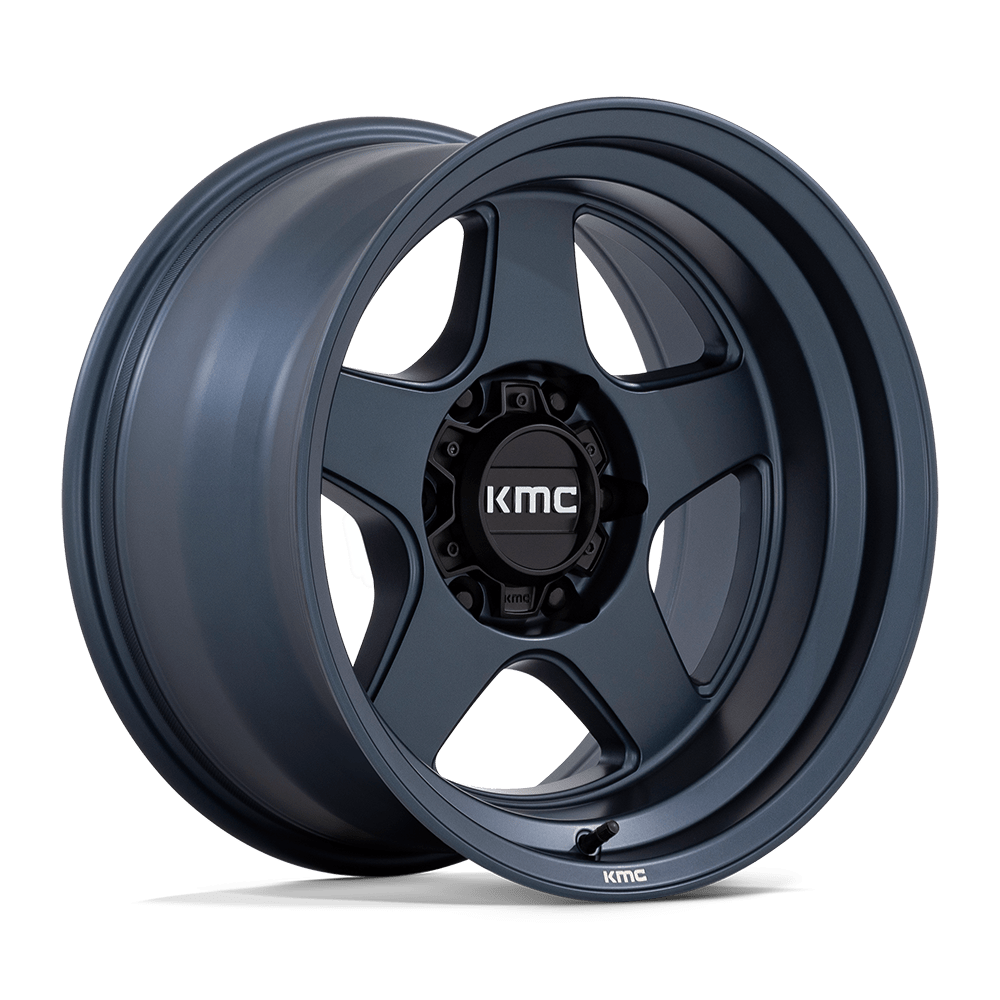

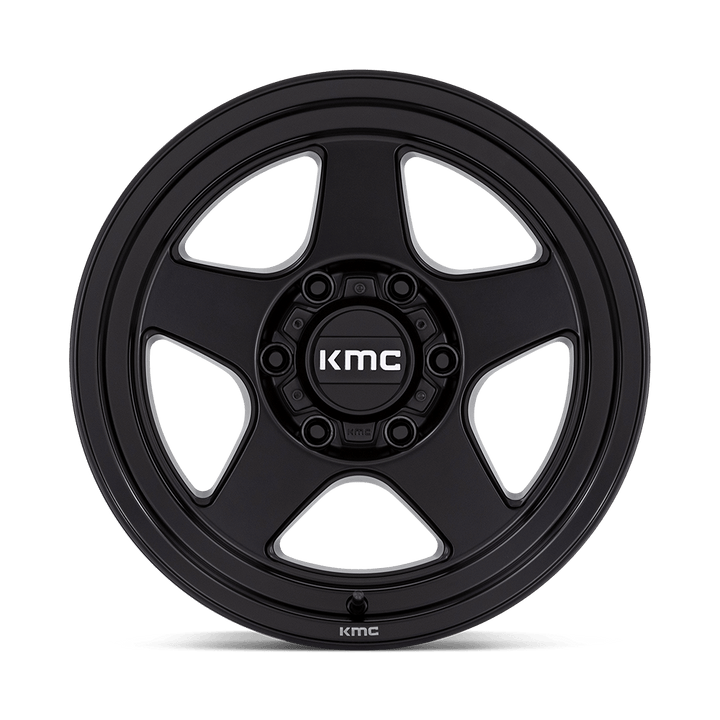

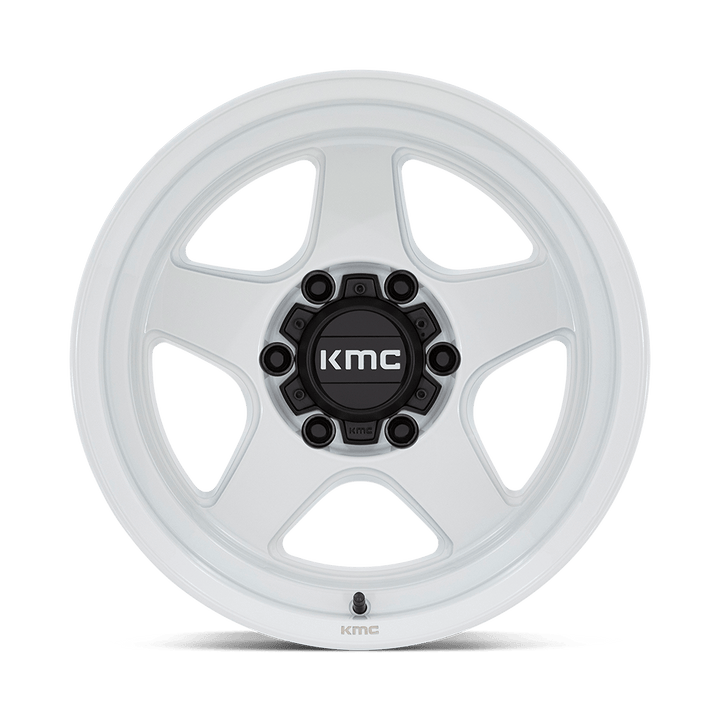

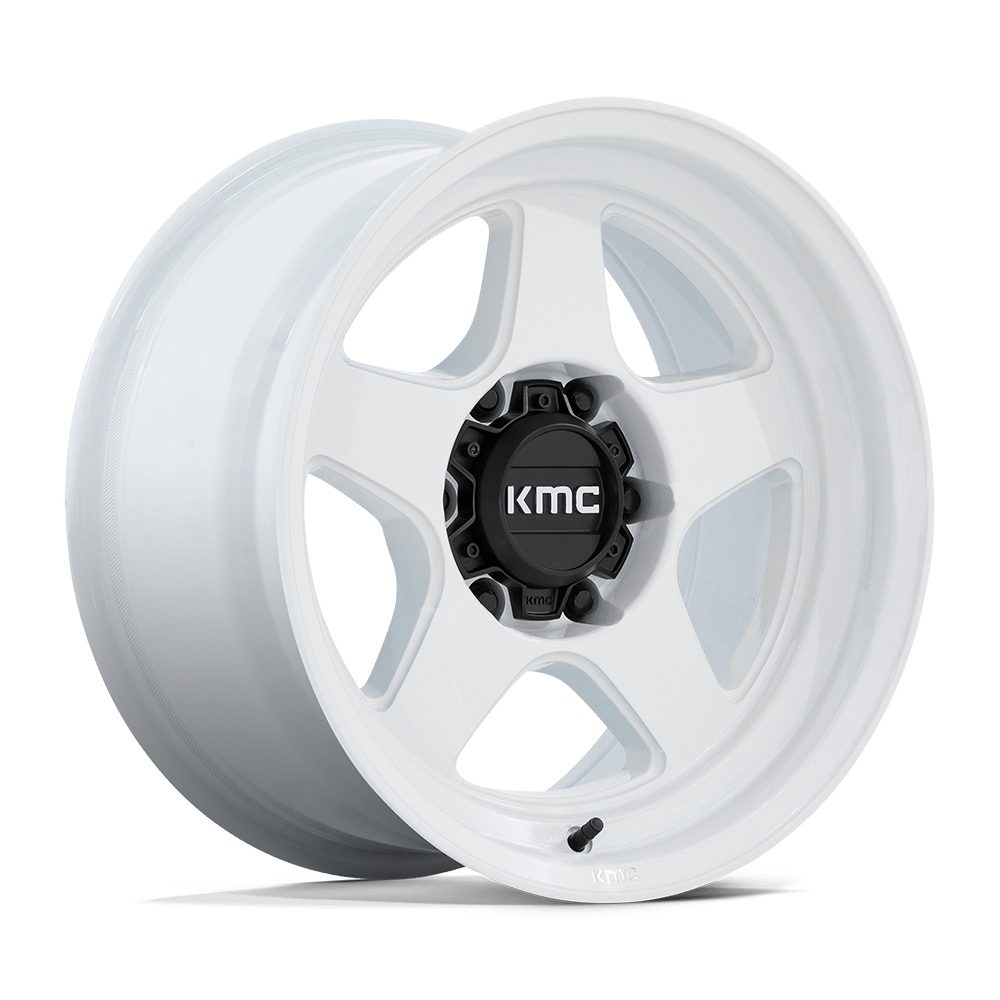

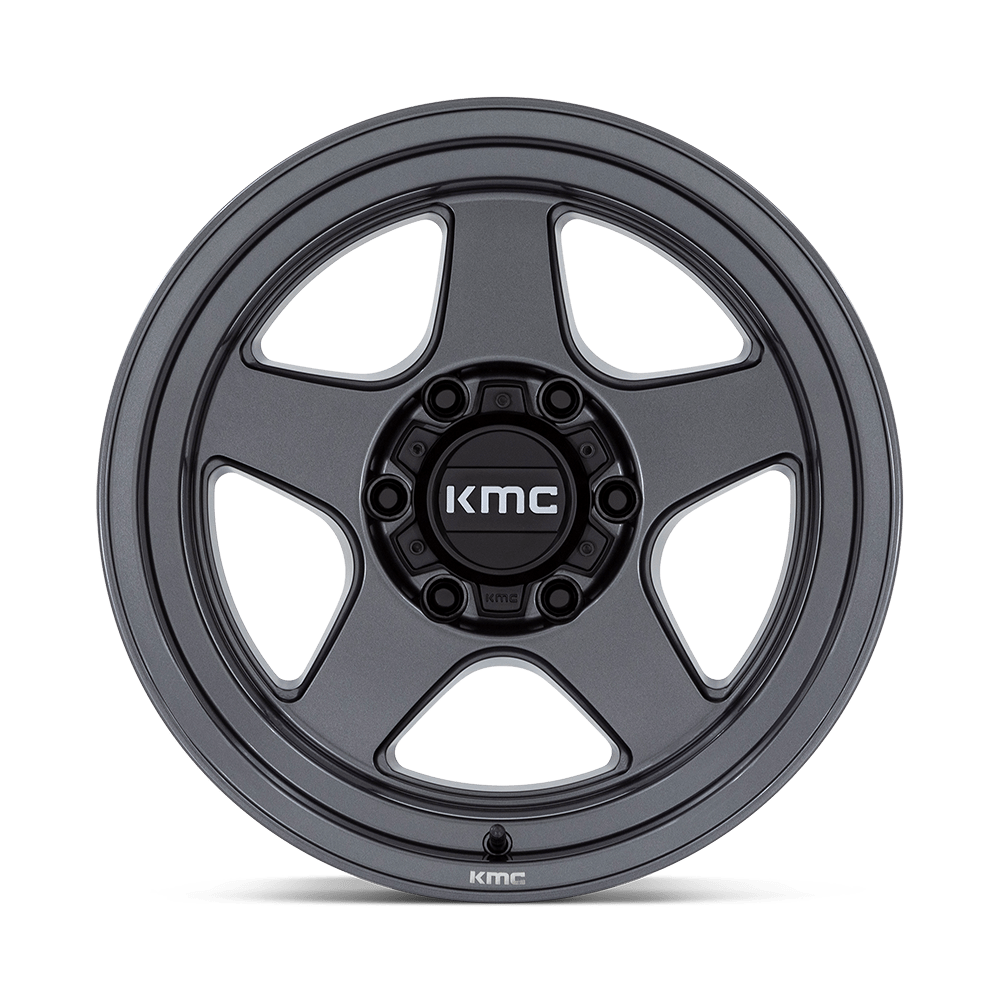

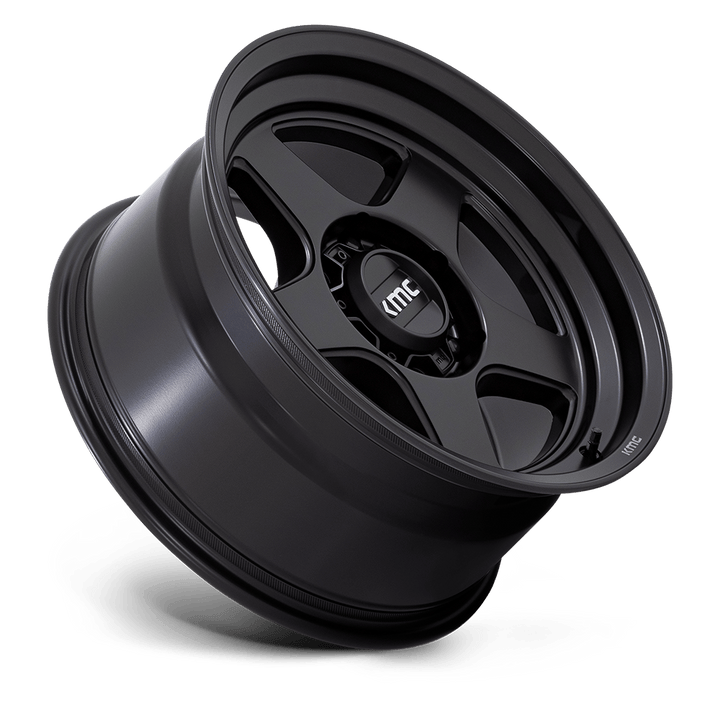

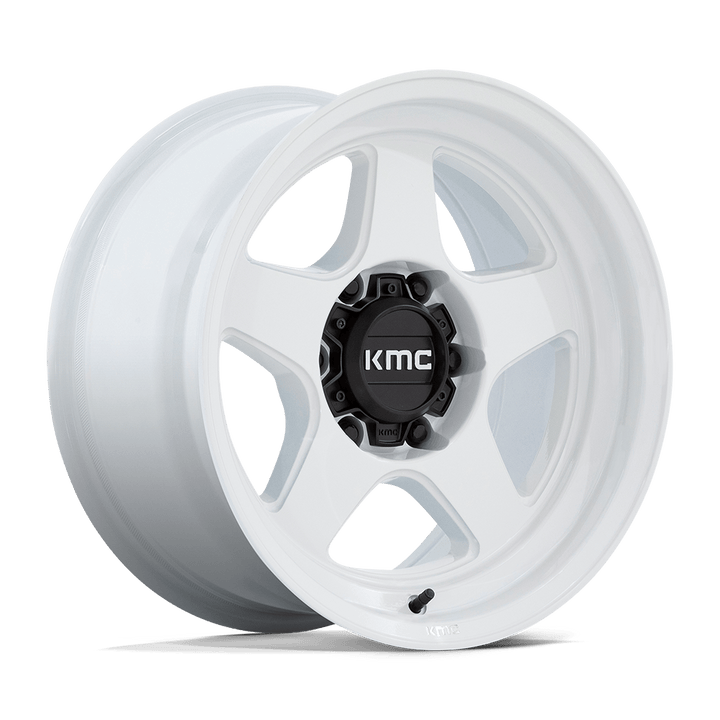

• Finishes: Gloss White, Matte Anthracite, Matte Black, Metallic Blue.

Pick your wheel

• Finish: pick the color. The photo changes with the finish.
• Size and Bolt Pattern: diameter x width, then the bolt pattern. Match the bolt pattern to your hubs exactly.
• Offset: more negative pushes the wheel out toward the fender, more positive tucks it in. Each offset is a different part number.

Each wheel is sold individually. Not sure which bolt pattern or offset fits your rig? Send us your year, make and model and we will point you to the right part number.
