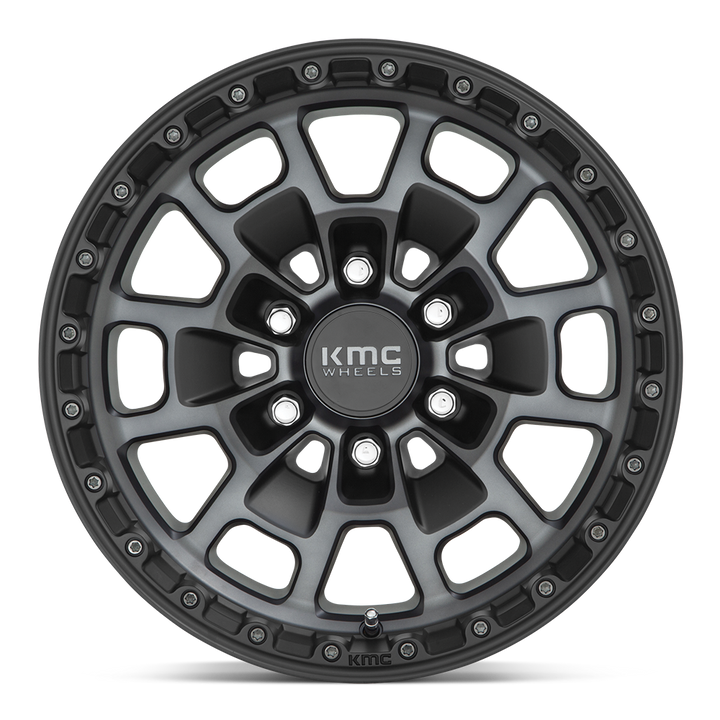

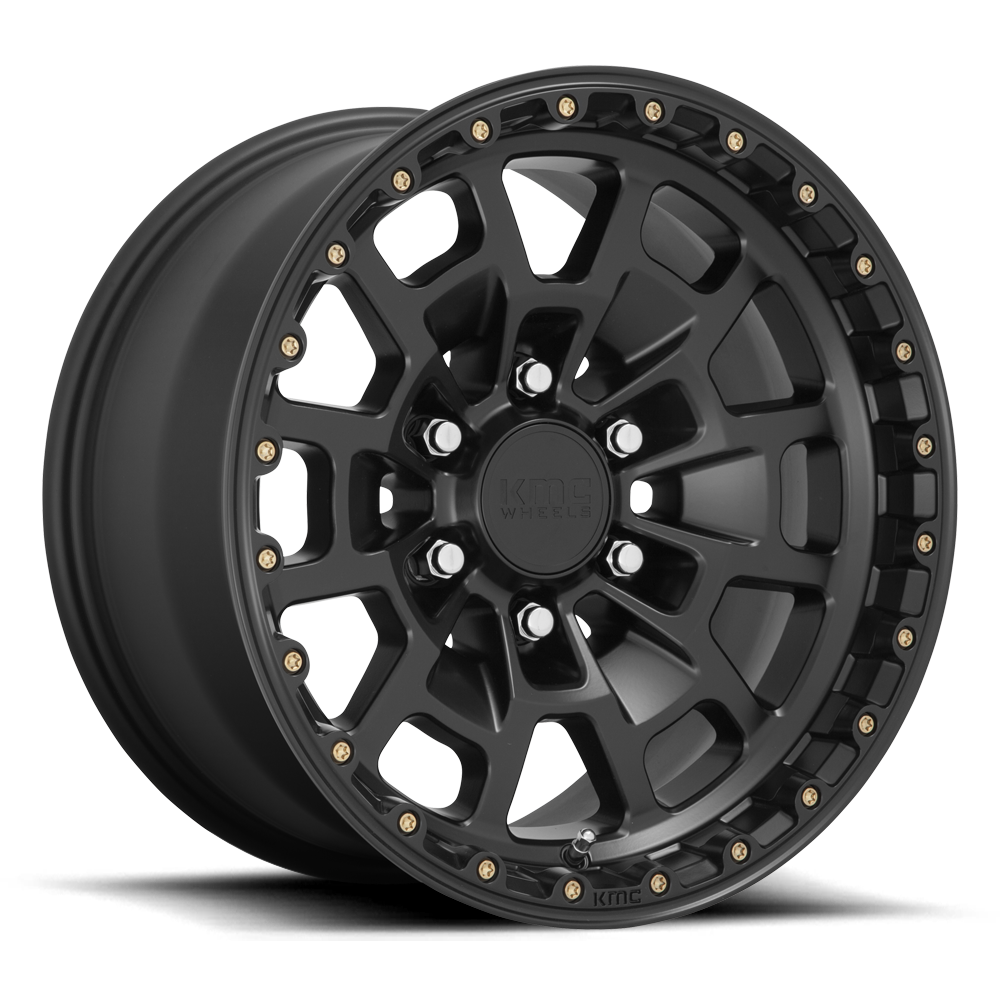

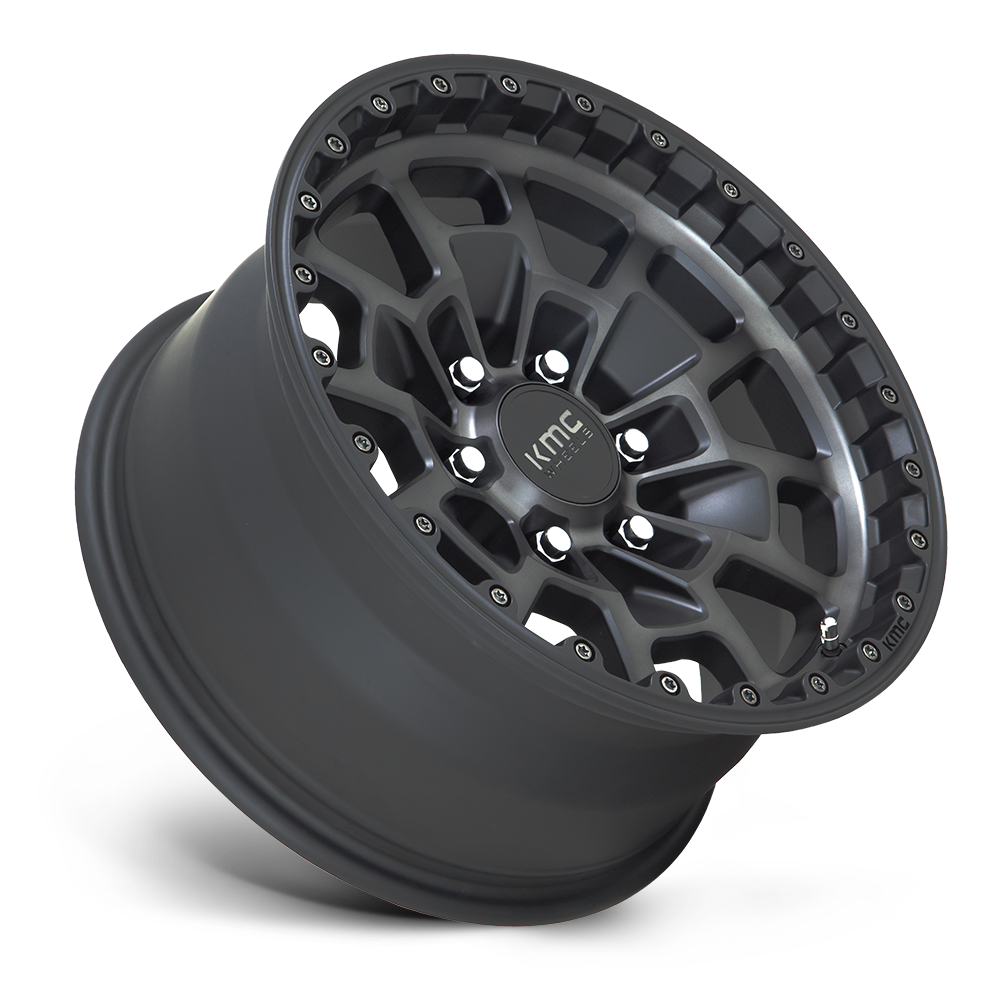

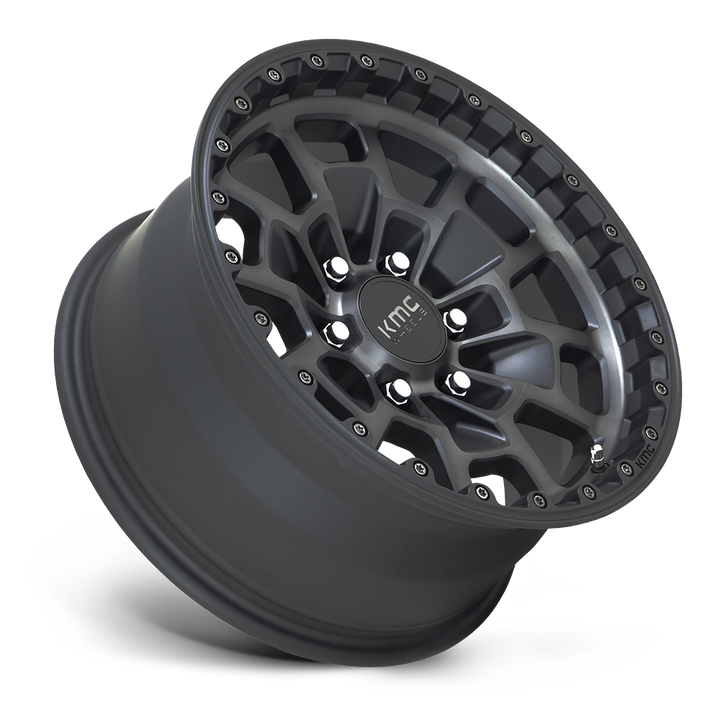

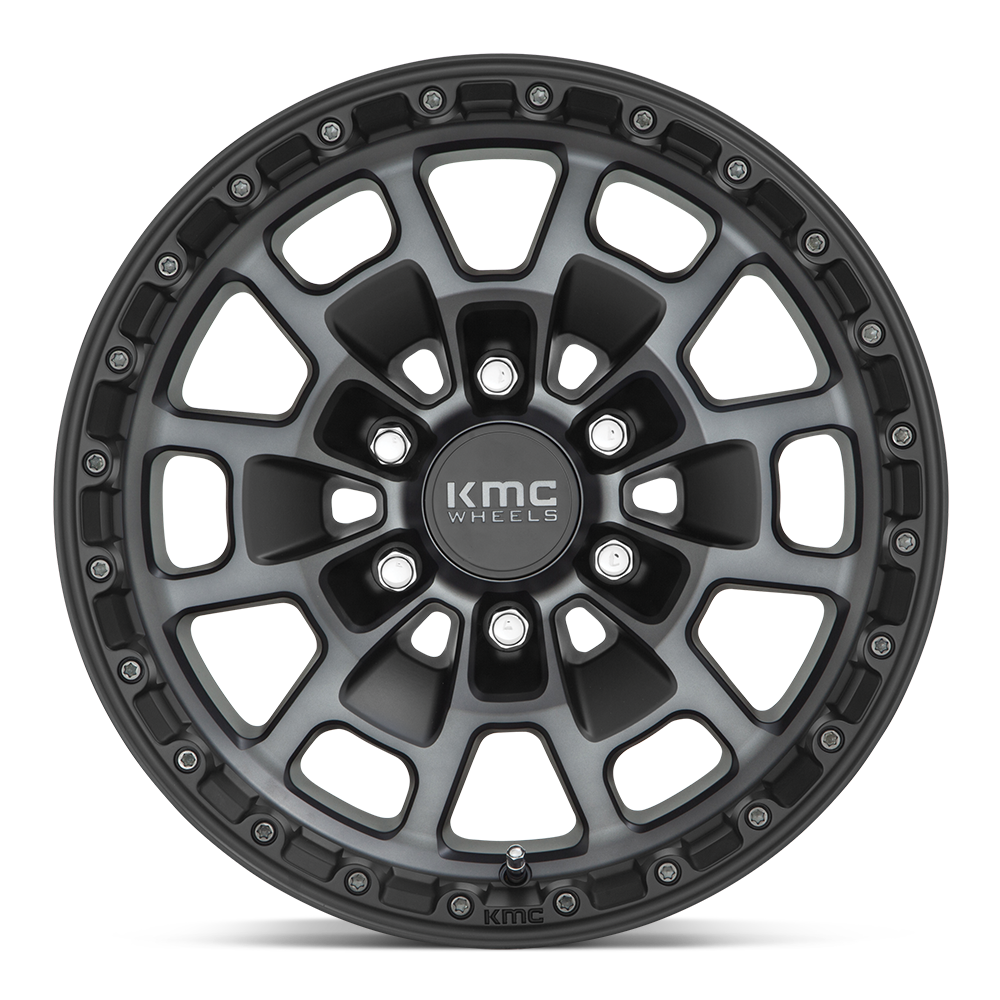

KMC KM718 Summit Wheel

The Summit is a cast Adventure-line wheel in 16x8 and 17x8.5 across 5-lug and 6-lug patterns.

What you get

• Construction: cast aluminum (KMC Adventure line).
• Load rating: 2500 lbs per wheel, depending on size.
• Weight: 25.0 to 27.1 lbs each, depending on size.
• Center bore: varies by bolt pattern, 66.90 to 110.10 mm.
• Center cap part number: T174K85-S1, T174K85-S2.

Sizes and fitment

• Sizes: 16x8, 17x8.5.
• Bolt patterns: 5x127, 5x150, 6x120, 6x135, 6x139.7.
• Offsets: 0mm, +18mm.

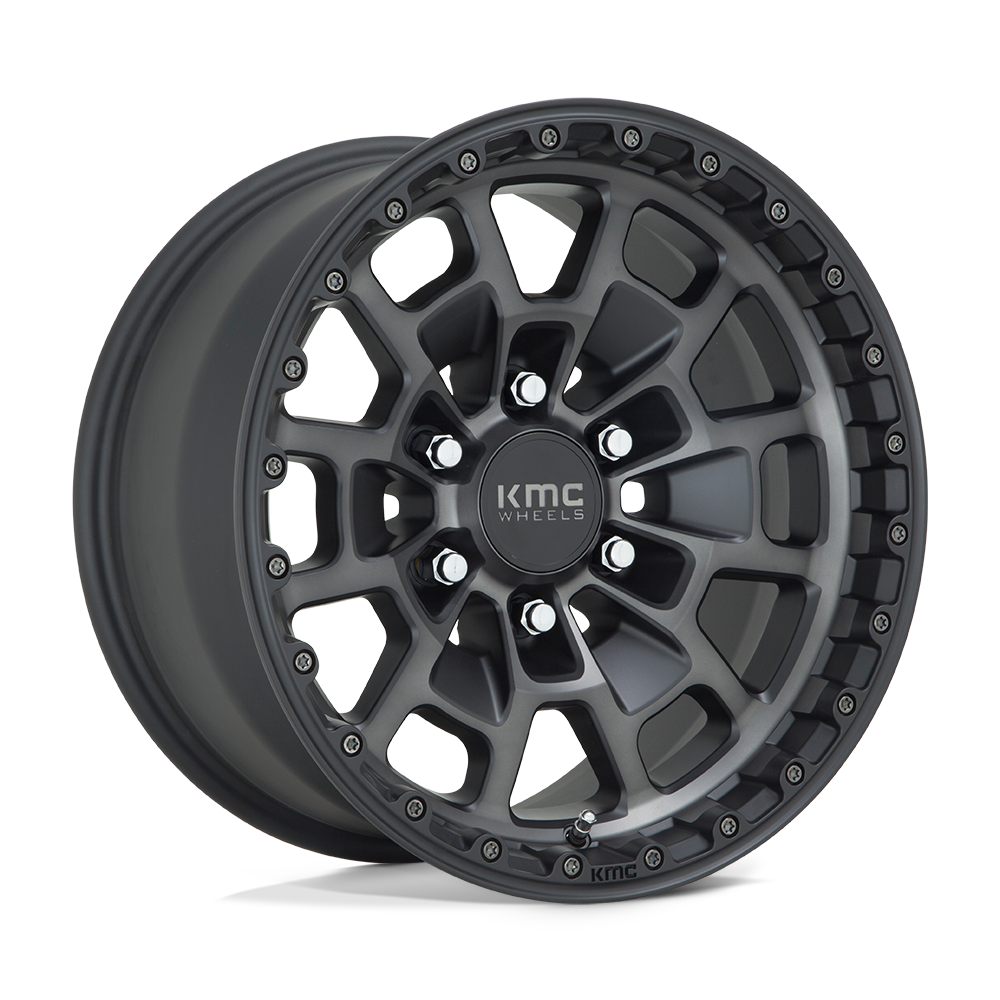

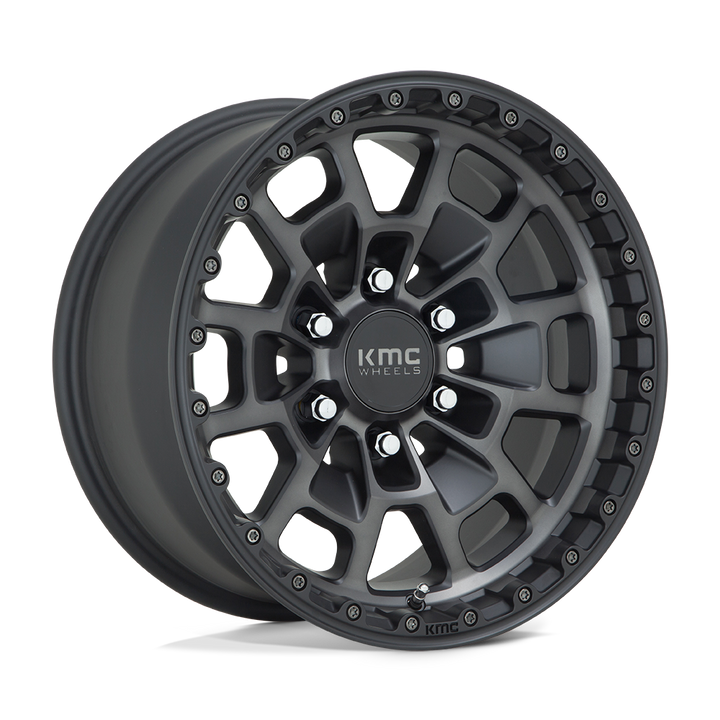

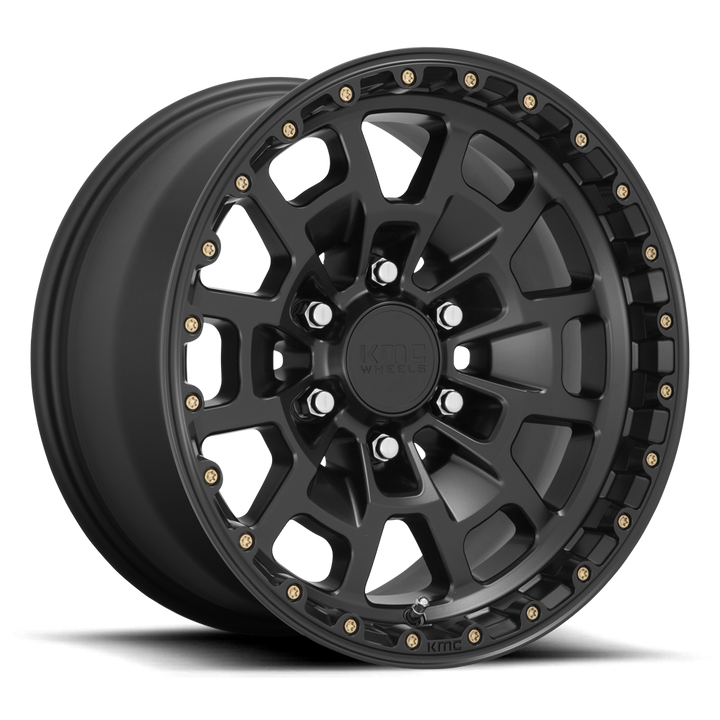

• Finishes: Satin Black, Satin Black w/ Gray Tint.

Pick your wheel

• Finish: pick the color. The photo changes with the finish.
• Size and Bolt Pattern: diameter x width, then the bolt pattern. Match the bolt pattern to your hubs exactly.
• Offset: more negative pushes the wheel out toward the fender, more positive tucks it in. Each offset is a different part number.

Each wheel is sold individually. Not sure which bolt pattern or offset fits your rig? Send us your year, make and model and we will point you to the right part number.
