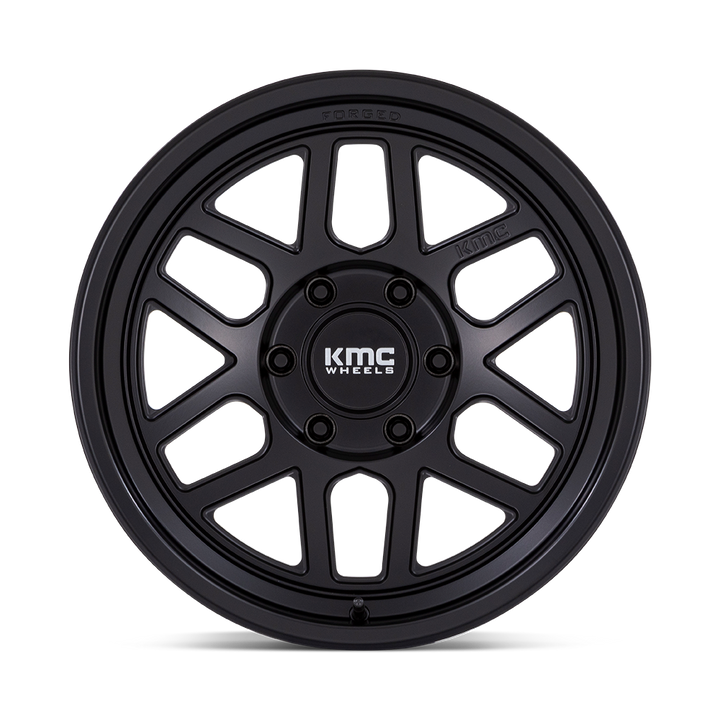

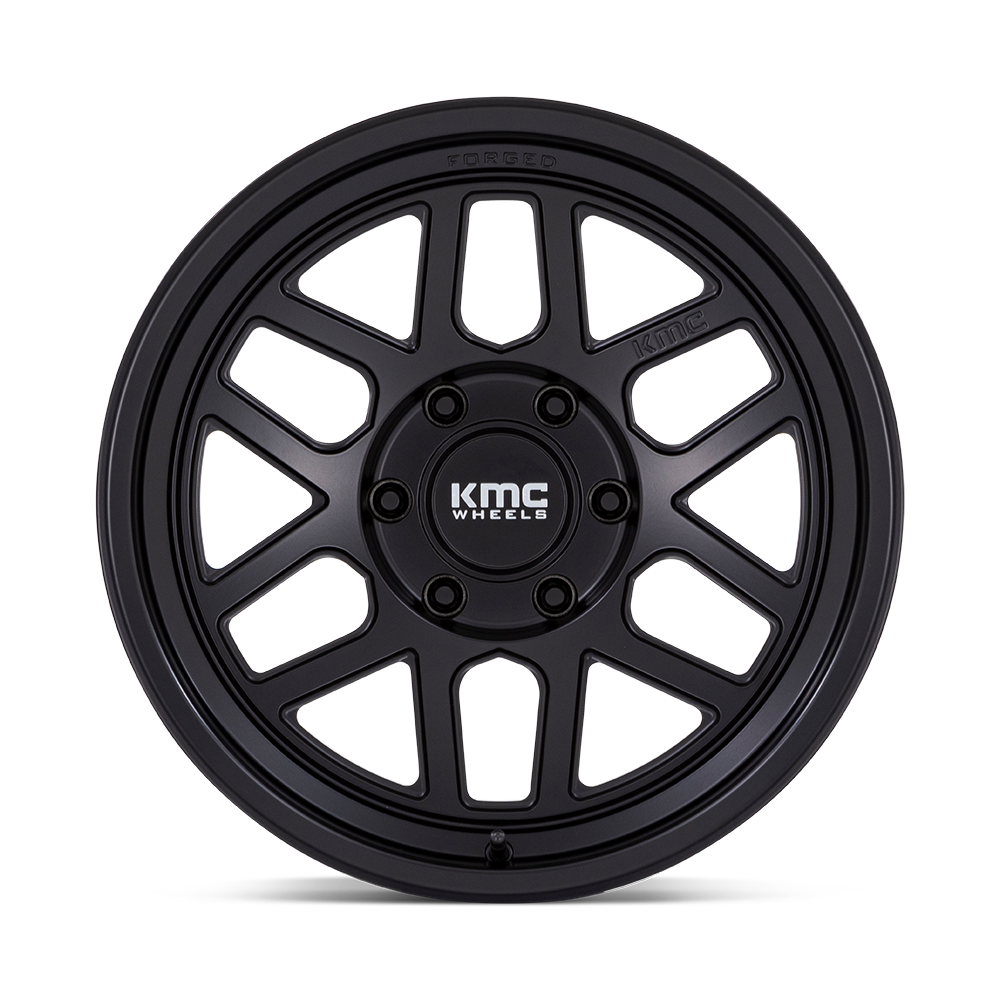

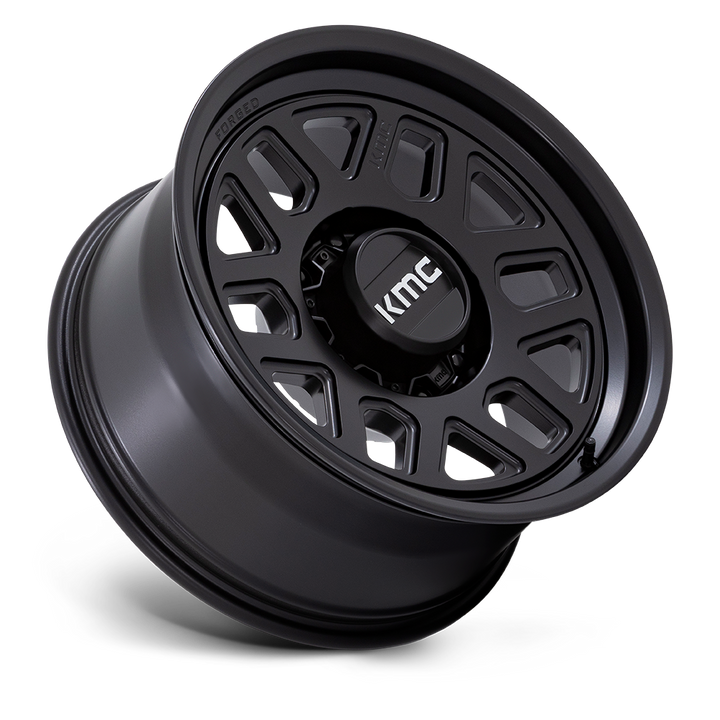

KMC KM446 Mesa Forged Monoblock Wheel

The Mesa Forged Monoblock is the upgraded forged version of the Mesa. KMC built it for off-road performance: a forged monoblock with a flat bead hump and a knurled bead seat to resist de-beading at low pressure, plus a billet snap-in cap.

What you get

• Construction: monoblock forged (KMC Performance line).
• Bead Retention System: machined grooves in the bead seat help hold the tire bead at low pressure without a true beadlock.
• Load rating: 2500 to 4000 lbs per wheel, depending on size.
• Weight: 23.8 to 32.4 lbs each, depending on size.
• Center bore: varies by bolt pattern, 87.10 to 125.10 mm.

Sizes and fitment

• Sizes: 17x8.5, 18x9.
• Bolt patterns: 6x135, 6x139.7, 8x165.1, 8x170, 8x180.
• Offsets: -12mm, -10mm, 0mm, +18mm.

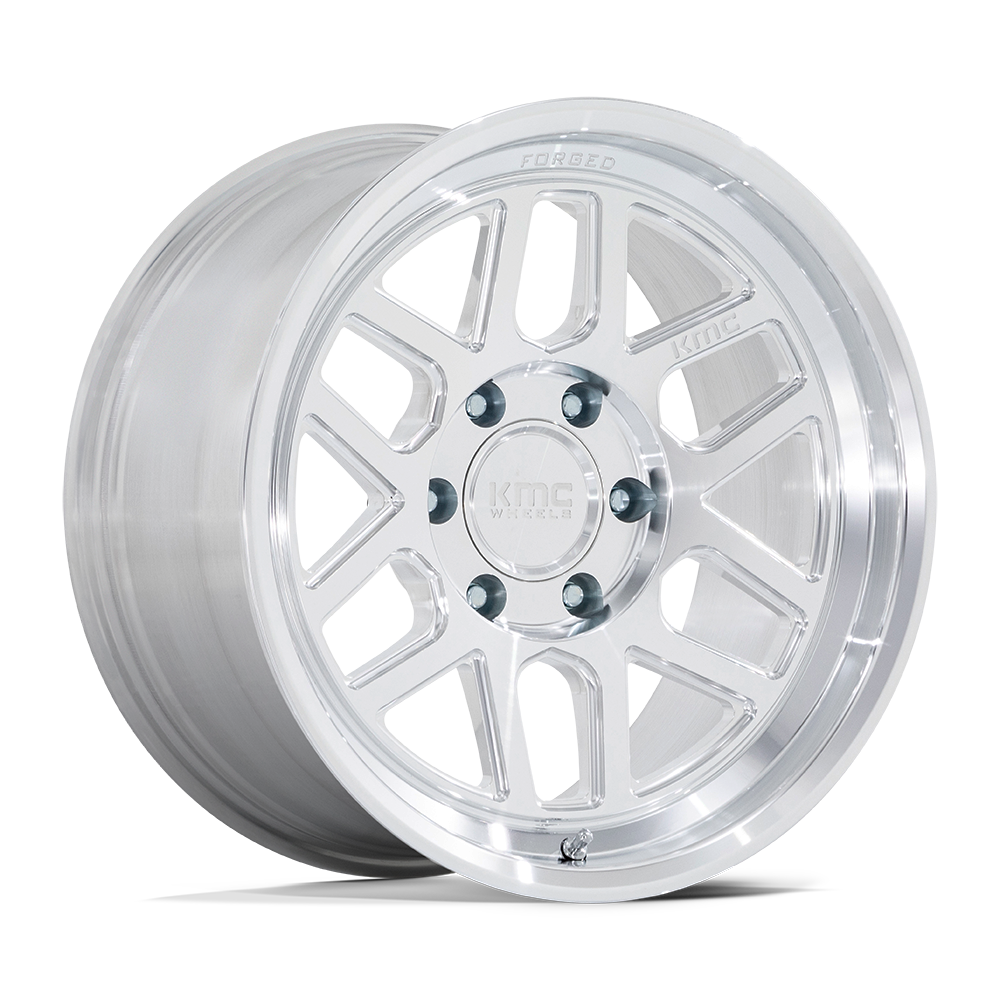

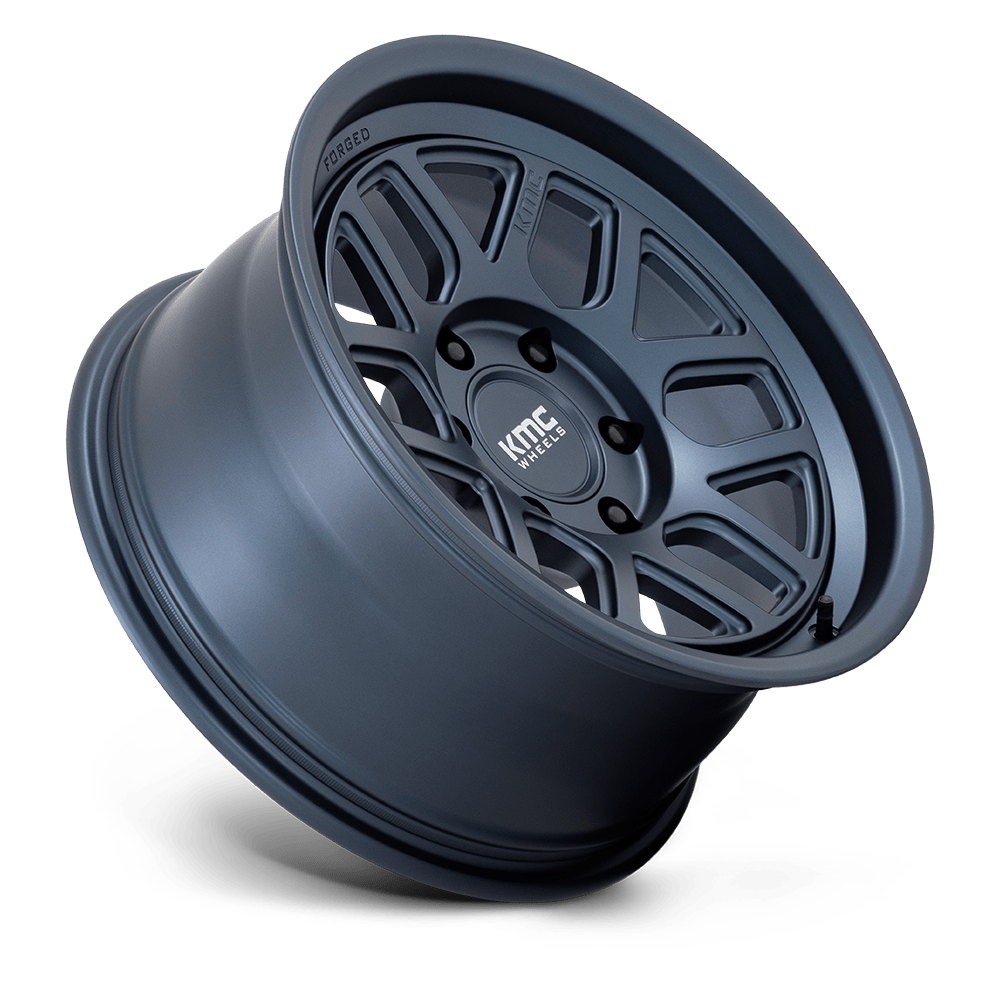

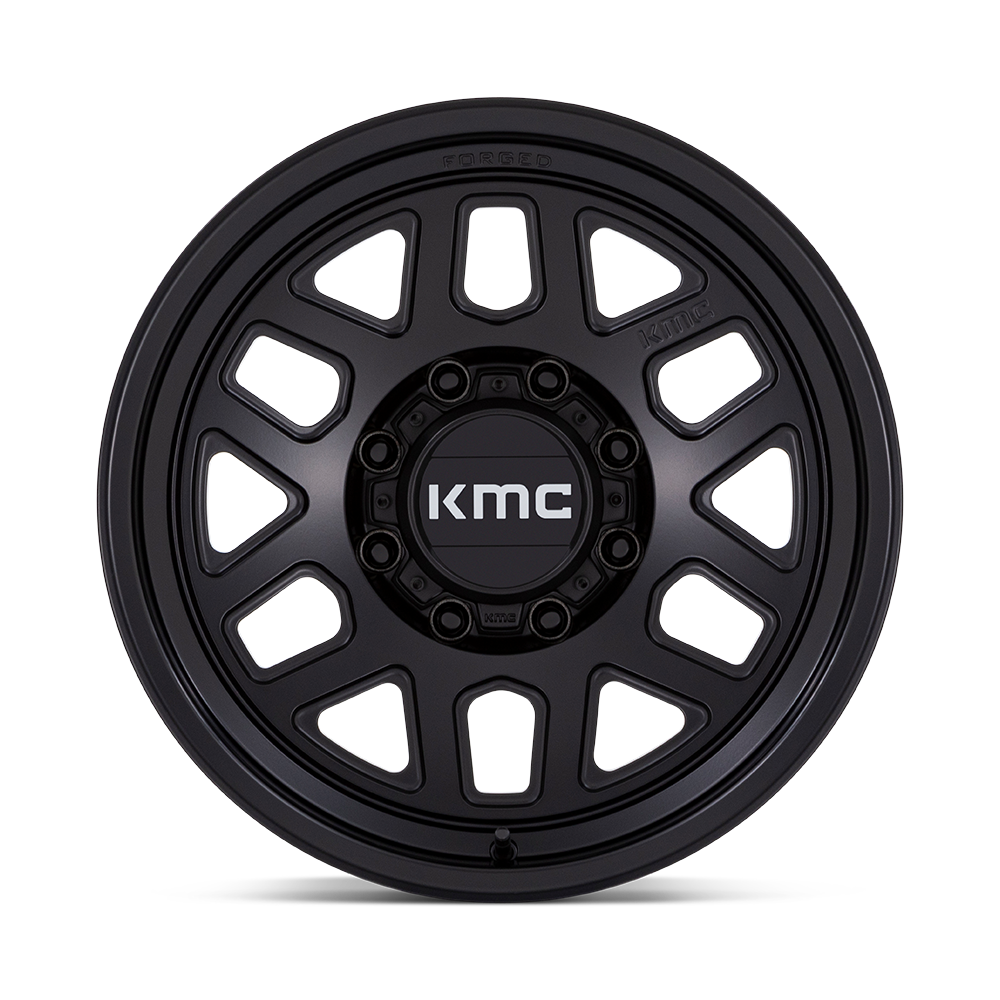

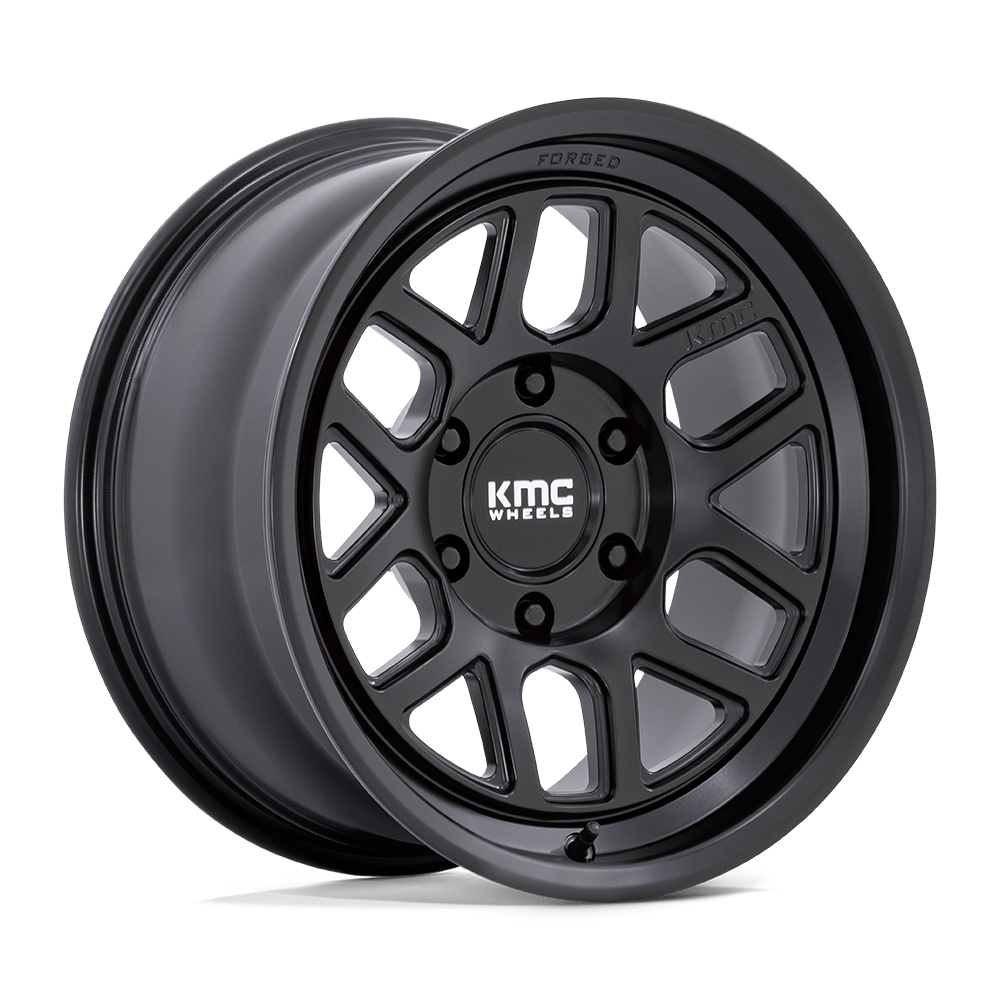

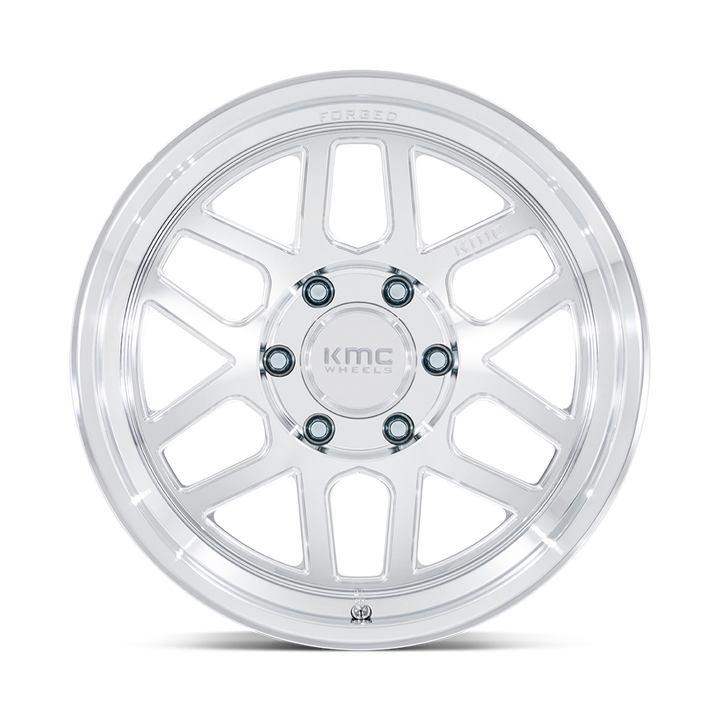

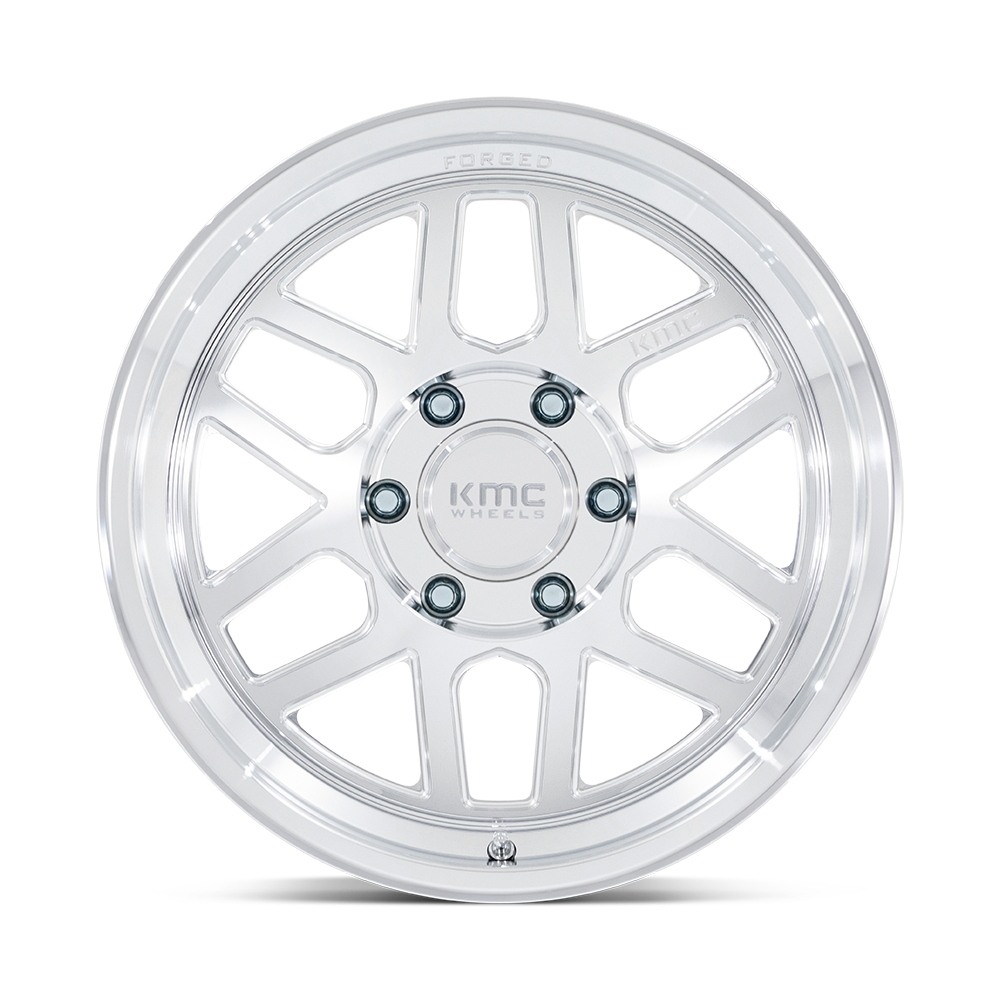

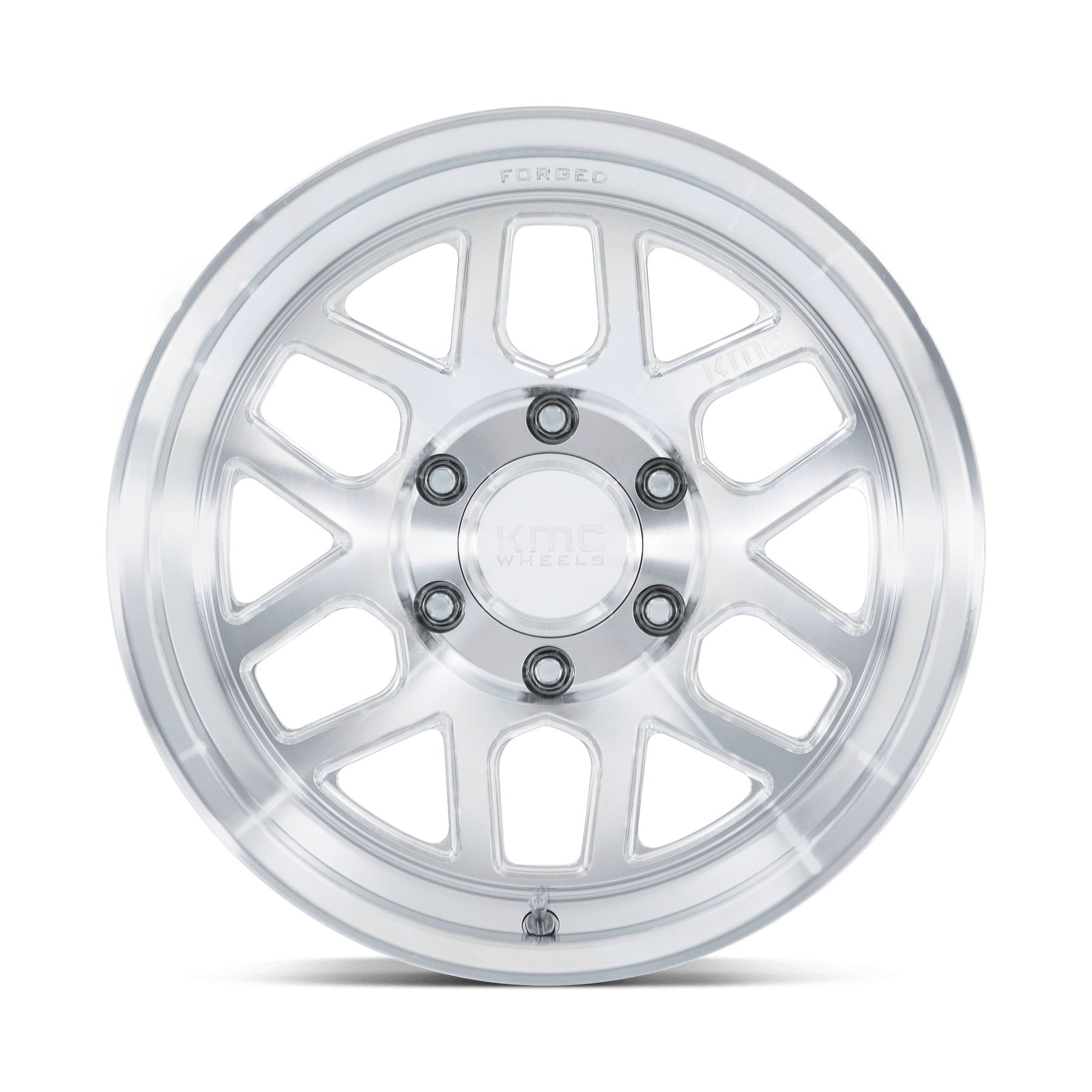

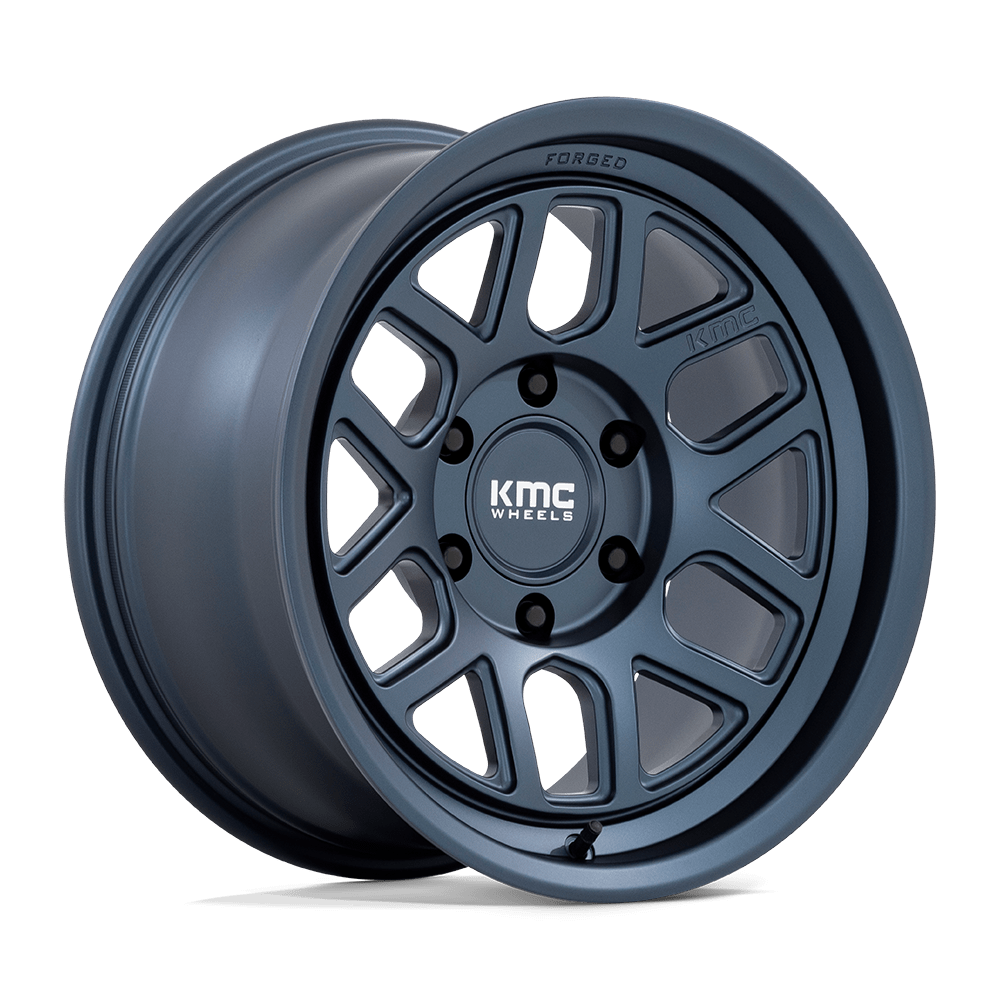

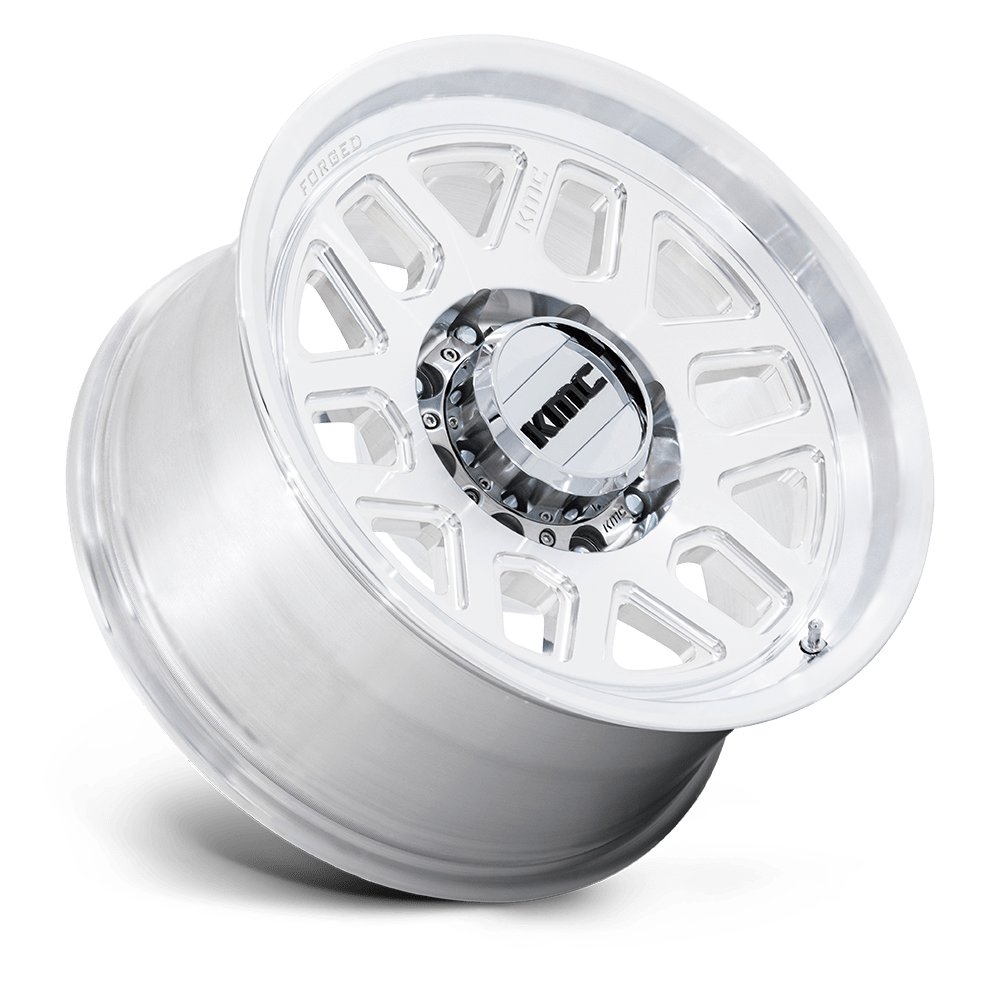

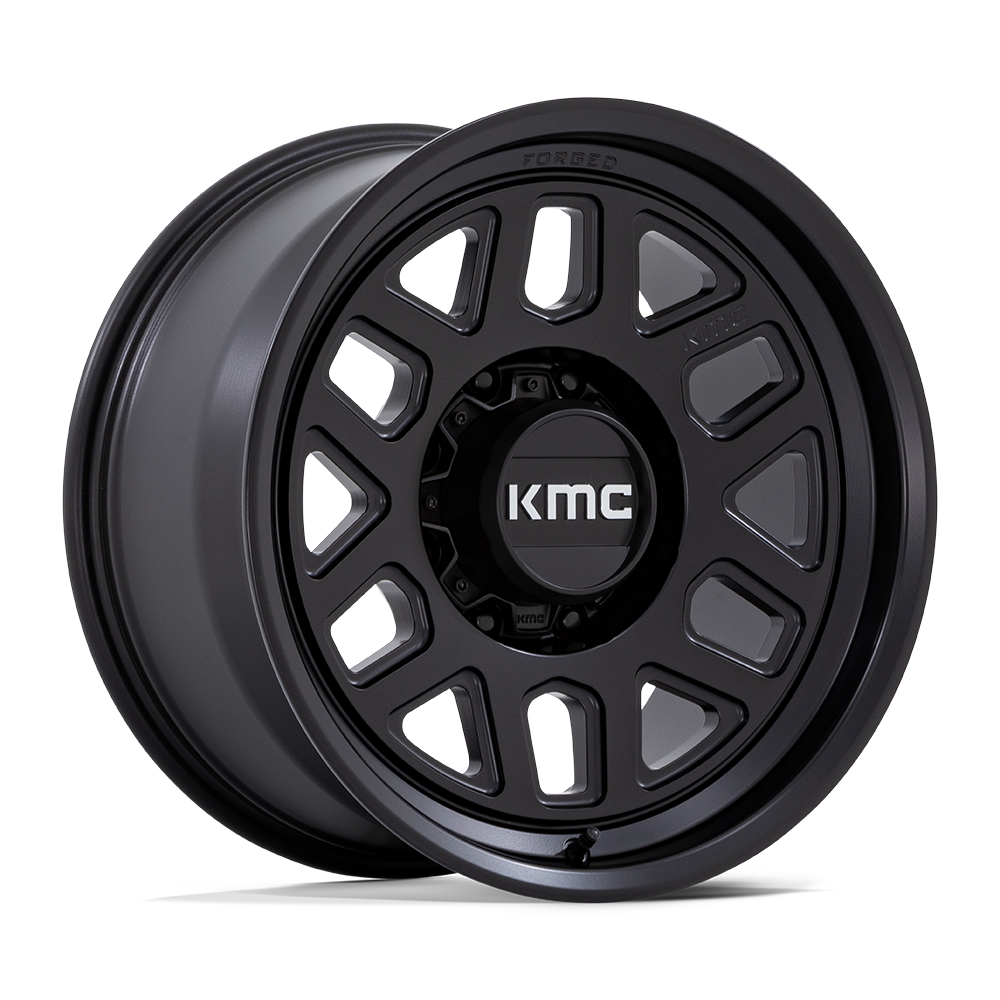

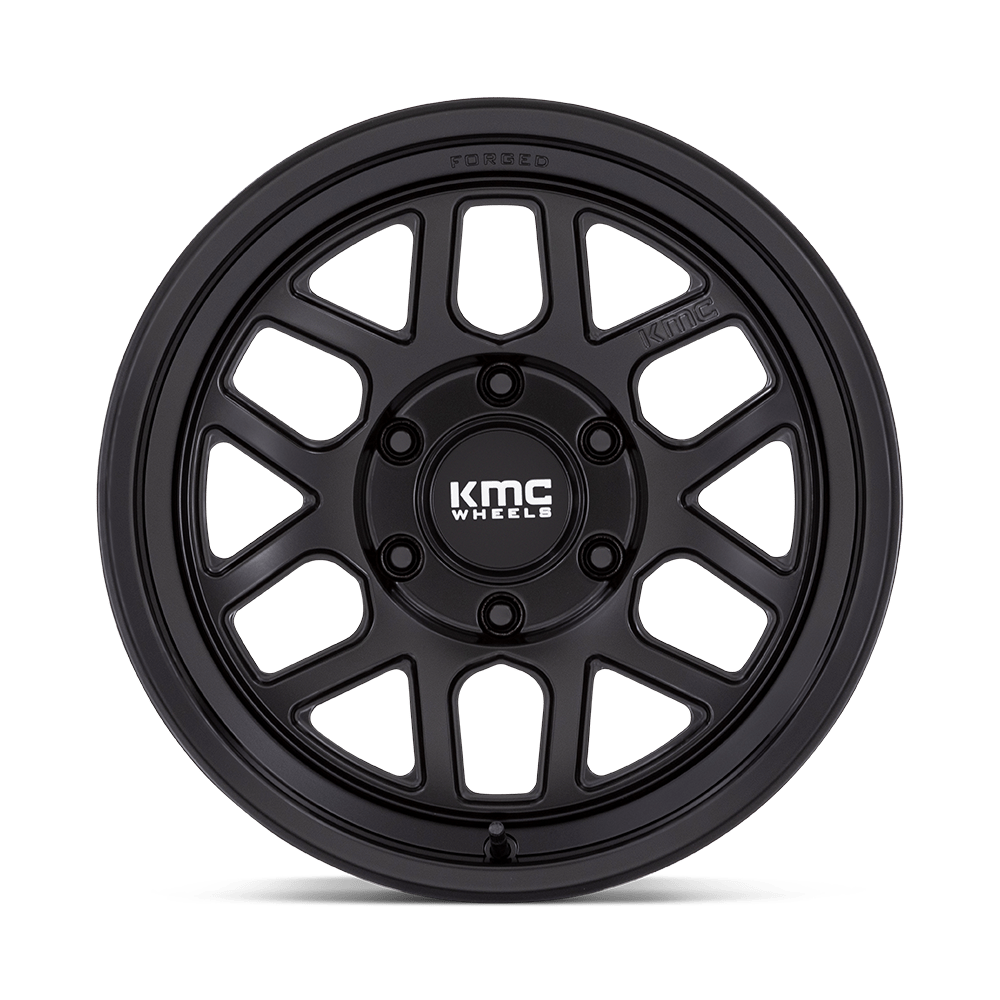

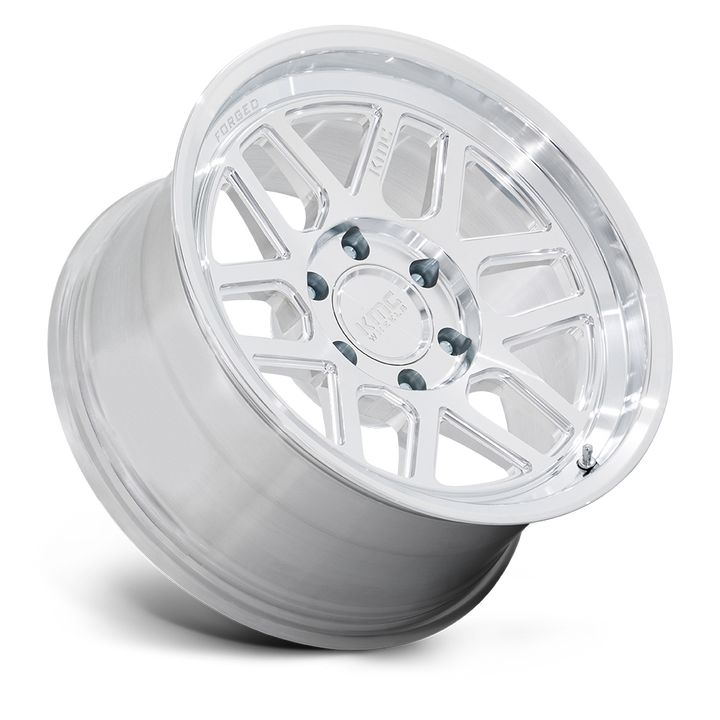

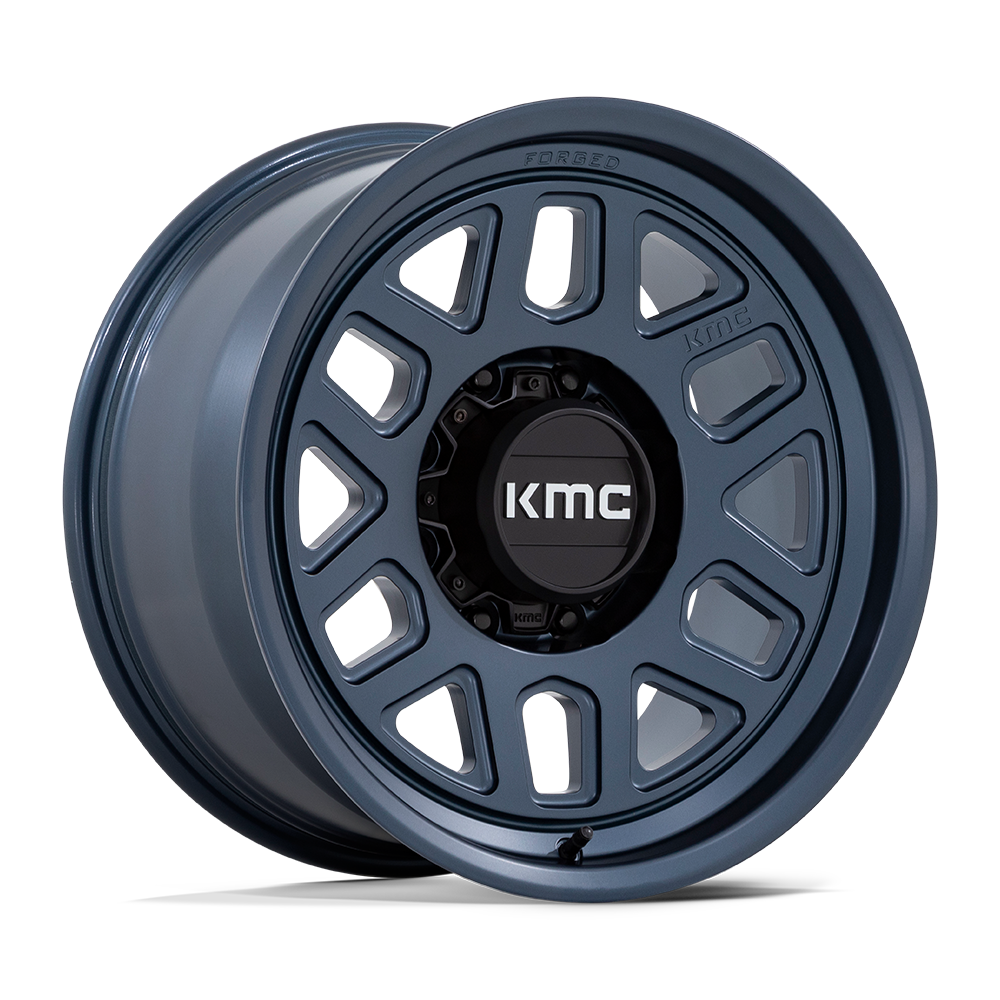

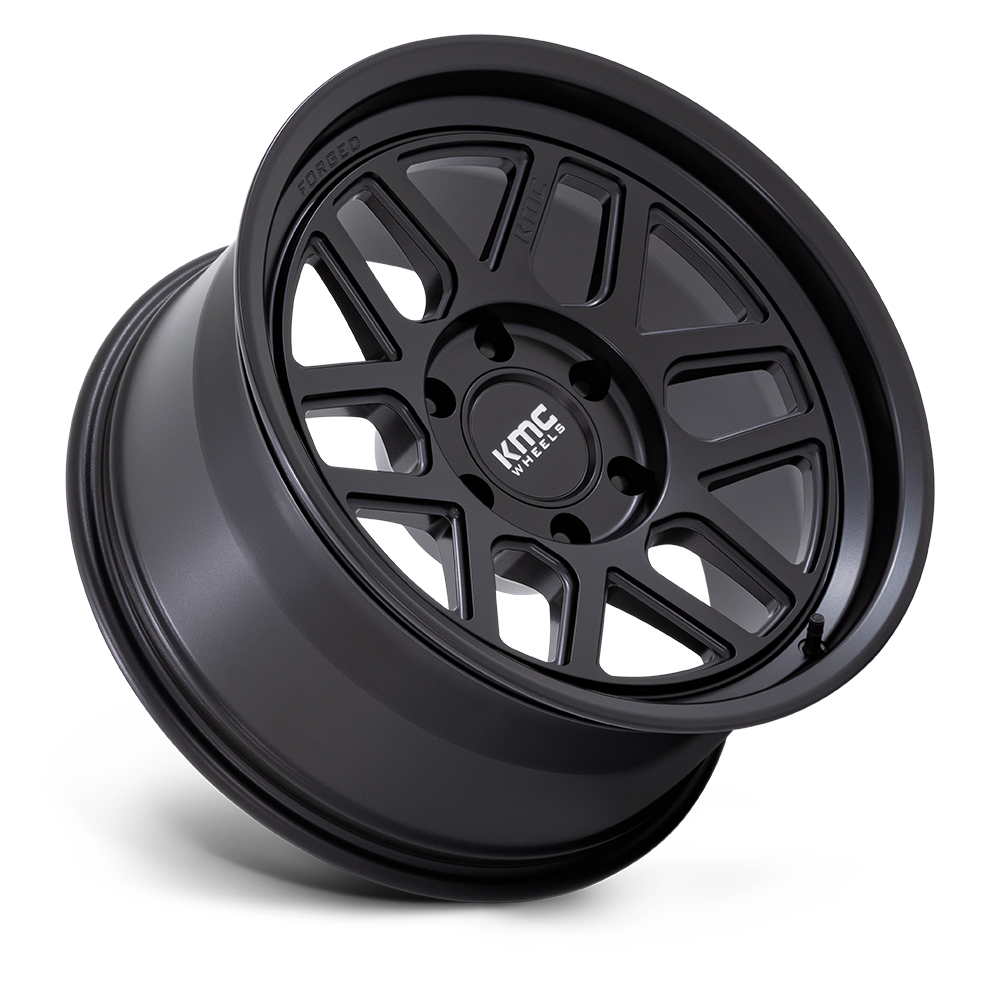

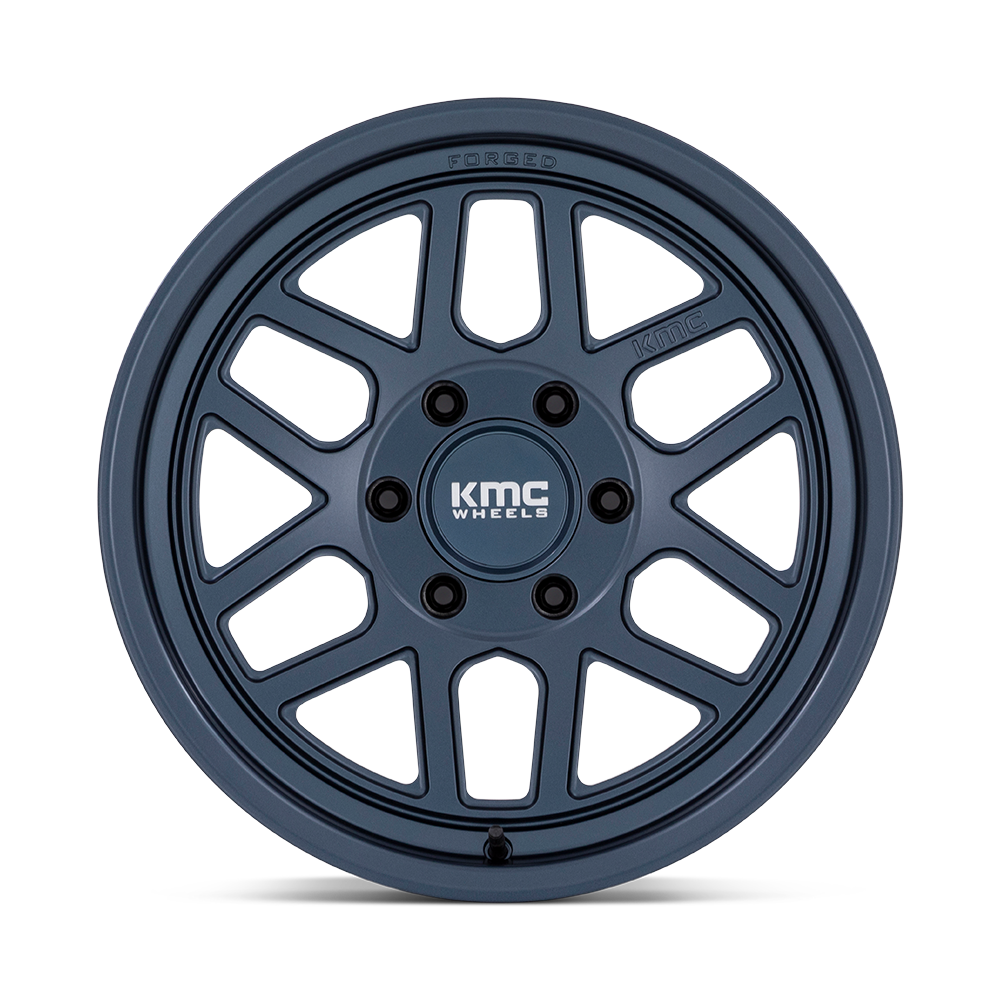

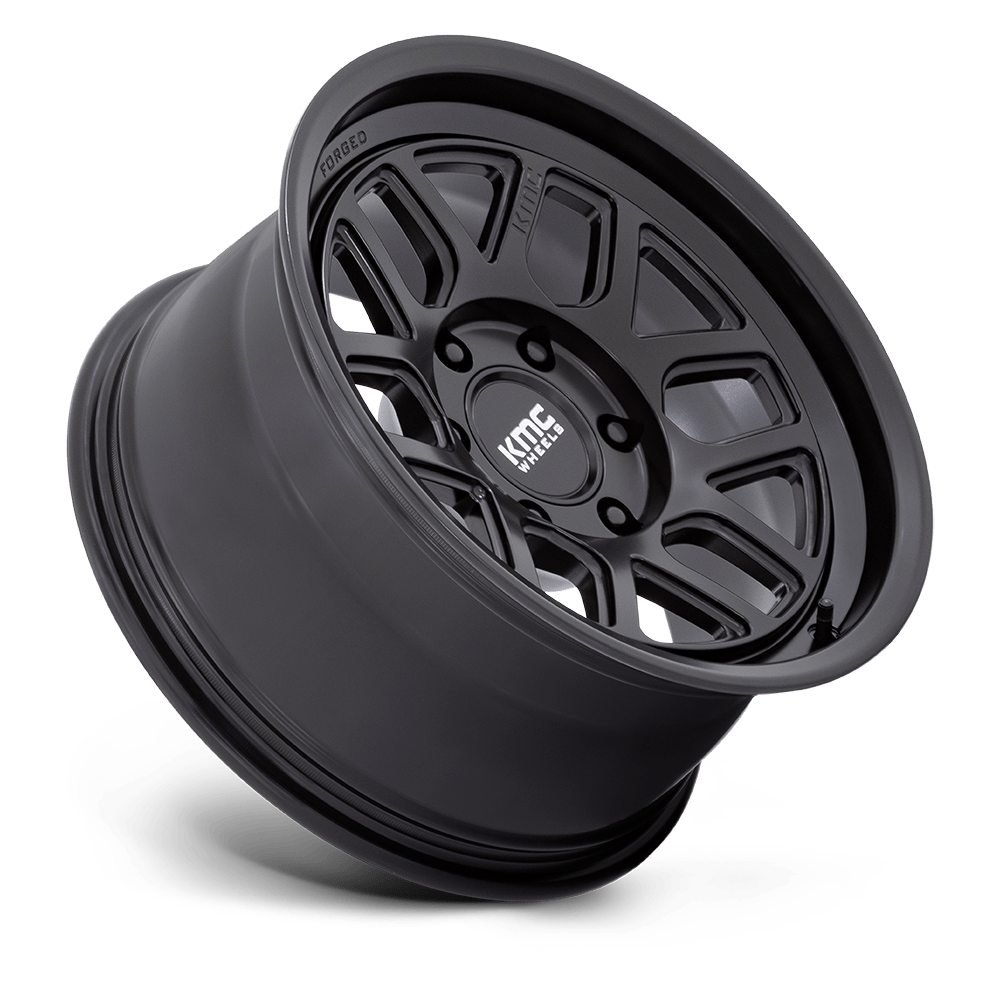

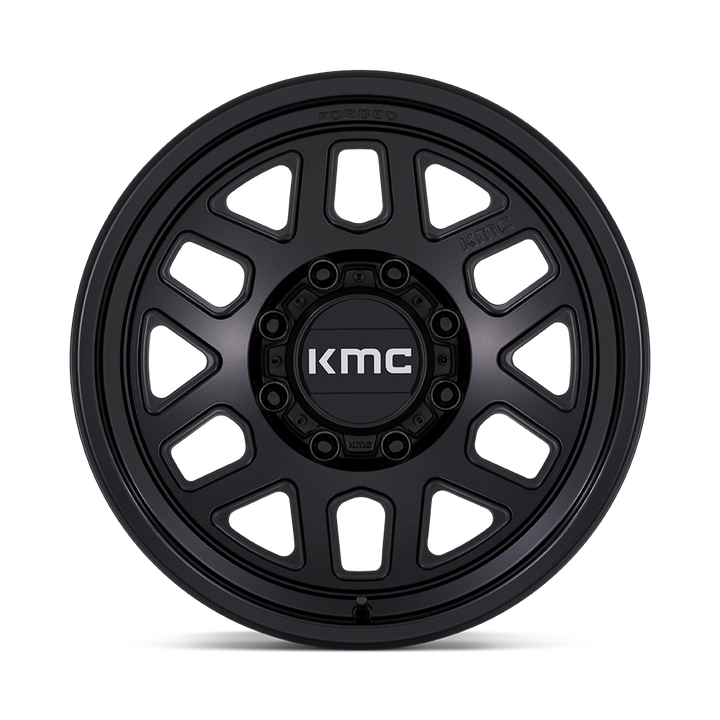

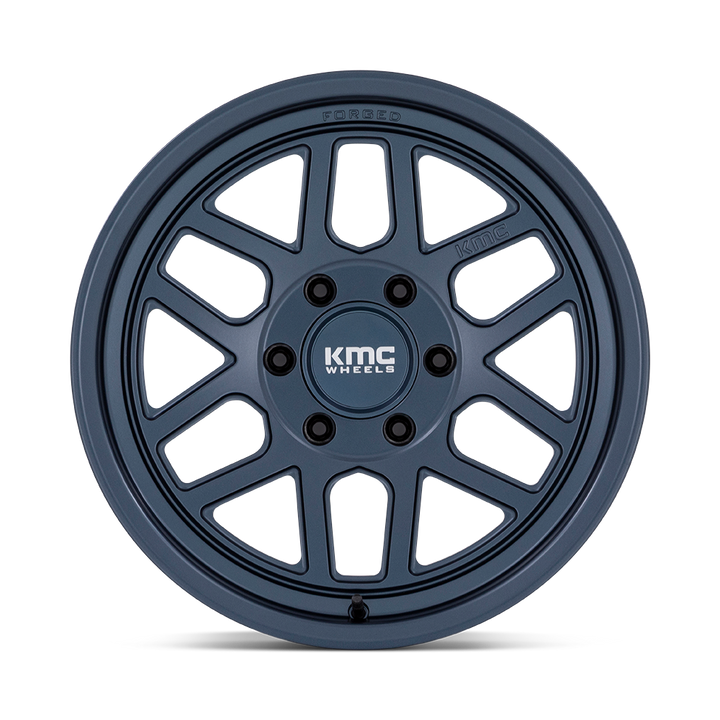

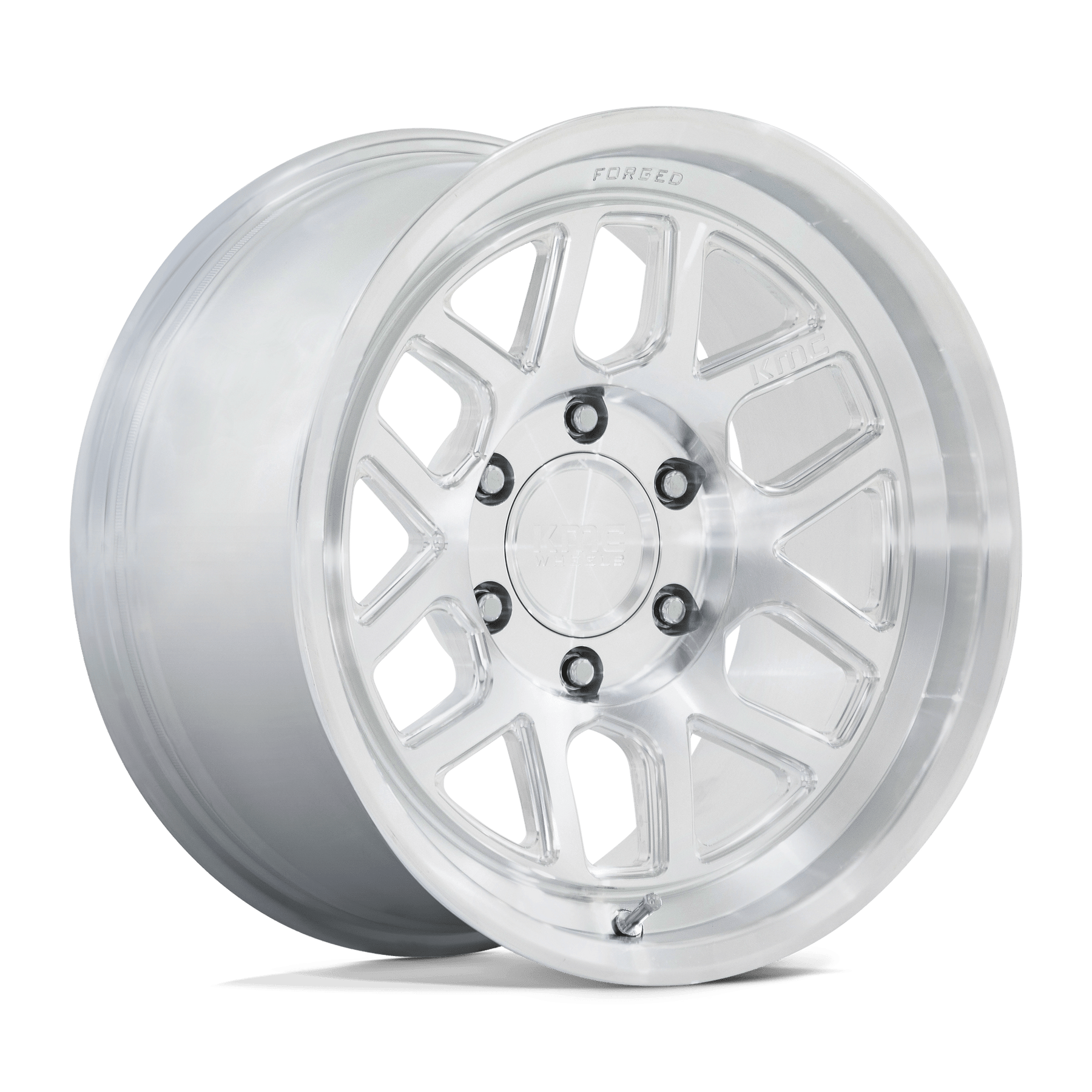

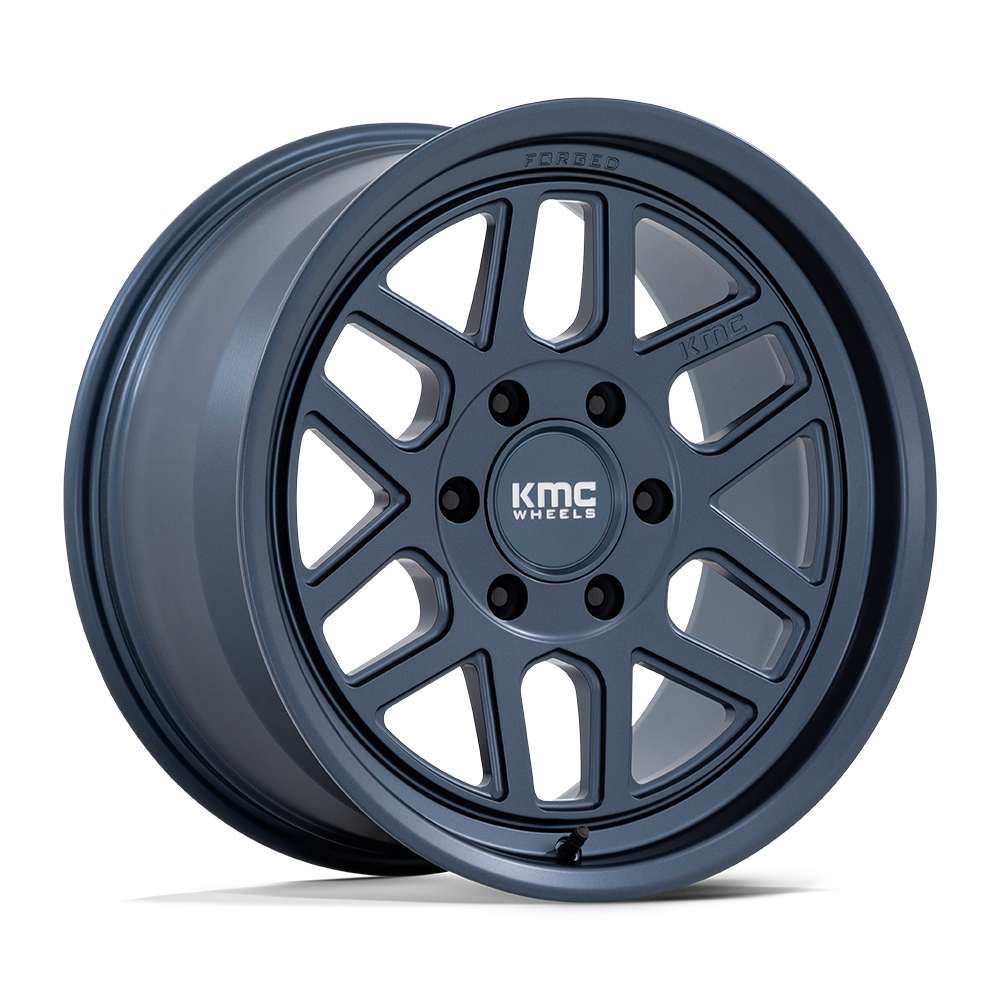

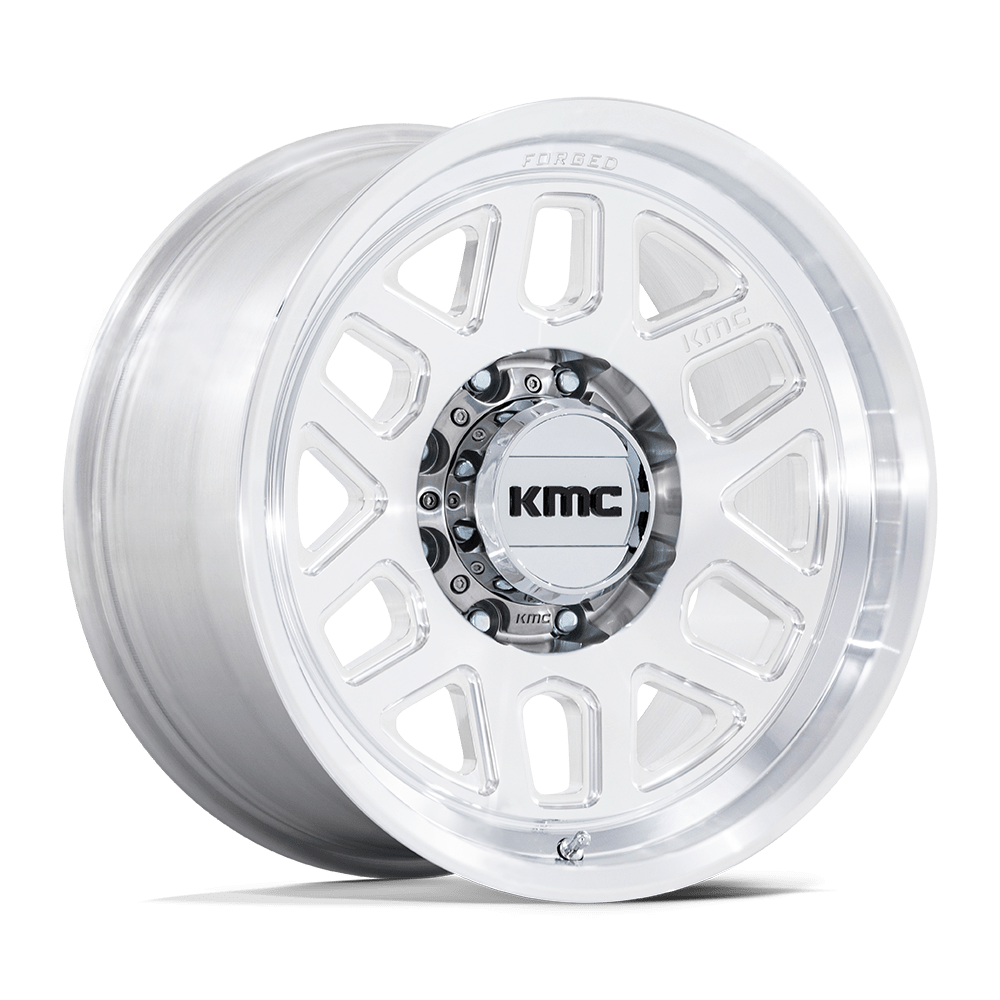

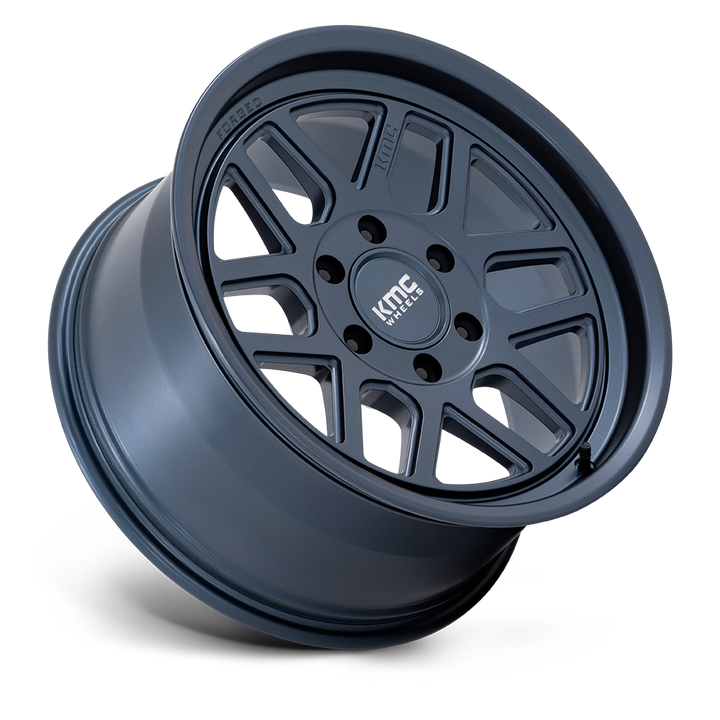

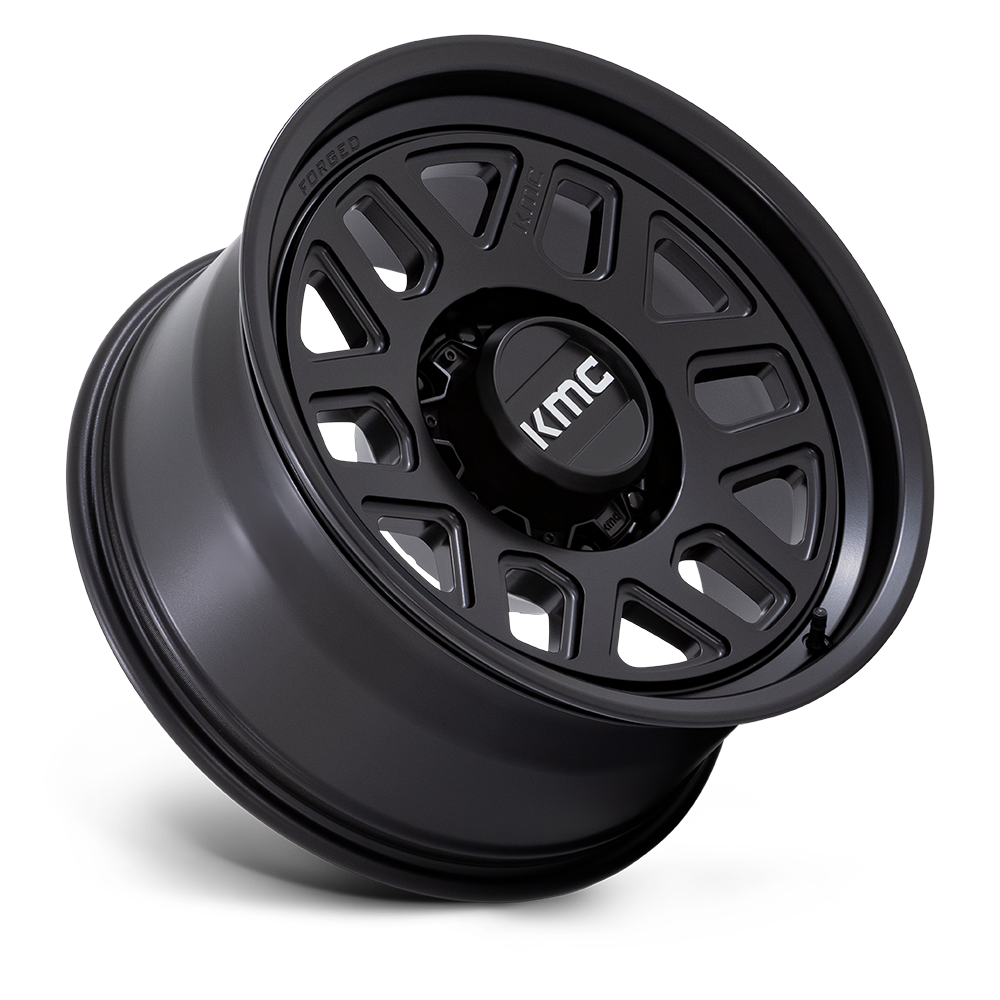

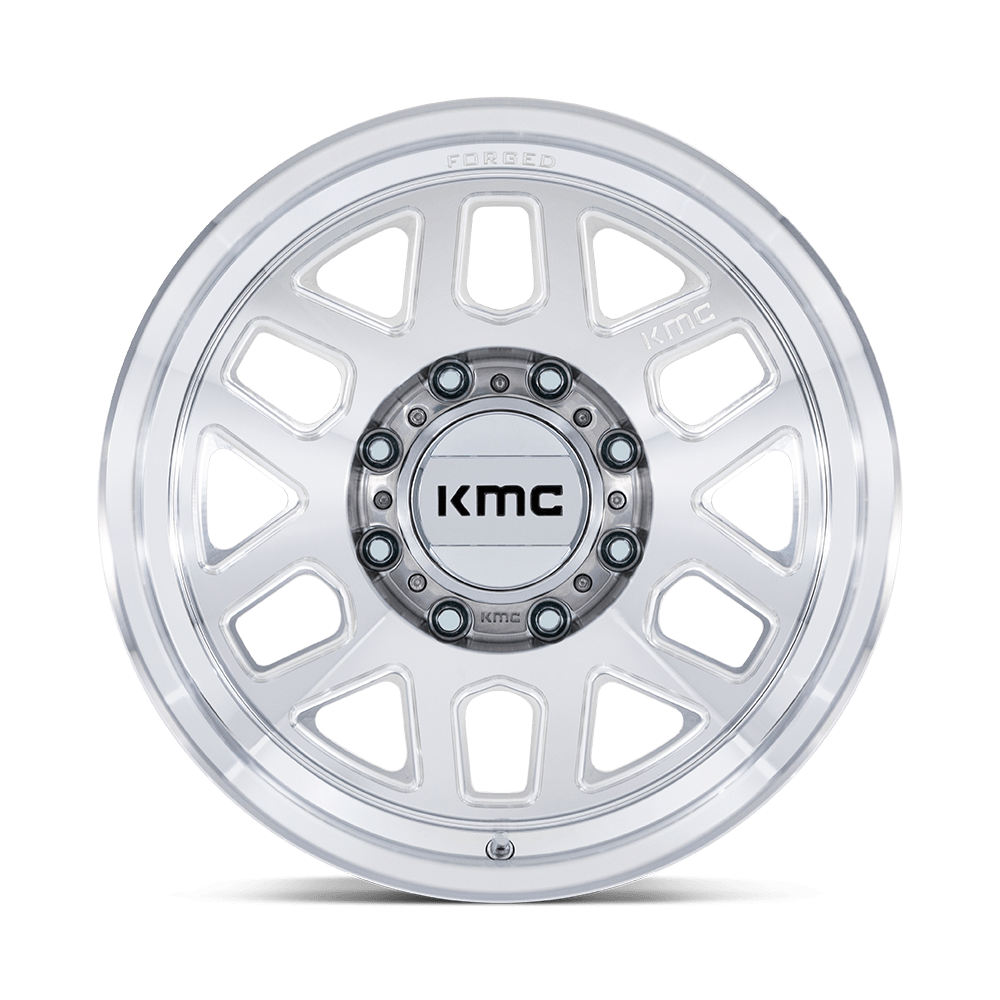

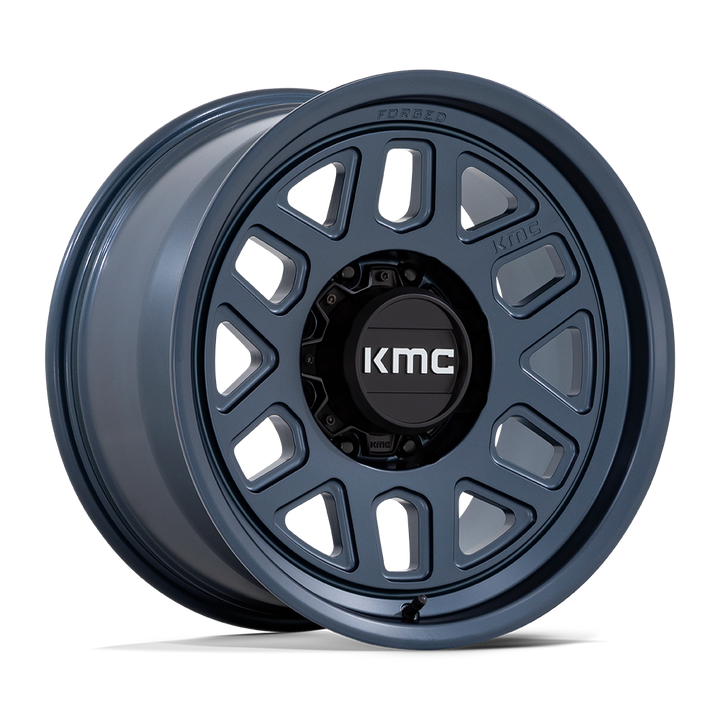

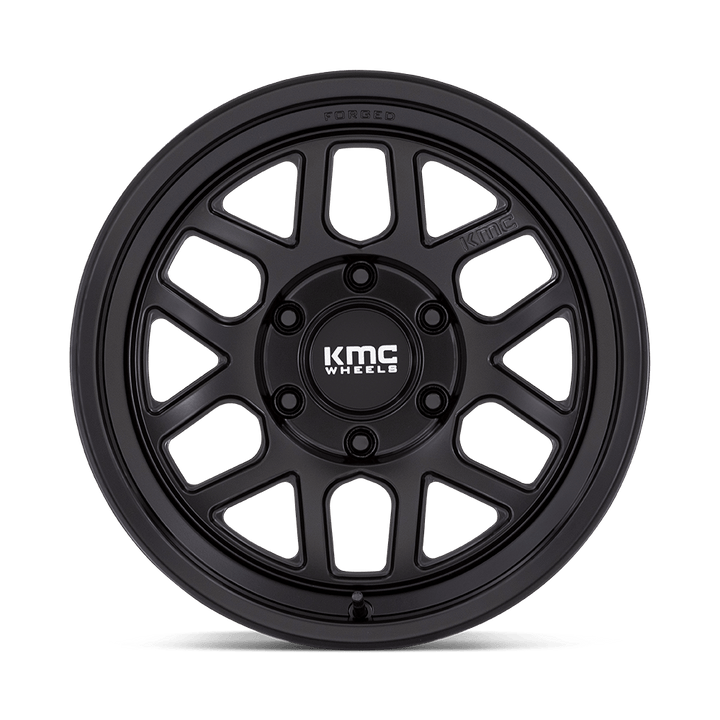

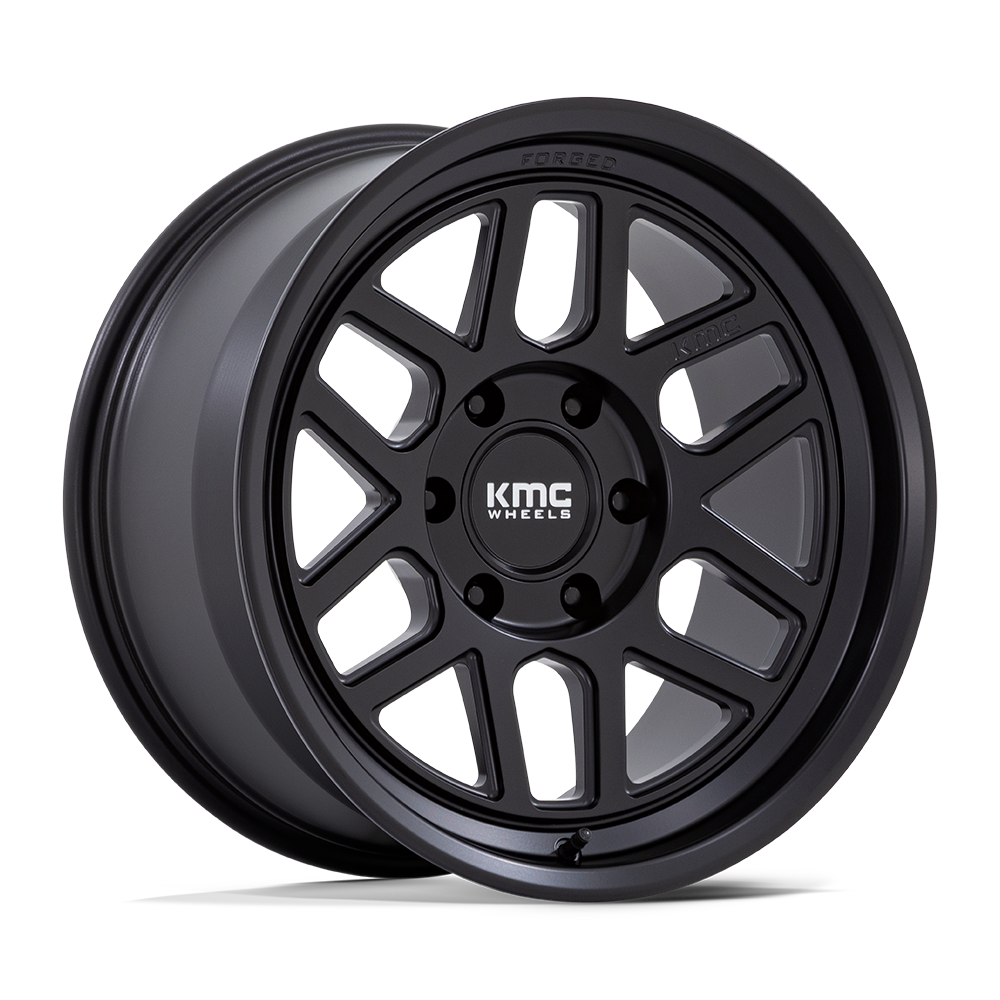

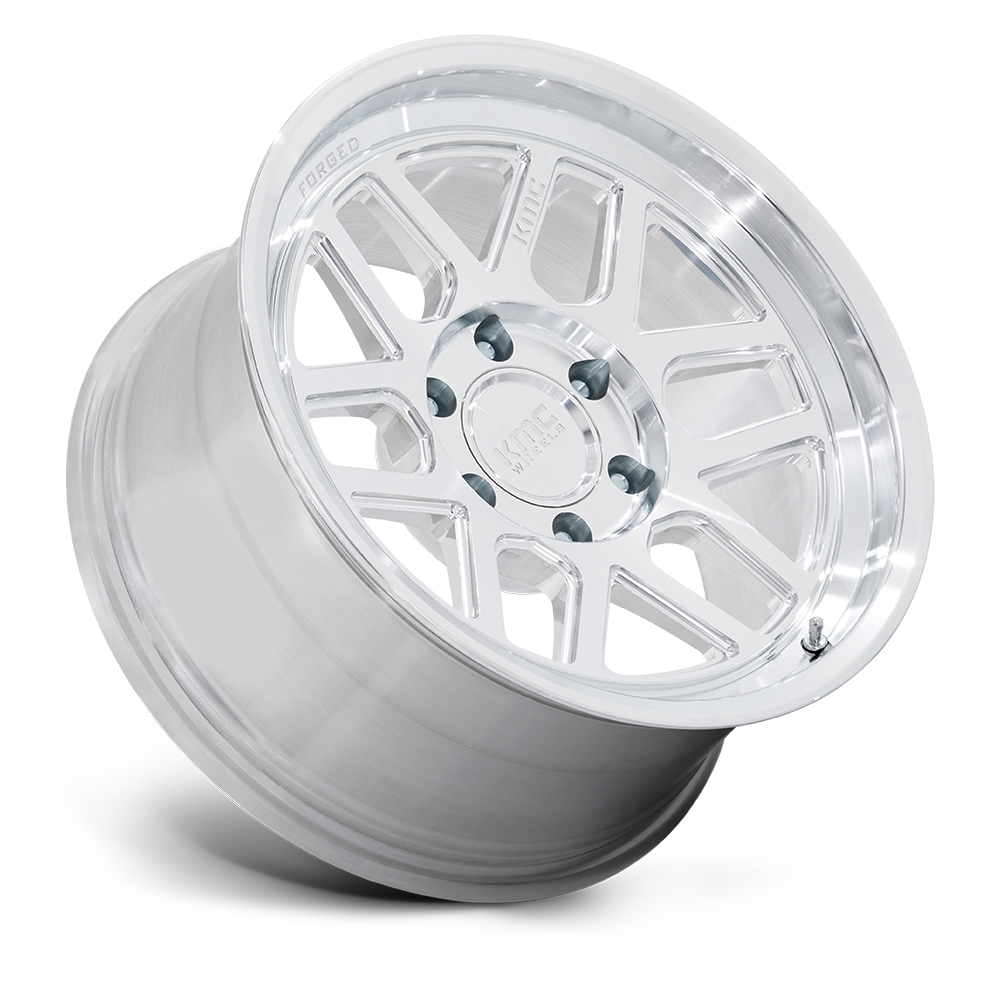

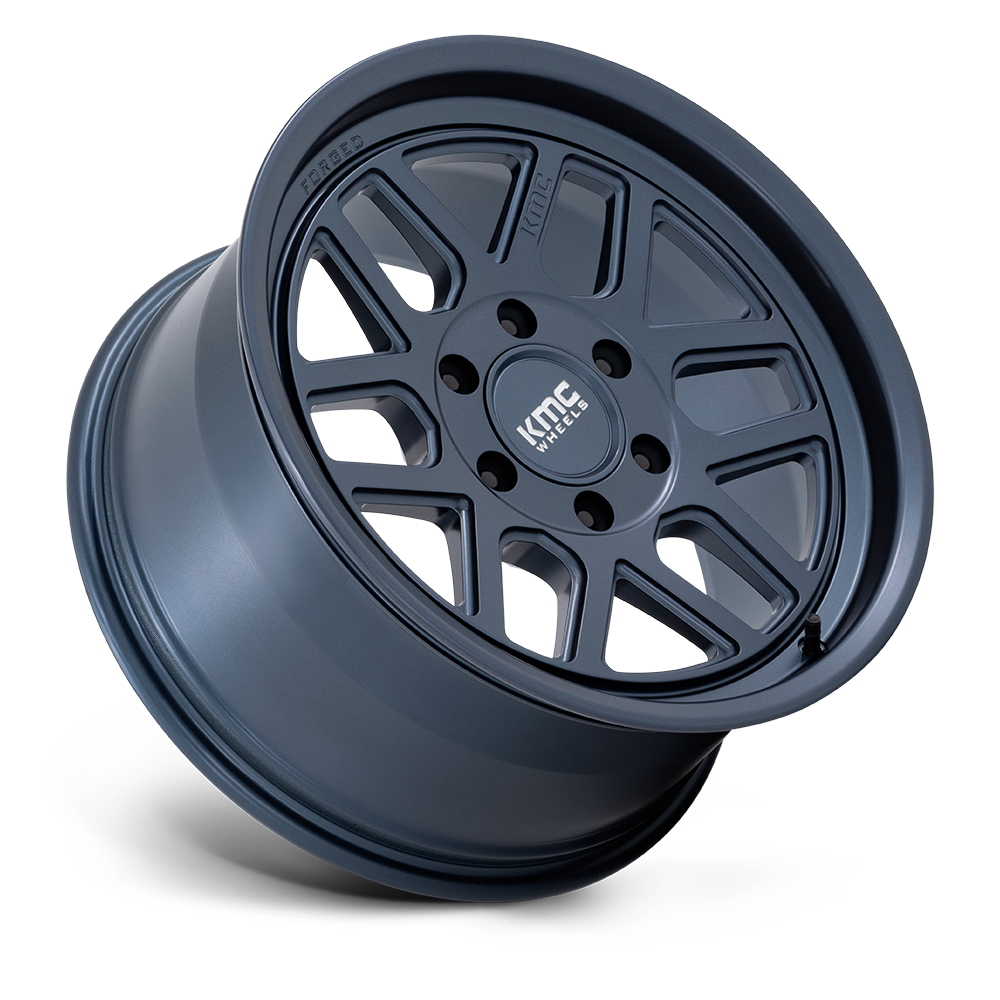

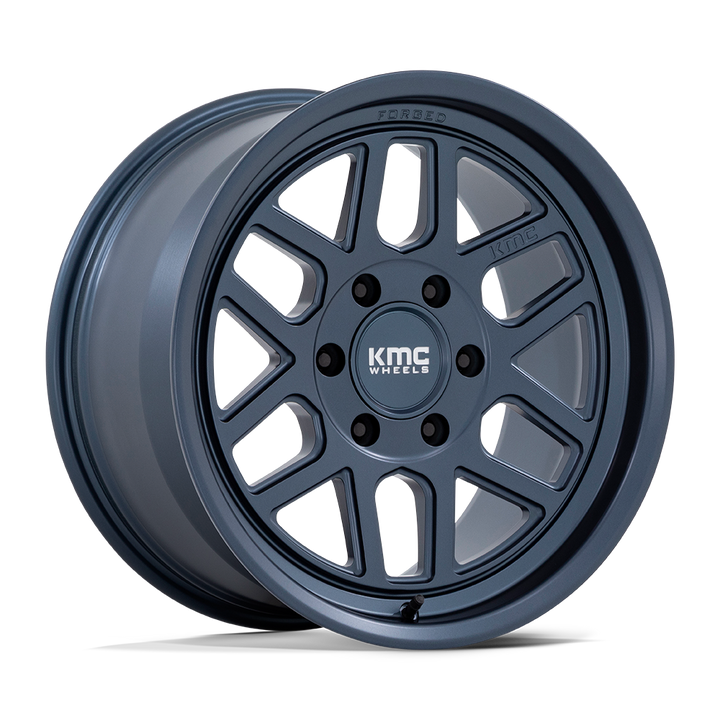

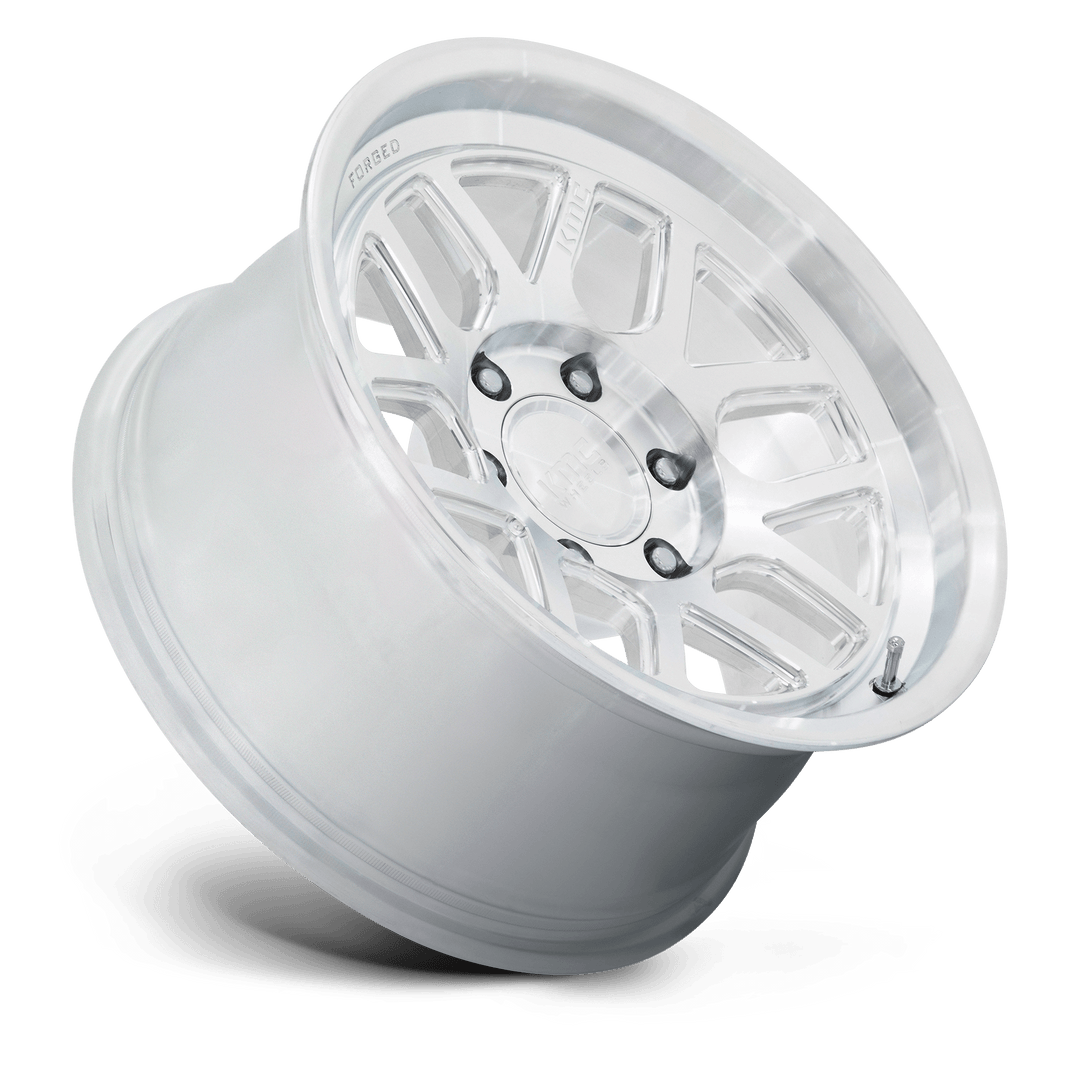

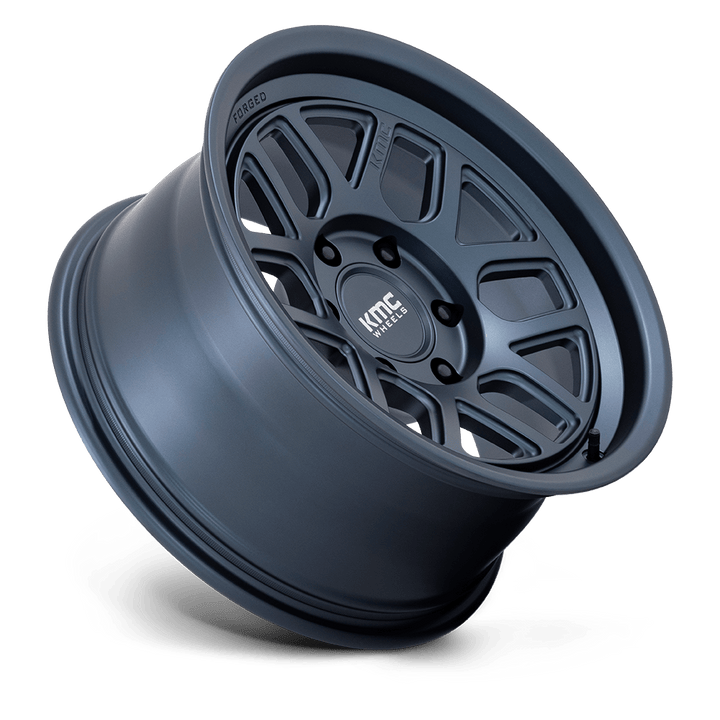

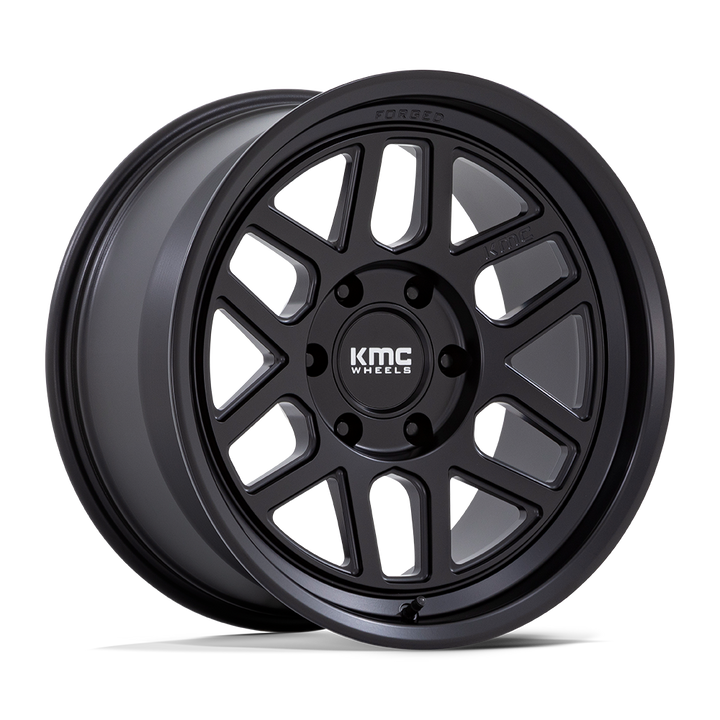

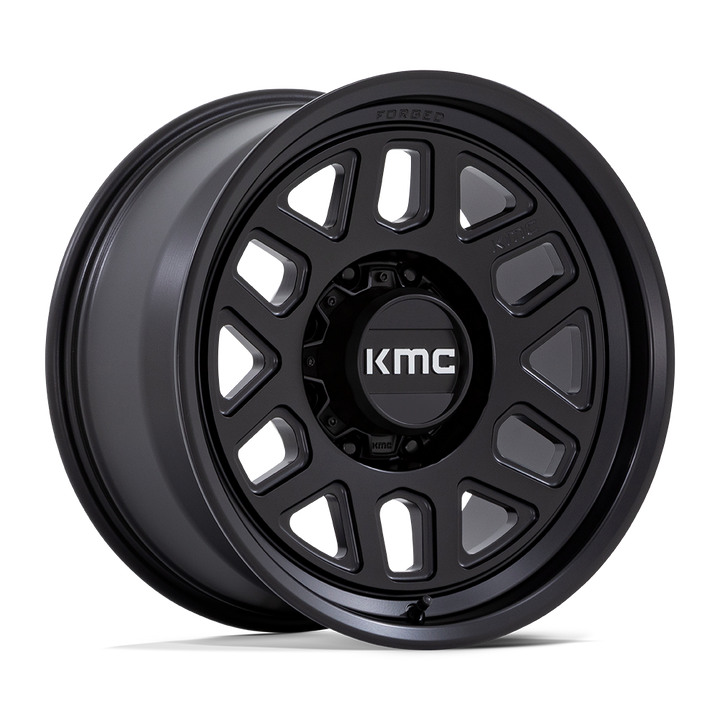

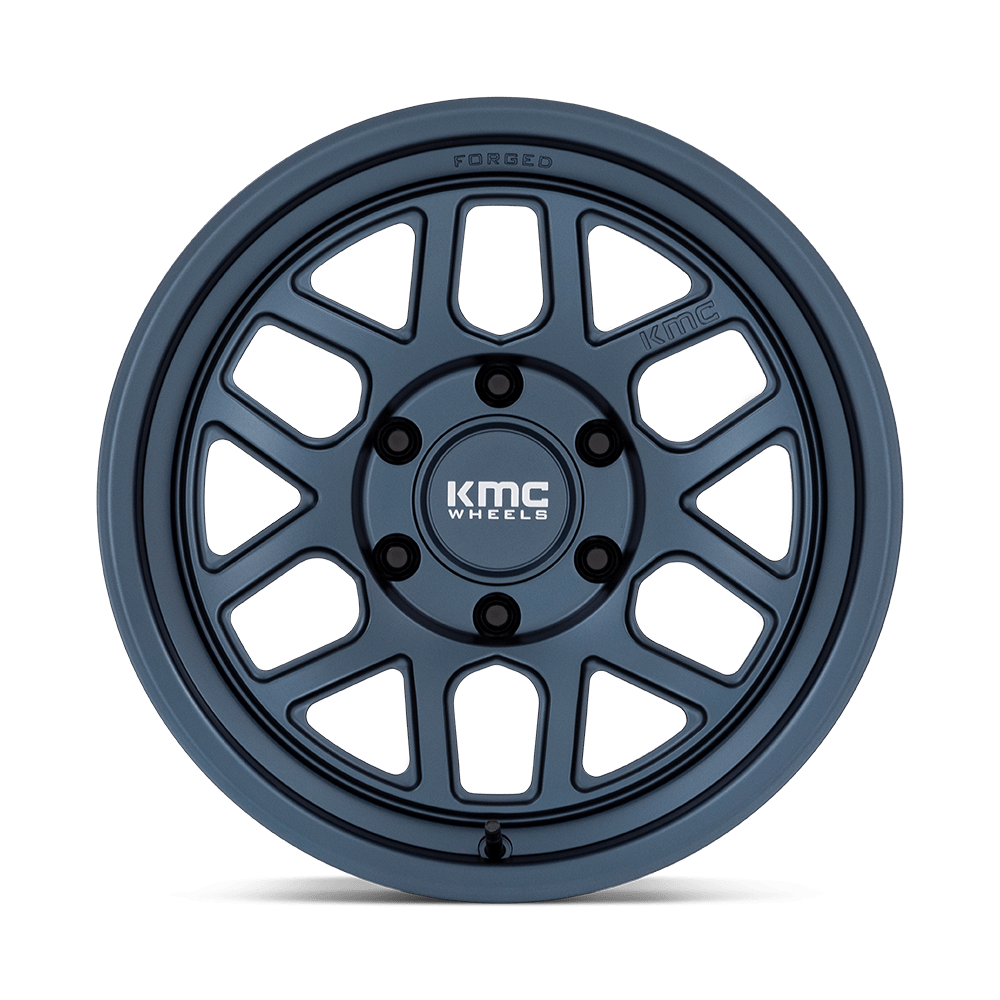

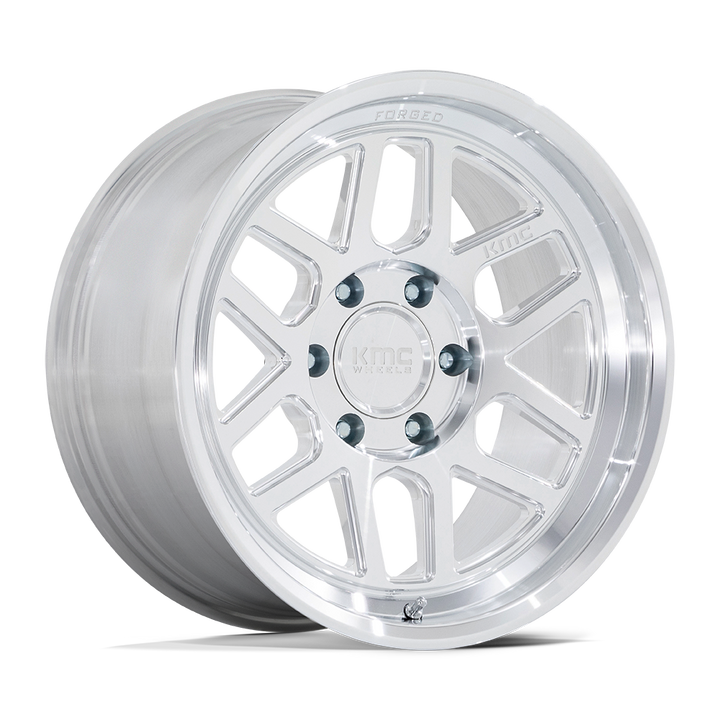

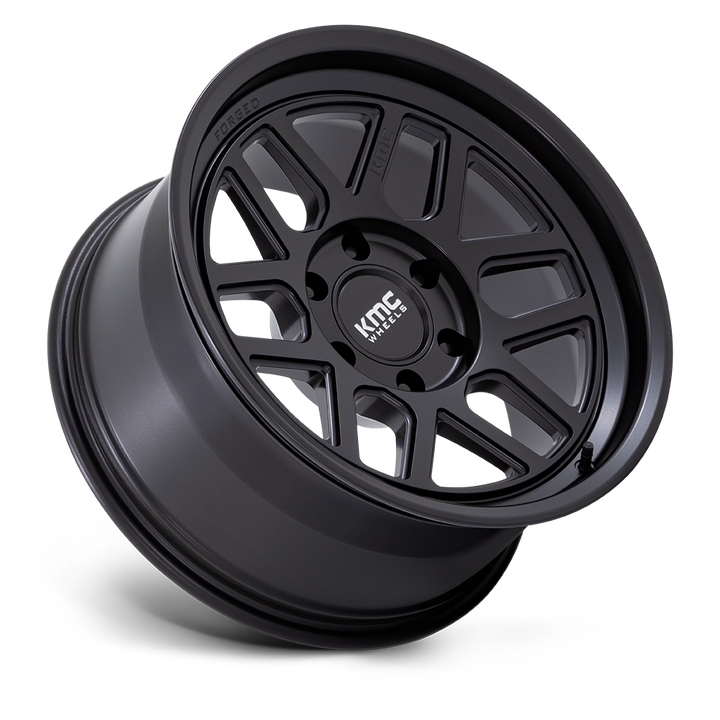

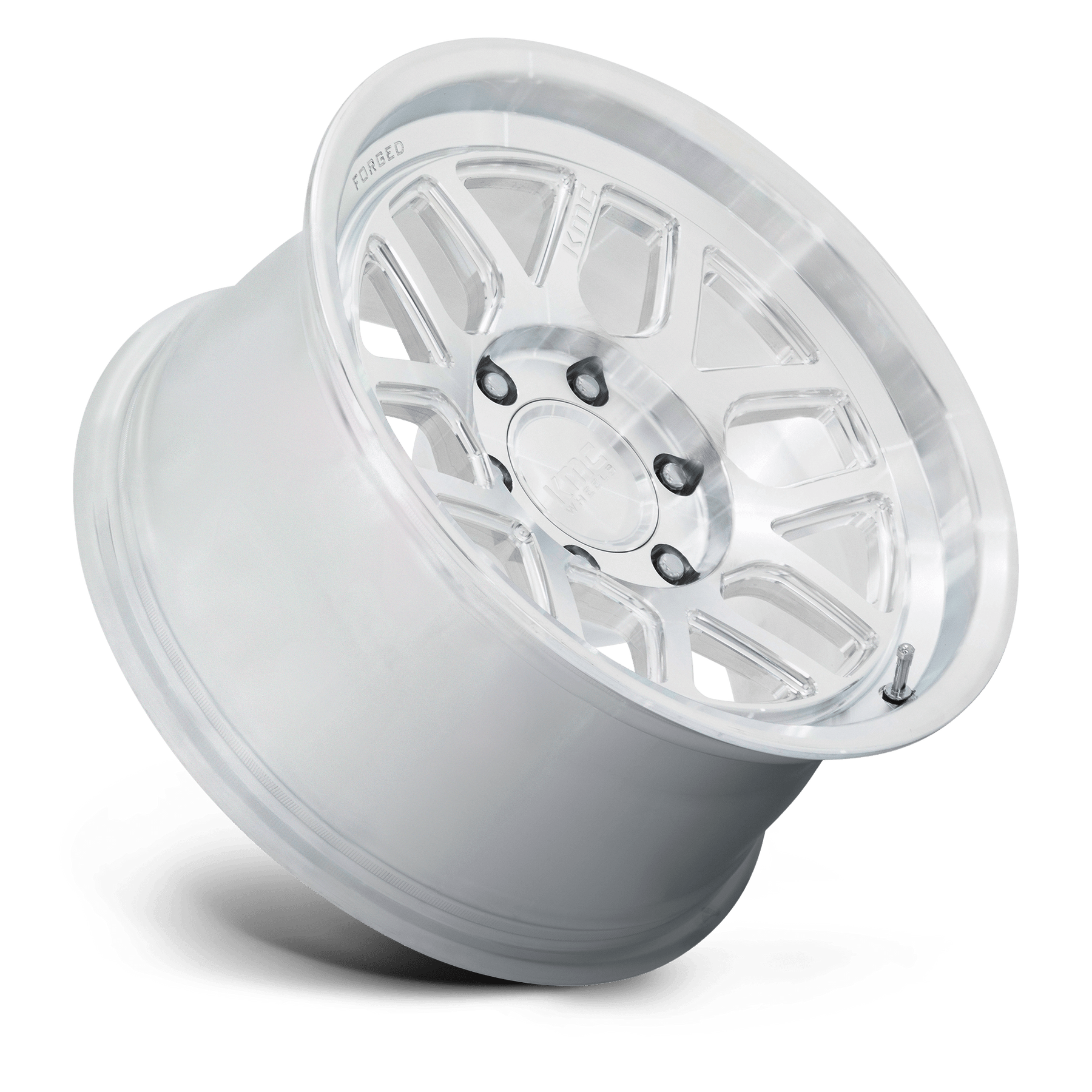

• Finishes: Metallic Blue, Raw Machined, Satin Black.

Pick your wheel

• Finish: pick the color. The photo changes with the finish.
• Size and Bolt Pattern: diameter x width, then the bolt pattern. Match the bolt pattern to your hubs exactly.
• Offset: more negative pushes the wheel out toward the fender, more positive tucks it in. Each offset is a different part number.

Each wheel is sold individually. Not sure which bolt pattern or offset fits your rig? Send us your year, make and model and we will point you to the right part number.
