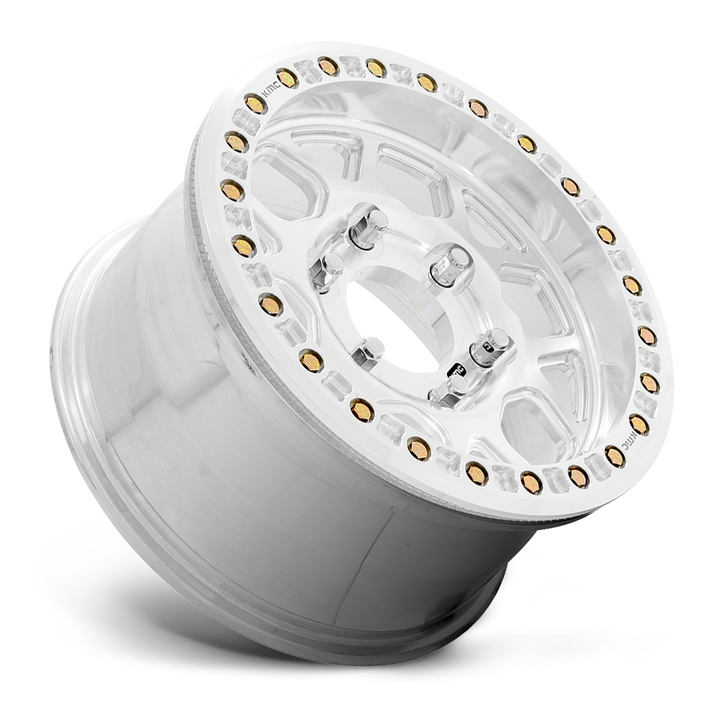

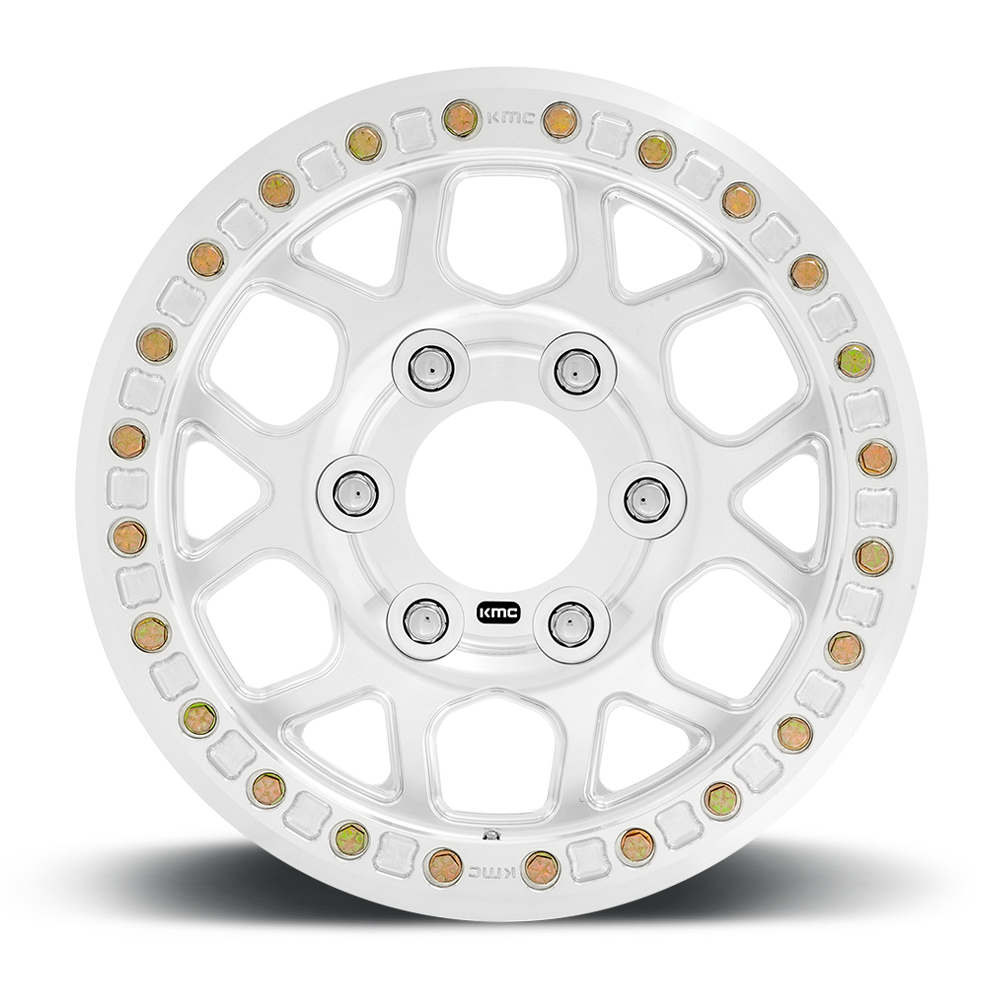

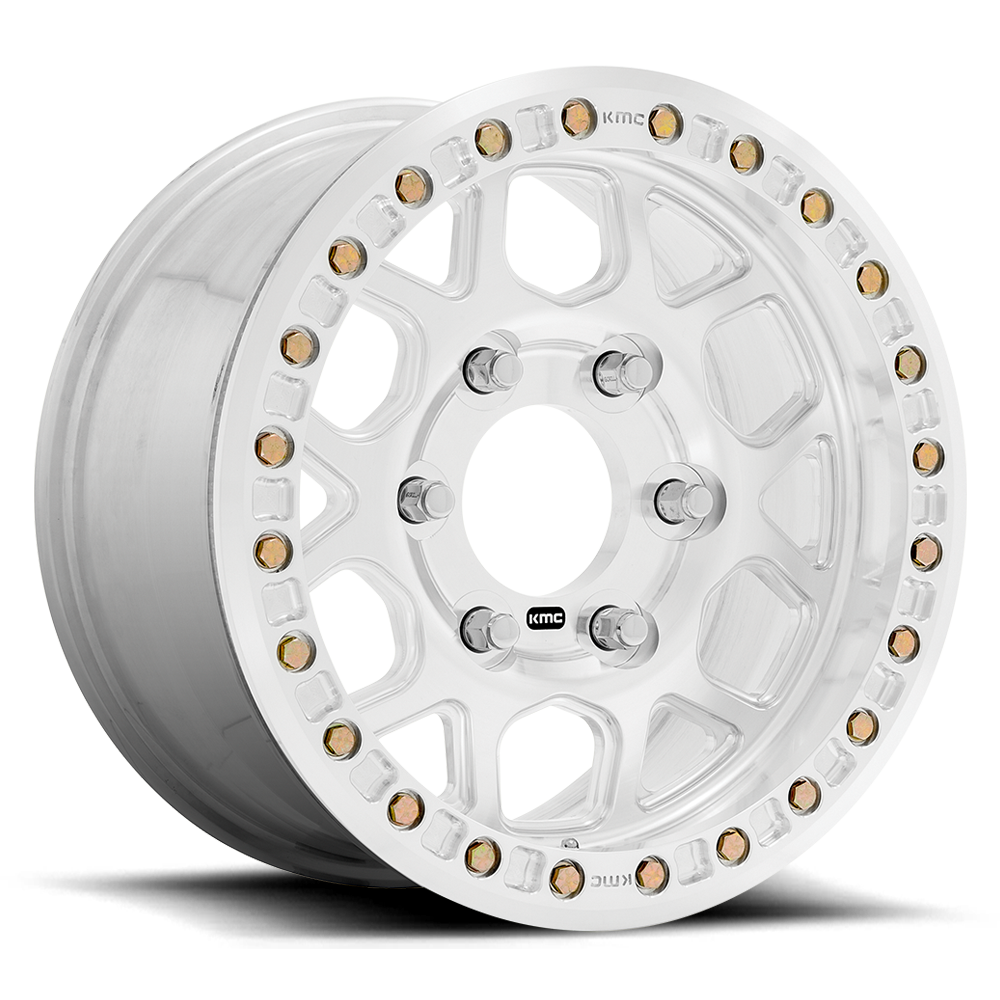

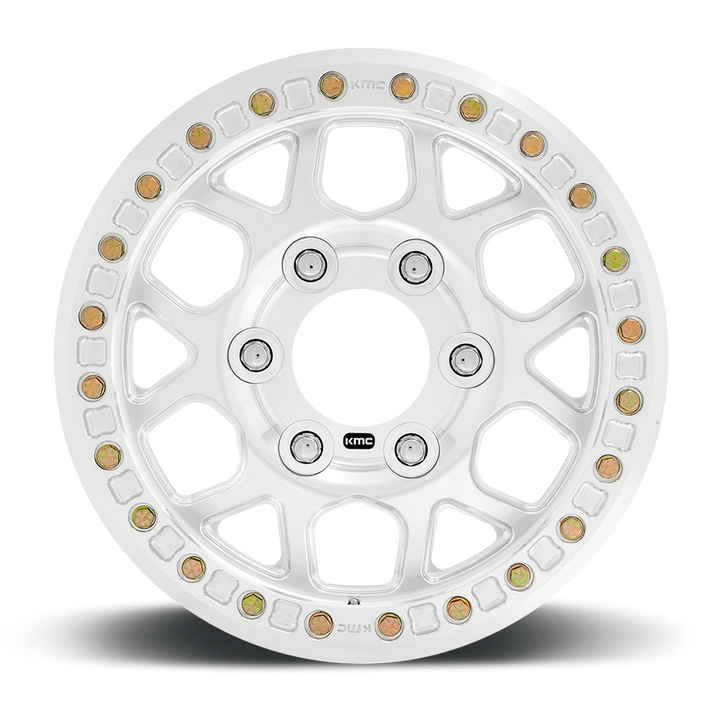

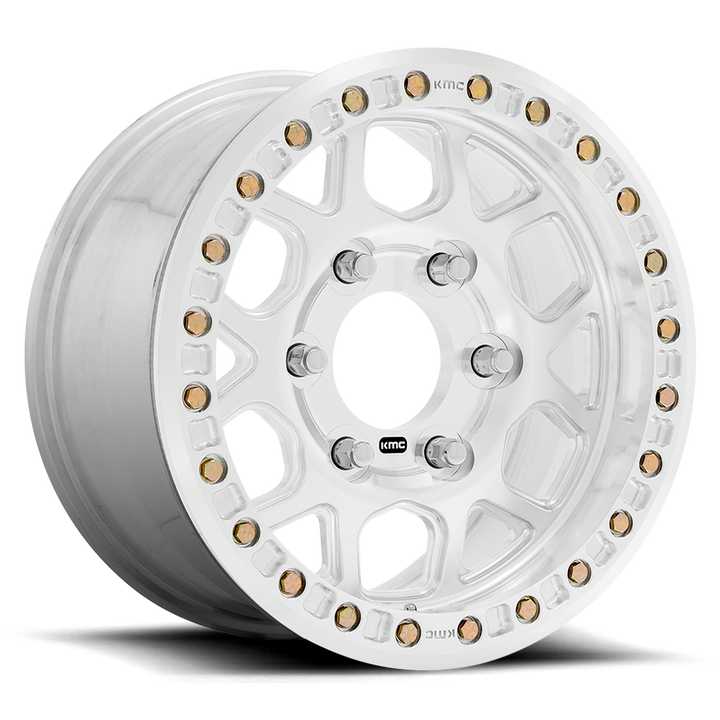

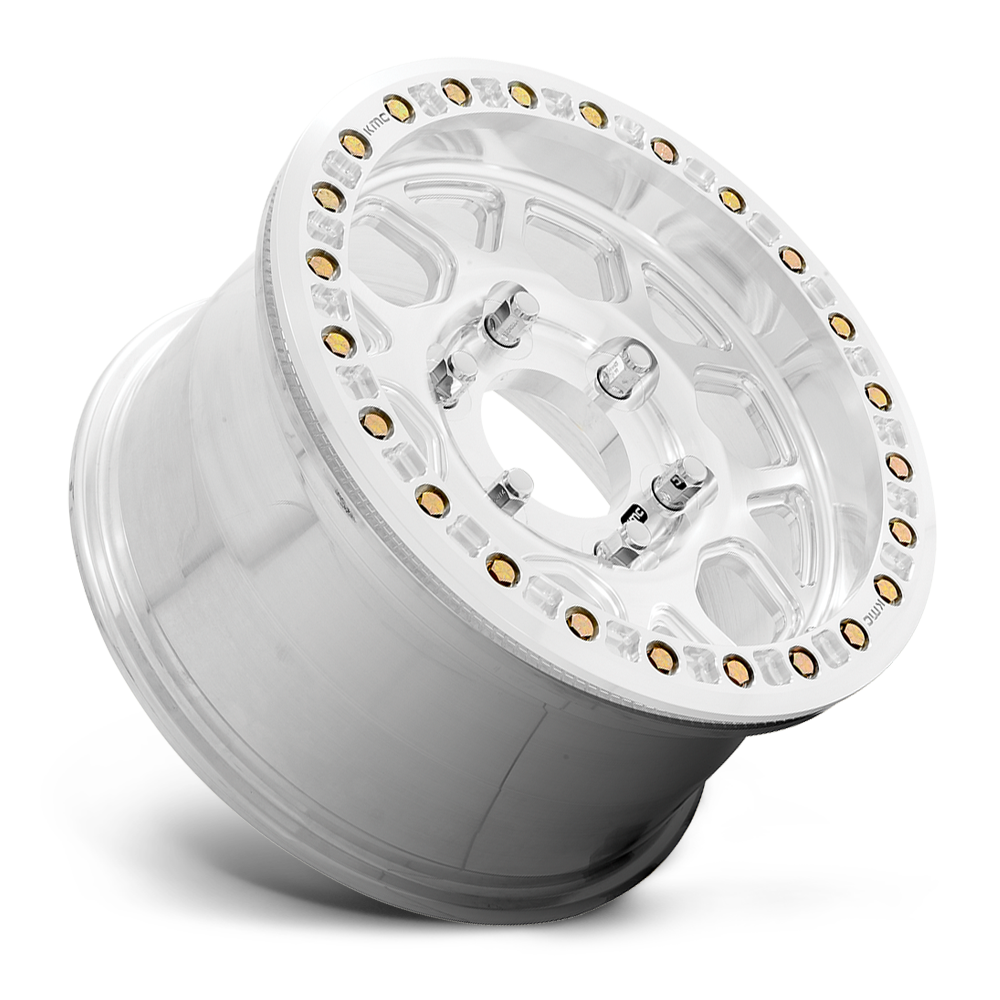

KMC KM444 Mesa Forged Beadlock Wheel

The Mesa Forged Beadlock is a true beadlock in 17x9, with a raw machined finish that shows off the forged construction. It is sold for off-road use only.

What you get

• Construction: monoblock forged (KMC Performance line).
• True beadlock: a clamped ring locks the tire bead so you can air down without losing the bead. Sold for off-road use only.
• Load rating: 2500 to 3700 lbs per wheel, depending on size.
• Weight: 26.2 to 30.1 lbs each, depending on size.
• Center bore: varies by bolt pattern, 87.10 to 125.10 mm.
• Center cap part number: NO CAP.

Sizes and fitment

• Sizes: 17x9.
• Bolt patterns: 5x139.7, 6x135, 6x139.7, 6x165.1, 8x165.1.
• Offsets: -12mm, 0mm, +25mm.
• Finishes: Raw Machined.

Pick your wheel

• Size and Bolt Pattern: diameter x width, then the bolt pattern. Match the bolt pattern to your hubs exactly.
• Offset: more negative pushes the wheel out toward the fender, more positive tucks it in. Each offset is a different part number.

Beadlock wheels are sold for off-road use only. They can be illegal on public roads in many states and provinces, so check your local laws before you buy.

Each wheel is sold individually. Not sure which bolt pattern or offset fits your rig? Send us your year, make and model and we will point you to the right part number.
