KMC KM238 VI Beadlock Wheel

The VI Beadlock is a true beadlock with a deep concave profile and a heritage-style six-spoke face. KMC rates it at 4000 lbs. There are channels in the ring to push water and debris out. It comes in 17x9 and 20x10, with offsets from -48mm to -38mm. It is sold for off-road use only.

What you get

• Construction: cast aluminum (KMC Performance line).
• True beadlock: a clamped ring locks the tire bead so you can air down without losing the bead. Sold for off-road use only.
• Bead Retention System: machined grooves in the bead seat help hold the tire bead at low pressure without a true beadlock.
• Load rating: 4000 lbs per wheel, depending on size.
• Weight: 35.5 to 48.2 lbs each, depending on size.
• Center bore: varies by bolt pattern, 71.50 to 125.10 mm.

Sizes and fitment

• Sizes: 17x9, 20x10.
• Bolt patterns: 5x127, 6x135, 6x139.7, 8x165.1.
• Offsets: -48mm, -38mm, -12mm, +1mm.

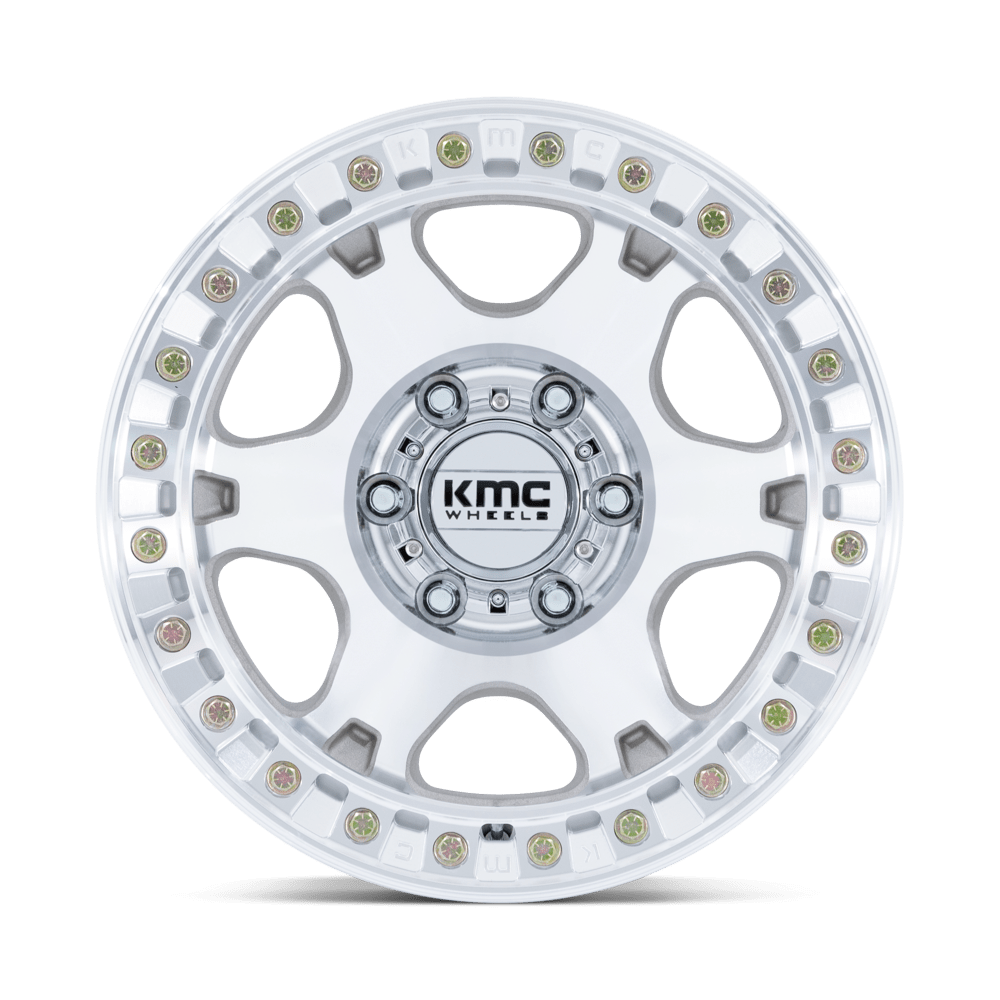

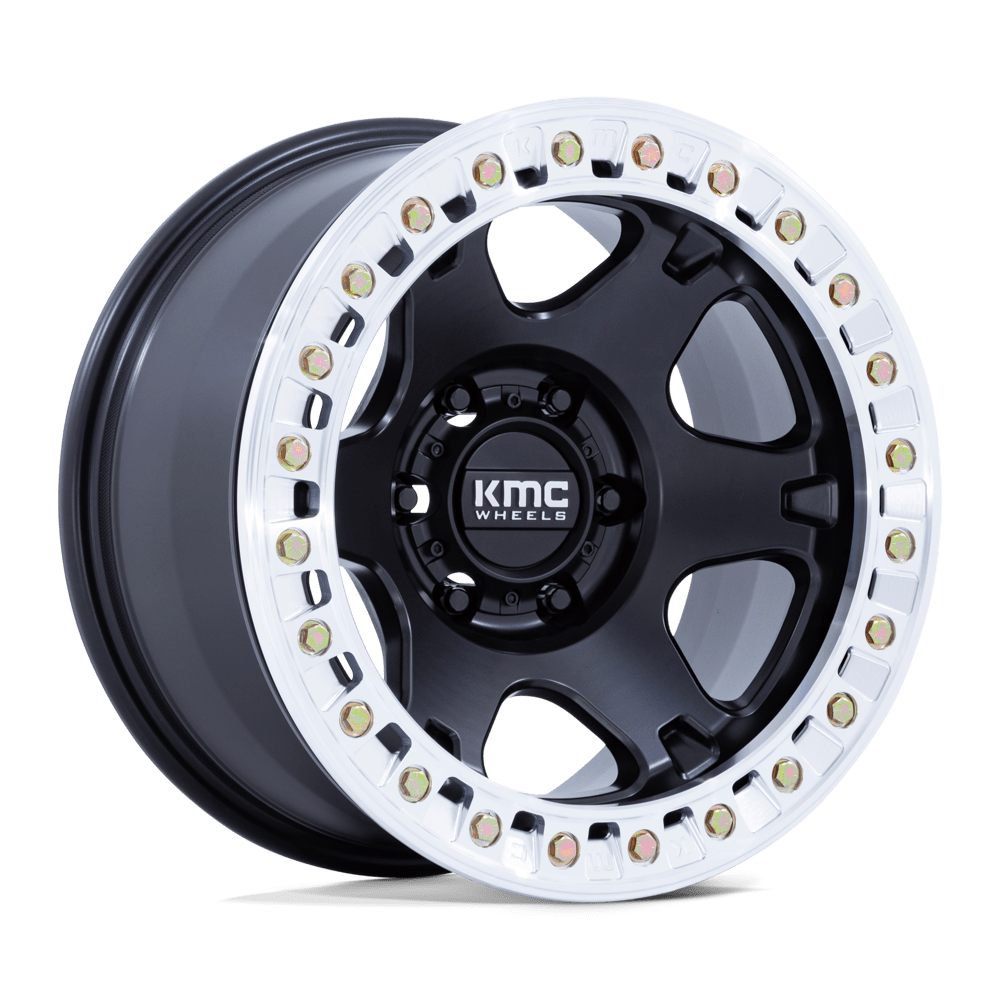

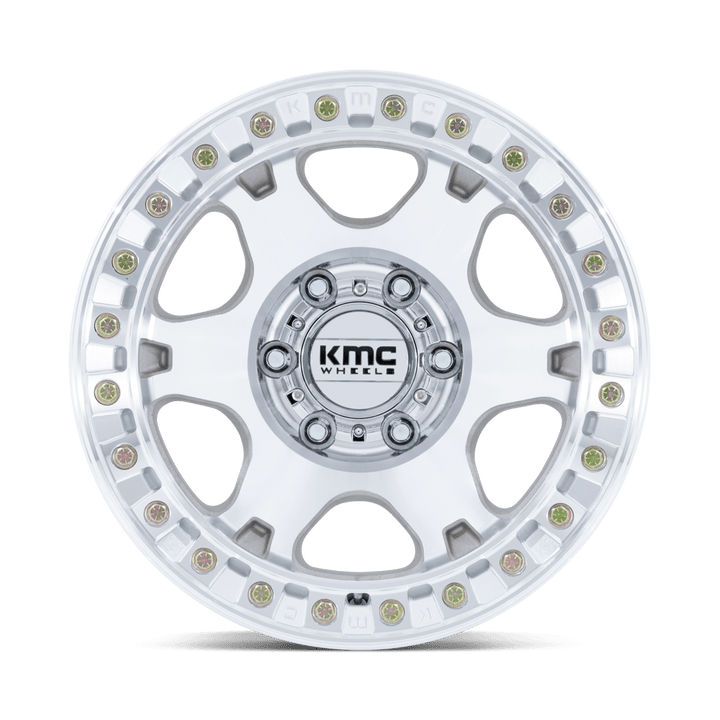

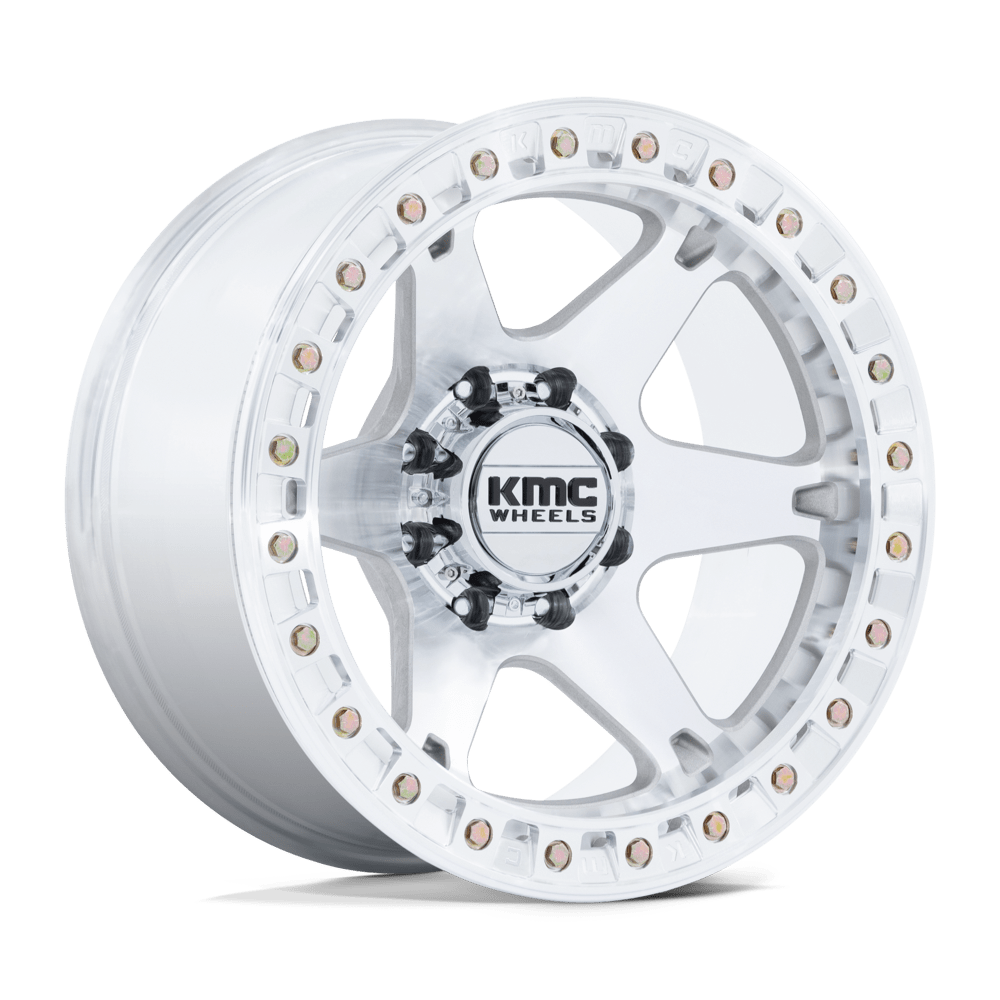

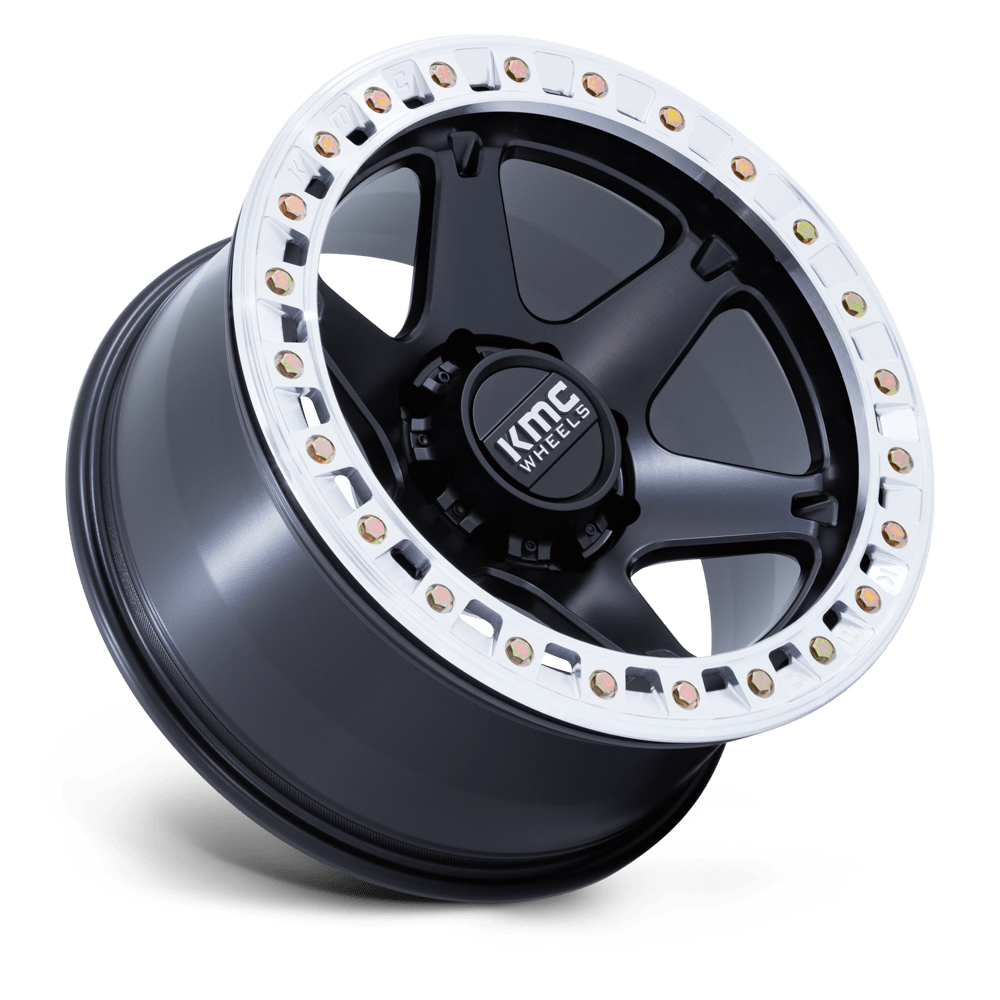

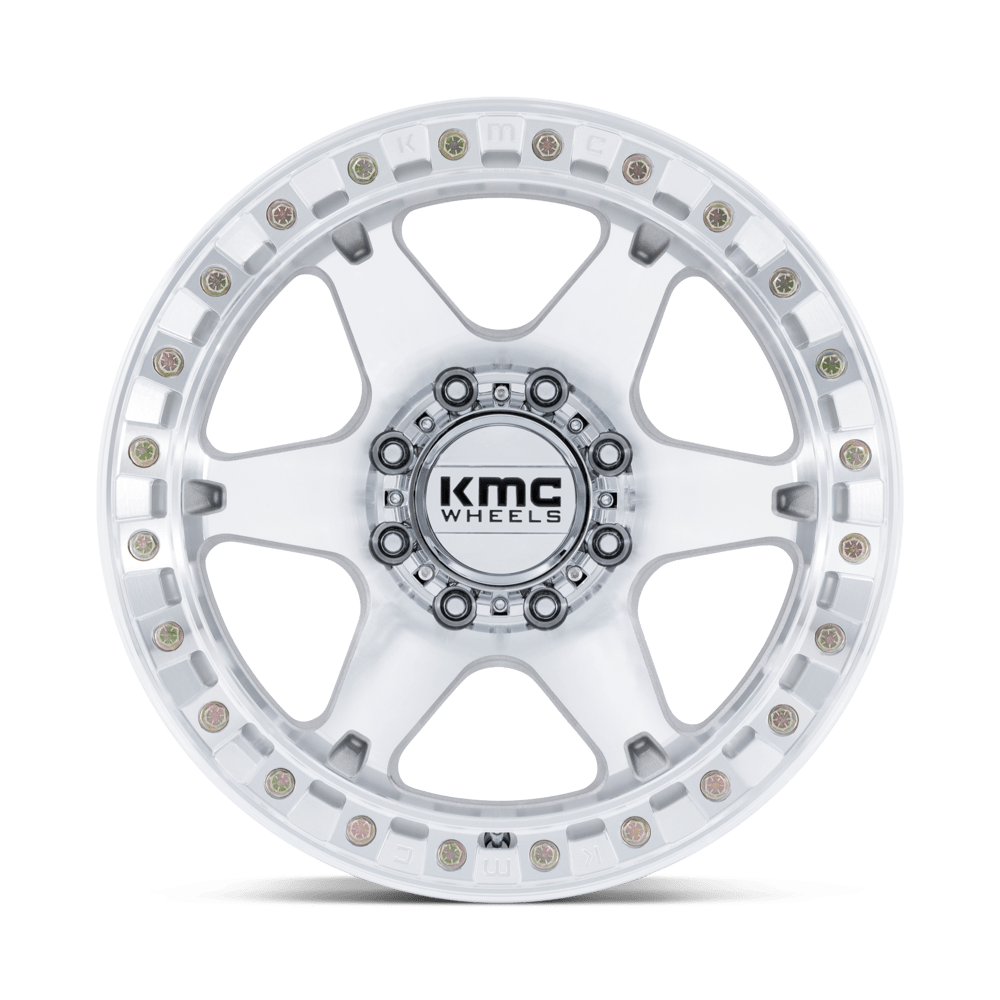

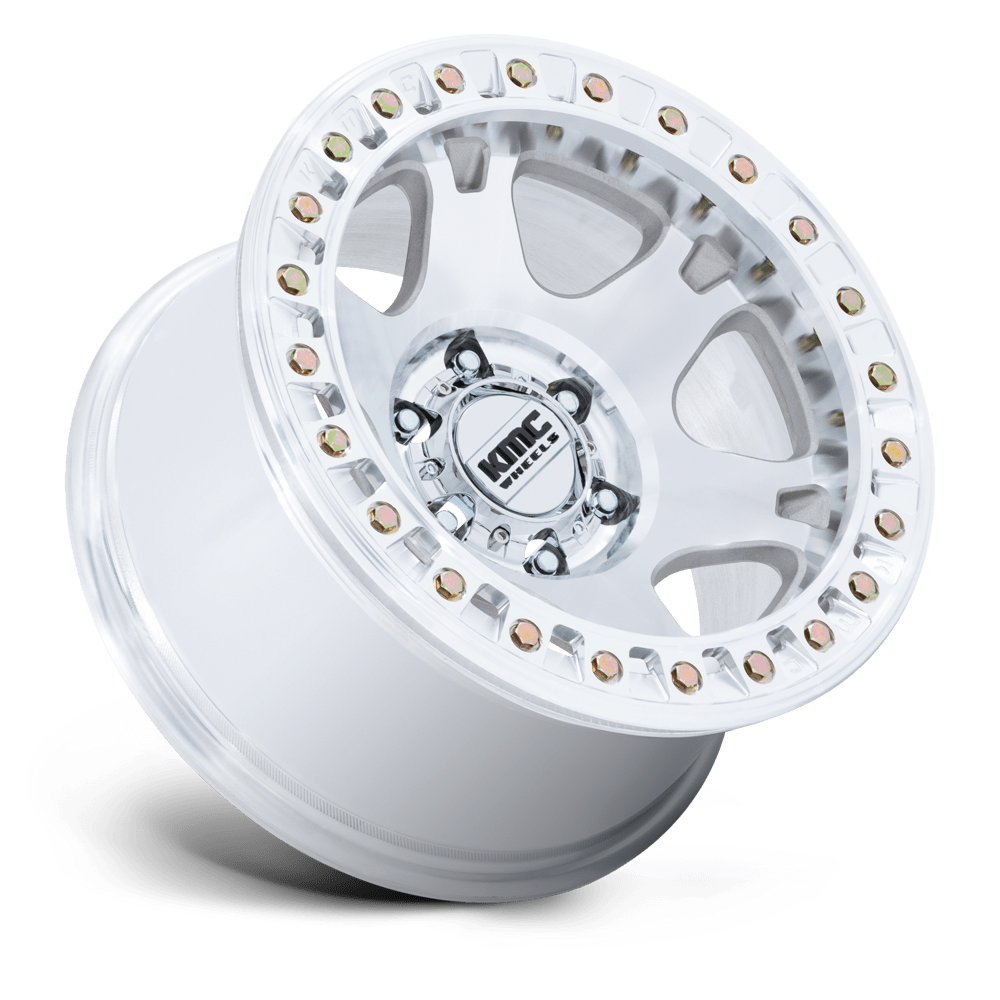

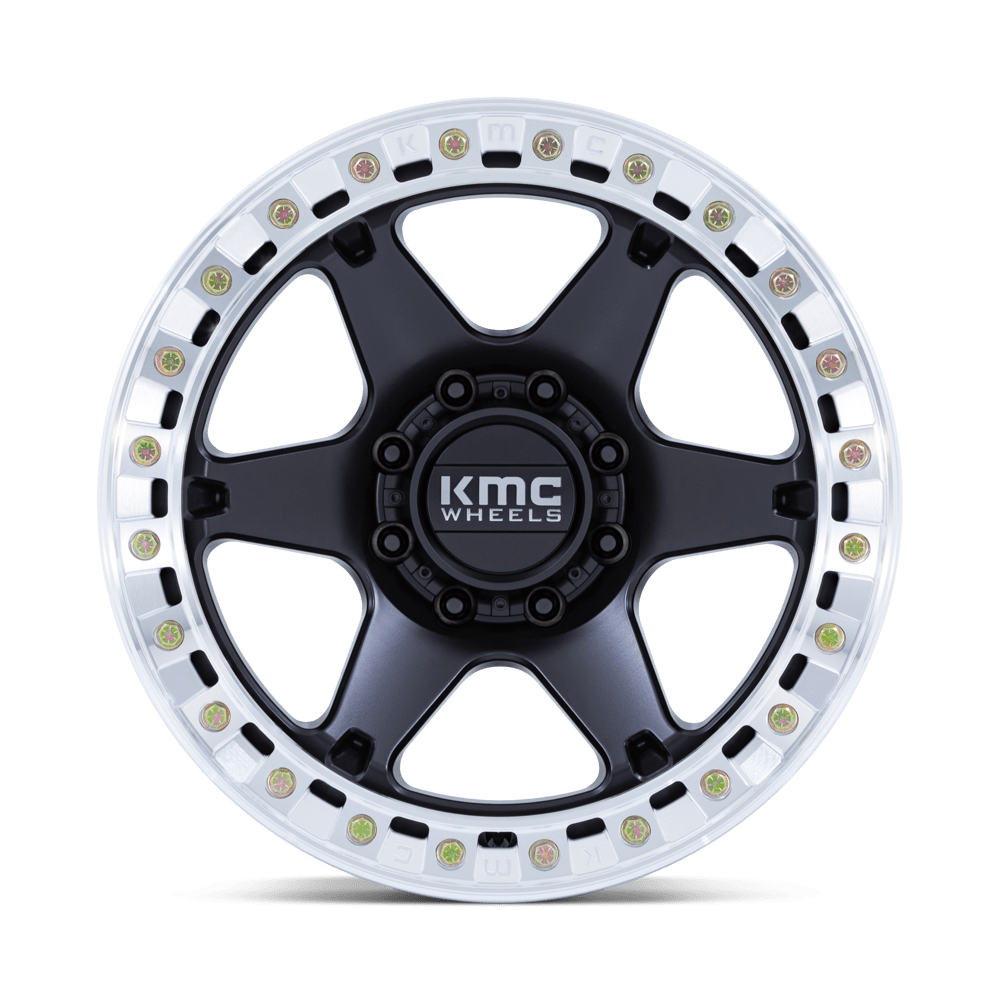

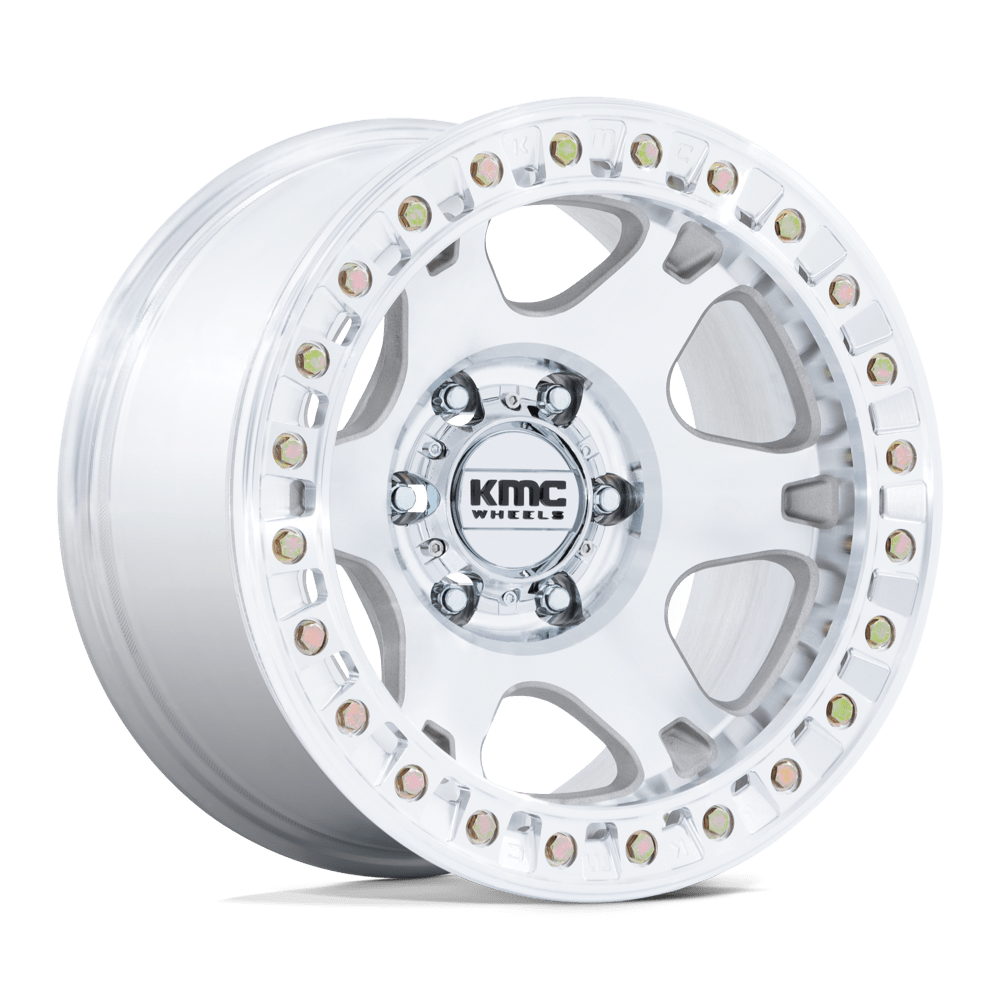

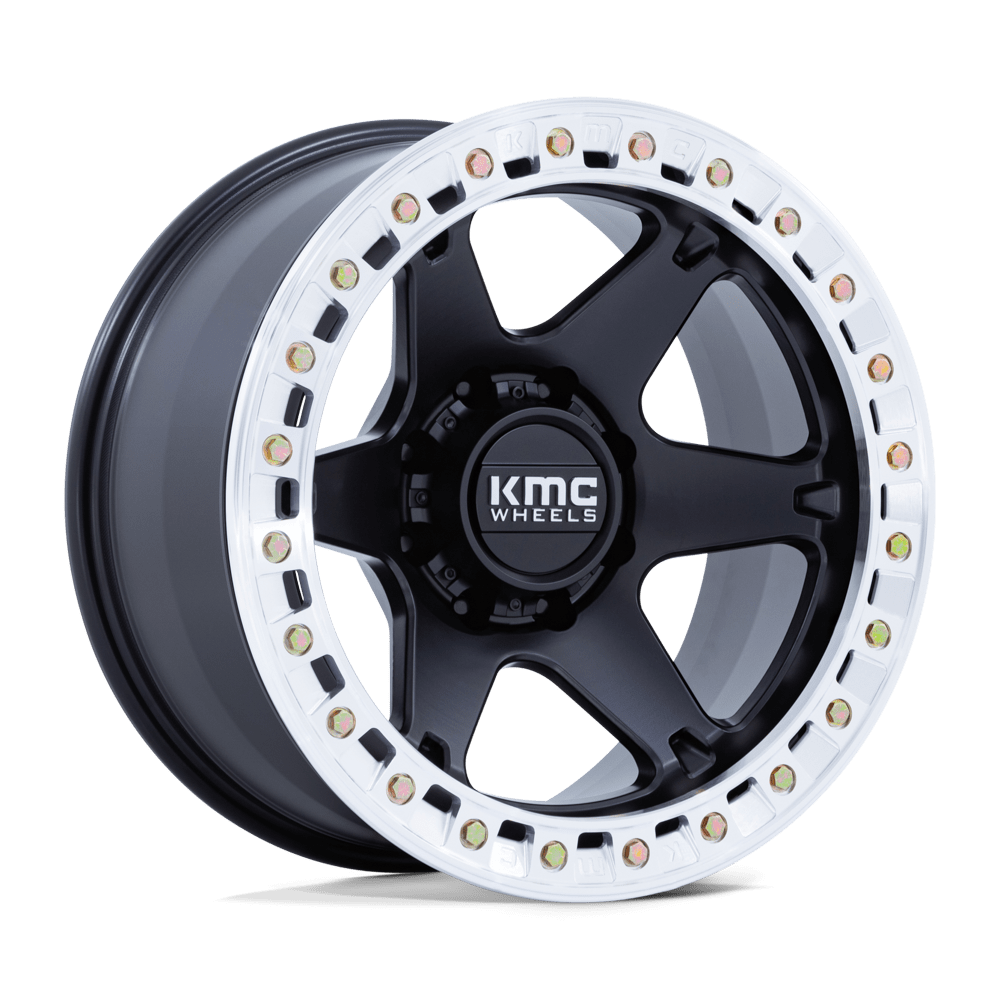

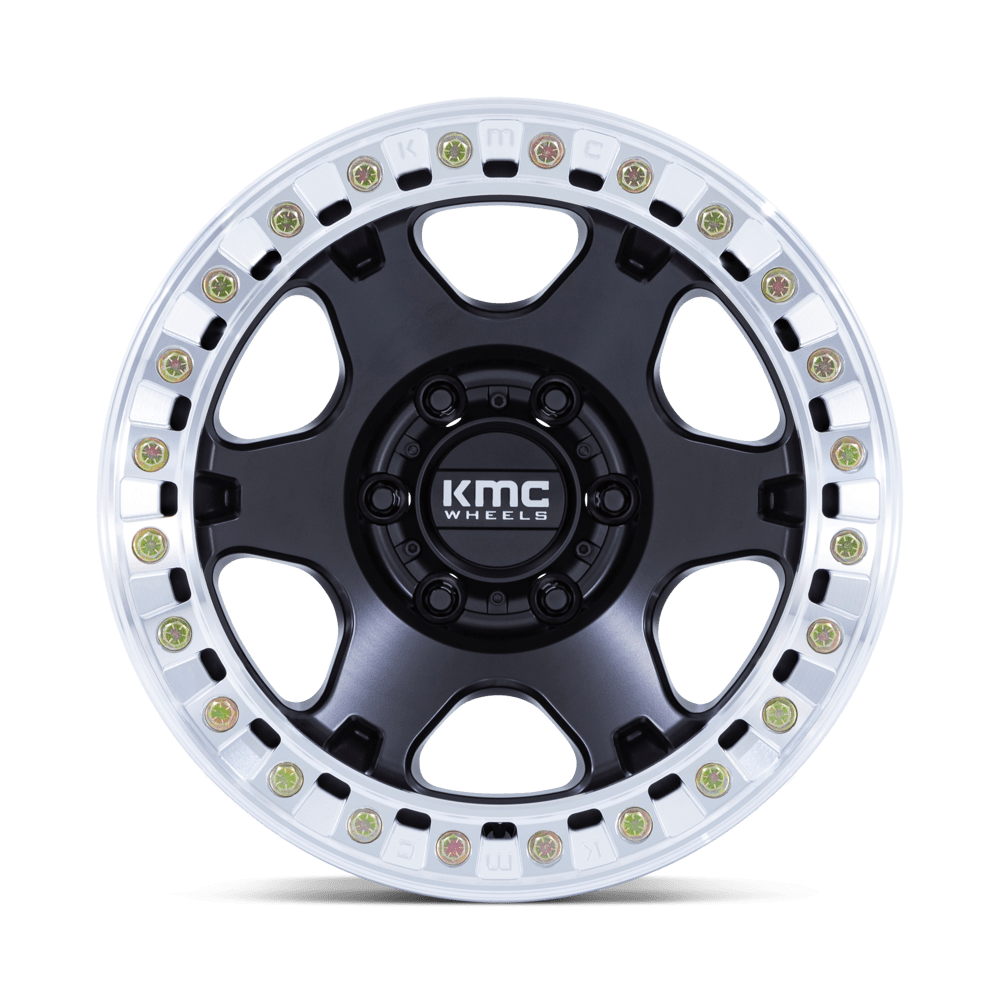

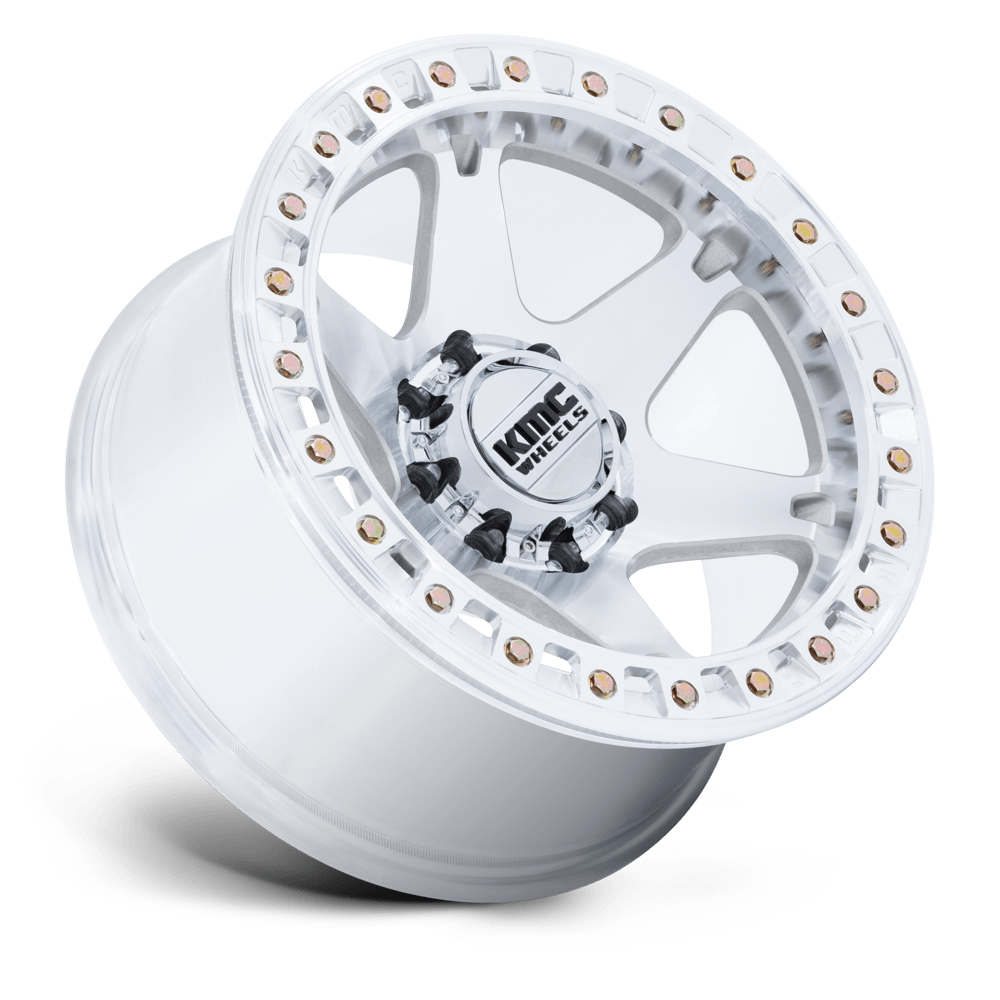

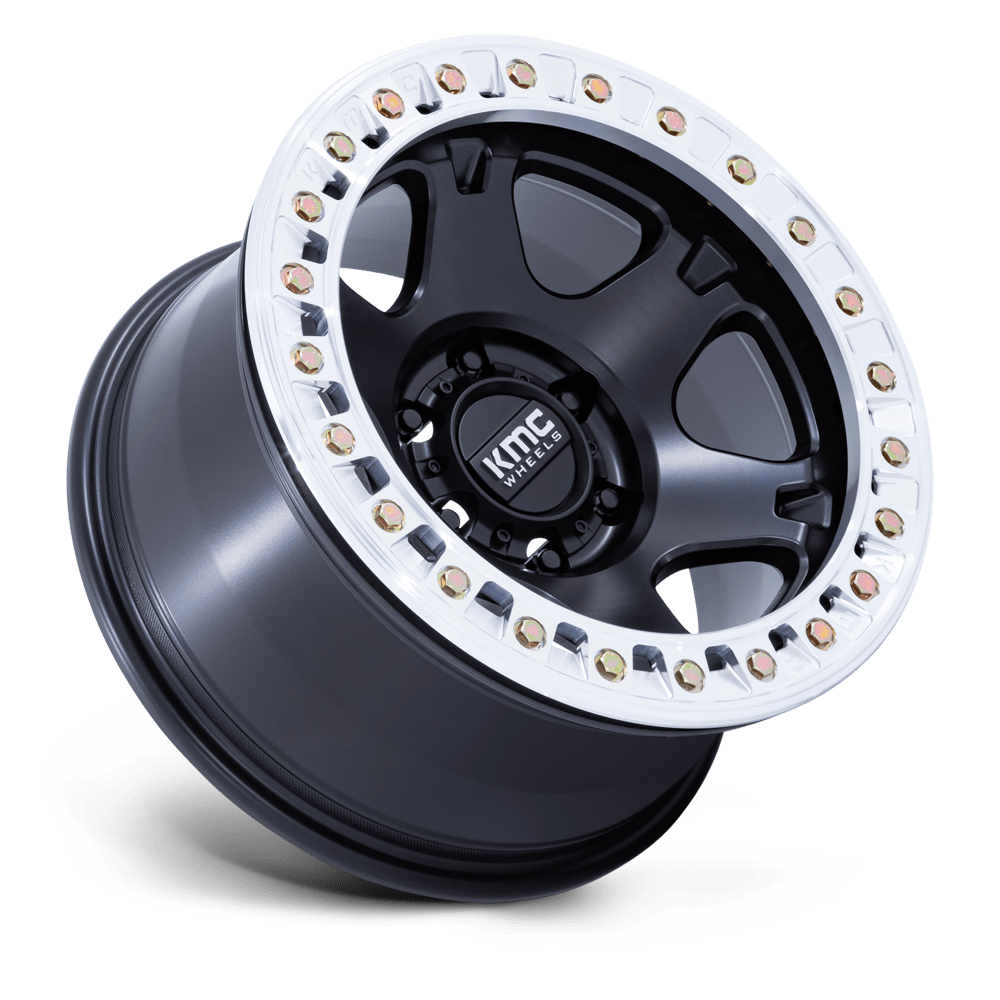

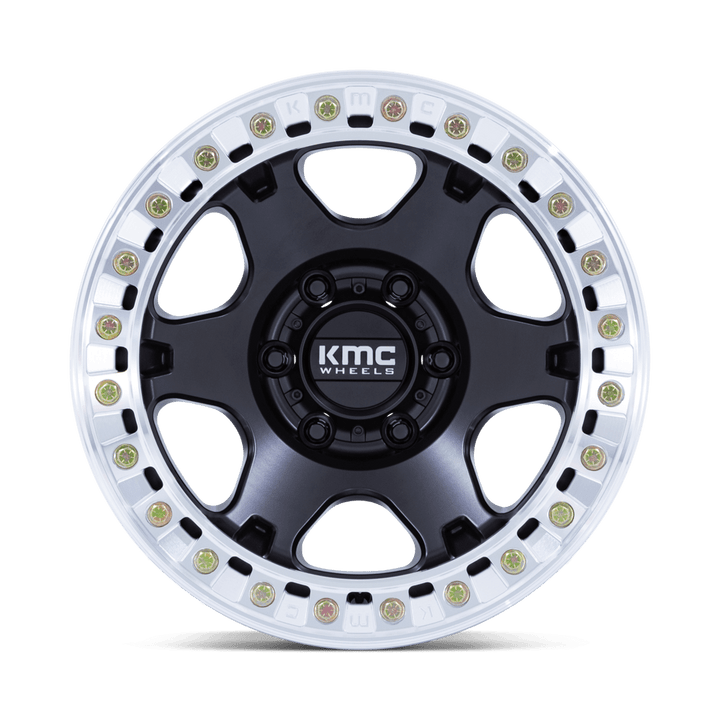

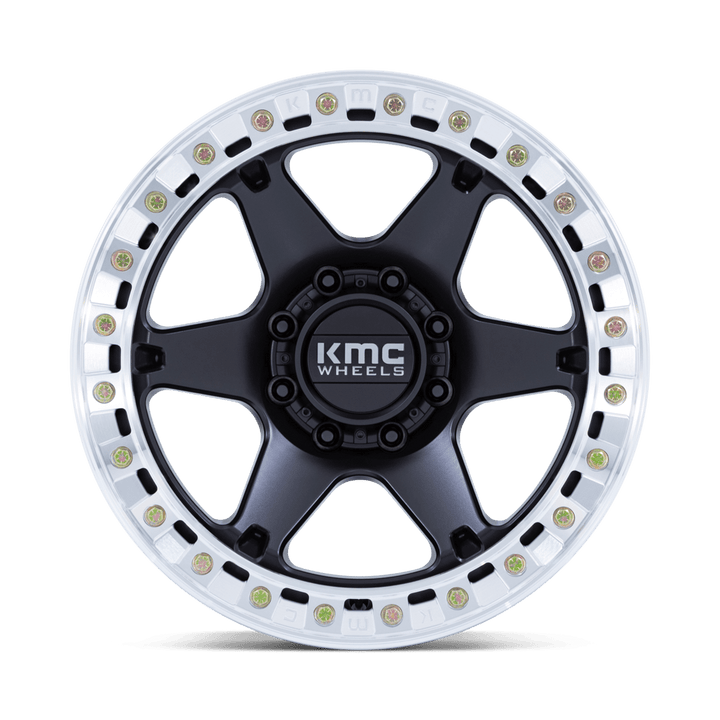

• Finishes: Machined, Satin Black w/ Machined Ring.

Pick your wheel

• Finish: pick the color. The photo changes with the finish.
• Size and Bolt Pattern: diameter x width, then the bolt pattern. Match the bolt pattern to your hubs exactly.
• Offset: more negative pushes the wheel out toward the fender, more positive tucks it in. Each offset is a different part number.

Beadlock wheels are sold for off-road use only. They can be illegal on public roads in many states and provinces, so check your local laws before you buy.

Each wheel is sold individually. Not sure which bolt pattern or offset fits your rig? Send us your year, make and model and we will point you to the right part number.
