KMC KM235 Grenade Crawl Beadlock Wheel

The Grenade Crawl Beadlock is a true beadlock from KMC's Grenade family. It comes in 17x8.5, 17x9, 18x9 and 20x10 across 5-lug, 6-lug and 8-lug patterns. It is sold for off-road use only.

What you get

• Construction: cast aluminum (KMC Performance line).
• True beadlock: a clamped ring locks the tire bead so you can air down without losing the bead. Sold for off-road use only.
• Load rating: 2500 to 3640 lbs per wheel, depending on size.
• Weight: 32.6 to 44.4 lbs each, depending on size.
• Center bore: varies by bolt pattern, 71.50 to 125.10 mm.

Sizes and fitment

• Sizes: 17x8.5, 17x9, 18x9, 20x10.
• Bolt patterns: 5x127, 6x135, 6x139.7, 8x165.1, 8x170.
• Offsets: -48mm, -38mm, -24mm, 0mm, +10mm.

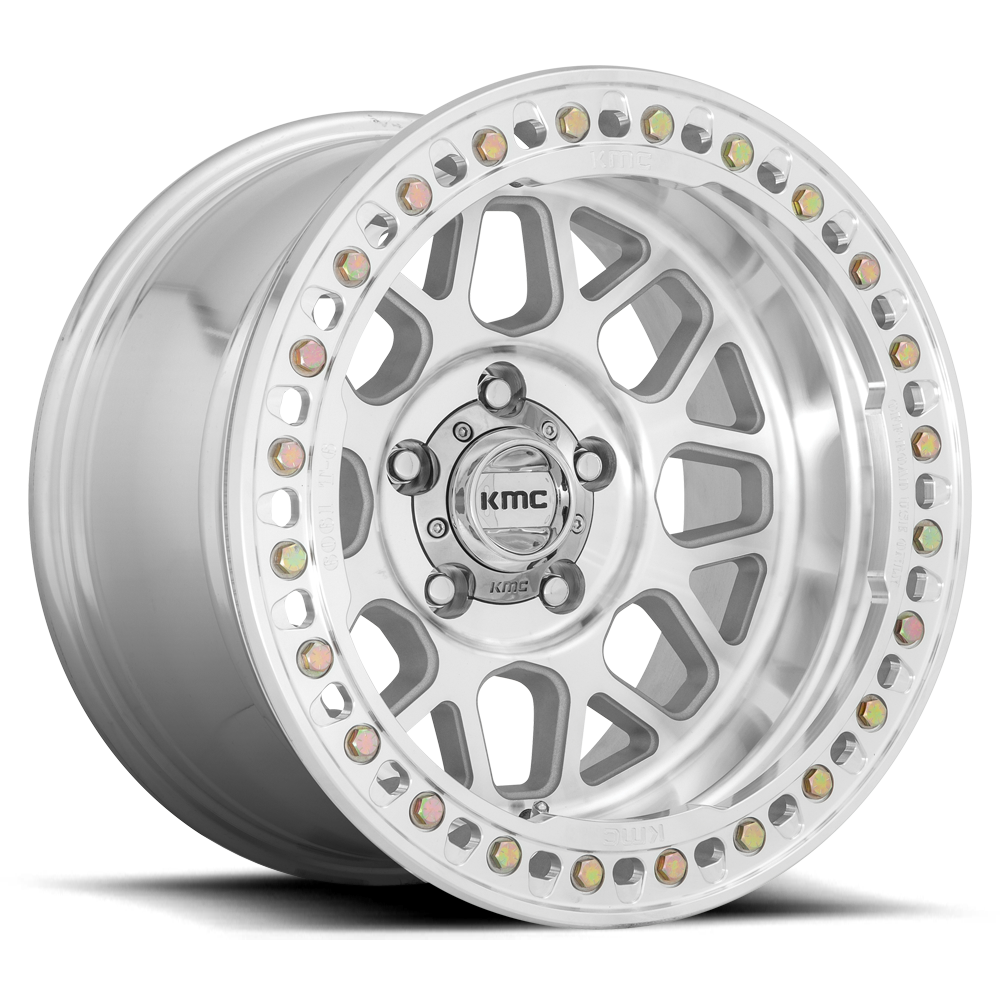

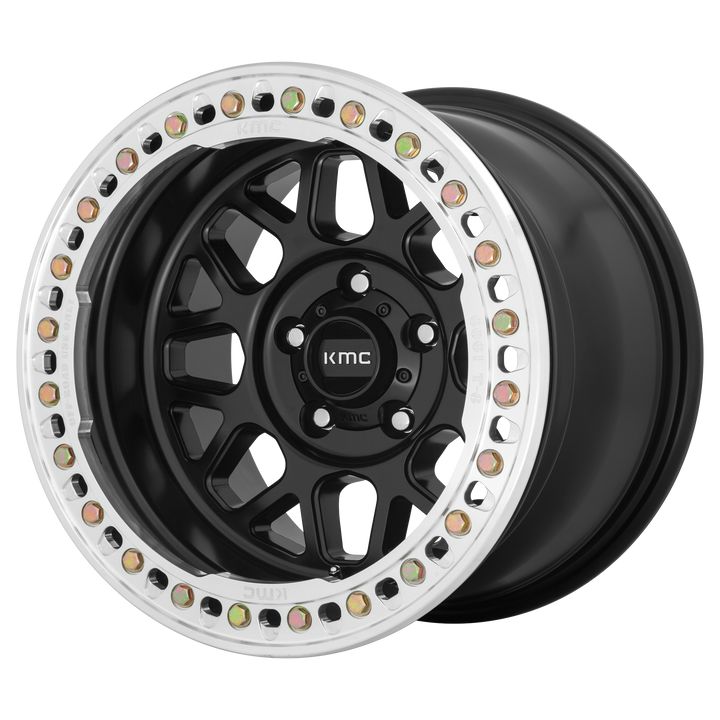

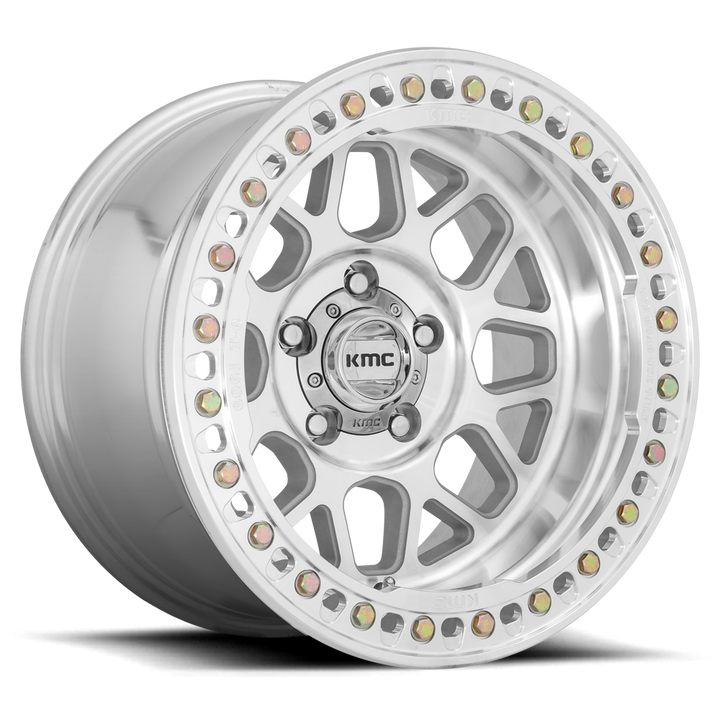

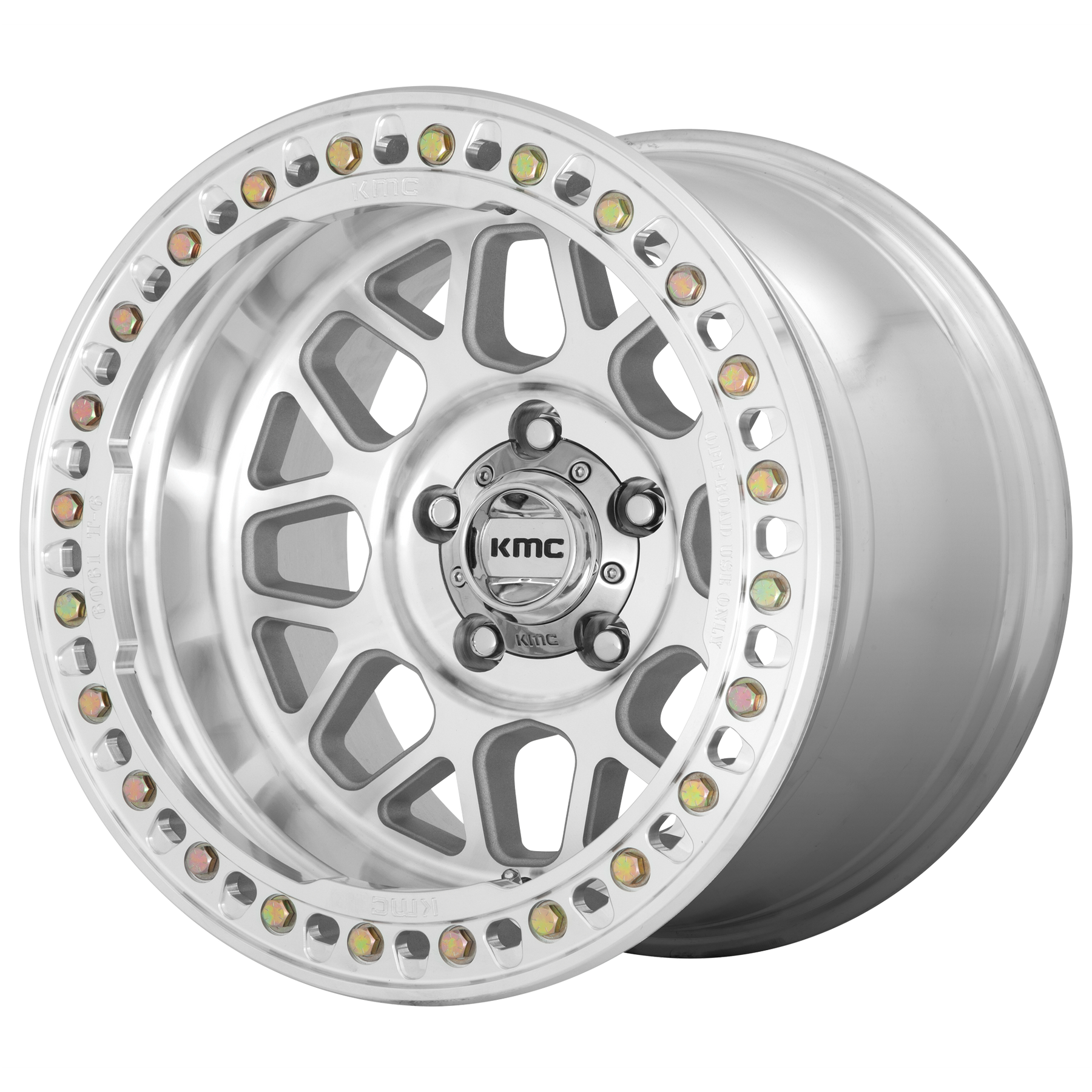

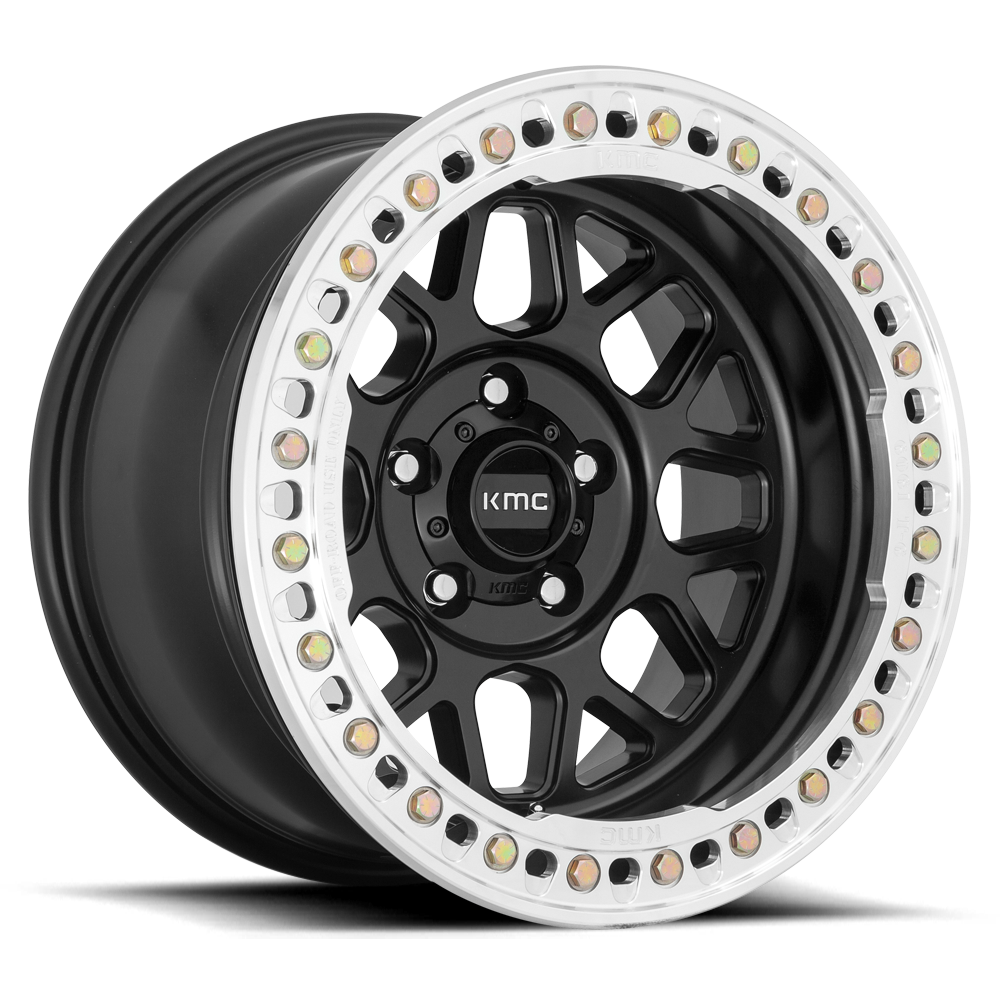

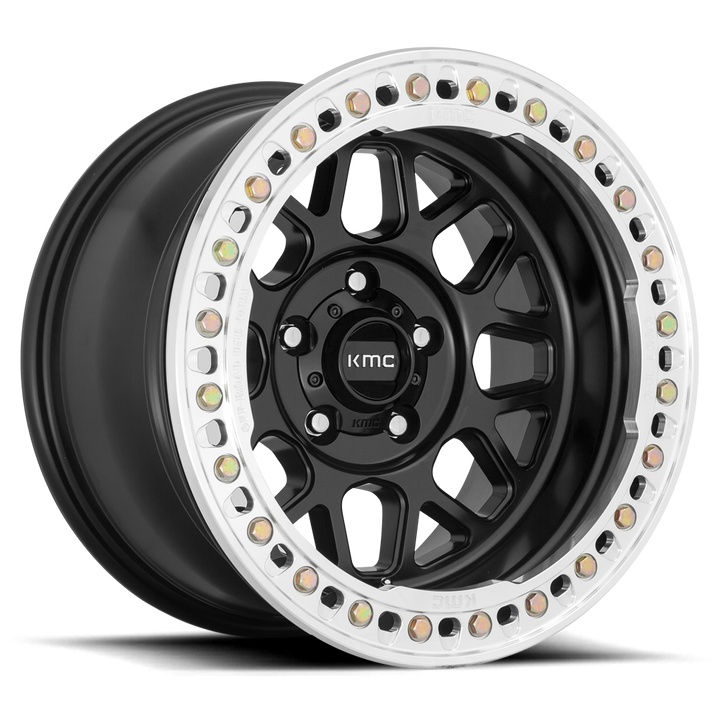

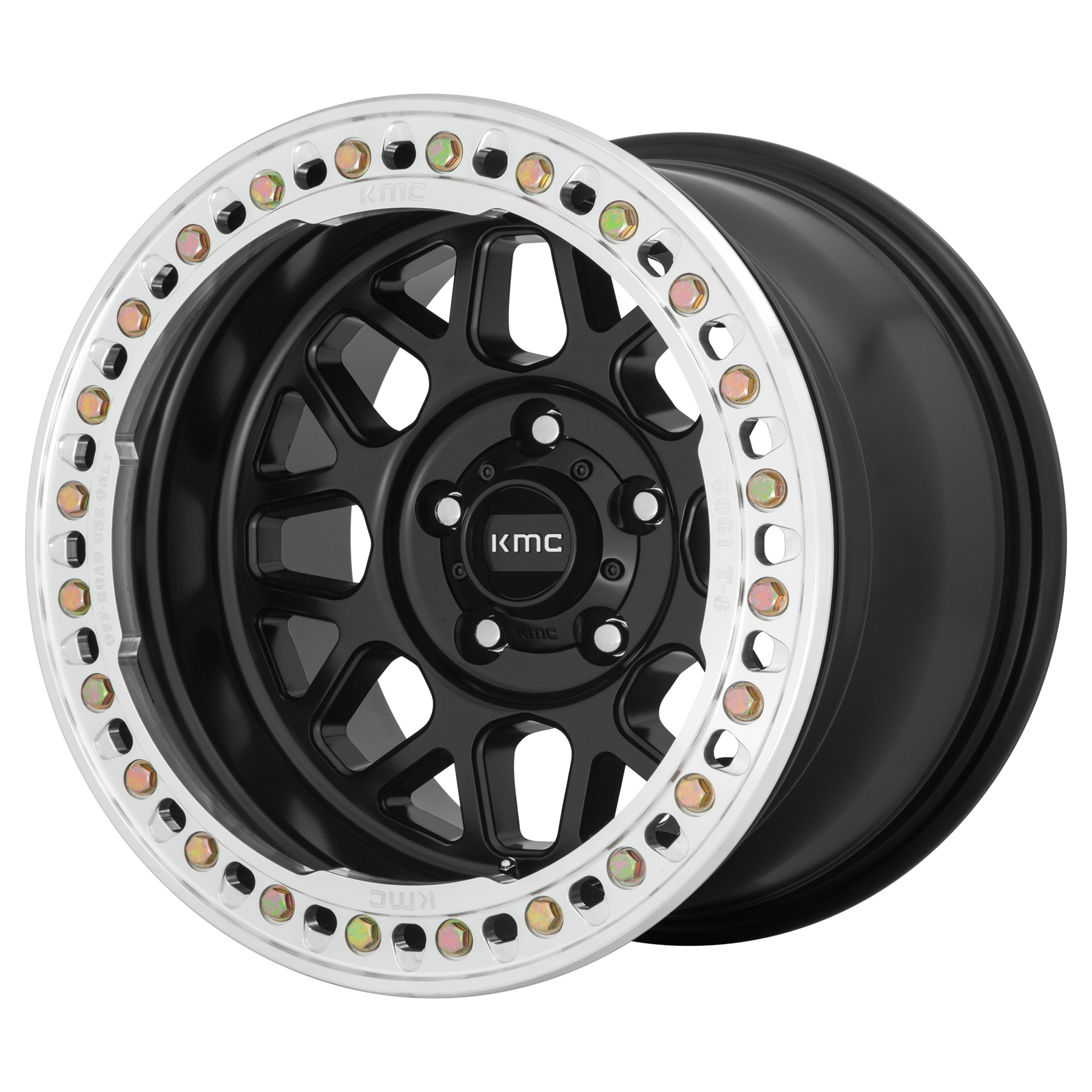

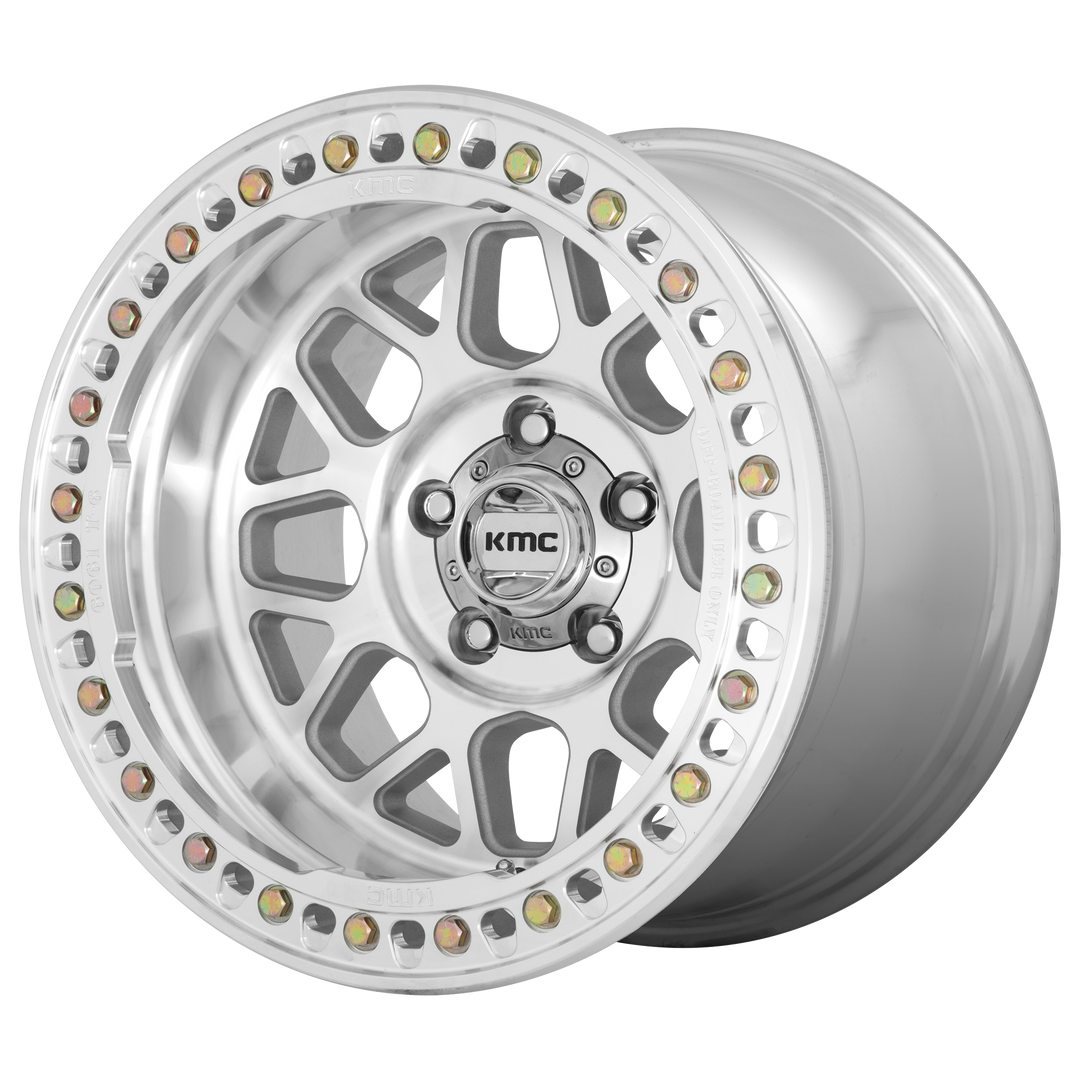

• Finishes: Machined, Satin Black.

Pick your wheel

• Finish: pick the color. The photo changes with the finish.
• Size and Bolt Pattern: diameter x width, then the bolt pattern. Match the bolt pattern to your hubs exactly.
• Offset: more negative pushes the wheel out toward the fender, more positive tucks it in. Each offset is a different part number.

Beadlock wheels are sold for off-road use only. They can be illegal on public roads in many states and provinces, so check your local laws before you buy.

Each wheel is sold individually. Not sure which bolt pattern or offset fits your rig? Send us your year, make and model and we will point you to the right part number.
